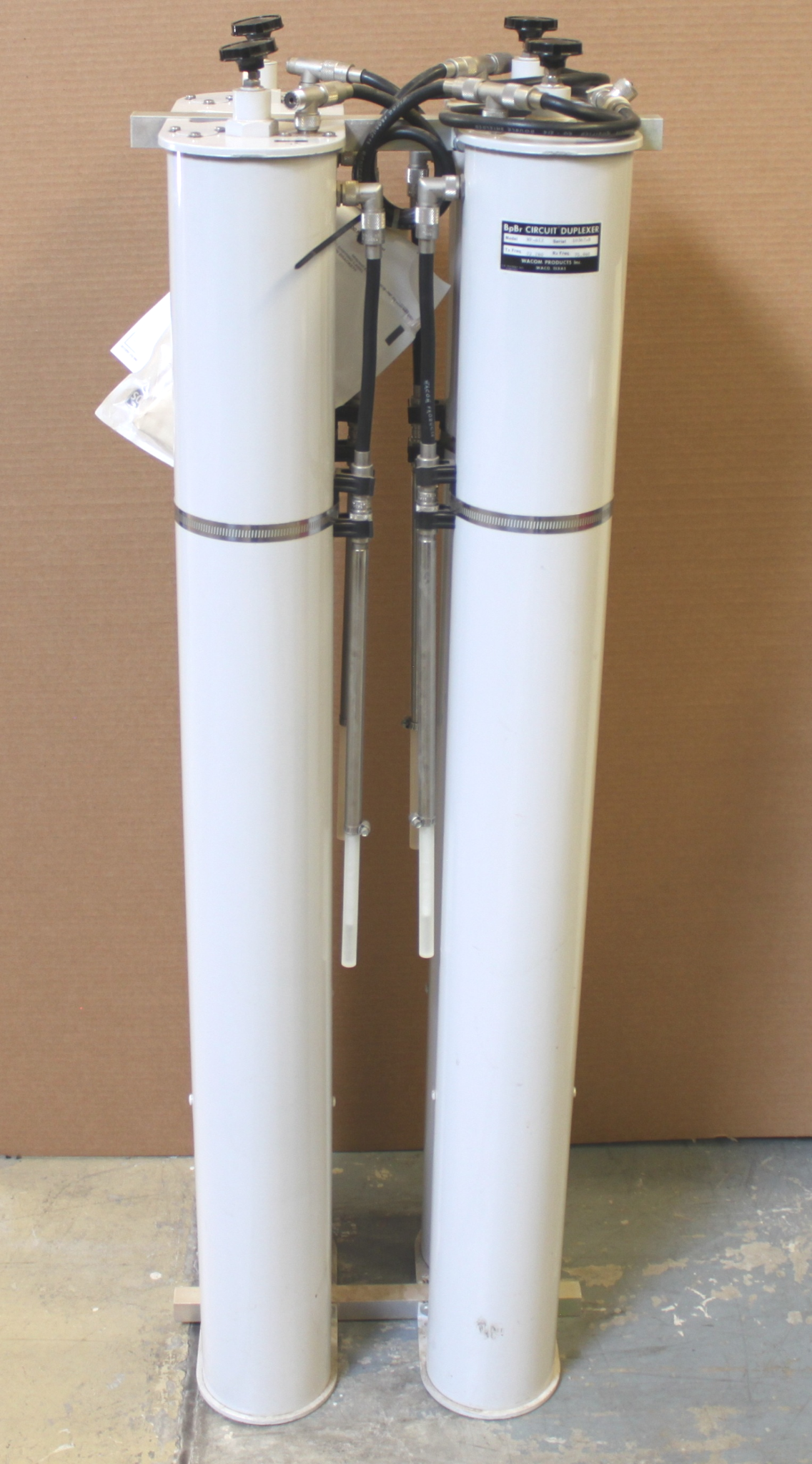

Wacom WP612 Telewave TPRD-0754 Low-Band Duplexer (66 - 88) Mhz

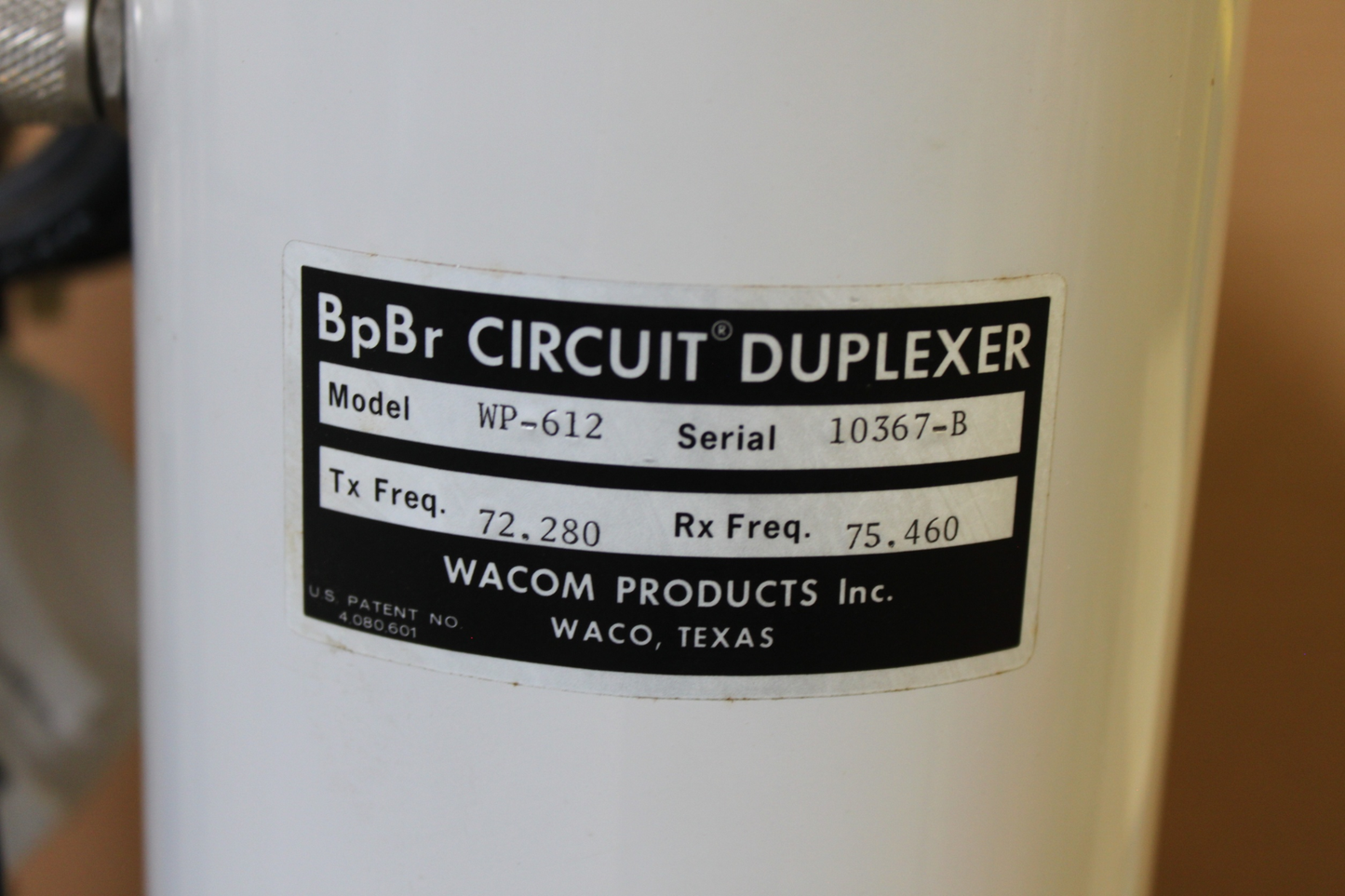

This is a Wacom version low band duplerxer model WP-612P. Wacom was purchased by Telewave and the model number was changed to TPRD-0754. Unit is NEW and guaranteed fully operational.

Due to the size unit will need to be shipped via freight.

Freight shipping capped at $225.00

ELECTRICAL SPECIFICATIONS

Frequency coverage / tuning range 66-88 MHz

Frequency separation (min) 600 KHz

Maximum input power 350 watts

Insertion loss 1.2 dB (TX / RX to ant.)

RX isolation / TX noise suppression 80 dB at ±600 KHz

VSWR (max) 1.5:1

Temperature range -30°C to +60°C

MECHANICAL SPECIFICATIONS

Dimensions (HWD) in. (cm) 47 x 19 x 11 (119 x 48 x 28)

Tuners fully extended in. (cm) 54 x 19 x 11 (137 x 48 x 28)

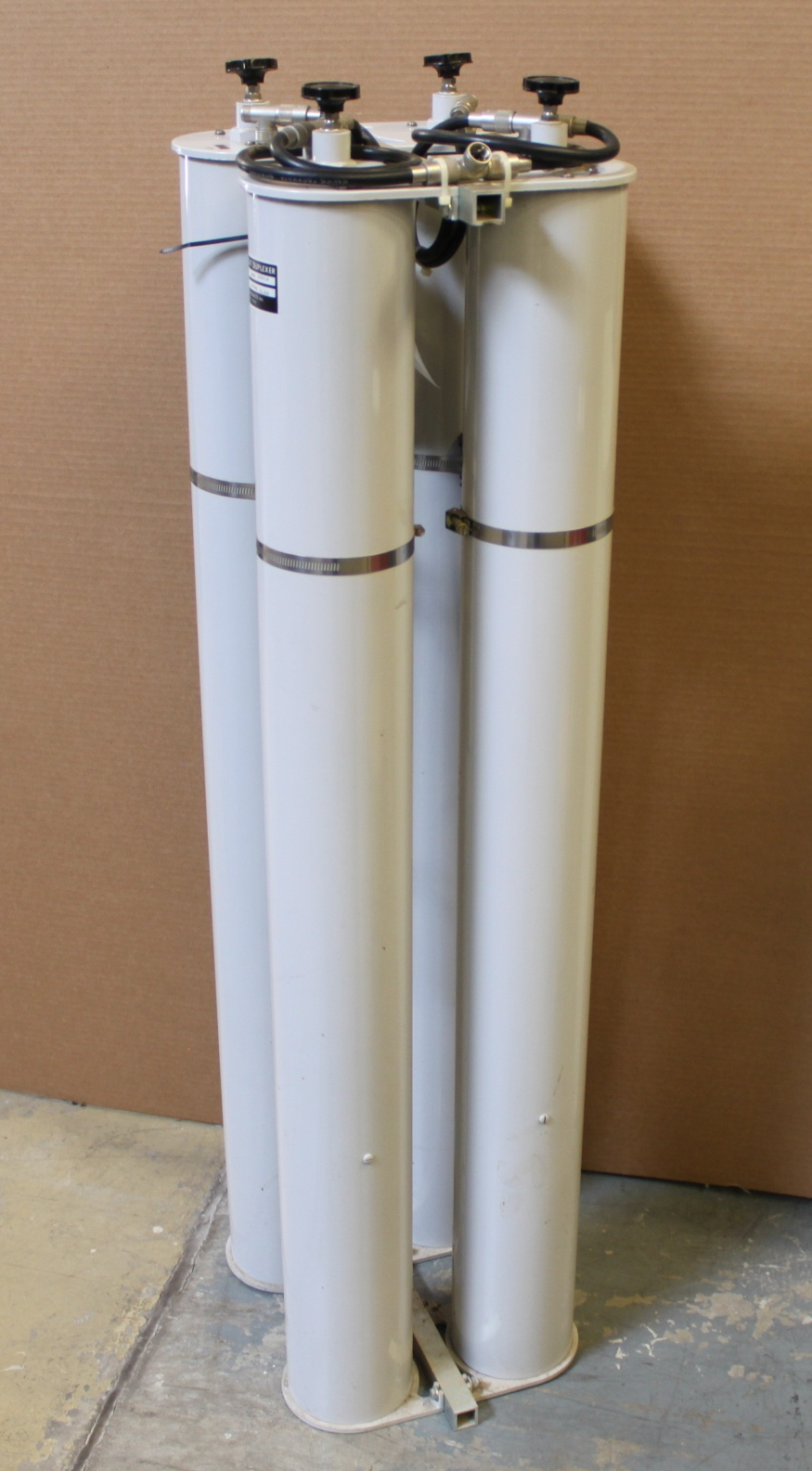

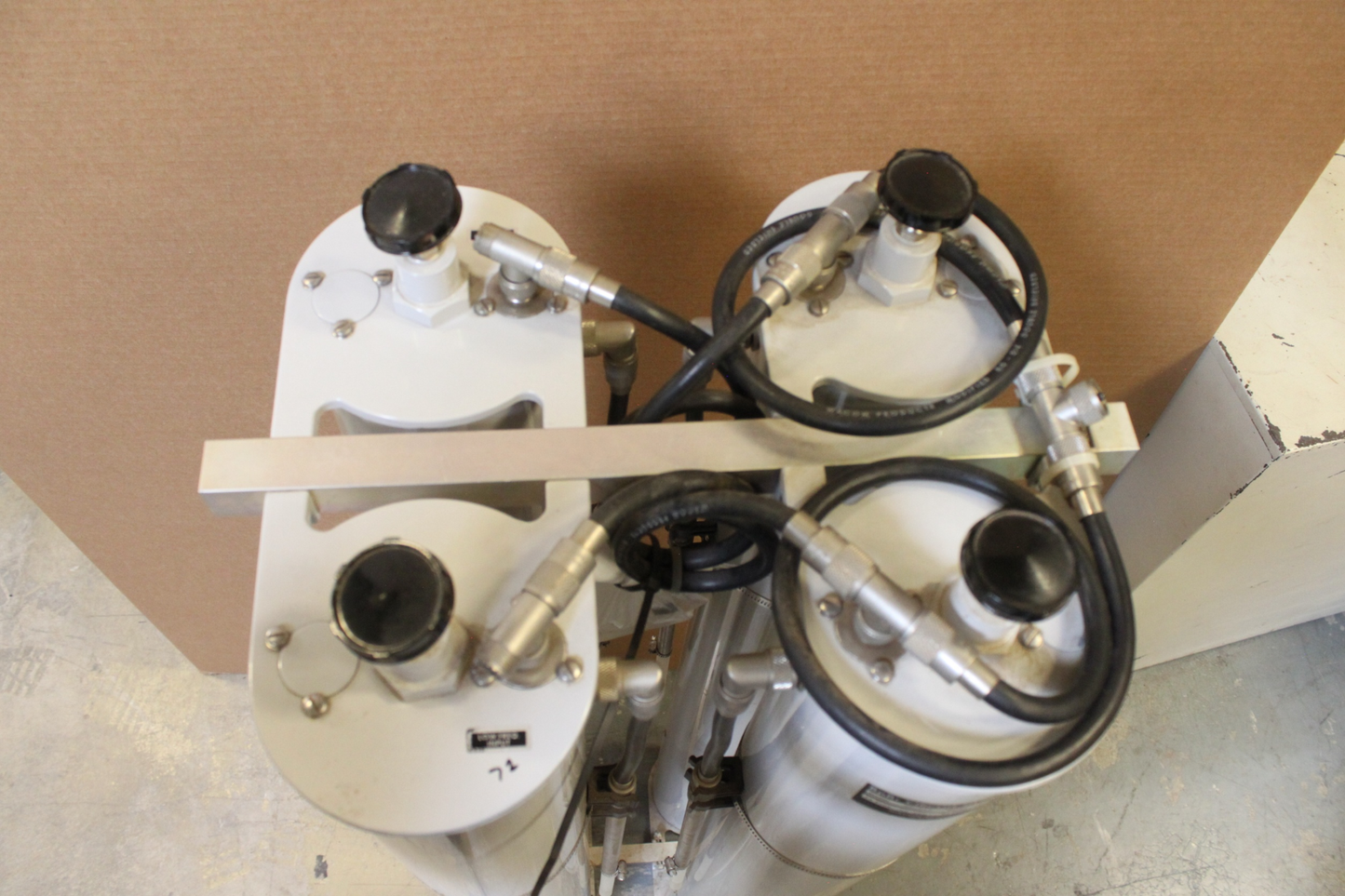

Cavities (4) - 5”

Mounting 19” Rack or wall mount

Connectors N or UHF female (opt.)

Finish Gray acrylic enamel

Net weight lb. (kg) 40 (18.2
