Wacom Telewave | 900MHz Hybrid Combiner (5ch)

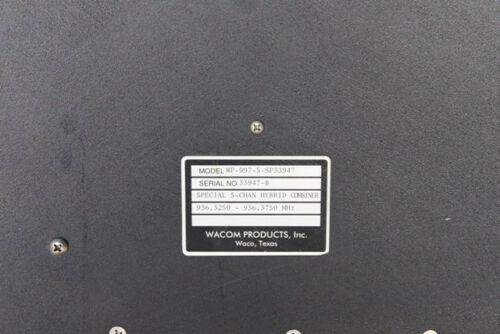

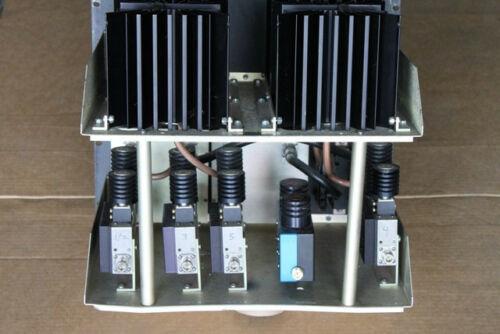

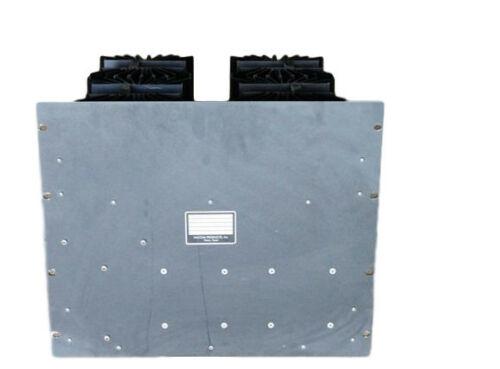

This is a Wacom 5 Channel 900 Mhz Hybrd Combiner, model number WP-997-5. Combiner was removed due to equipment upgrades, unit is in great shape and guaranteed full operational.

Specifications

Product Type	Hybrid-Ferrite
Frequency Band	746 MHz - 1000 MHz
Application	Trunking
Number of Channels	5
Input Power/Channel Range, Watts	60 to 150
Minimum Channel Spacing, kHz	25
End-Mount (Yes/No)	Yes
Tx-Tx Isolation, dB	>50
Frequency Range, MHz	824-960
Reflected Power, Max. Allowable from Ant., Watts	60
Bandwidth, MHz	50
Isolation, Min. Tx-Tx, dB	71
Isolation, Min. Ant.-Tx., dB	57
Insertion Loss, Max. per Channel, dB	7.9
Channel Separation for Specifications Given, kHz	25
Continuous Power Input, Max. per Channel, Watts	150
Input Return Loss, Min., dB	16.5
Output Return Loss, Min., dB	16.5
Connectors - Input	N-Female
Connectors - Output	N-Female
Temperature Range, �C (�F)	-30 to +60 (-22 to +140)
Height, mm (in)	267 (10-1/2)
Width, mm (in)	483 (19)
Depth, mm (in)	305 (12)
Mounts in 19" (483mm) EIA Rack (Yes/No)	Yes
Weight, kg (lb)	13.5 (30)

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
