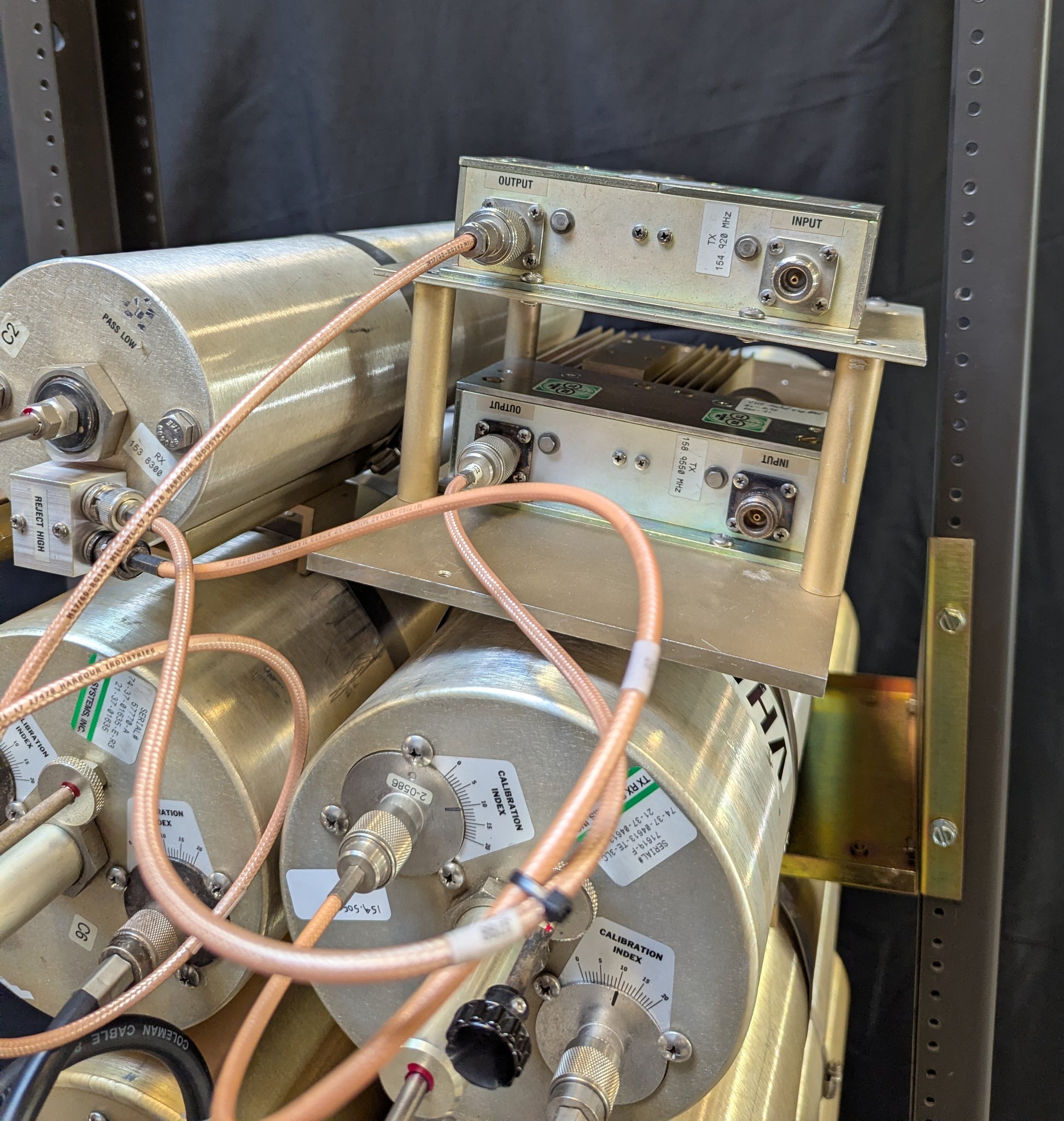

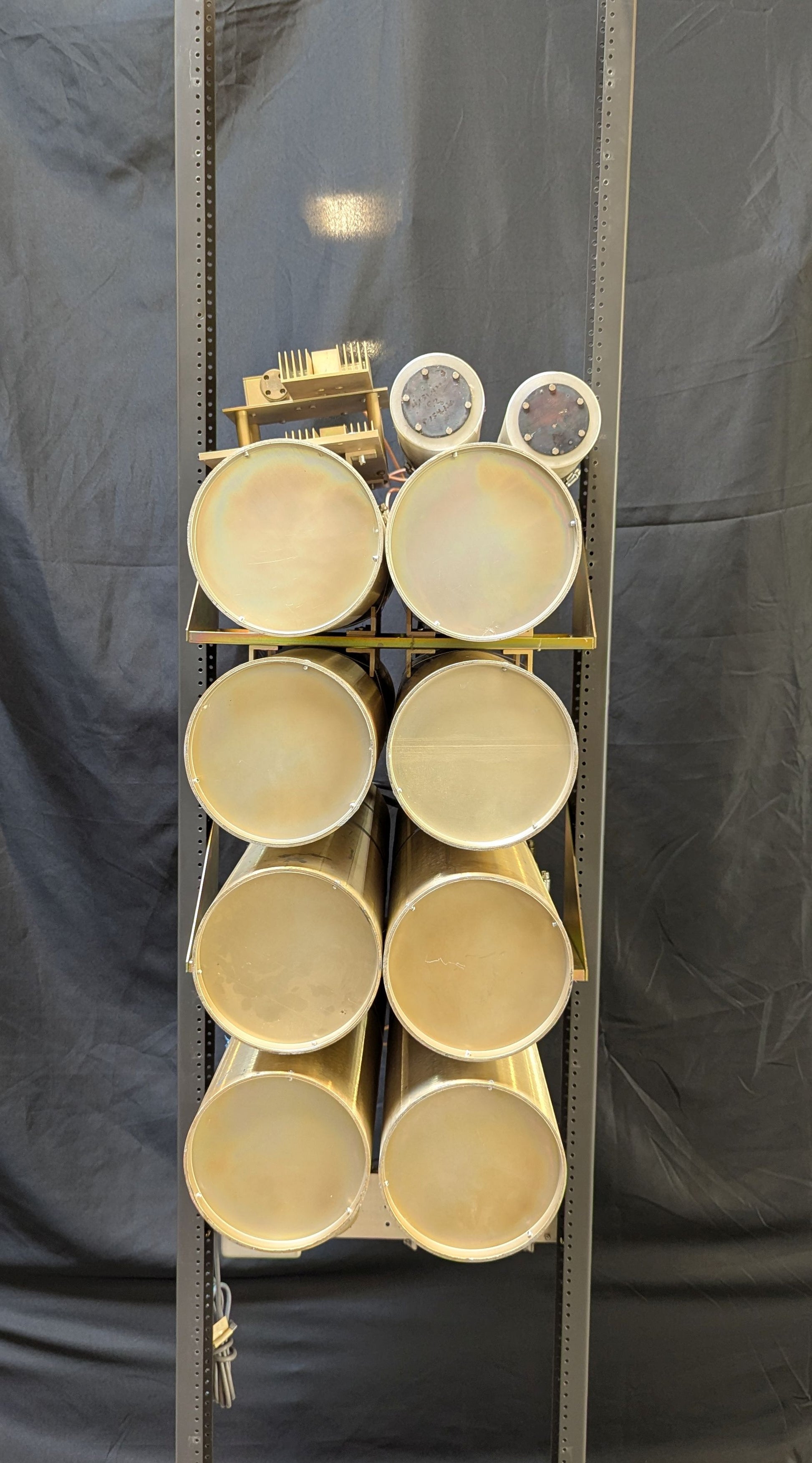

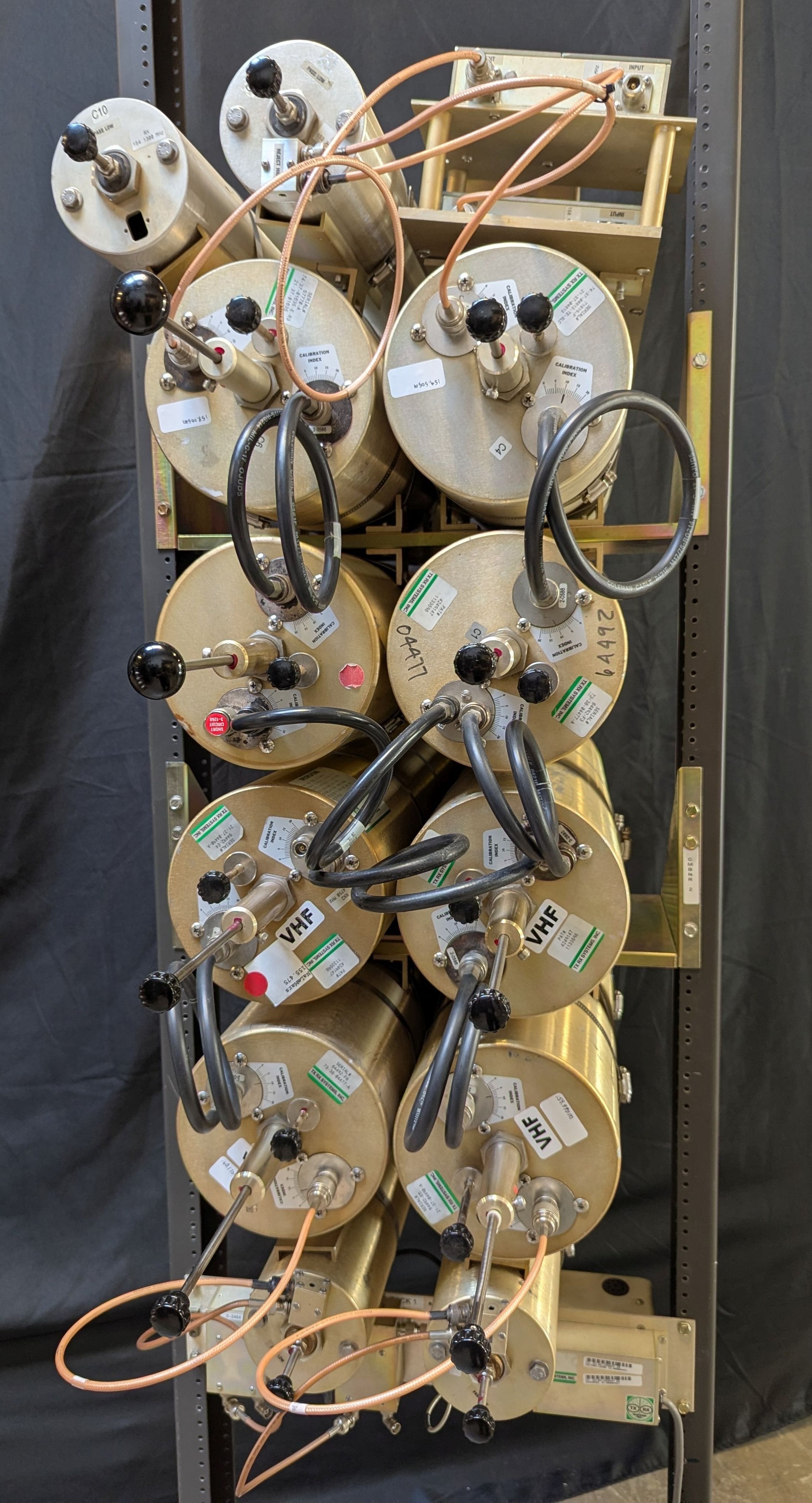

TXRX Systems T-Pass VHF 2-Channel 12-Cavity Duplexer (148-174 MHz)

TXRX Systems T-Pass VHF 2-Channel 12-Cavity Duplexer (148-174 MHz)

73-38-01-04

$3,695.00 USD
$3,695.00 USD
Sale Sold out
Shipping calculated at checkout.

The two-channel, four-frequency duplexer combines two high-power repeaters into a single duplexed antenna. This was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

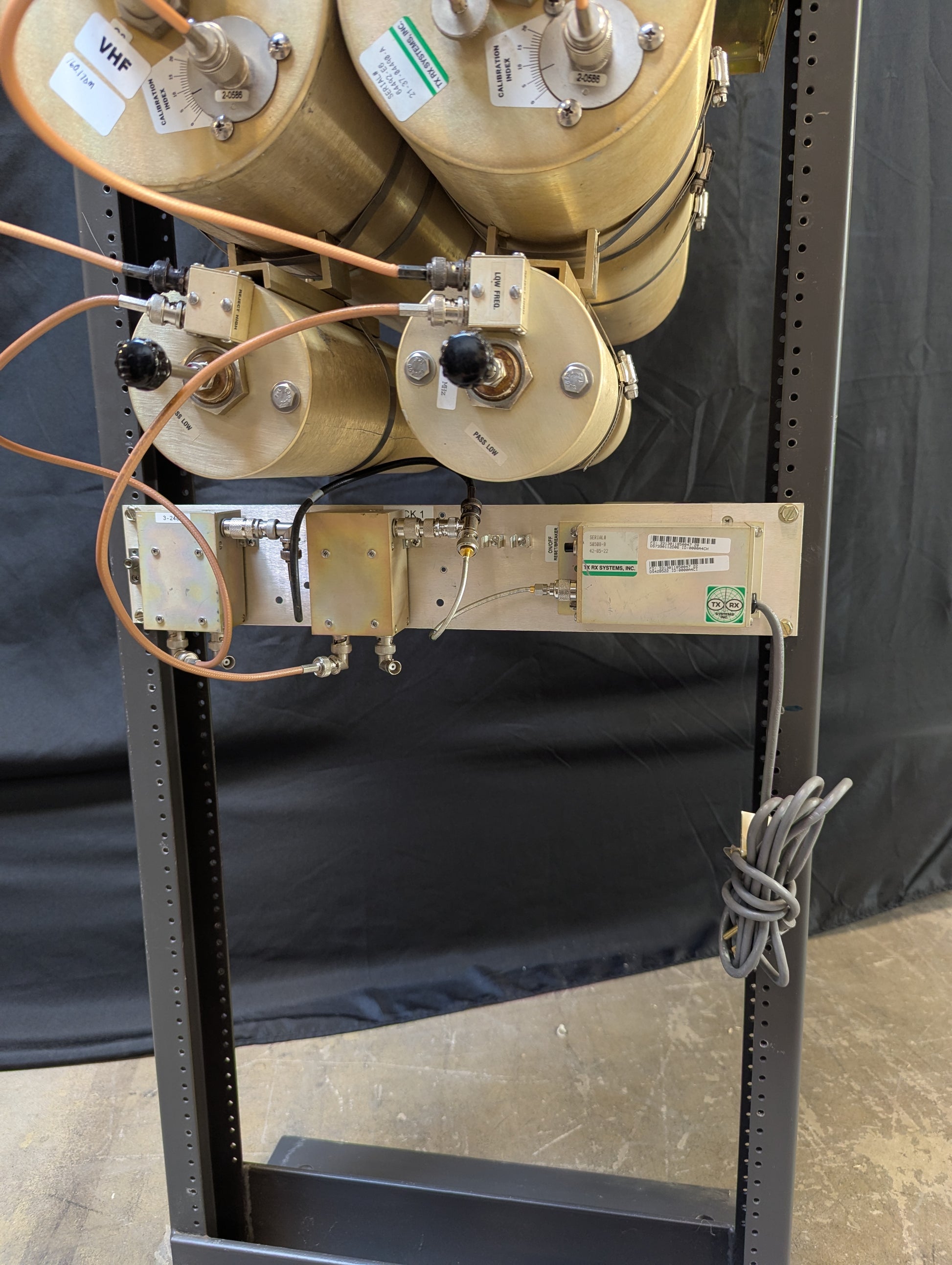

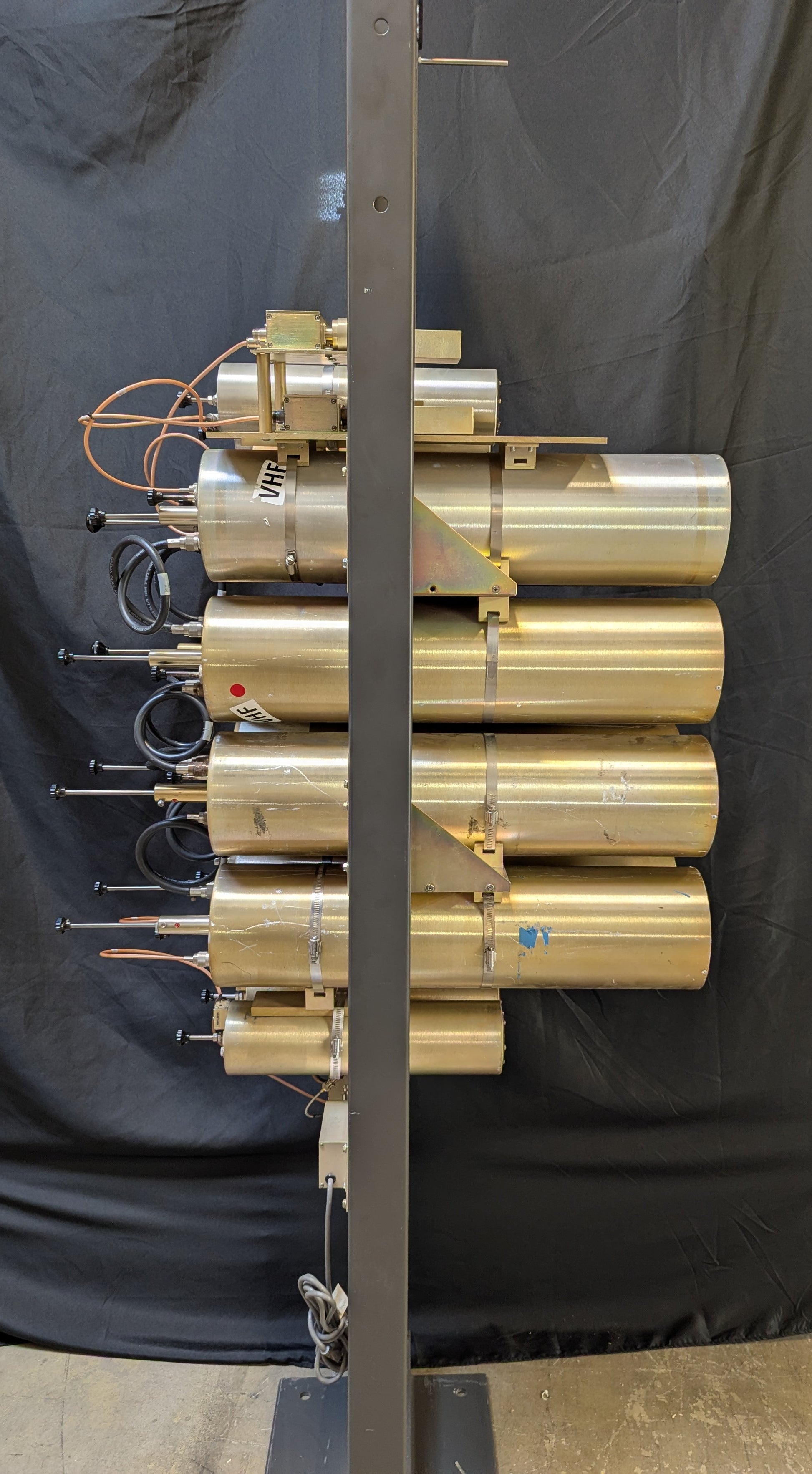

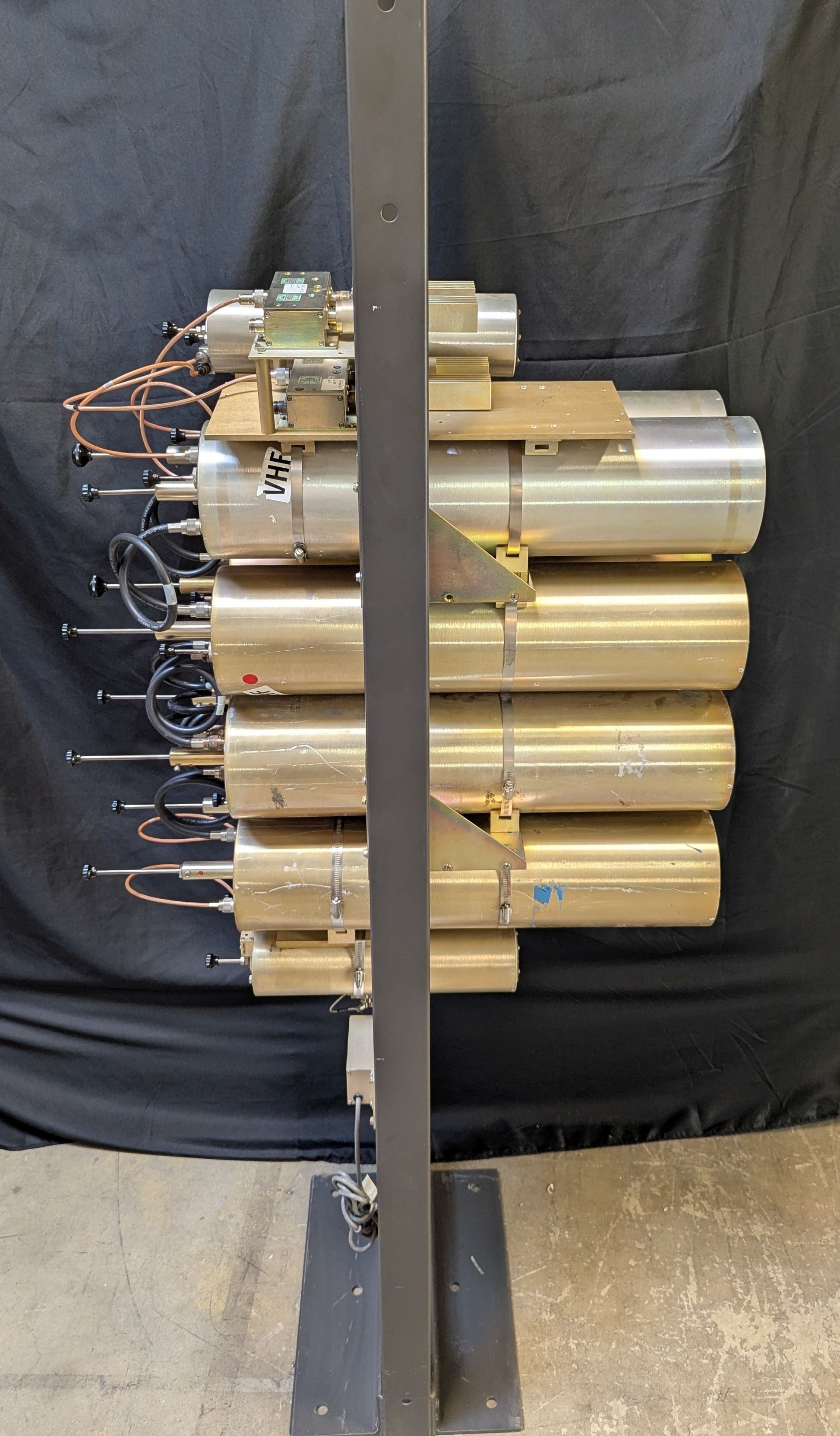

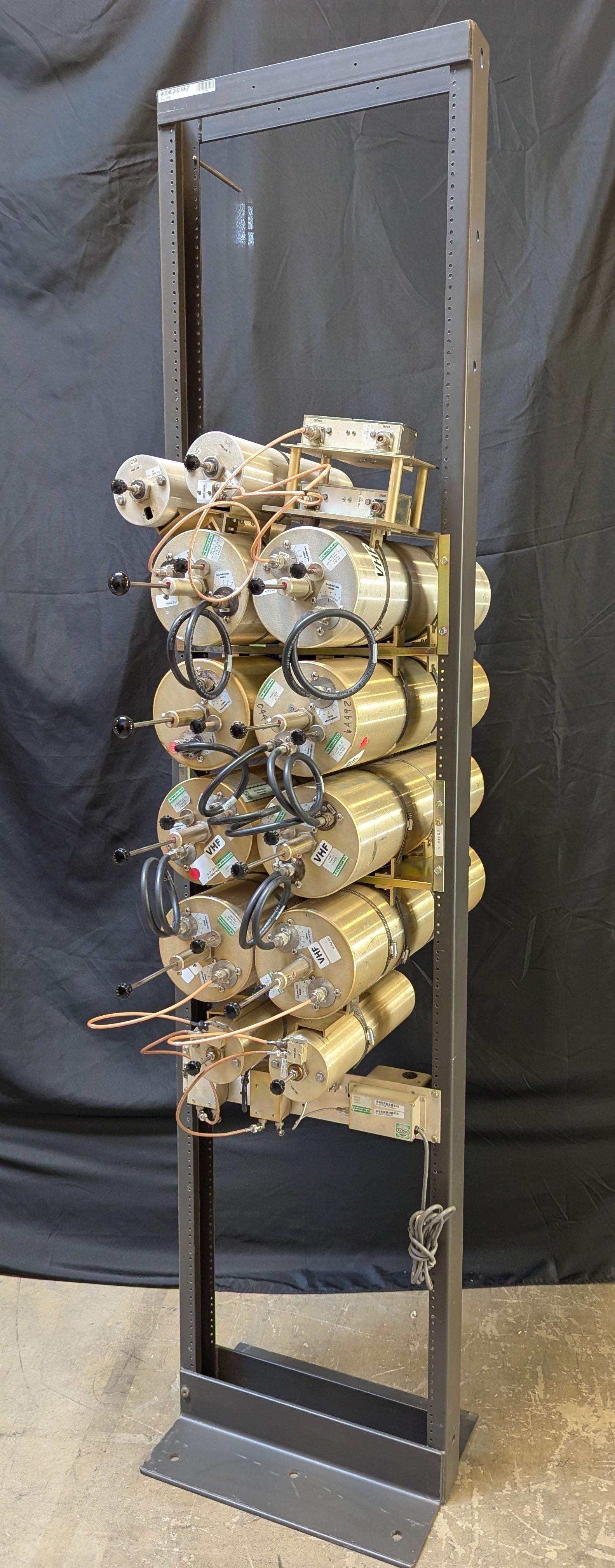

  • TXRX Systems VHF 2-Channel 12-Cavity Duplexer

  • 30-day warranty

Product Details:

  • Model Number: 73-38-01-04

  • Frequency Range: 148-174 MHz

  • Cavity Diameter: Eight 6.625” + Four 4”

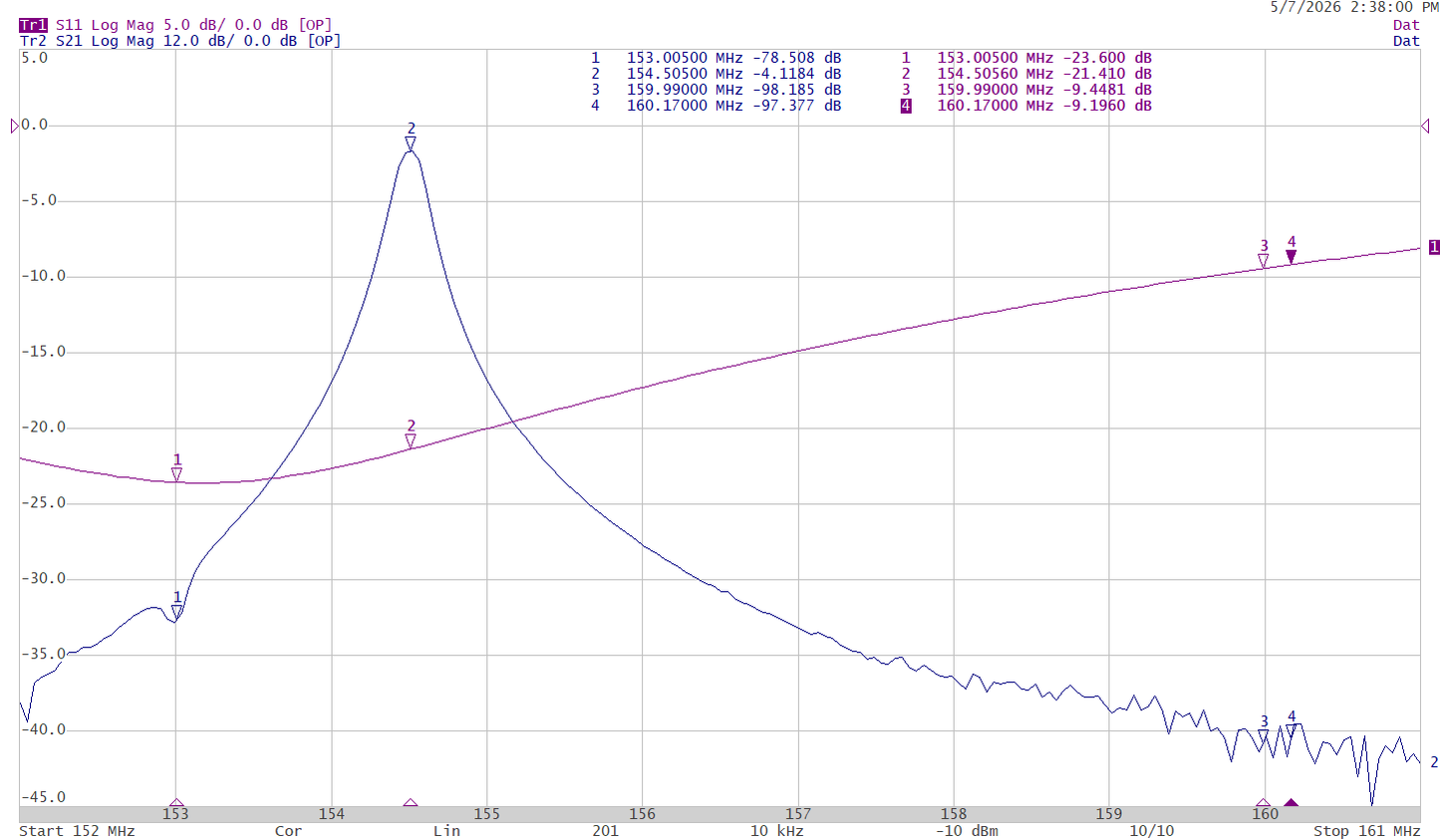

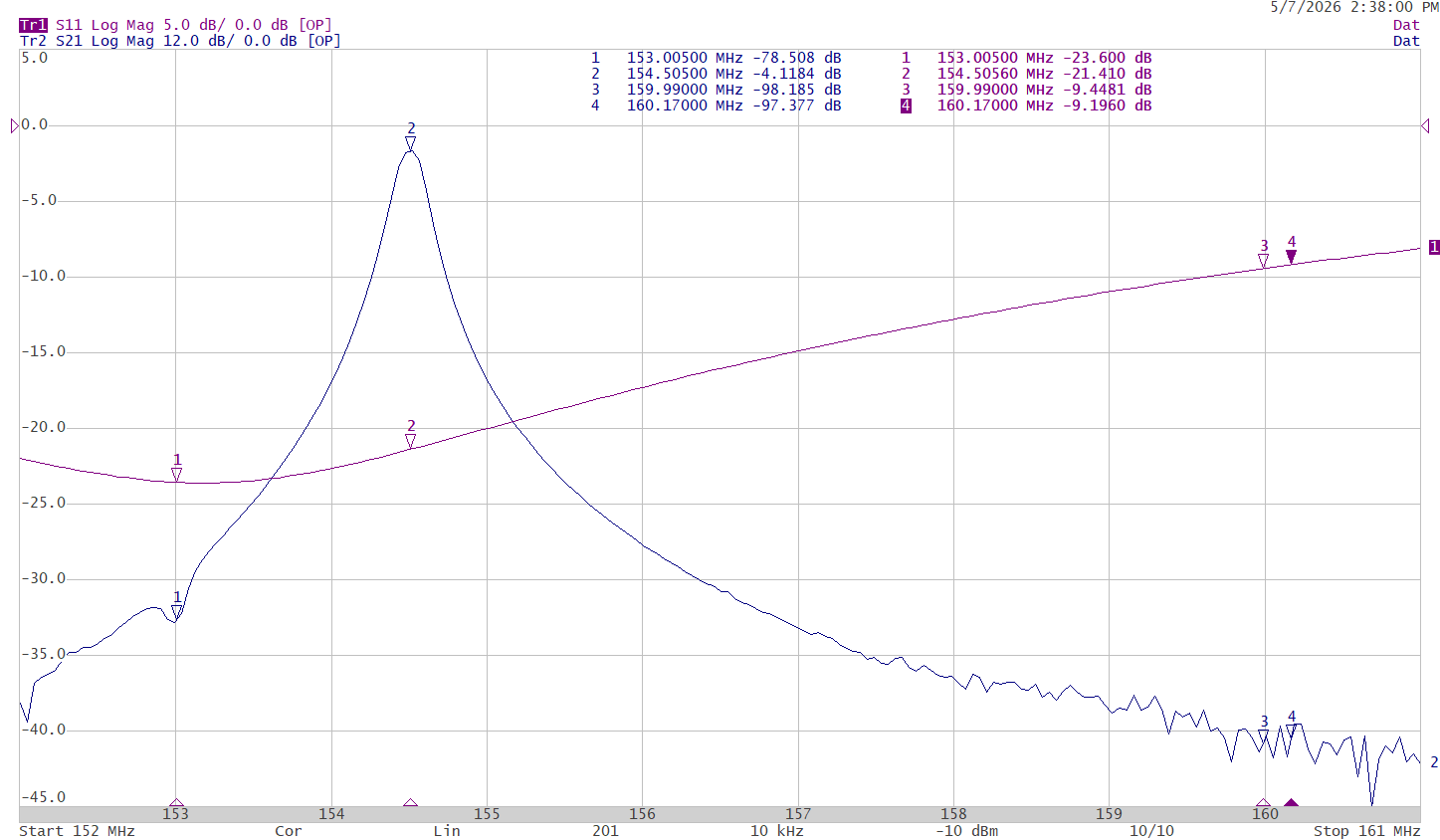

  • Insertion Loss: 4.1 dB

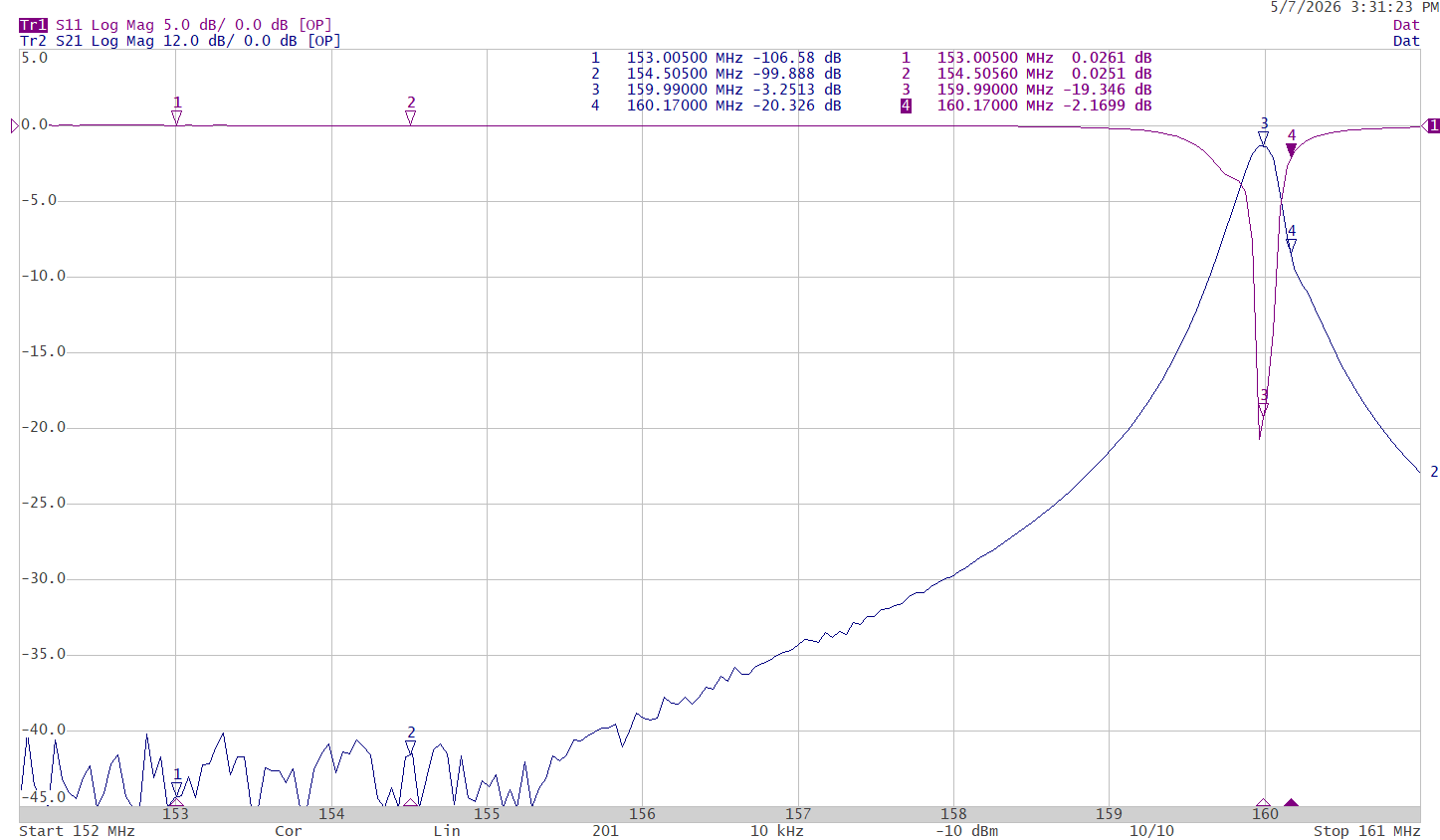

  • Isolation: 80 dB

  • Tx/Rx Separation: 1.5 MHz

  • Channel Spacing: 100 kHz

  • Max Power Out: 125 W

  • In/Output Connectors: N-Female (Tx-Ant)/BNC (Rx)

  • Dimensions: 19"W X 90"H X 36"D (on rack)

  • Weight: 220 lbs.

*Image shown is a representation only. Actual product may vary.
