Telewave VHF (144-174MHz) Combiner w/Preselectors

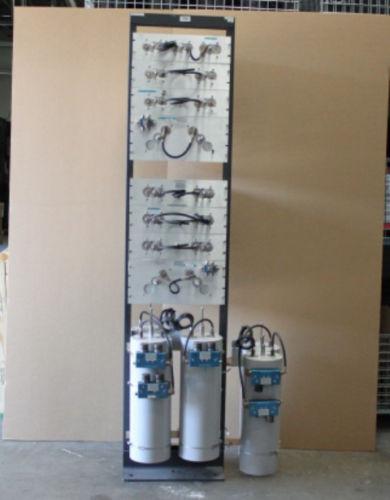

This is a Telewave 5 Channel VHF combiner. This combiner is made up of:

• (5) M101-150-1T Cavities - with dual stage isolators. - Original system was configured as (1) 2 Channel Combiner and (1) 3 Channel Combiner
• (6) TWPC-1505-2F - Band Pass Cavities
• (2) TPCP-15185 - Pre Selectors

These were used with (5) 110 watt Quantar repeaters, combiners can be tuned to freqs between 144-174 Mhz range. Combiner is in great shape and guaranteed fully operational. This item will need to be shipped via freight carrier. There is no charge to palletize the combiner. I have put $150.00 in the shipping field, will need to calculate actual freight coast after the auction. We can also remove the components from the rack and ship in a pallet box. We can tune the combiner to your specs for additional $275.00.

COMBINER SPECS:

Frequency Range	144-174 MHz
Number of Channels	5
Power Per Channel	150 W
Channel Separation	0.12 MHz
Maximum VSWR	1.5:1
Isolator Type	Dual
Cavity Type	1/4 Wave
Electrical Combiner Type	Cavity
Item Width	24 in
Item Length	48 in
Minimum Isolation	75 dB
Item Height	31 in

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
