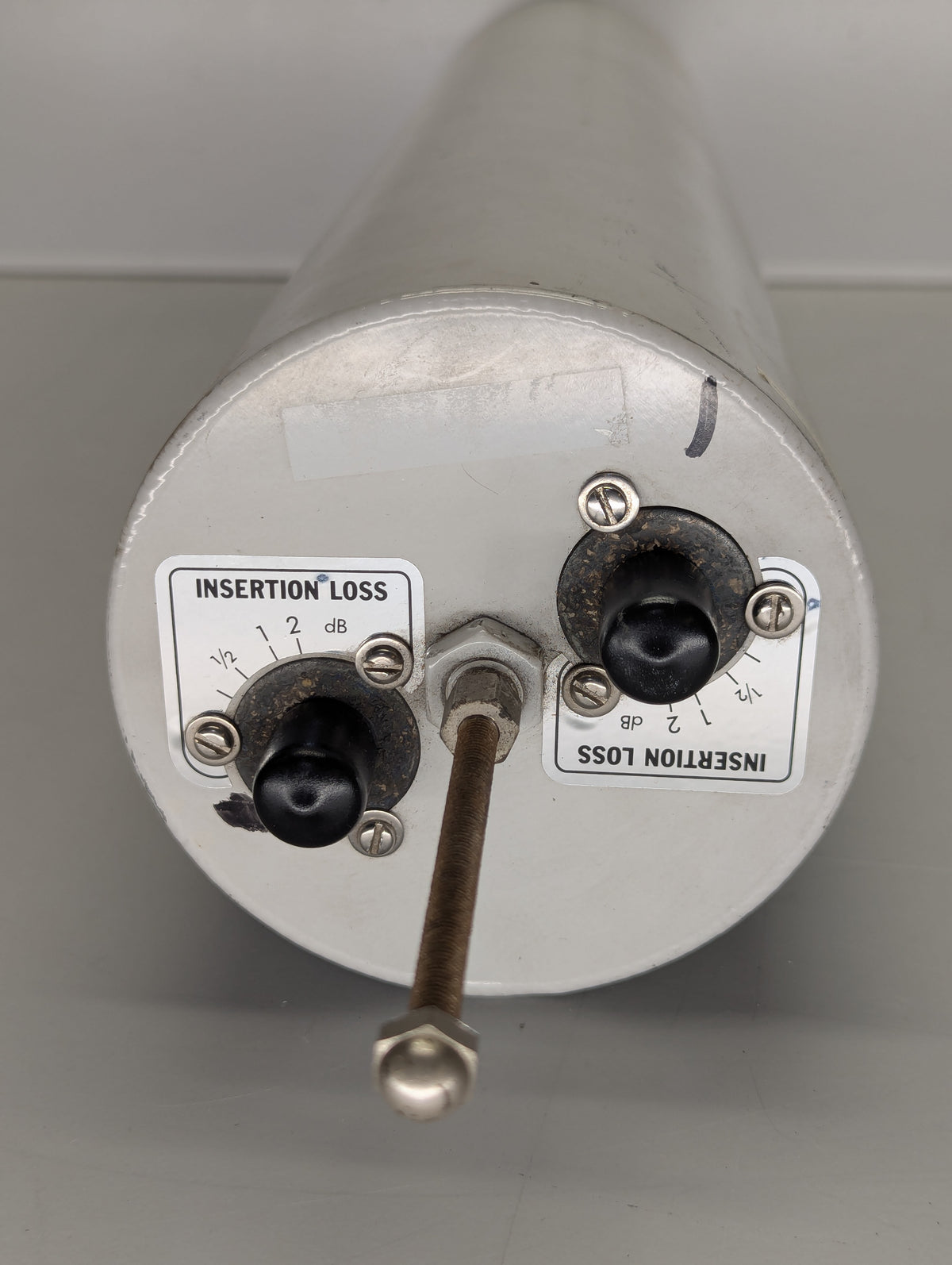

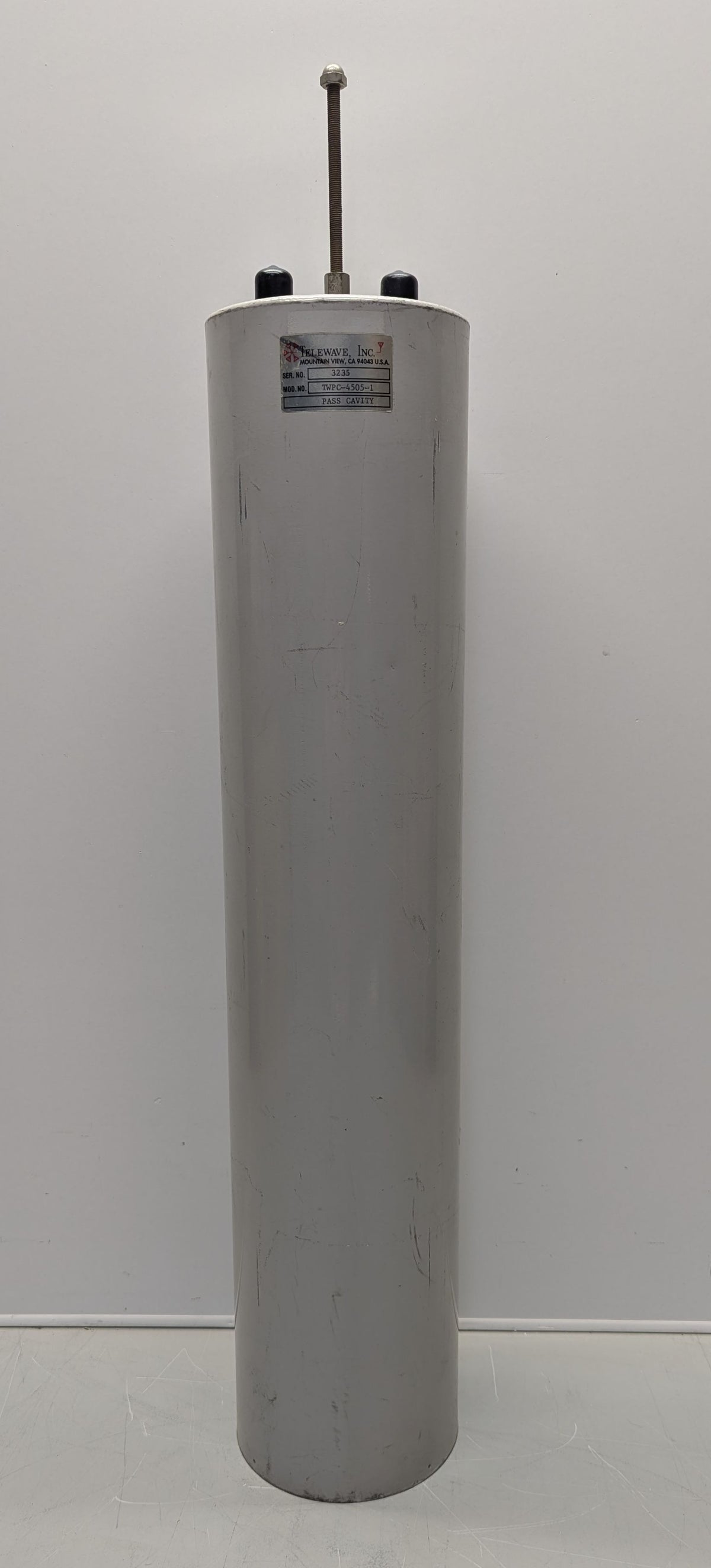

TELEWAVE (TWPC-4505-1) 400-512 MHz Filter cavity

TELEWAVE (TWPC-4505-1) 400-512 MHz Filter cavity

TWPC-4505-1

$405.00 USD
$405.00 USD
Sale Sold out
Shipping calculated at checkout.

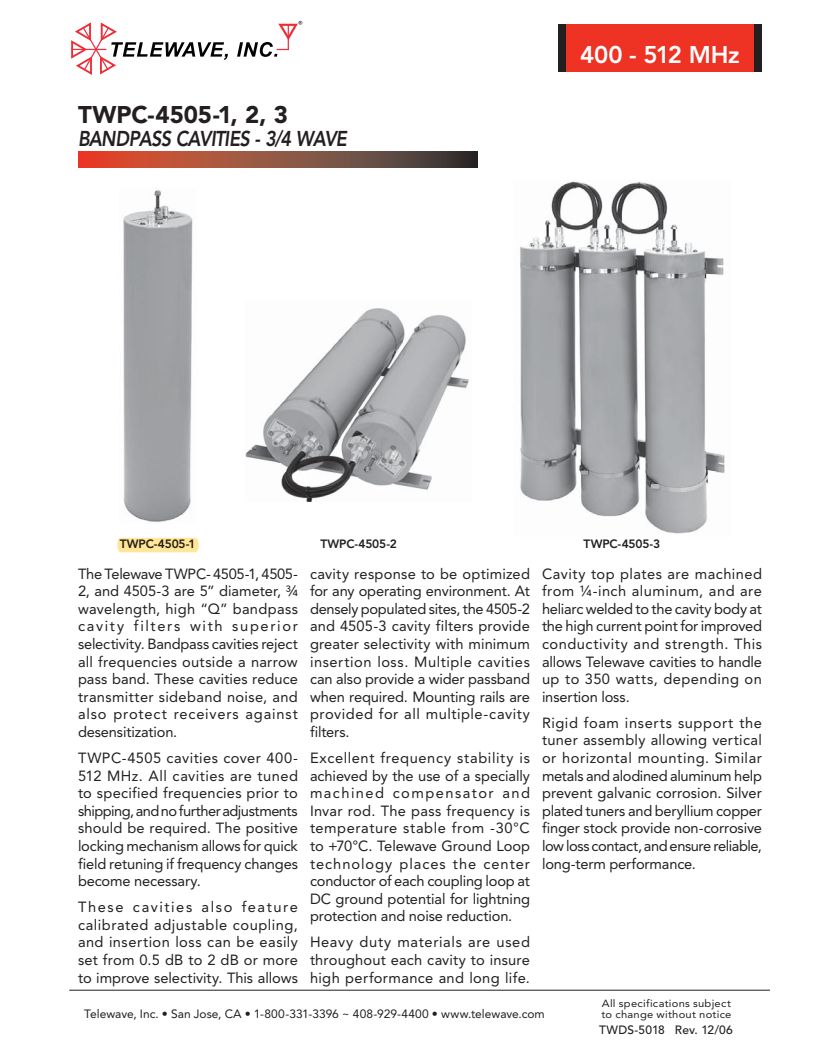

The Telewave TWPC- 4505-1 is a 5” diameter, ¾ wavelength, high “Q” bandpass cavity filter with superior selectivity. Bandpass cavities reject all frequencies outside a narrow pass band. These cavities reduce transmitter sideband noise and protect receivers against desensitization.

It was pulled from a working system and is in excellent condition. If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

  • TELEWAVE TWPC-4505-1

  • 30-day warranty

Product Details:

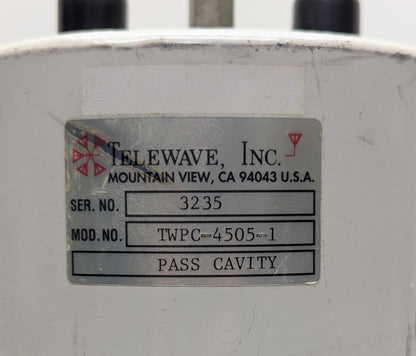

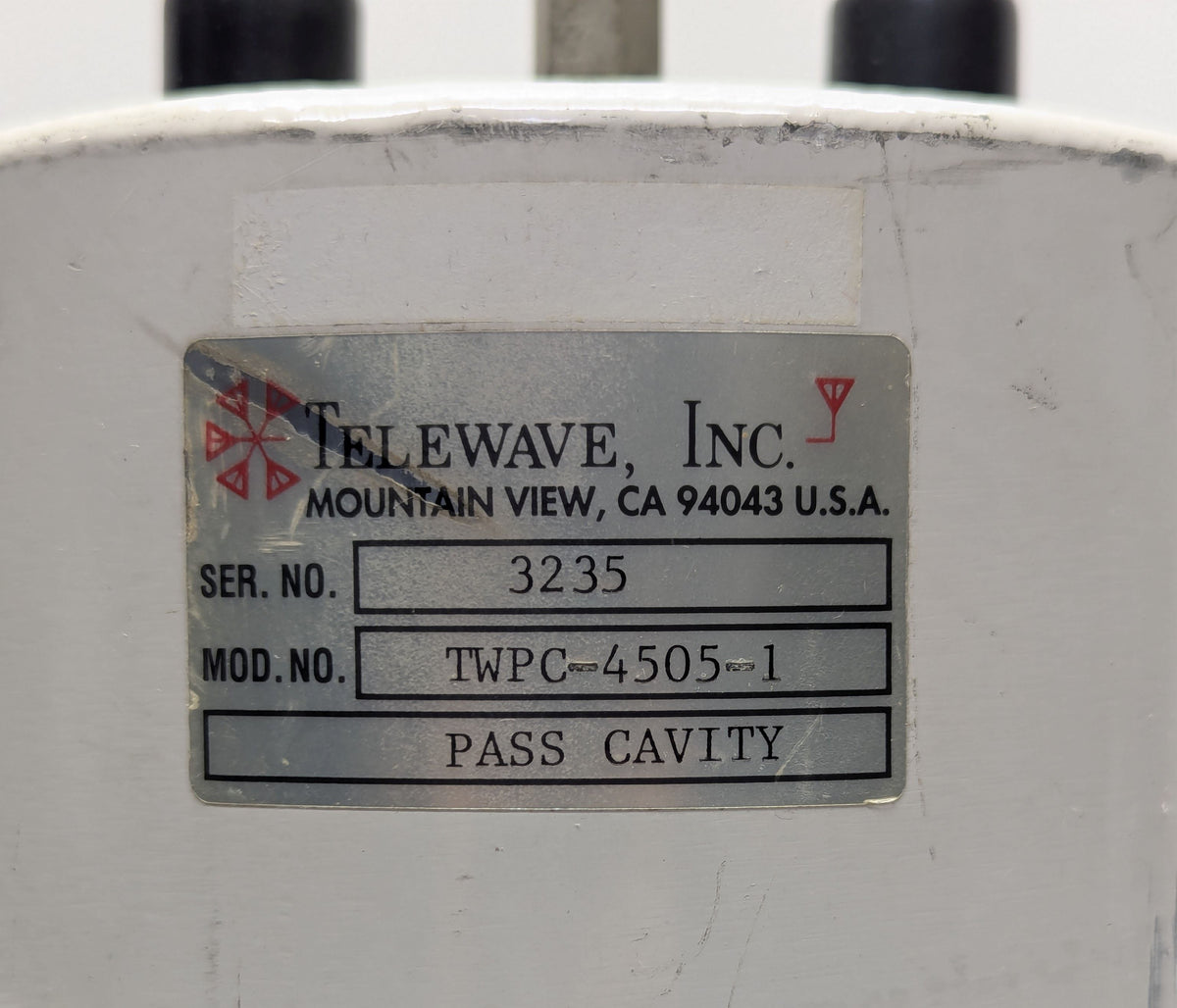

  • Model Number: TWPC-4505-1

  • Frequency Range: 400-512 MHz

  • Input power (max) vs. insertion loss: 0.5 dB - 350 watts, 1 dB - 250 watts, 2 dB - 150 watts

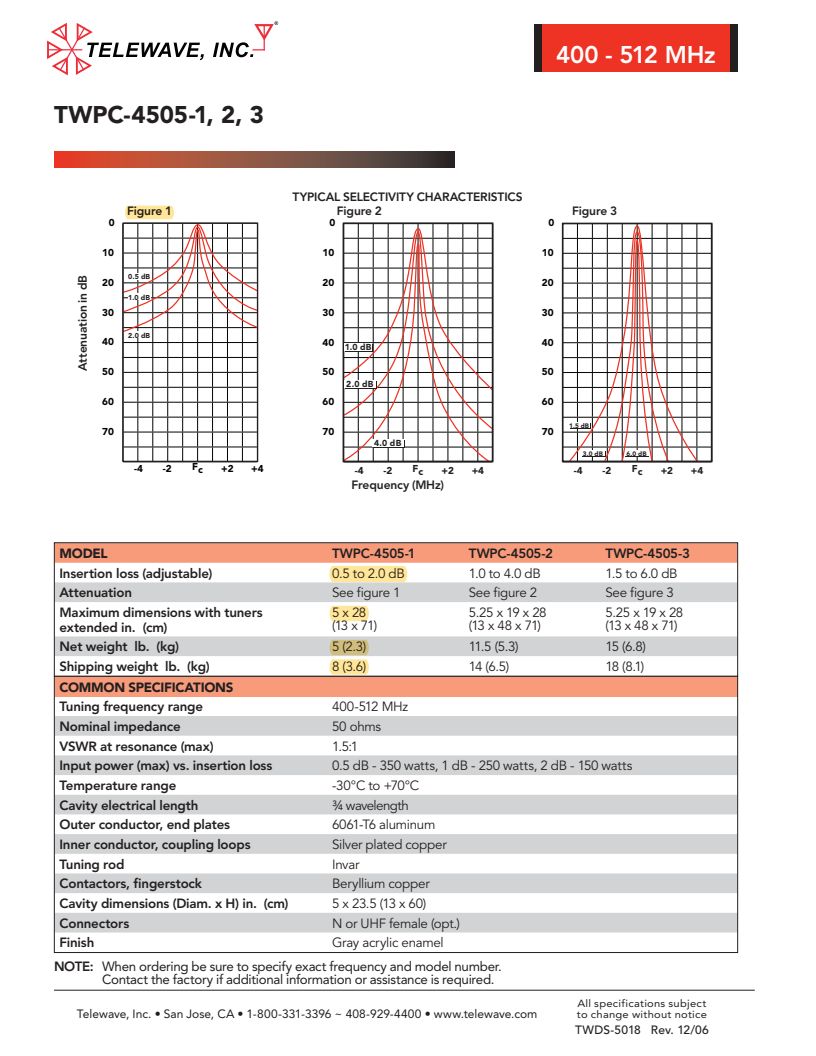

  • Attenuation: See Chart

  • In/Output Connectors: N female

  • Dimensions: 5" x 23.5"

  • Weight: 5 lbs.

*Image shown is a representation only. Actual product may vary.
