TELEWAVE (TWNC-4504-1) 400-512MHz notch cavity

TELEWAVE (TWNC-4504-1) 400-512MHz notch cavity

TWNC-4504-1

$215.00 USD
$215.00 USD
Sale Sold out
Shipping calculated at checkout.



Description:

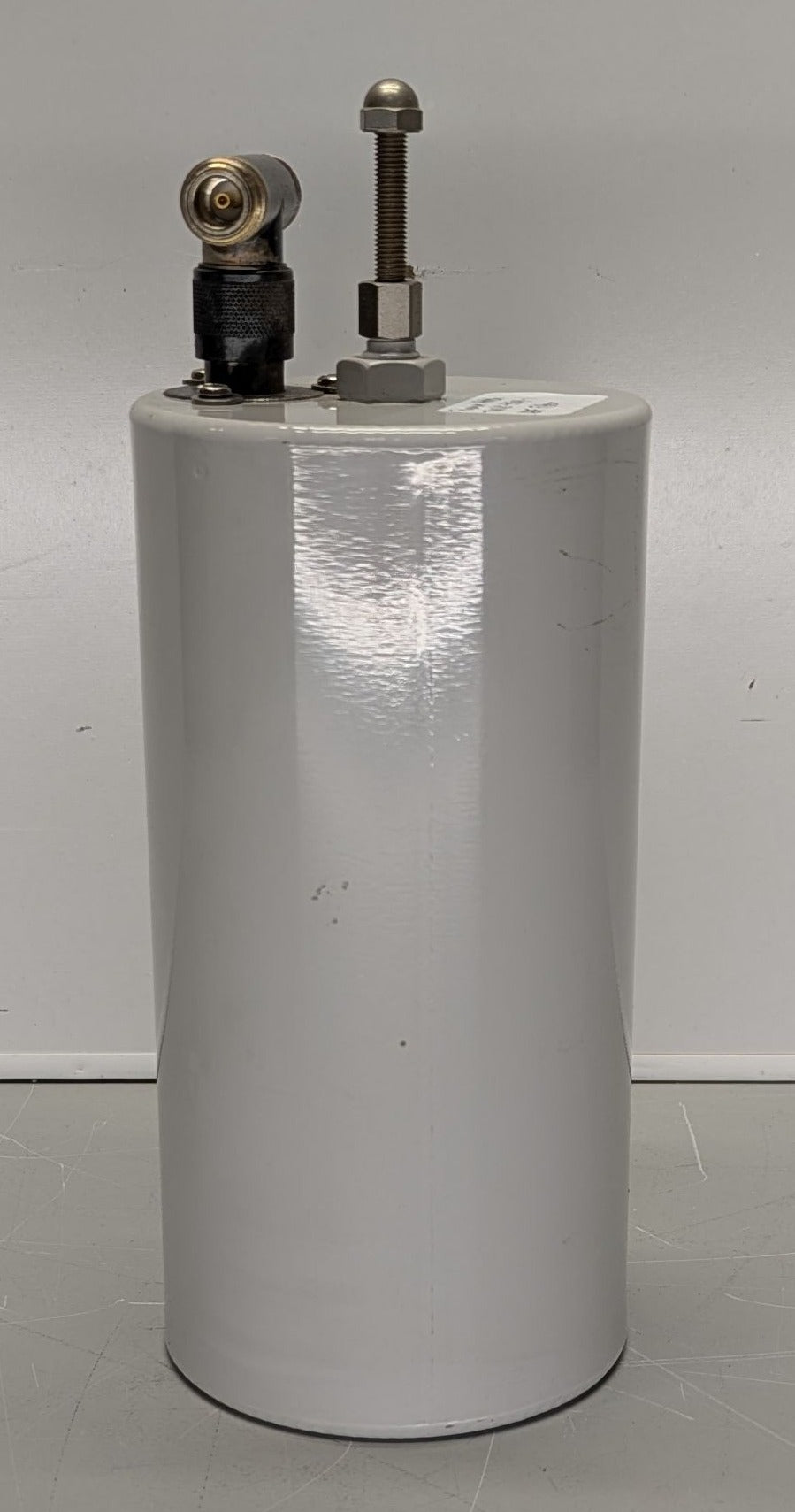

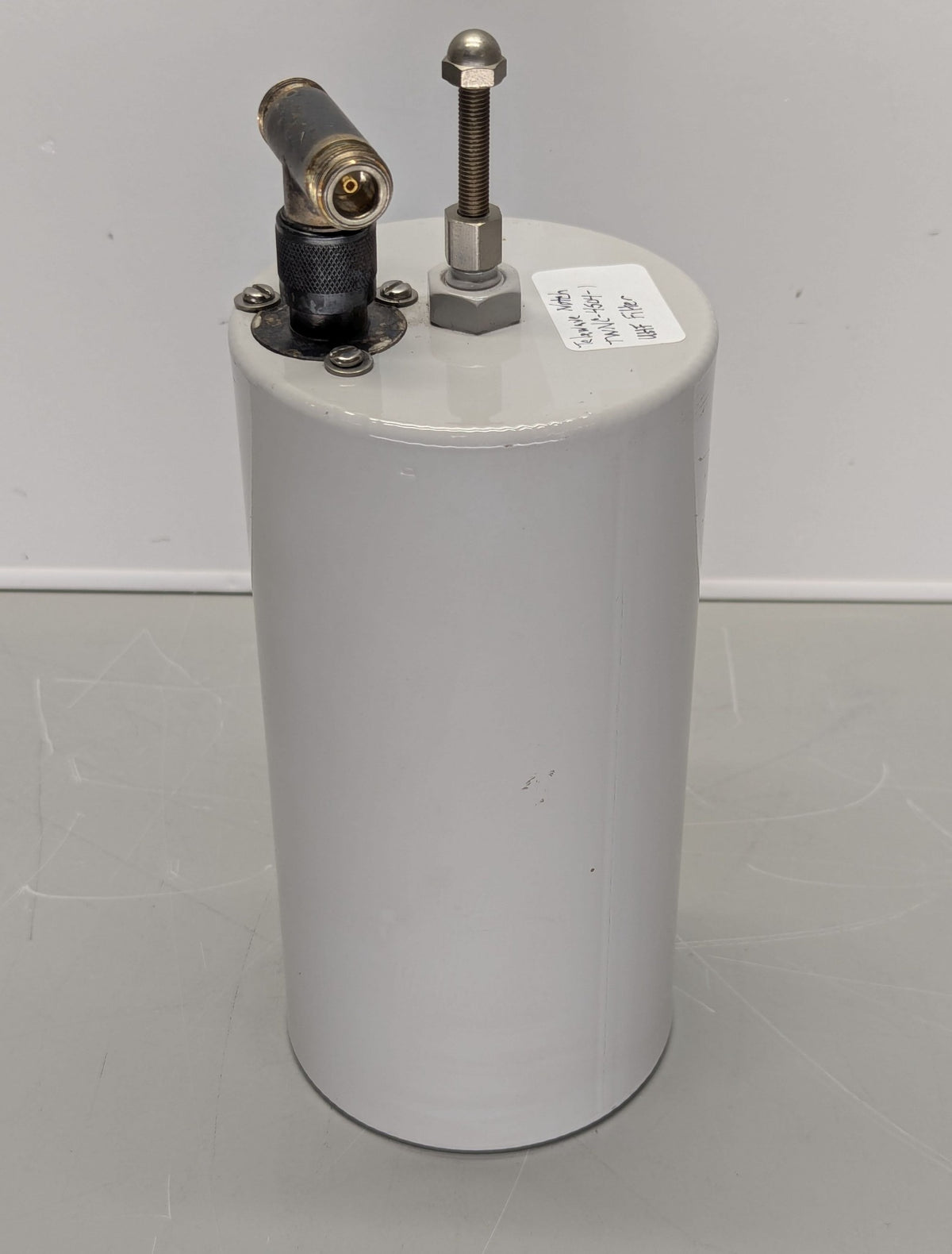

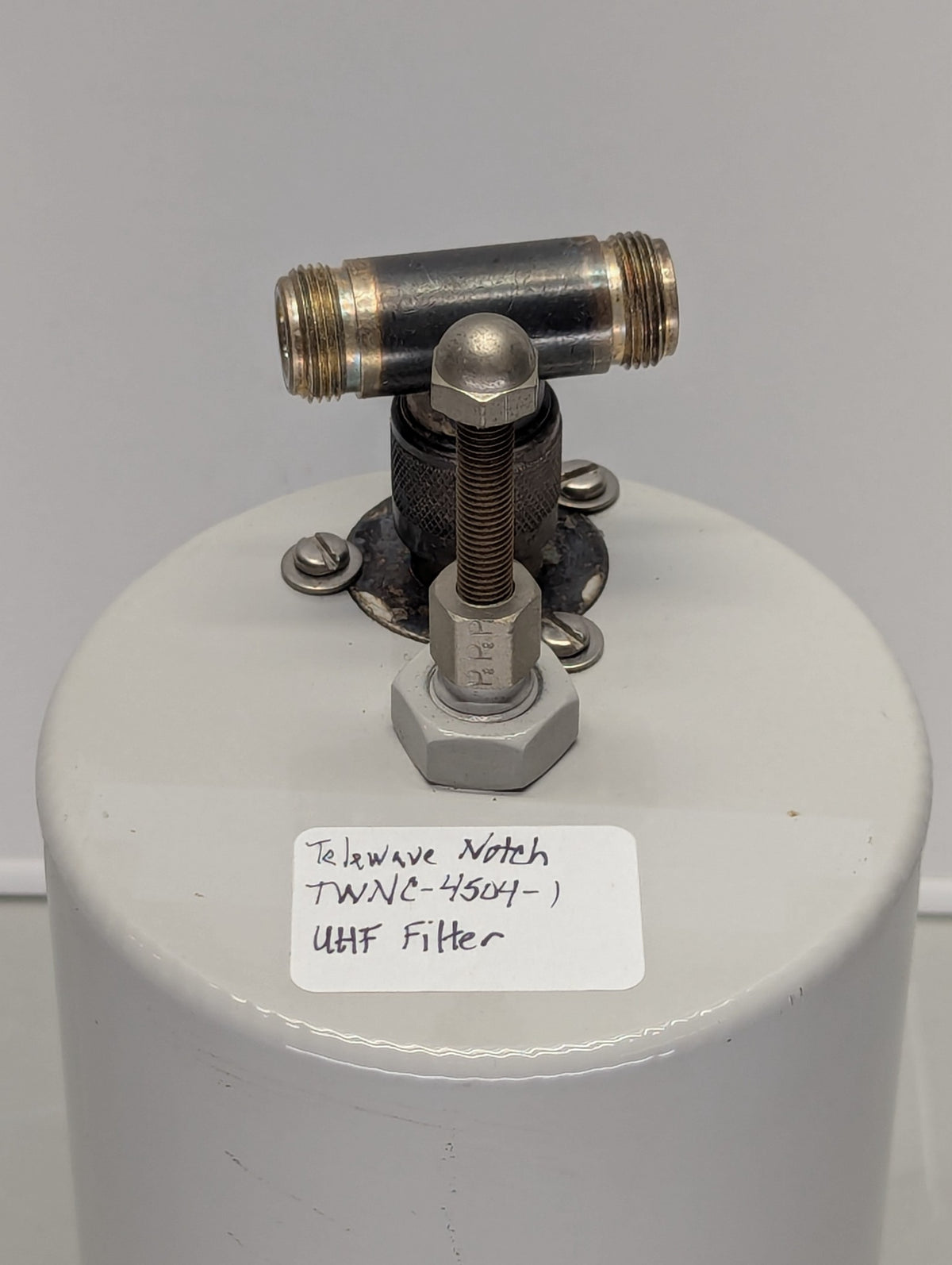

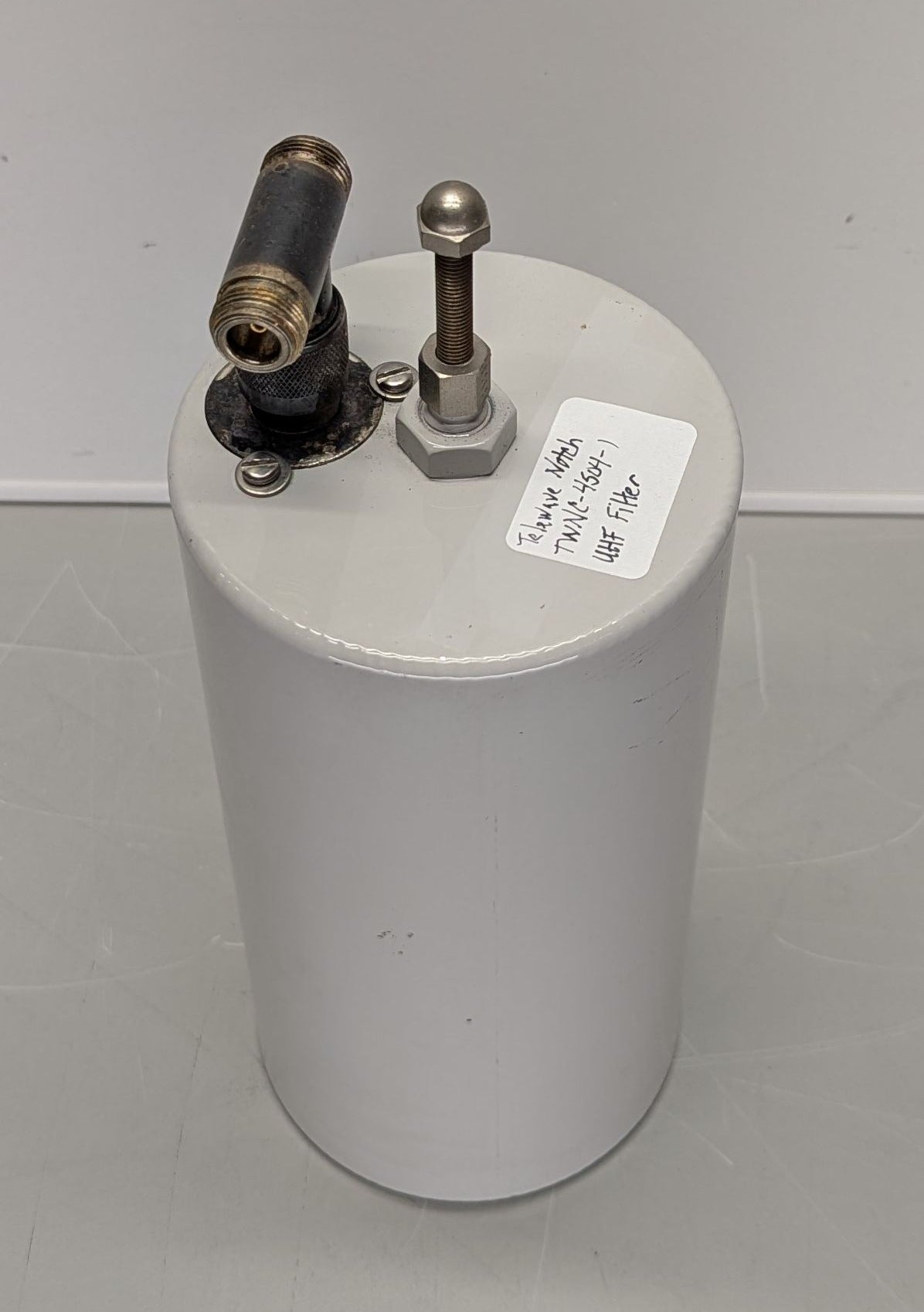

The Telewave.io TWNC-4504-1 is a 4” diameter, ¼-wavelength notch cavity with an adjustable coupling loop. This Cavity was pulled from a working system and is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product details:

  • Model Number: TWNC-4504-1
  • Frequency Range: 400-512MHz
  • Insertion loss (max): 0.2 dB
  • Nominal impedance: 50 ohms
  • VSWR at resonance (max): 1.5:1
  • Max Power: 350W
  • In/Output Connectors: N female
  • Dimensions: 4"w x 4"d x 10"h
  • Weight: 2 lbs.

*Image shown is a representation only. Actual product may vary.
