TELEWAVE TPRD-1586 VHF DUPLEXER 148-174MHZ

TELEWAVE TPRD-1586 VHF DUPLEXER 148-174MHZ

TPRD-1586

$2,500.00 USD
$2,500.00 USD
Sale Sold out
Shipping calculated at checkout.

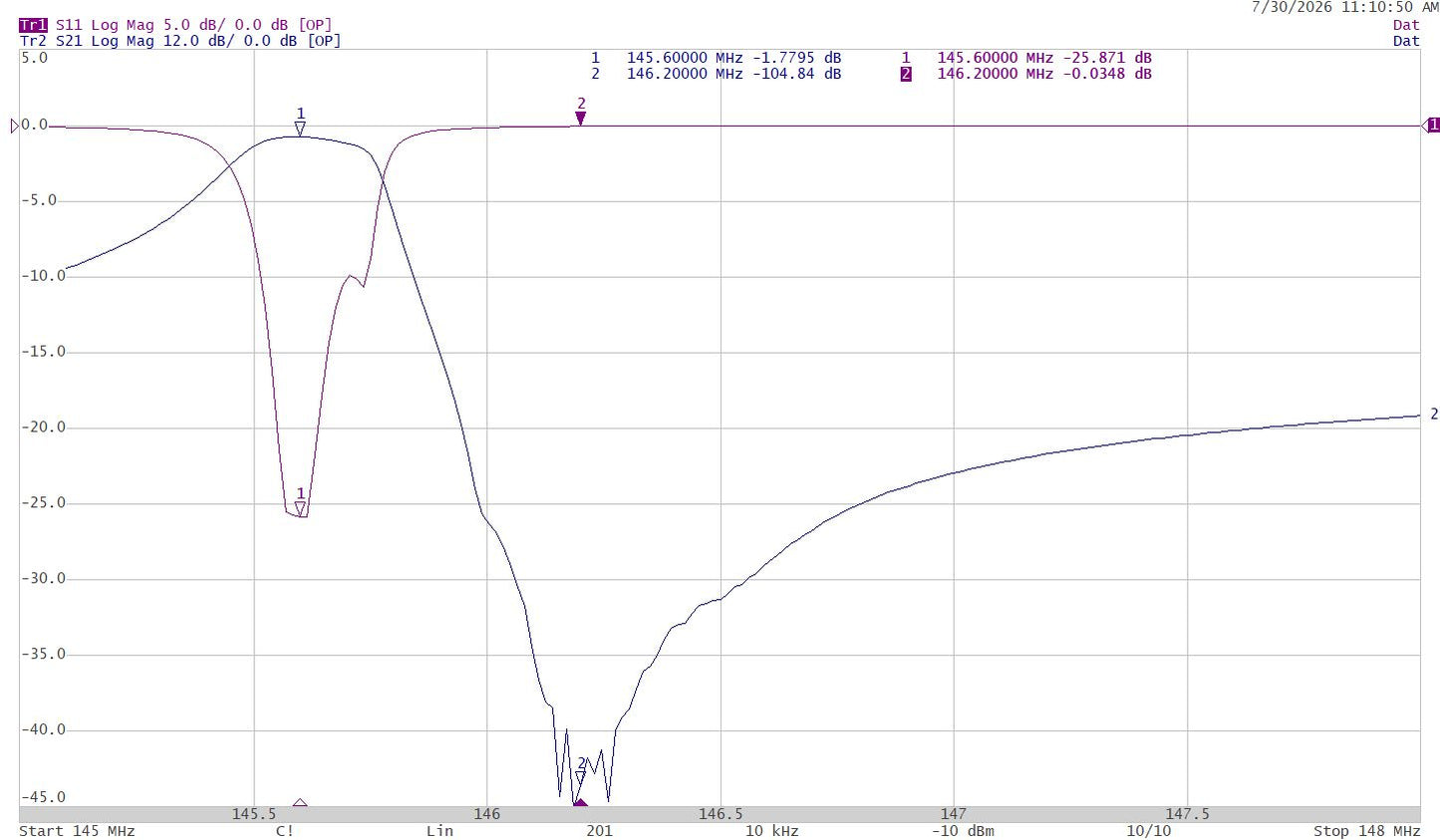

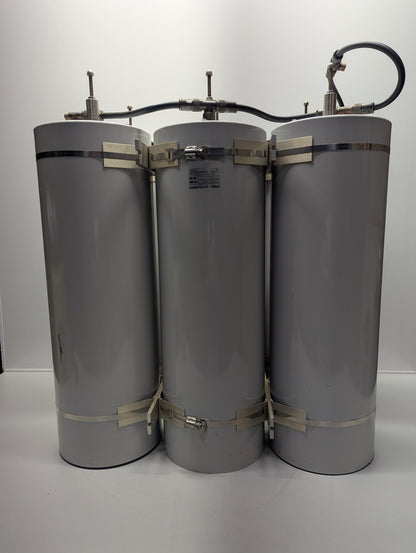

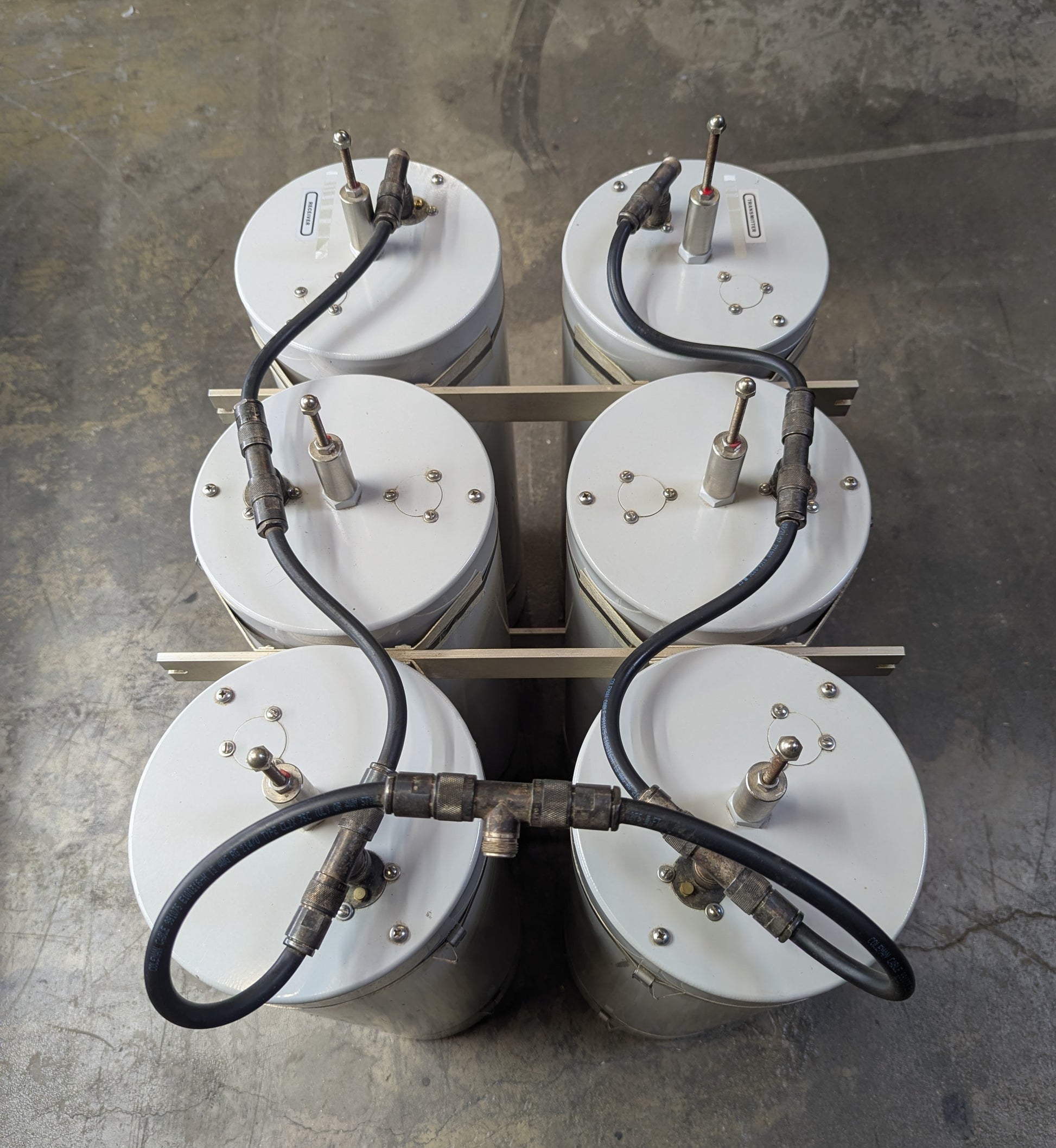

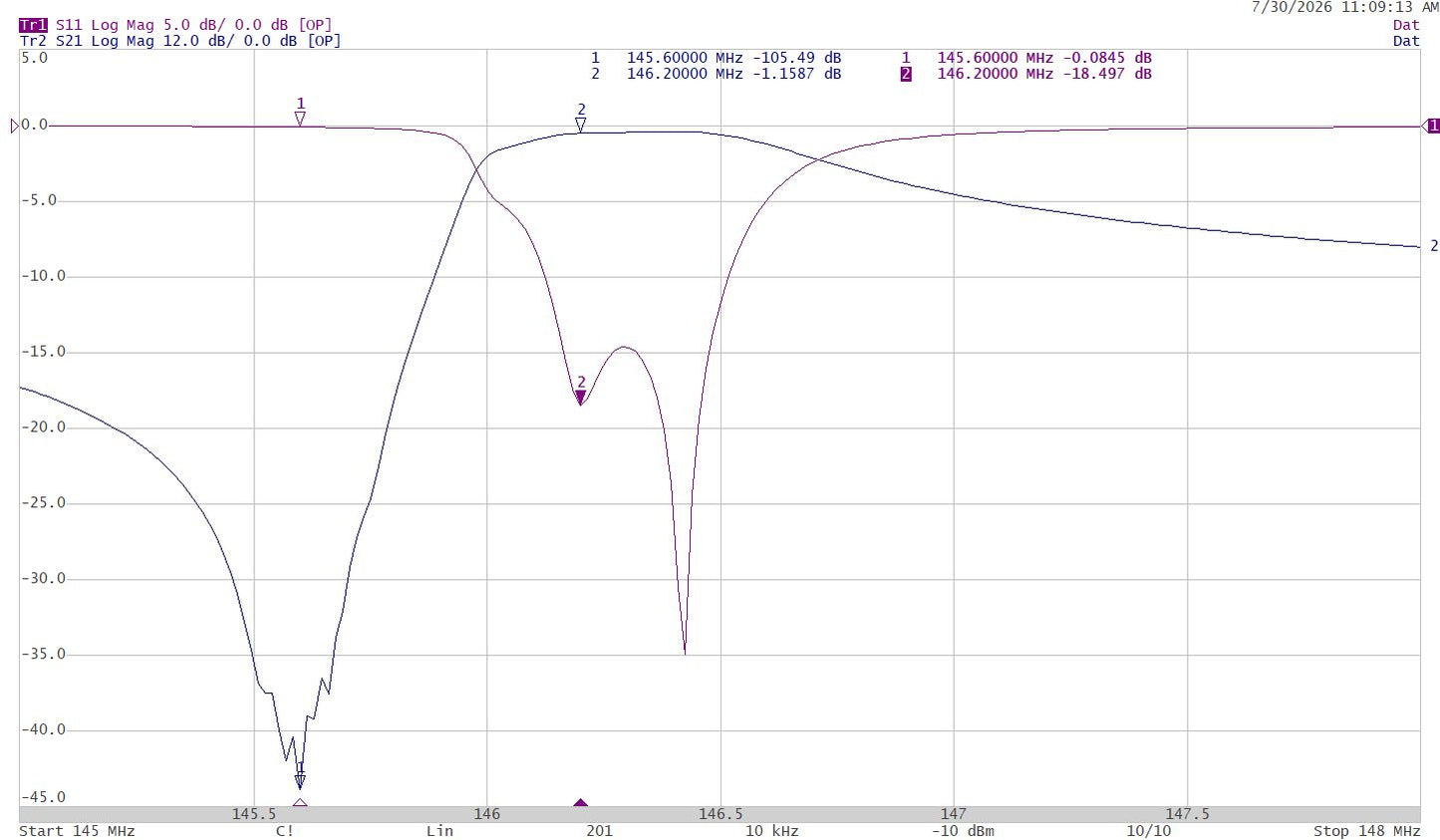

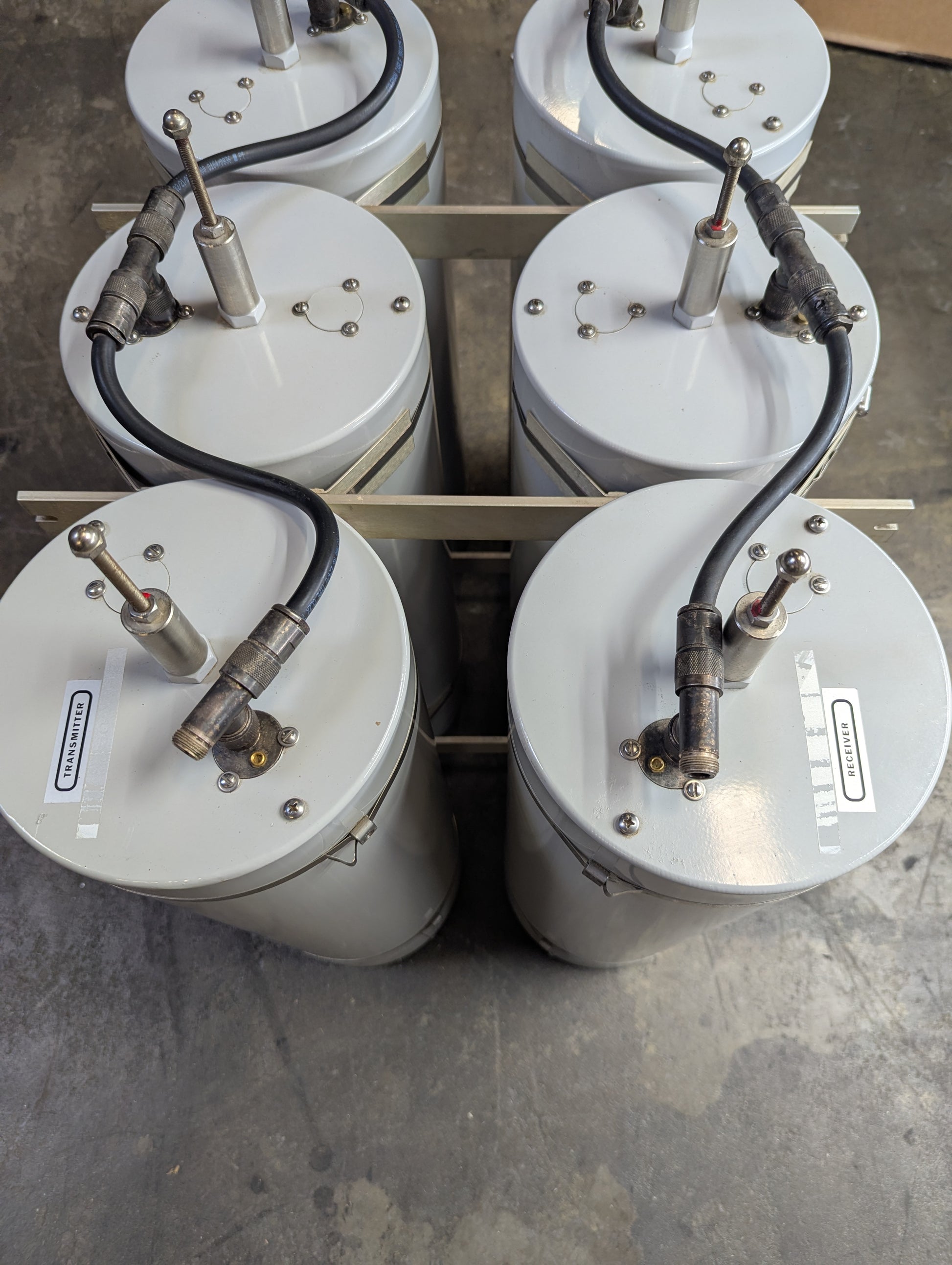

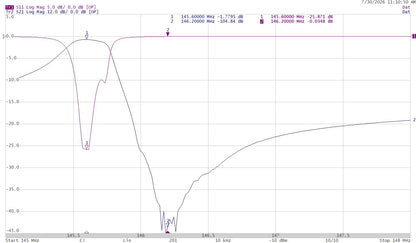

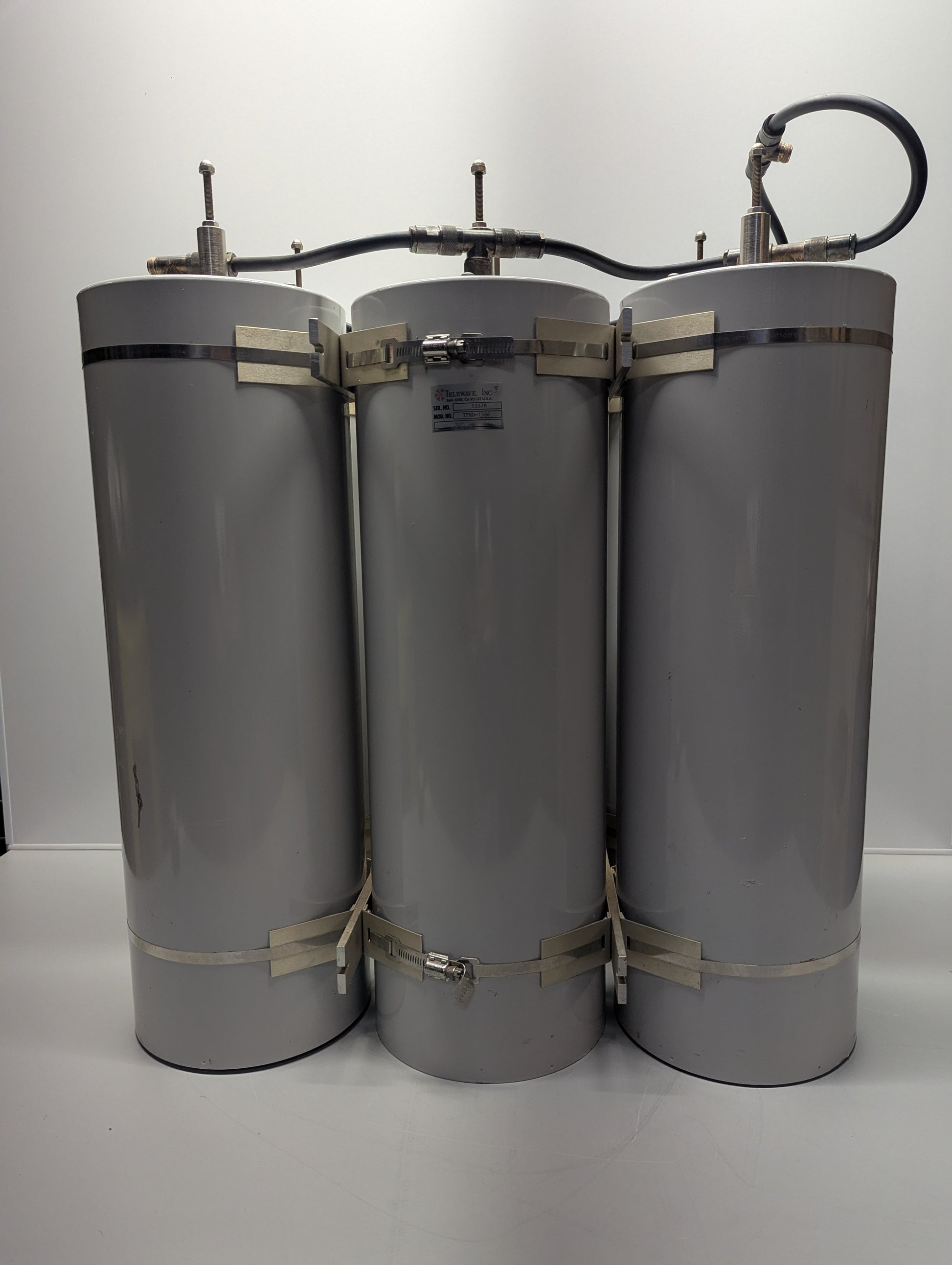

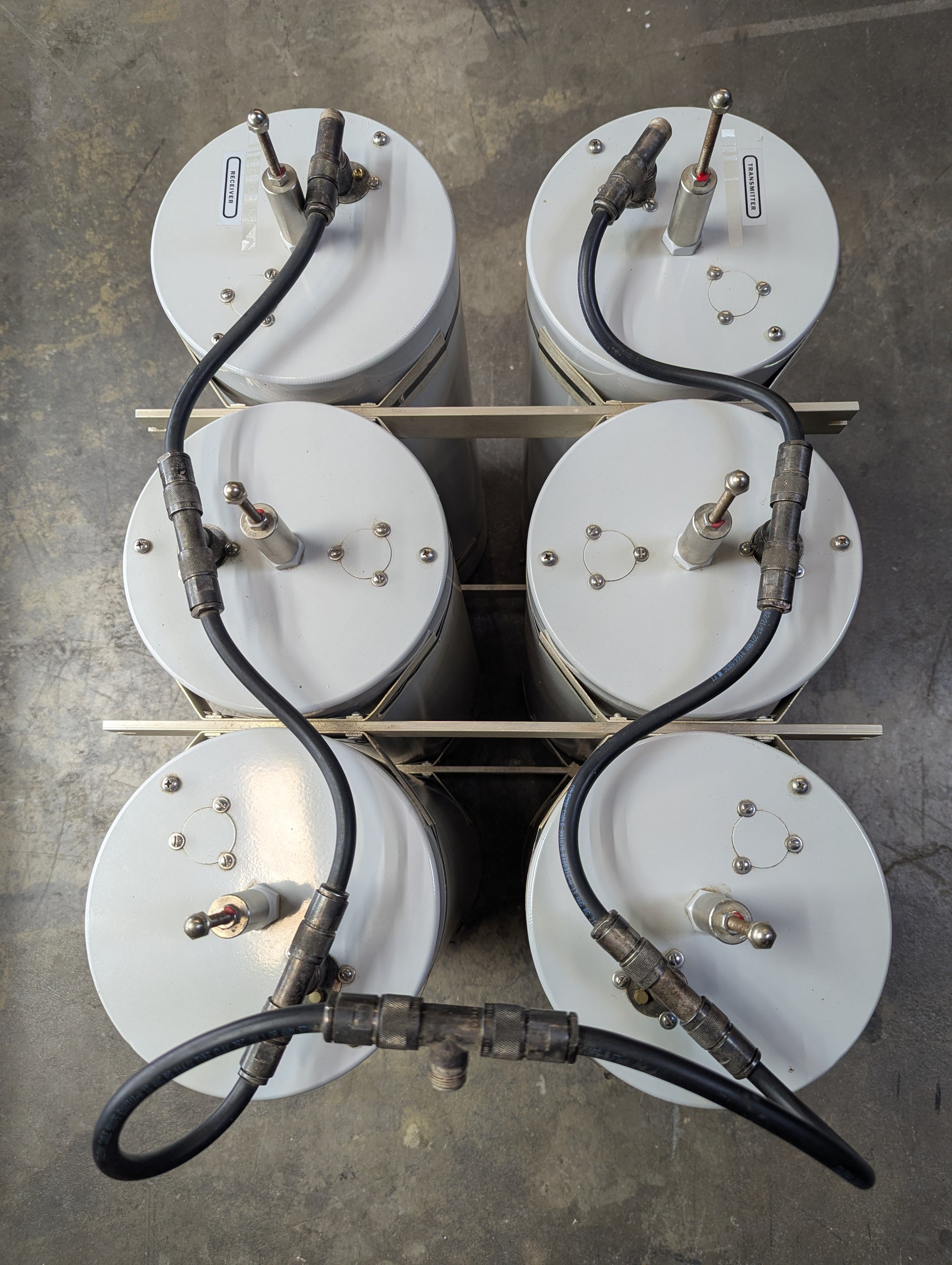

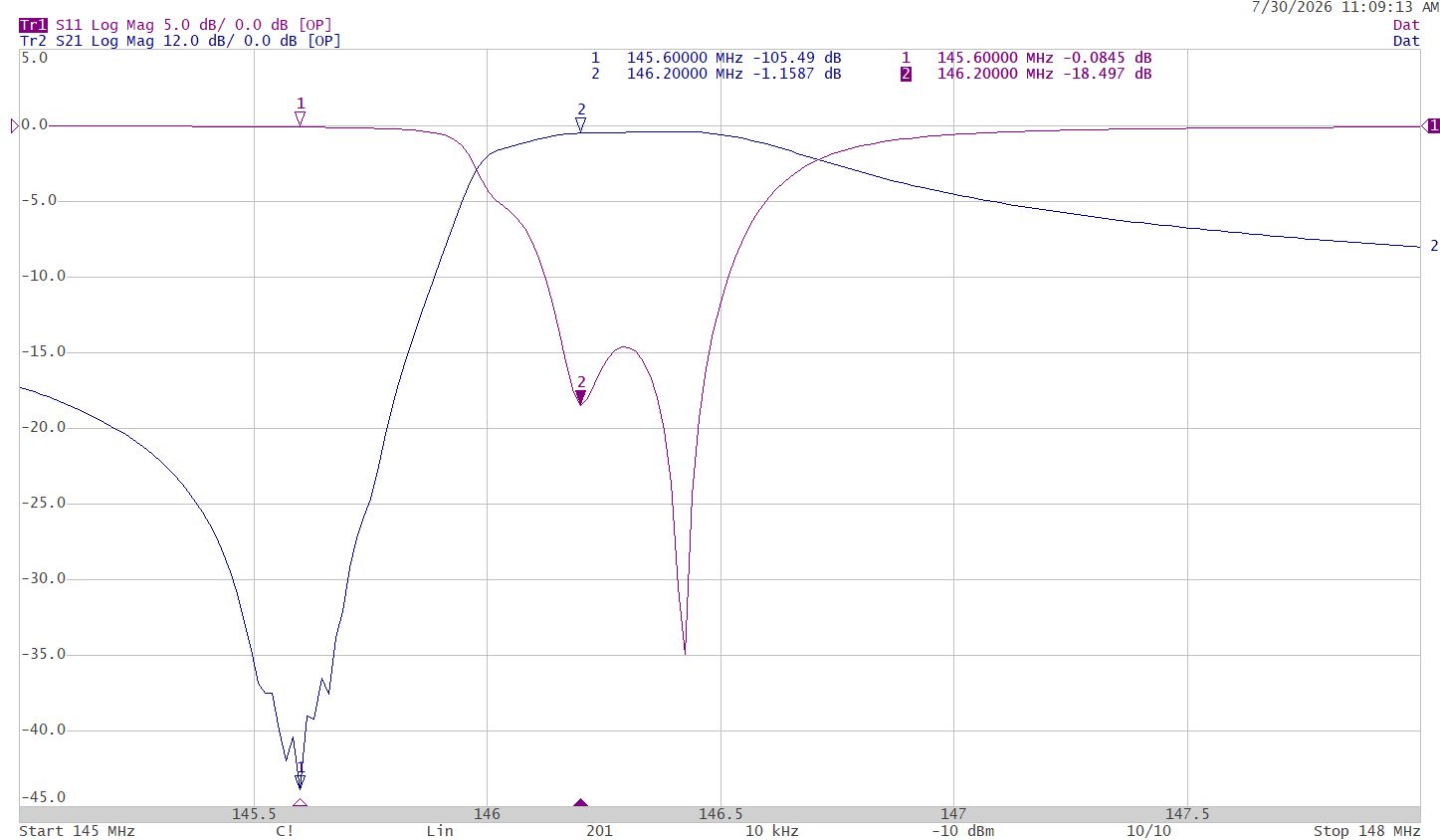

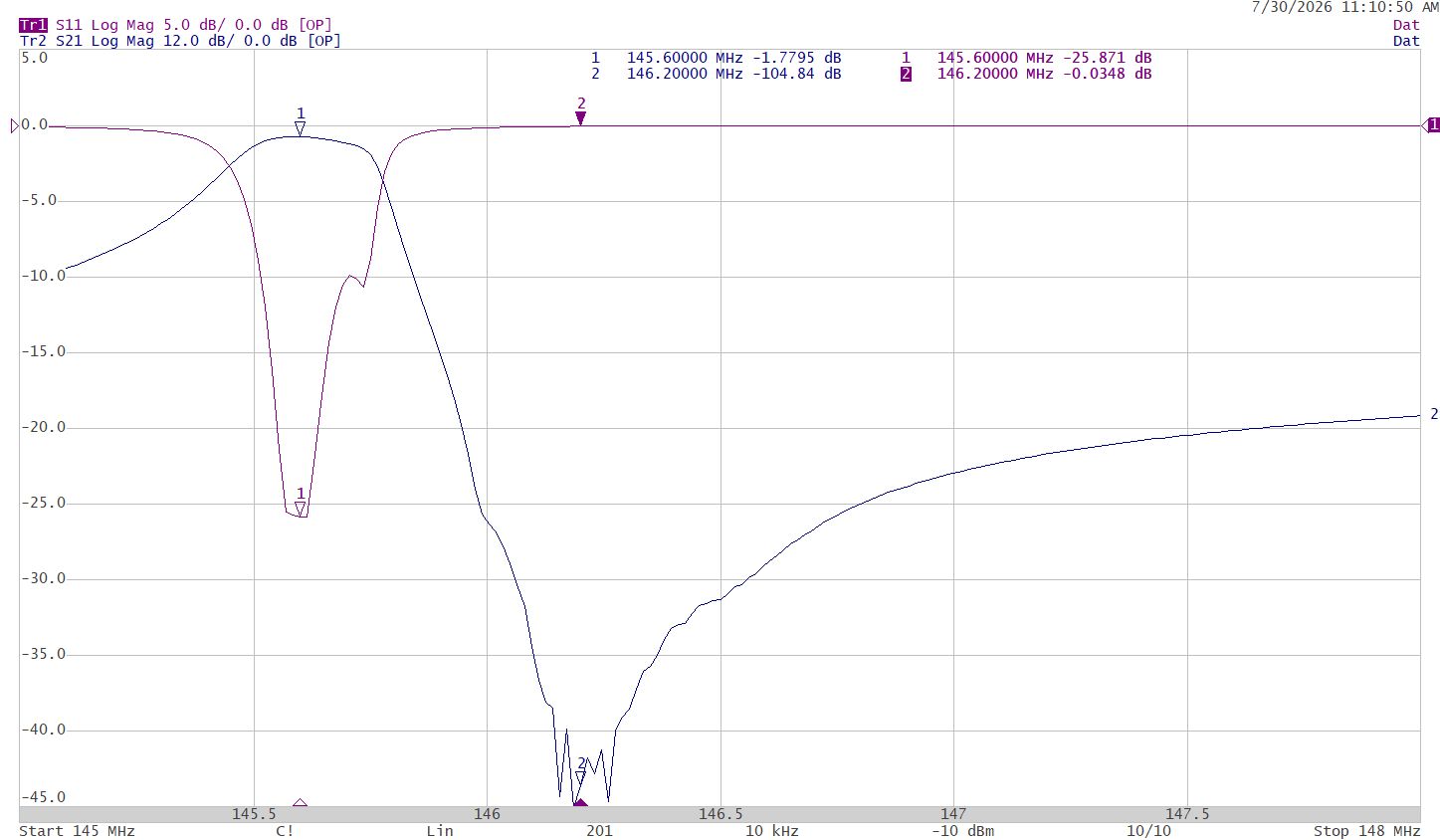

This duplexer allows simultaneous operation of a transmitter and receiver into a common antenna. It has 3 Pass-Reject cavities each in the transmitter and receiver sections. It’s capable of 2-meter HAM with 600kHz Tx/Rx splits. Tuning is available upon request. It is currently tuned for 145.600 MHz/146.200 MHz.

It was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

  • TELEWAVE TPRD-1586 VHF DUPLEXER

  • 30-day warranty

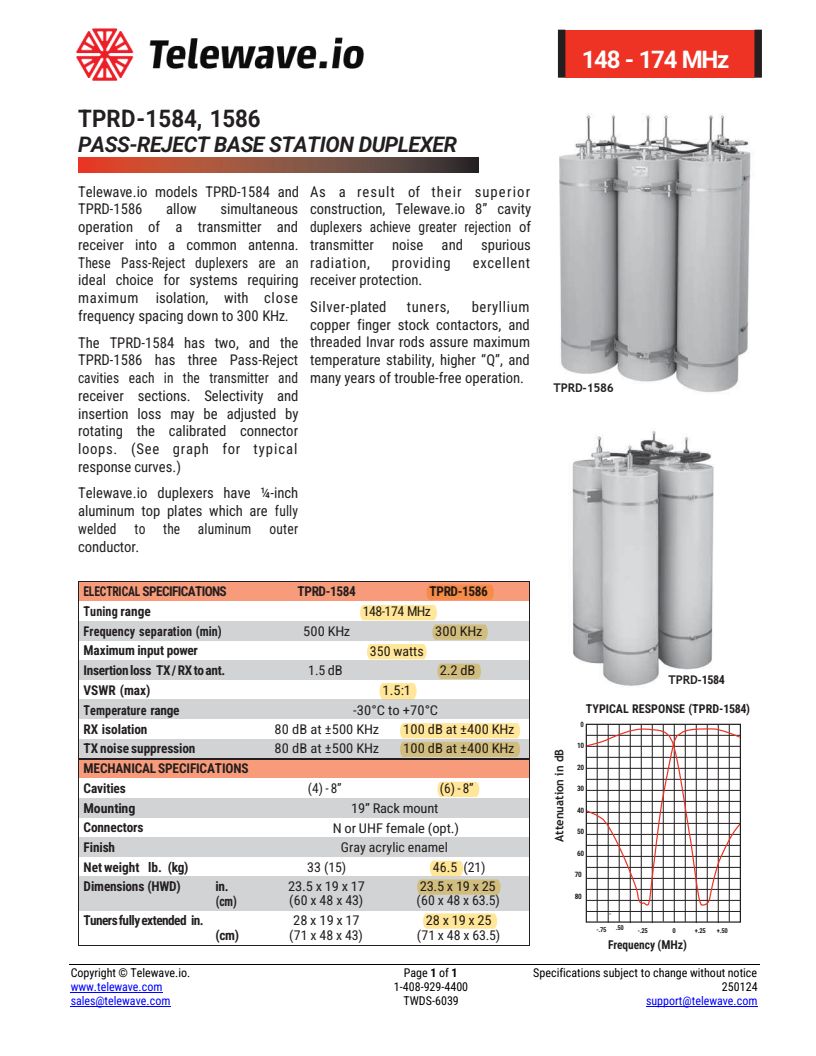

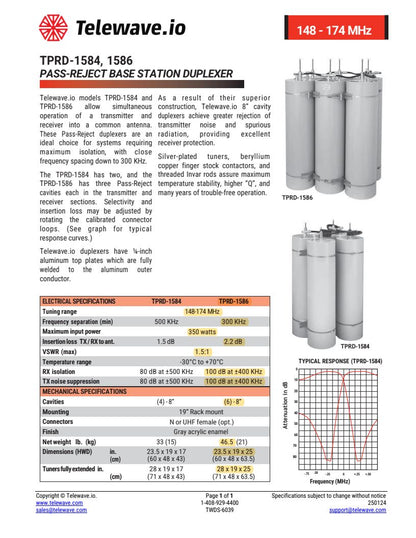

Product Details:

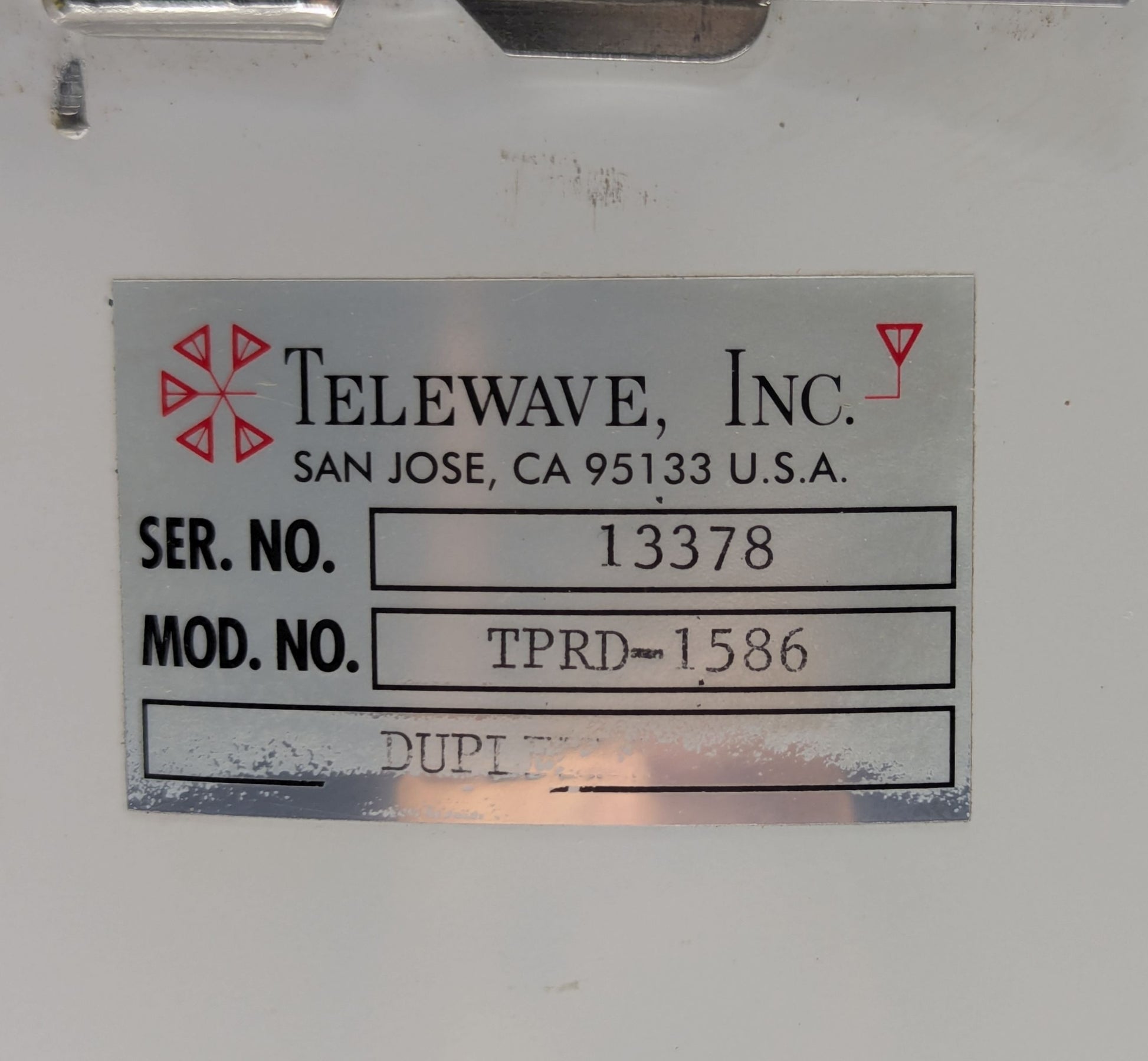

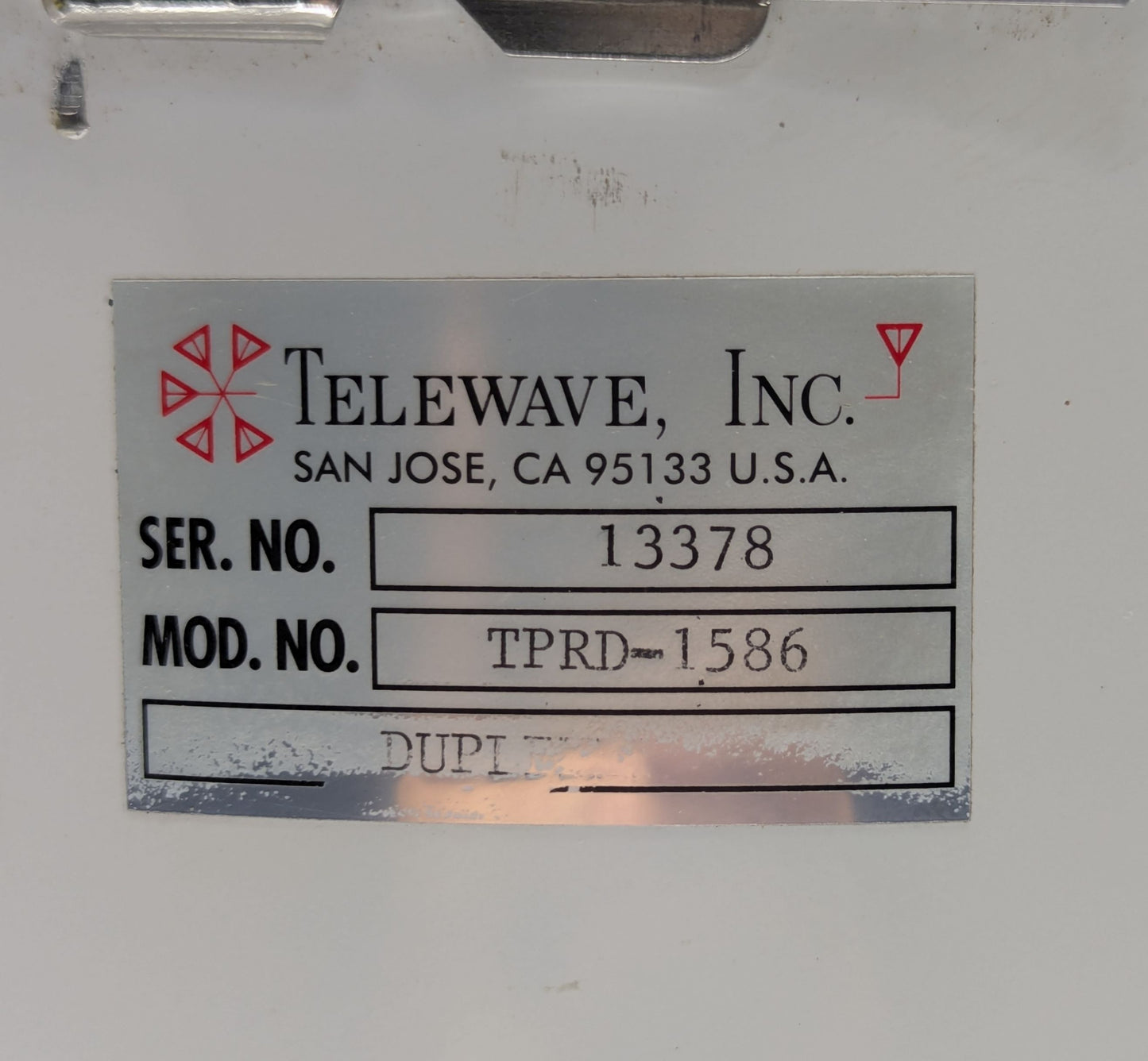

  • Model Number: TPRD-1586

  • Frequency Range: 148-174MHz

  • Max Power Out: 350W

  • Insertion Loss, dB: 2.2

  • VSWR: 1.5:1

  • Frequency Separation: 300 kHz

  • In/Output Connectors: N Female

  • Dimensions: 19"w x 25"d x 25"h

  • Weight:47 lbs.

*Image shown is a representation only. Actual product may vary.
