TELEWAVE M101-450-8TRM UHF 6-Chan COMBINER with Optional Rx Multicoupler

TELEWAVE M101-450-8TRM UHF 6-Chan COMBINER with Optional Rx Multicoupler

M101-450-8TRM

$6,295.00 USD
$6,295.00 USD
Sale Sold out
Shipping calculated at checkout.

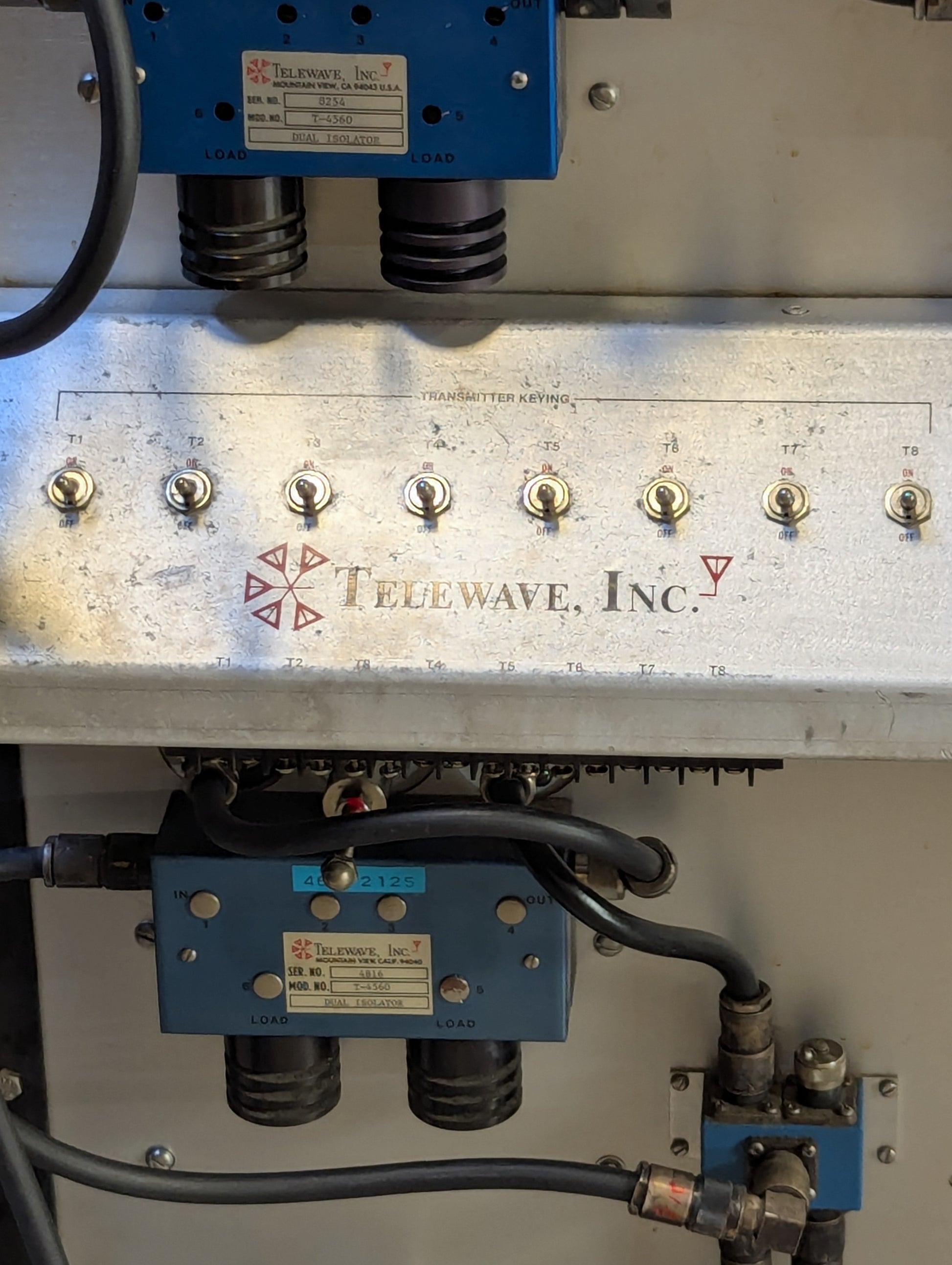

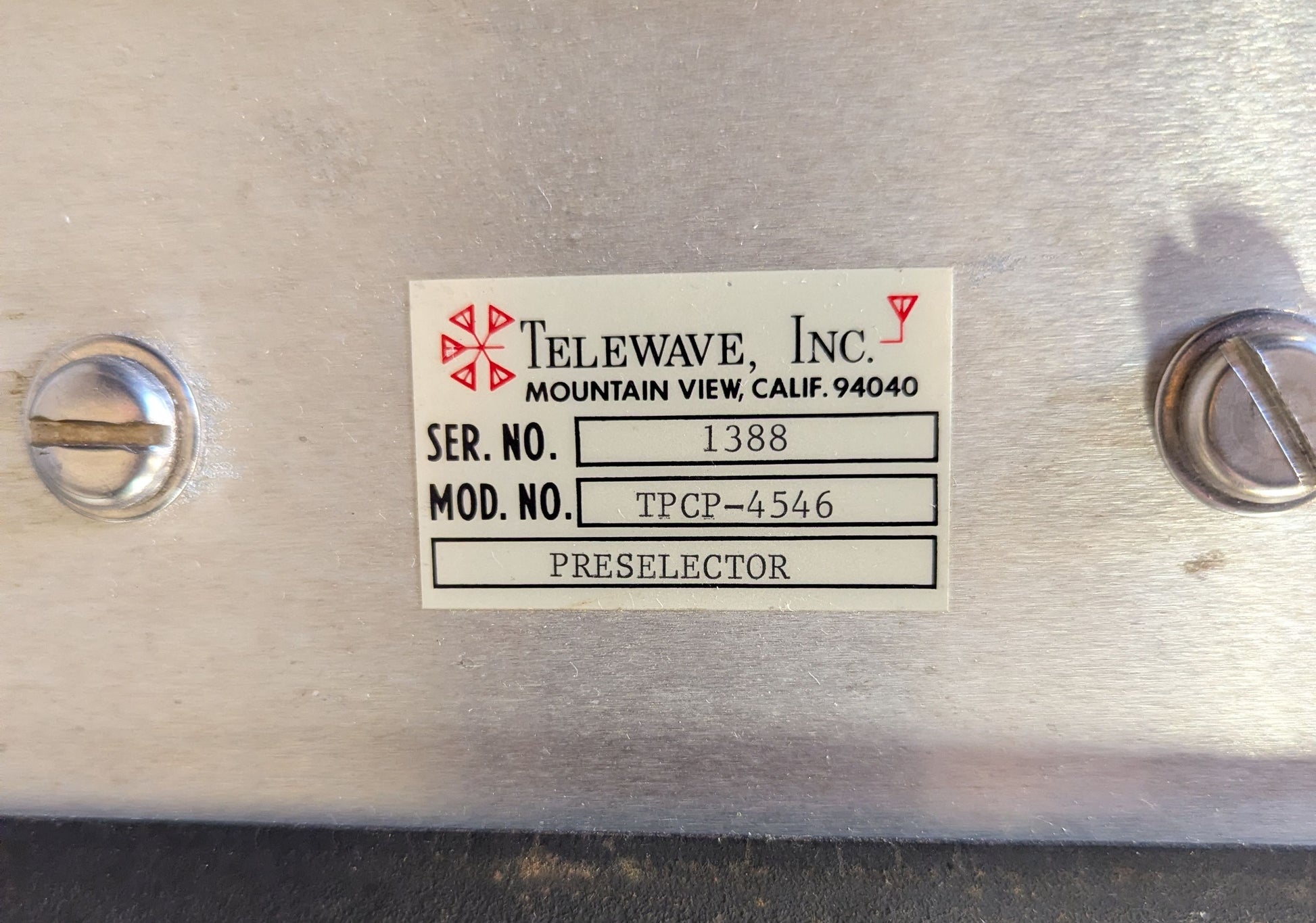

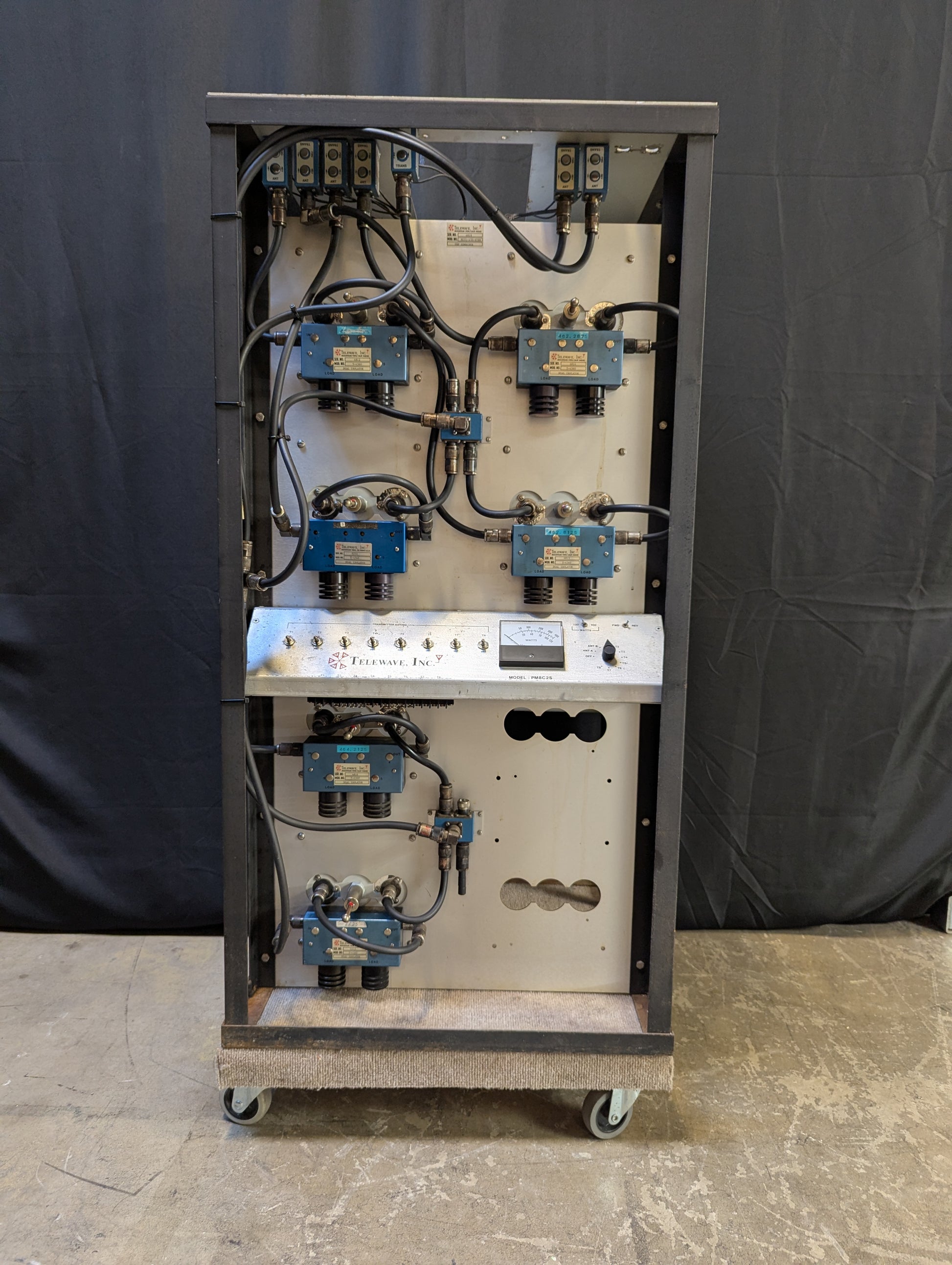

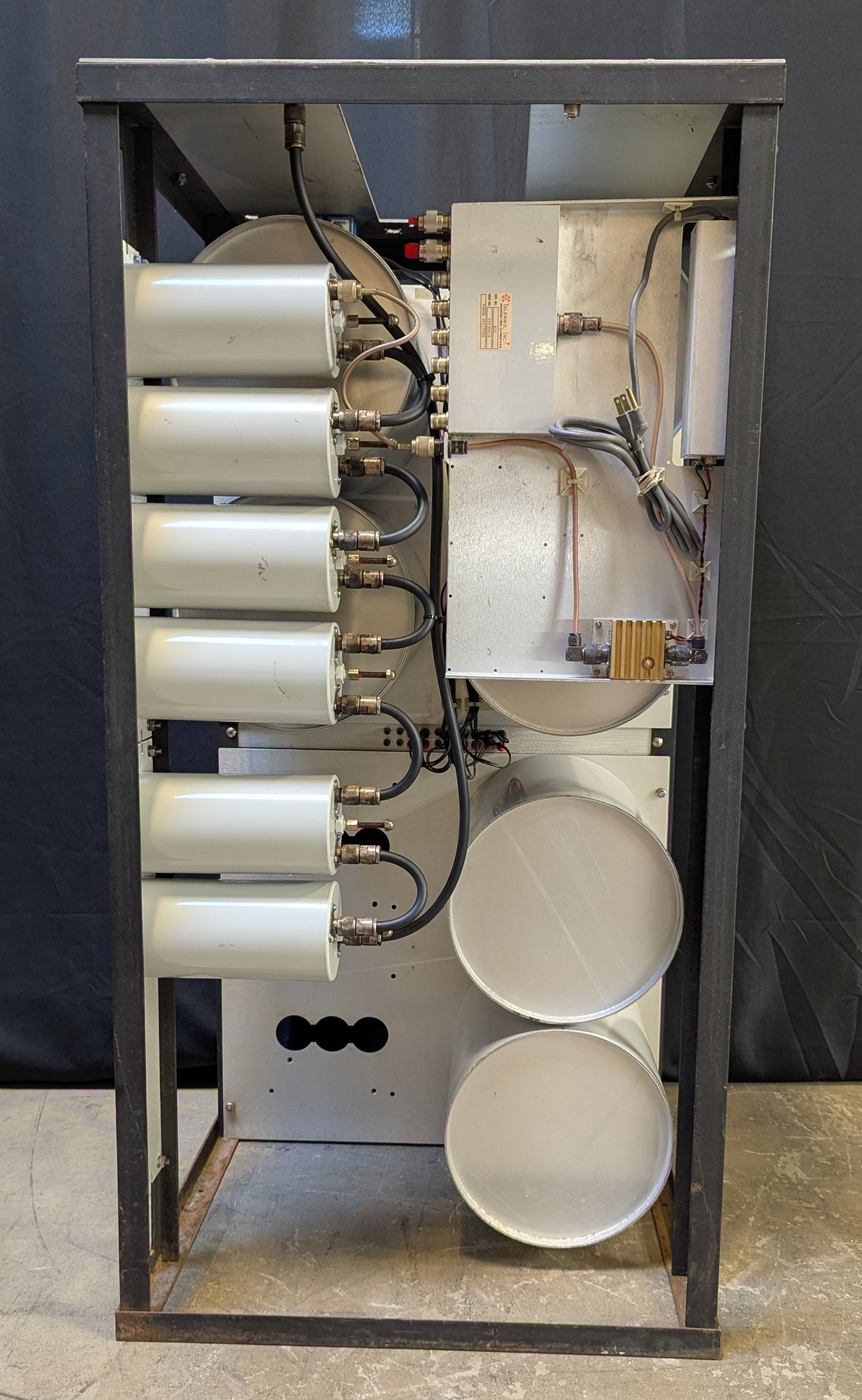

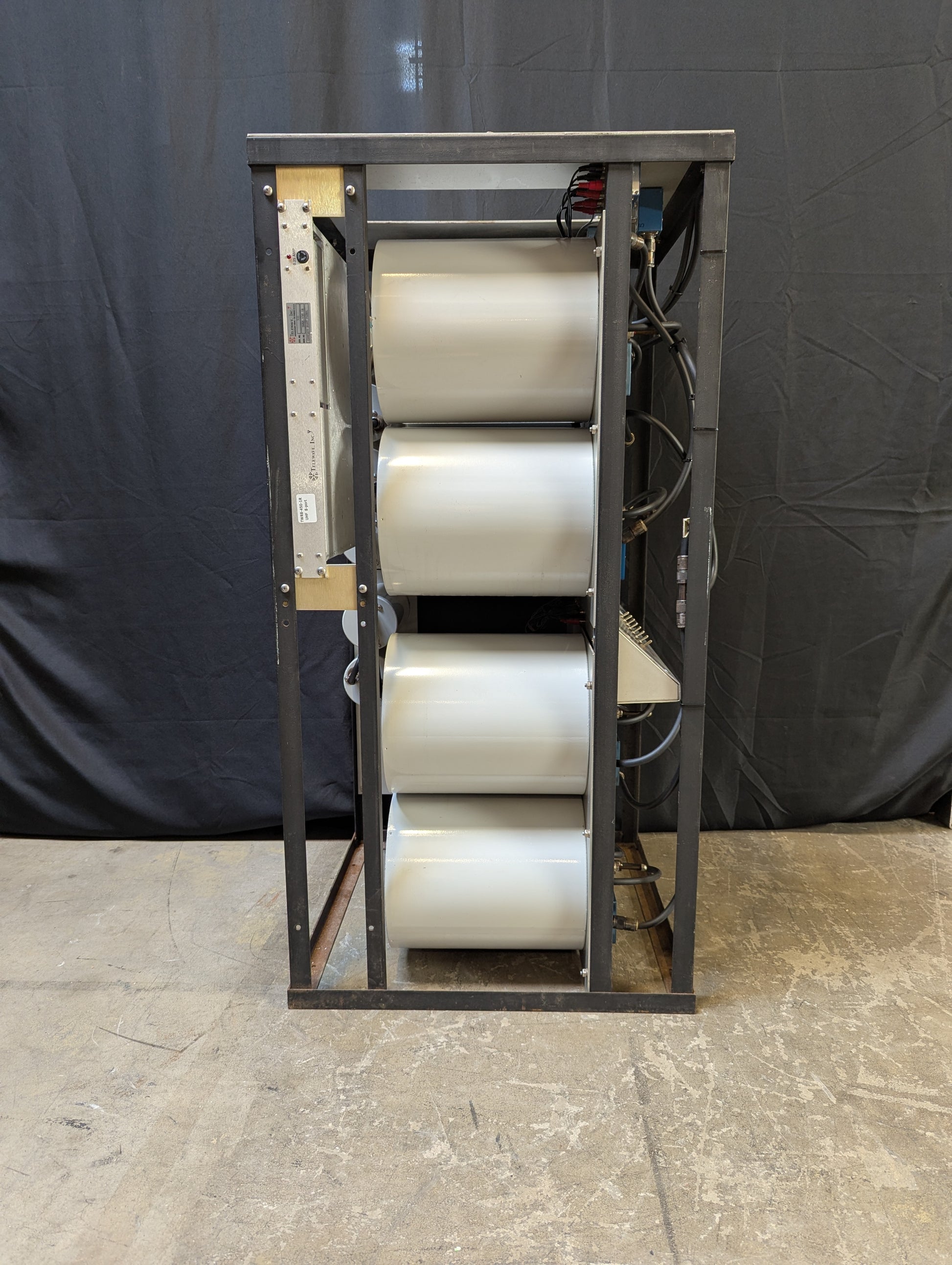

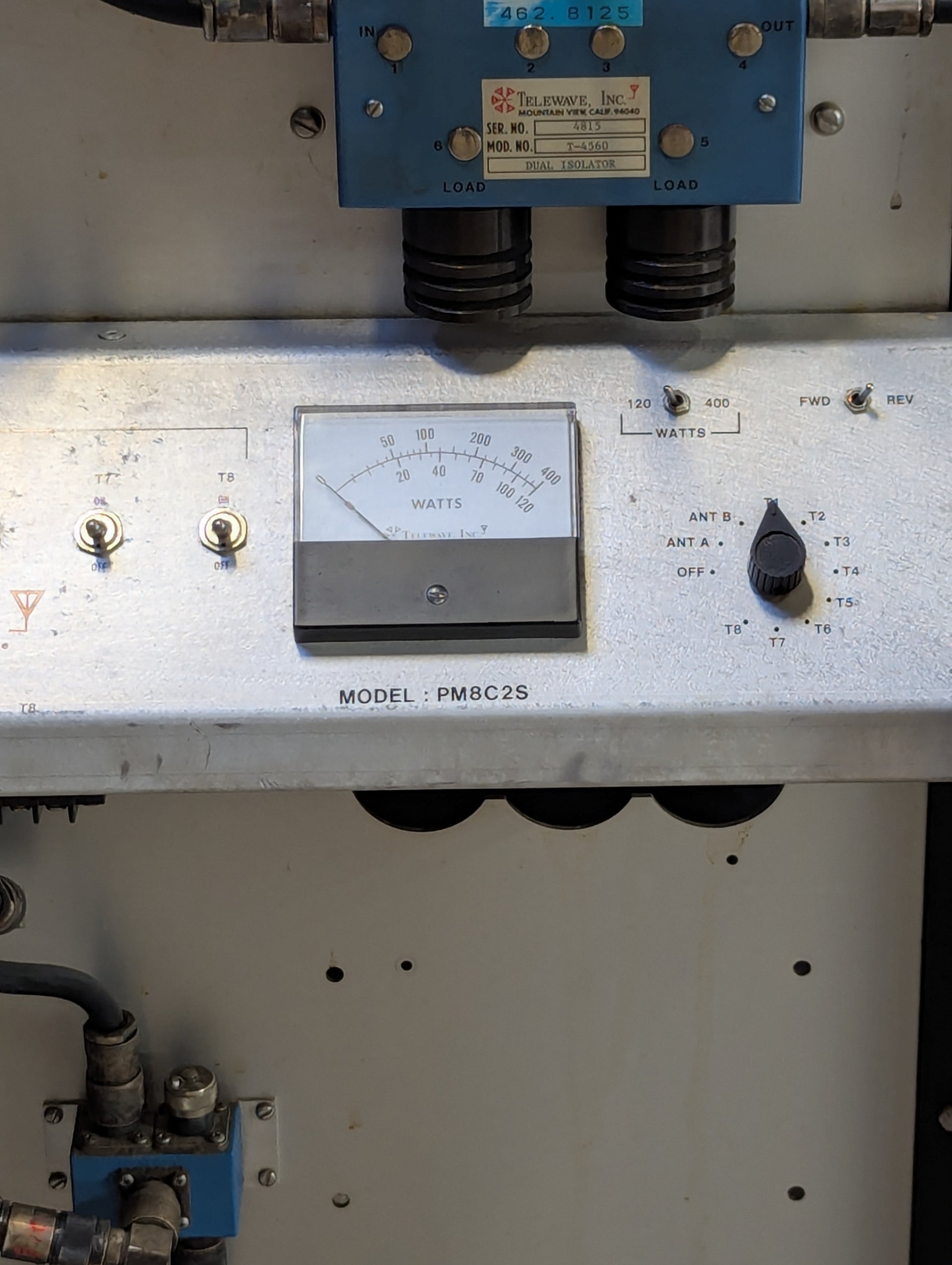

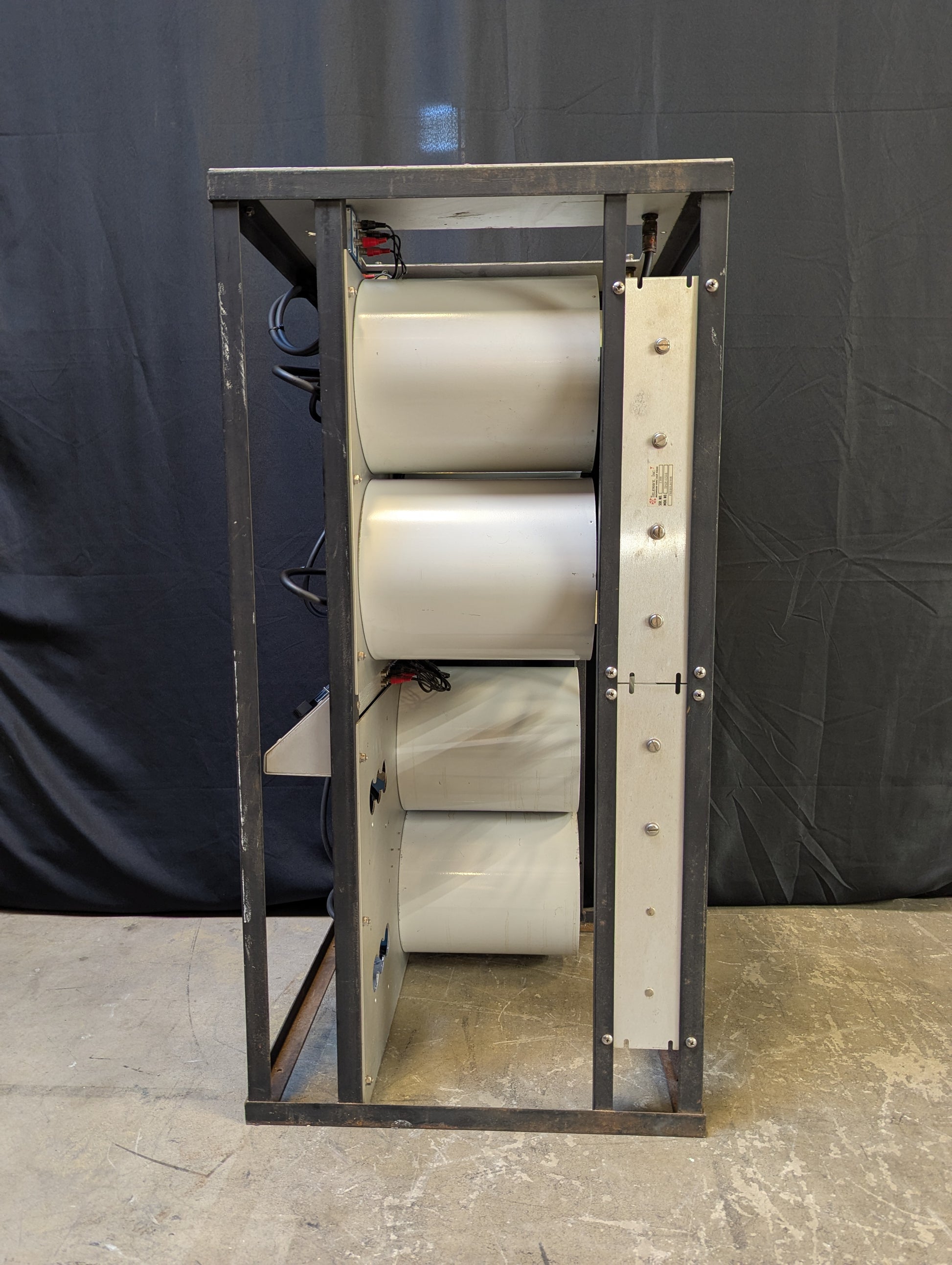

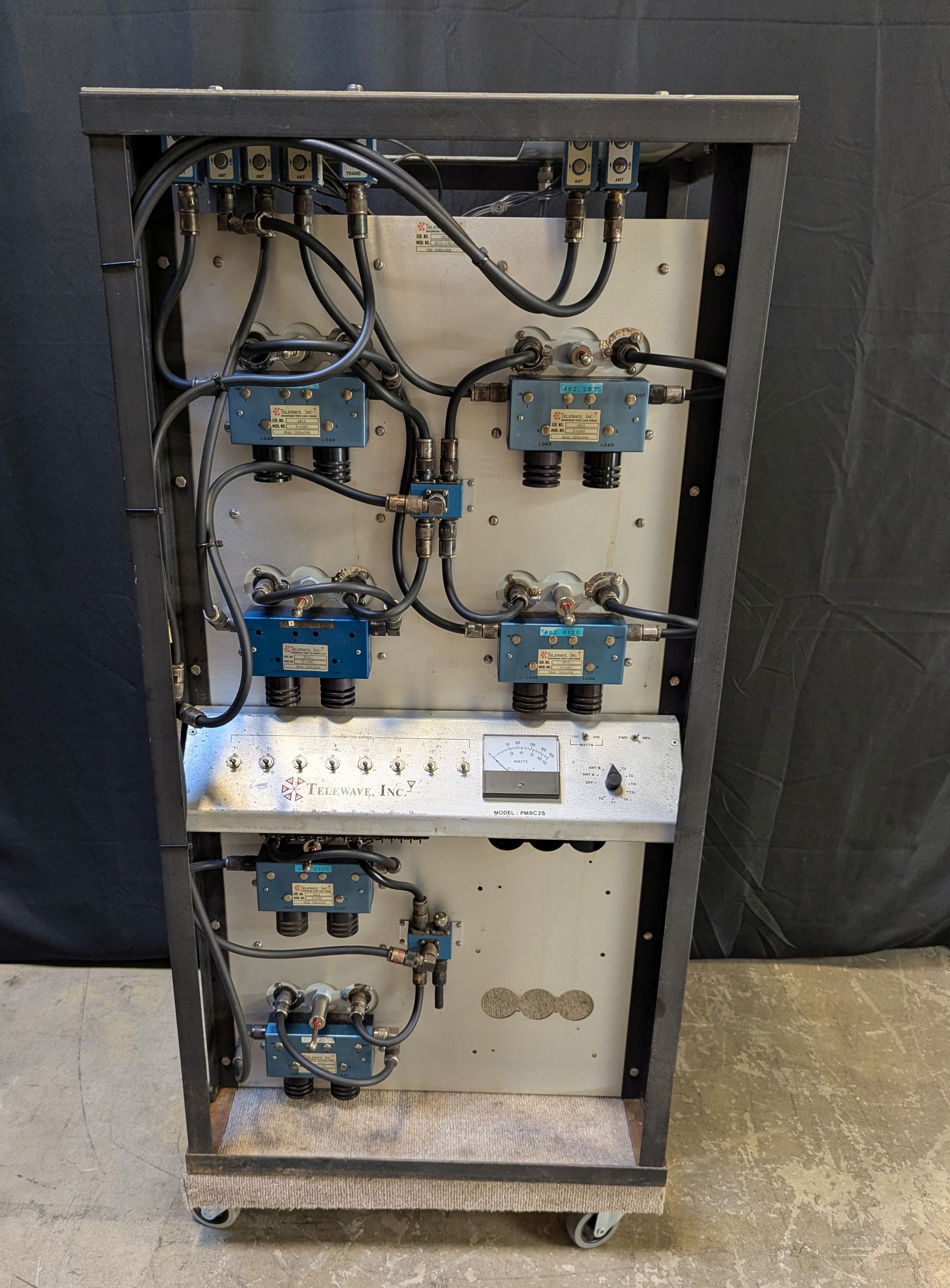

This 6-Channel combiner has been fully tested and meets or exceeds original specifications. It has six 10-inch ¼ λ  cavities for Tx.  It has a TPCP-4546 preselector filter and 8-port multicoupler. RF Power Monitoring for all chans and antennas.  It is currently tuned for 466-470 MHz. Ask about tuning.



It was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

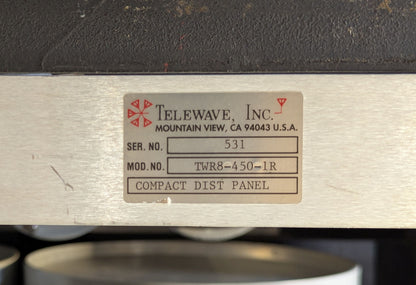

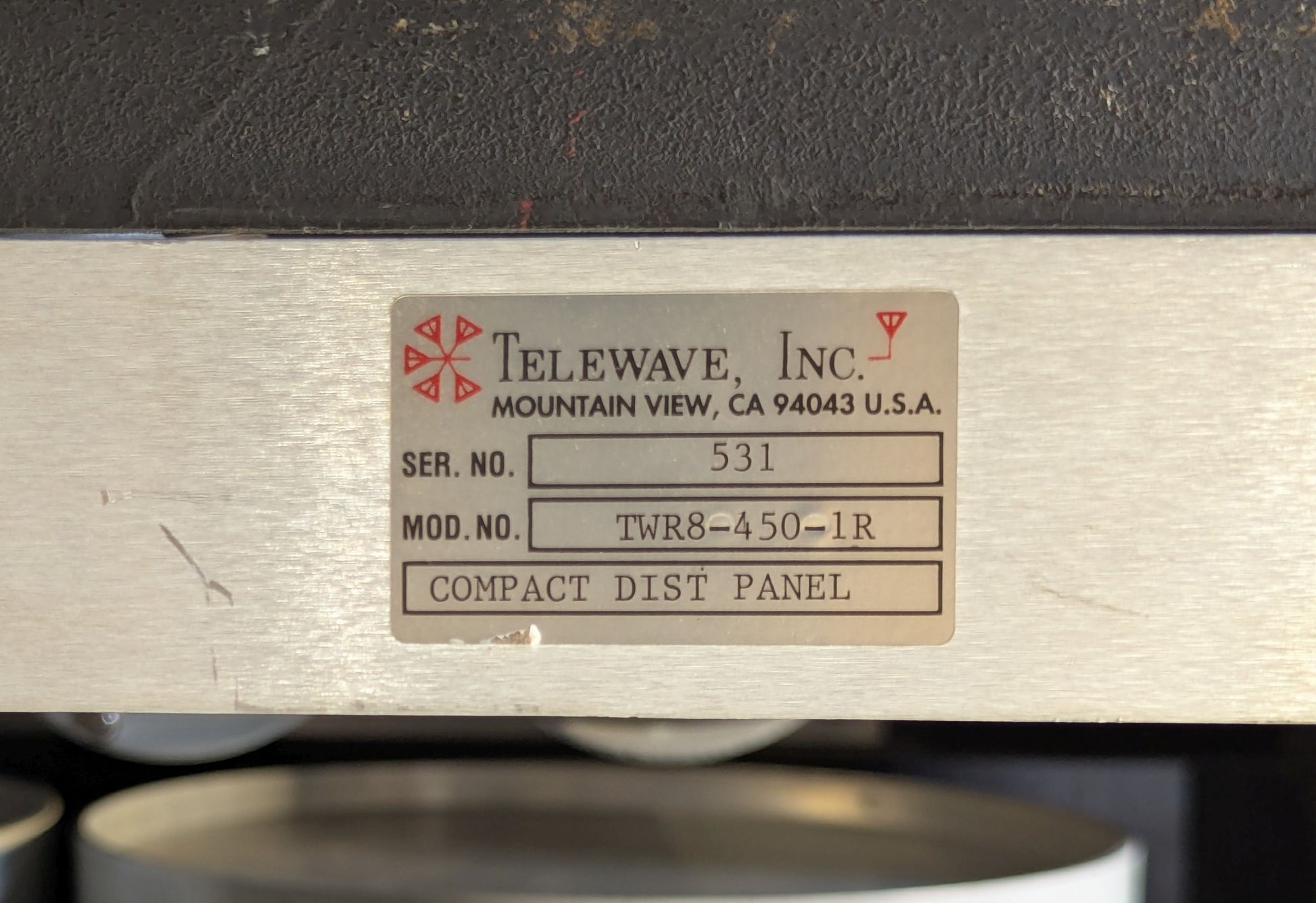

  • TELEWAVE M101-450-8TRM UHF 6-Chan COMBINER, TWR8-450-1R Multicoupler, TPCP-4546 Preselector

  • 30-day warranty

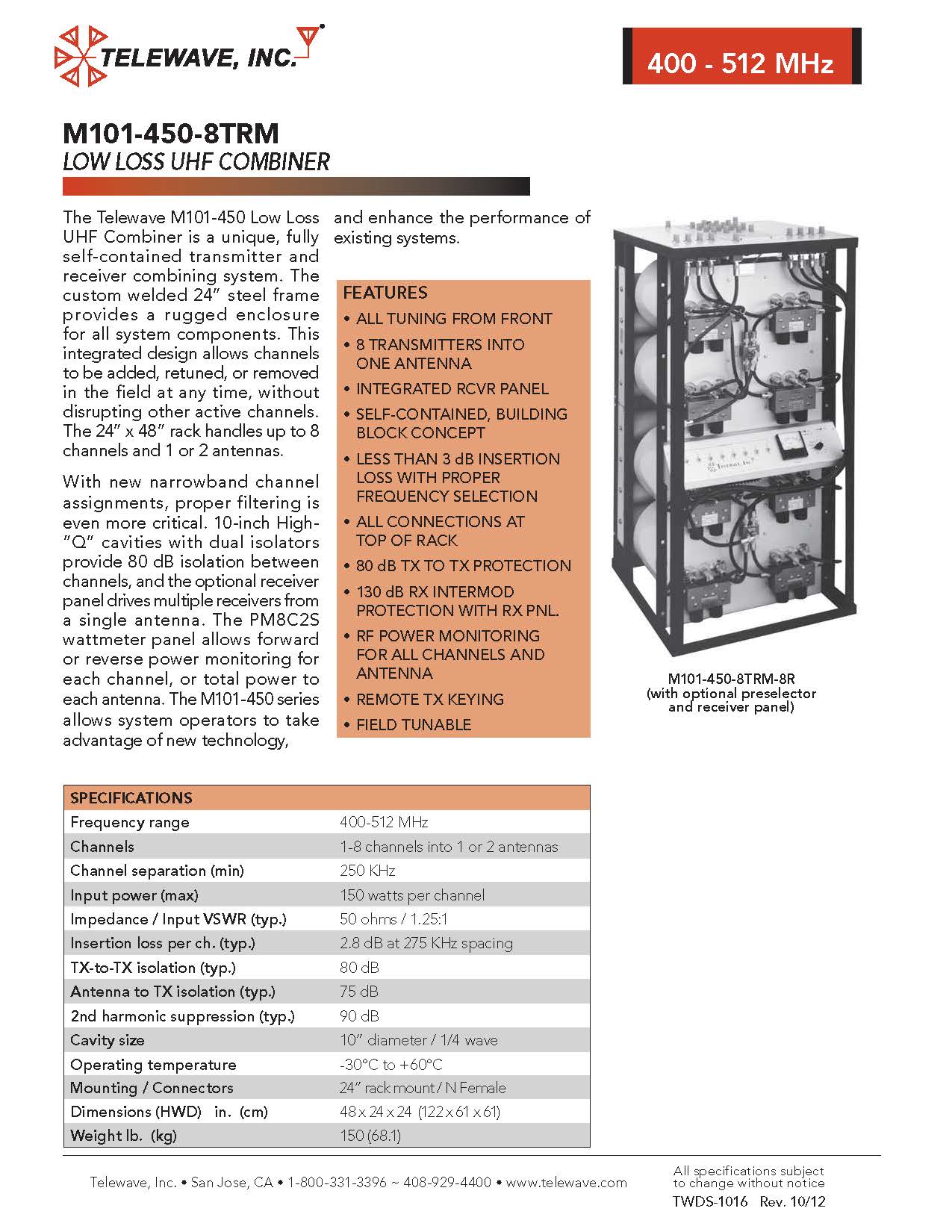

Product Details:

  • Model Number: TELEWAVE M101-450-8TRM, TWR-450-1R 8-port multicouper, TPCP-4546 Preselector

  • Channels: 6

  • Channel Separation (min): 250 kHz

  • Isolation: 70 dB

  • Frequency Range: 400-512MHz

  • Insertion Loss: 3.0 dB @ 250 kHz

  • Max Power In: 150W/Channel

  • In/Output Connectors: N Female

  • Dimensions: 24"w x 24"d x 48"h

  • Weight: 150 lbs.

*Image shown is a representation only. Actual product may vary.
