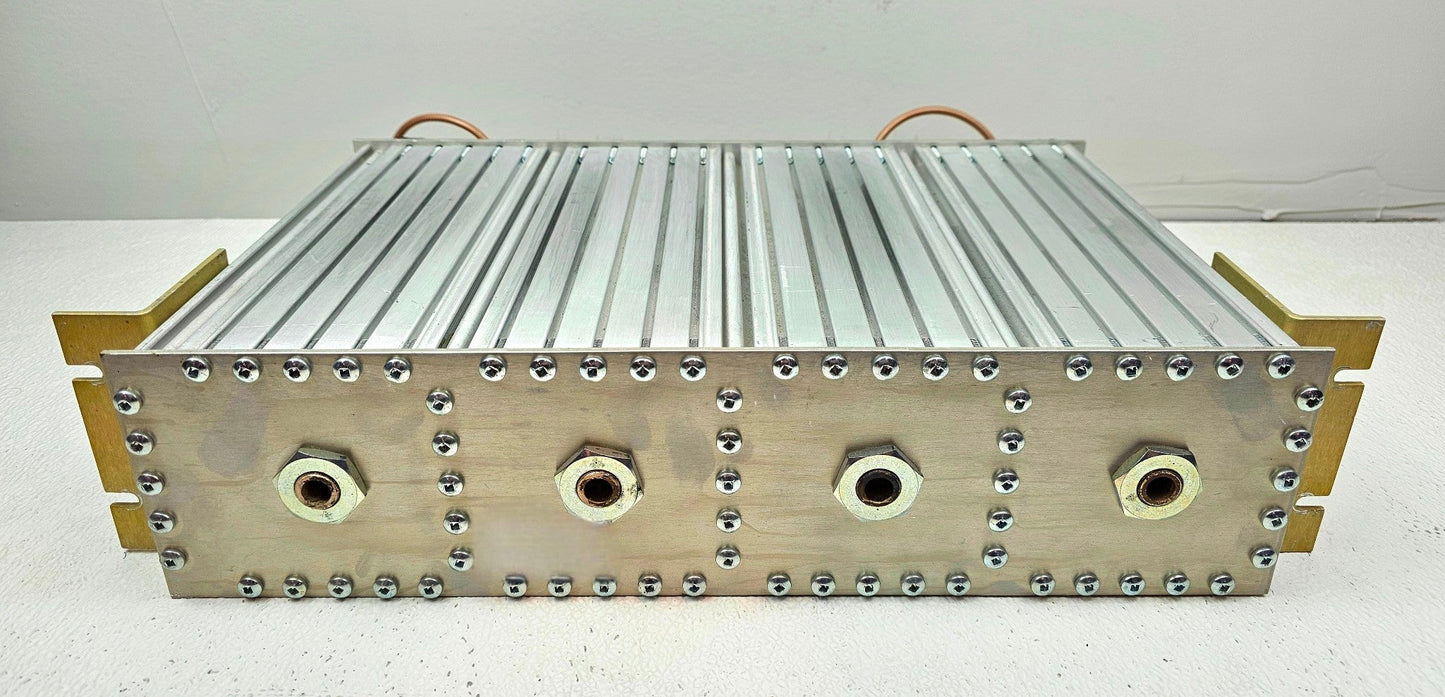

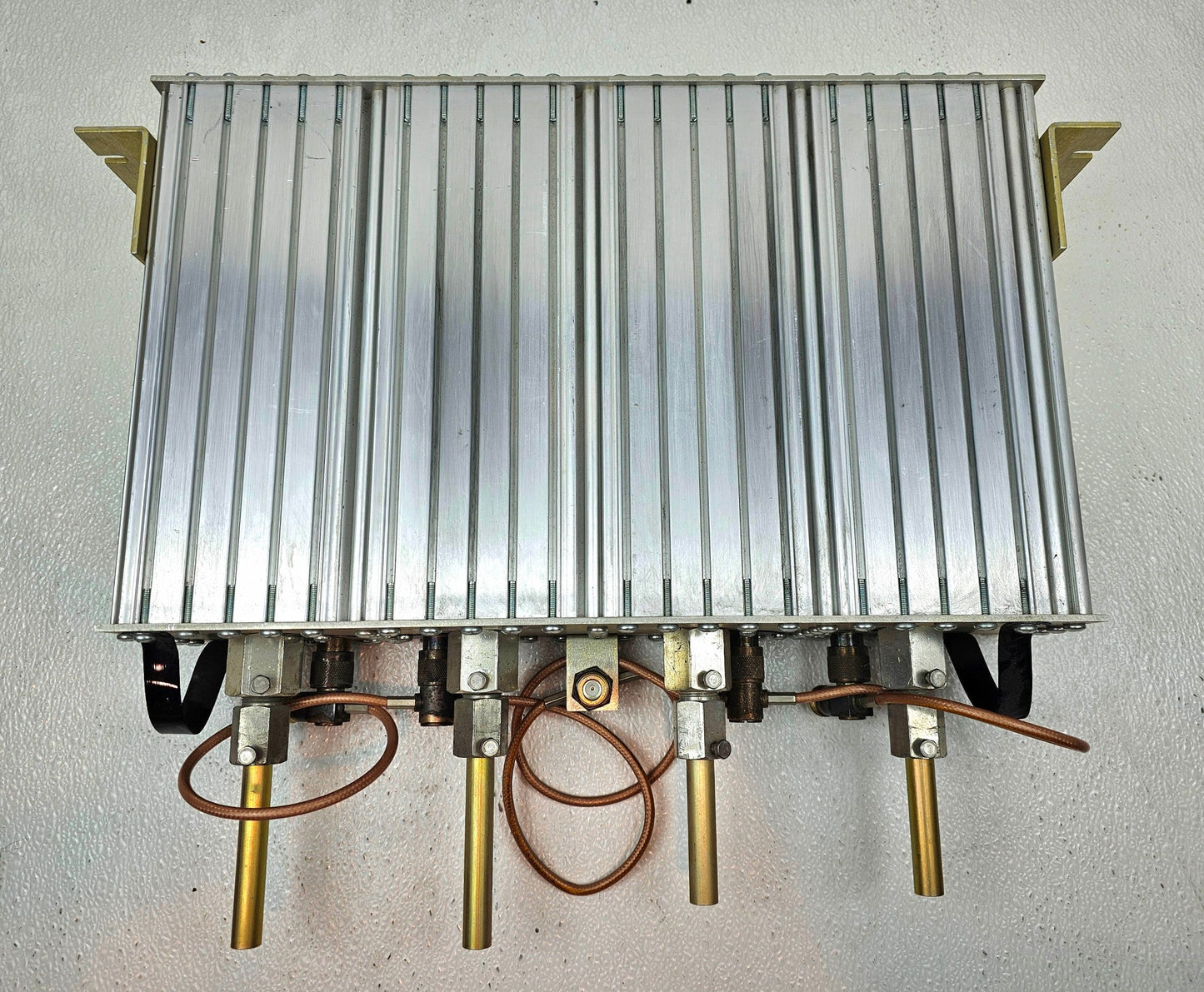

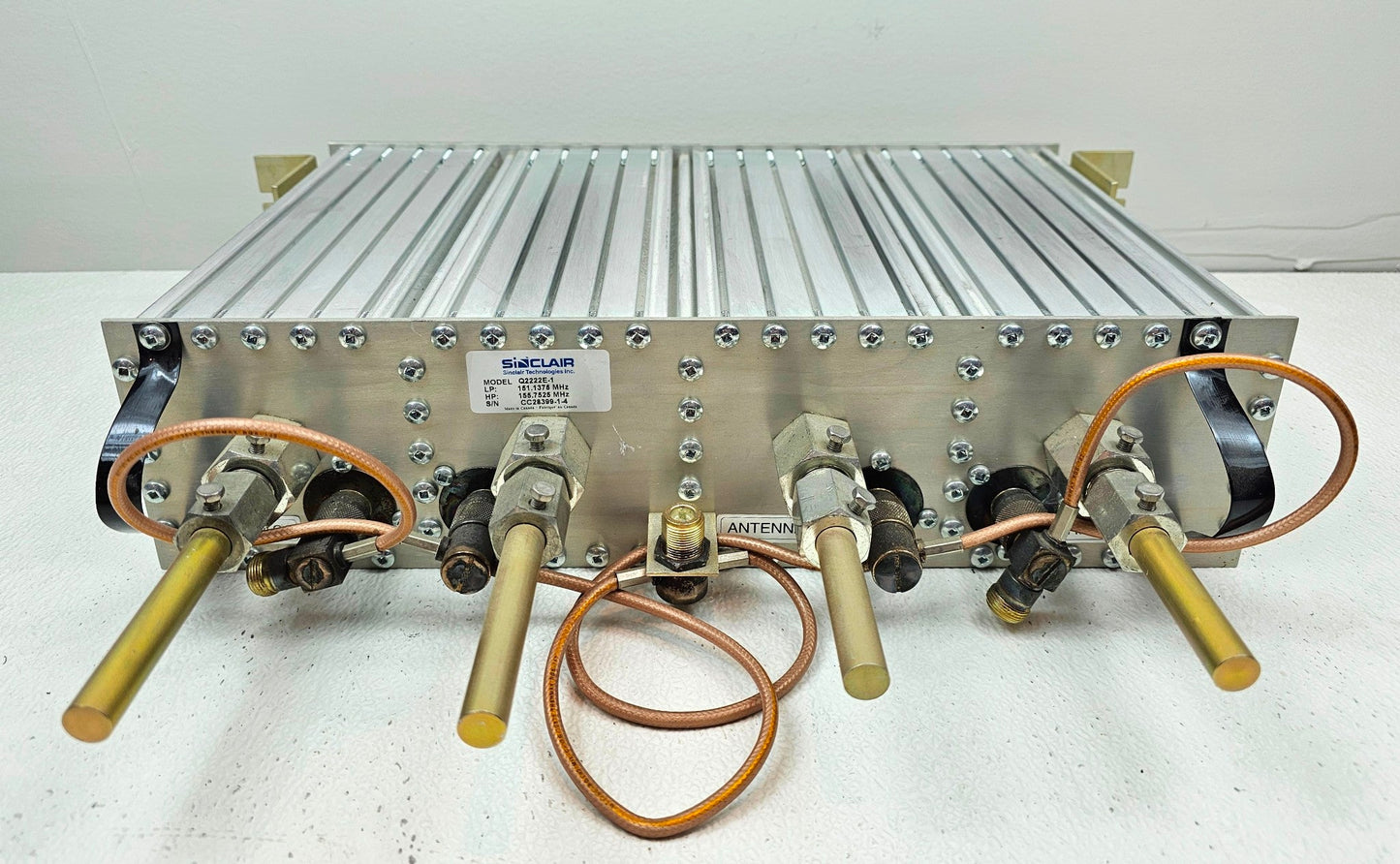

Sinclair VHF RES-LOK Duplexer Q2222E-1 120 watts 139-165 MHz 4 Cavity

Sinclair VHF RES-LOK Duplexer Q2222E-1 120 watts 139-165 MHz 4 Cavity

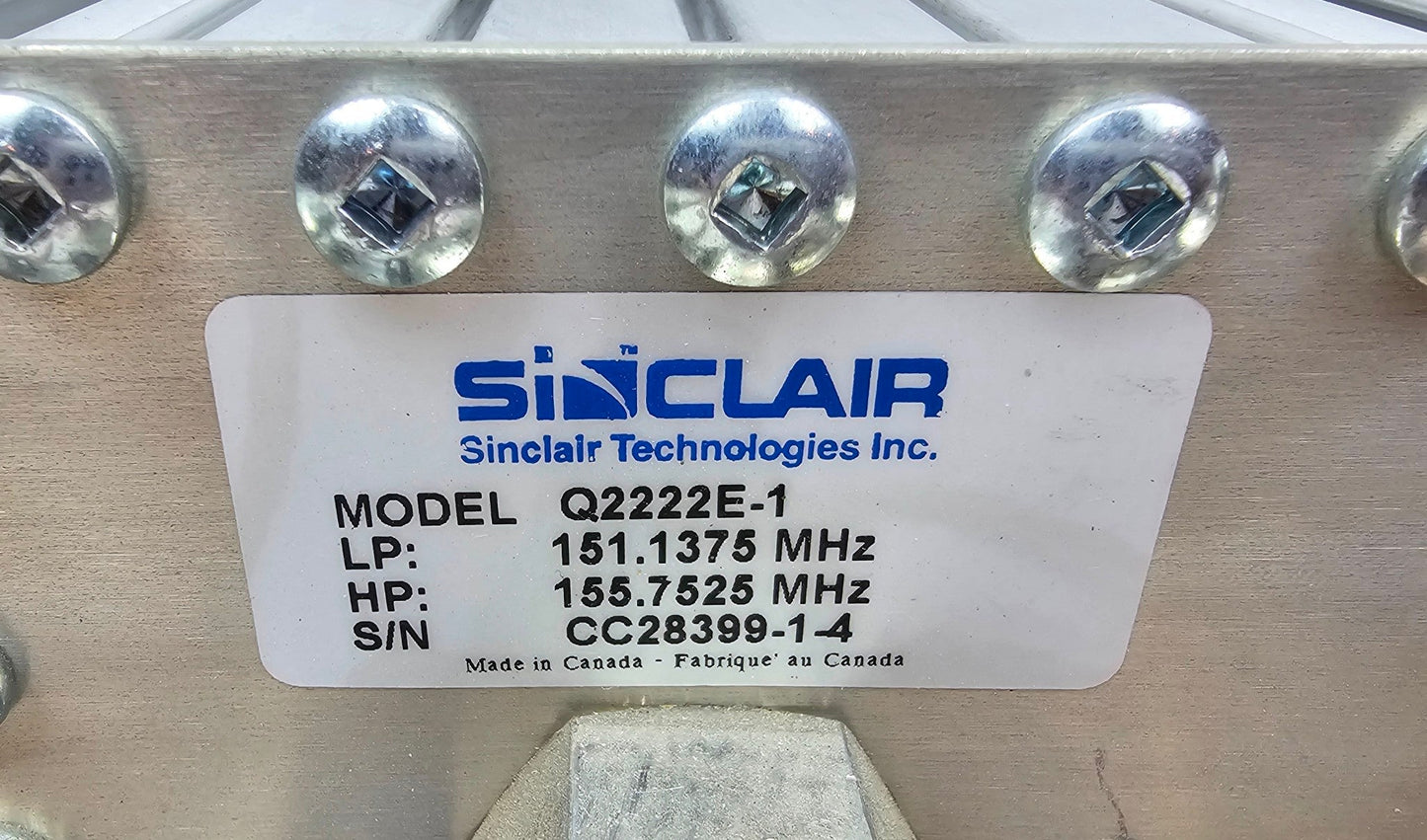

SKU:Q2222E-1

Regular price $795.00 USD
Regular price Sale price $795.00 USD
Sale Sold out

Sinclair VHF RES-LOK duplexer, model number Q2222E-1. This is a 120 watt rated duplexer that can be tuned to frequencies between 139-165 MHz. In great condition and professionally packaged. Free tuning is available with purchase. If you have any questions, please contact us - Office Hours (M-F: 8am-4pm) MST.

**PLEASE NOTE THAT THIS WILL NOT WORK IN THE HAM BAND**

Specs:

• Duplexer of choice when space is limited

• Excellent performance characteristics at one half the size of the Q2220E


Electrical Specifications:

  • Average Input Power Max: 120W
  • Connectors: N Female
  • Frequency Range (MHz): 139 to 165 MHz
  • Impedance (Ω): 50
  • Insertion Loss Max Rx To Ant: 0.8
  • Insertion Loss Max Tx To Ant: 0.8
  • Isolation (Min): 75 dB


Mechanical Specifications:

  • Depth (in): 17"
  • Finish: chromate conversion
  • Length Height (in): 4.17"
  • Mounting Configurations: 19 inch rack
  • Width (in): 19"
