Sinclair VHF RES-LOK Duplexer Q2220E 350 watts 132-174 Mhz Pass/Reject 4 Cavity

Sinclair VHF RES-LOK Duplexer Q2220E 350 watts 132-174 Mhz Pass/Reject 4 Cavity

Q2220E 1

$675.00 USD
$675.00 USD
Sale Sold out
Shipping calculated at checkout.

Description :

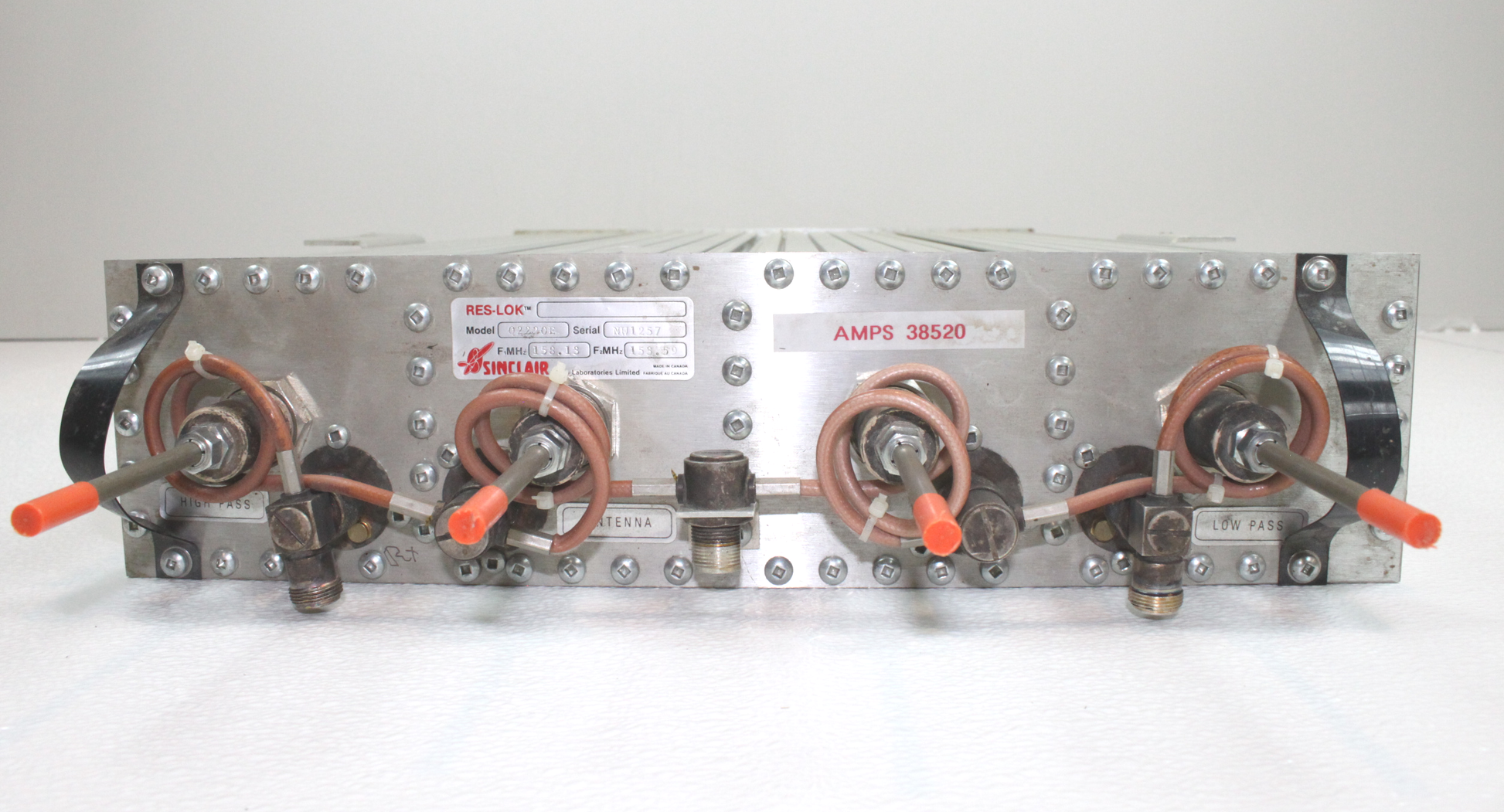

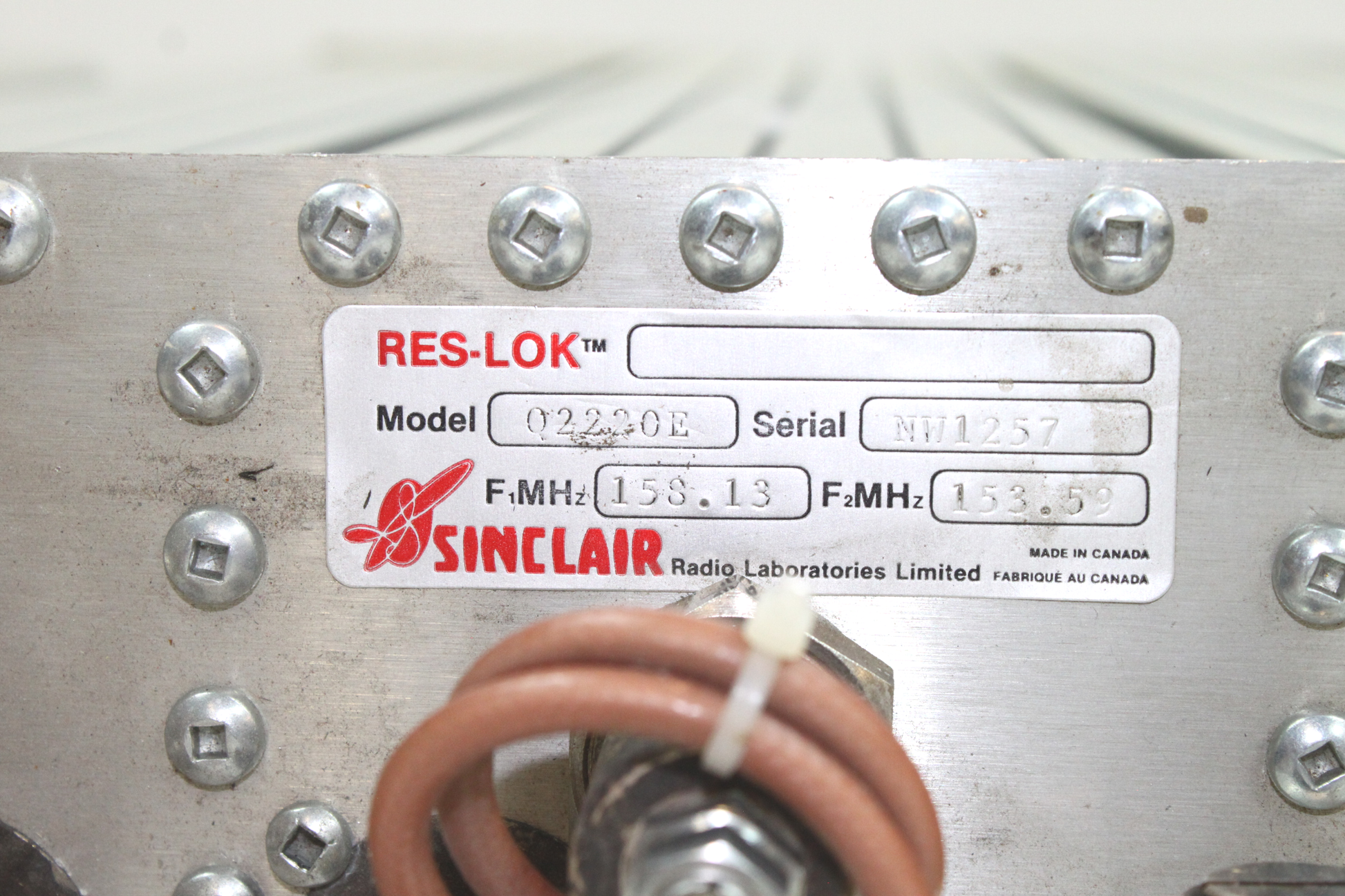

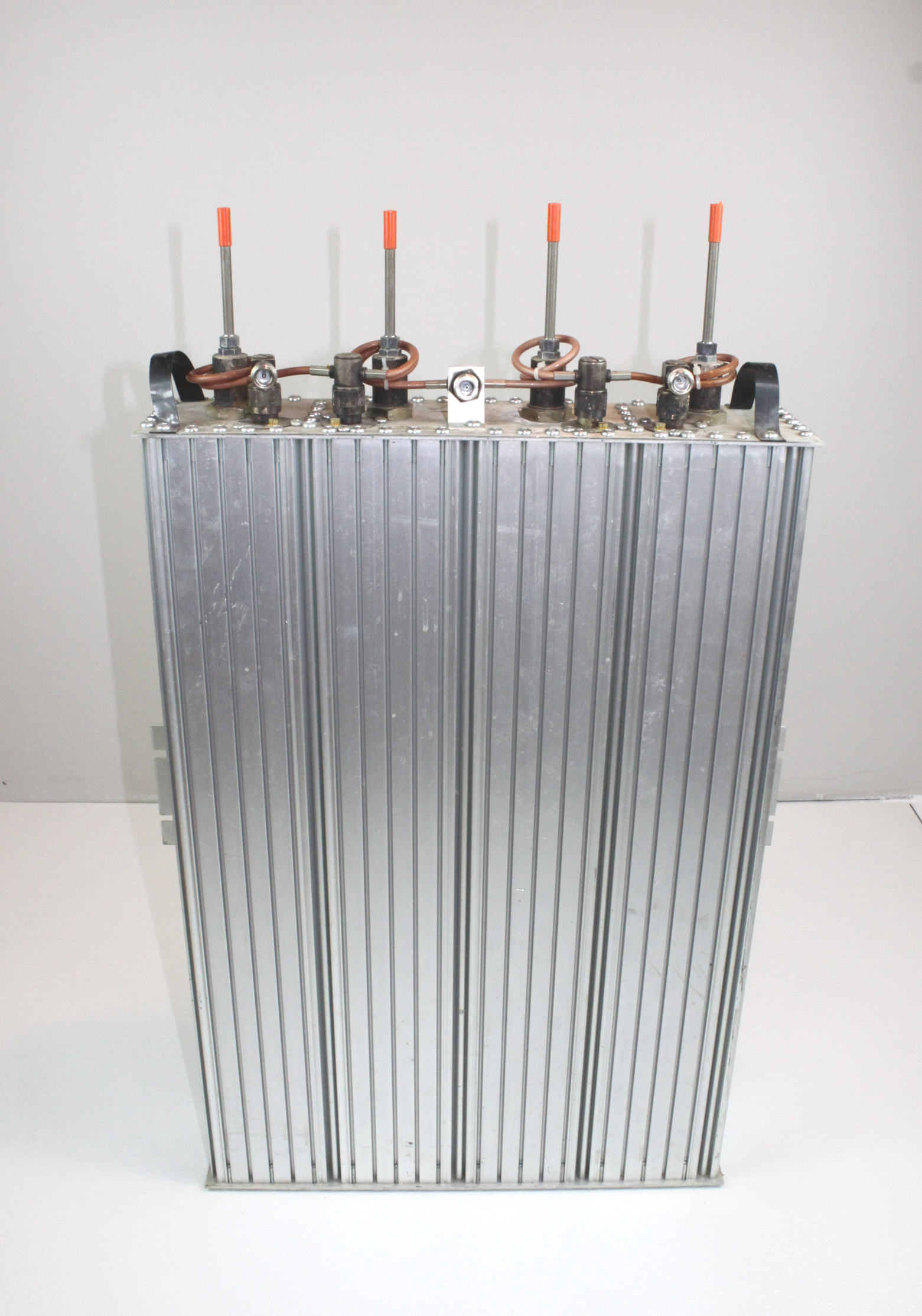

Sinclair VHF RES-LOK duplexer, model number Q2220E.   This is a 350 watt rated duplexer that can be tuned to frequencies between 132-174 Mhz.  This duplexer can be tuned to ham frequencies with a 600 khz spacing.  In great condition.  Free tuning of the duplexer is available prior to shipping  If you have any questions, please contact us - Office Hours M-F (8-4 pm) Mountain Time

*** PLEASE NOTE – All Tuning of duplexers will be done on the upcoming weekend after order is placed. ***



 DUPLEXER SPECIFICATIONS:



Electrical Specifications
Frequency Range MHz  138 to 174
Number of Cavities - Tx Side   2
Number of Cavities - Rx Side   2
Input Connectors   N-Female
Output Connectors   N-Female
Input VSWR (max)   1.5:1
Insertion Loss (max) Tx to Ant dB  1.5
Impedance Ω  50
Average Input Power (max) W  350
Frequency separation (min) MHz  0.5
Isolation (min) dB  70



Mechanical Specifications
Width in  19
Depth in  30.3
Length/ Height in  4.17
Finish   chromate conversion
Weight lbs  28
Mounting configurations   19 inch rack
Actual shipping weight lbs  33
Shipping dimensions in  19.25x7x30.5



Environmental Specifications
Temperature range °F  -40 to +140
