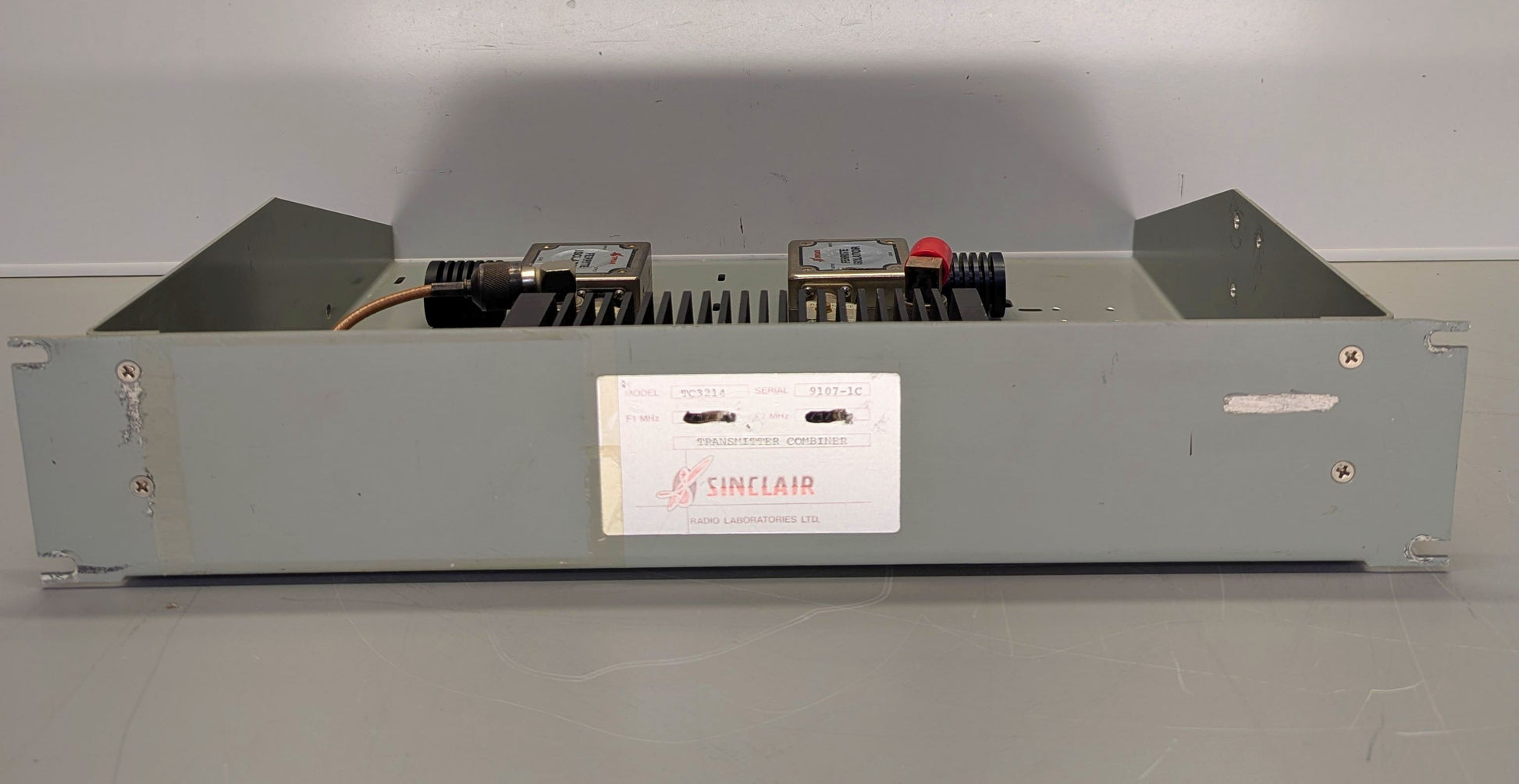

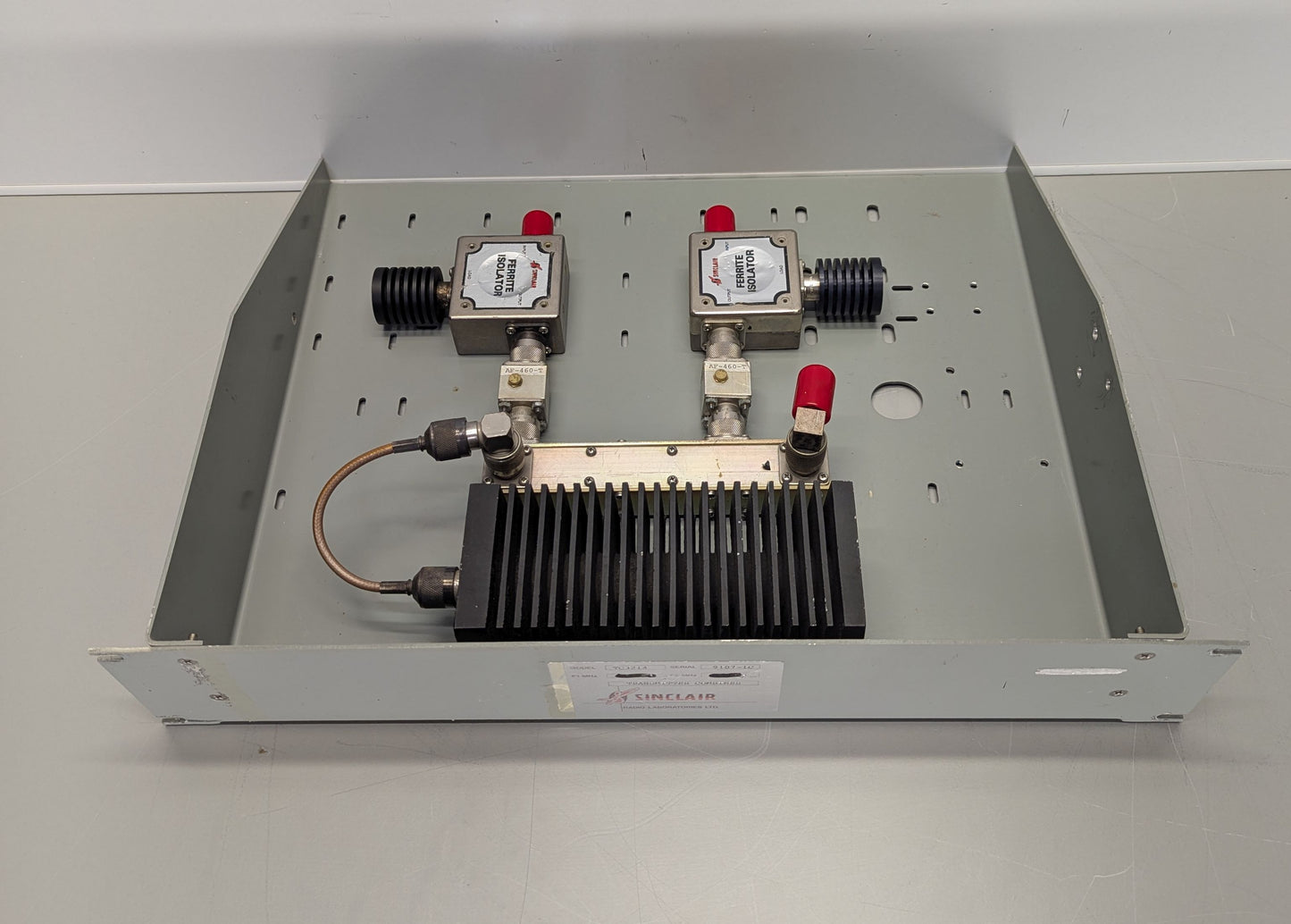

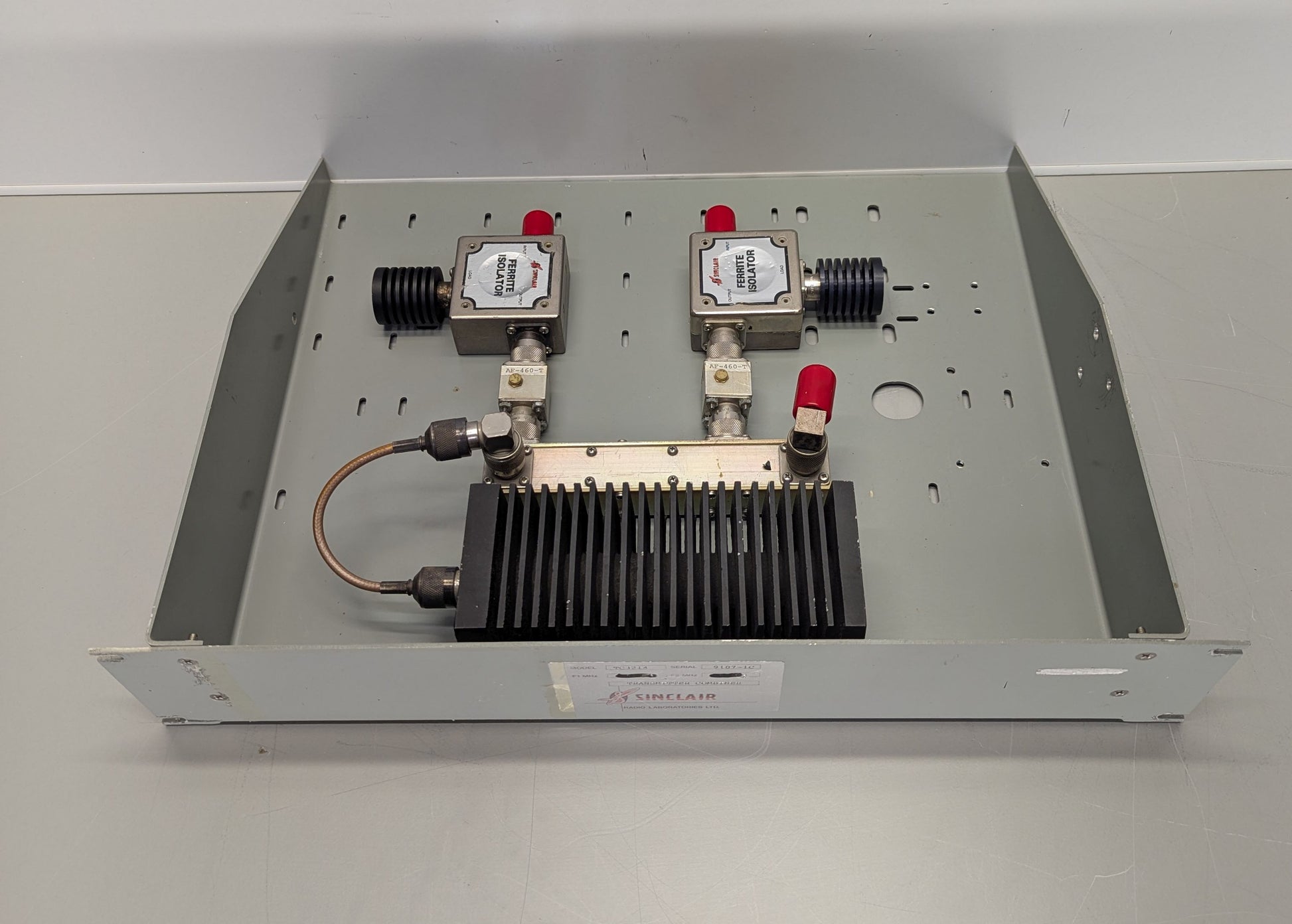

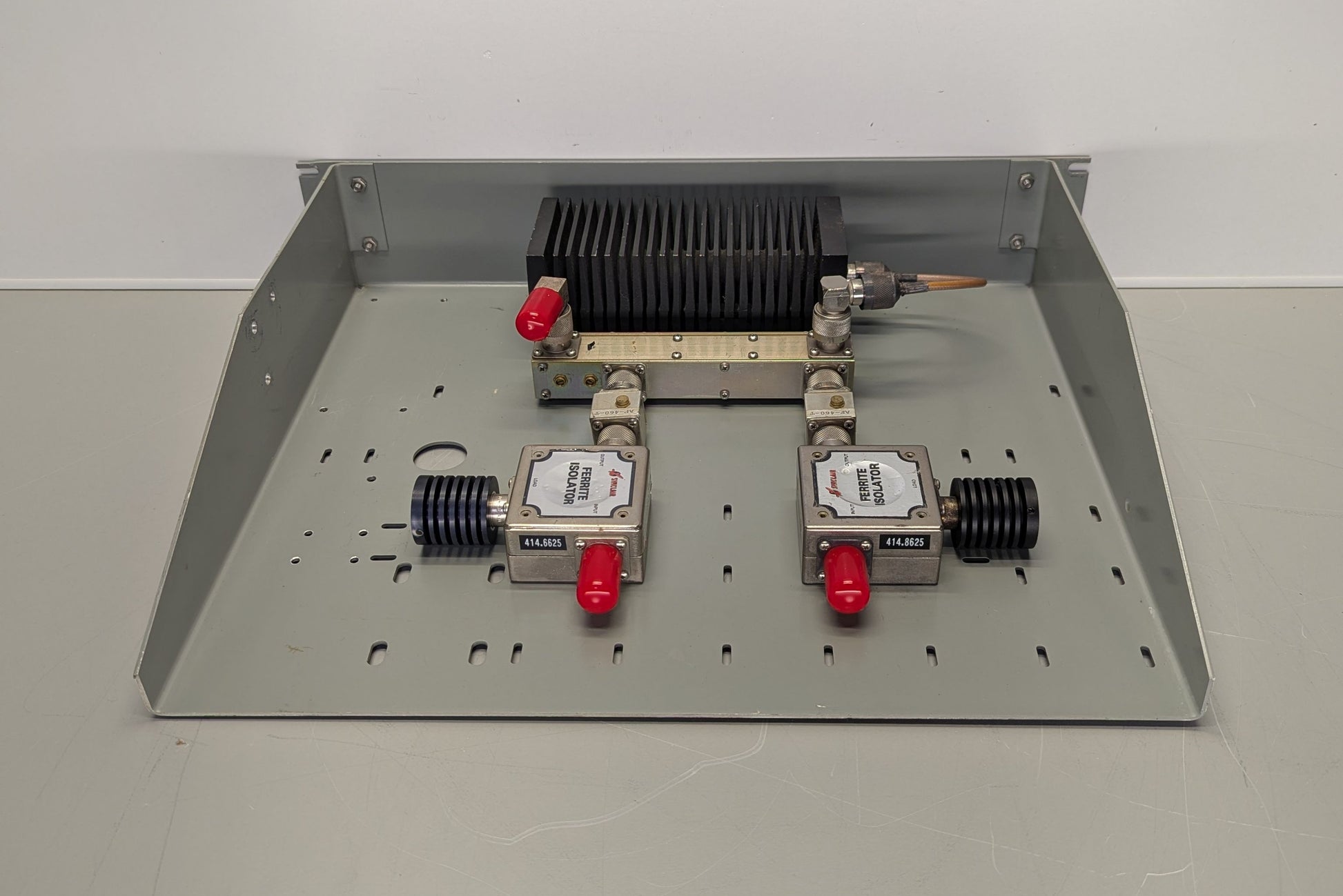

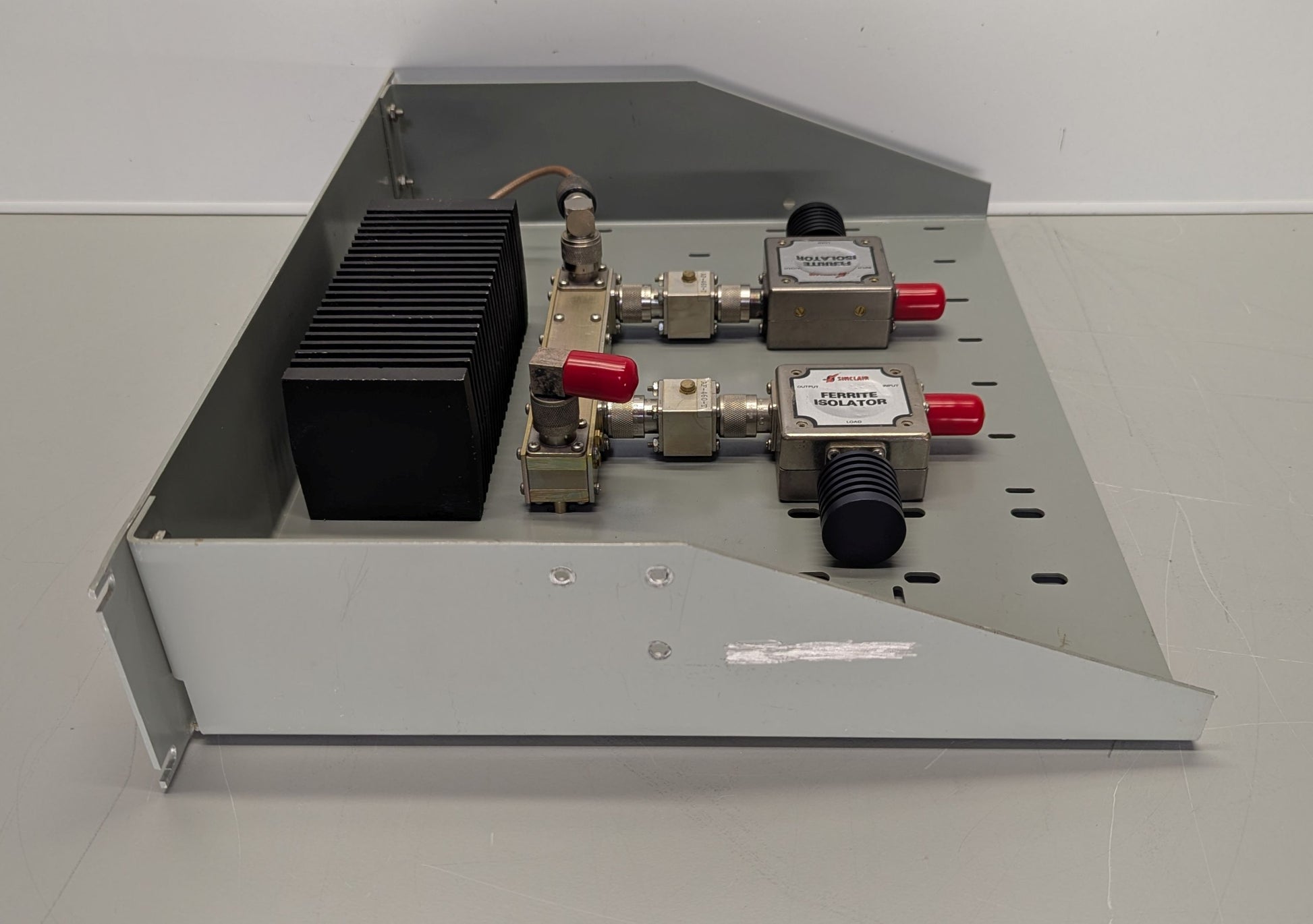

SINCLAIR TC3214 UHF 2-CH HYB COMBINER

SINCLAIR TC3214 UHF 2-CH HYB COMBINER

TC3214

$1,295.00 USD
$1,295.00 USD
Sale Sold out
Shipping calculated at checkout.

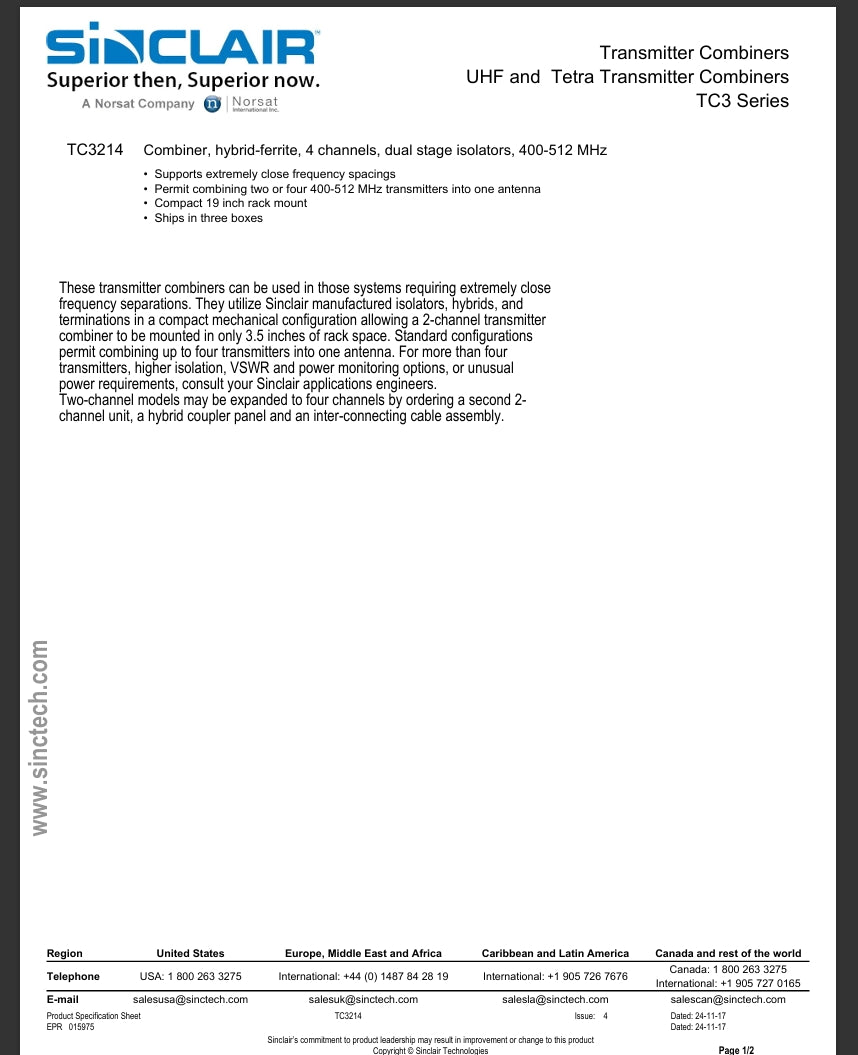

This Dual stage isolator hybrid transmitter combiner can be used in those systems requiring extremely close frequency separations. It was pulled from a working system and is in excellent condition. If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • SINCLAIR TC3214 UHF 2 CH HYB COMBINER

  • 30-day warranty

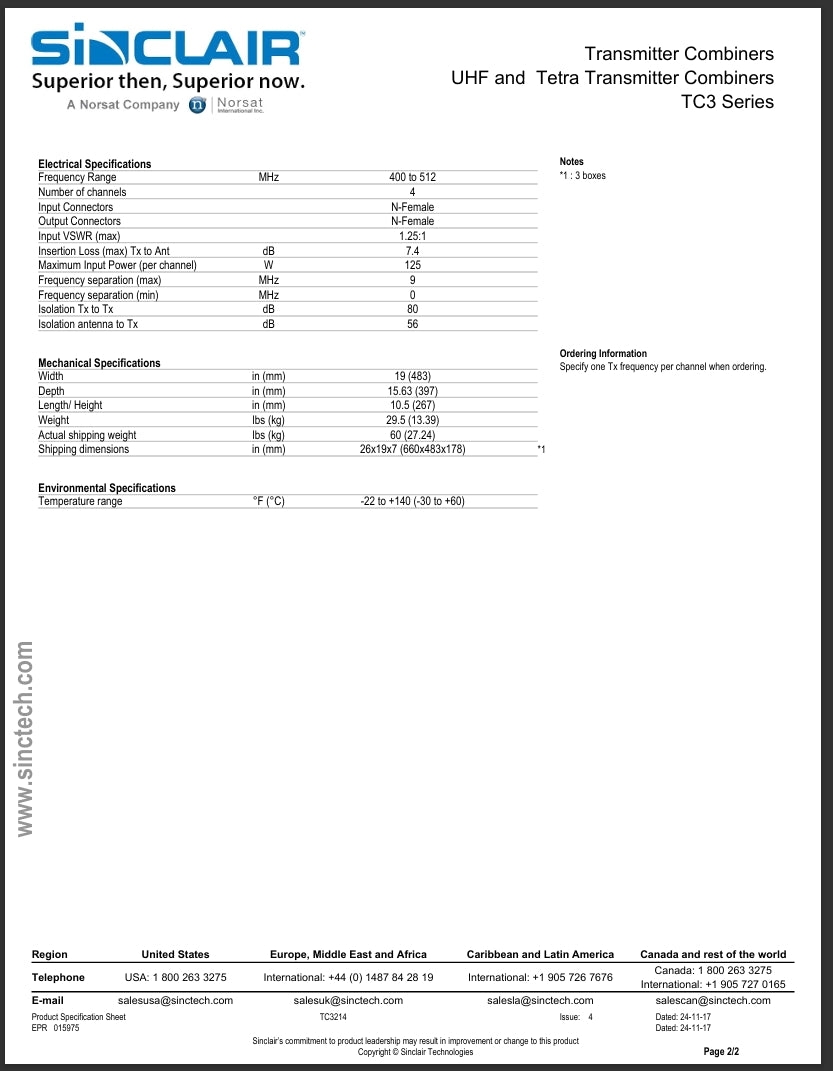

Product Details:

  • Model Number: TC3214

  • Frequency Range: 400-512MHz

  • Input VSWR (max) : 1.25:1

  • Insertion Loss (max) Tx to Ant: 7.4dB

  • Frequency separation: 0-9MHz

  • Isolation Tx to Tx: 80dB

  • Isolation antenna to Tx: 56dB

  • Max Input Power : 125W

  • In/Output Connectors: N female

  • Dimensions: 19"w x 3.5"H X 14"D

  • Weight:15 lbs

*Image shown is a representation only. Actual product may vary.
