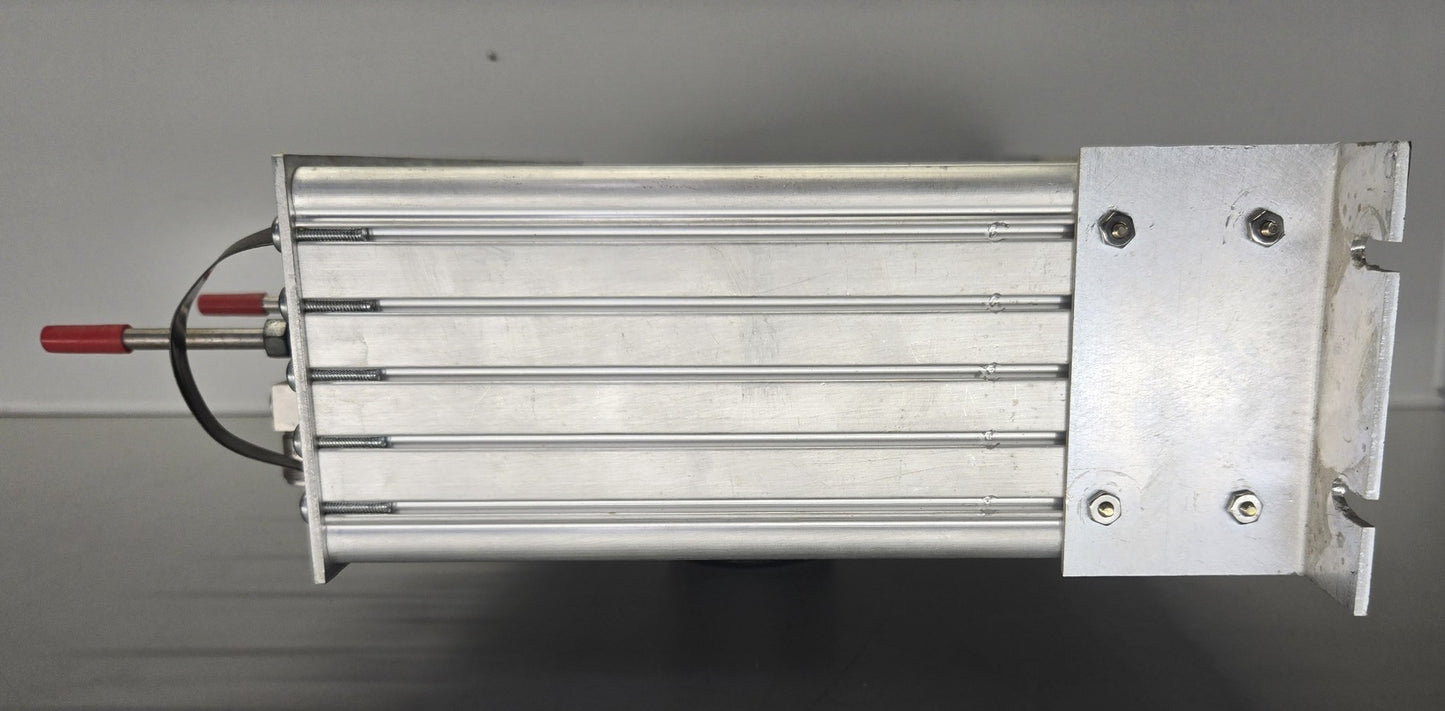

SINCLAIR EXPANDABLE MULTICOUPLER 403-440Mhz (C3034-1-1.6)

SINCLAIR EXPANDABLE MULTICOUPLER 403-440Mhz (C3034-1-1.6)

C3034

$675.00 USD
$675.00 USD
Sale Sold out
Shipping calculated at checkout.

Sinclair’s C-Series multicouplers offer excellent performance combined with ease of expandability required in many multicoupling systems. Each C-Series multicoupler channel consists of a reject cavity and one or more bandpass cavities, depending on the selectivity required. The reject cavity acts as a switch, diverting the wanted channel frequency to or from the antenna, while allowing the remaining channel frequencies to flow in the antenna feed-thru line to or from the remaining C-Series multicoupler channels.


The unit is in good condition and has been pulled from a working system. If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product Details:

  • Model Number: C3034

  • Frequency Range: 406-440Mhz

  • Average Power Input (max) W: 300

  • Input VSWR (max): 1.5:1

  • Frequency separation (min) MHz: 1

  • Insertion loss (max) Tx to Ant dB: 1.6

  • Input/Output Connectors: N-FEMALE

  • Dimensions: D'14' X W'19' X H'4.19'

  • Weight: 13LBS

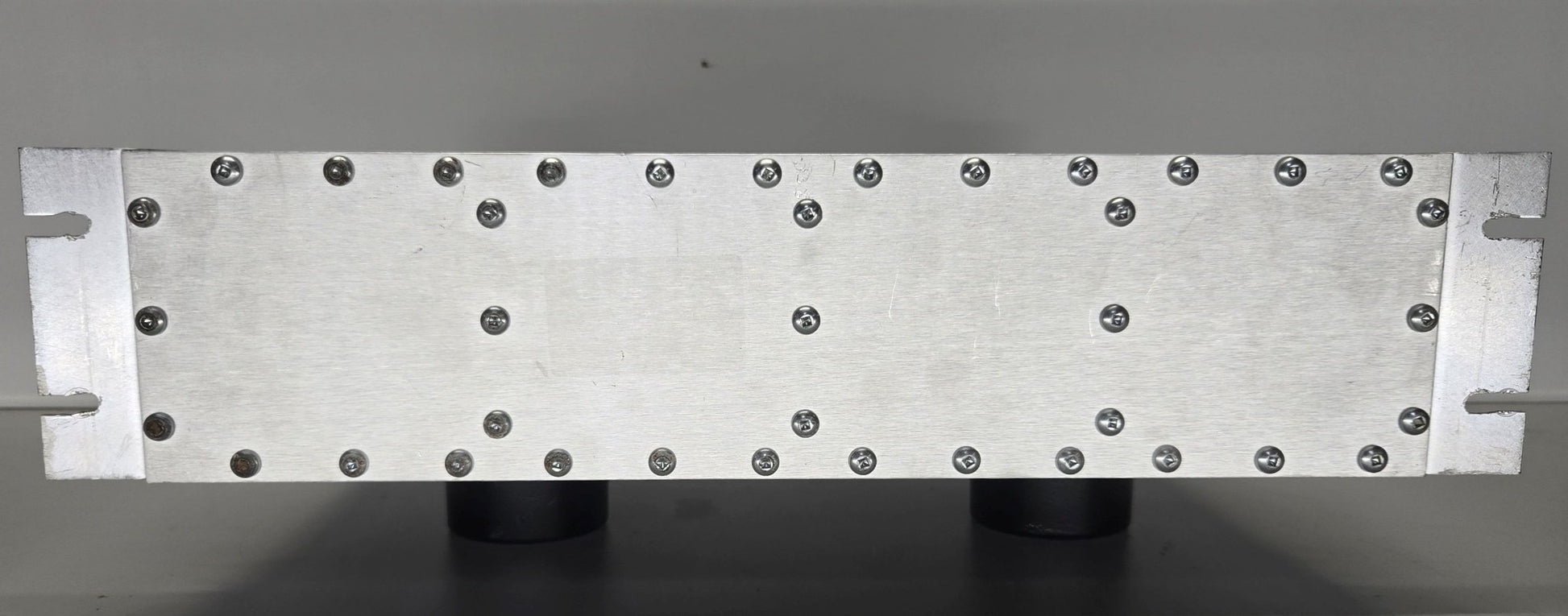

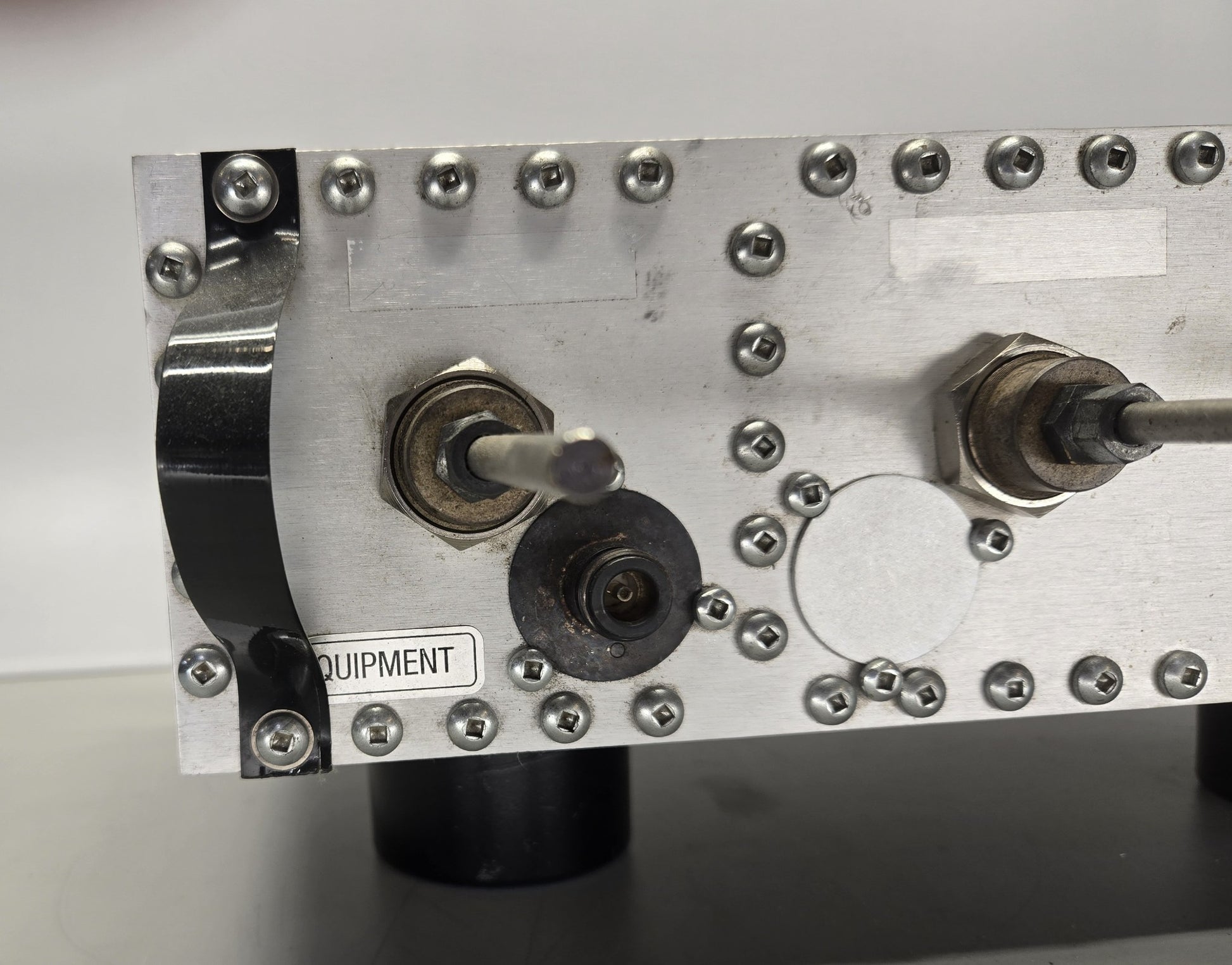

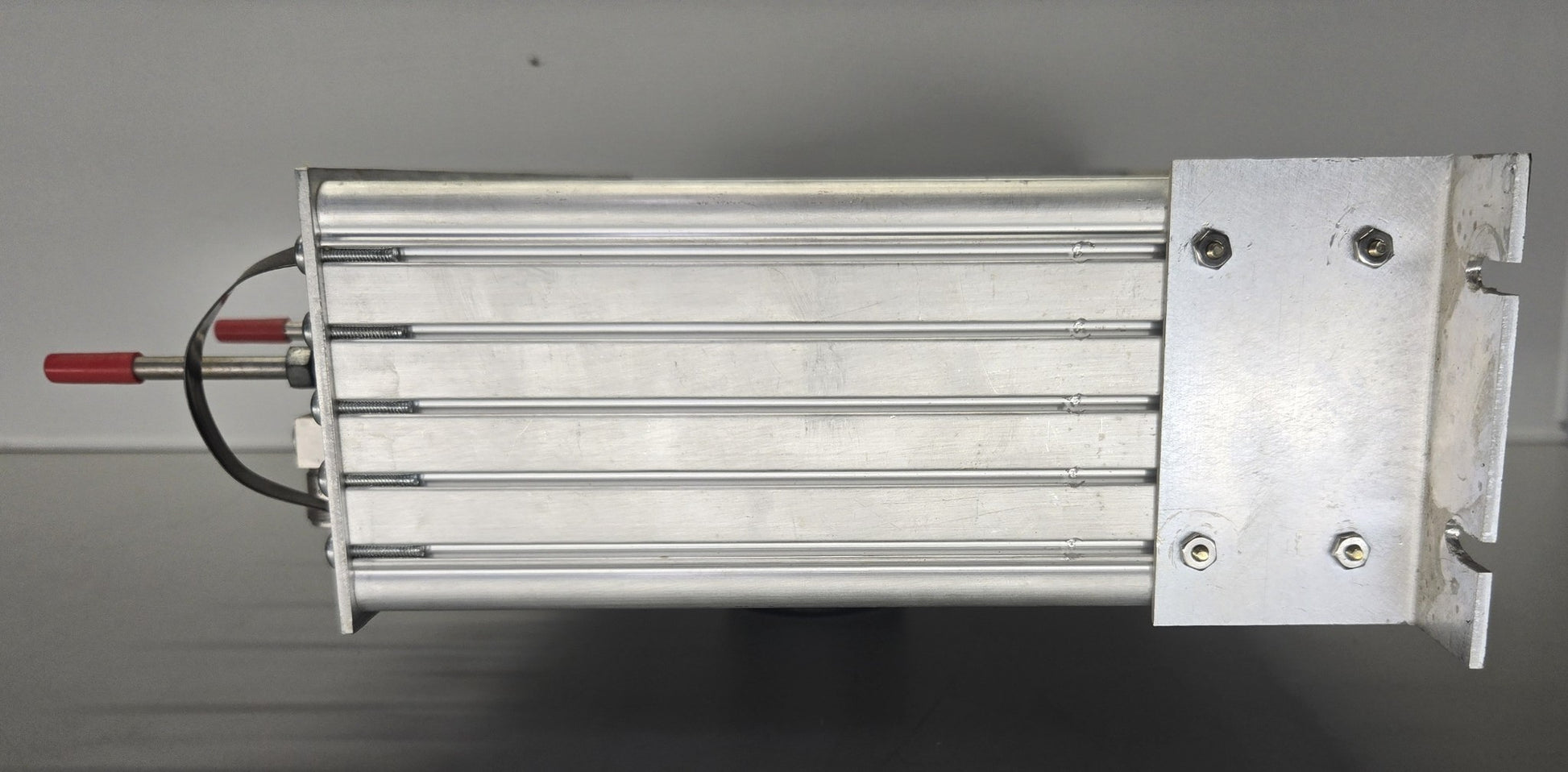

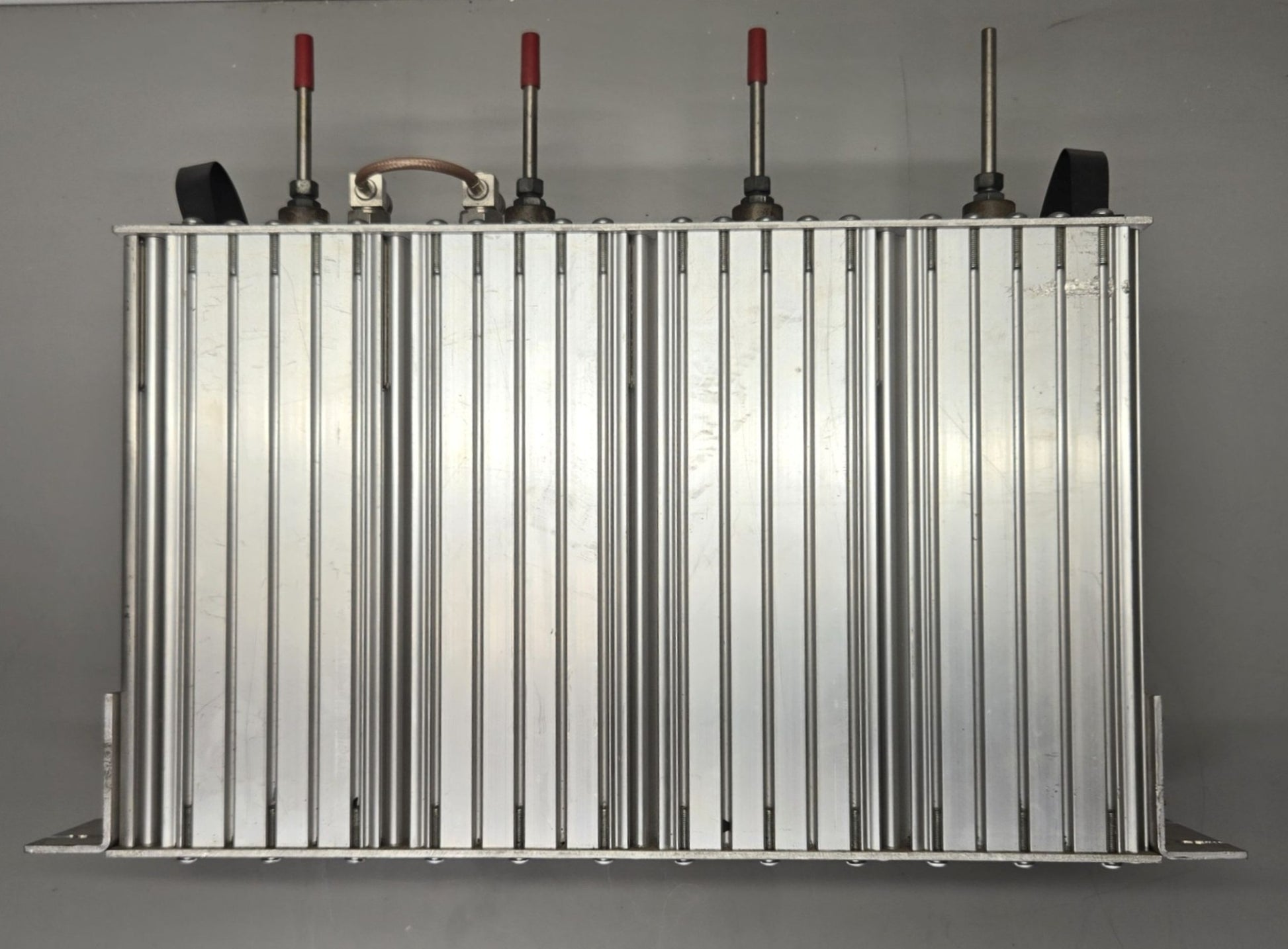

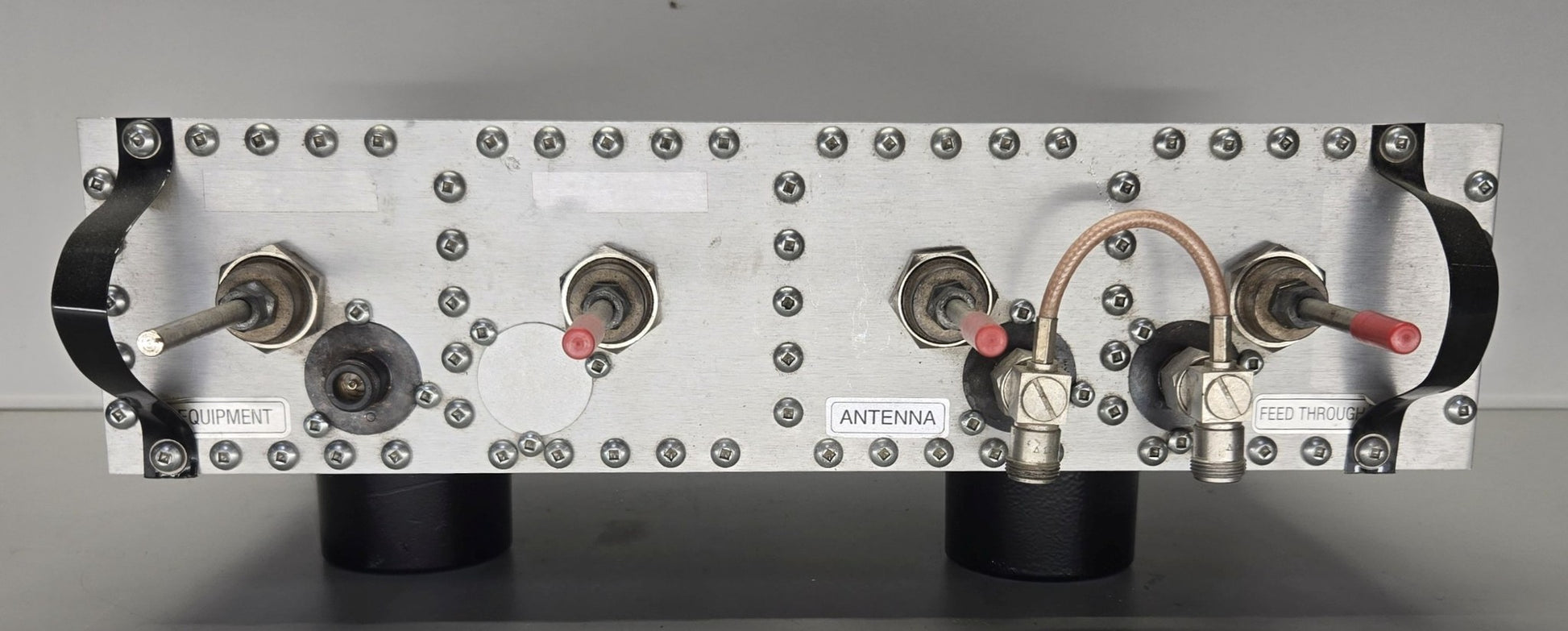

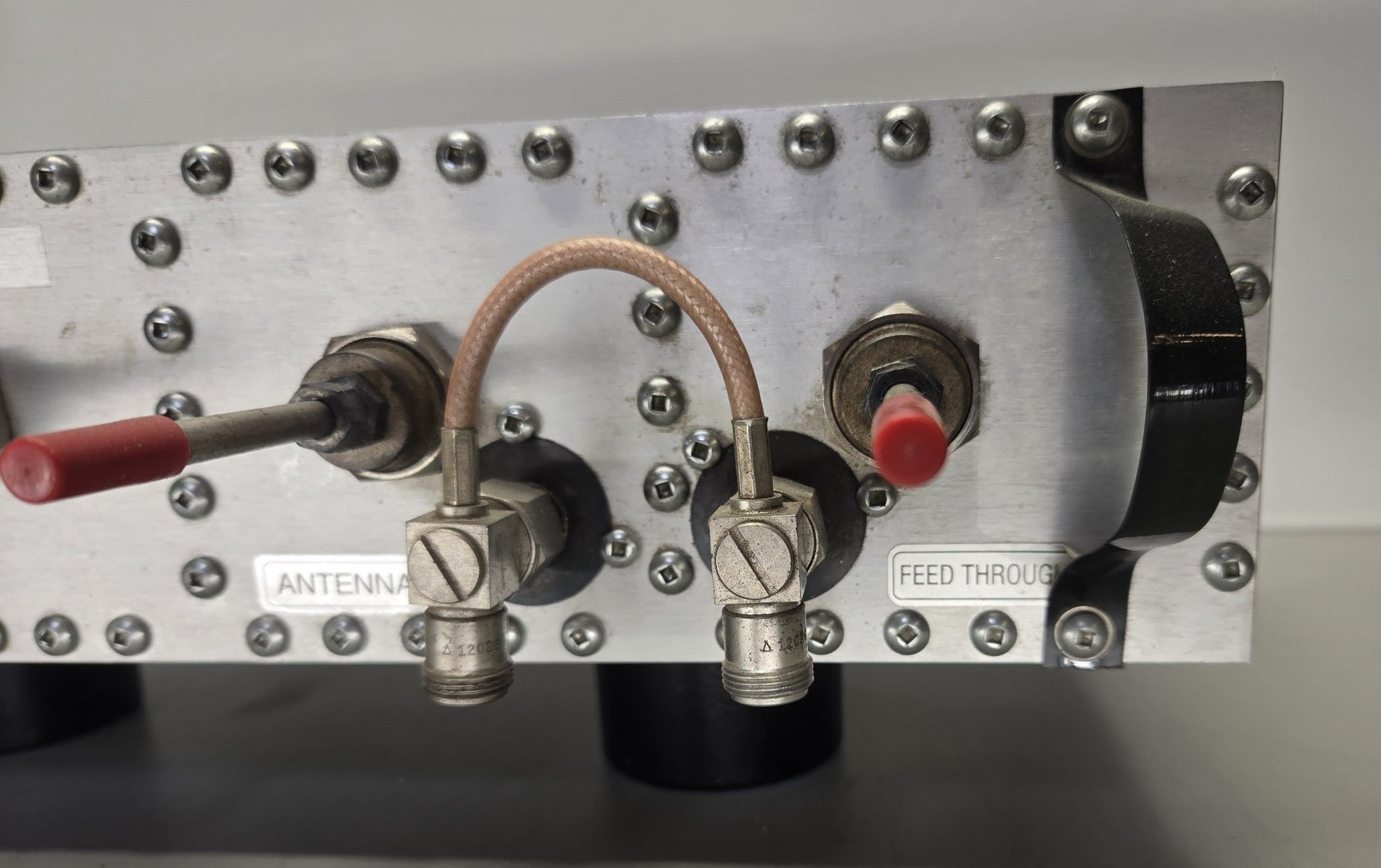

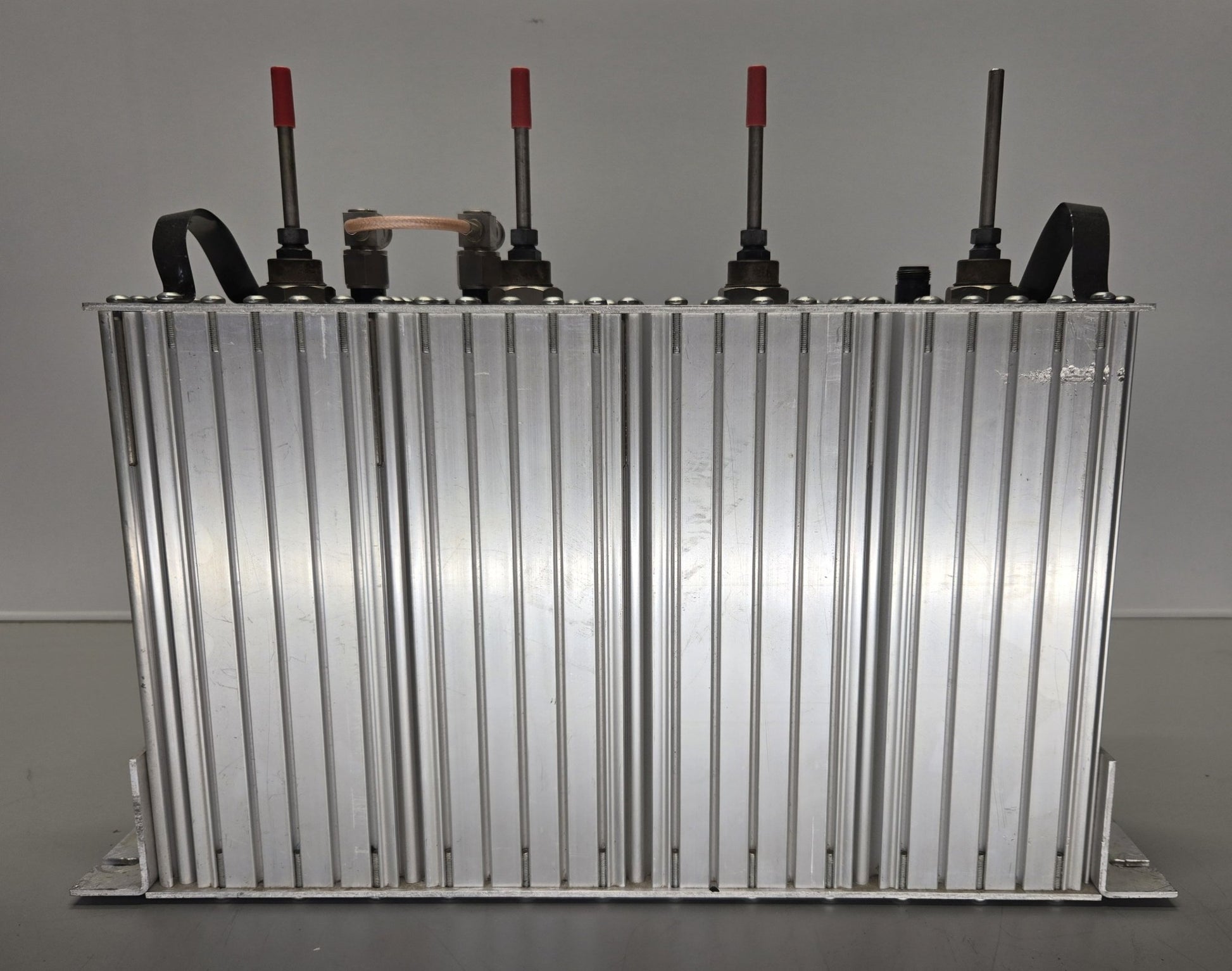

*Image shown is a representation only. Actual product may vary.
