SINCLAIR 3-CH 6 CAV VHF COMBINER WITH 4-PORT EMR RX MULTICOUPLER

SINCLAIR 3-CH 6 CAV VHF COMBINER WITH 4-PORT EMR RX MULTICOUPLER

TJ2213-3

$2,499.00 USD
$2,499.00 USD
Sale Sold out
Shipping calculated at checkout.

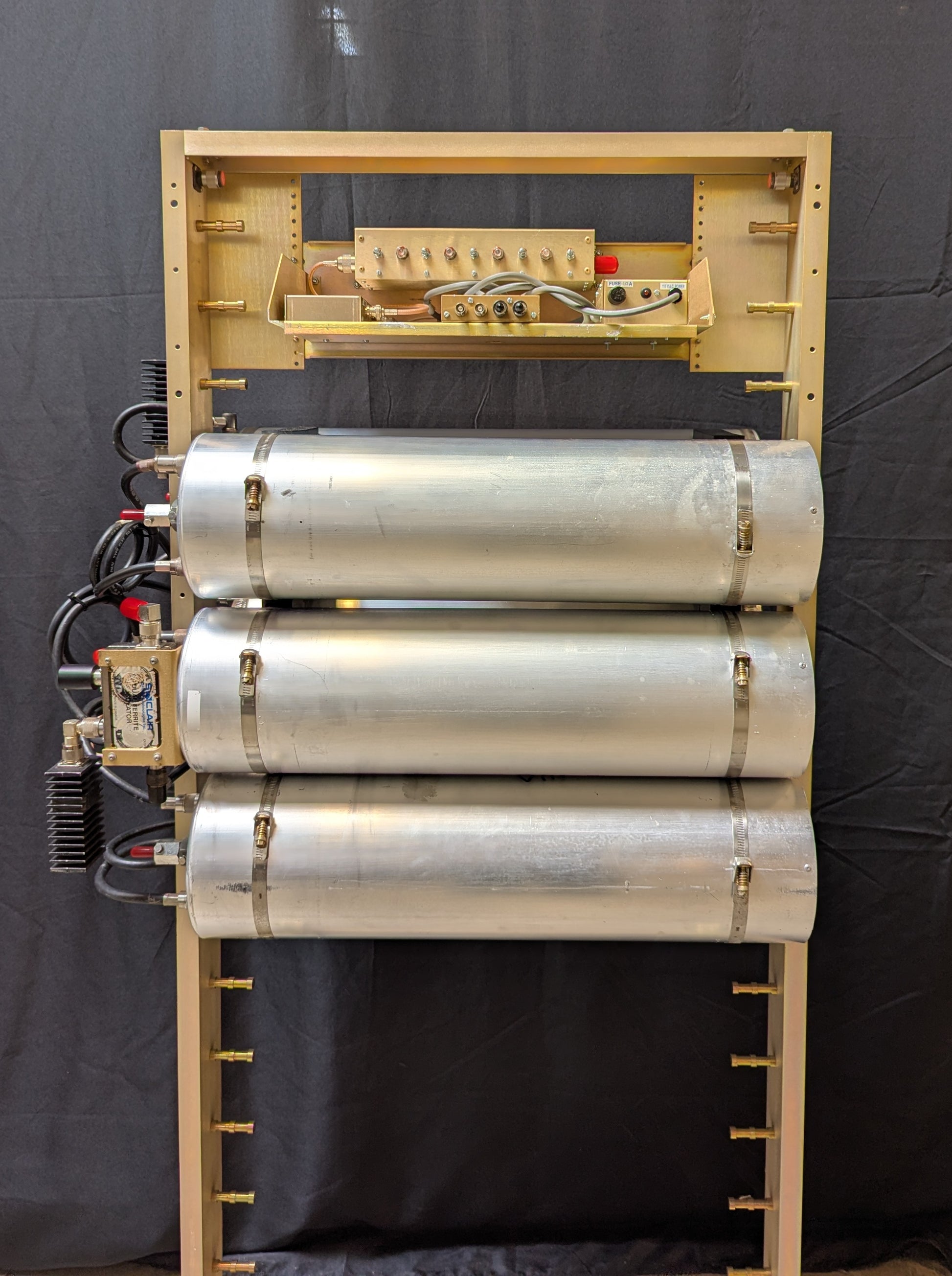

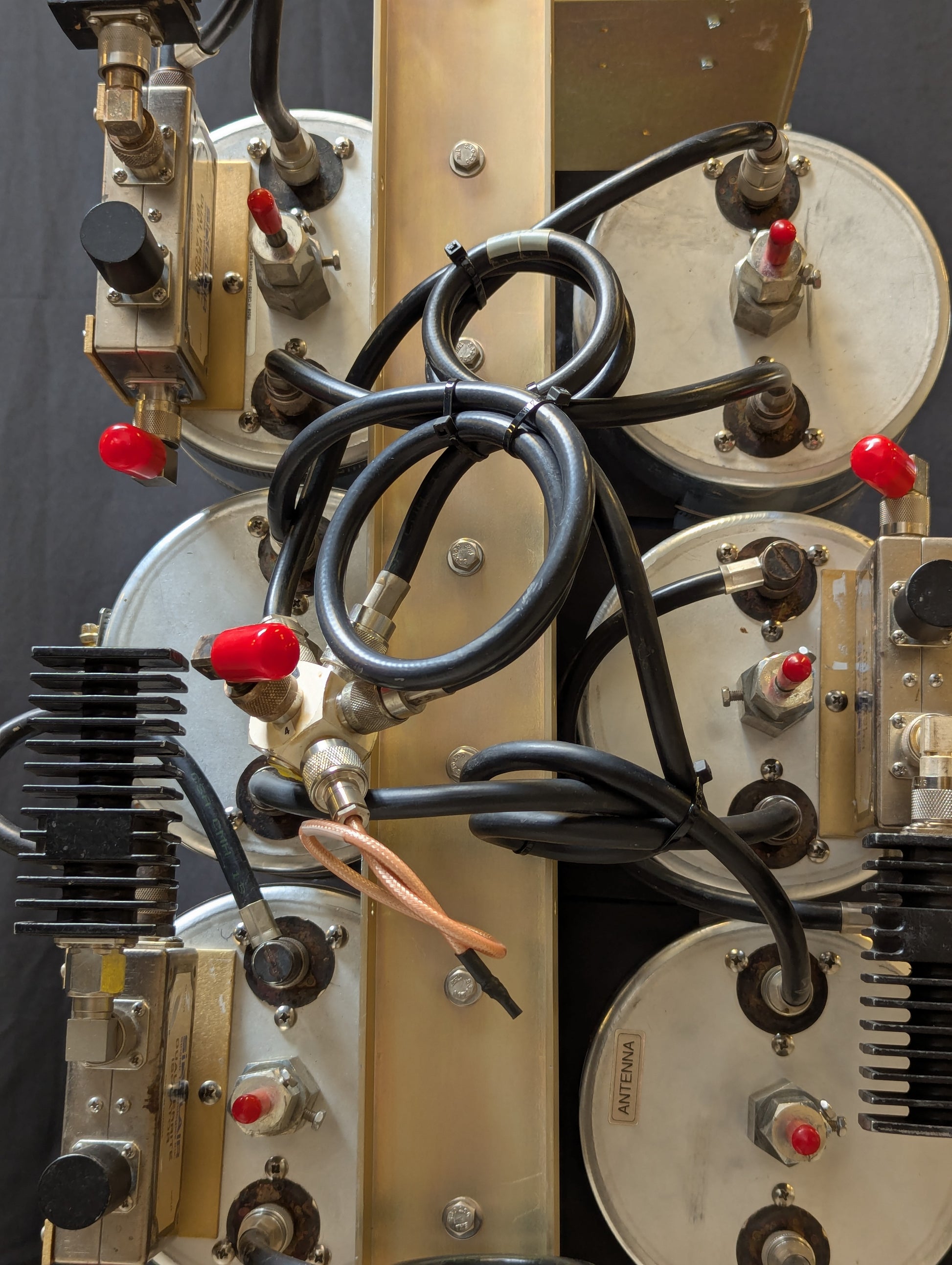

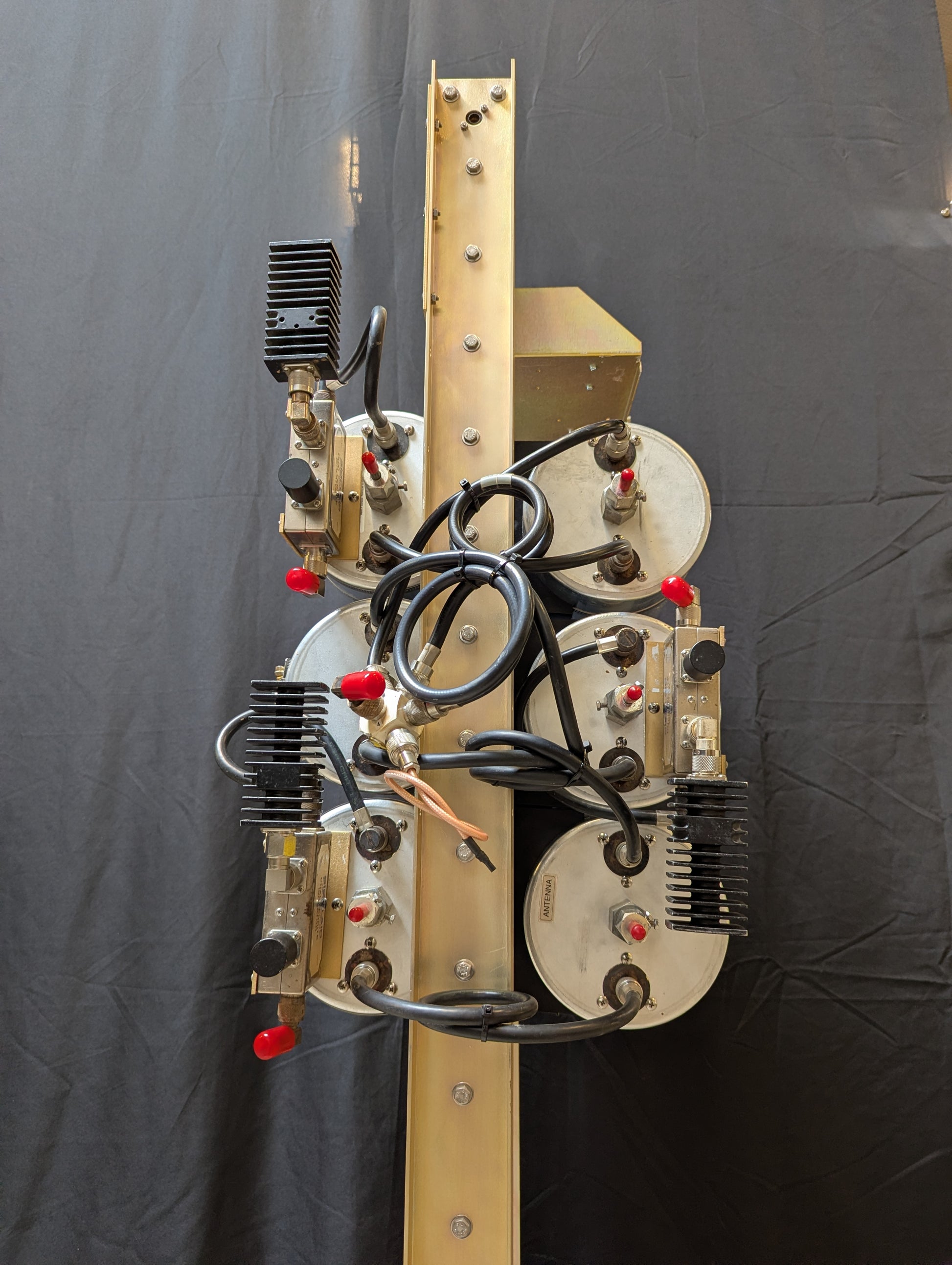

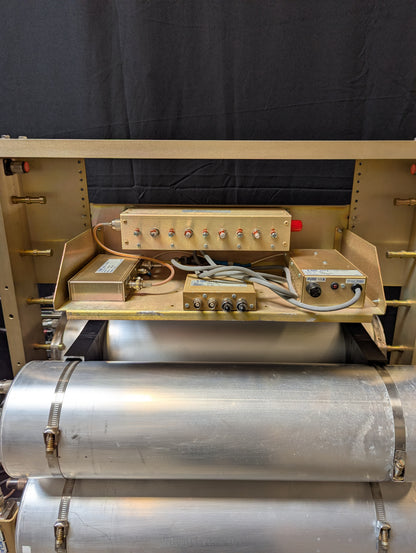

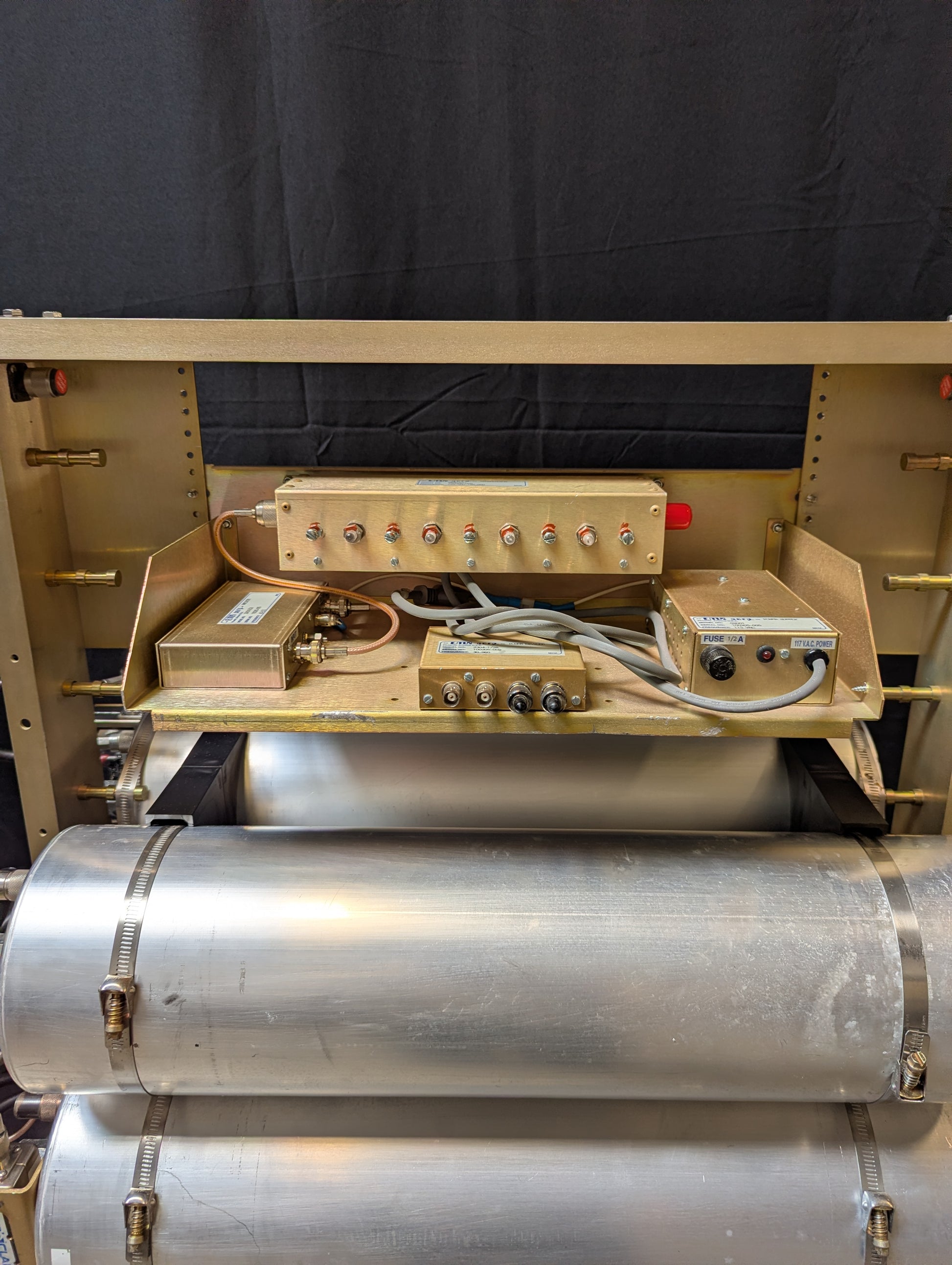

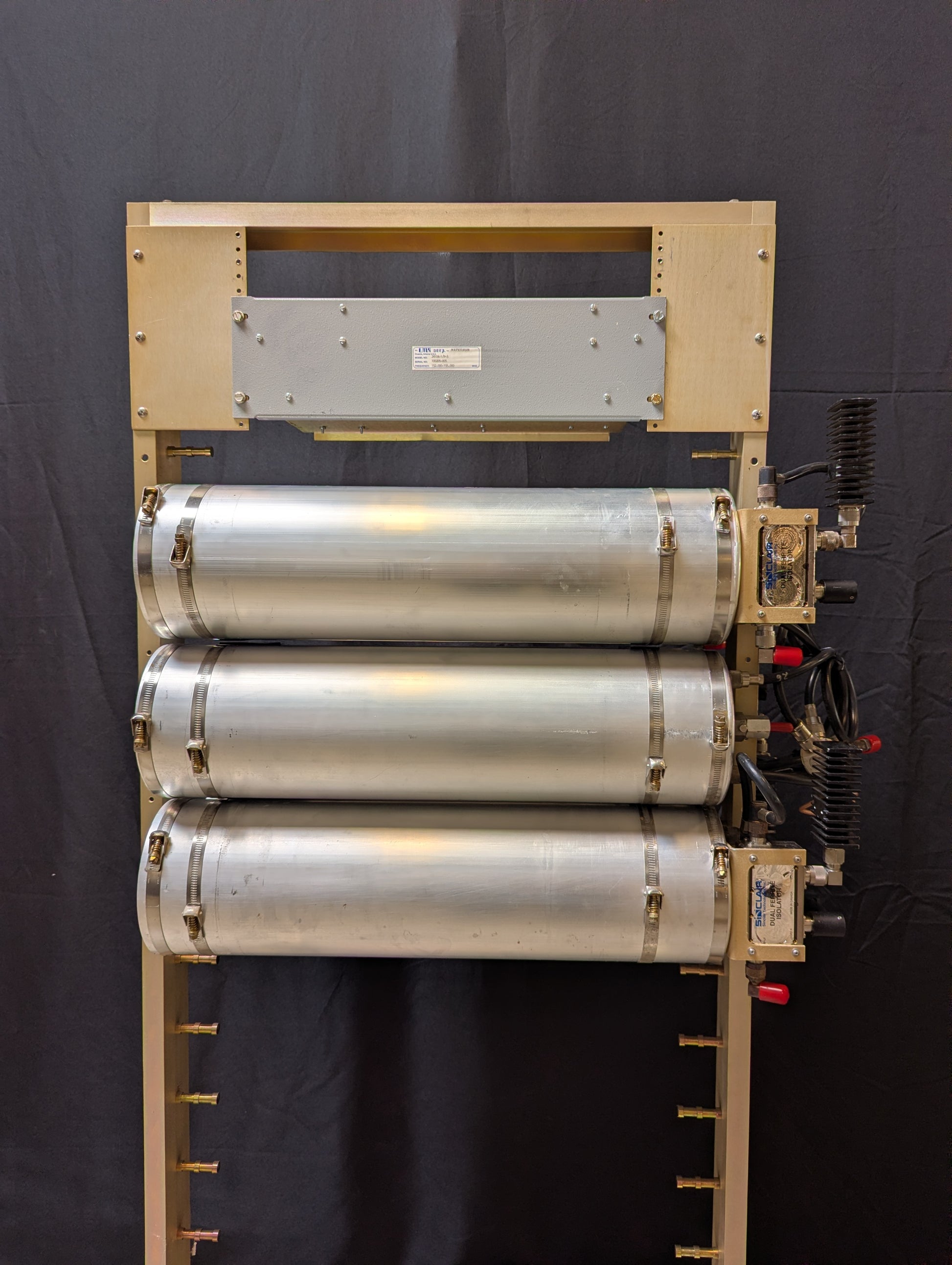

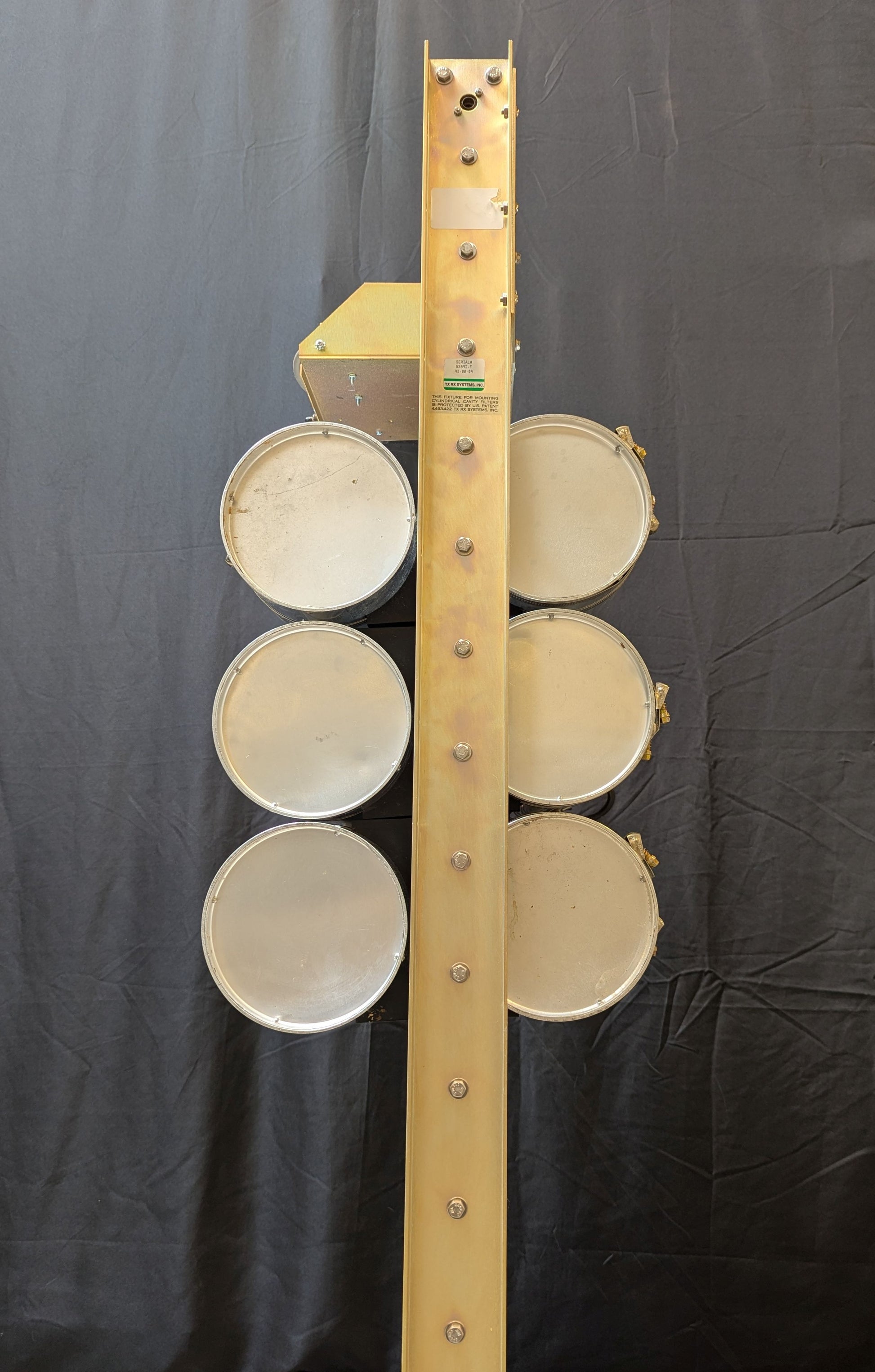

3-CH Sinclair combiner with an EMR receive multicoupler was custom built for customer. All equipment is secured to conventional PEG rack.

It was pulled from a working system and is in excellent condition. Customer tuning is available. If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

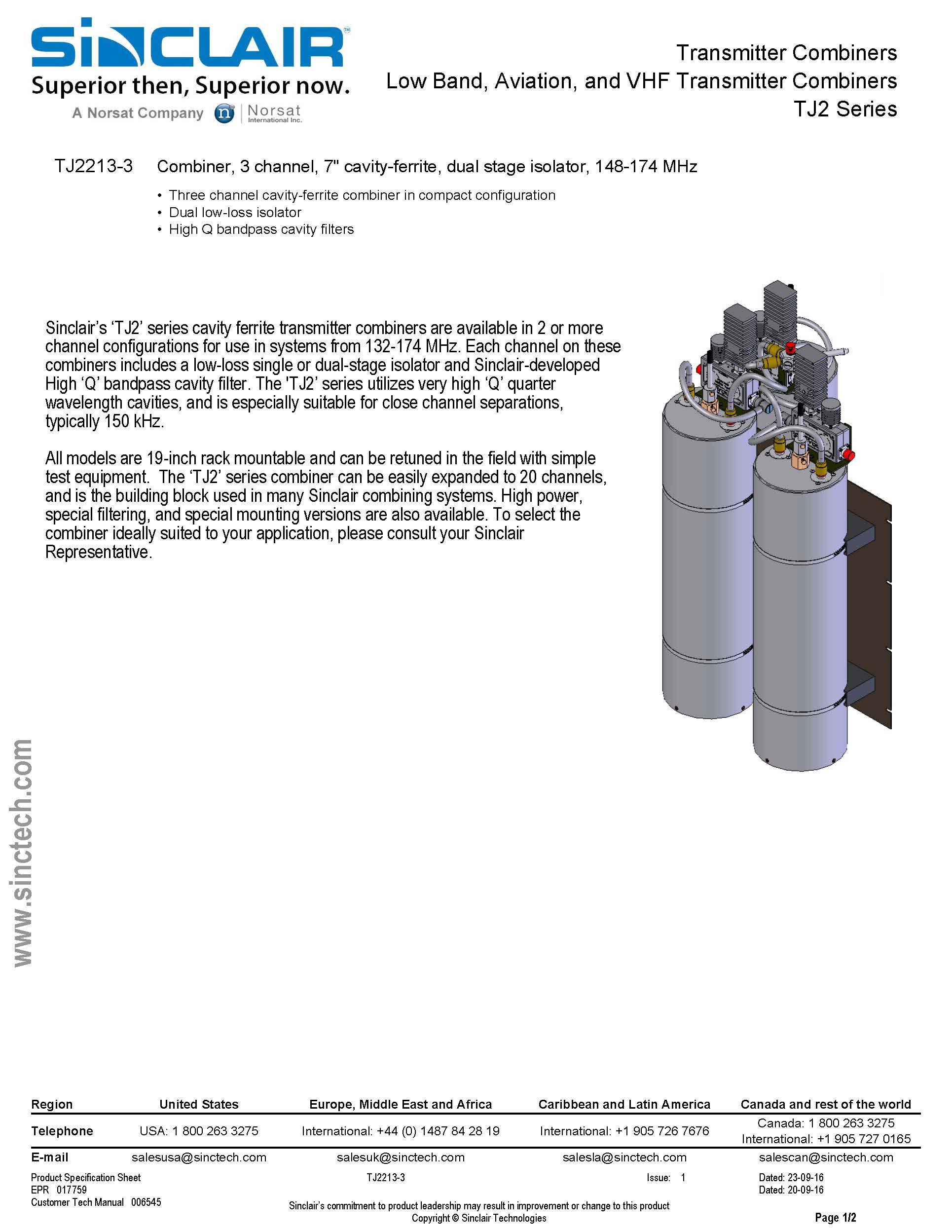

  • SINCLAIR 3-CH 6 CAV VHF COMBINER WITH 4-PORT RX MULTICOUPLER

  • 30-day warranty

Product Details:

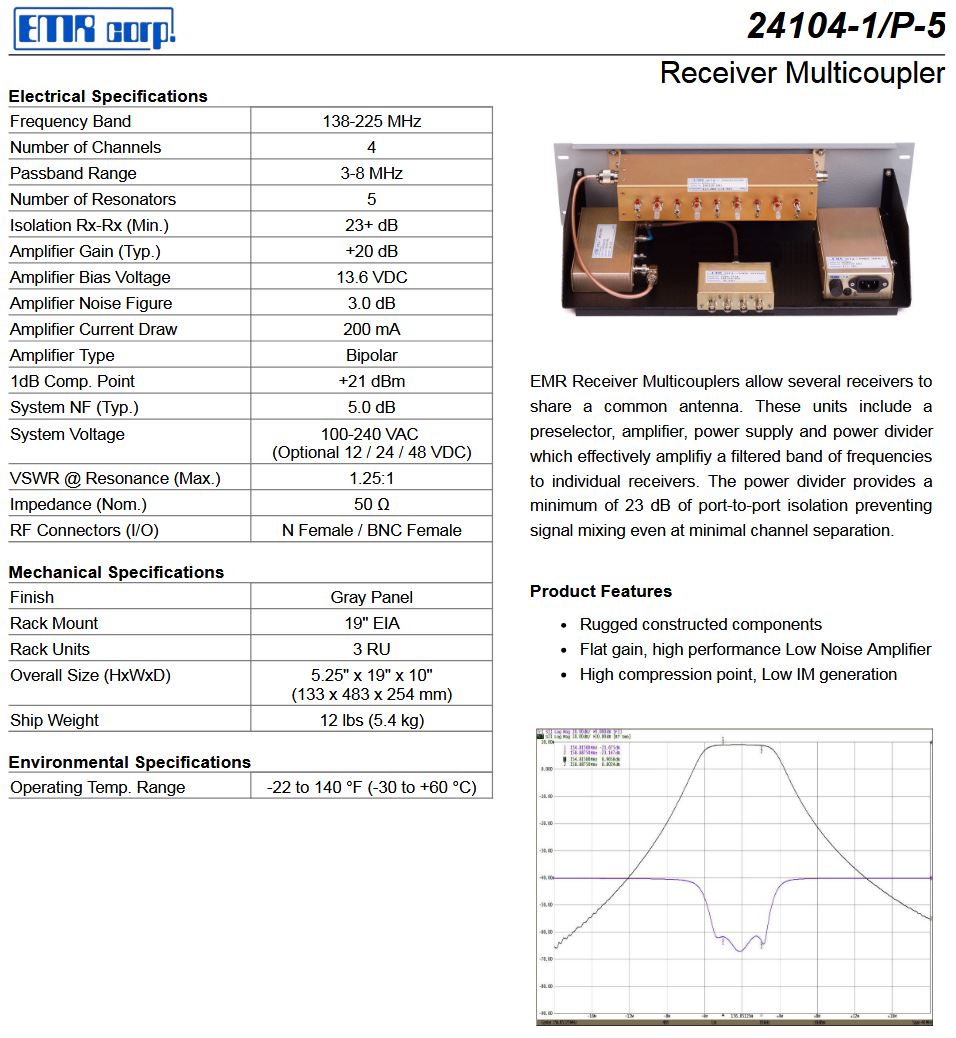

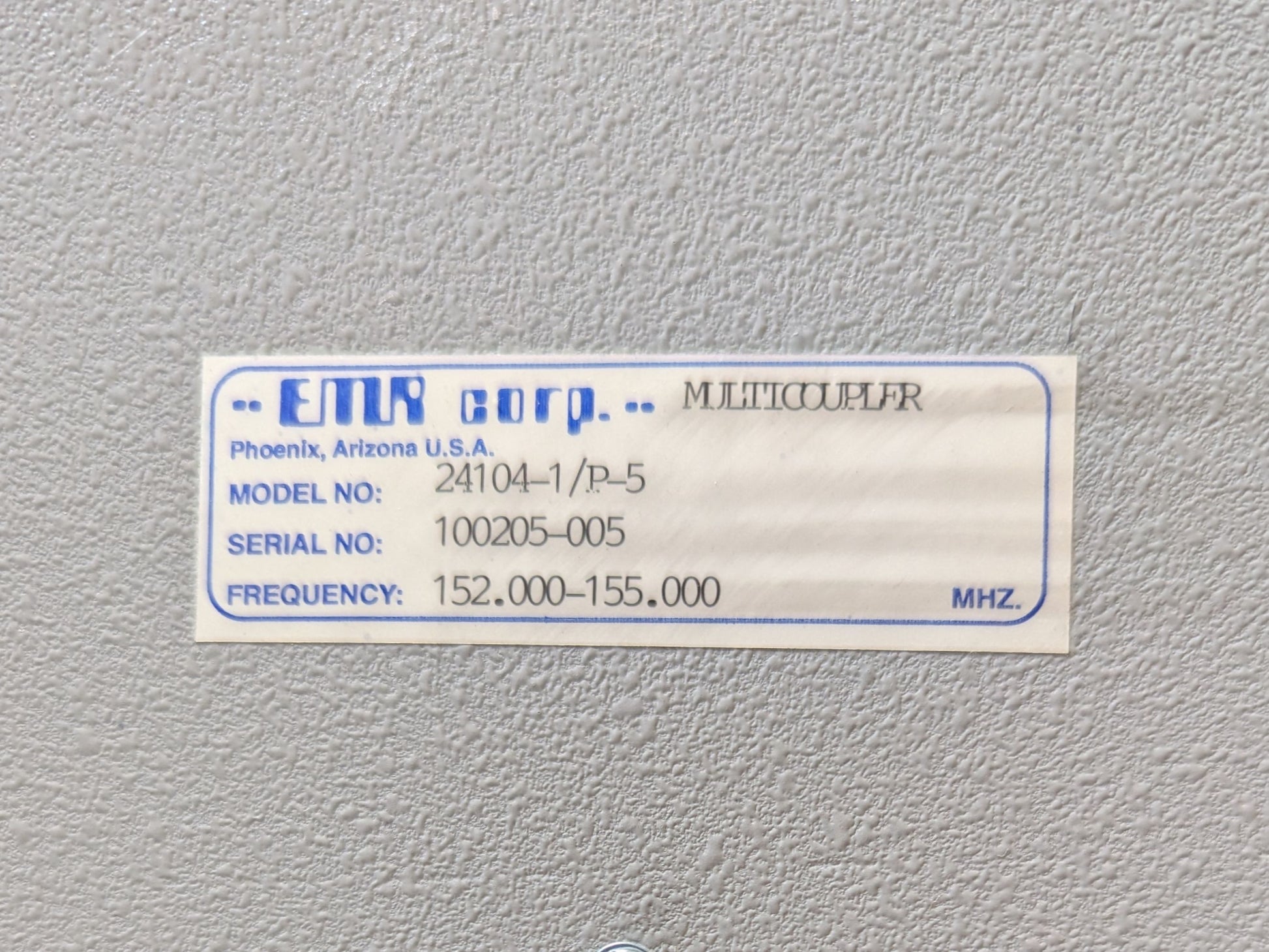

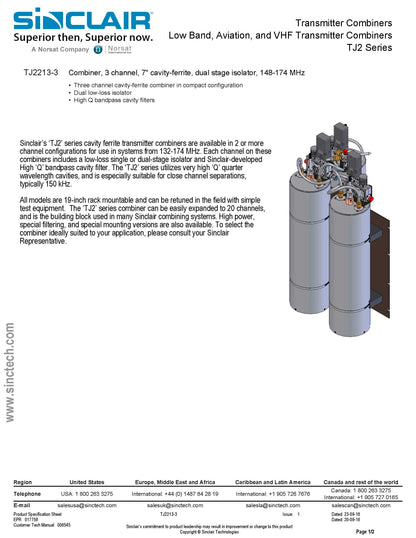

  • Model Number: TJ2213-3-FP20107/24104-1/P5

  • Frequency Range: 150-174 MHz

  • Insertion Loss: 4 dB

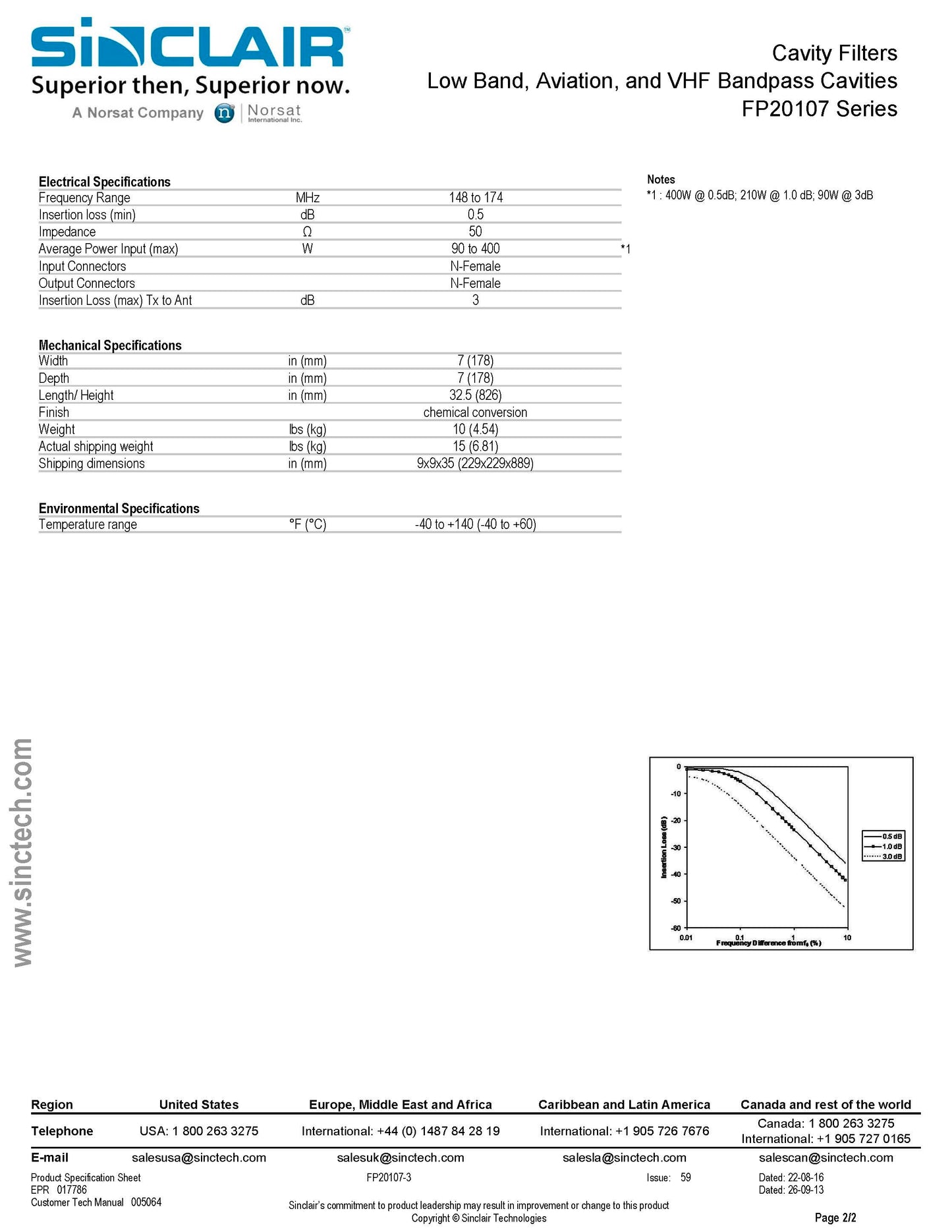

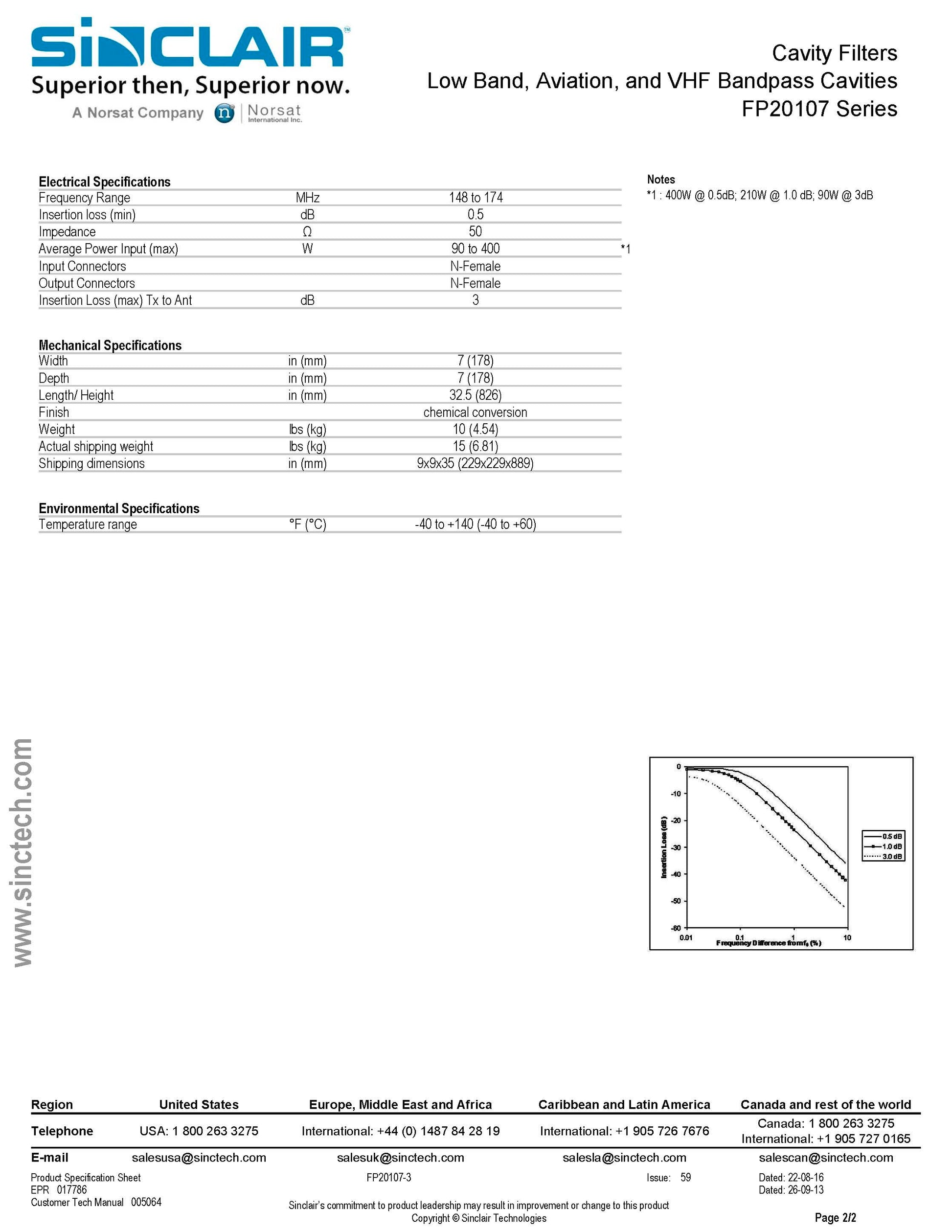

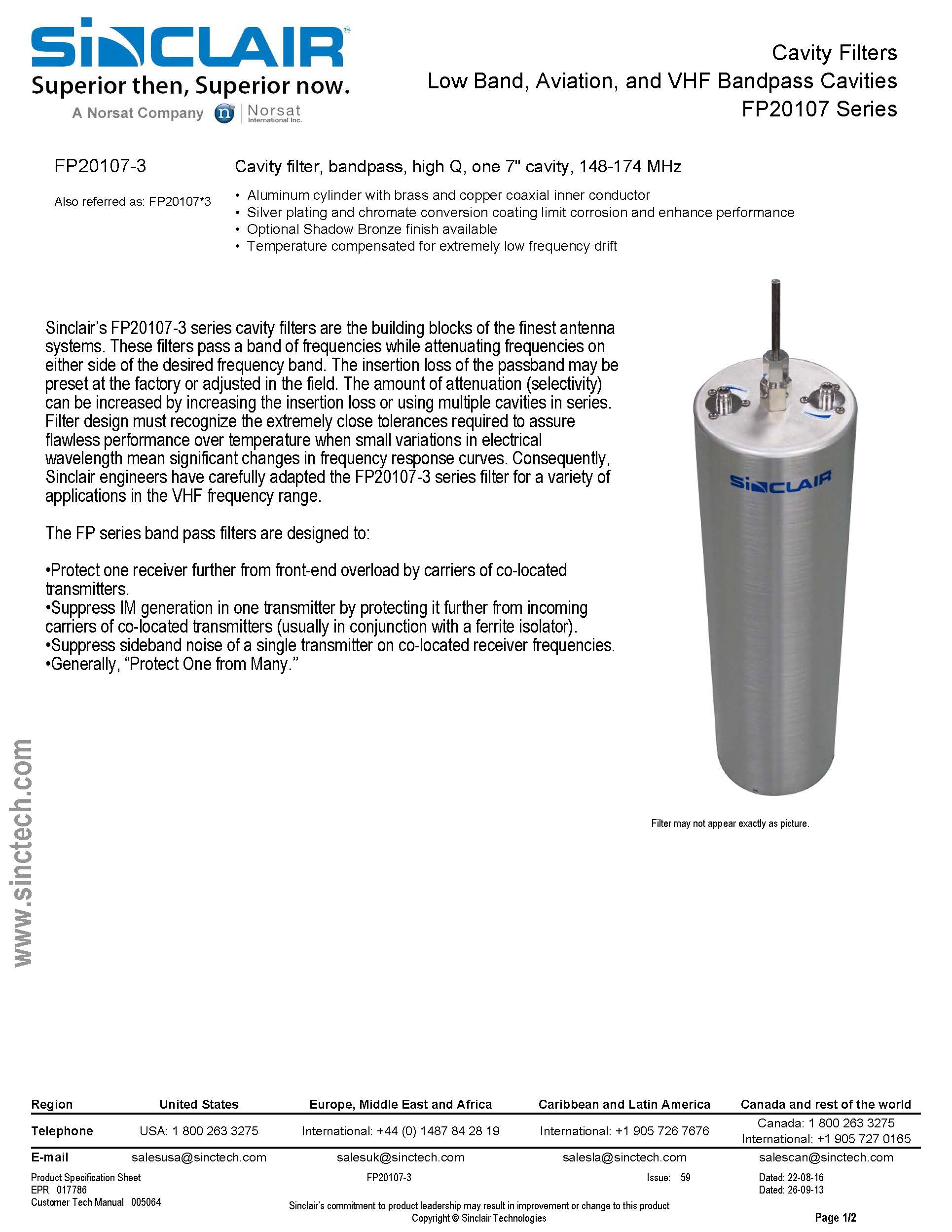

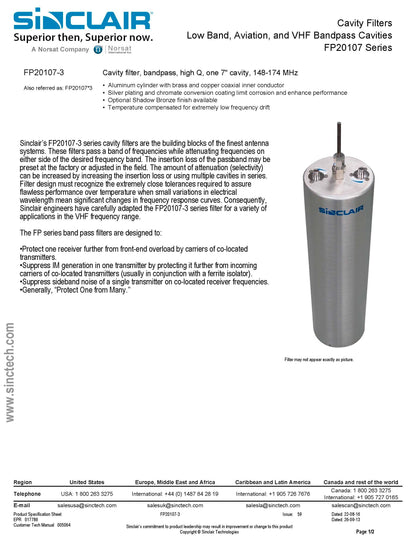

  • Two 7-Inch Bandpass cavities per channel

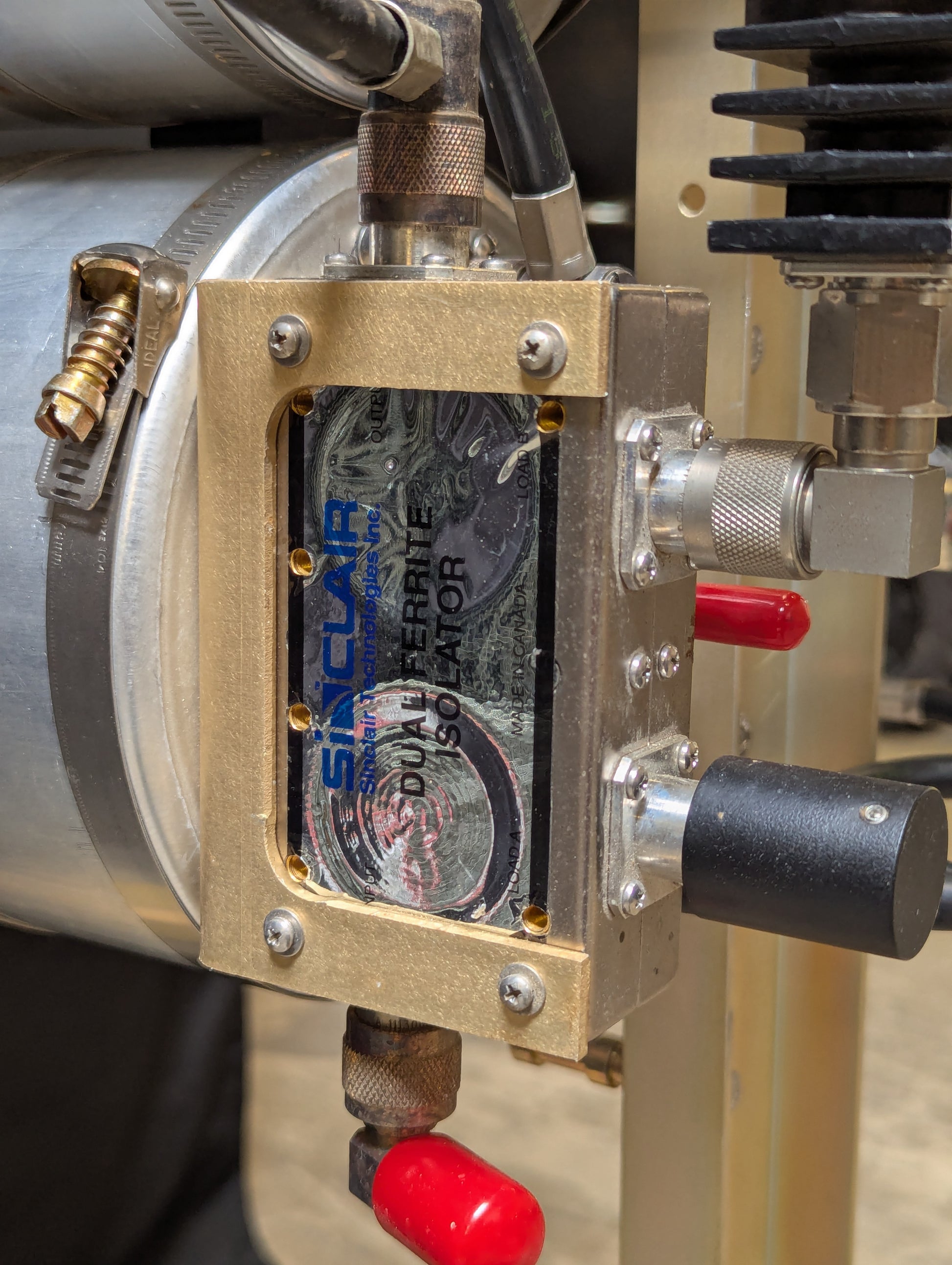

  • Dual stage isolators

  • 125 kHz Tx channel separation.

  • Input Power (per channel): 125 Watts

  • In/Output Connectors: N-female

  • Dimensions: L 33”x W 24”x H 65.5”

*Image shown is a representation only. Actual product may vary.
