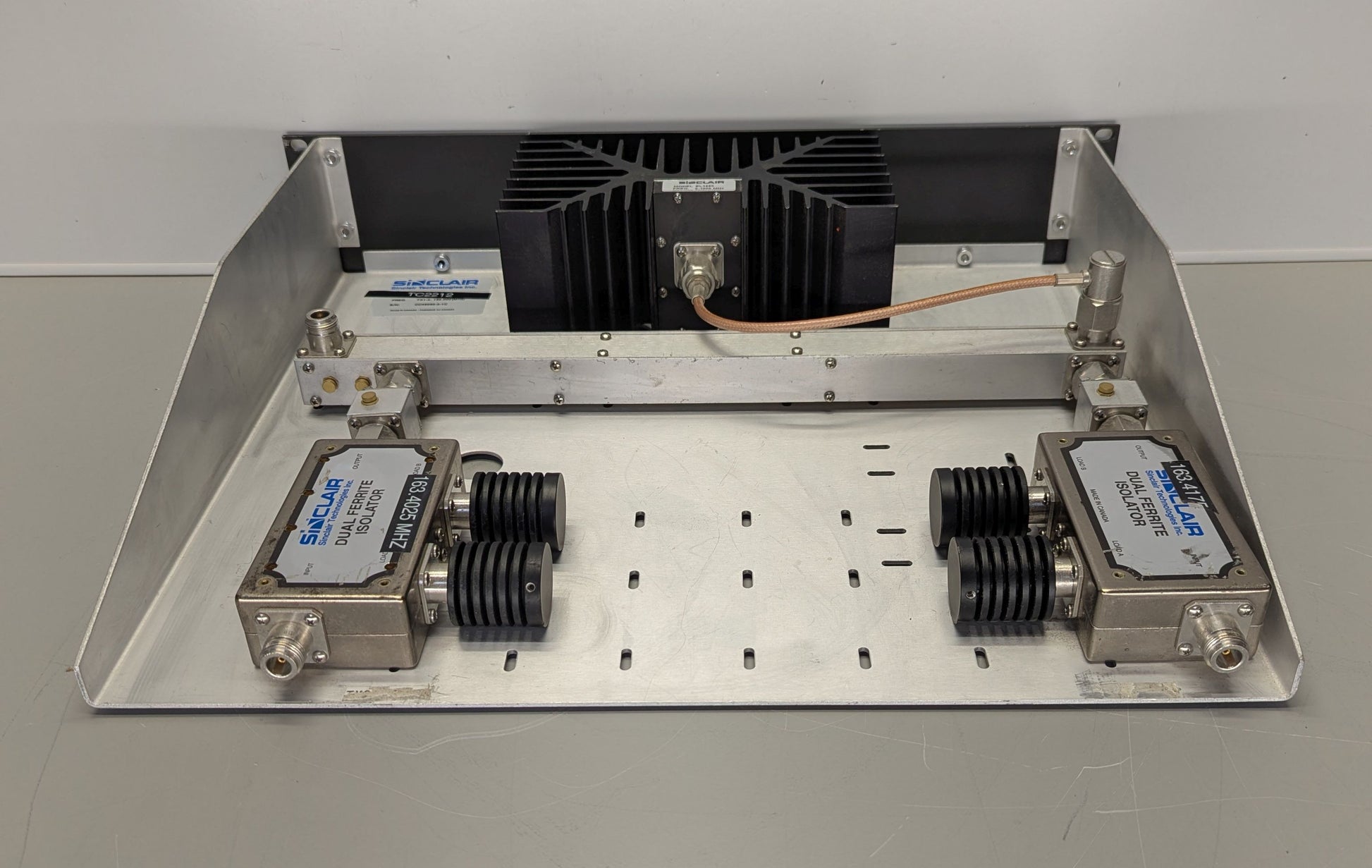

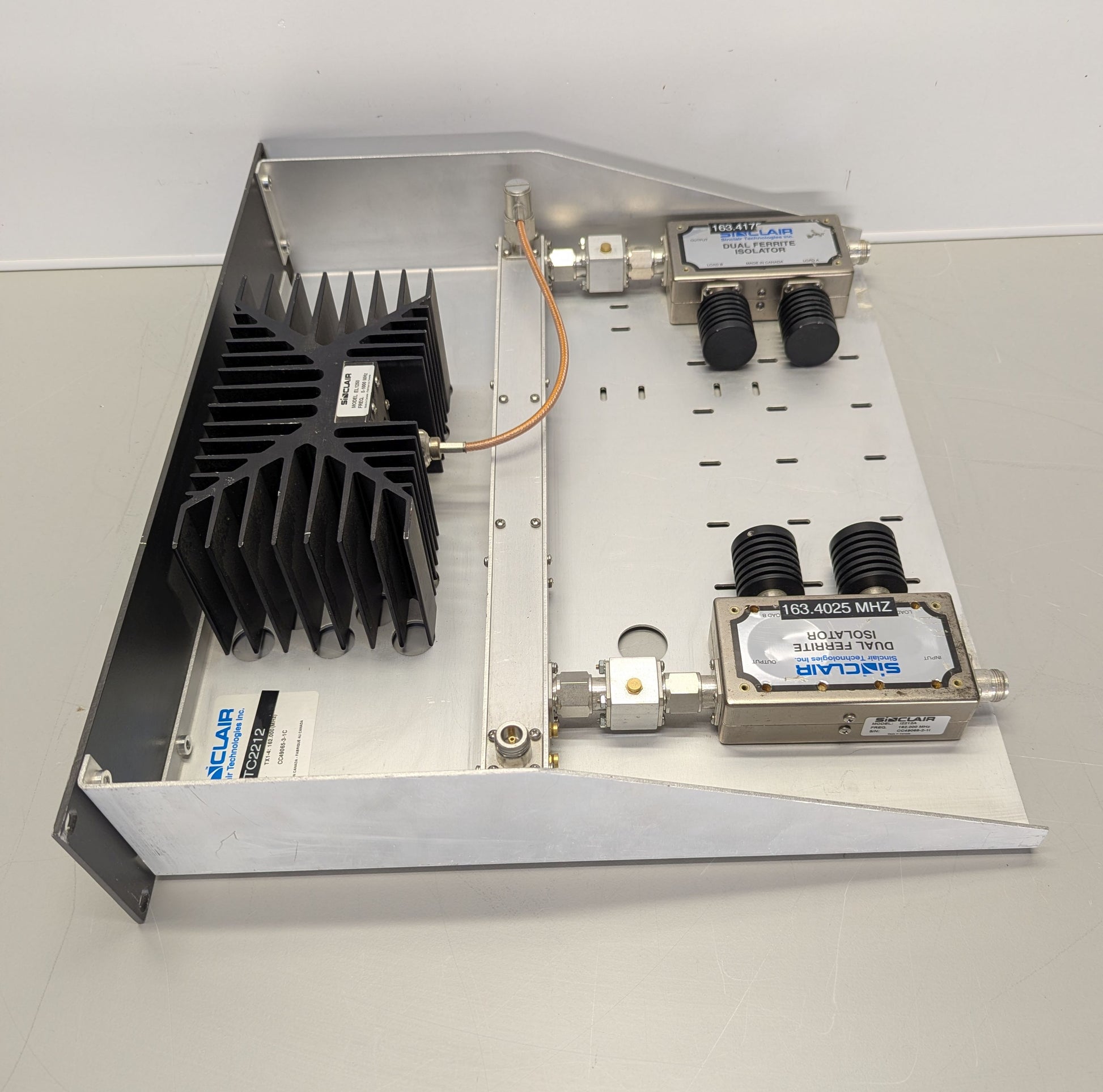

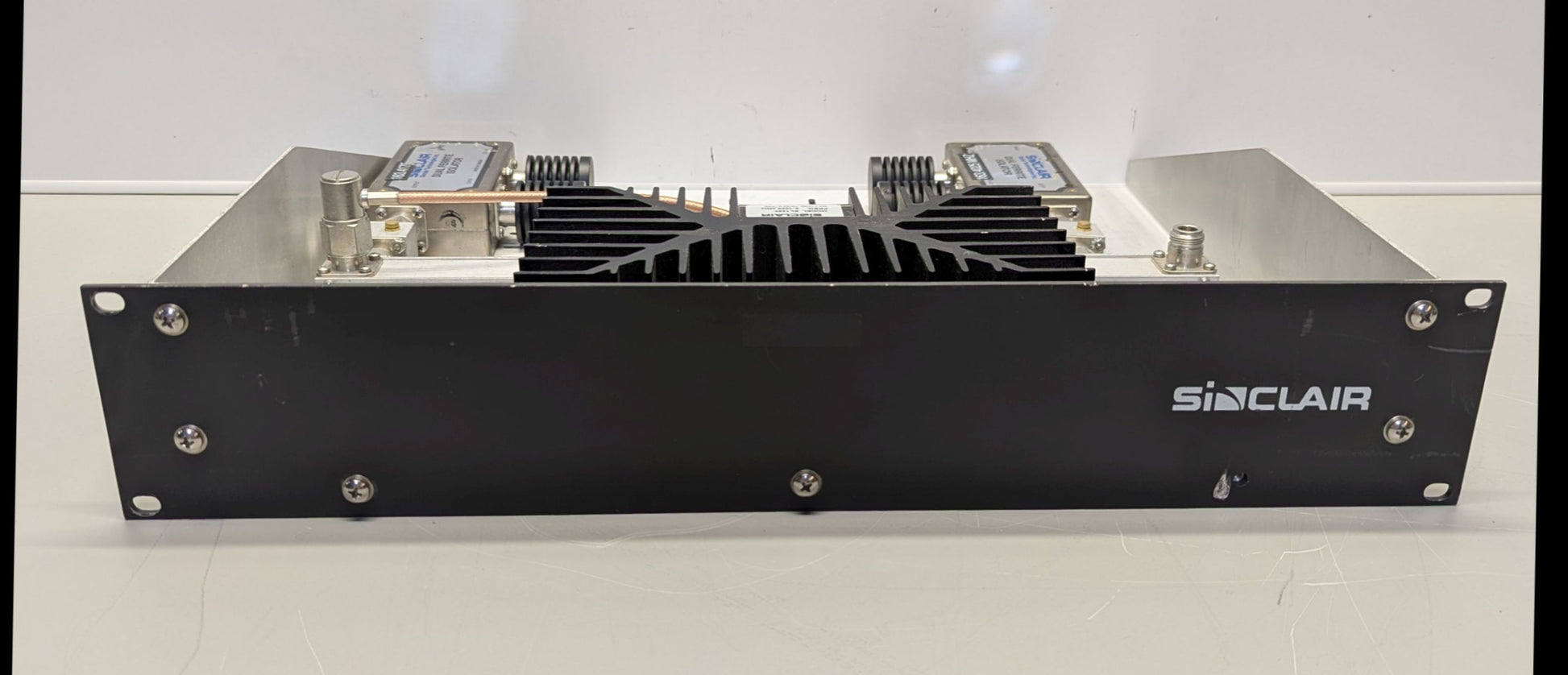

Sinclair 2-ch. VHF Hybrid Combiner TC2212

Sinclair 2-ch. VHF Hybrid Combiner TC2212

TC2212

$1,295.00 USD
$1,295.00 USD
Sale Sold out
Shipping calculated at checkout.

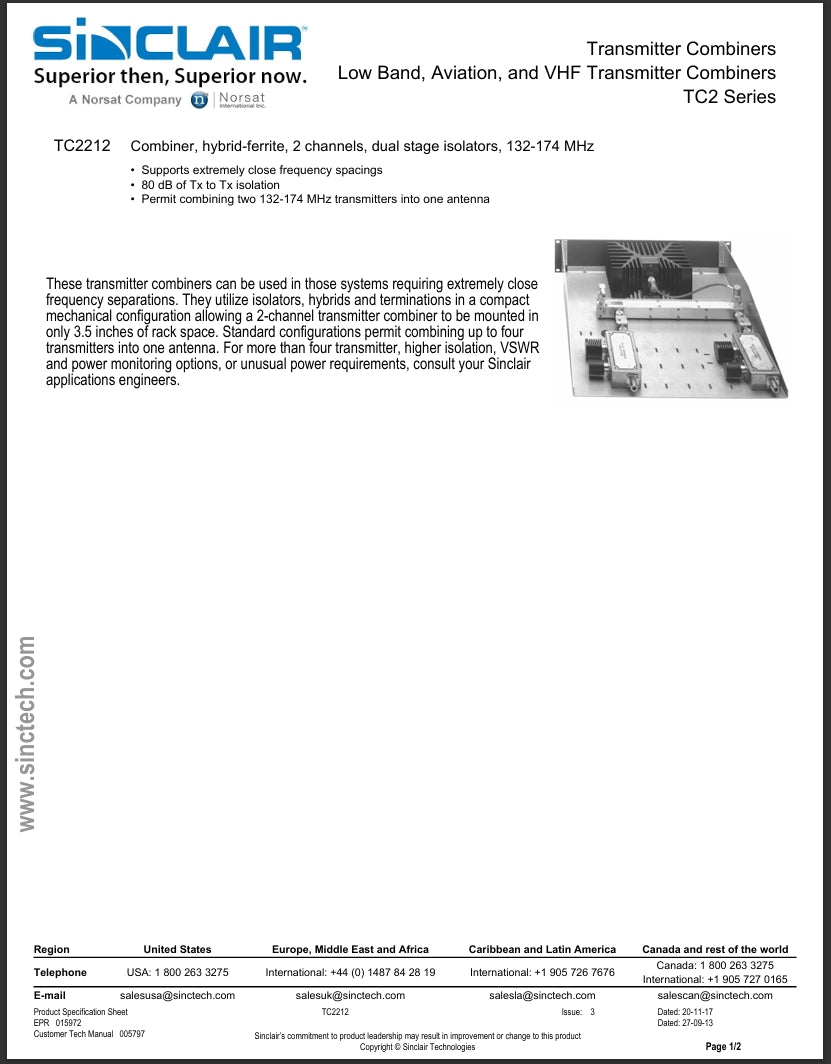

These transmitter combiners can be used in those systems requiring extremely close frequency separations.



This combiner was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • Sinclair 2ch. VHF Hybrid Combiner

  • 30-day warranty

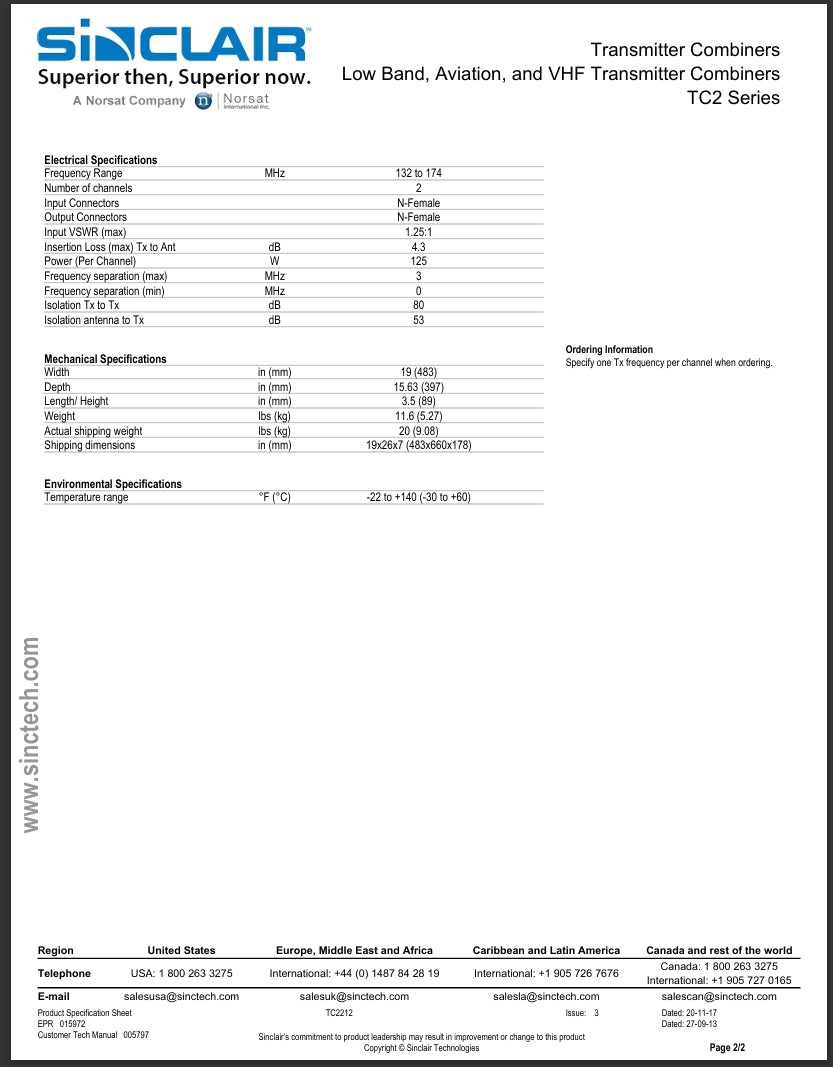

Product Details:

  • Model Number: TC2212

  • Frequency Range: 132-174 MHz

  • Power (Per Channel): 125 W

  • Input VSWR (max): 1.25:1

  • Insertion Loss (max) Tx to Ant: 4.3 dB

  • Frequency separation (max): 3 MHz

  • Isolation Tx to Tx: 80 dB

  • Isolation antenna to Tx: 53 dB

  • In/Output Connectors: N-female

  • Dimensions: 19"w x 15.6"d x 3.5"h

  • Weight: 12 lbs.

*Image shown is a representation only. Actual product may vary.
