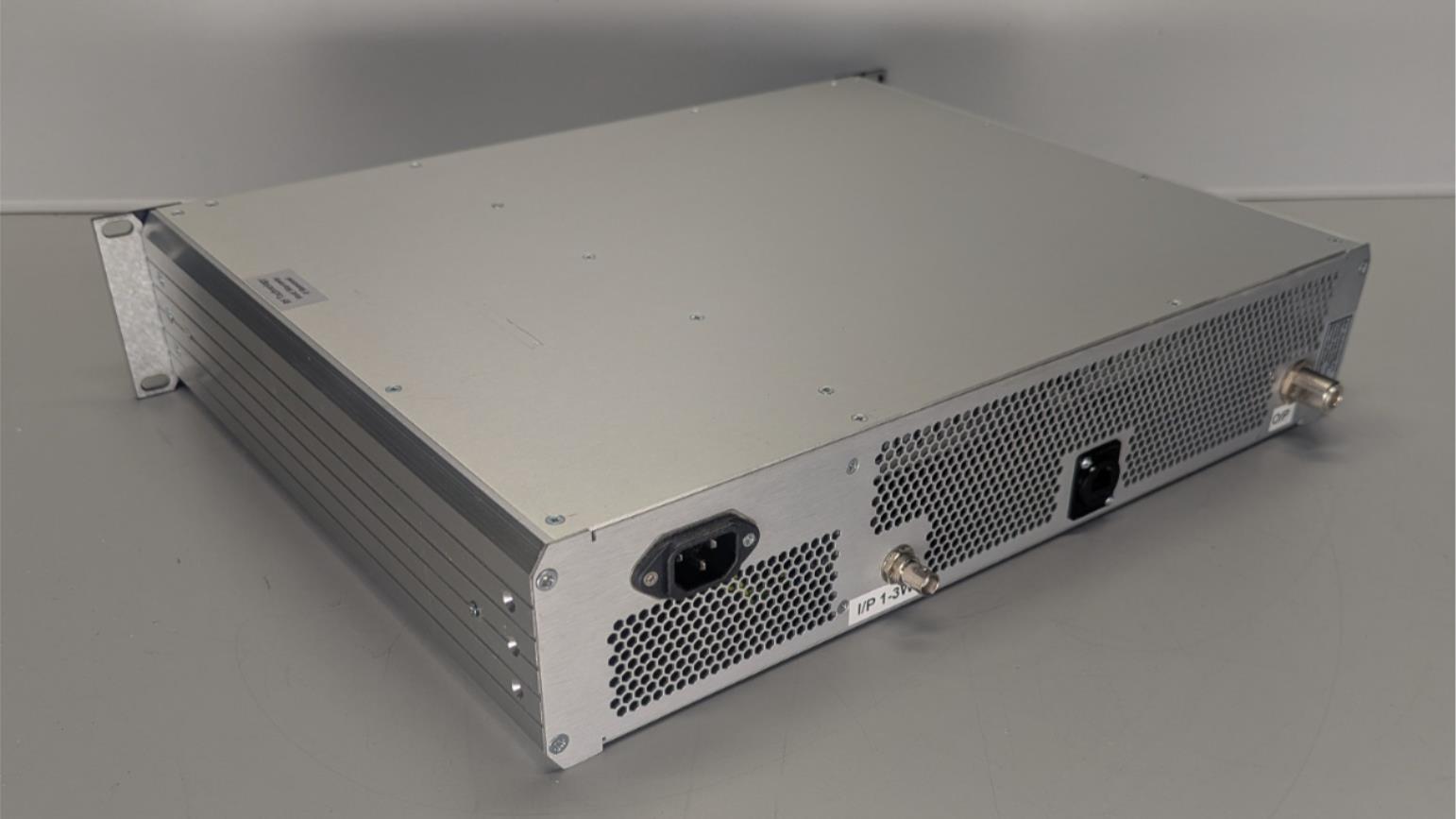

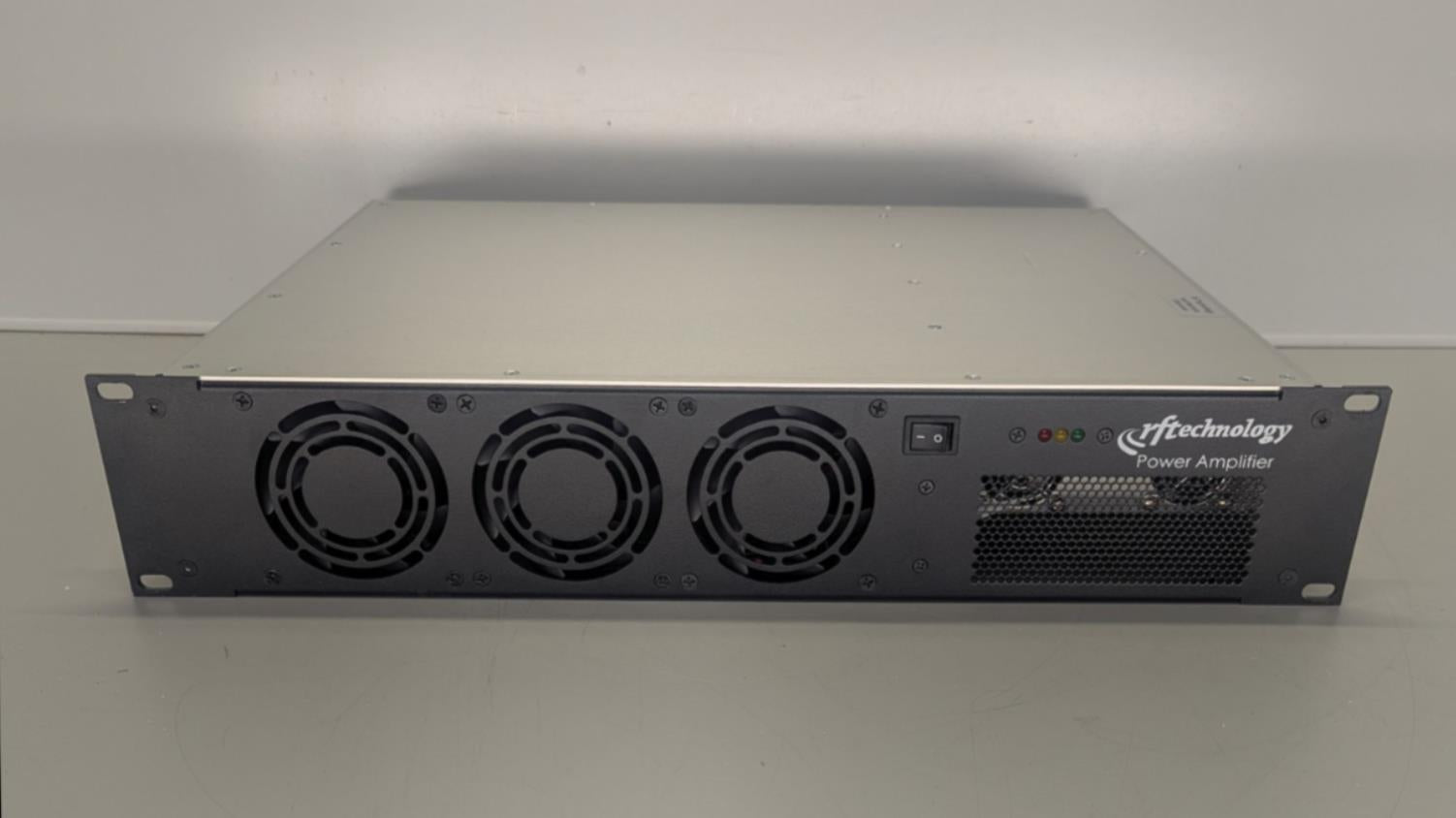

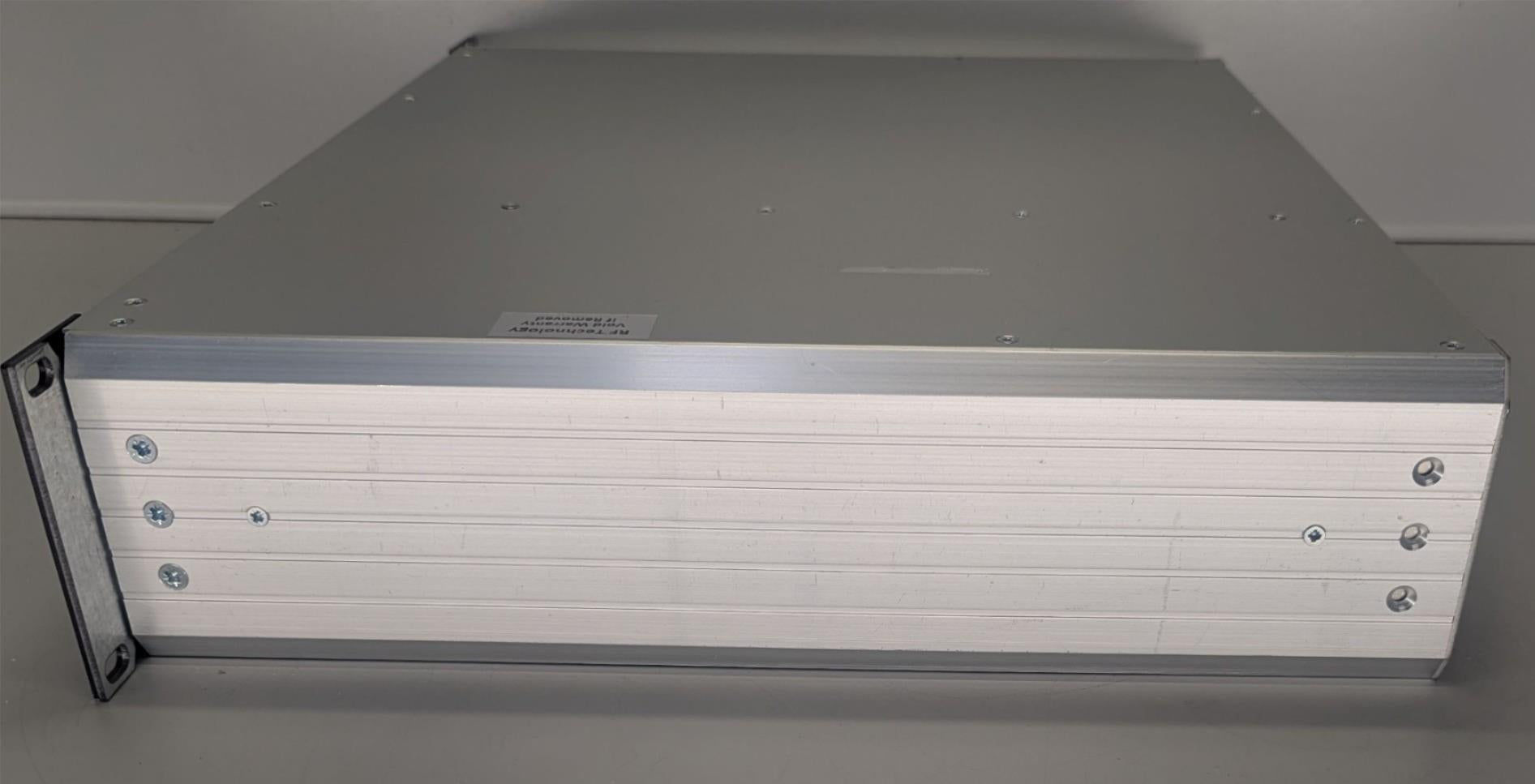

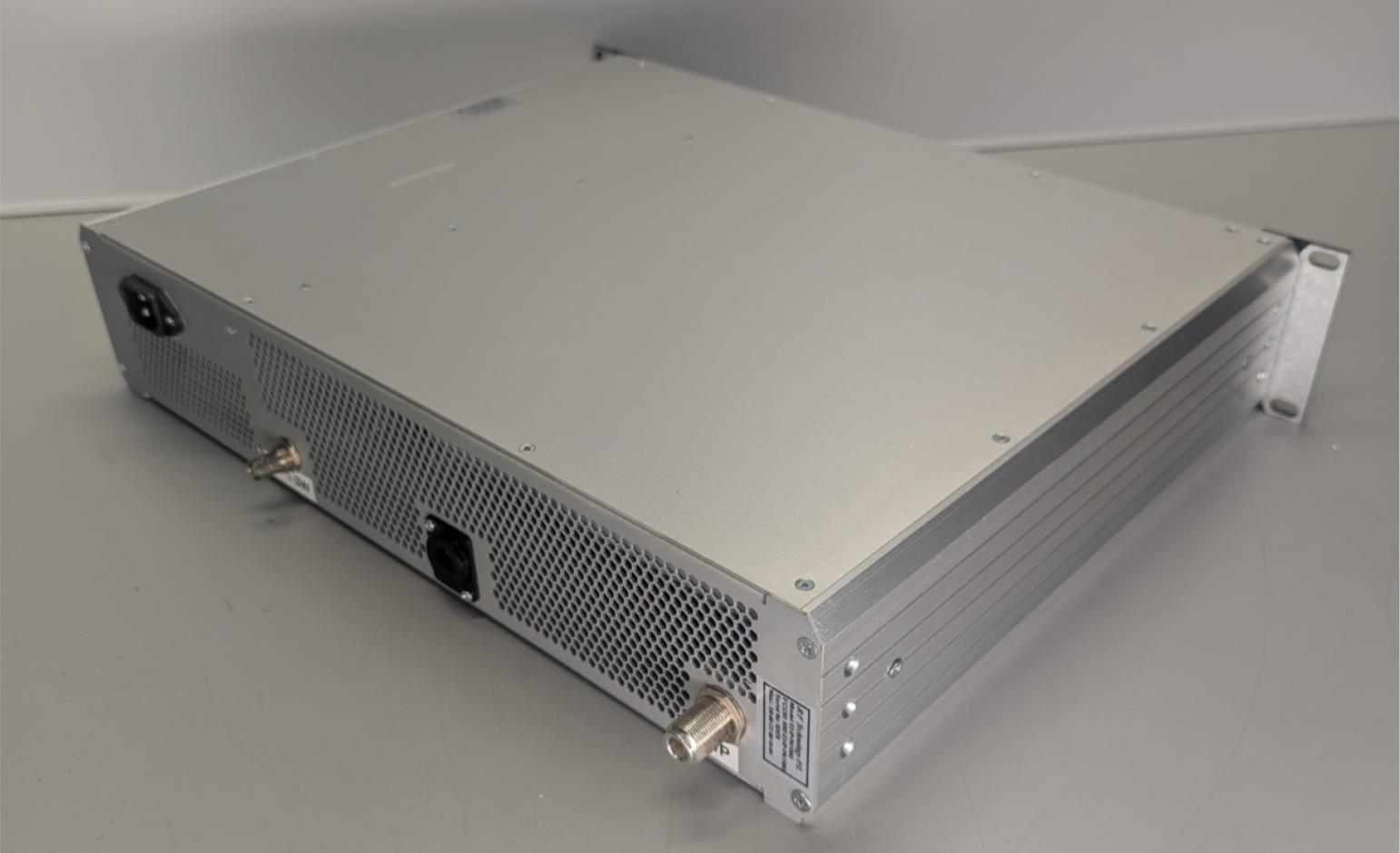

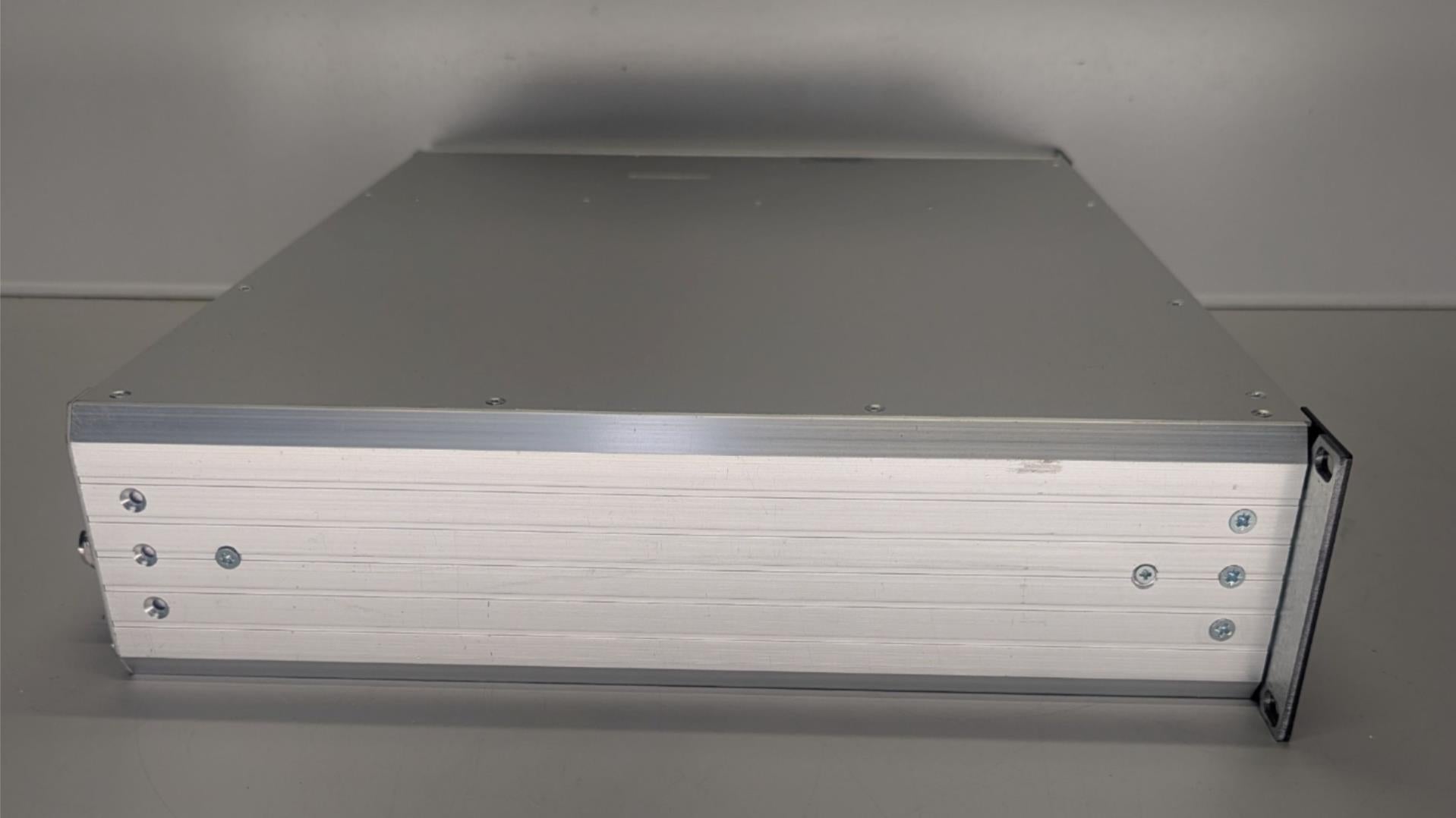

RF Technology E2-IPPA150Q PA 136-174MHz

RF Technology IPPA150Q 180 Watt continuous duty VHF (136-174 MHz) repeater amplifier. 1-3 watts in adjustable output to 180 watts. If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

• RF Technology E2-IPPA150Q PA
• Power Cord

• 30 Day Warranty

Feature Set :

• Built in 45 Amp power supply. 120VAC input, 19" 2RU rack mount.
• Integrated Digital controller supporting full control and monitoring all sensors and alarms over LAN (SNMP v2c)
• Remote IP control using the embedded web server (set or adjust your power remotely)
• Closed-loop control keeps output power at set point in a changing environment
• Monitors antenna reflection and performance remotely over extended periods
• 5 temperature sensors to monitor heat generation internally
• Automatic shut down on triggered events (adjustable)
• 50 Ohm input/output
• Adjustable over entire frequency band without tuning (no sub bands)
• IP address
• DHCP

Product Details:

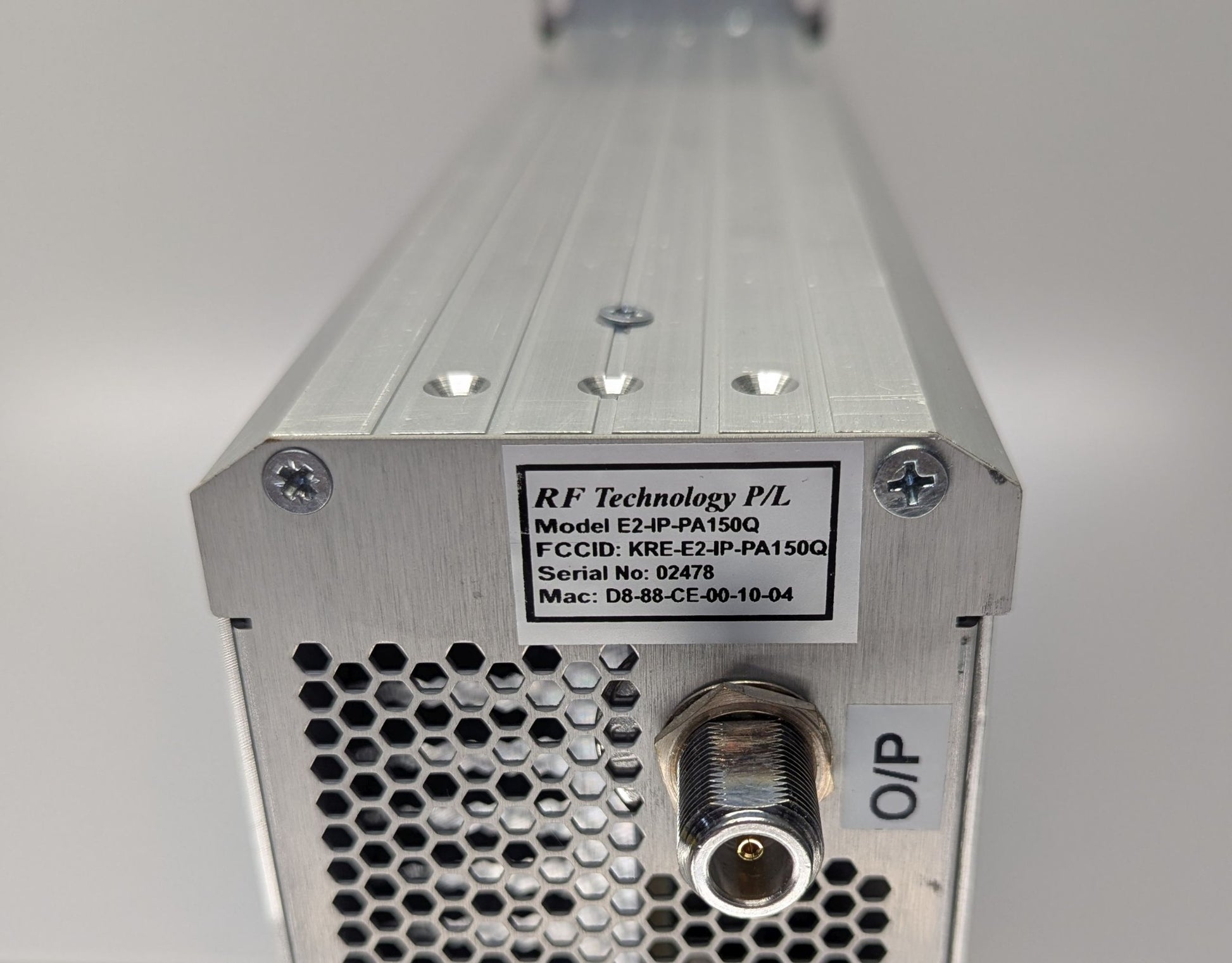

• Model Number: E2-IPPA150Q
•  Frequency Range: 136-174 MHz
• Power Output: 180 Watt continuous duty
• Operation Modes: UPGRADABLE TO P25

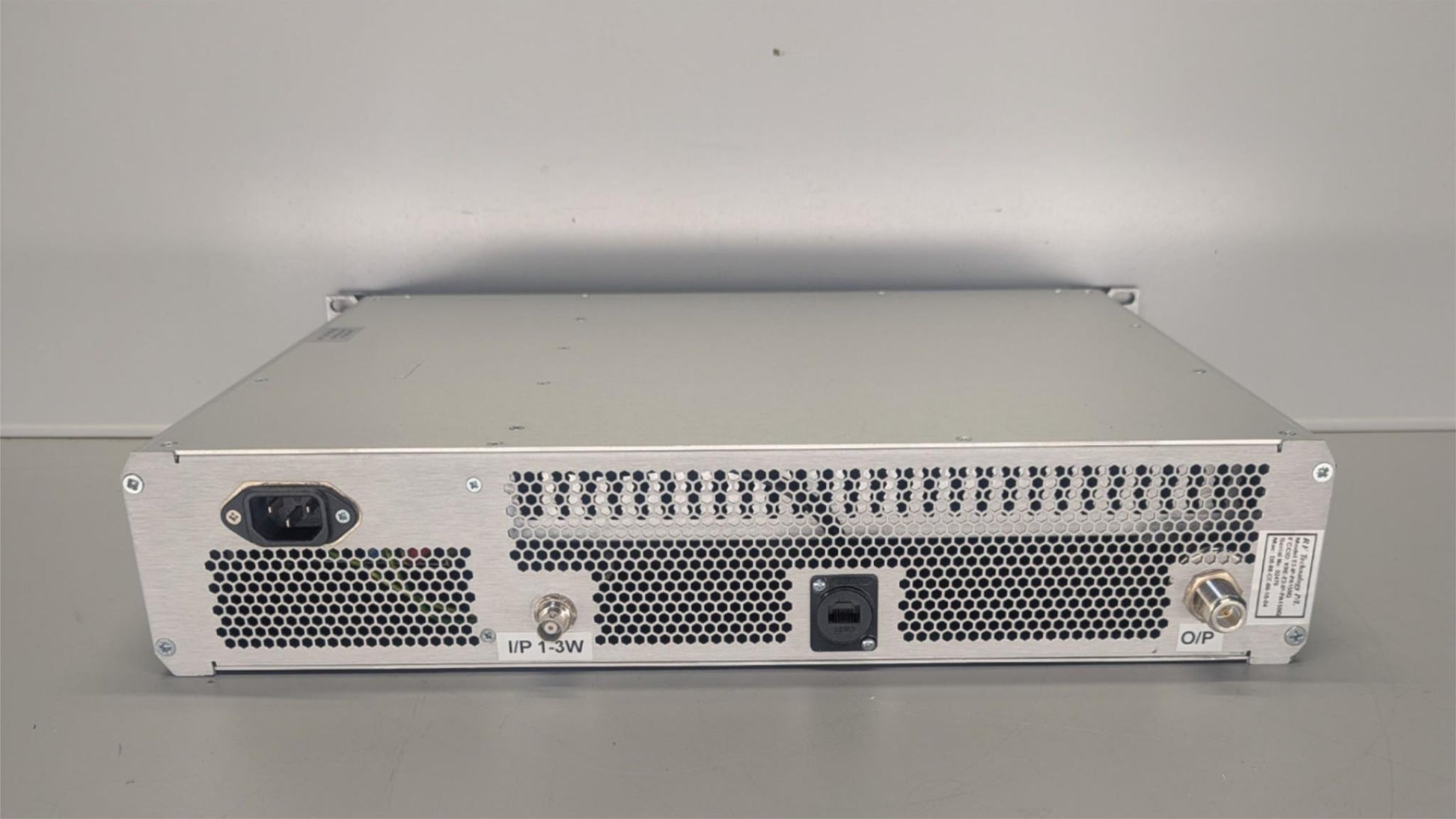

• Input: 1-3 W (BNC female)
• Output: Adjustable up to 180W (N Female)
• 19W X 3.5H X 15D
• 20 LBS
