Motorola Quantar VHF 110 Watt R1 132-154 (RX) & R2 150-174 (TX) Repeater P25

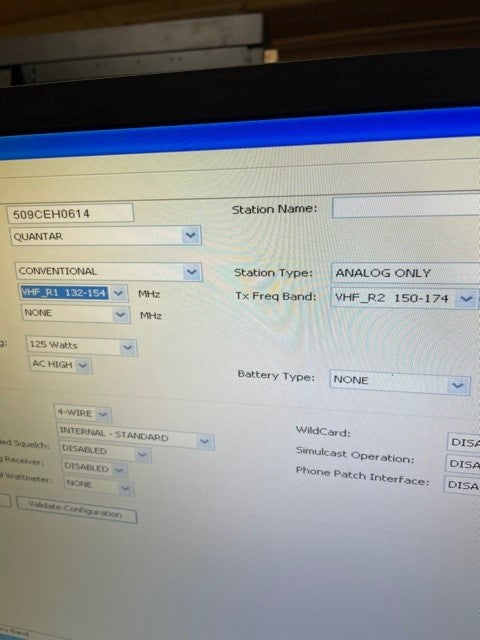

Motorola Quantar VHF repeater, model number T5365A.   This is a 110 watt repeater with a Range 1 132-154 Mhz (RX - Receiver) and Range 2 150-174 Mhz (TX - Transceiver) -- PLEASE SEE SCREEN SHOT PICTURE ***.   These units have the upgraded Station Control Module, firmware version 20.10.xxx  Repeater is capable of both analog and P25 digital operation (mixed mode). These units will program the entire Ham band with normal programming.   These units have the newer power supply that is capable of both AC with DC Revert.   Unit has been bench checked and guaranteed fully operational.  Free programming is available.

REPEATER FEATURES:

The software inherent in the product design
allows features and system configurations to be
specified through your choice of the appropriate
software options

Software intensive design allows for system
migration and feature upgrades via FLASHport™

Conventional Project 25 compliant (optional)
Trunked Voice CAI compliant (optional)
Analog, SECURENET or ASTRO operation in
conventional systems

Analog or ASTRO operation in SmartNet or
SmartZone trunking systems
IntelliRepeater™ operation in trunked
QUANTAR eliminates need for a central site
controller

125-25 Watt or 25-6 Watt variable power
models.

Standard EIA 19˝ rack mount configuration
Compact dimensions utilize expensive site
space efficiently

12.5, 25 or 30 kHz programmable channel


NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
