Motorola MTR2000 UHF (403-470 MHz) Repeater (100W)

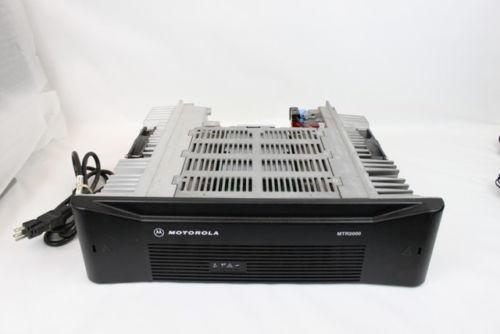

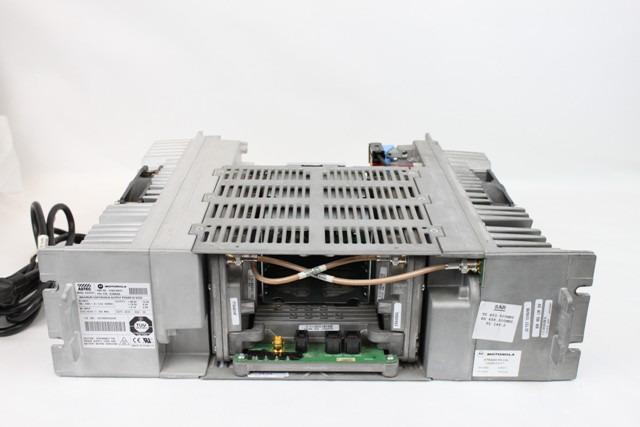

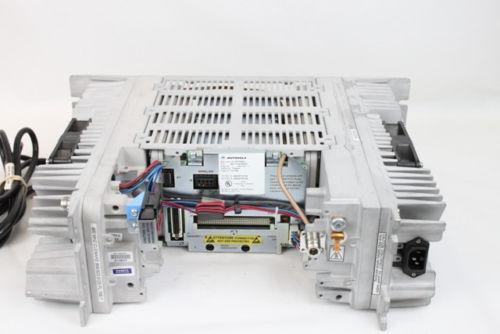

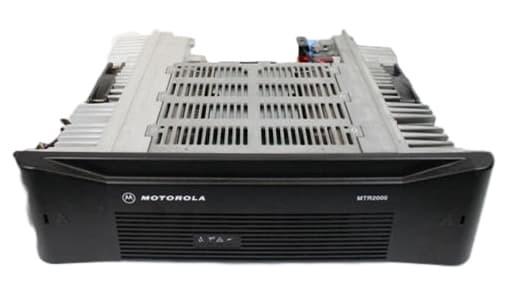

This is a Motorola MTR2000 UHF Range 1 repeater. This is a 100 watt repeater with a TX= (403-435 Mhz) RX = (403-470 Mhz) These units work well with Canadian customers whose business band frequencies are in the 420 mhz range. Repeater comes with the factory installed wire line board. Unit is in great shape and guaranteed fully operational. Free programming is available.

MTR2000 Features:

Developed to be an integral component of any analog conventional or Motorola SMARTNET[tm] or SmartZone[tm] trunked radio system, the MTR2000 offers customers unmatched flexibility. Weighing only 19 kg (40 pounds), it will initially be offered for conventional operation over VHF and UHF frequencies. The station features two power levels, covering 100 to 1 watt, and 12.5 or 25/30 kHz programmable channel spacing. The station is also capable of the proposed FCC Part 90 specifications for 12.5 kHz narrowband operation.

The software based design of the MTR2000 allows customers to upgrade applications quickly and easily through Motorola's FLASHport[tm] technology. Programming and diagnostic testing can also be performed through a personal computer.

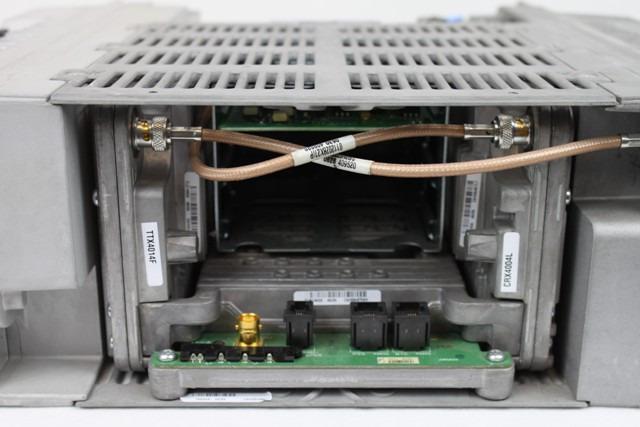

The modular design, size and weight of the MTR2000 allow for quick installation. The MTR2000 also effectively shortens maintenance time through its innovative use of Field Replaceable Units (FRU). These functionally separate modules allow a customer to eliminate elaborate diagnostics and field repair by simply dropping in replacement units.

The MTR2000 base station/repeater offers a number of additional inherent features that effectively maximize system performance, including:

• Microprocessor based design with integrated DSP capability
• Continuous-duty cycle performance
• Battery revert in the event of a site power failure
• Self-testing monitors station performance
• Switching Power Supply supporting a wide range of voltages and frequencies

The MTR2000 utilizes three rack units (13.3 cm/5.25 inches) space in a standard EIA 19" rack-mount configuration. Efficient utilization of site space is available in many racking or cabinet configurations.

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
