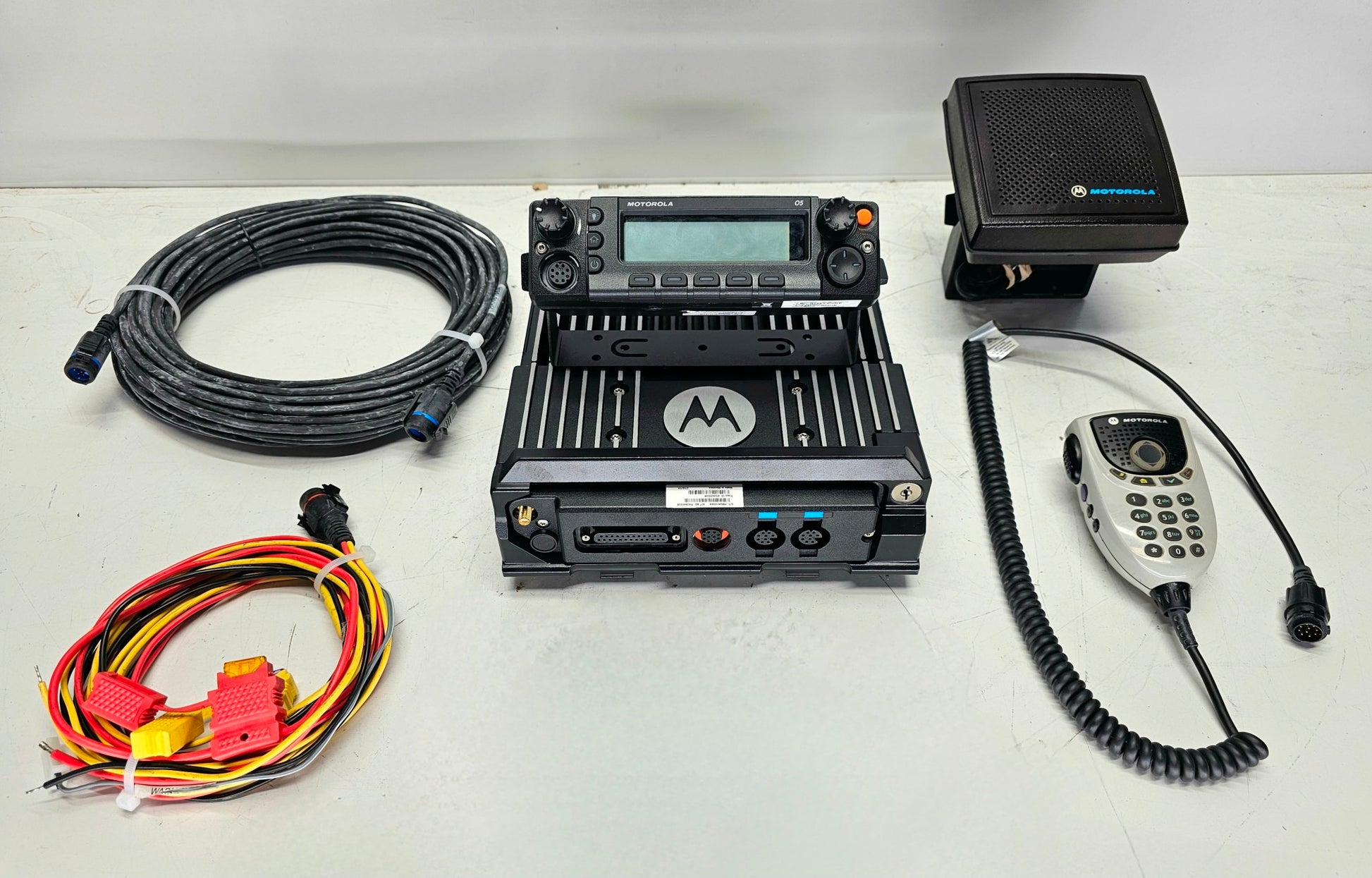

The Motorola APX 6500 Model M25QTS9PW1AN is a Project 25 (P25) compliant digital mobile radio operating in the UHF Range 1 (380-470 MHz) band. It is designed for public safety and critical infrastructure, supporting both TDMA and FDMA digital operations, along with analog conventional mode, often paired with an O7 or O2 control head.
Key Specifications & Features:
- Model Number: M25QTS9PW1AN (APX 6500)
- Frequency Band: UHF Range 1 (380-470 MHz)
- Operation Type: Mid Power (typically 1-40 W)
- Protocol: P25 Phase 1 (FDMA) and Phase 2 (TDMA)
- System Capabilities: Trunking, Conventional, and SmartZone operations
- Display/Control Head: Typically paired with O7 or O2 Control Head (full-color display, keypad options)
- Durability: MIL-STD 810C/D/E/F/G, IP56
- Encryption: Supports AES 256-bit encryption (depending on Flashcode)
Flashcode: B(5049-21H6R0-2
G806: ASTRO IMBE Digital Operation
G996: Over the Air Provisioning
GA00243: Federal Government FPP
G298: Hardware Multikey Encryption w/ OTAR
GA01767: ASTRO 25 Trunking Radio Authentication
GA00342: Primary Band: UHF Range 1 High Power (Multi-Bit Option)
GA00342: Primary Band: UHF Range 1 High Power (Multi-Bit Option)
QA01749: Legacy SW System Key Enable
GA01771: Enhancement Level 2
G51: SmartZone Systems Operation
GA01833: Extreme 1-Sided Noise Reduction
GA00229: Enable GPS/GNSS Operation
W947: APCO Packet Data Interface
QA03399: Enhanced Data Operation
G387: Conventional Voting Scan
G173: SmartZone Omnilink MultiZone Operation
GA00580: Enable TDMA Operation
G361: ASTRO 25 9600 Baud Trunking
GA01058: Dual Radio Operation
- Interchangeable control heads that best support your operational needs - O2, O3, O5, O7
- Two transceiver options - high-power and mid-power
- Dual control head support offered on the O2, O5 and O7 control heads
EASY TO INSTALL AND EFFORTLESS TO USE
- Mid-power model fits into any existing XTL footprint, so you can reuse mounting holes and cables
- High-power model trunnion design lets you remove the radio without removing the cables
- 12 character RF ID label helps you track information without uninstalling your radio
CUTTING-EDGE TECHNOLOGY AND ADVANCED FEATURES
- Project 25 Phase 2 technology provides twice the voice capacity
- Integrated GPS lets you locate and track an individual or vehicle
- Advanced features like intelligent lighting, radio profiles and text messaging improve communication and coordination
Motorola APX 6500 Features and Benefits
Ease of Installation
Fits into the existing XTL footprint allowing reuse of the mounting holes and cables for easy installation.
RF ID Asset Tracking
12 character RF ID asset tracking provides a convenient method of obtaining valuable asset tracking information without having to uninstall the radio.
Integrated GPS
Enables accountability and location tracking of an individual or vehicle, which can be sent to a map-based location application.
Encryption
FIPS 140-2 Level 3 certified hardware encryption provides tamperproof security to ensure the highest level of secure communications.
Intelligent Lighting
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.
Radio Profiles
Radios can be configured with multiple user-selected or automated operating behaviors such as audio level, lighting and tones.
Text Messaging
Efficiently send and receive freeform or canned text messages to and from subscribers or dispatch operators.
Unified Call List
Consolidates all call lists underneath one unified list.
Voice Announcement
Audible, pre-recorded voice file provides a description of the selected channel or zone.
Expansion Slot
Future ready to support option cards or data applications.
Memory
Expandable memory for storage of future data applications information.
Programming over Project 25 (POP25)
Motorola's POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field.
Rugged Durability
Meets IP55 water-intrusion ratings for driving rain giving you the confidence that your mobile will continue performing even if exposed to water.
Trunking standards supported:
- Clear or digital encrypted ASTRO®25 Trunked Operation
- Capable of SmartZone®, SmartZone Omnilink, SmartNet®
- Capable of P25 Phase 2 - TDMA
- Analog MDC-1200 and Digital APCO P25 Conventional
