Motorola

Motorola Mobile APX4500 700/800 764-870 Mhz 512ch 35W Dash Mount AN

Motorola Mobile APX4500 700/800 764-870 Mhz 512ch 35W Dash Mount AN

M22URS9PW1AN

$1,675.00 USD
$1,675.00 USD
Sale Sold out
Shipping calculated at checkout.

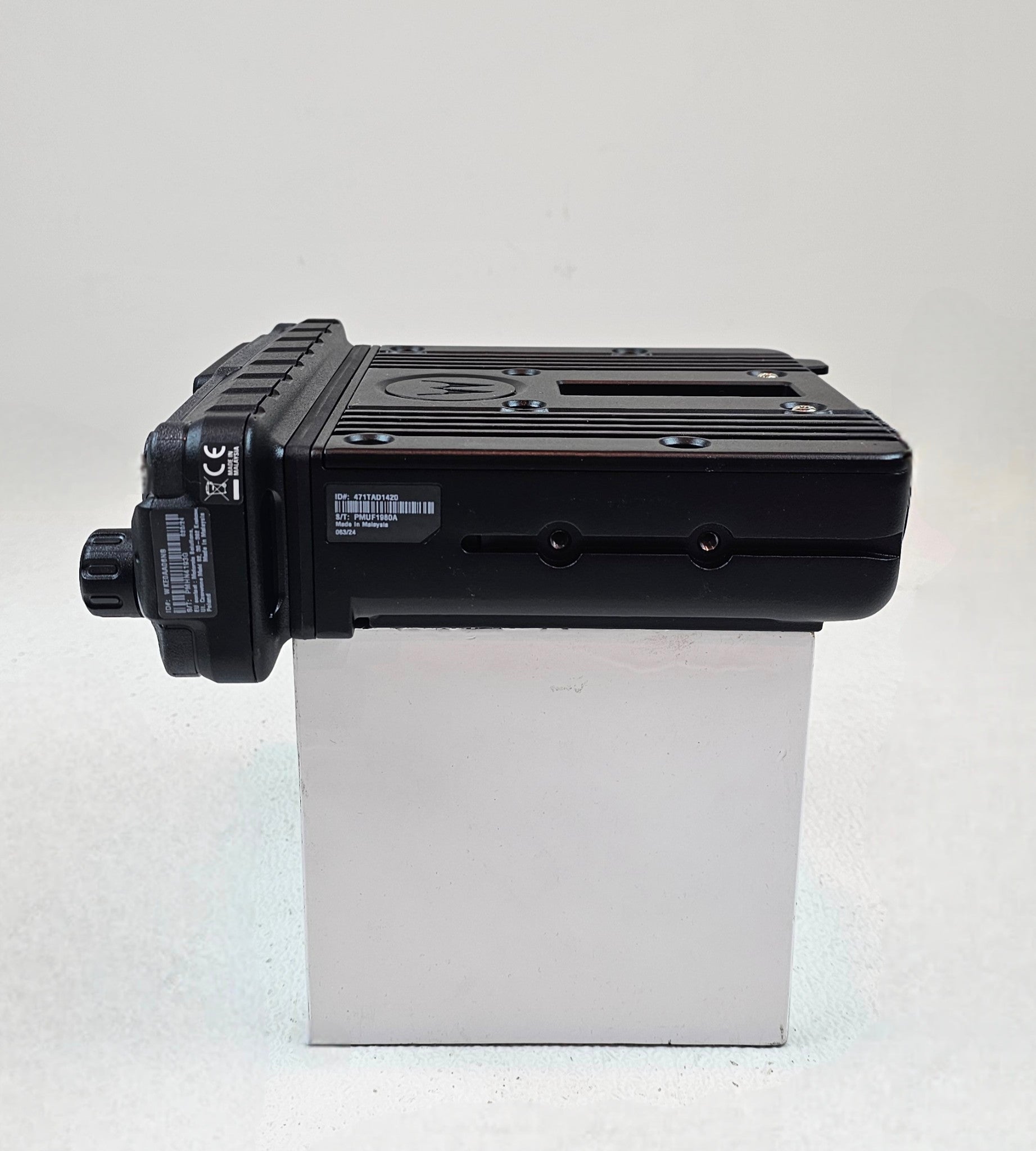

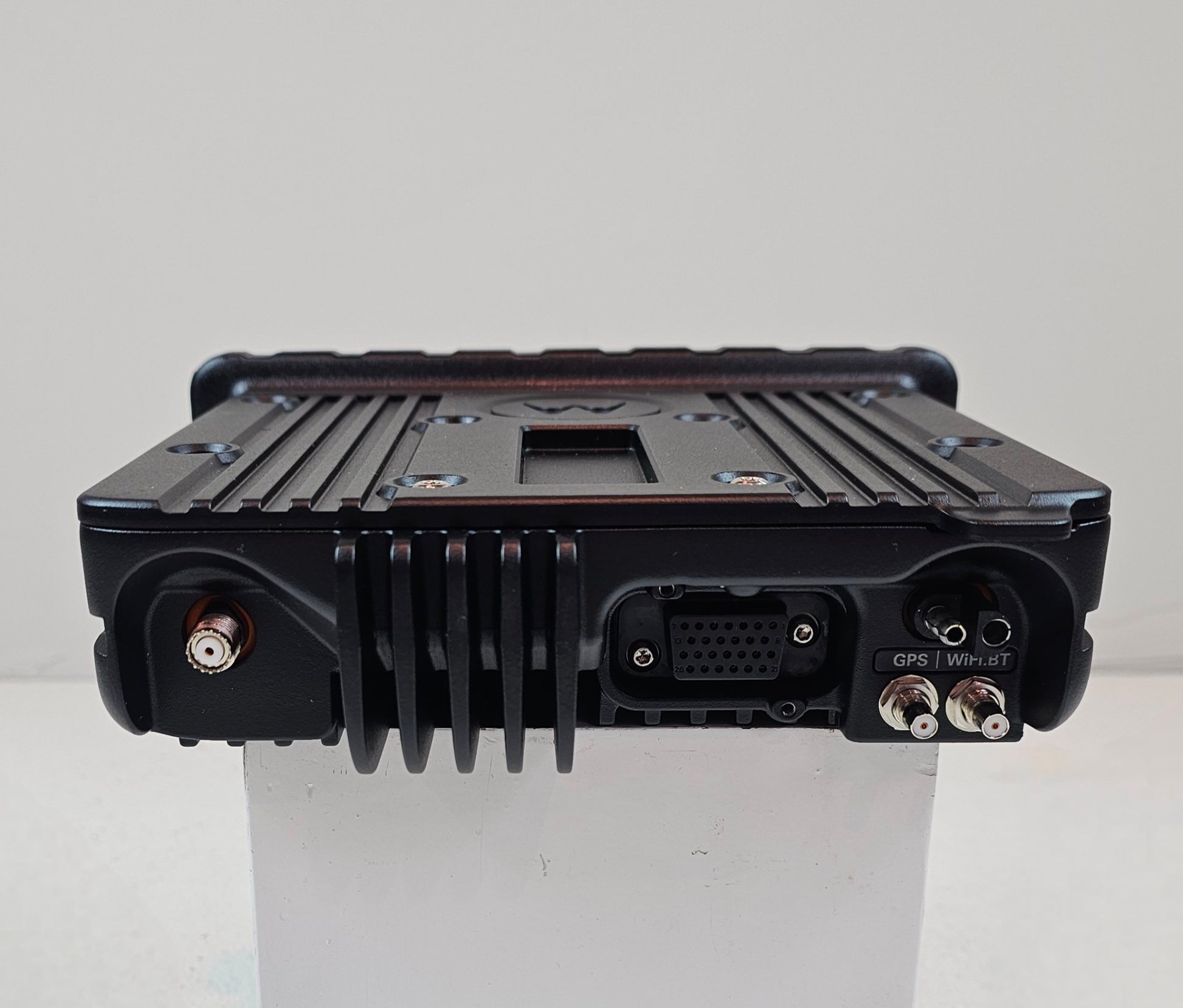

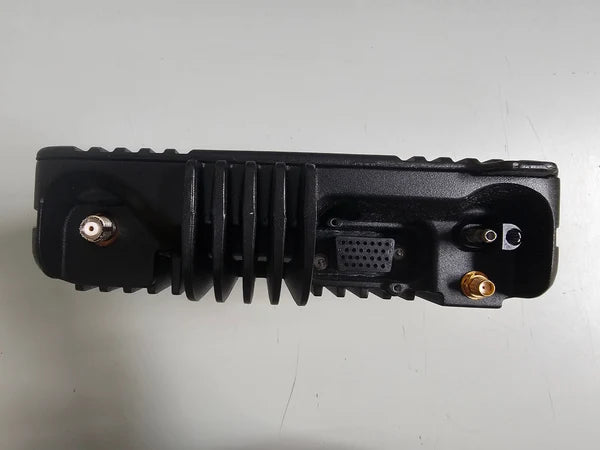

The Motorola APX 4500 model M22URS9PW1AN is a 700/800 MHz (764–870 MHz) P25 digital mobile radio designed for rugged, dash-mount use. It supports both conventional and trunked systems, offers up to 512 channels, and features 10–35 W power output, built-in GPS, and optional encryption (AES/DES/ADP).

Radios are used and in great condition.  If you have any questions, contact us M-F 8am - 4pm MT.  Please see details of flashcode, below.

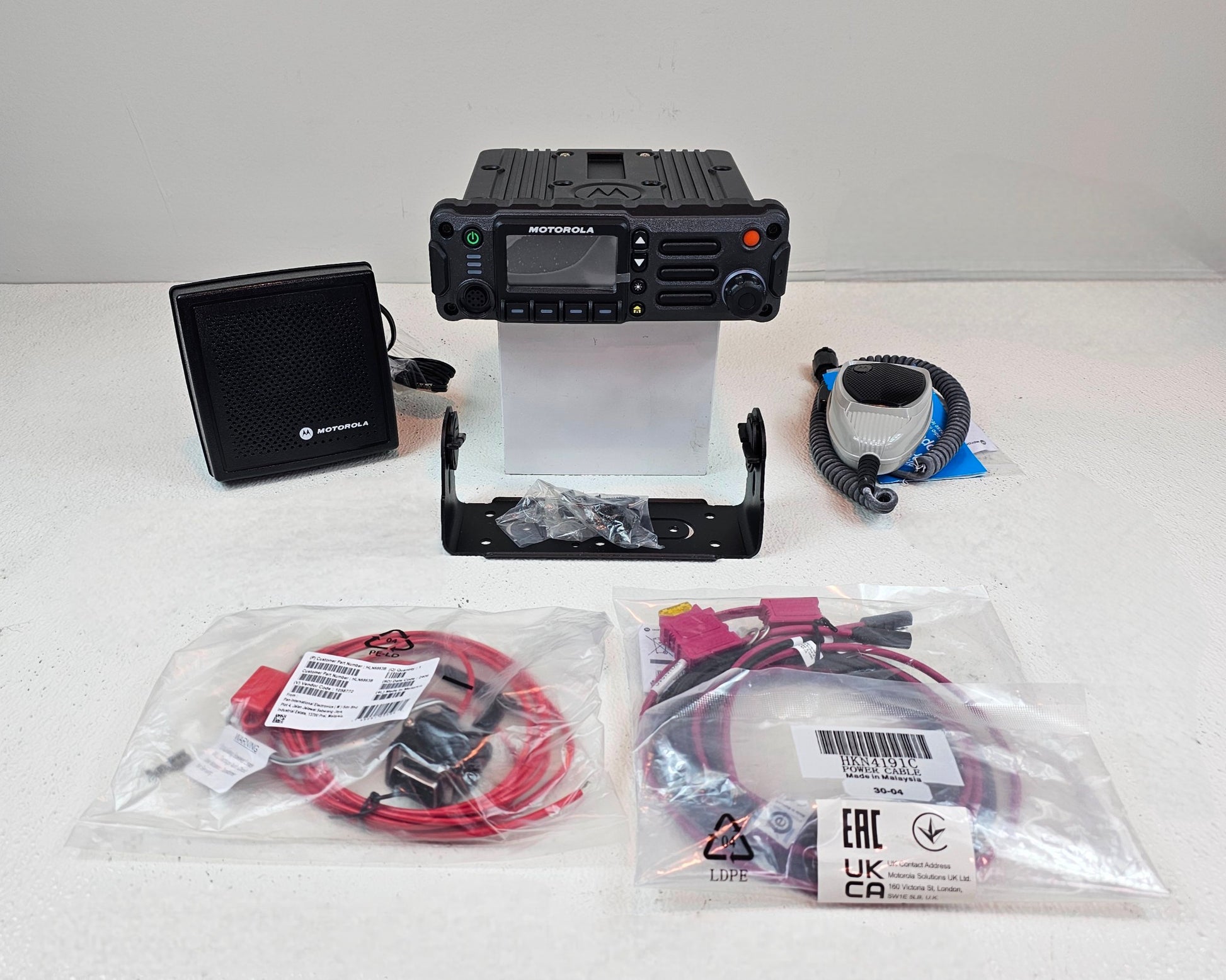

What's Included:

  • Motorola APX4500 Mobile Radio - Dash Mount Configuration
  • Mounting Hardware
  • Microphone & Speaker
  • Power Cable & Accessory Cable


Key Specifications (M22URS9PW1AN):

  • Frequency Range: 700/800 MHz (764-870 MHz).
  • Power Output: 10-35 Watts.
  • Channel Capacity: 1000 Channels.
  • System Capabilities: P25 Phase 1 (FDMA) and Phase 2 (TDMA) Trunking/Conventional.
  • Signaling/Security: ASTRO 25, SmartZone, ADP/AES/DES Encryption (optional), 9600 Baud.
  • Features: Integrated GPS, Intelligent Lighting, RFID Asset Tracking, Voice Announcement.


Flashcode: 9Q1048-Q13490-5

G806: ASTRO IMBE Digital Operation

G996: Over the Air Provisioning

G298: Hardware Multikey Encryption w/ OTAR

GA01767: ASTRO 25 Trunking Radio Authentication

GA00244: Primary Band: 700/800

QA01749: Legacy SW System Key Enable

G51: SmartZone Systems Operation

G507: 12.5 kHz FCC Mandate

G193: ADP Software Encryption

GA00229: Enable GPS/GNSS Operation

W947: APCO Packet Data Interface

QA02811: APX 3600/9600 Single System

G173: SmartZone Omnilink MultiZone Operation

GA00580: Enable TDMA Operation

G361: ASTRO 25 9600 Baud Trunking



*Image shown is a representation only. Actual product may vary.
