Motorola APX4500 800/900 MHz 512ch 35W M22VRS9PW1CN Dash Mount

Motorola APX4500 800/900 MHz 512ch 35W (M22VRS9PW1CN) Dash Mount

Radio is New - In Box.  If you have any questions, contact us M-F 8am - 4pm MT.

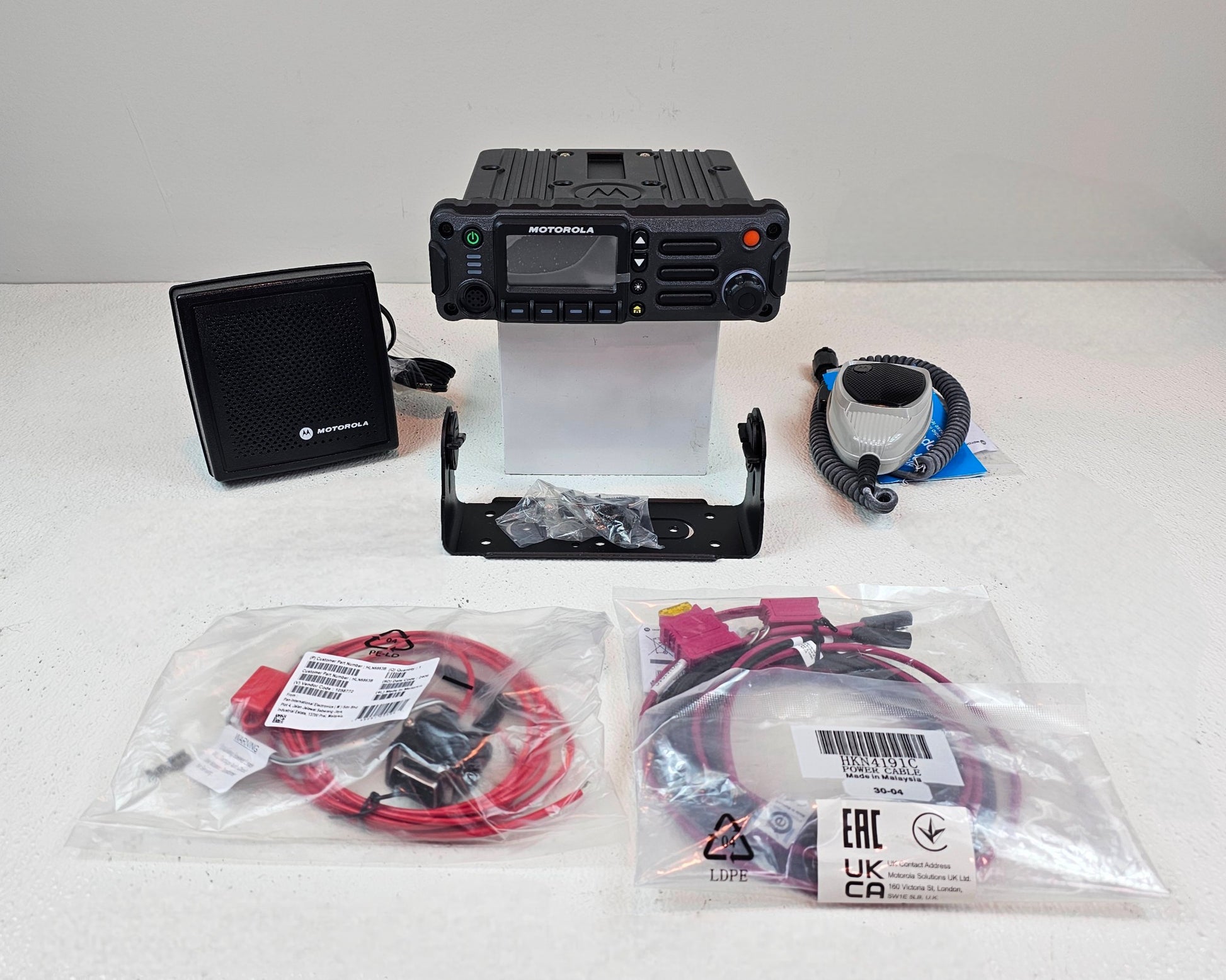

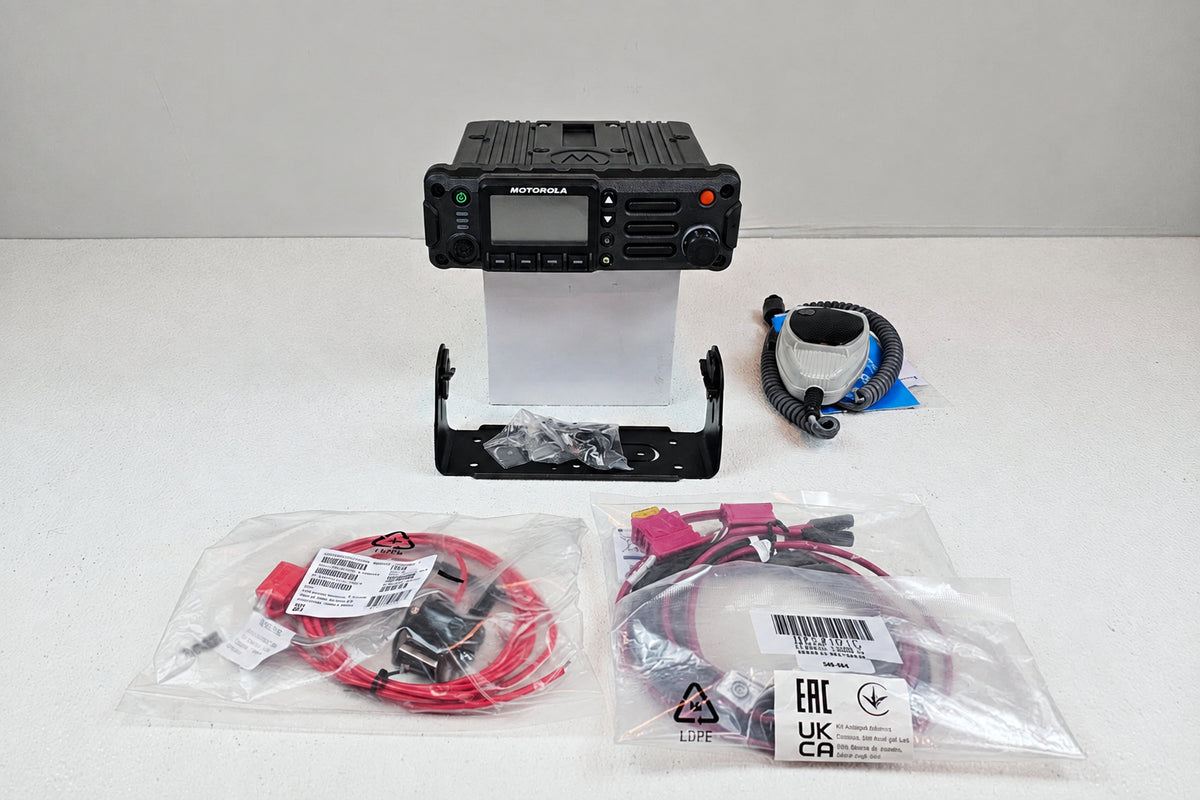

What's Included:

• Motorola APX4500 Mobile Radio - Dash Mount Configuration
• Mounting Hardware
• Microphone & Speaker
• Power Cable & Accessory Cable

Feature Set:  Flashcode: 10604Q-G13480-8

G806: ASTRO IMBE Digital Operation

GA00969: Primary Band: 900 (Multi-Bit Option)

QA01749: Legacy SW System Key Enable

G51: SmartZone Systems Operation

G683: Trunked One Touch Status Message

G193: ADP Software Encryption

GA00229: Enable GPS/GNSS Operation

W947: APCO Packet Data Interface

QA02811: APX 3600/9600 Single System

G173: SmartZone Omnilink MultiZone Operation

G361: ASTRO 25 9600 Baud Trunking

Product Details:

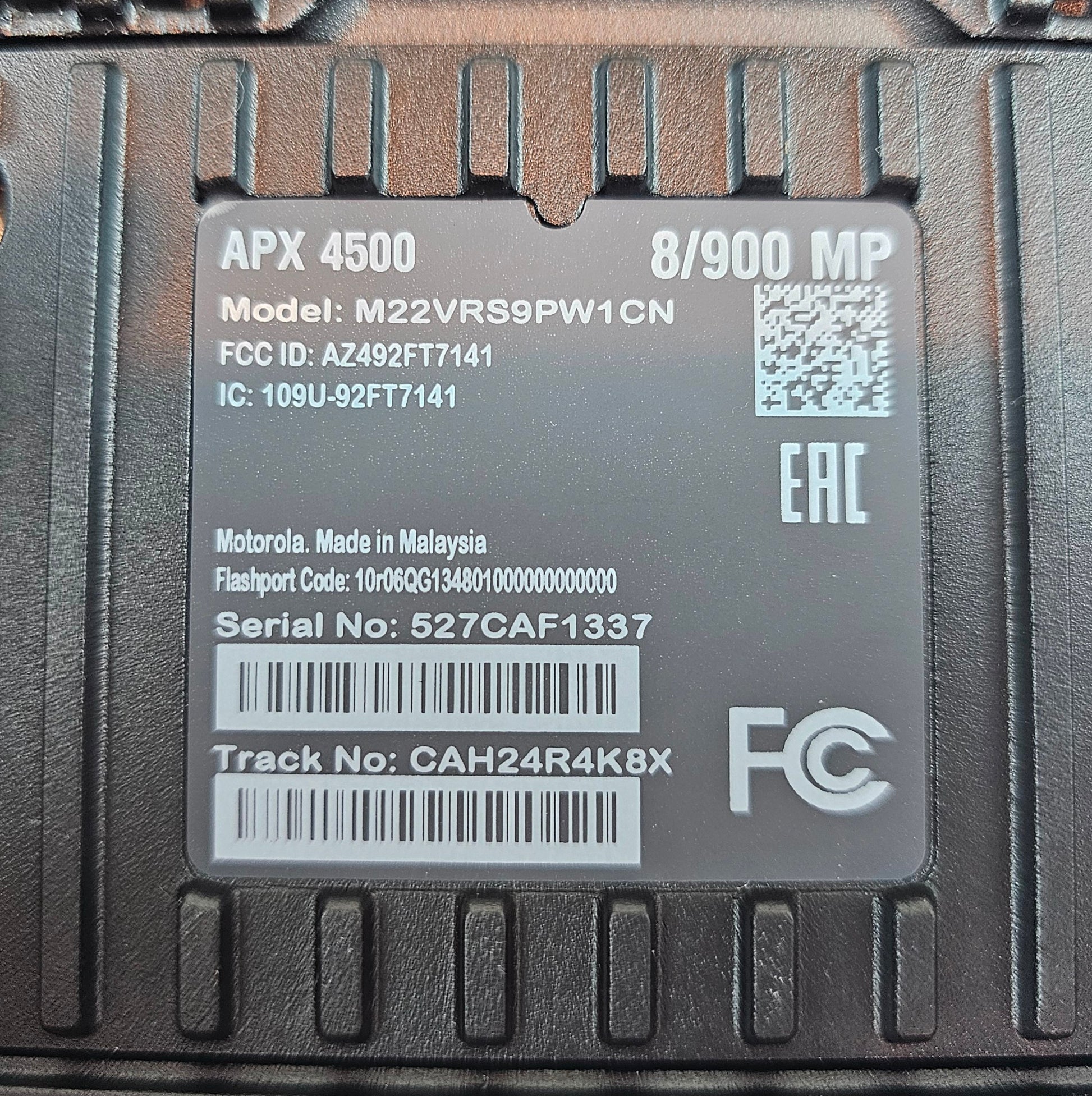

• Model Number: M22VRS9PW1CN
• Frequency Bands:8/900 MHz: 896–941 MHz
• Channels: 512ch
• Power Output: 10-30 Watts
• Modulation: 12.5/25/30Khz
• Operation Modes: Analog Conventional, P25 Digital Conventional, AES/ADP , P25 Trunked (Phase 1), P25 Trunked (Phase 2 TDMA), Conventional & Trunking Scan
• Display: Large color display with intelligent lighting, 3 lines of text (14 character max) 1 line of icons, 1 line of menus, built in 7.5 w speaker, multifunction volume/channel knob, night and day mode (button)
• GPS: Real-Time location updates, Emergency Position Reporting, Dispatch Integration.
• Encryption Capable:  AES-256, ADP, OTAR
• Front Panel: Dash mount / (REMOTE COMPATIBLE)
• Programmable Keys: Yes (configurable)
• Dimensions: Height~2.7 in, Width ~8.1 in, Depth ~8.8 in. for the radio(w/out control head)
• Weight: 5.28lbs
• Power Supply: Typical range of 10.8 -  16.6V DC
