Kenwood Nexedge NXR-710K VHF 136-174Mhz Repeater 100W w/ Duplexer & Cab Setup

Kenwood Nexedge NXR-710K VHF 136-174Mhz Repeater 100W w/ Duplexer & Cab Setup

inkfrog-843602-1

$1,675.00 USD
$1,675.00 USD
Sale Sold out











Kenwood Nexedge NXR-710K VHF 136-174Mhz Repeater 100W w/ Duplexer & Cab Setup


Description :

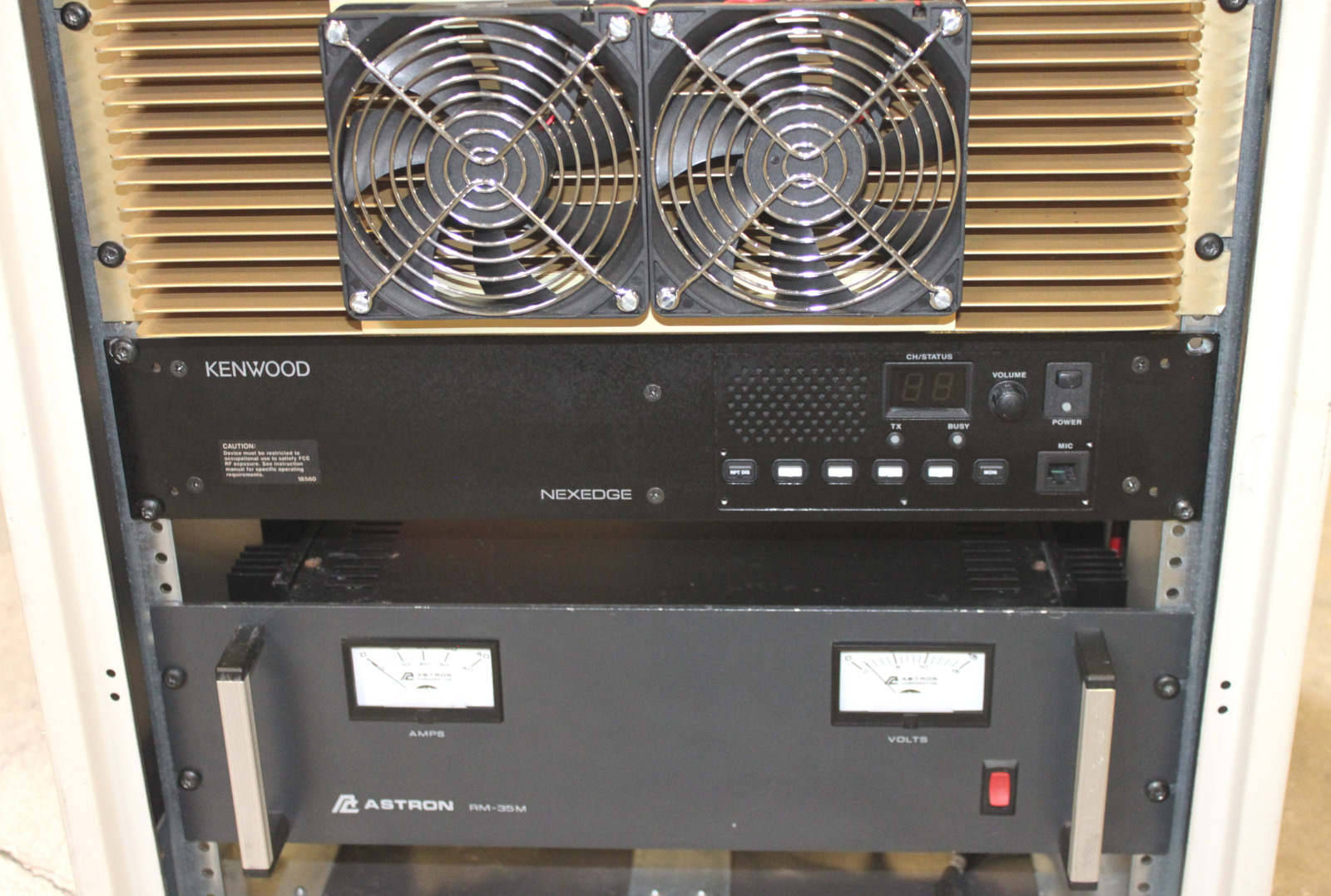

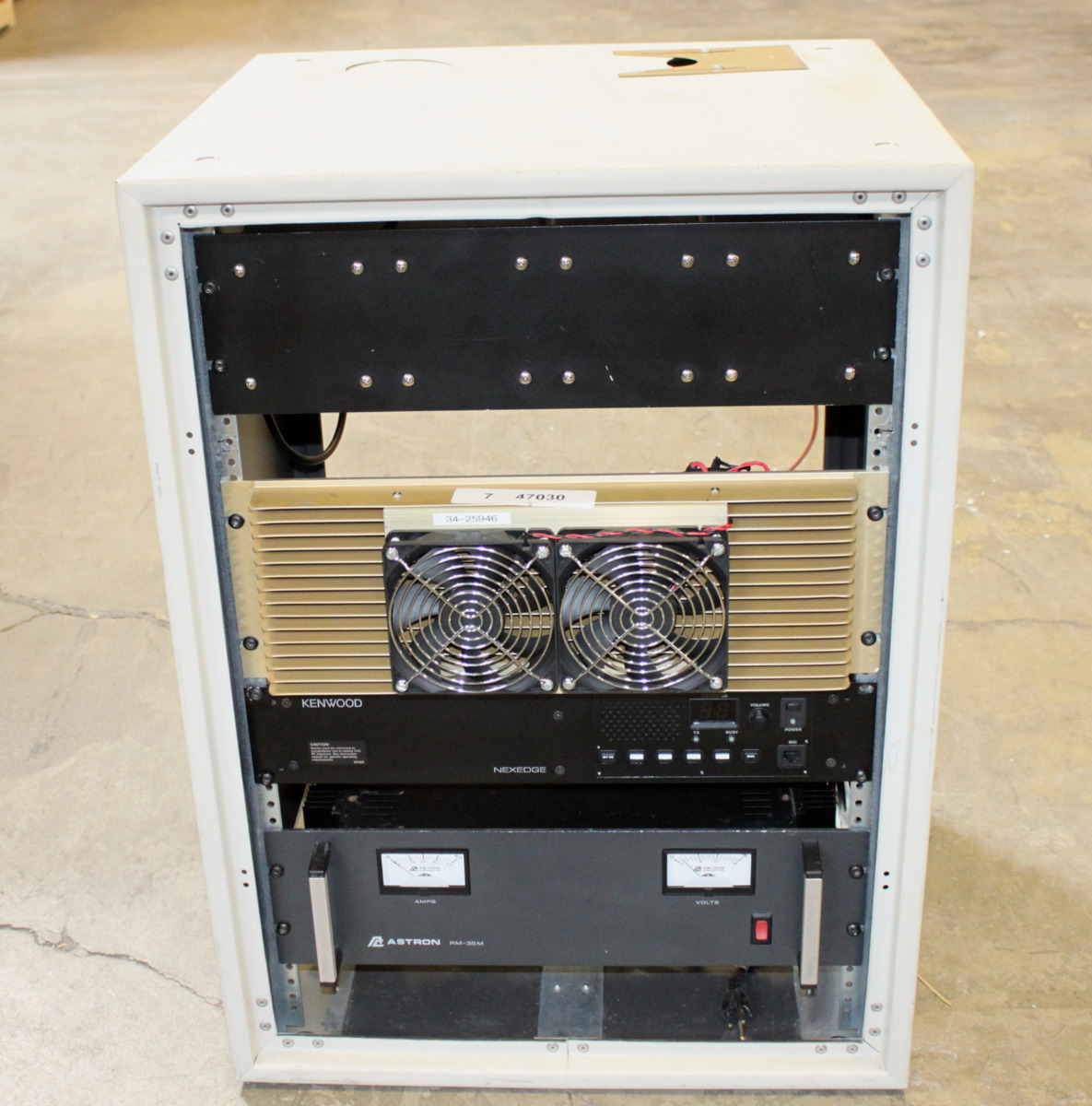

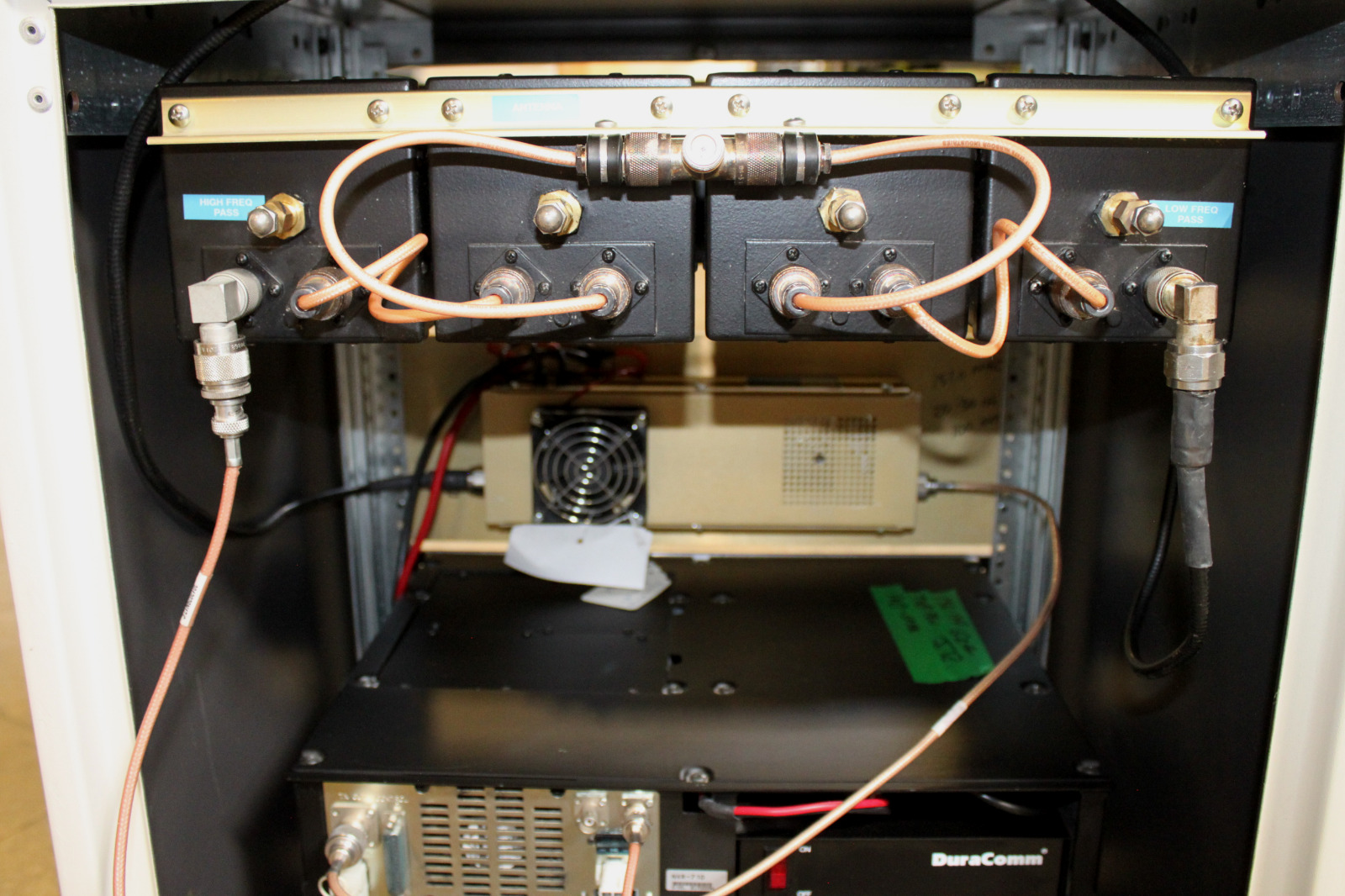

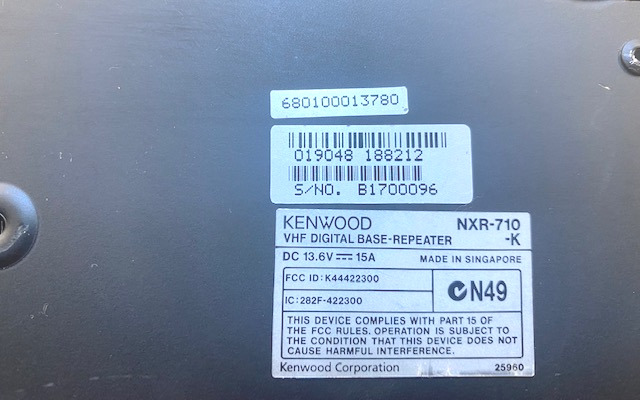

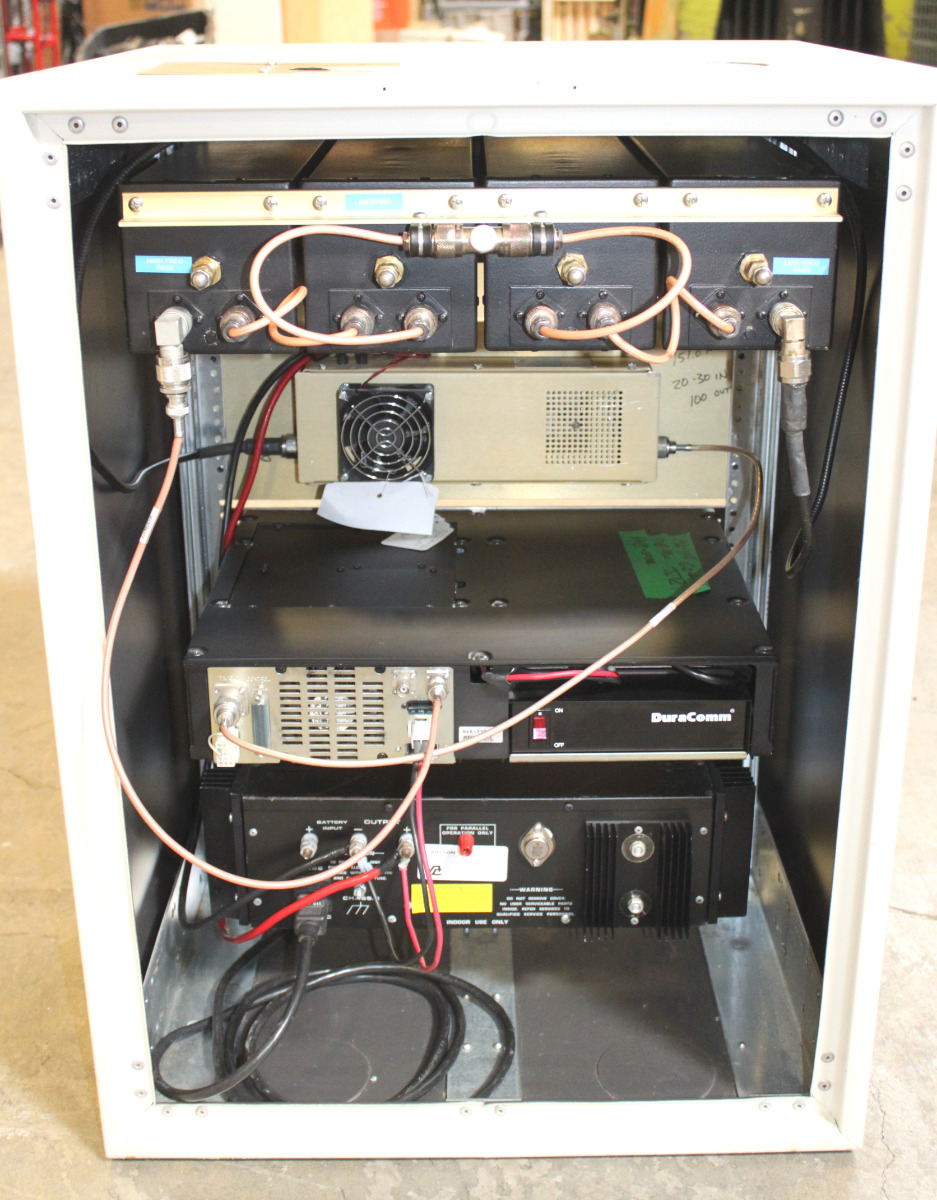

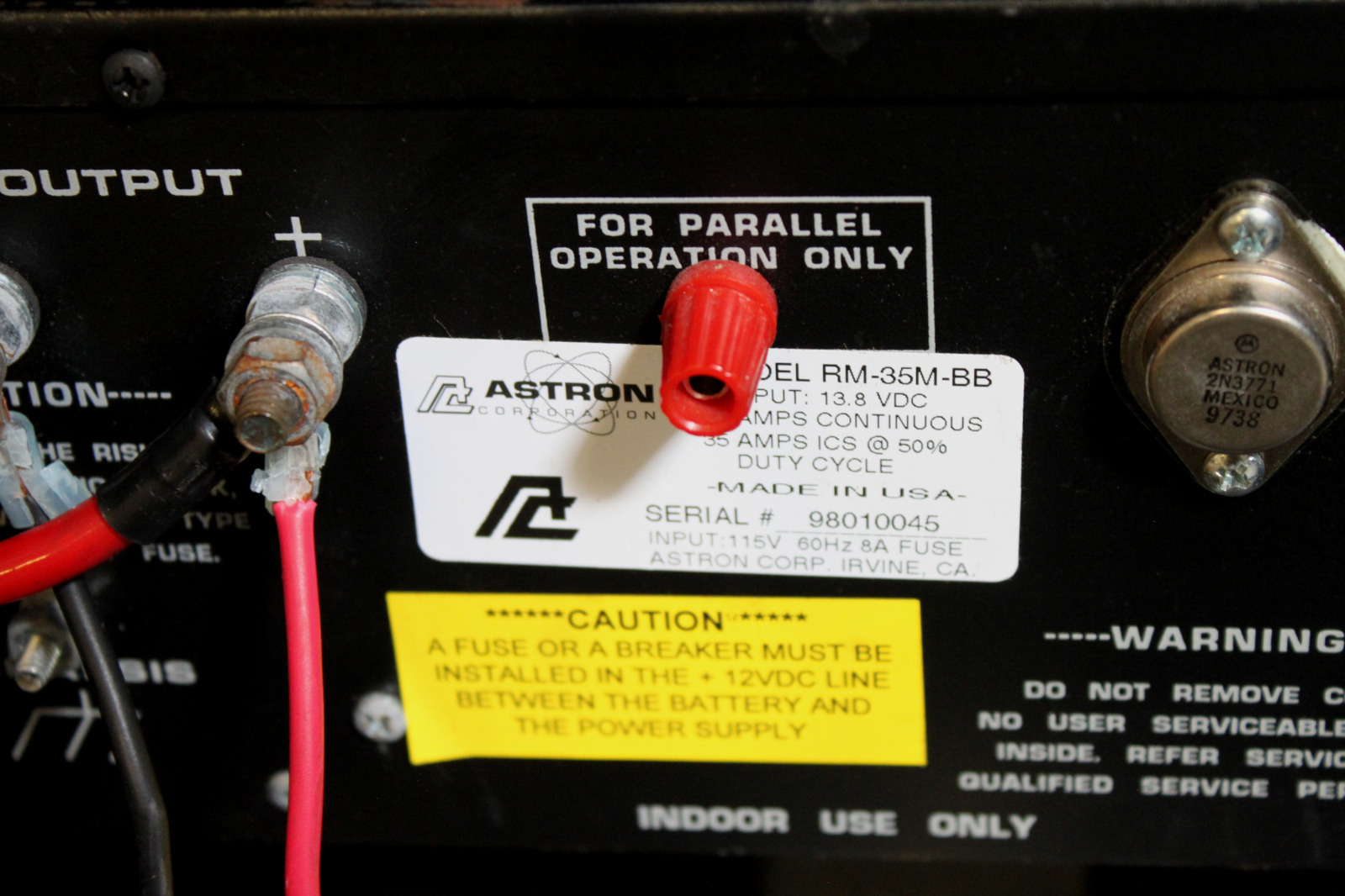

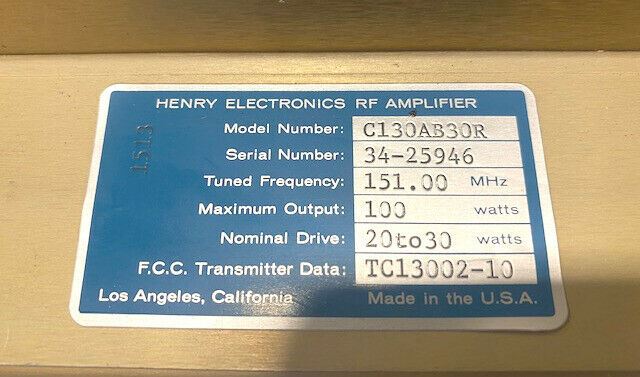

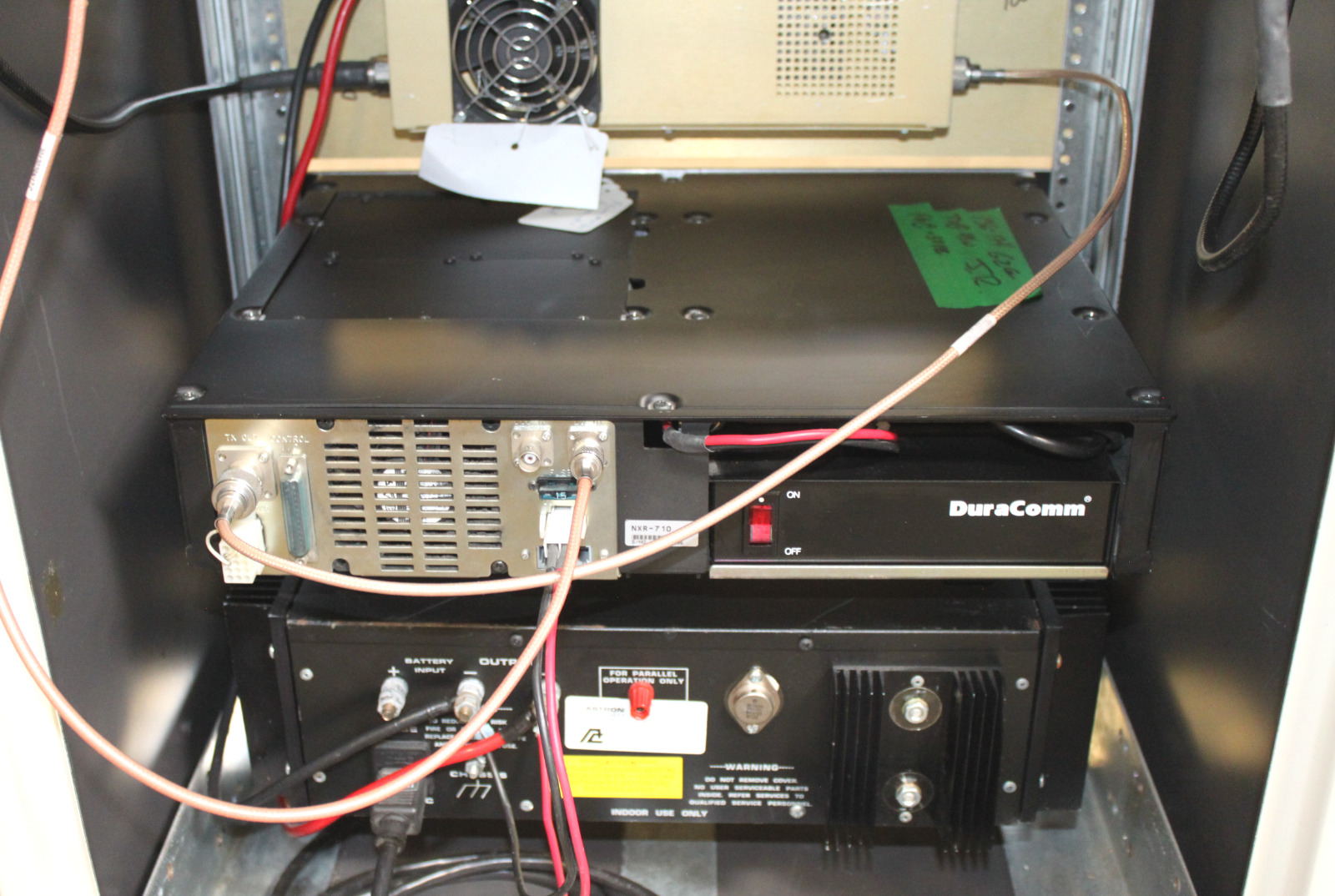

Kenwood VHF Nexedge repeater, model number NXR-710K. This is a 30 channel 50 watt repeater that operates in the 136-174 Mhz range. Repeater comes complete with 100W Henry Electronics power amp (C130AB30R), dbSpectra DECIBEL VHF 4 Cavity Bandpass Reject Duplexer Model DB4059 148-174 Mhz and Astron (RM-35M) 35A power supply and rugged cabinet for rack mount. Repeater is capable of both narrow band and wide band operation. The Nexedge radios are capable of both analog and NXDN Digital Air Interface. Unit in great condition. If you have any questions, please contact us M-F (8:430pm) Mountain Time.

FEATURES:

Frequency Range
　･VHF: 136-174 MHz (NXR-710)
RF Output
　･VHF: 50 W @ 50% duty, 25 W @ 100% duty (NXR-710)
Repeater Operation
Duplex / Simplex Base Operation
30 CH Scanning Base
Two-Digit LED Display
6 Lighted Programmable Function Keys
Front Panel Speaker
Rear External Speaker Output (4 W Audio)
Volume Control
Microphone Jack
Program Interface
Remote Termination Interface
Programmable AUX I / O's
RF Power Down Detect
DTMF Front Panel PF Key Control
DTMF AUX Output Control
DTMF AUX Input Monitoring
External Frequency Reference (10 MHz) Connectivity
Windows® PC Programming
Flash Firmware Upgrading
FOR DIGITAL:

NXDN® Digital Air Interface
Conventional IP Network
AMBE+2™ VOCODER
6.25 & 12.5 kHz Channels
Mixed FM / Digital Operation
NXDN® Scrambler Built-in
16 RAN Repeater Control Built-in
1,000 GIDs Per Site
1,000 UIDs Per Site
Individual & Group Selective Call
All Group Call
NXR Over-the-air Alias
FOR ANALOG :

VHF: 25, 20*1 & 12.5 kHz Channels
Built-in Scrambler
16 QT / DQT Repeater Control Built-in
Hang Timer / Time Out Timer / CW ID
External FM Controller Interface
EIA Voter Tone Generation
External LTR® Controller Interface
External MPT Controller Interface


NOTE: If your order includes programming, please email us a request for our Programming Form after checkout.
