Kenwood Nexedge NXDN NXR-810 UHF (450-520MHz) Digital Repeater w/Duplexer

Kenwood Nexedge NXDN NXR-810 UHF (450-520MHz) Digital Repeater w/Duplexer

NXR810 1

$1,275.00 USD
$1,275.00 USD
Sale Sold out
Shipping calculated at checkout.

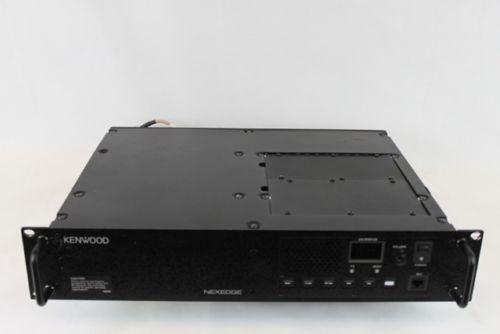

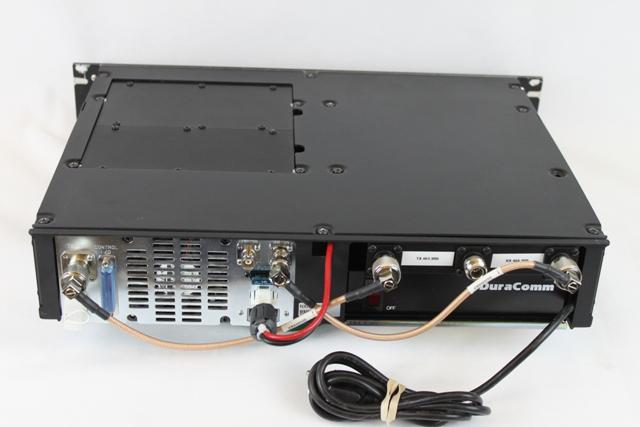

This is a Kenwood UHF Nexedge repeater, model number NXR810. This is a 30 ch 40 watt continuous repeater repeater that operates in the 450-520 Mhz range. Unit comes complete with AC to DC power supply, repeater will ship with factory installed duplexer. Repeater is capable of both narrow band and wide band operation. The Nexedge radios are capable of both analog and NXDN Digital Air Interface. This unit does come with a duplexer (tunning range 450-470 w 5 Mhz separation). These duplexers cannot be tuned for ham band operation. Free programming is available (1-16).

GENERAL FEATURES
450 - 520* MHz, 40 W
•Repeater Operation
•Duplex / Simplex Base Operation
•30 CH Scanning Base
•Two-Digit LED Display
•6 Lighted Programmable Function Keys
•Front Panel Speaker
•Rear External Speaker Output
(4 Watts Audio)
•Volume Control
•Microphone Jack
•Program Interface
•Remote Termination Interface
•Programmable AUX I/O's
•DTMF Front Panel PF Key Control
•DTMF AUX Output Control
•DTMF AUX Input Monitoring
•Windows
®PC Programming
•Flash Firmware Upgrading DIGITAL – CONVENTIONAL MODE
•NXDN
®Digital Air Interface
•Conventional IP Network*
•AMBE+2
™VOCODER
•6.25 & 12.5 kHz Channels
•Mixed FM / Digital Operation
•NXDN
®Scrambler Built-in
•16 RAN Repeater Control Built-in
•1,000 GIDs Per Site
•1,000 UIDs Per Site
•Individual & Group Selective Call
•All Group Call
•NXR Over-the-Air Alias

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
