Icom IC-F1020-2 ICF1020-2 VHF 45 Watt 32 channel (146-174) MHz (Complete Kit)

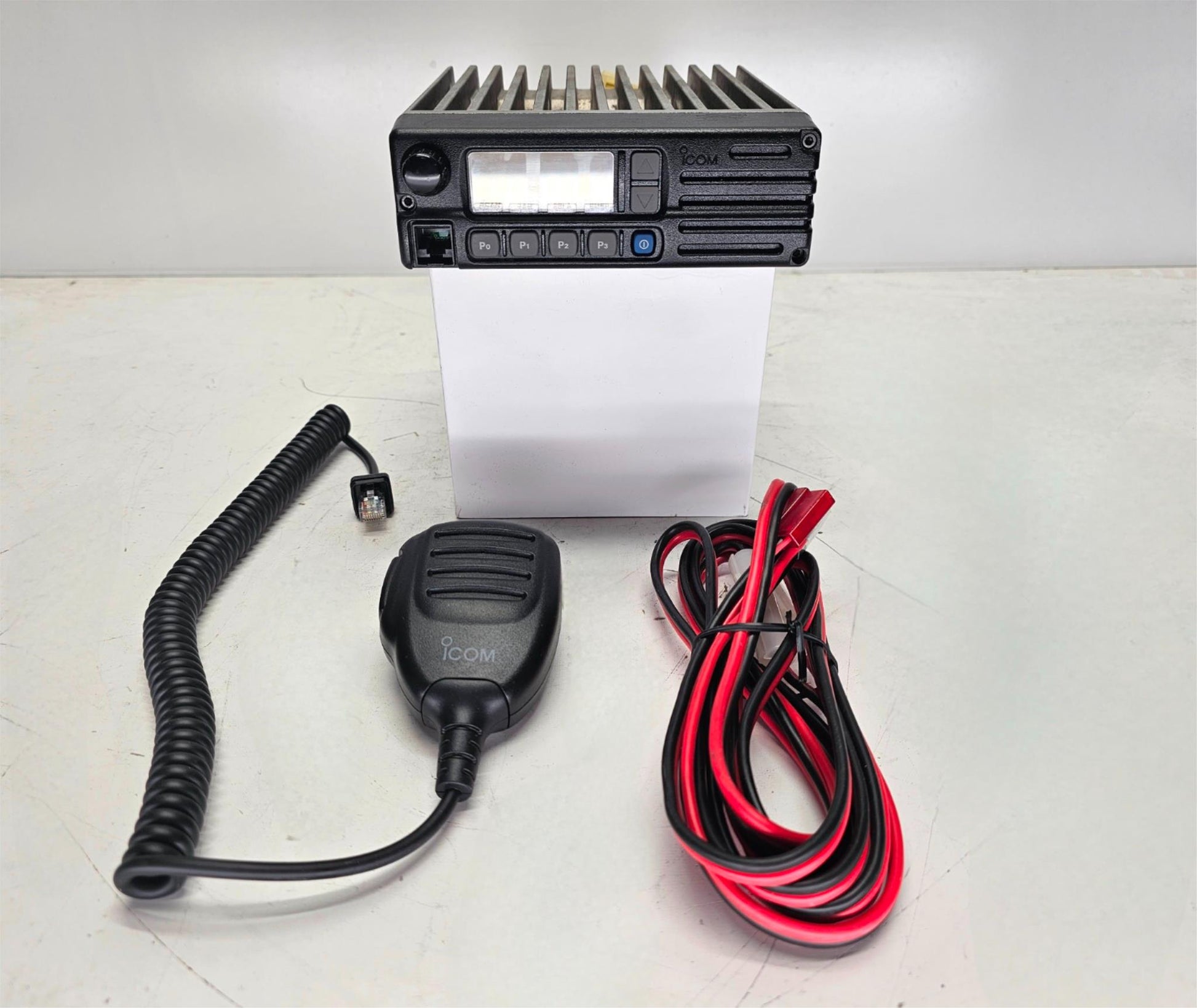

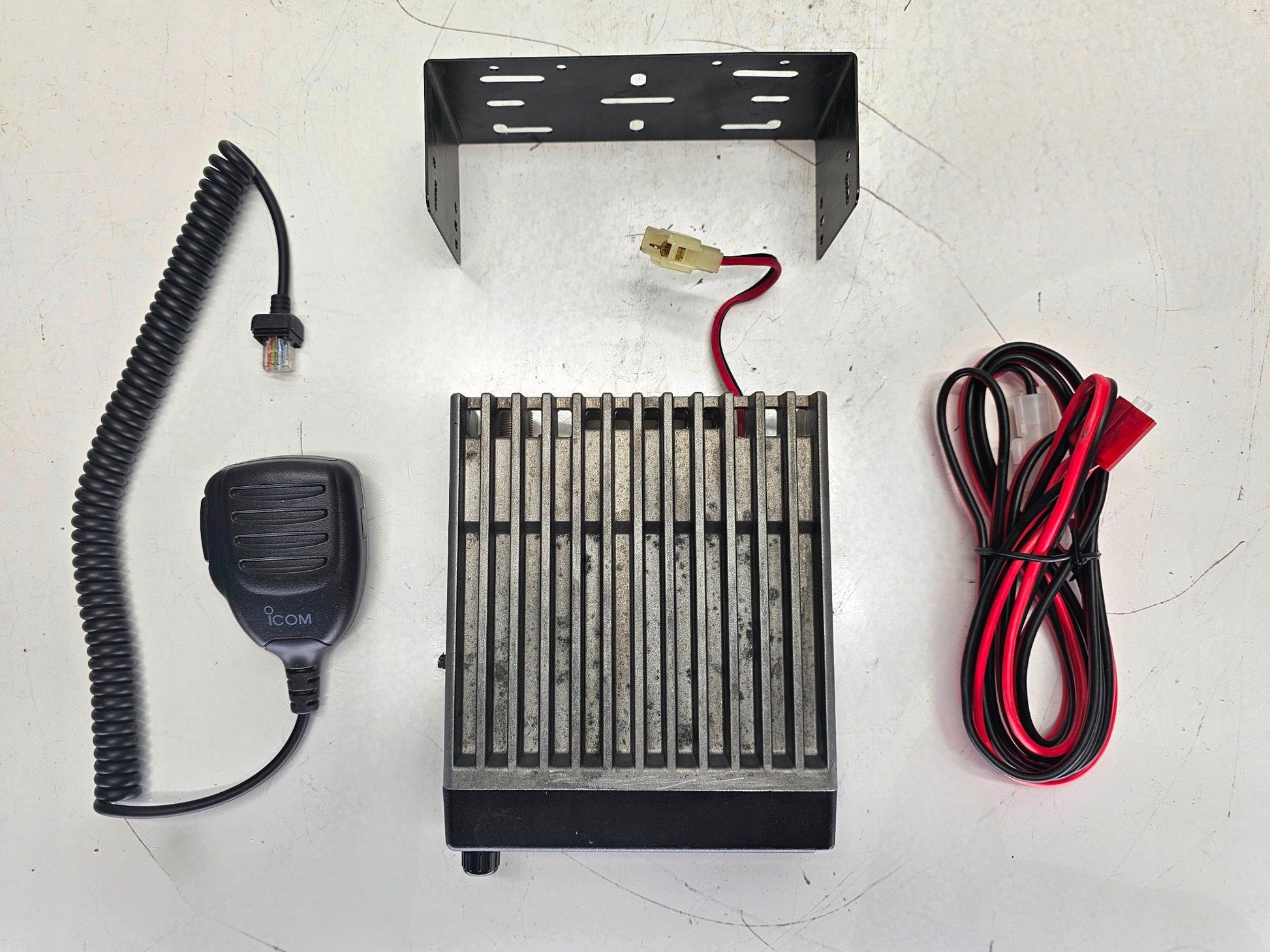

Icom IC-F1020-2 VHF radio. This is a 45 watt, 32 channel radio with a band split of (146-174 MHz). Radio is in excellent shape and guaranteed fully operational. Comes complete with palm mic, mounting bracket and power cable. These radios are capable of narrowband operation. Free programming is available (1-16). If you have any questions please contact us.

Rugged construction

The diecast aluminum chassis and polycarbonate front panel are resistant to impact.

45 W of stable output power

The one-piece aluminum chassis and heat sink provide effective heat dissipation, even at high duty cycles.

45 W for the IC-F1020 (VHF) and 35 W for the IC-F2020 (UHF).

Detachable front panel

A detachable front panel provides numerous mounting possibilities and is simple to install in almost any vehicle.

Optional remote kit and cable lengths available.

Programmable assign function

Six switches provide simple operation yet their functions can be changed during programming, providing flexibility to suit your specific needs. (Limited front panel programming available.)

9600 baud data compatible

CTCSS and DTCSS are standard

Large, alphanumeric display

32 channels standard; up to 160 optional

ADDITIONAL FEATURES

• Selectable channel spacing (channel independent)
• Memo banks
• Emergency call (DTMF code) with single or repeat function
• Tones + group code channels for 2-tone decode (optional)
• Automatic DTMF transmission linked to PTT
• Standard CTCSS with 51 frequencies (plus 1 programmable)
• Standard DTCS with selectable polarity
• 7 DTMF channels for auto-dialing
• Up to 8 alphanumeric characters for memory name display
• 5 scan channel groups
• 2 priority channels
• Scan start and/or tone squelch as the microphone on hook function
• Priority channel selection and/or receive monitor as the microphone off hook function
• Normal scan and priority scan
• Power ON scan start
• Reverse burst equivalent
• Transpond capability (optional 2-tone decoder unit necessary)
• Programmable password security
• Programmable minimum level for audio volume
• Talk around function
• Time-out timer with penalty time
• Transmit lockout (CTCSS/channel busy)
• 2 selectable 'stun' functions (optional 2-tone decoder unit necessary)
• External I/O terminal socket (optional OPC-617 required) for PA, horn honk, dimmer, 9600 baud packet and PTT
• Advanced programming package for IBM^(R) PC or compatible
