HPE Aruba 2930F JL 253A 24G 4SFP+ - Switch - 24 Ports - Managed - Rack-Mountable

HPE Aruba 2930F JL 253A 24G 4SFP+ - Switch - 24 Ports - Managed - Rack-Mountable

ARUBA 2930

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

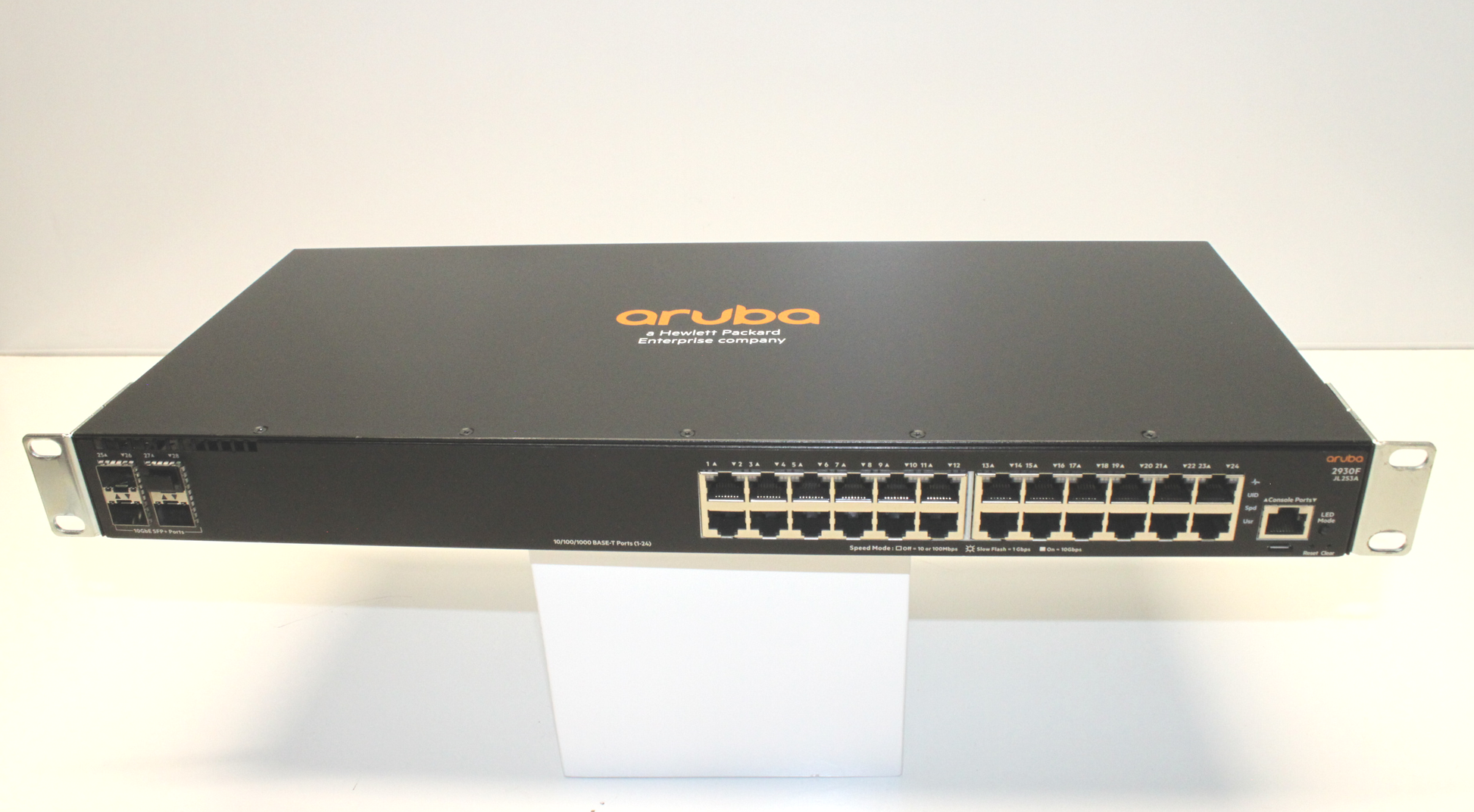

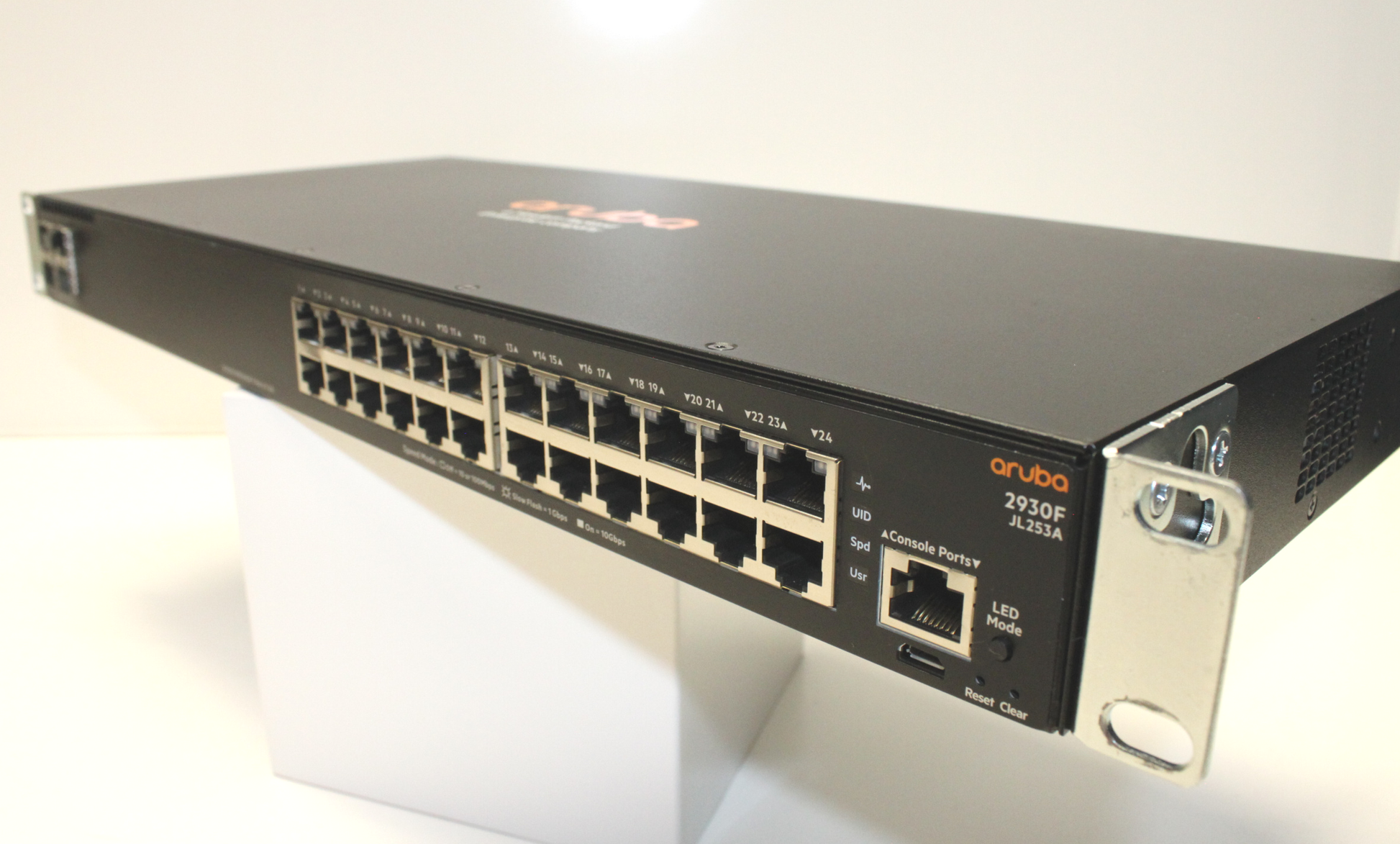

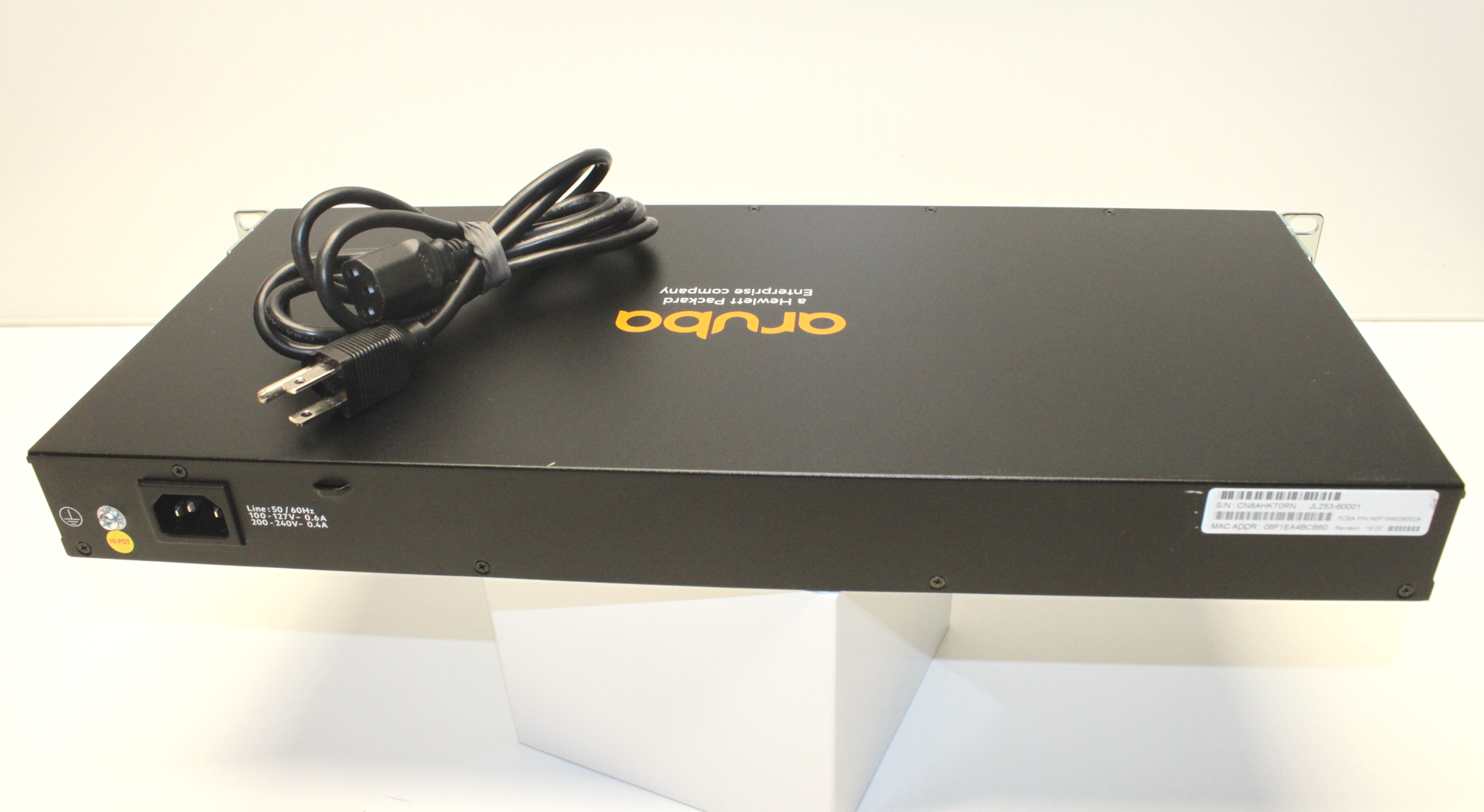

HPE Aruba 2930F JL 253A 24G 4SFP+ - Switch - 24 ports - managed - rack-mountable.   Switch includes power cable.  Units are in great working condition. ** Please note that not all of the units look like the pics...some have scratches and tiny dents on the top and bottom of unit.   Please contact us for any questions.



The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

Tech Specs

Specifications are provided by the manufacturer.

  • Header

    • Aruba
    • Aruba
    • HPE Aruba
    • 2930F 24G 4SFP+
    • English
    • United States
    • 1

  • Chassis

    • 0
    • 4

  • Processor

    • Cortex-A9
    • 1
    • ARM
    • 1.016 GHZ

  • RAM

    • DDR3 SDRAM
    • 1 GB

  • Flash Memory

    • 4 GB, 4 GB

  • Performance

    • Latency (1 Gbps): 3.8 µs, Latency (10 Gbps): 1.6 µs, Switching capacity: 128 Gbps, Throughput: 95.2 Mpps

  • Capacity

    • IPv4 routing table entries: 10000, IPv6 routing table entries: 5000, Jumbo frame size: 9220

  • Networking

    • Switch
    • Network hubs and switches
    • Gigabit Ethernet
    • Rack-mountable
    • Stackable
    • 24
    • Layer 3
    • BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
    • 32K entries
    • Yes
    • CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
    • Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
    • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

  • Ports

    • 24
    • 10/100/1000

  • Ports (2nd)

    • 4
    • 1 Gigabit / 10 Gigabit SFP+ (uplink)

  • Expansion Slots

    • 1 (total) / 1 (free) x expansion slot

  • Interface Provided

    • 1 x serial (console), 24 x 1000Base-T RJ-45, 4 x Gigabit / 10Gbit LAN SFP+

  • Software

    • Command Line Interface (CLI), HP Intelligent Management Center, HP Web browser

  • Power Device

    • Internal power supply
    • 1
    • AC 120/230 V
    • 29.3 watt
    • 80 PLUS Silver

  • Miscellaneous

    • Black
    • 4 bumper feet, 4 mounting ears, Cable tie, Mounting screws
    • 1
    • MD5, SSL
    • CHAP, PAP, RADIUS, TACACS, TACACS+
    • CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC60950-1:2005+A1:2009+A2:2013, UL 60950-1 Second Edition, VCCI Class A

  • Dimensions & Weight

    • 17.4 inch
    • 7.9 inch
    • 1.7 inch
    • 5.31 lbs
