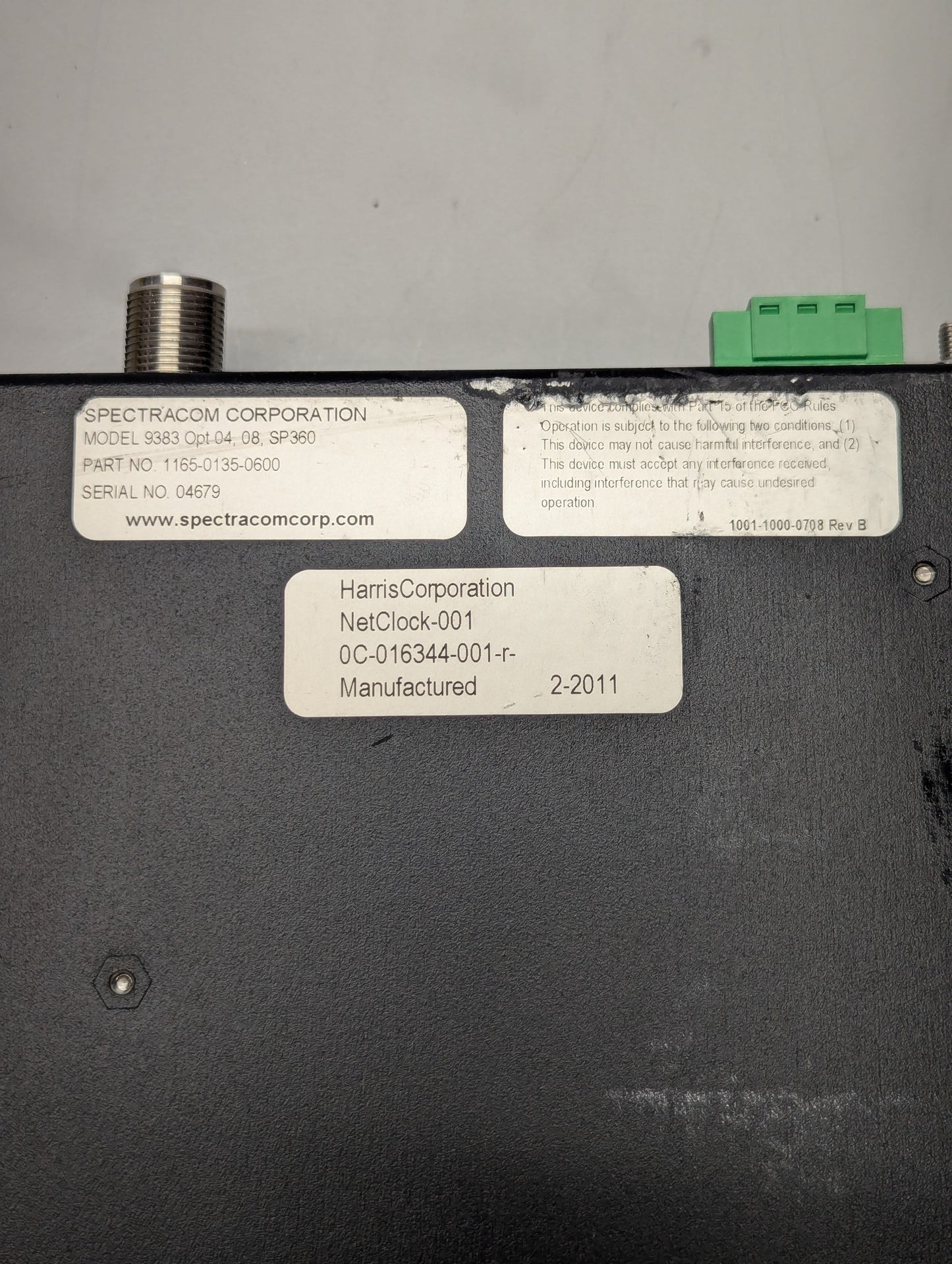

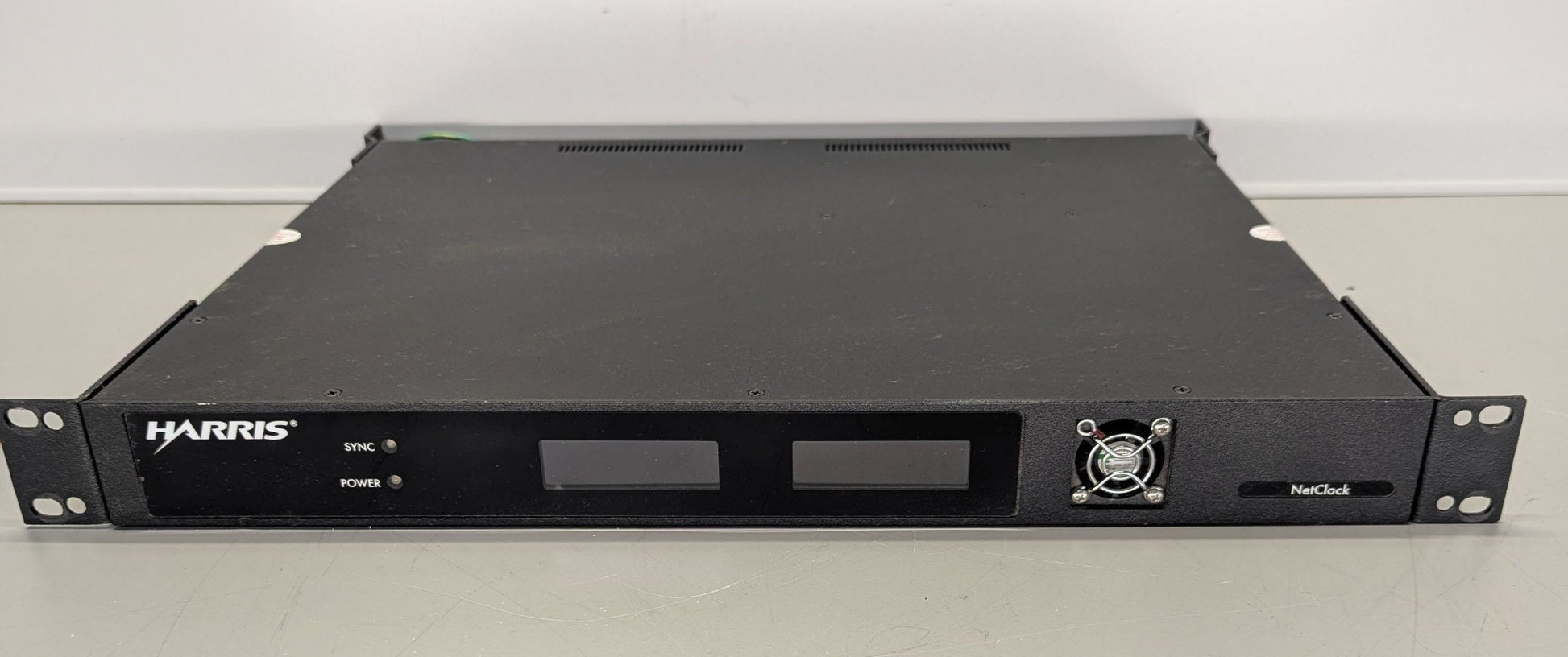

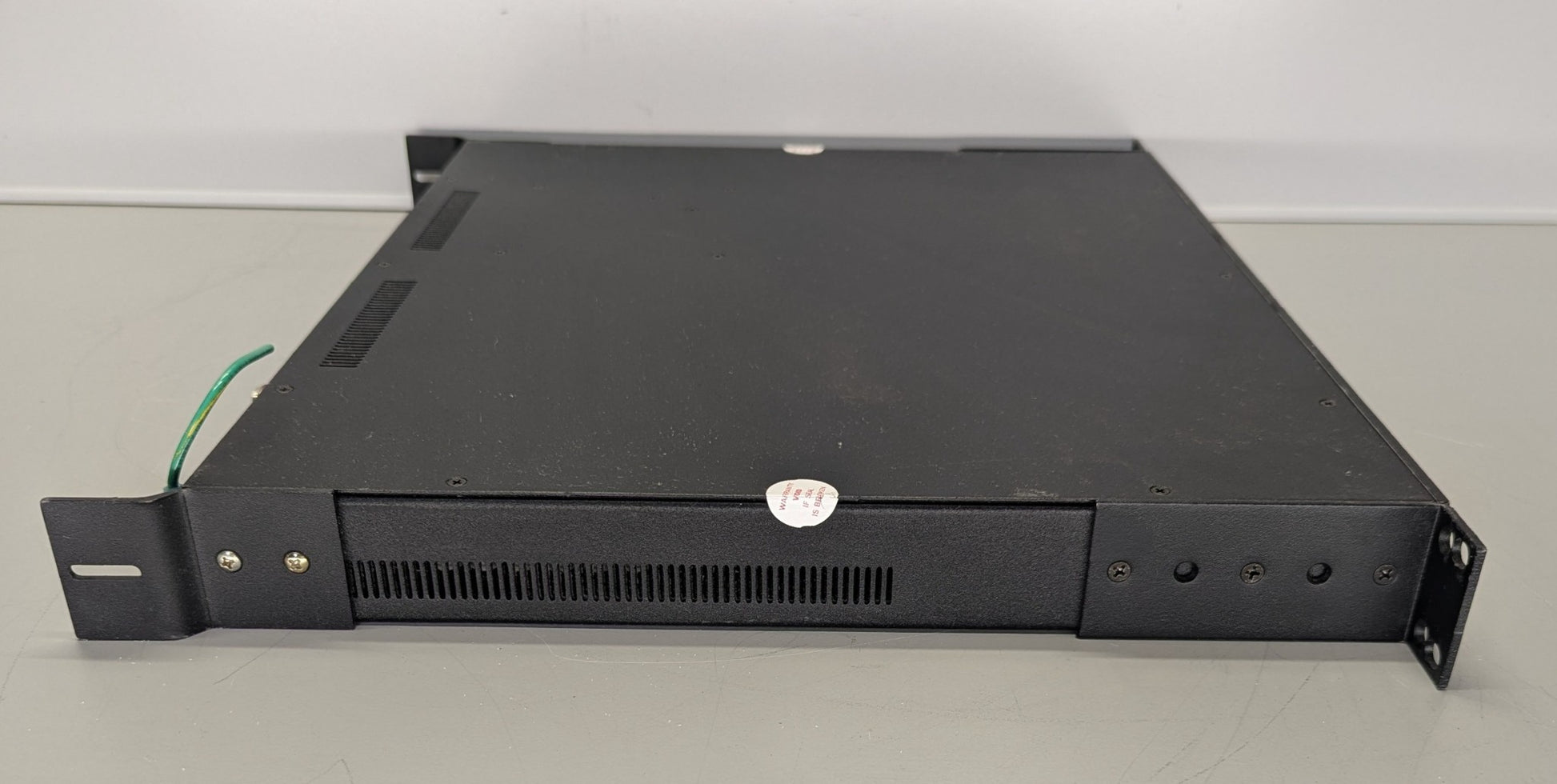

Harris Net clock/Spectracom model 9383 opt 04, 08, SP360

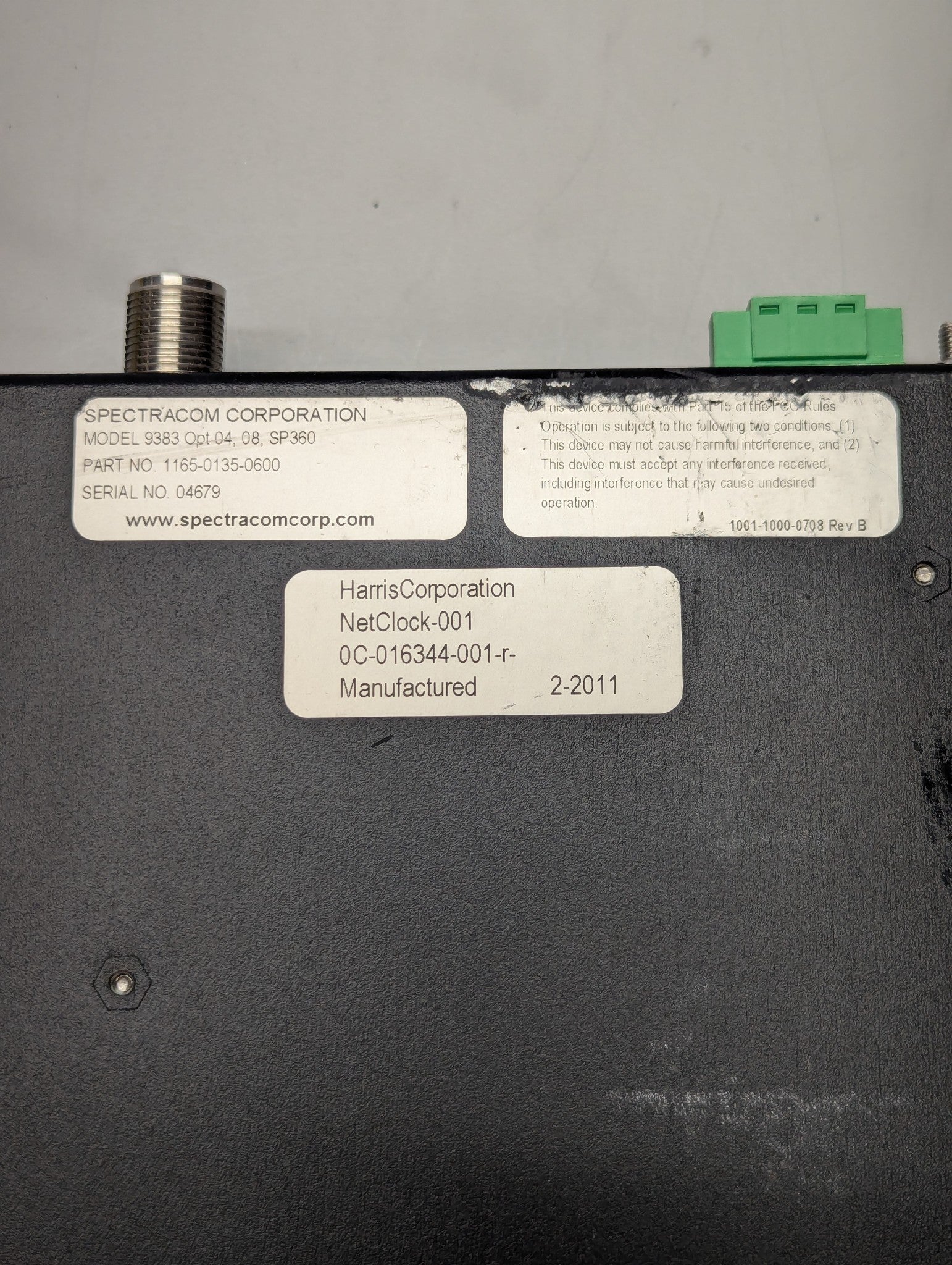

Model Number: 9383 opt 04, 08, SP360

Option 04 provides the Net Clock with a self-calibrating ovenized rubidium oscillator. The purpose of this oscillator is to provide a very accurate time base when GPS is either lost or cannot be obtained due to site limitations. It is also used to provide a very stable and accurate 10 MHz output with a high degree of holdover if GPS is lost. Because of its high degree of stability, this oscillator provides the ability to greatly extend the hold-over period when GPS is not present. Extending the hold-over period allows the unit to provide very accurate and useable time stamps and a 10 MHz output for a longer period of time once time synchronization has been lost.

Meets NENA PSAP Master Clock Standard #04-002

Stratum 1 NTP v2, v3, v4 Time Server

Precision GPS time reference (optional IRIG or modem)

GPS back-up oscillators (OCXO and Rubidium)

Web-based user interface

Security features: IPSec, SSL, SNMP v3, SSH, SCP, SFTP

IPv4/IPv6 dual stack

Peering and stratum 2 to other NTP servers

Dimensions: 19"W x 1.75"H x 15"D

Weight:5 lbs
