Used Radios

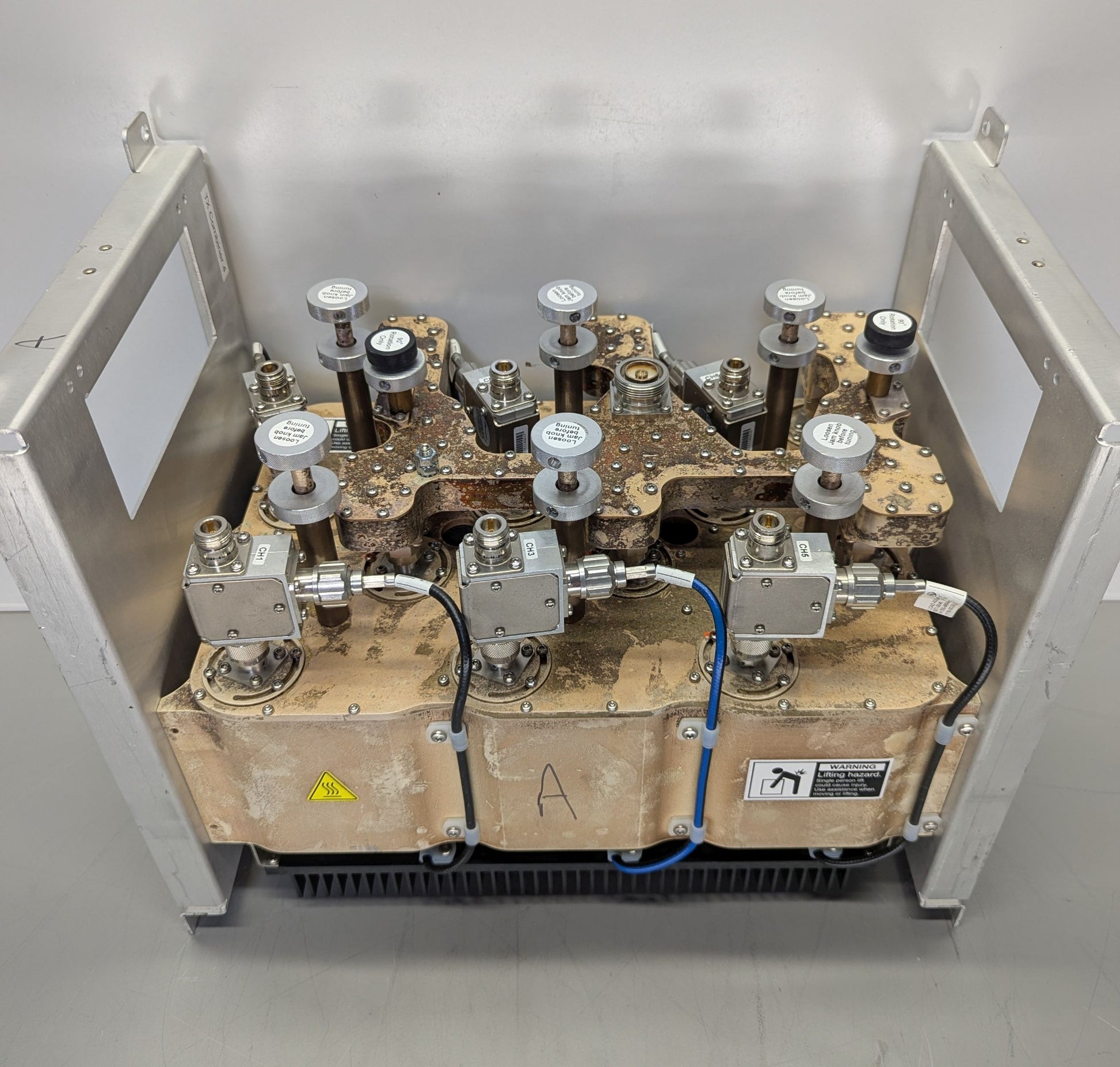

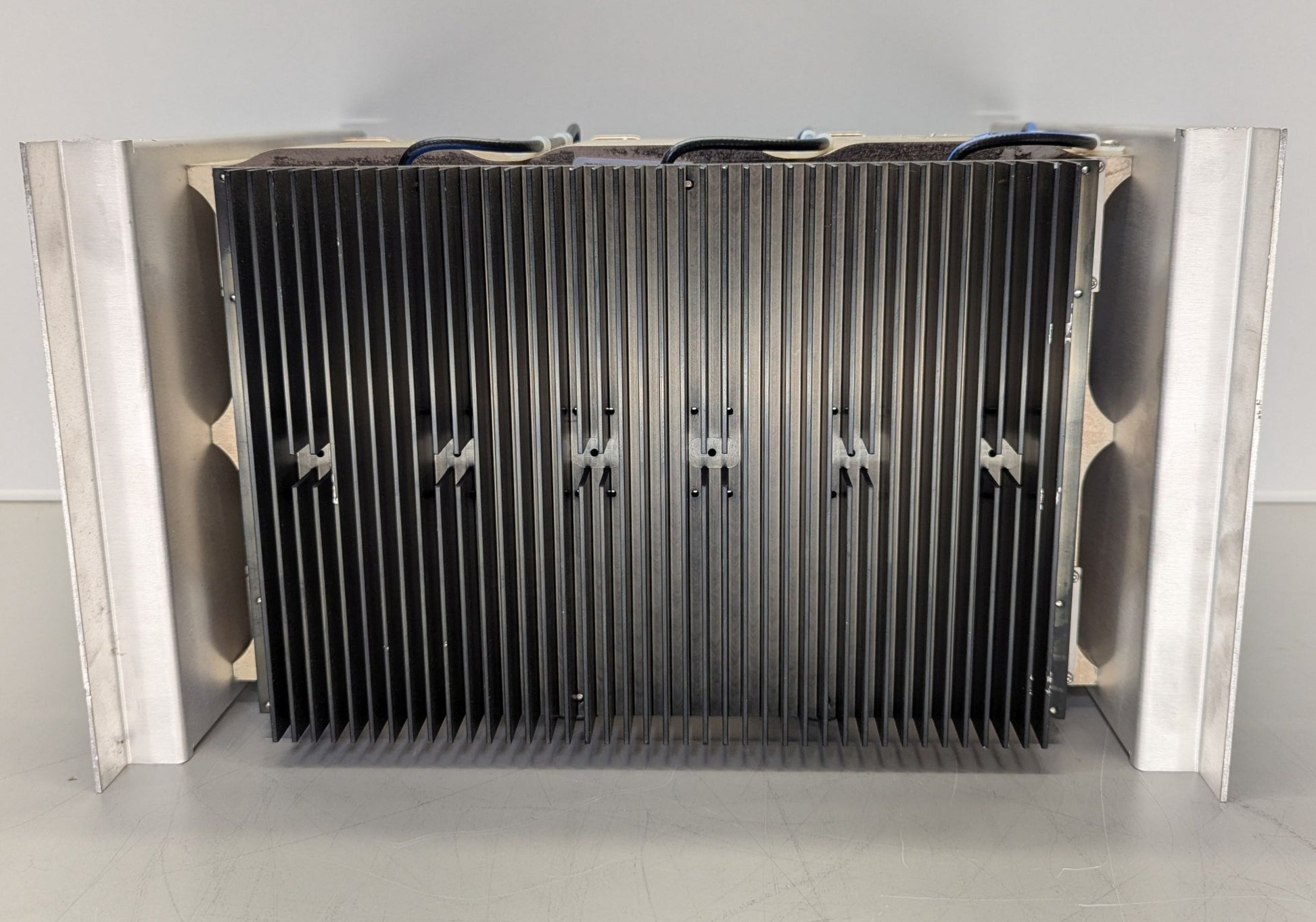

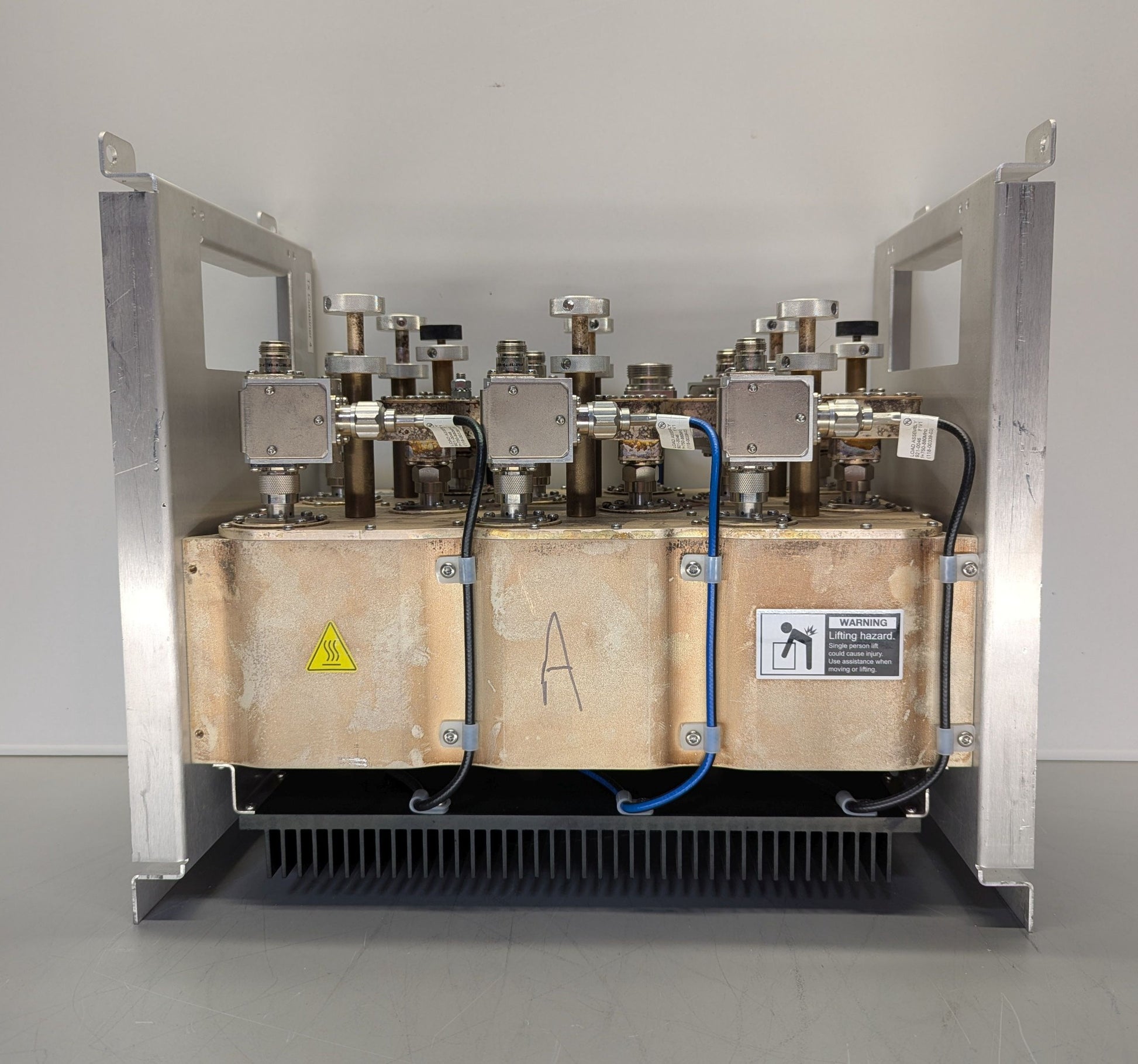

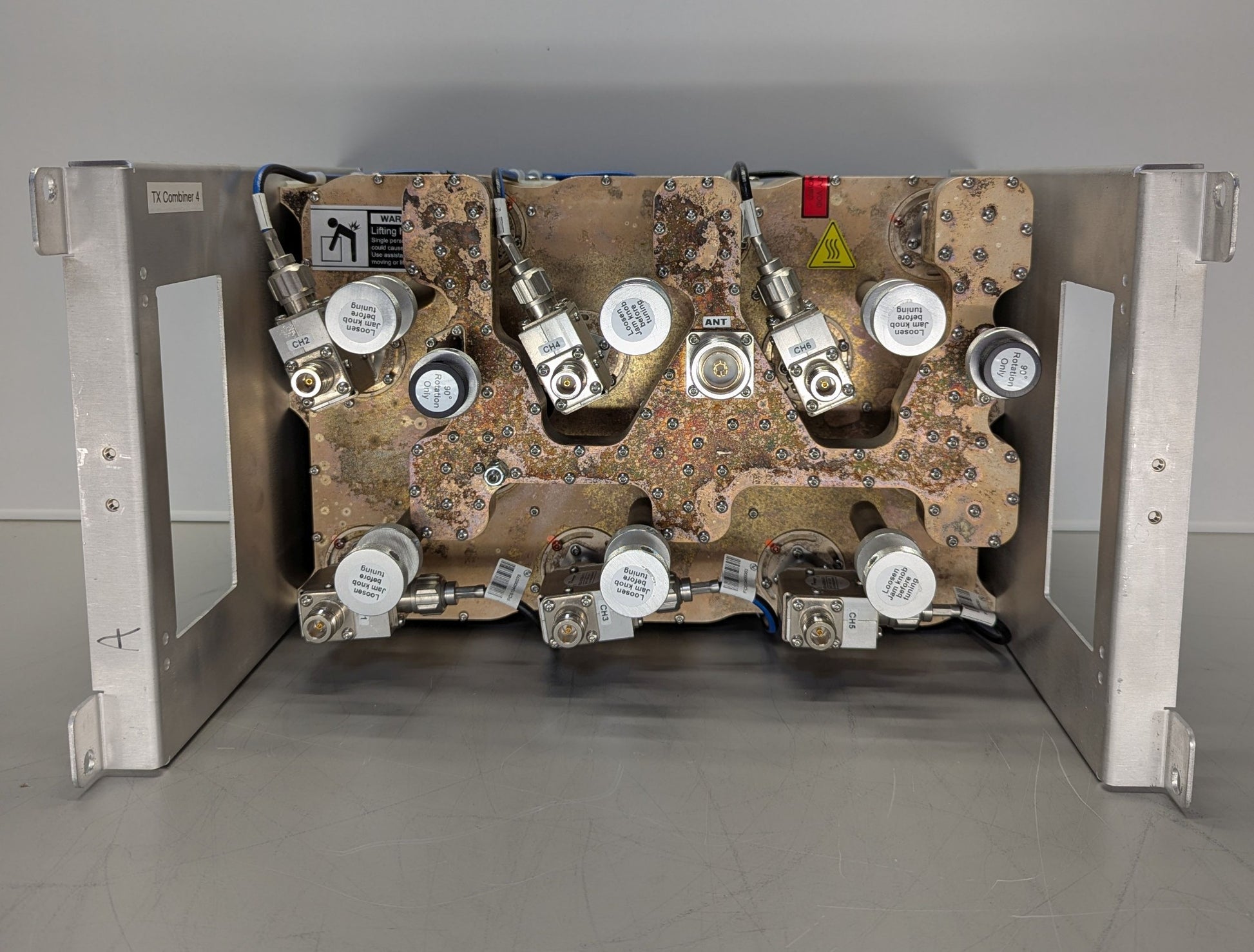

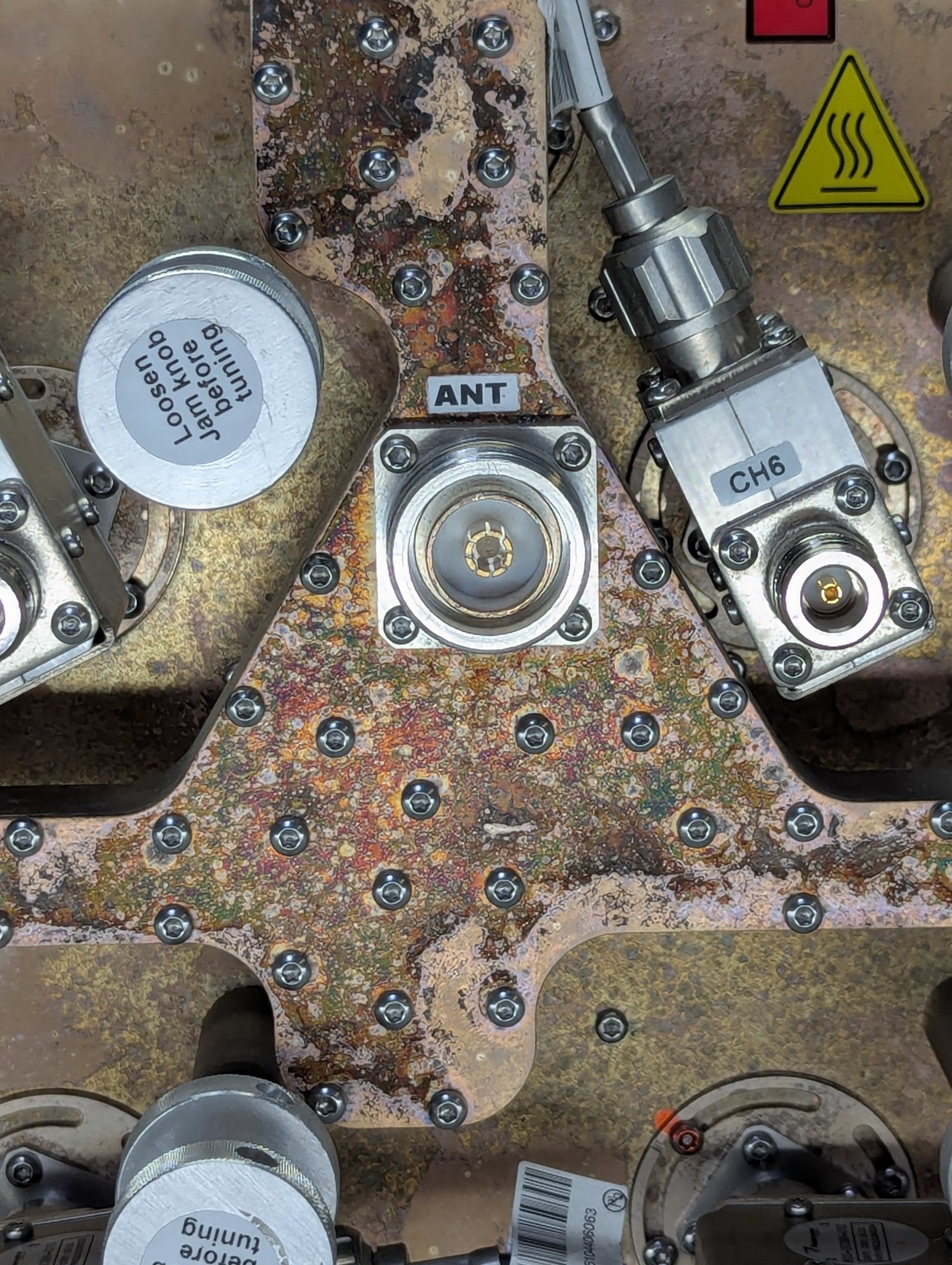

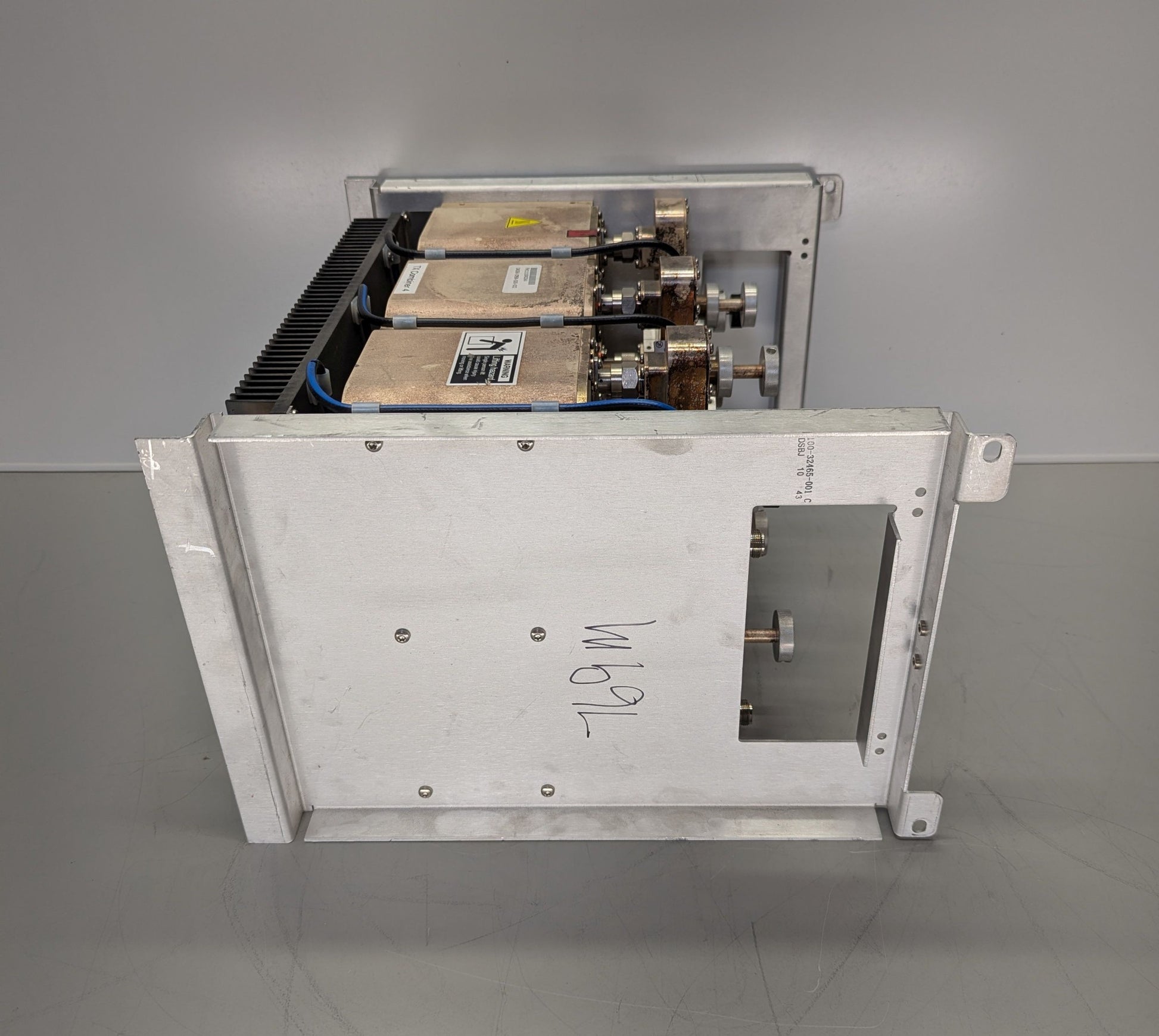

FILTRONIC 6 Ch 700 MHz Ceramic Combiner

FILTRONIC 6 Ch 700 MHz Ceramic Combiner

0184590Y01

$8,599.00 USD
$8,599.00 USD
Sale Sold out
Shipping calculated at checkout.

Description: Transmit Combiners are used to combiner two or more transmitters to a single antenna. This Combiner was pulled from a working unit and is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • FILTRONIC 6 Ch 700 MHz Ceramic Combiner

  • 30-day warranty

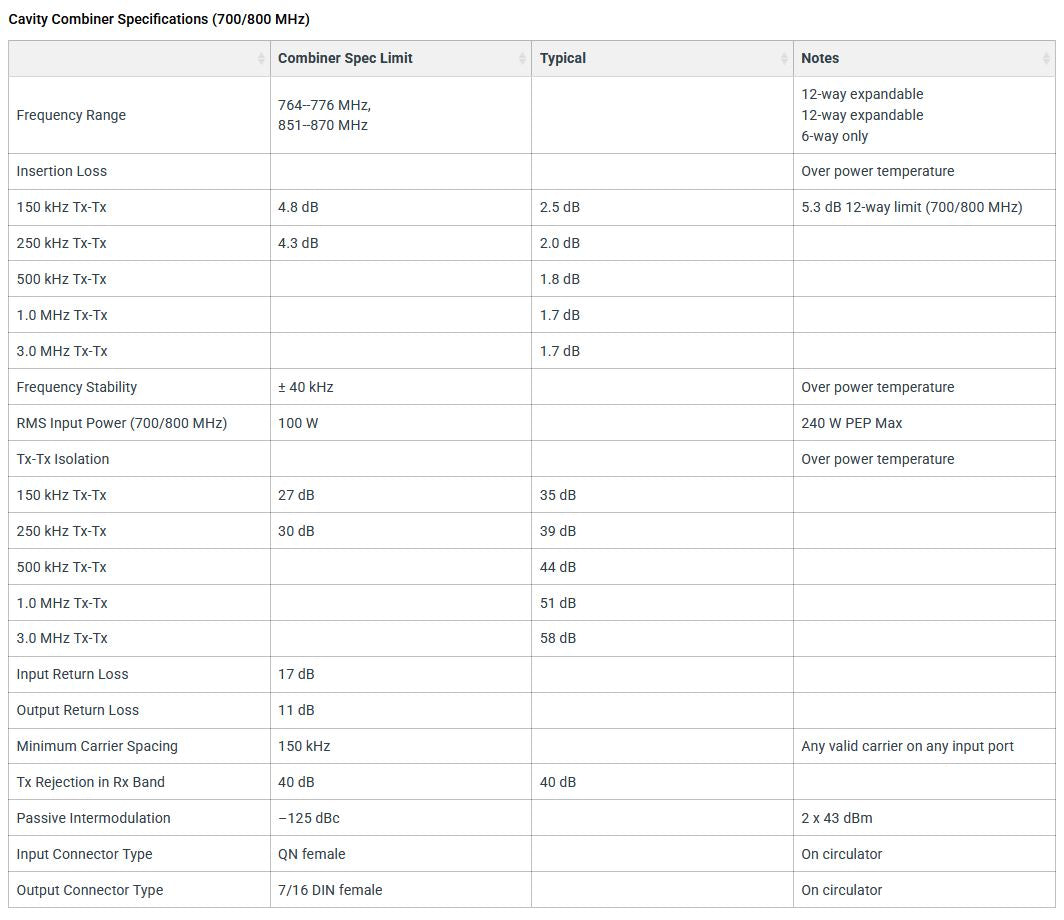

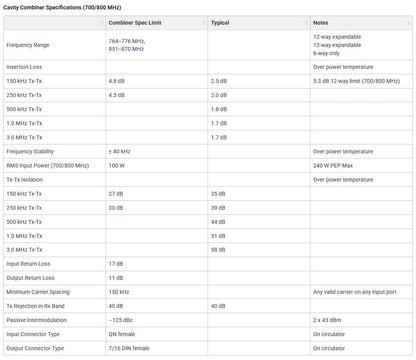

Product Details:

  • Model Number: 0184590Y01

  • Frequency Range: 764-776MHz

  • RMS Input Power: 100W

  • Insertion Loss 150kHz Tx-Tx Max/Typ (dB): 4.8/2.5

  • Insertion Loss 250kHz Tx-Tx Max/Typ (dB): 4.3/2.0

  • Isolation 150kHz Tx-Tx  Max/Typ (dB): 27/35

  • Input Return Loss (dB): 17

  • Minimum Carrier Spacing: 150kHz

  • In/Output Connectors: N female in/ DIN out

  • Dimensions: 17W x 10h x 15d"

  • Weight:43 lbs.

*Image shown is a representation only. Actual product may vary.
