EMR W65552-7DC (CS) DUAL RESONATOR 5 CH UHF Transmit Combiner

EMR W65552-7DC (CS) DUAL RESONATOR 5 CH UHF Transmit Combiner

EMR W65552-7DC (CS)

$4,900.00 USD
$4,900.00 USD
Sale Sold out
Shipping calculated at checkout.

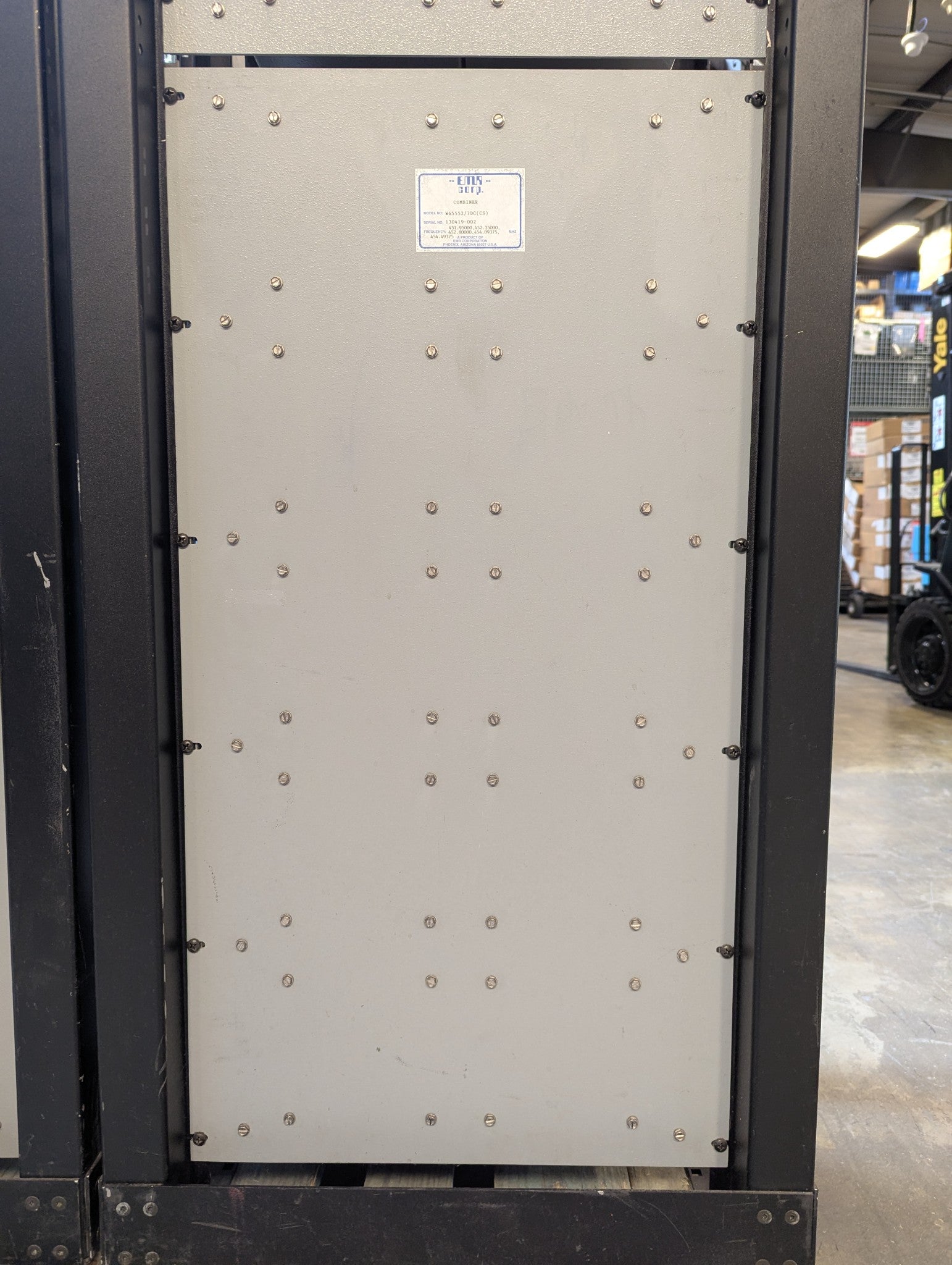

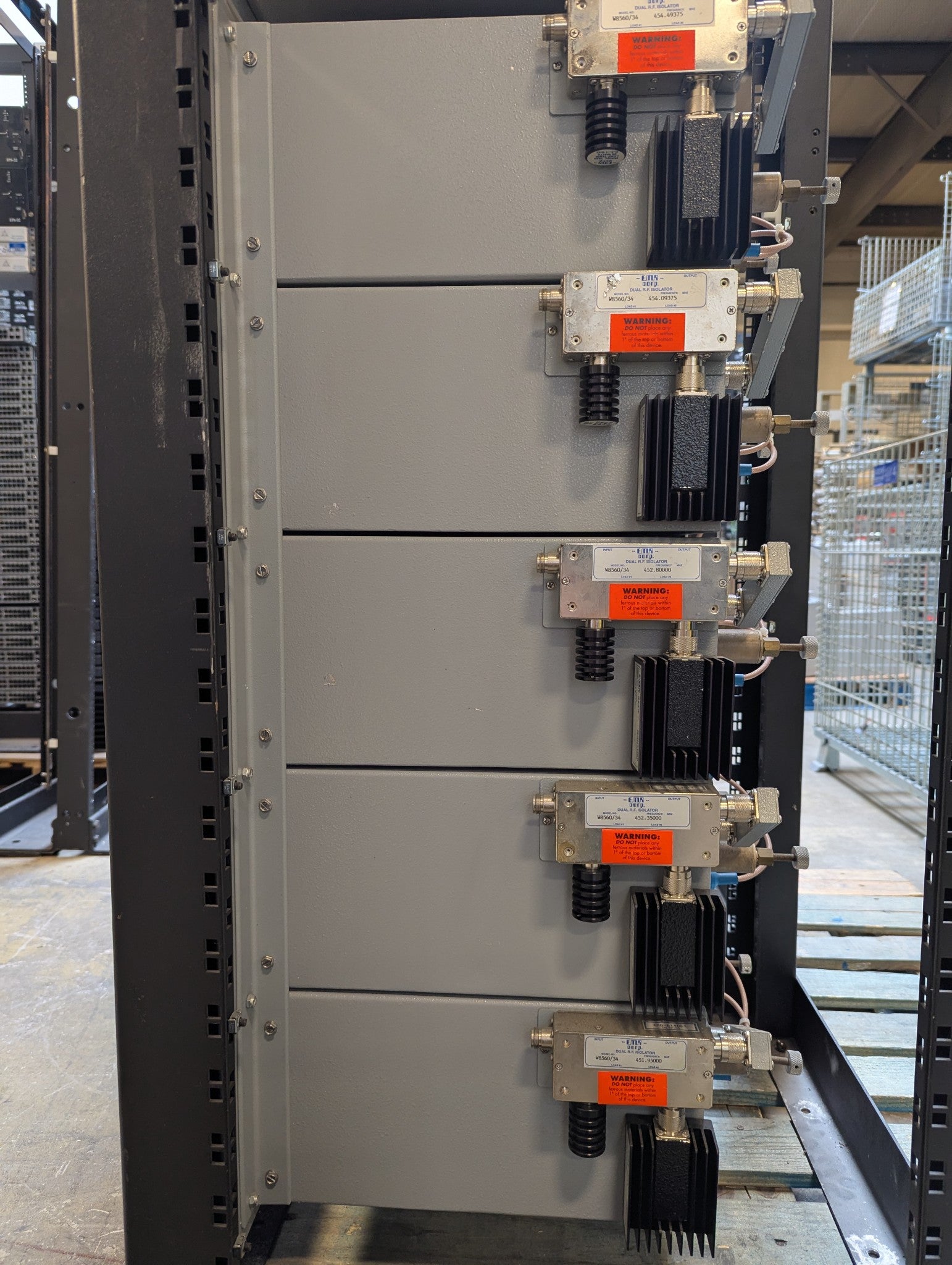

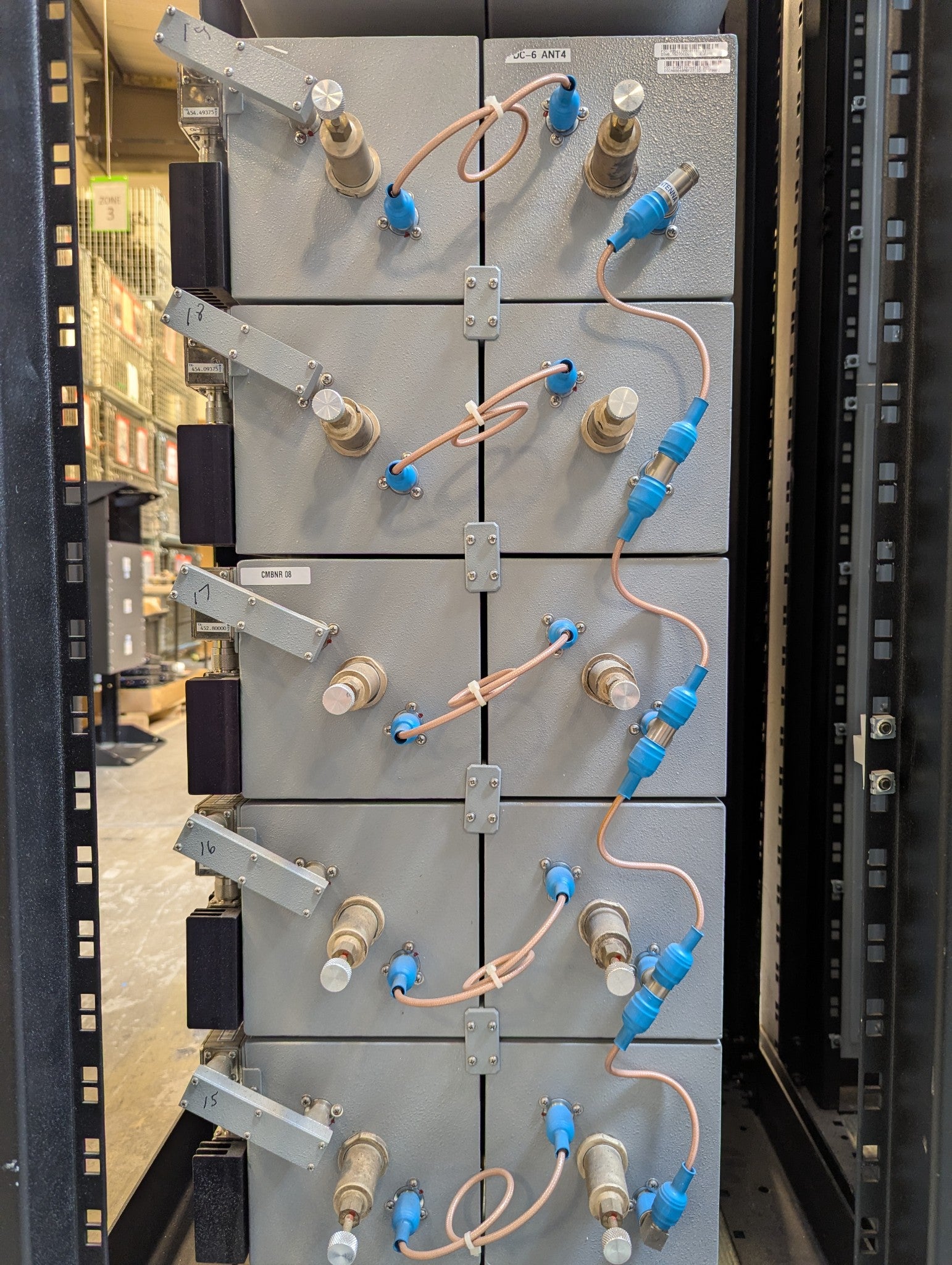

This is an EMR Corp UHF Dual Cavity 5-channel transmit combiner. Filter-Ferrite Transmit Combiners use space saving, High-Q square cavity resonators, and wideband isolators providing lower insertion loss than hybrid designs.


The unit is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product Details:

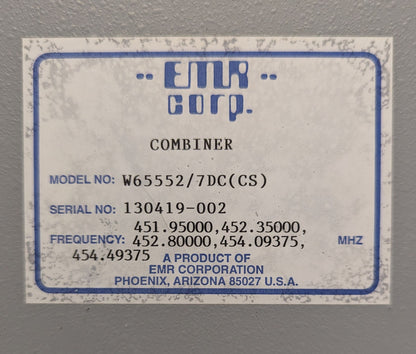

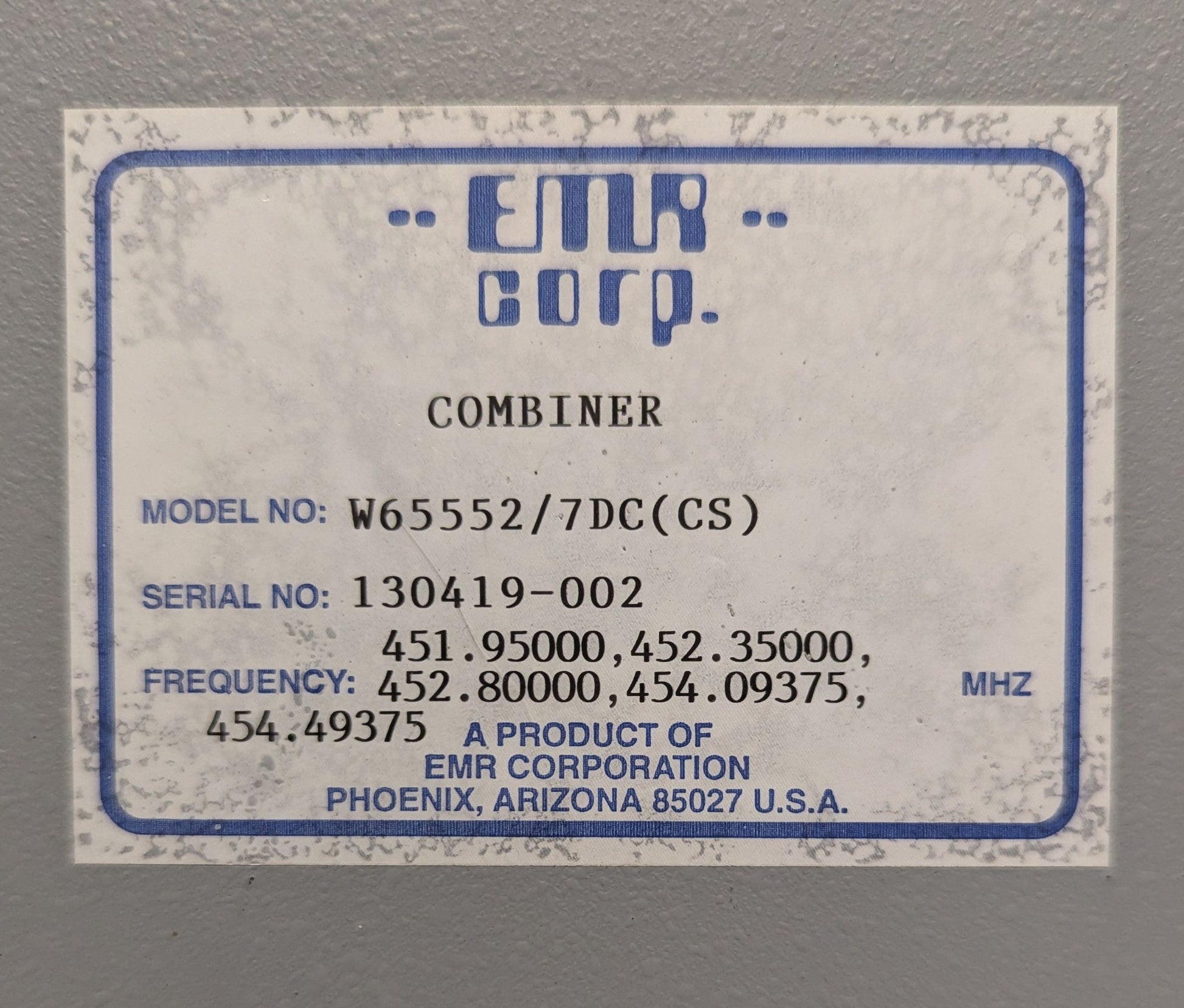

  • Model Number: EMR W65552-7DC (CS)
  • Insertion Loss Tx (Max. / Typ.) : 3.5 / 3.0 dB
  • VSWR I/O (Max.): 1.15:1 / 1.4:1
  • Isolator Stage: Dual
  • Frequency Range: 440-512MHz
  • Frequency Spacing: 200kHz (min)
  • Max Power Out: 125W
  • In/Output Connectors: N-Female
  • Dimensions: 22.75 × 19 × 19 in
  • Weight:90 lbs. (Item will be shipped by freight)

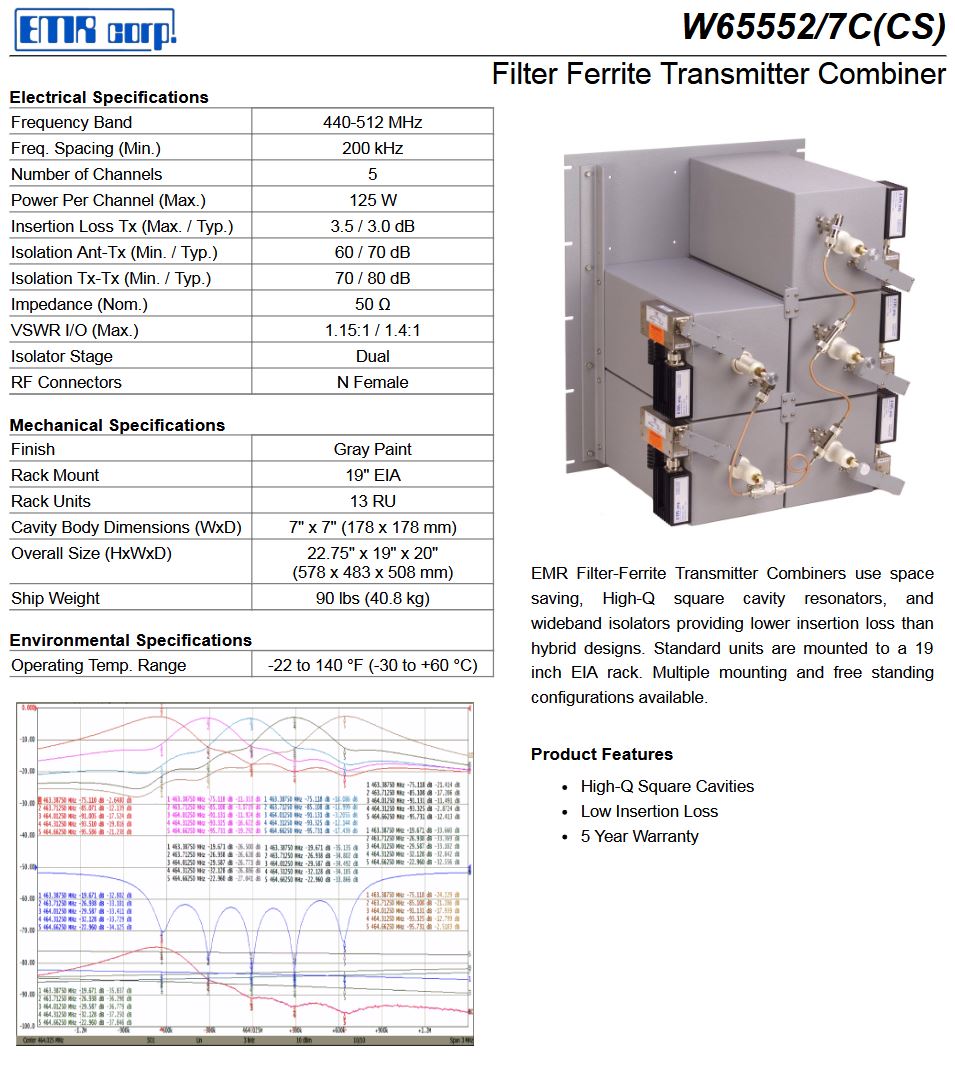

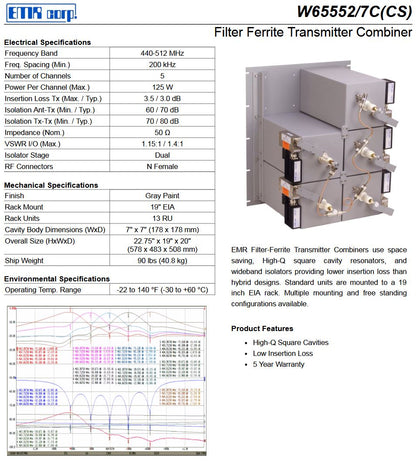

  • See spec sheet for further details





*Image shown is a representation only. Actual product may vary.
