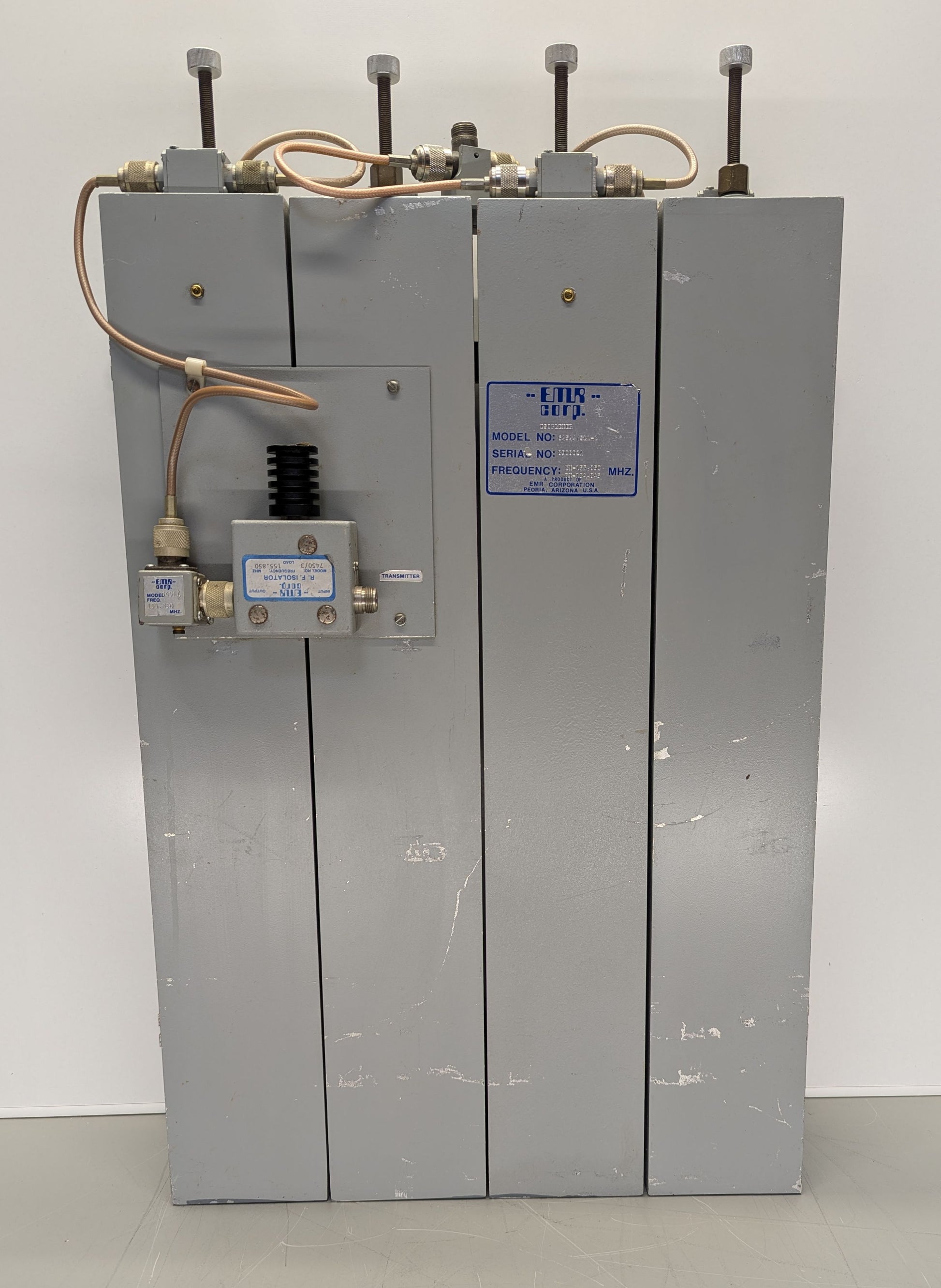

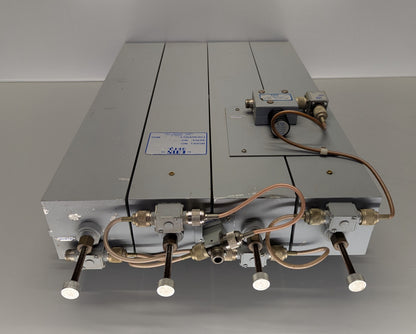

EMR W64544-SL1-1 VHF Iso-Plexer with Single-Stage Isolator

EMR W64544-SL1-1 VHF Iso-Plexer with Single-Stage Isolator

W64544-SL1-1

$1,495.00 USD
$1,495.00 USD
Sale Sold out
Shipping calculated at checkout.

EMR pass-notch duplexers allow for the simultaneous

use of a transmitter and receiver on a single common

antenna. This is a VHF 4-Cavity Duplexer with an additional VHF Isolator.

This duplexer was pulled from a working system and is in excellent condition.  Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

EMR W64544-SL1-1 VHF Iso-Plexer with Single-Stage Isolator

30-day warranty

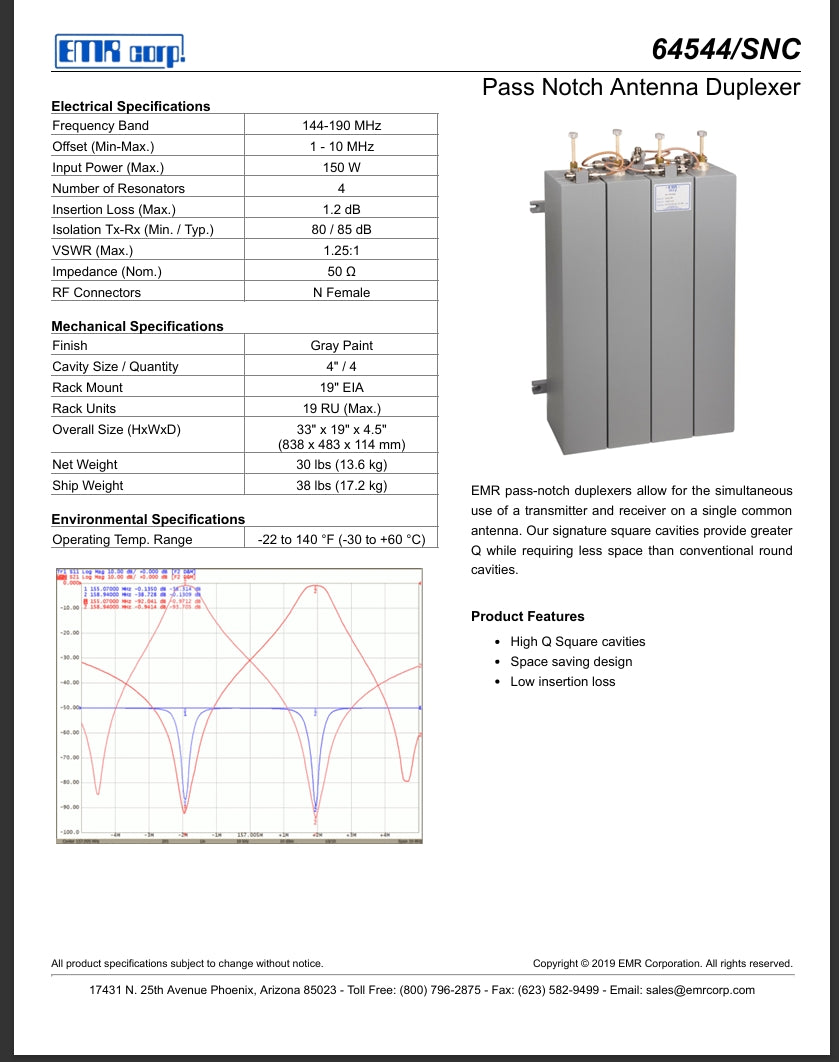

Duplexer Details:

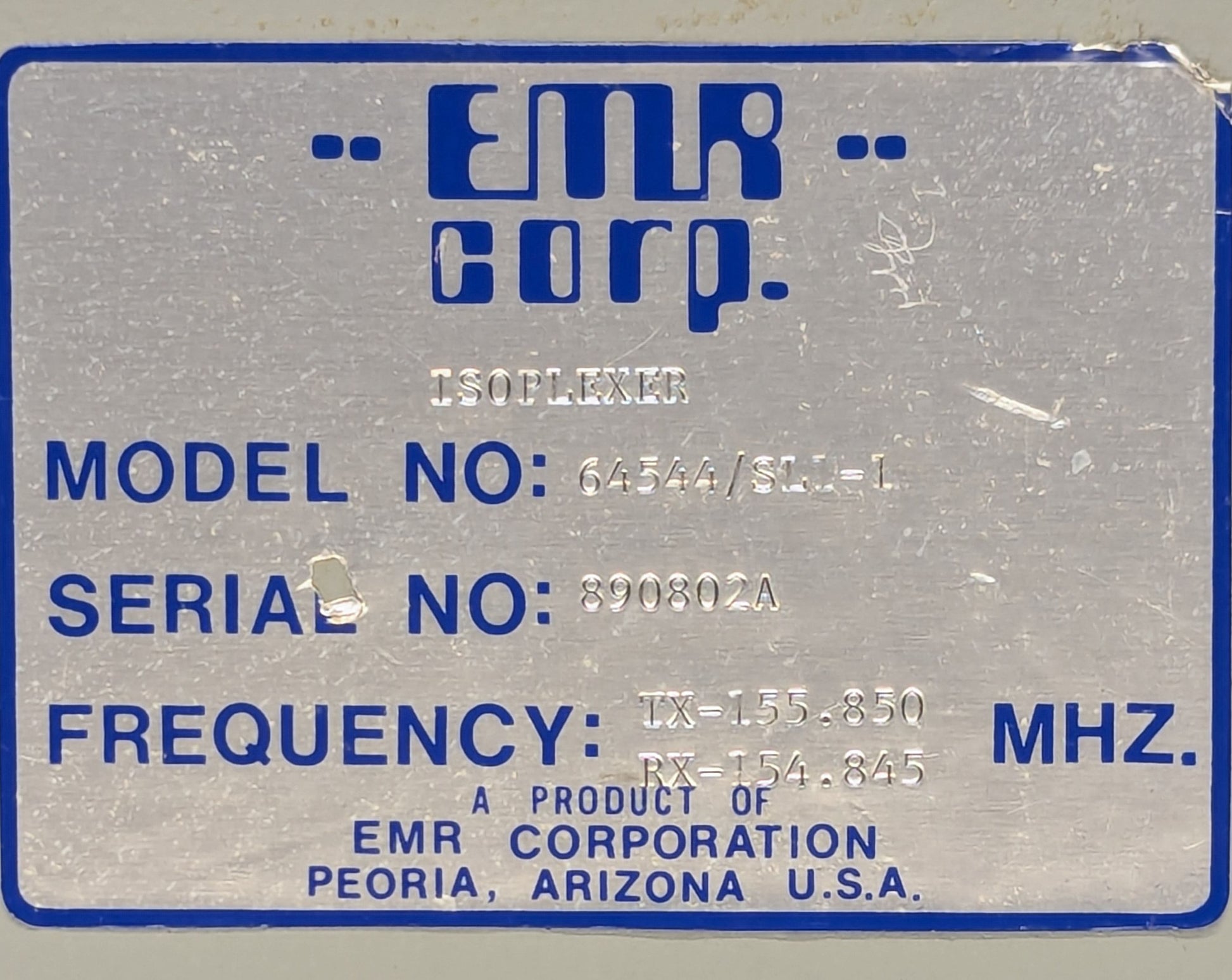

  • Model Number: W64544-SL1-1

  • Frequency Range: 144-190MHz

  • Offset (Min-Max.): 1 - 10 MHz

  • Insertion Loss (Max.): 1.2 dB

  • Isolation Tx-Rx (Min. / Typ.): 80 / 85 dB

  • VSWR (Max.): 1.25:1

  • Max Power Out: 150W

  • In/Output Connectors: N Female

  • Dimensions: 19"W X 28"H X 5"D

  • Weight:32lbs

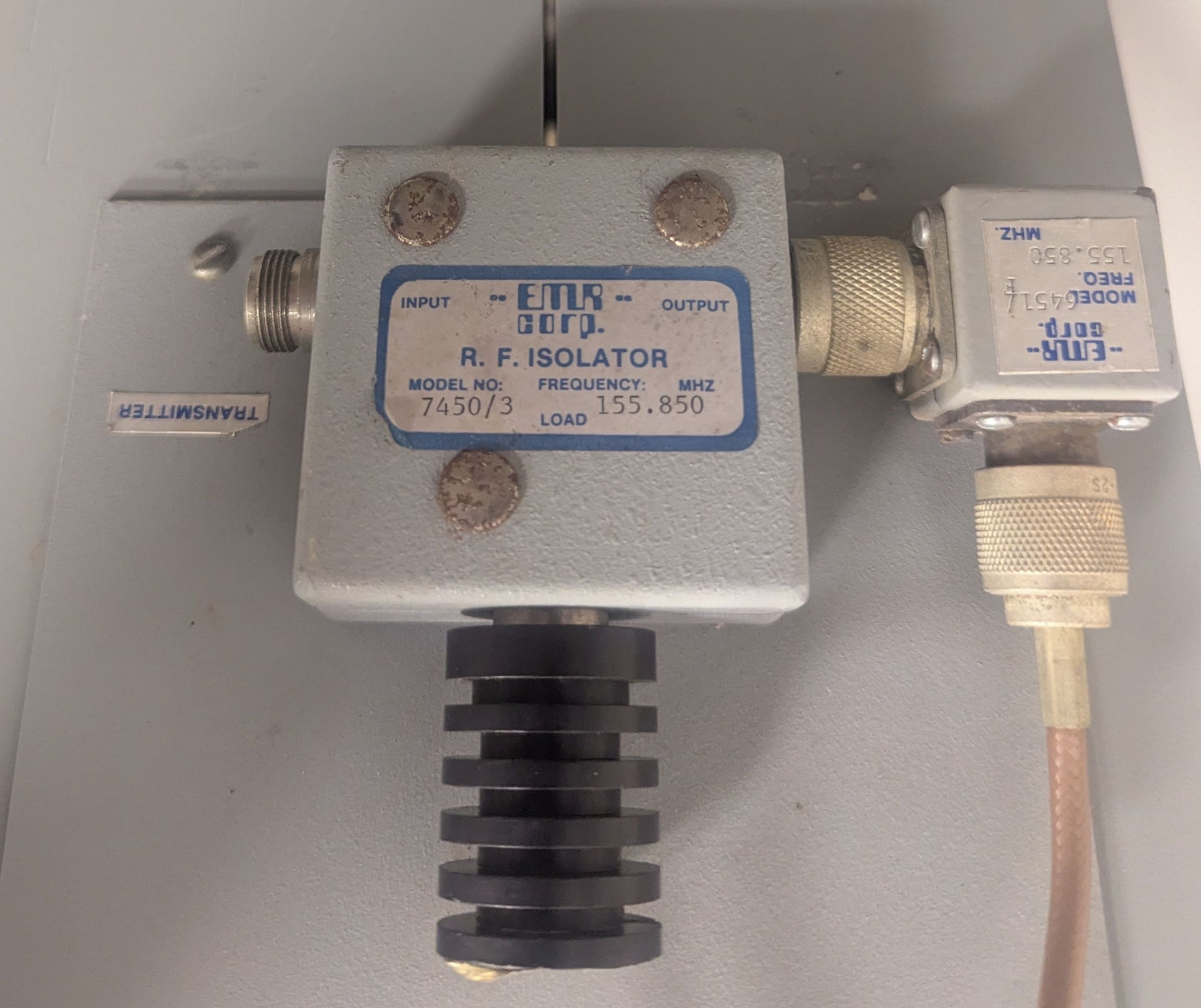

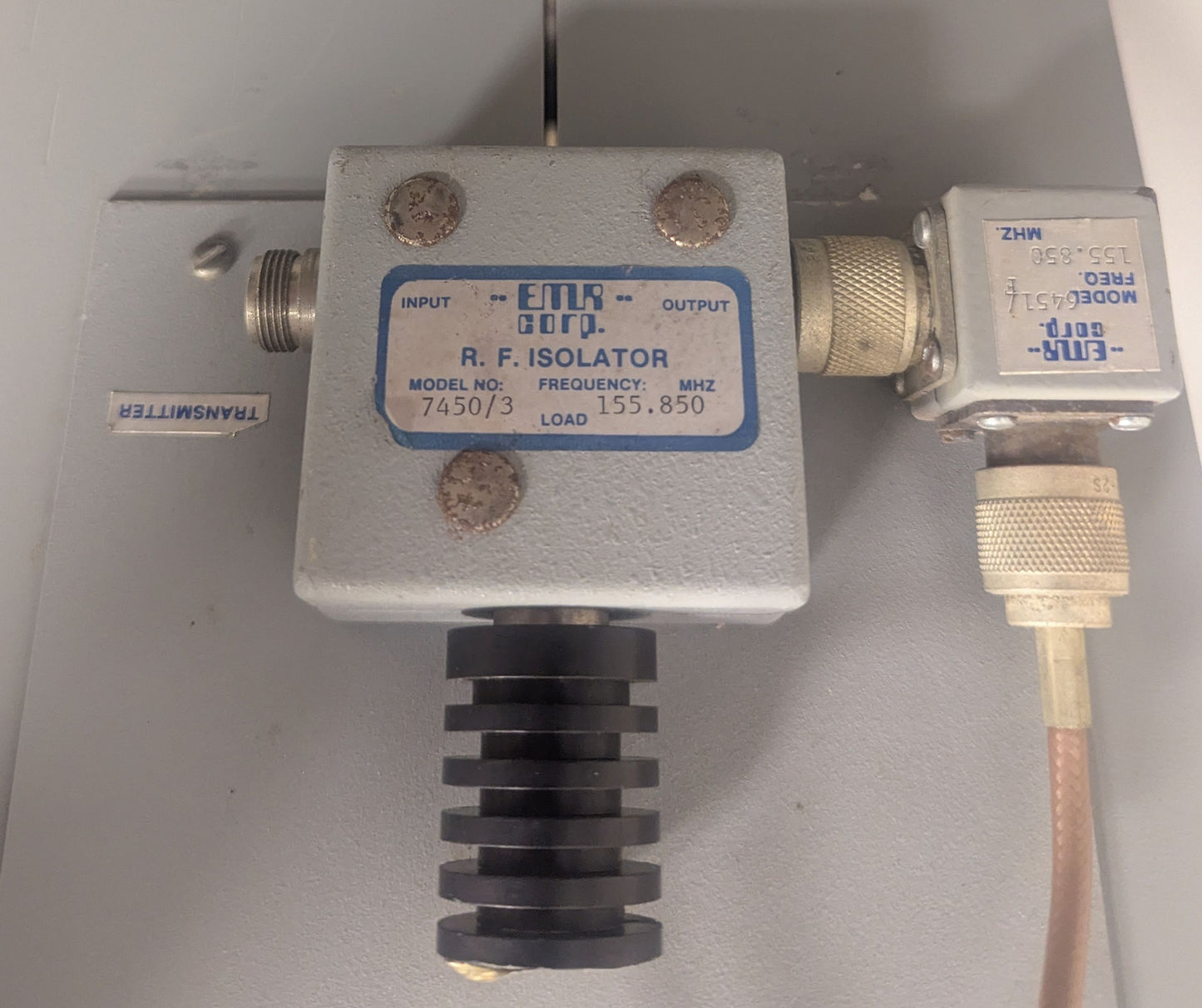

Isolator Details:

  • Model Number: W7450/3

  • Frequency Band: 146-226 MHz

  • Bandwidth: Single Frequency

  • Input Power (max): 125W

  • Insertion Loss (max): 0.40dB

  • Return Loss (min): 28+dB

  • In/Output Connectors: N Female

*Image shown is a representation only. Actual product may vary.
