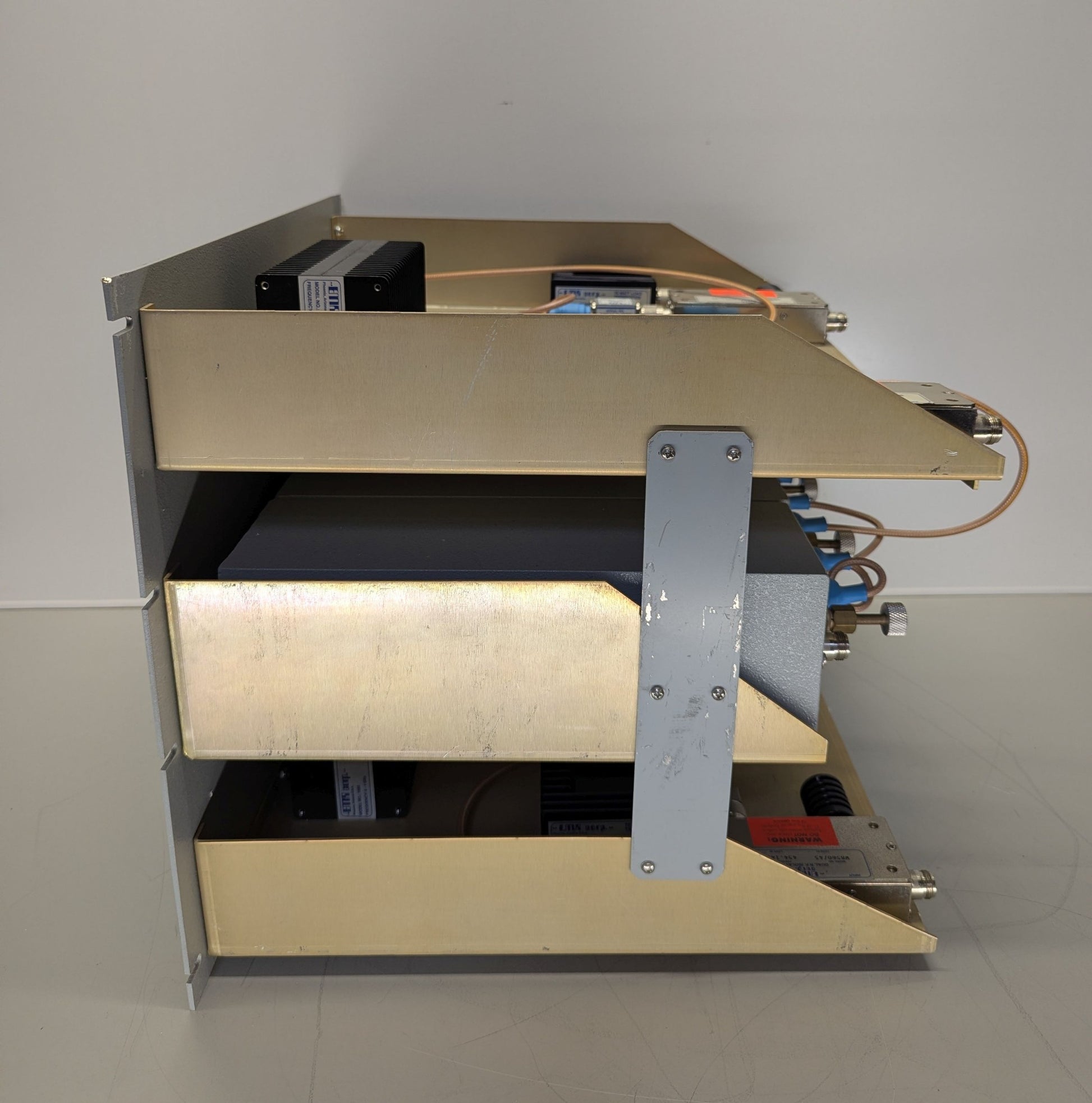

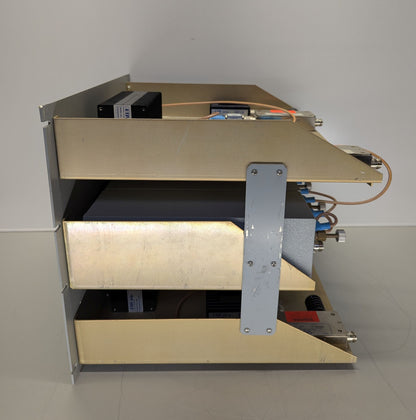

EMR W25522/4SB DUAL 2CH HYBRID COMBINER w/BAND PASS FILTERS

EMR W25522/4SB DUAL 2CH HYBRID COMBINER w/BAND PASS FILTERS

W25522/4SB

$4,499.00 USD
$4,499.00 USD
Sale Sold out
Shipping calculated at checkout.

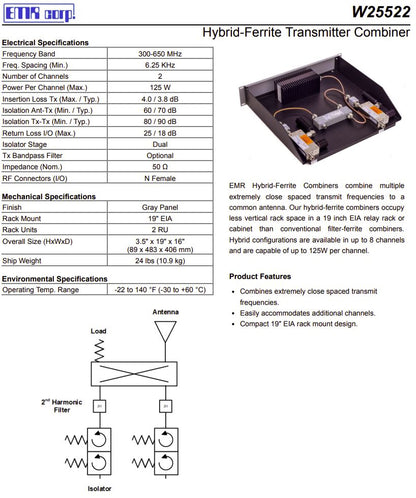

EMR W25522/4SB DUAL 2CH HYBRID COMBINER w/BAND PASS FILTERS

Description:

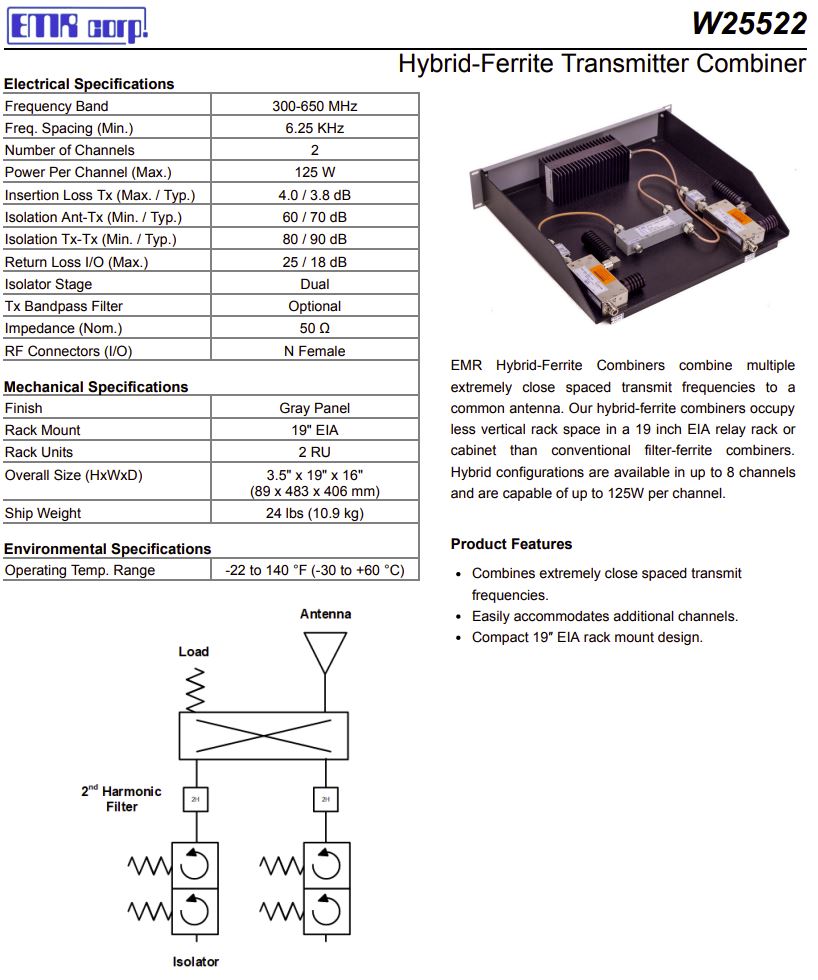

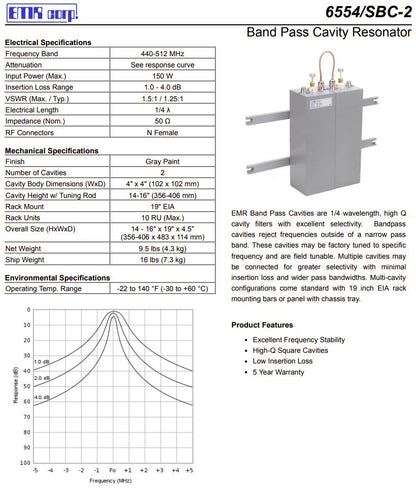

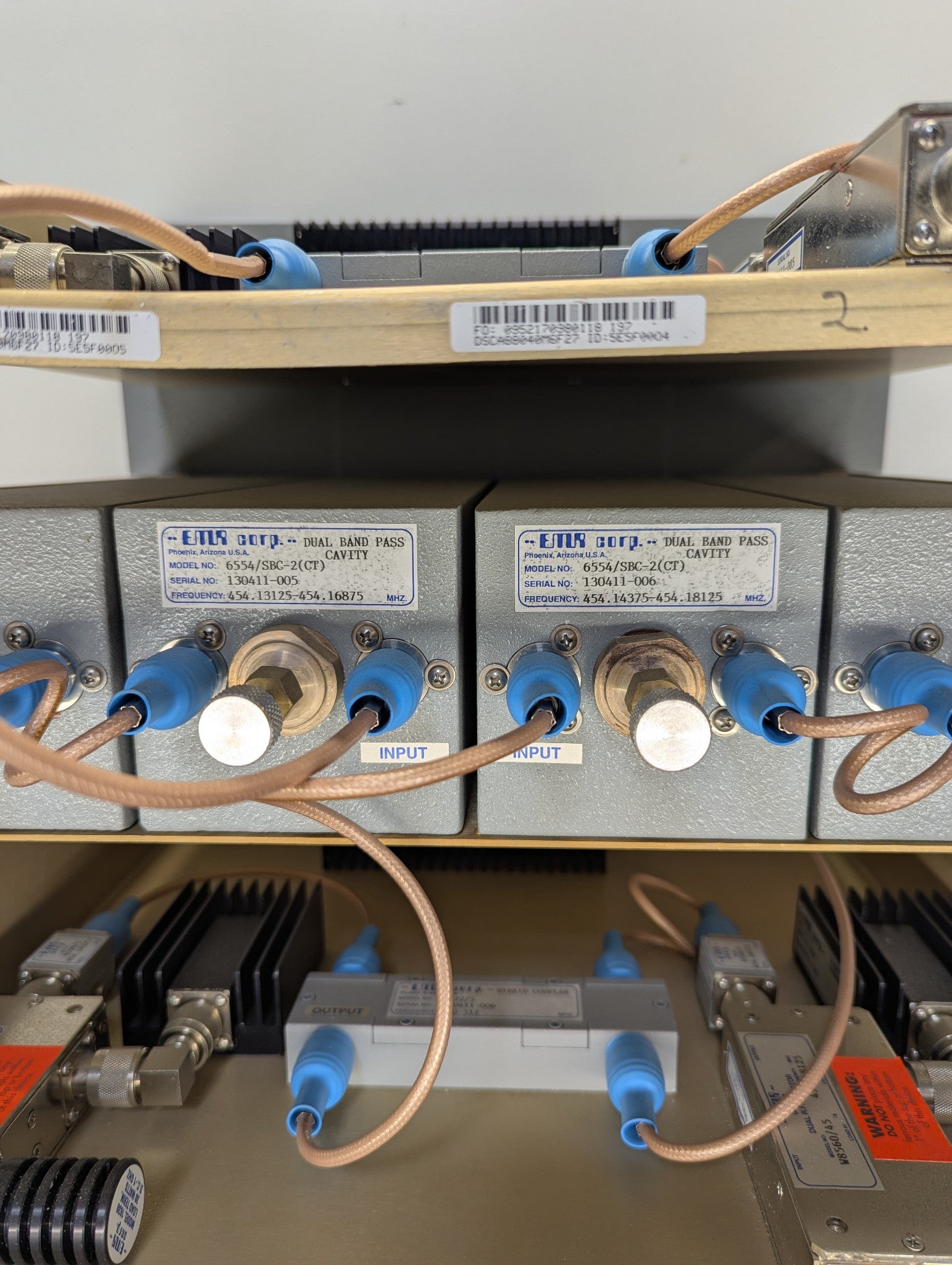

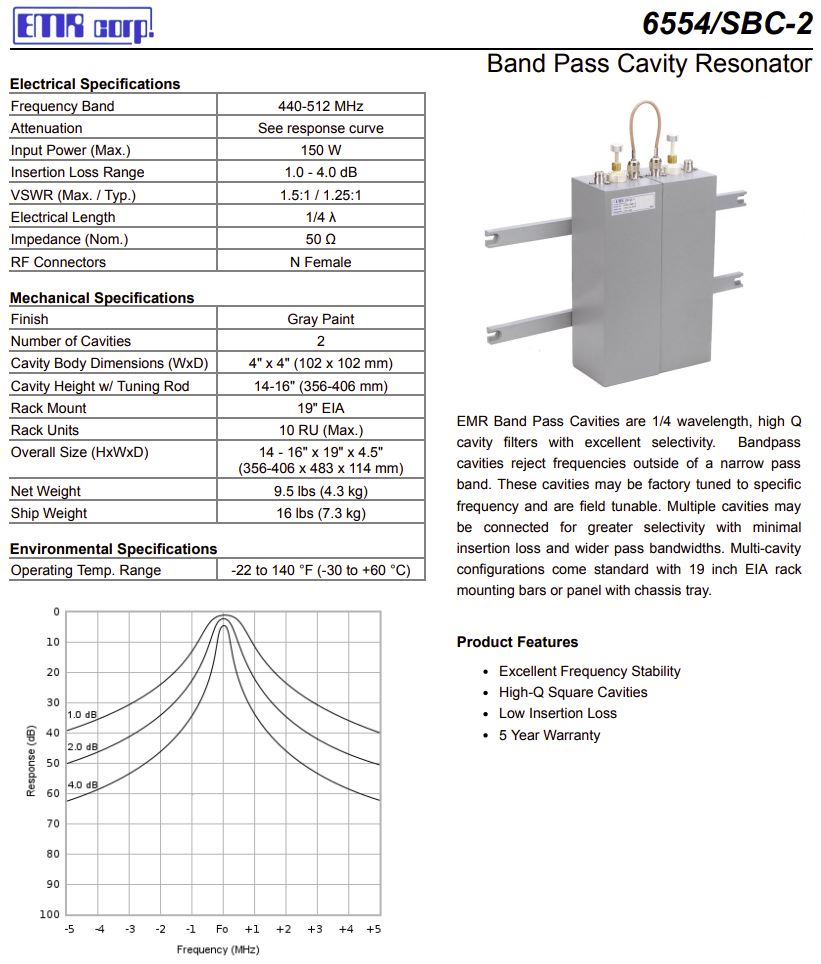

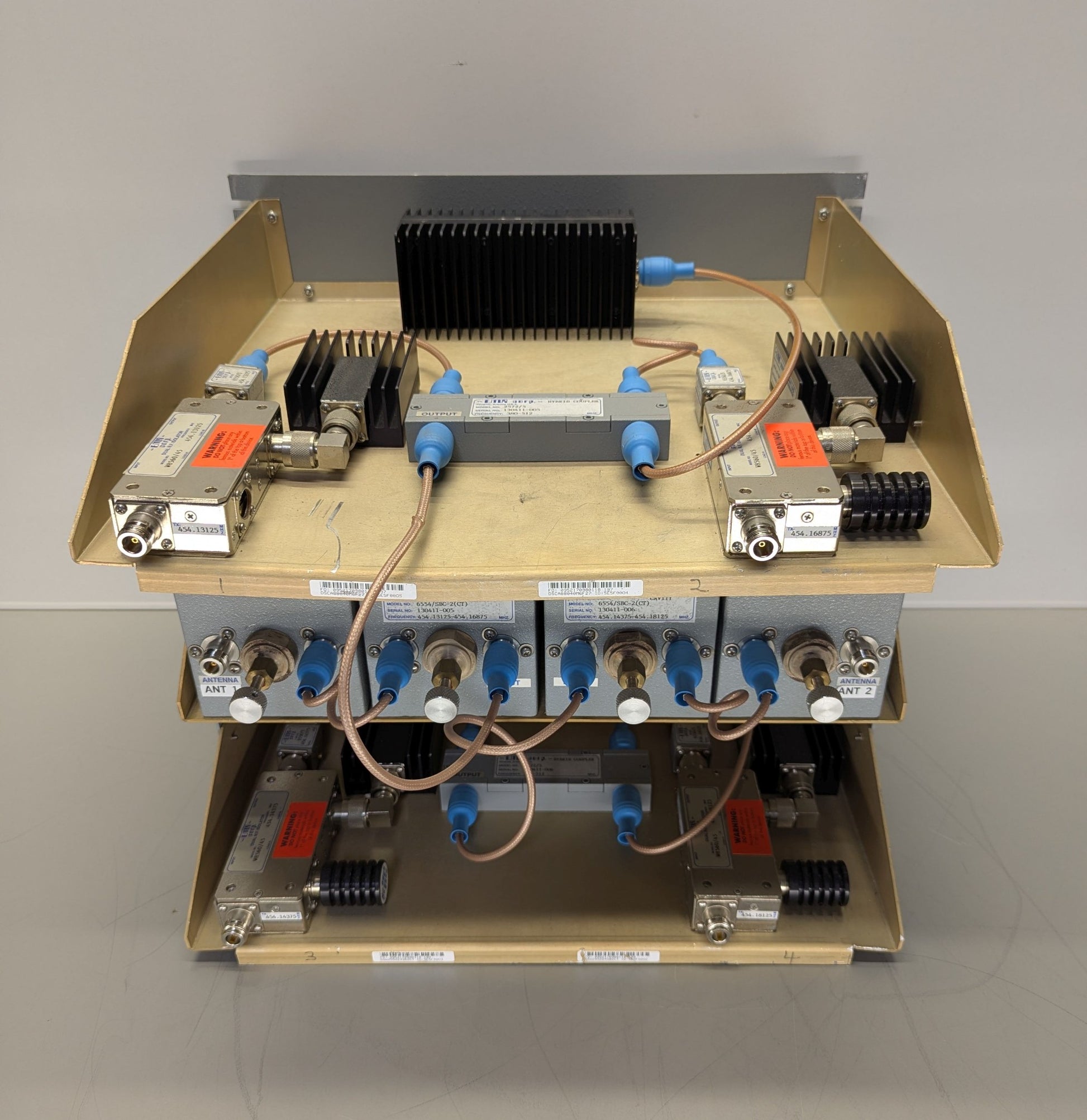

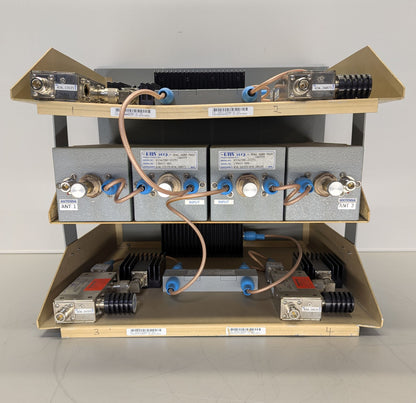

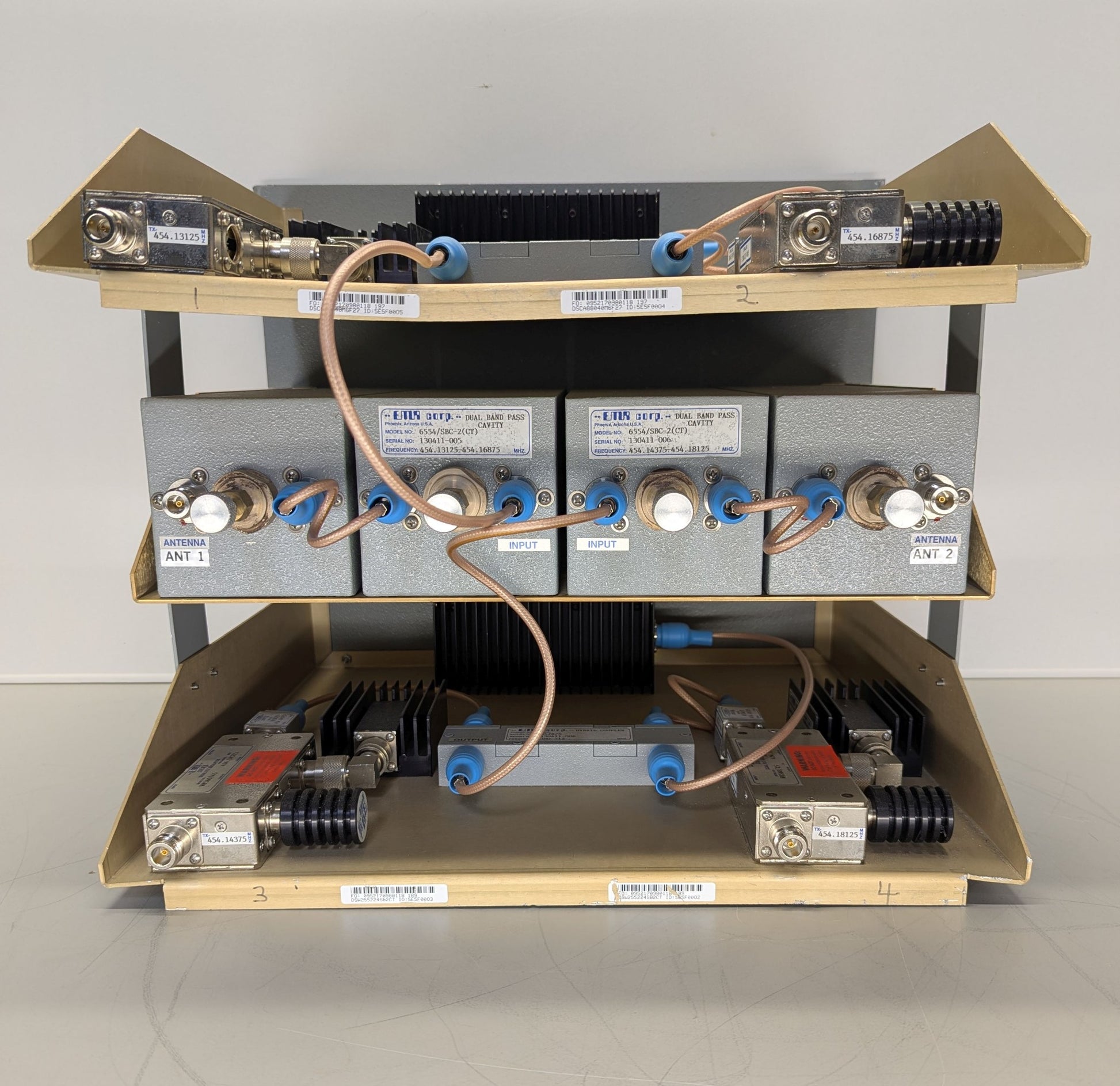

EMR Hybrid-Ferrite Combiners combine multiple extremely close spaced transmit frequencies to a common antenna. This shelf contains (2) 2ch.hybrid combiners, each with a 2-cavity band pass filter (EMR 6554/SBC-2) The unit is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.

Product Details

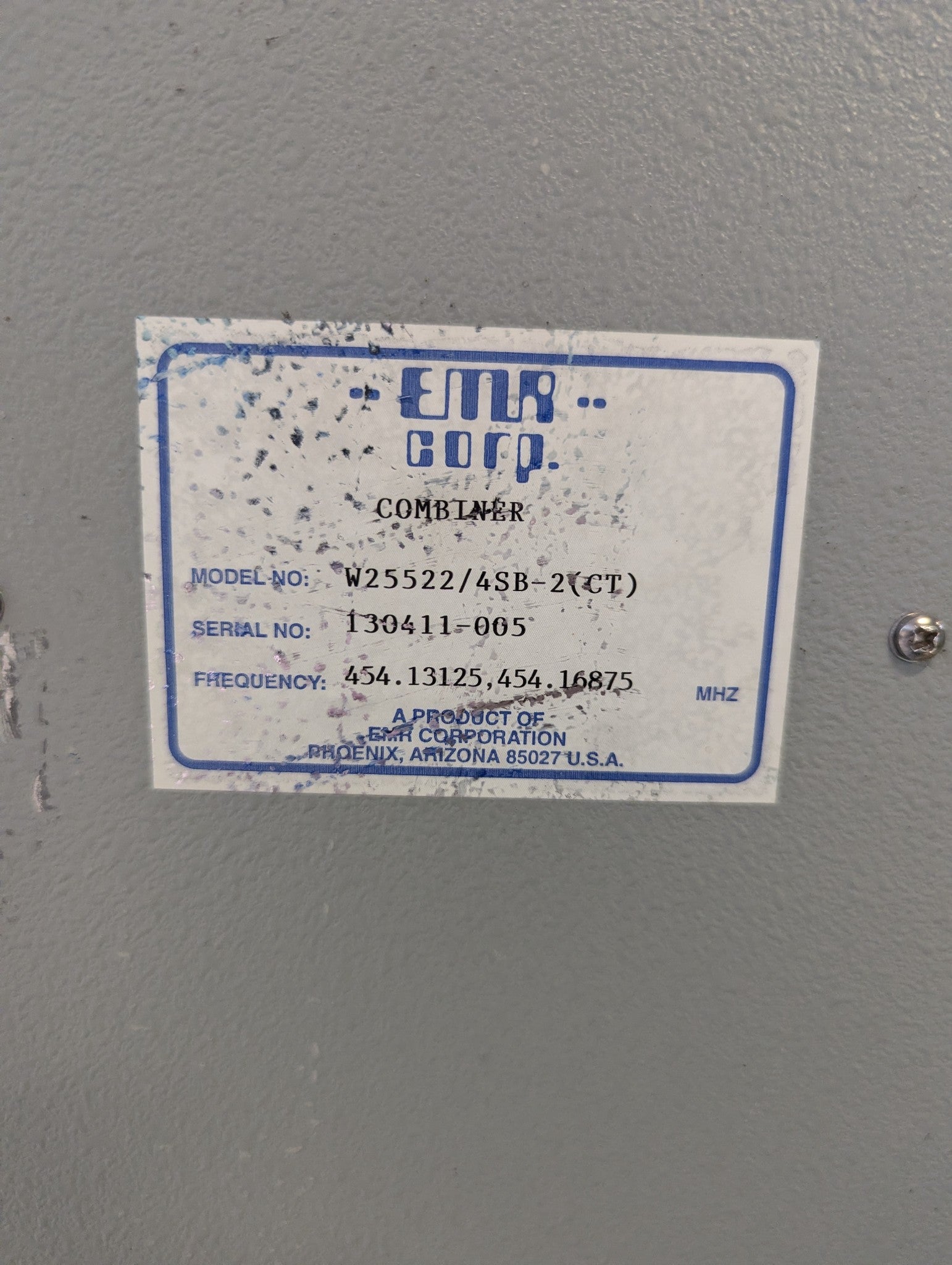

  • Model Number: W25522/4SB
  • Frequency Range: 300-650MHz
  • Channel Capacity: 2 each
  • Freq. Spacing (Min.): 6.25 kHz
  • Insertion Loss Tx (Max. / Typ.): 4.0 / 3.8 dB
  • Return Loss I/O (Max.): 25 / 18 dB
  • Isolator Stage: Dual
  • Max Power Input: 125W
  • In/Output Connectors: N Female
  • Dimensions: 19"W x 1.75"H x 5.5"D
  • Product Details: Band Pass Filters
  • VSWR (Max. / Typ.): 1.5:1 / 1.25:1
  • In/Output Connectors: N Female
  • Overall Dimensions: 19w x 16h x 17d"
  • Weight: 50 lbs
  • Item will be shipped freight

*Image shown is a representation only. Actual product may vary.
