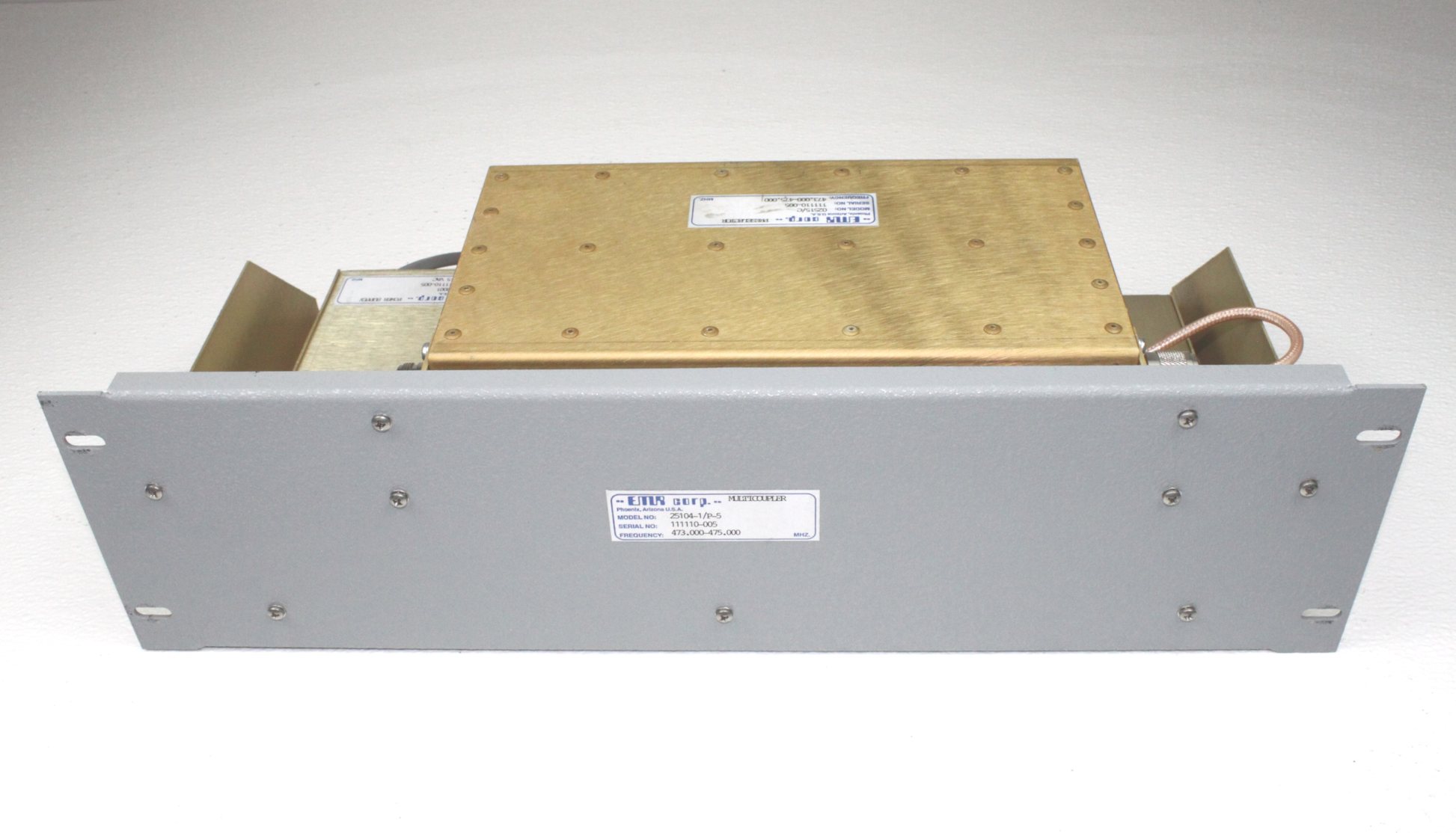

EMR Corporation (Model # 25104-1/P-5) 4 channel RX Multicoupler UHF 300-512 MHz

EMR Corporation (Model # 25104-1/P-5) 4 channel RX Multicoupler UHF 300-512 MHz

SKU:inkfrog-860089-1

Regular price $795.00 USD
Regular price Sale price $795.00 USD
Sale Sold out
Shipping calculated at checkout.



EMR Corporation (Model # 25104-1/P-5) 4 channel RX Multicoupler UHF 300-512 MHz





Description :

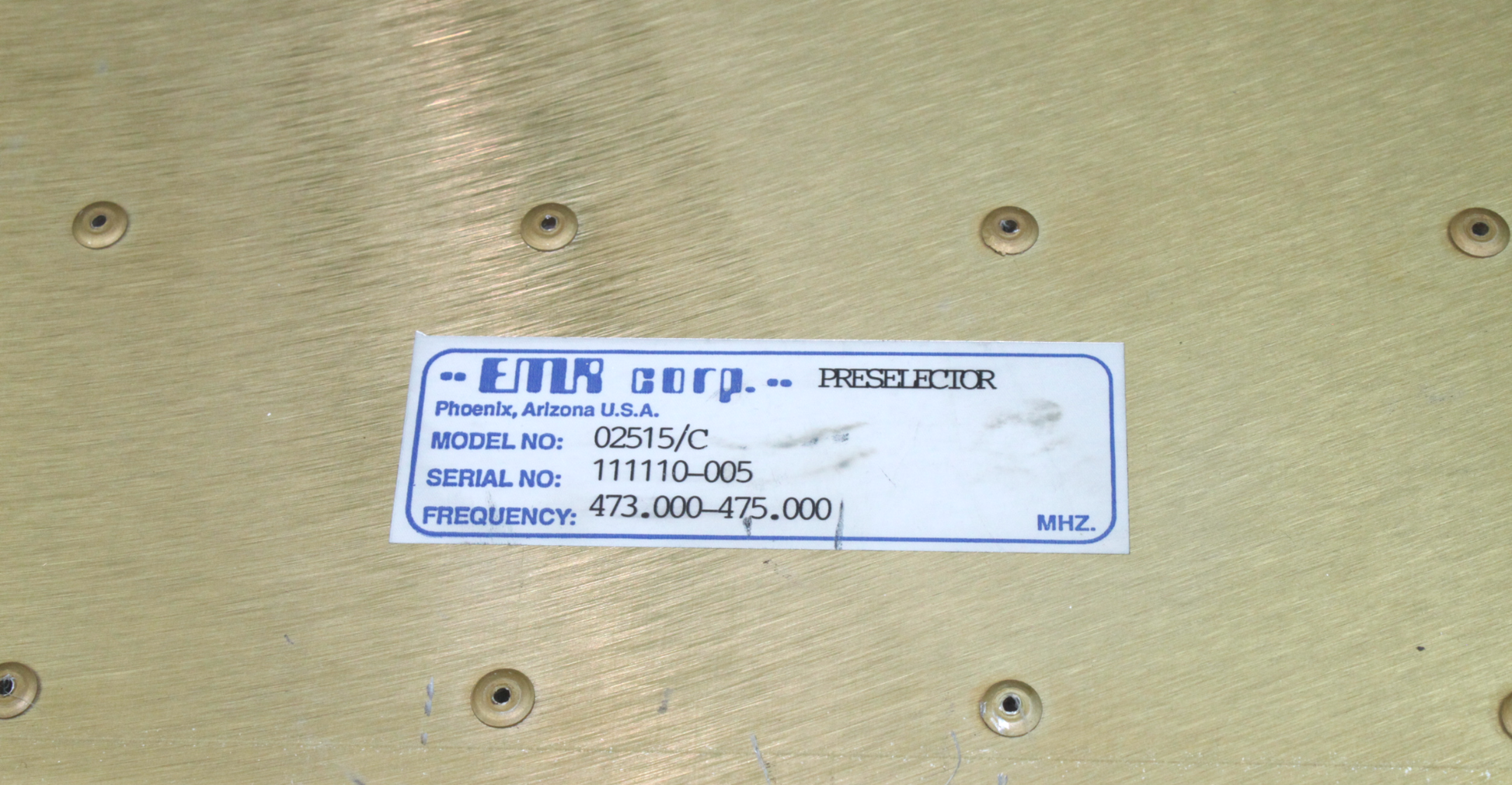

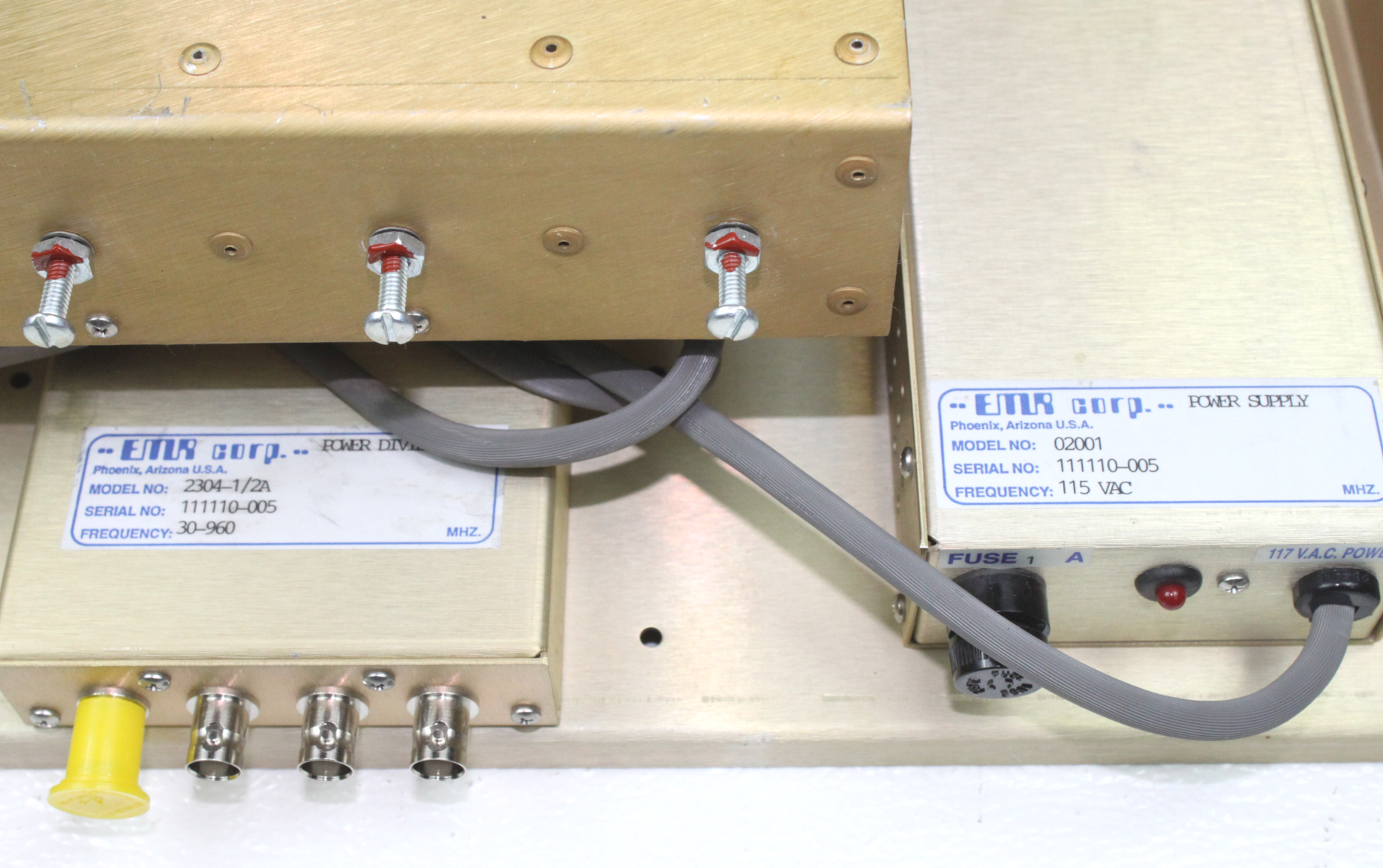

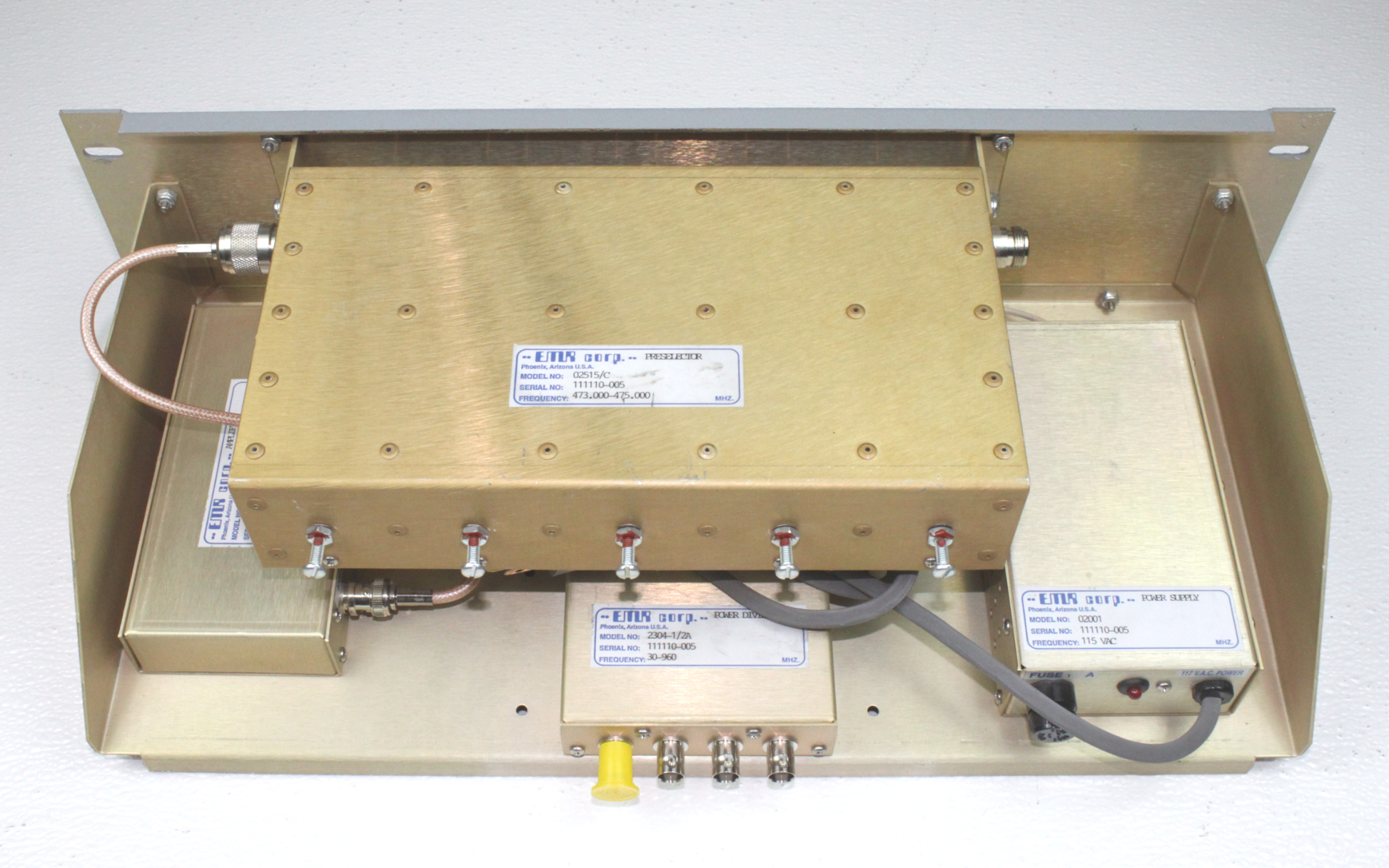

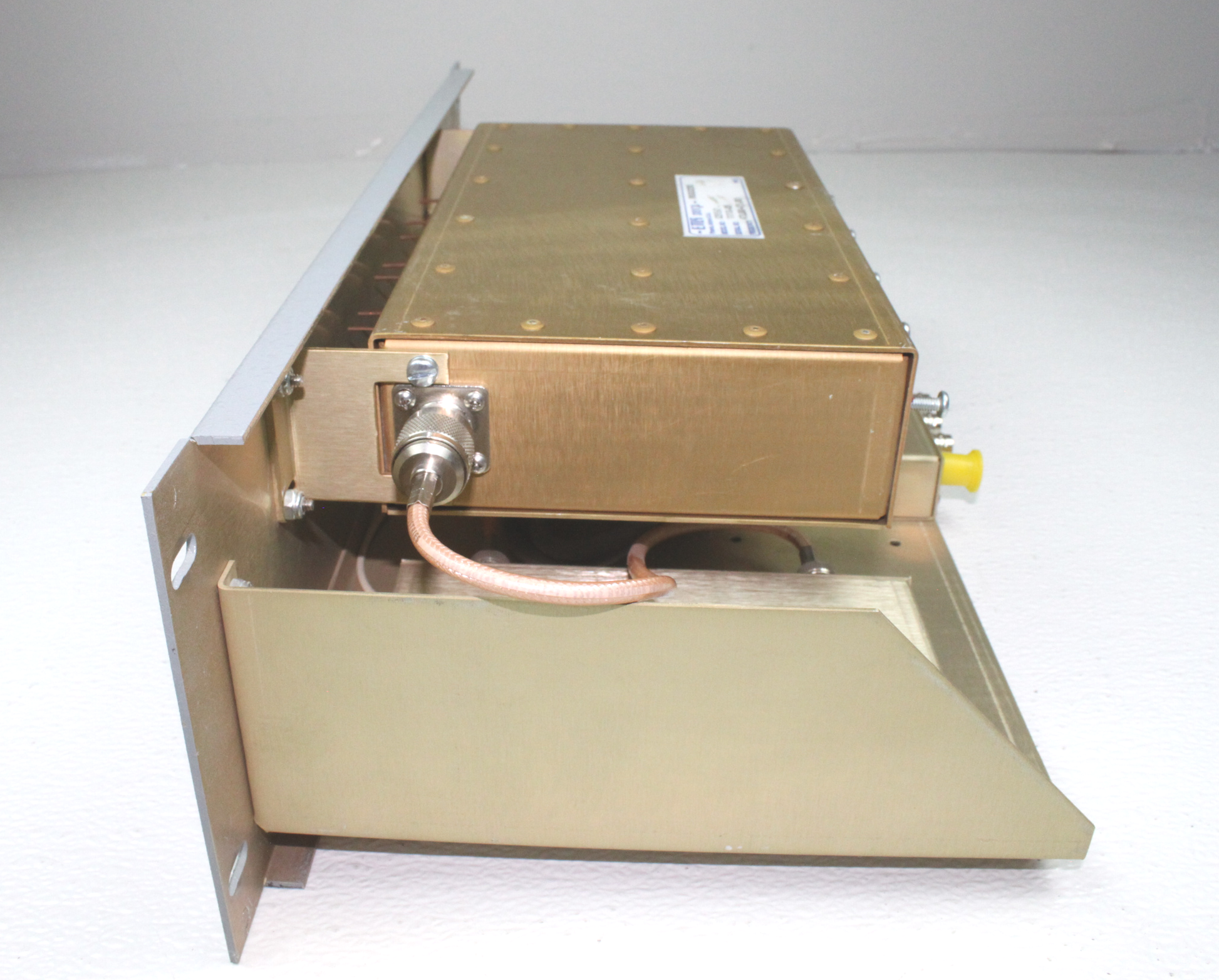

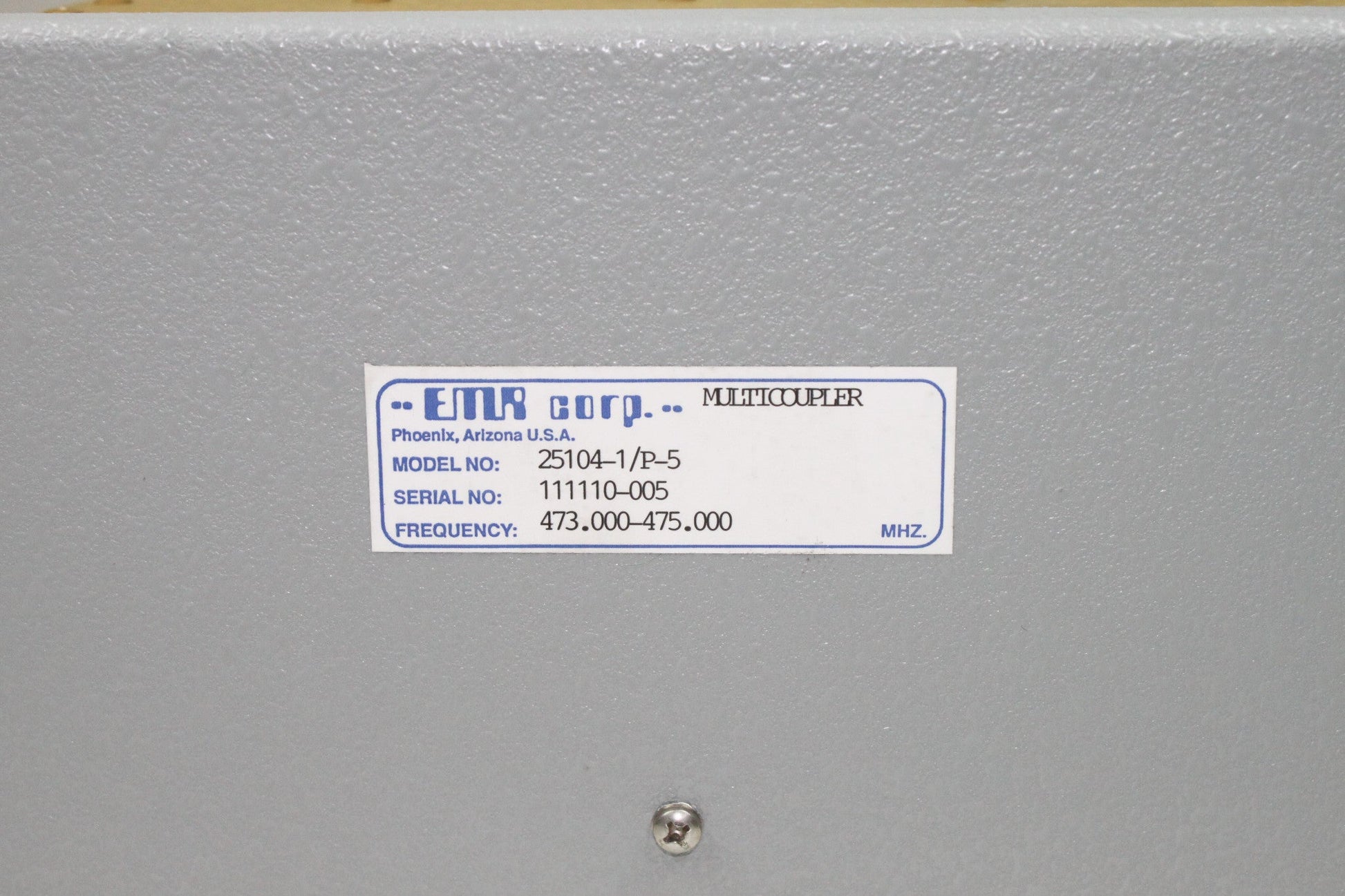

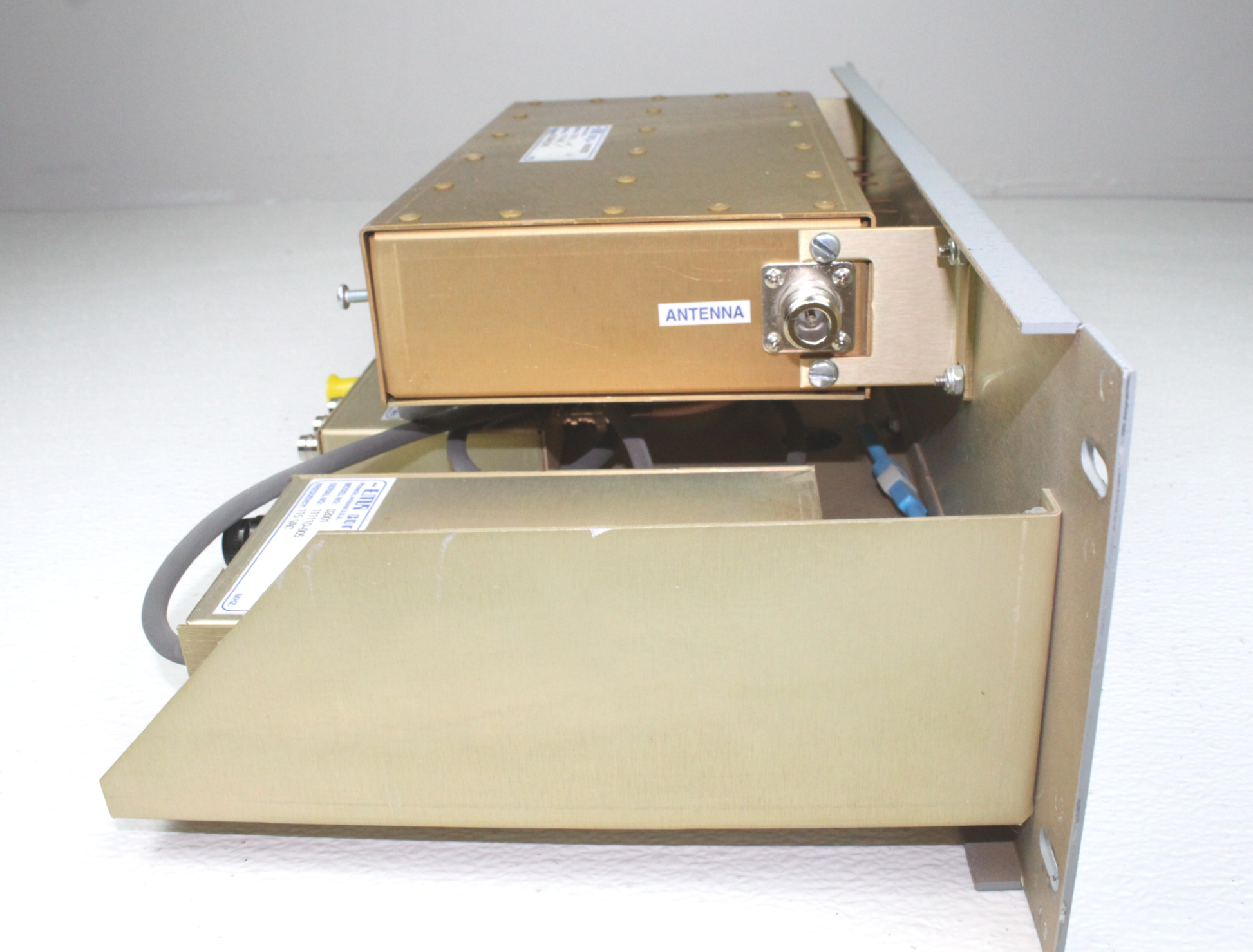

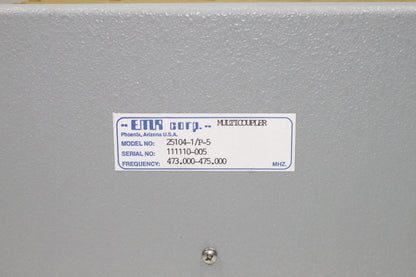

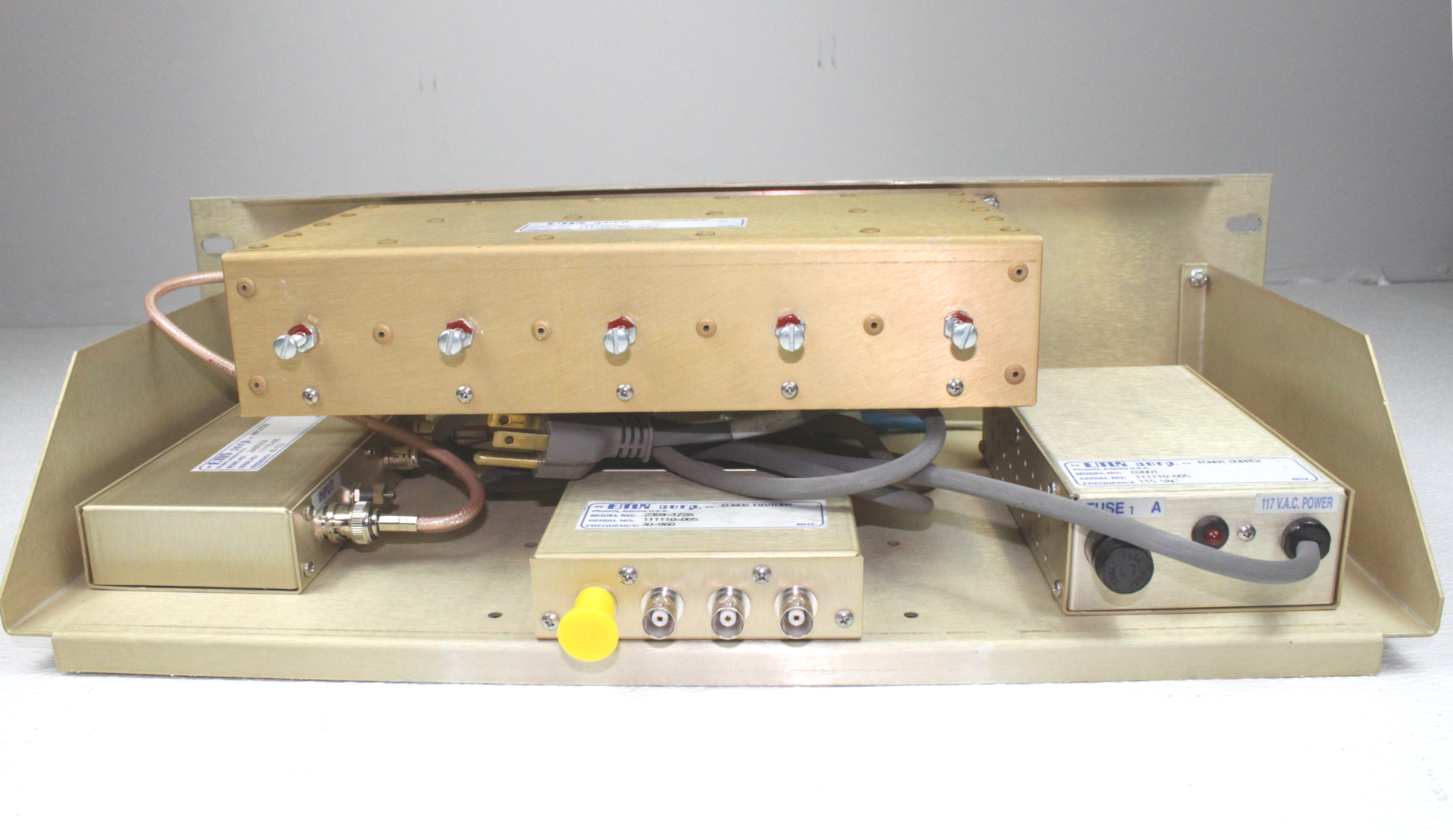

EMR Corp (Model # 25104-1/P-5) UHF (300-512 MHz) 4 channel RX Multicoupler 5 resonators, 19" rack.   Currently tuned to Freq range 473-475. Units taken from working environment and in great condition.   Tuning included with purchase.  Please contact us with any questions.




  Multicoupler-Preselector for 300-512 MHz, 4 Channels, 3-10 B/W, N/BNC Females.
  • Frecuency Range: 300-512 MHz.
  • Number of Channels: 3-4.
  • Pass Band: 3-10 MHz.
  • Number of Resonators: 5.
  • Rx/Rx Isolation: +23 dB.
  • System Voltage: 115 VAC.

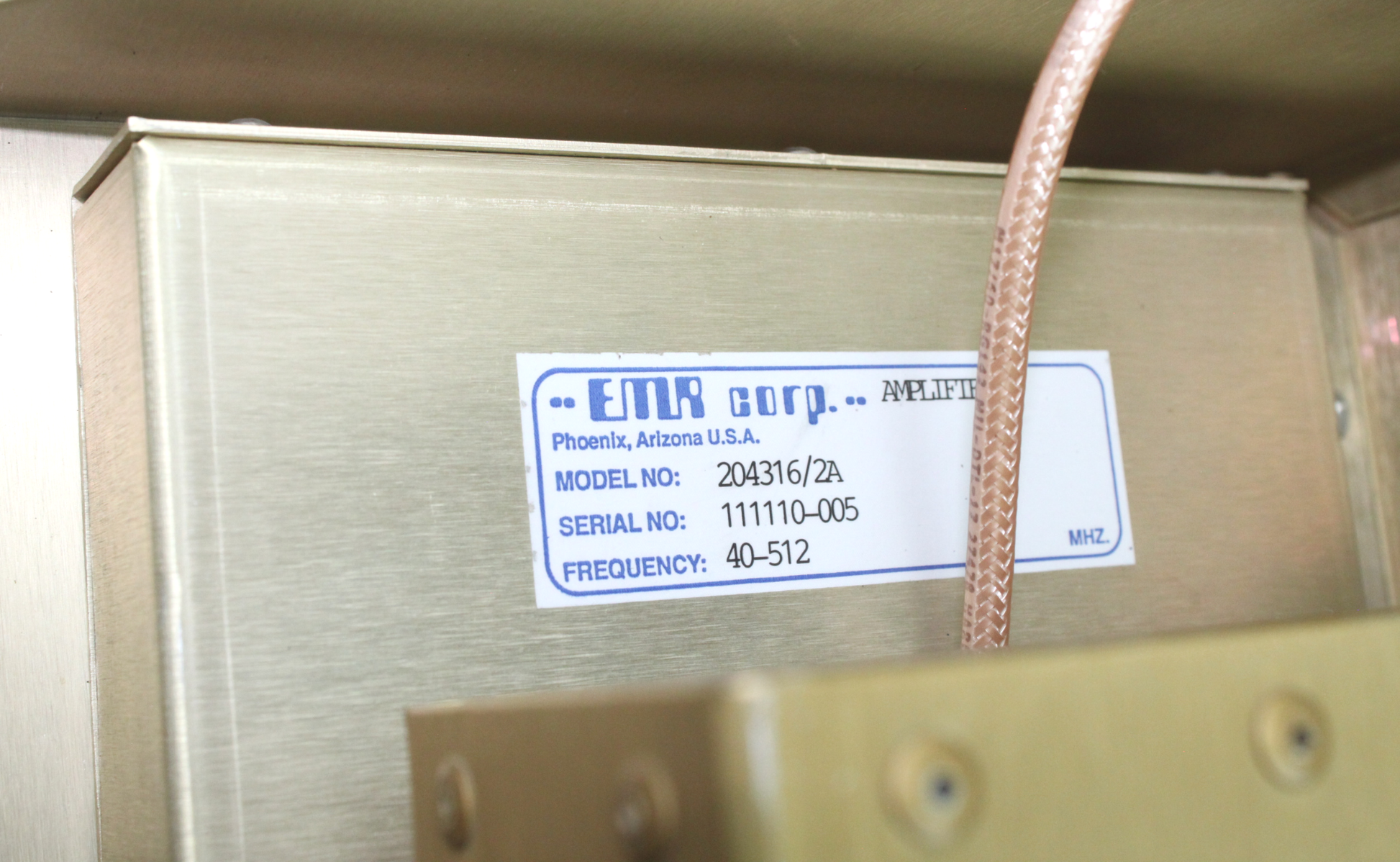

  • Amplifier Gain: +20 dB.
  • Amplifier Type: E-pHEMPT.
  • Amplifier Noise Figure: 3.0 dB.
  • Amplifier 3rd Order IP: +42 dBm.
  • Amplifier 1 dB Comp: +21 dBm.
  • Amplifier Bias Voltage: 13.6 VDC.
  • Amplifier Current Draw: 200 mA.
  • System NF (typ.): 5.0 dB.
  • Nominal Impedance: 50 Ohm.
  • max. VSWR @ Resonance: 1.25:1
  • Temperature Range: -22 to +140 ºF.
  • Dimensions (H x W x D): 5 1/4 x 19 x 10 in.
  • Connectors (In / Out): N / BNC Females.
  • Ship Weight: 12 lbs.
