EMR Corp W65532-7D(CS) 3 Ch. Transmit Combiner UHF

EMR Corp W65532-7D(CS) 3 Ch. Transmit Combiner UHF

W65532-7D(CS)

$2,900.00 USD
$2,900.00 USD
Sale Sold out
Shipping calculated at checkout.

EMR Filter-Ferrite Transmitter Combiners use space saving, High-Q square cavity resonators, and wideband isolators providing lower insertion loss than hybrid designs. This filter was pulled from a working unit and is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product Details:

  • Model Number: W65532-7D(CS)
  • Channels: 3
  • Frequency Range: 300-650MHz
  • Freq. Spacing (min): 200kHz
  • VSWR I/O (Max.): 1.1:1 / 1.25:1
  • Insertion Loss Tx (Max. / Typ.): 2.5 / 1.9 dB
  • Isolator Stage: Dual
  • RF Connectors: N Female
  • Max Power Out: 125W
  • Dimensions: 19Wx16Hx17D"

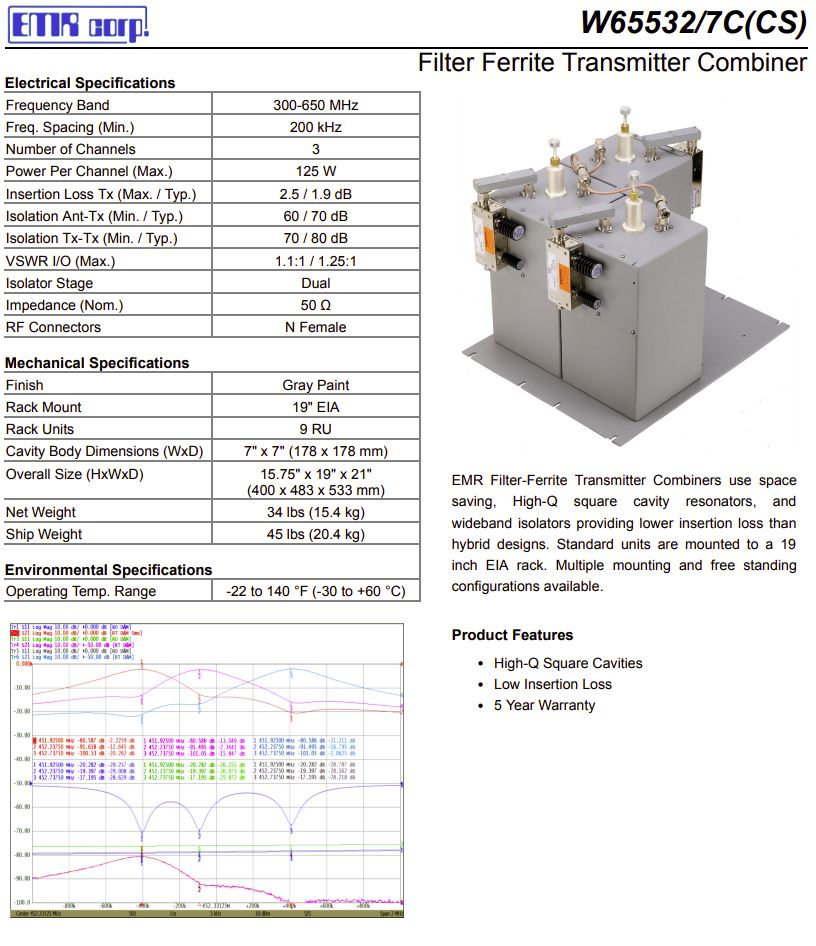

  • See spec sheet for more details



*Image shown is a representation only. Actual product may vary.
