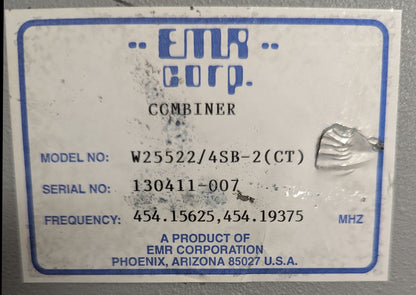

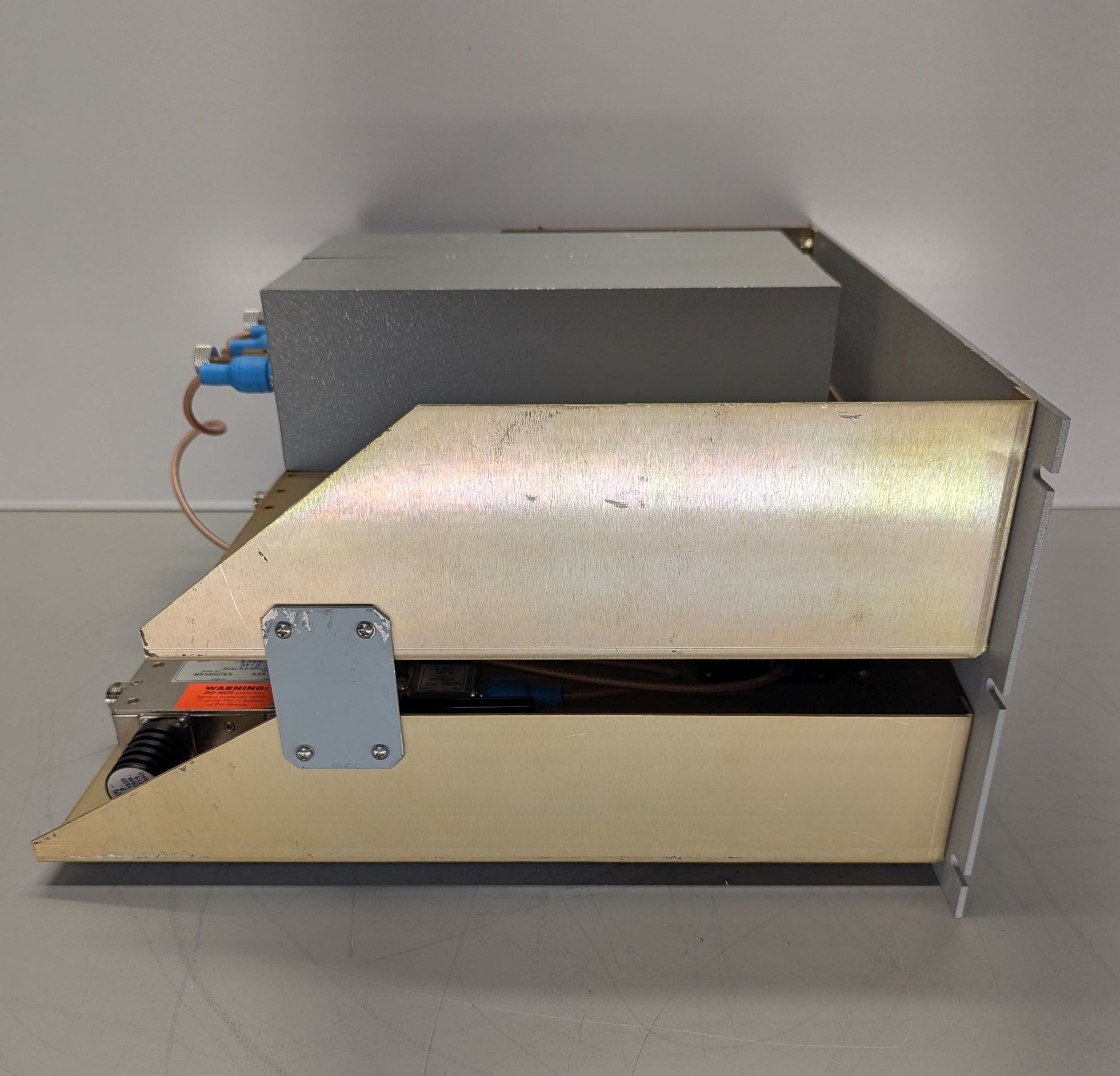

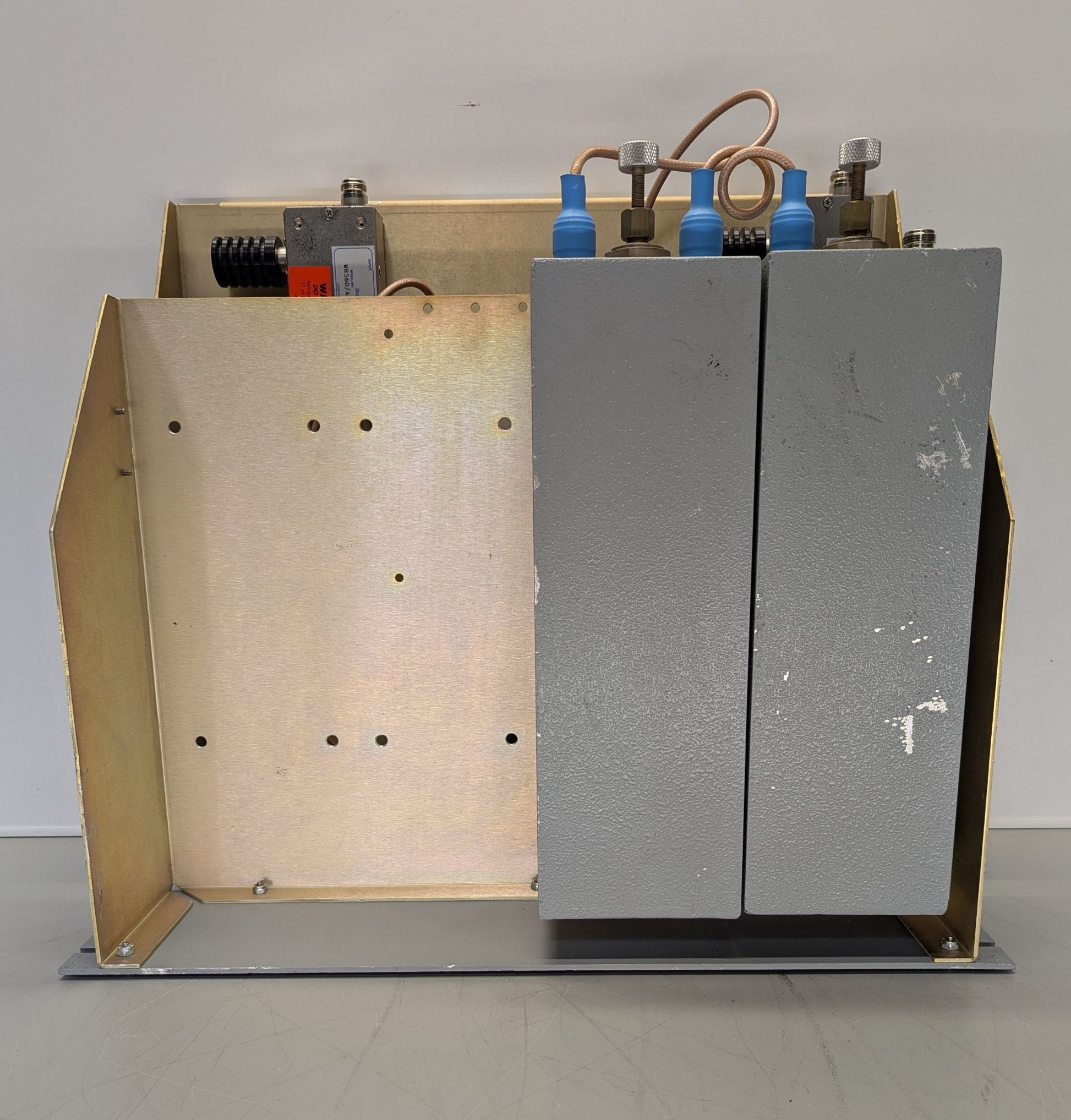

EMR 2-Channel Hybrid-Ferrite Transmitter Combiner with EMR W25522-4SB-2

EMR 2-Channel Hybrid-Ferrite Transmitter Combiner with EMR W25522-4SB-2

W25522-4SB-2

$2,250.00 USD
$2,250.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

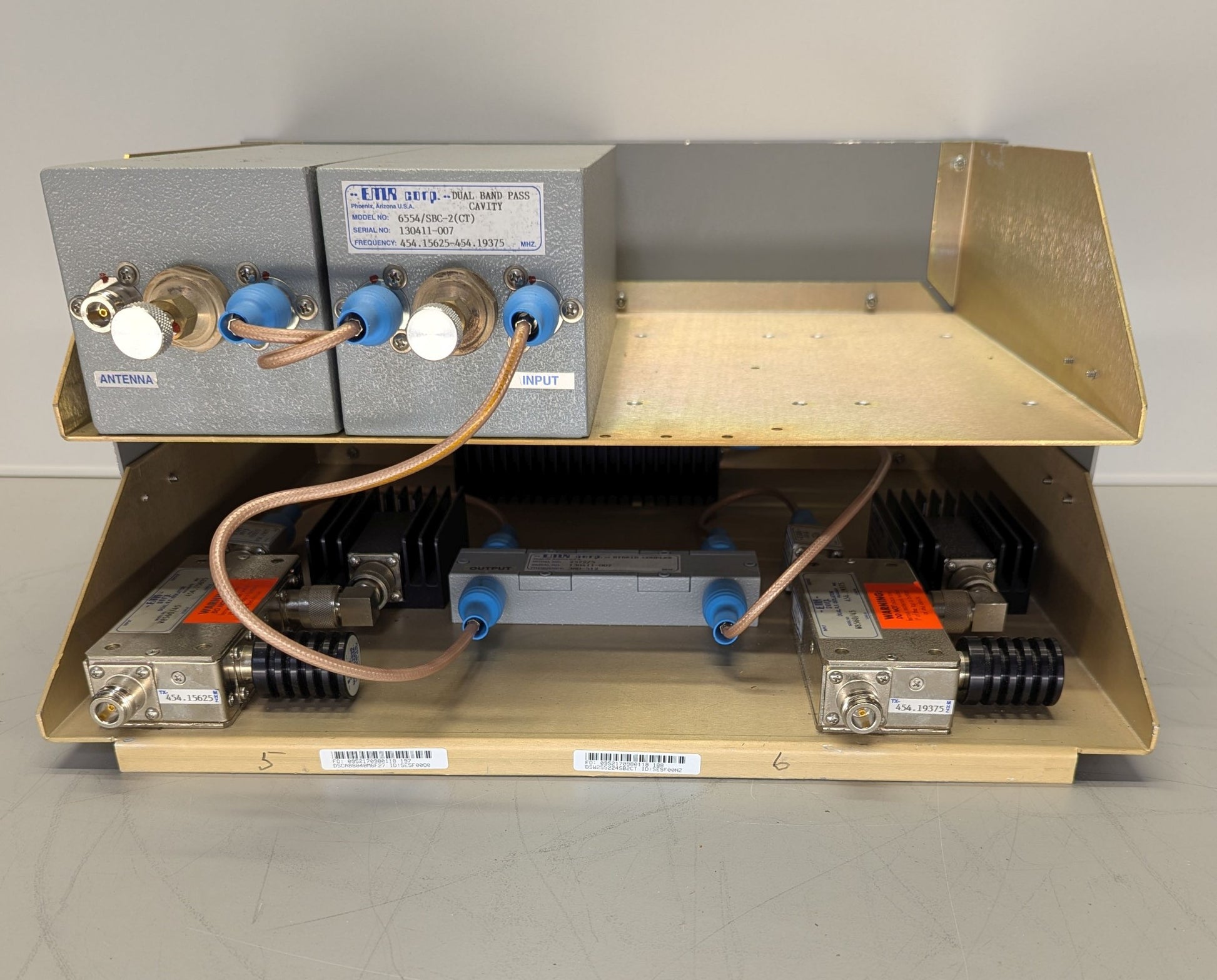

2-Channel Hybrid-Ferrite Transmitter Combiner with EMR W25522-4SB-2 Band Pass Cavities

EMR Corporation's transmitter combiners feature high-Q square cavities and broadband isolators to minimize insertion loss. If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product Details

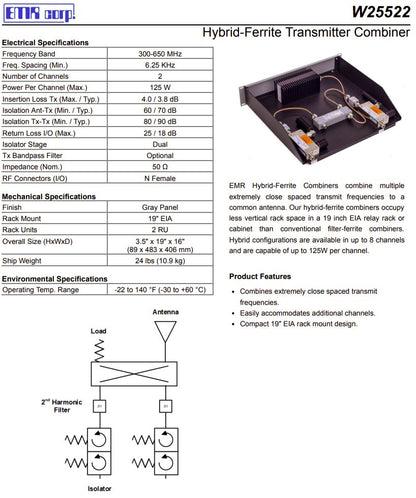

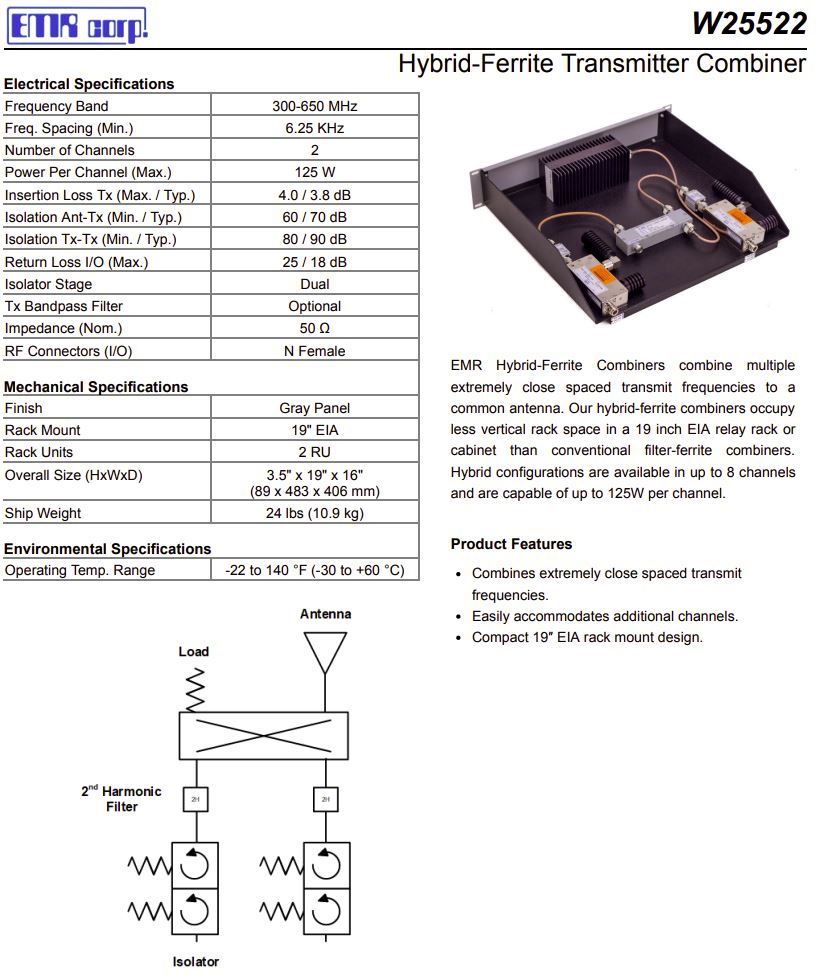

  • Model Number: W25522

  • Frequency Range: 300-650MHz

  • Freq. Spacing (Min.): 6.25 kHz

  • Insertion Loss Tx (Max. / Typ.): 4.0 / 3.8 dB

  • Return Loss I/O (Max.): 25 / 18 dB

  • Max Power Rating: 125W per Ch.

  • Isolator: Dual Stage

  • In/Output Connectors: N female

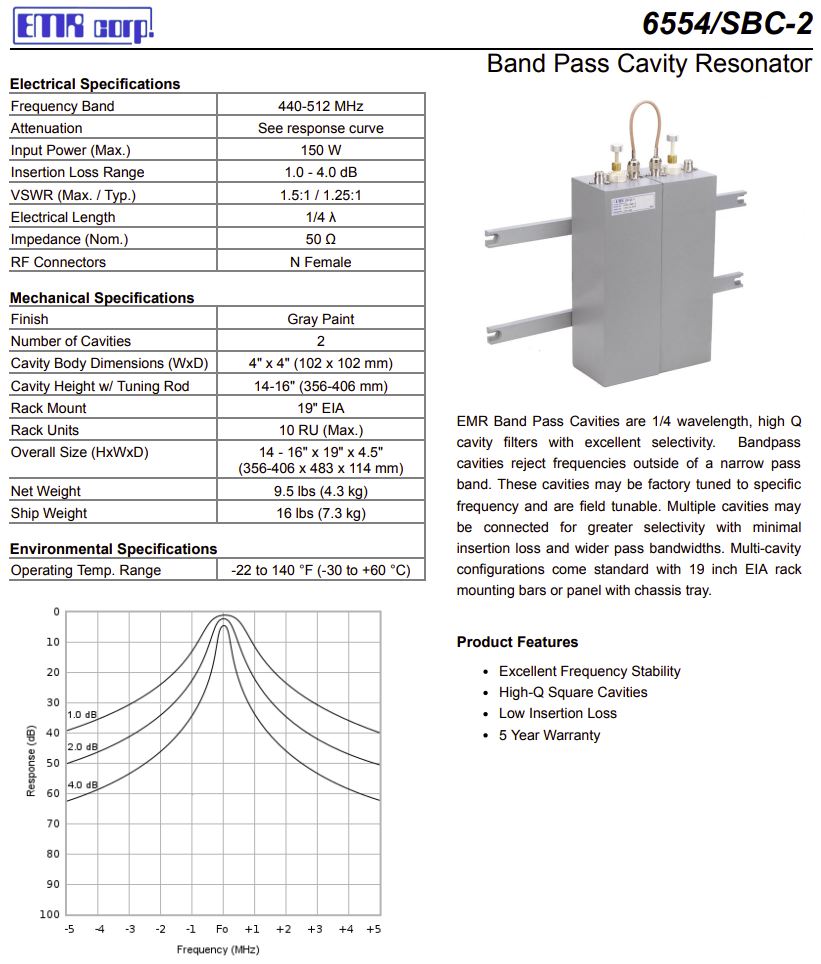

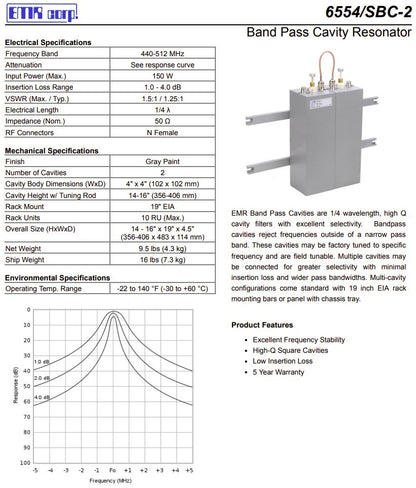

  • Product Details: Band Pass Cavities

  • Model Number: 6554/SBC-2

  • Frequency Band: 440-512MHz

  • Input Power Max: 150W

  • Insertion Loss Range: 1.0 - 4.0 dB

  • VSWR (Max. / Typ.): 1.5:1 / 1.25:1

  • In/Output Connectors: N female

  • Dimensions: 19w x 8.75h x 17d"

  • Weight:26lbs.

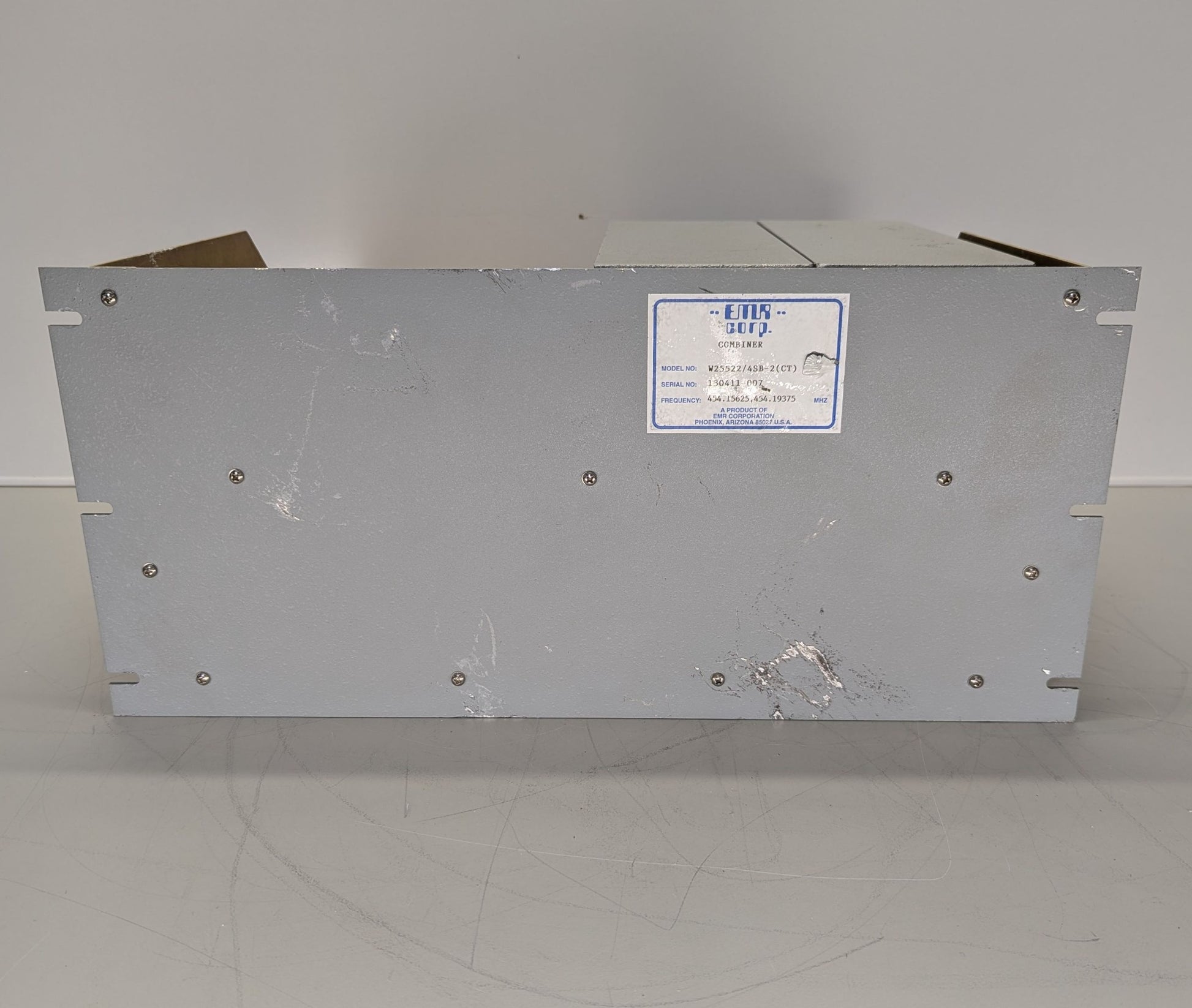

*Image shown is a representation only. Actual product may vary.
