Decibel

Decibel VHF Notch Duplexer (150-162 MHz) Model number:DB4056-C

Decibel VHF Notch Duplexer (150-162 MHz) Model number:DB4056-C

DB4056-C

$1,375.00 USD
$1,375.00 USD
Sale Sold out
Shipping calculated at checkout.

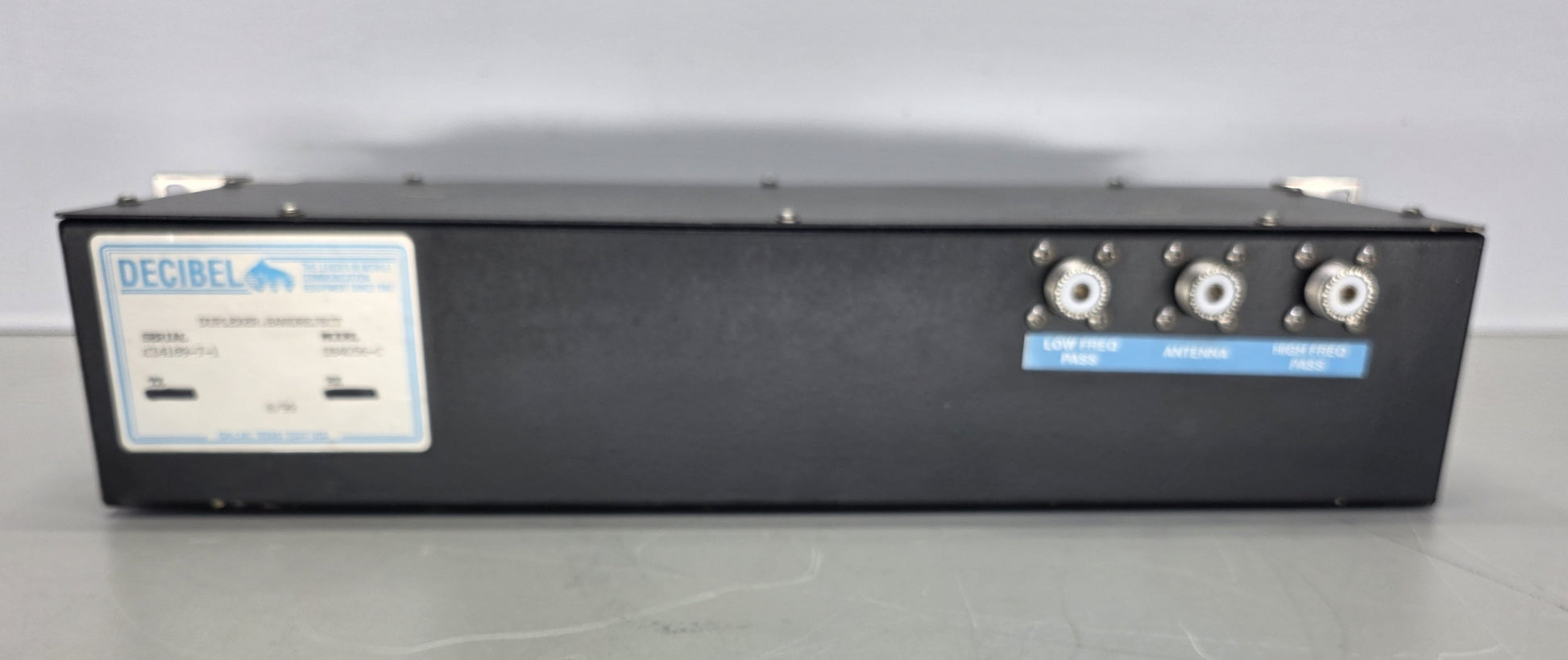

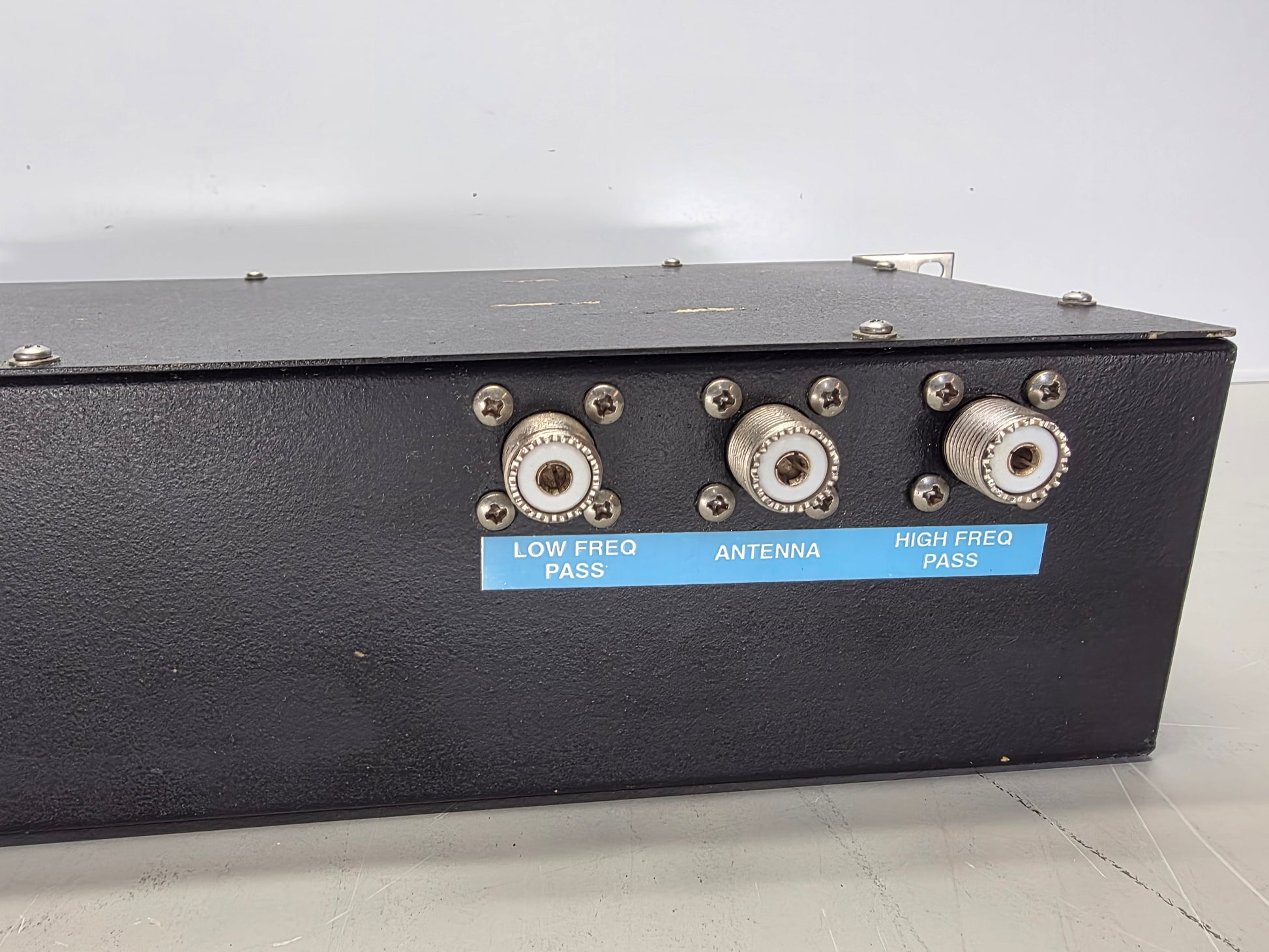

Decibel VHF Notch Duplexer (150-162 MHz) Model number:DB4056-C

The Decibel DB4056-C is a VHF designed for use with a single, broadband antenna in a mobile repeater or duplex-type system.

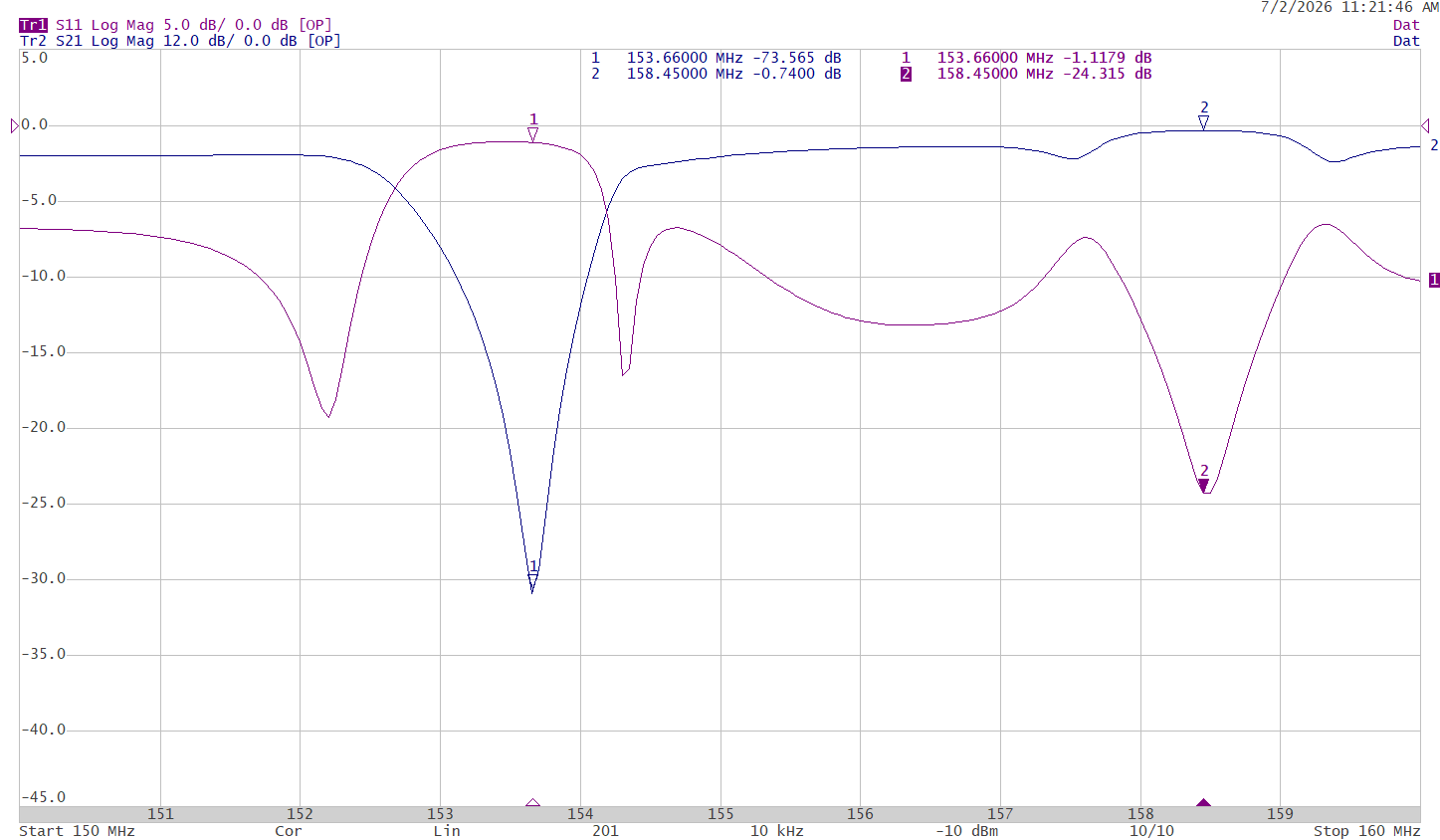

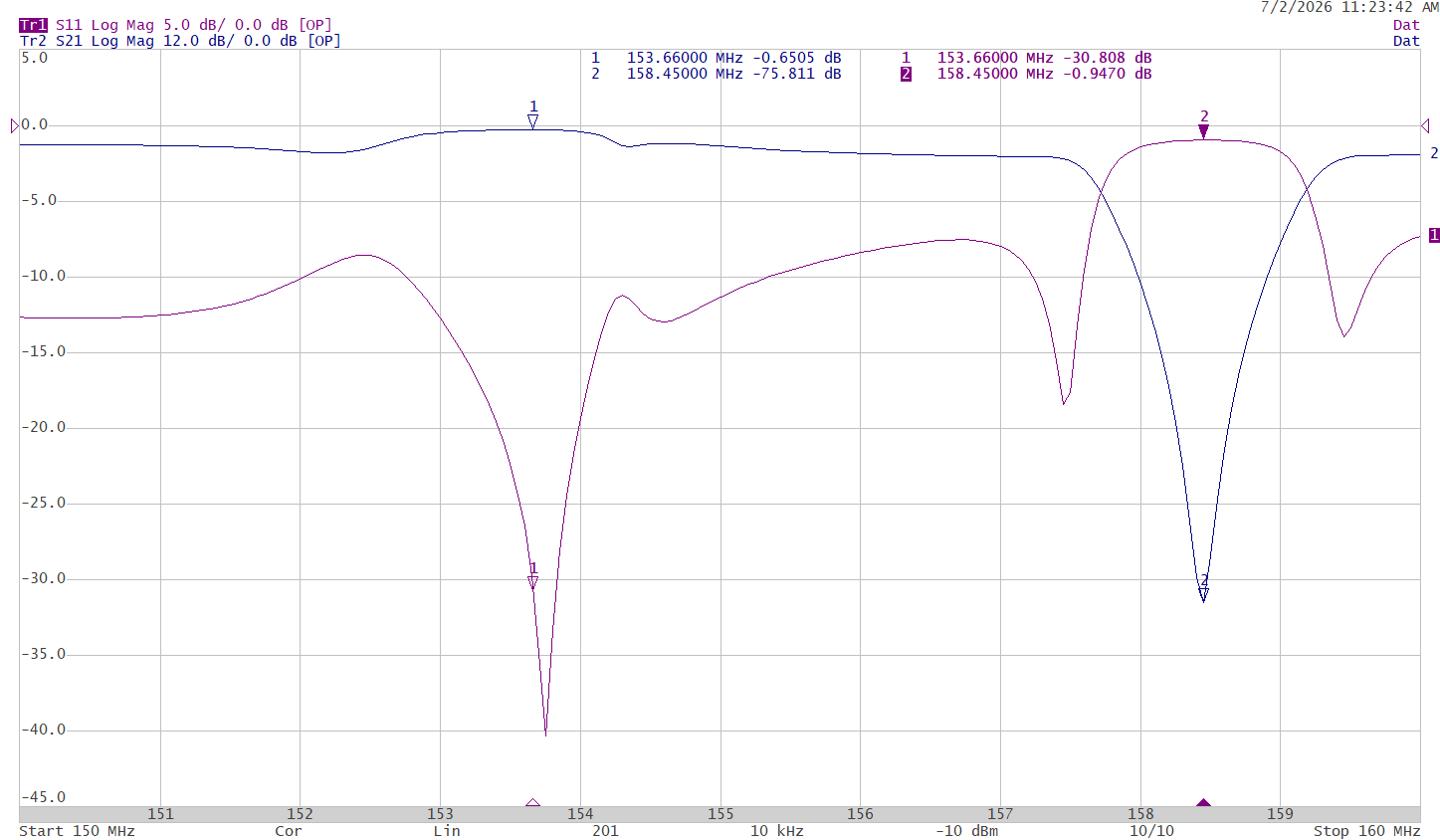

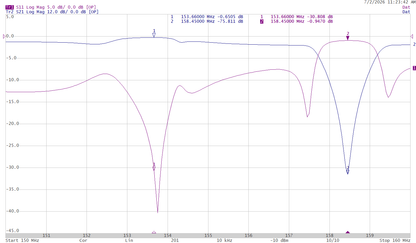

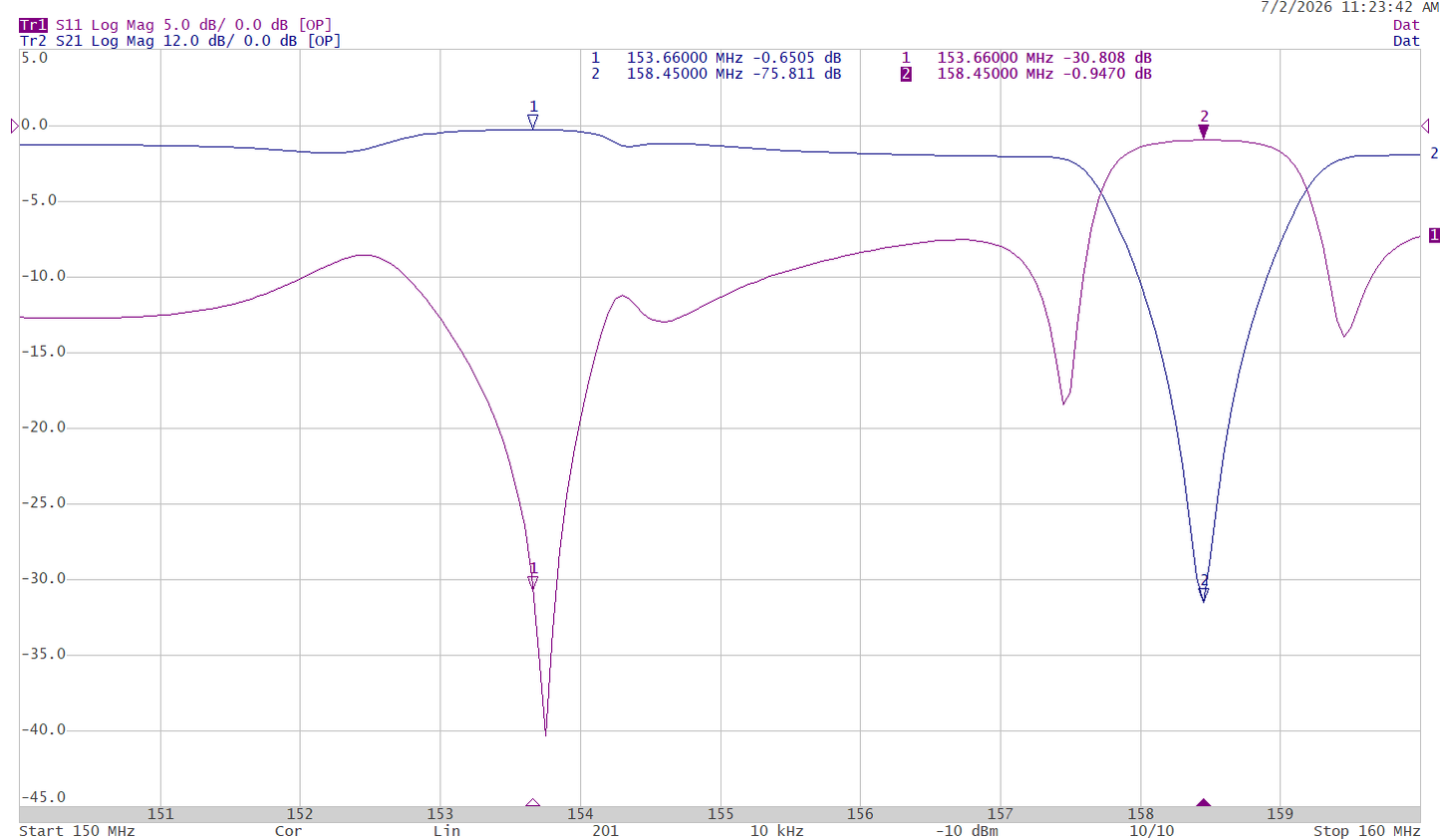

This model operates in the 150 to 162 MHz band when the transmitter and receiver frequencies are separated by 2 to 5 MHz or more. Six sealed quarter-wave helical resonators are interconnected in a band-reject configuration with double-shielded coaxial cable to provide 70 dB rejection (nominal) to transmitter noise and 70 dB isolation(nominal) to receiver desensitization.

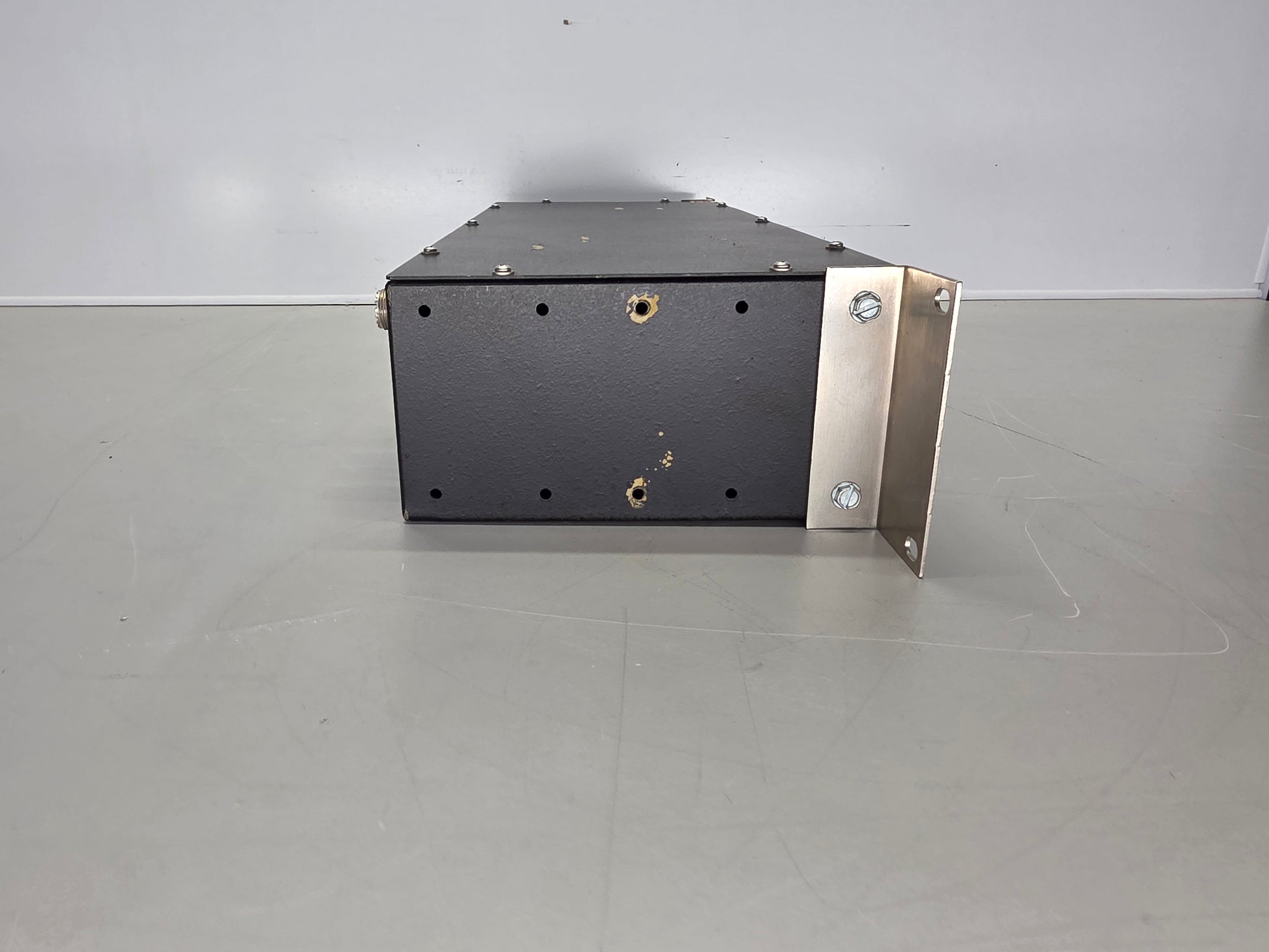

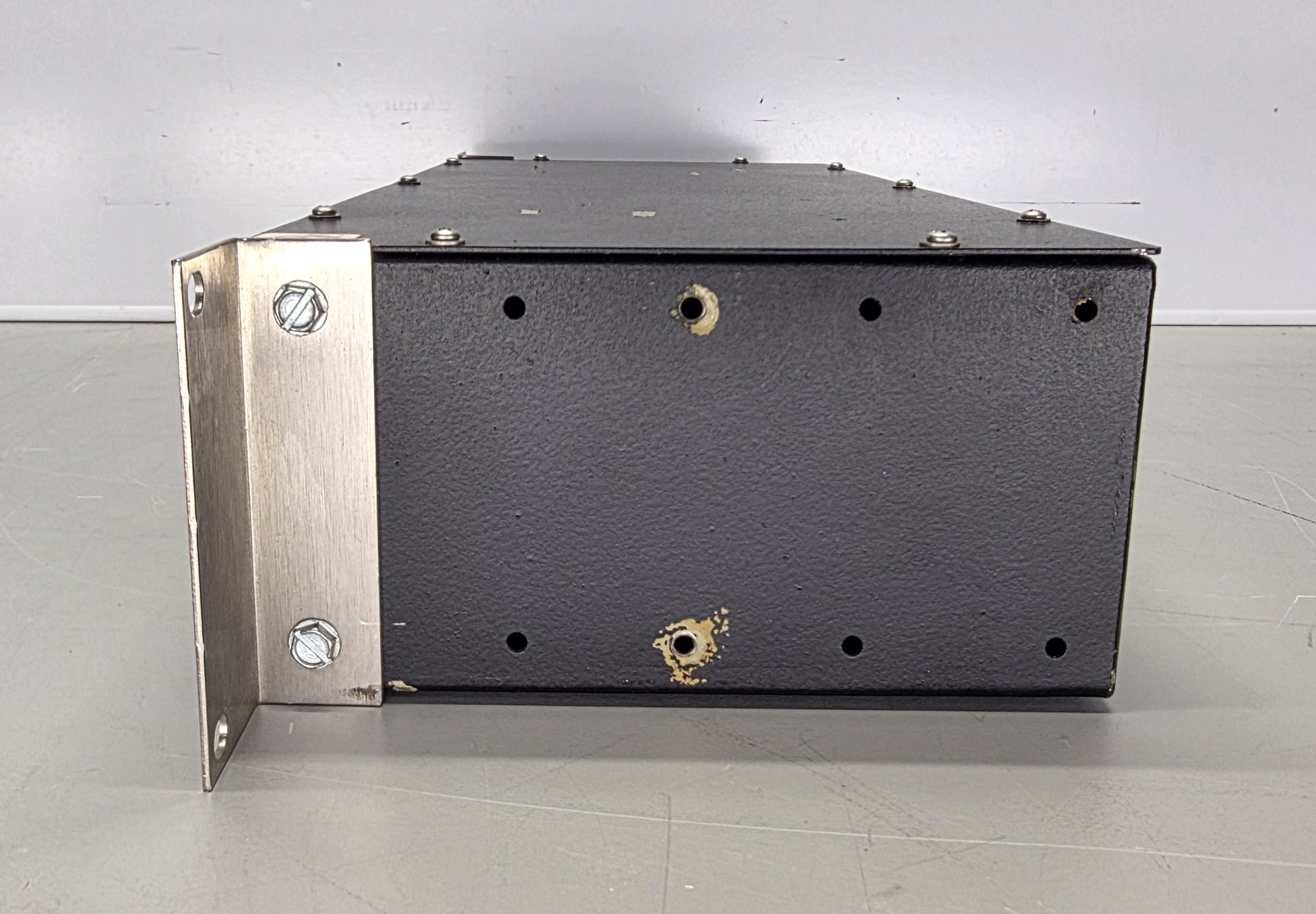

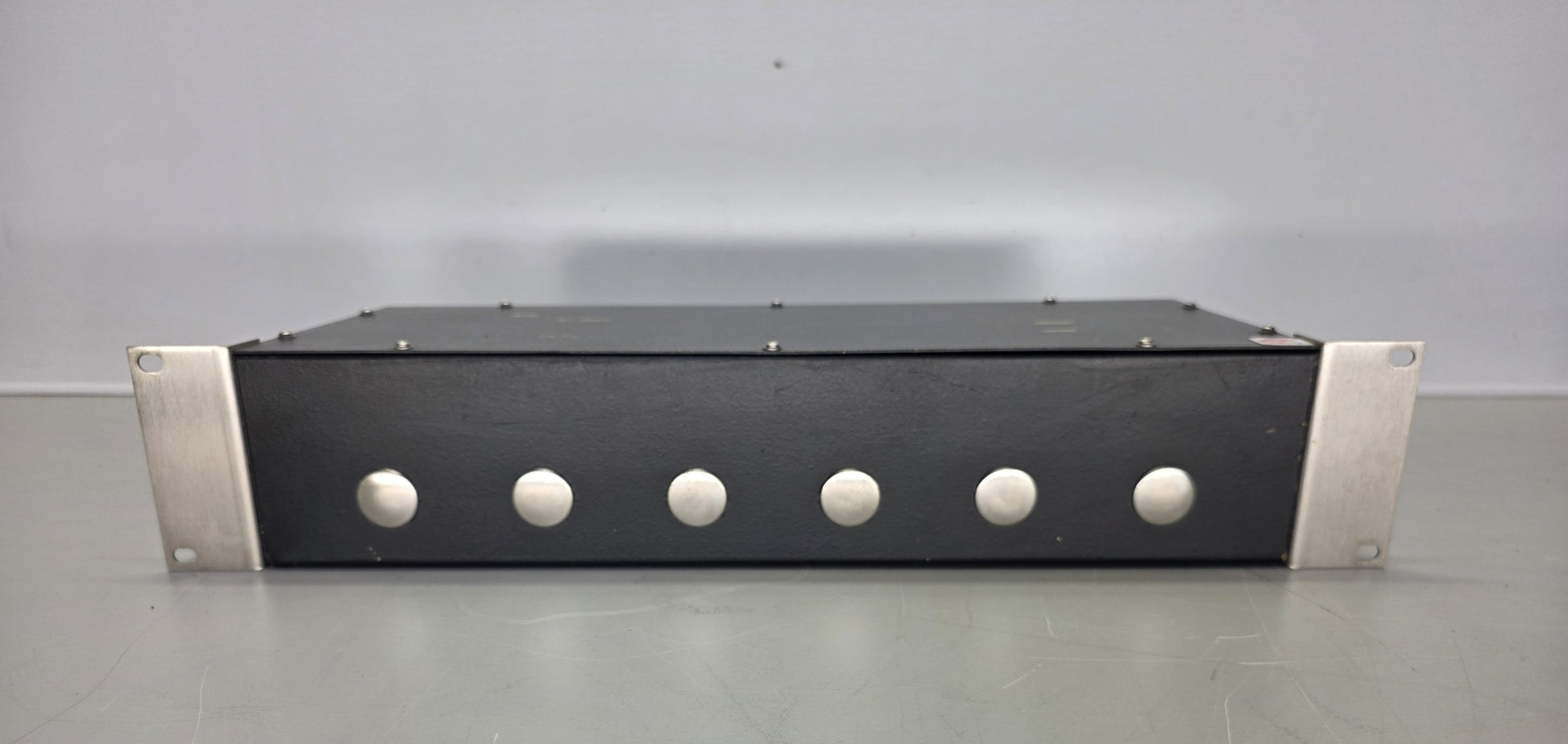

Includes mounting brackets for installation in a standard 19" equipment rack.

This unit was pulled from a working system and is in good condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.

Product Details:

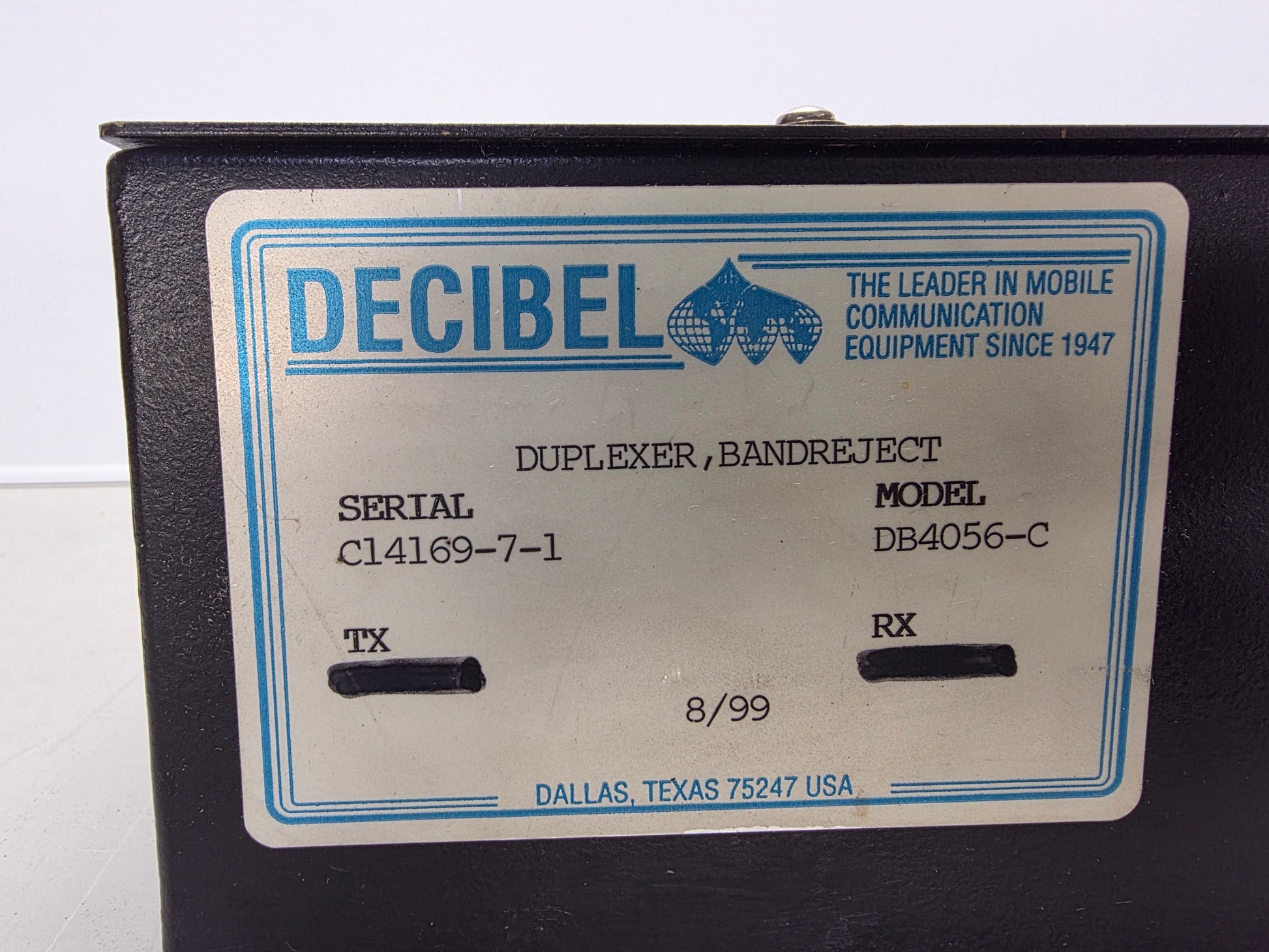

  • Model Number: DB-4056-C

  • VHF Duplexer

  • 6 Cavity

  • Frequency:150-162 MHz

  • Insertion Loss: 0.8 dB

  • Isolation: 70 dB

  • Separation: 2-5 MHz

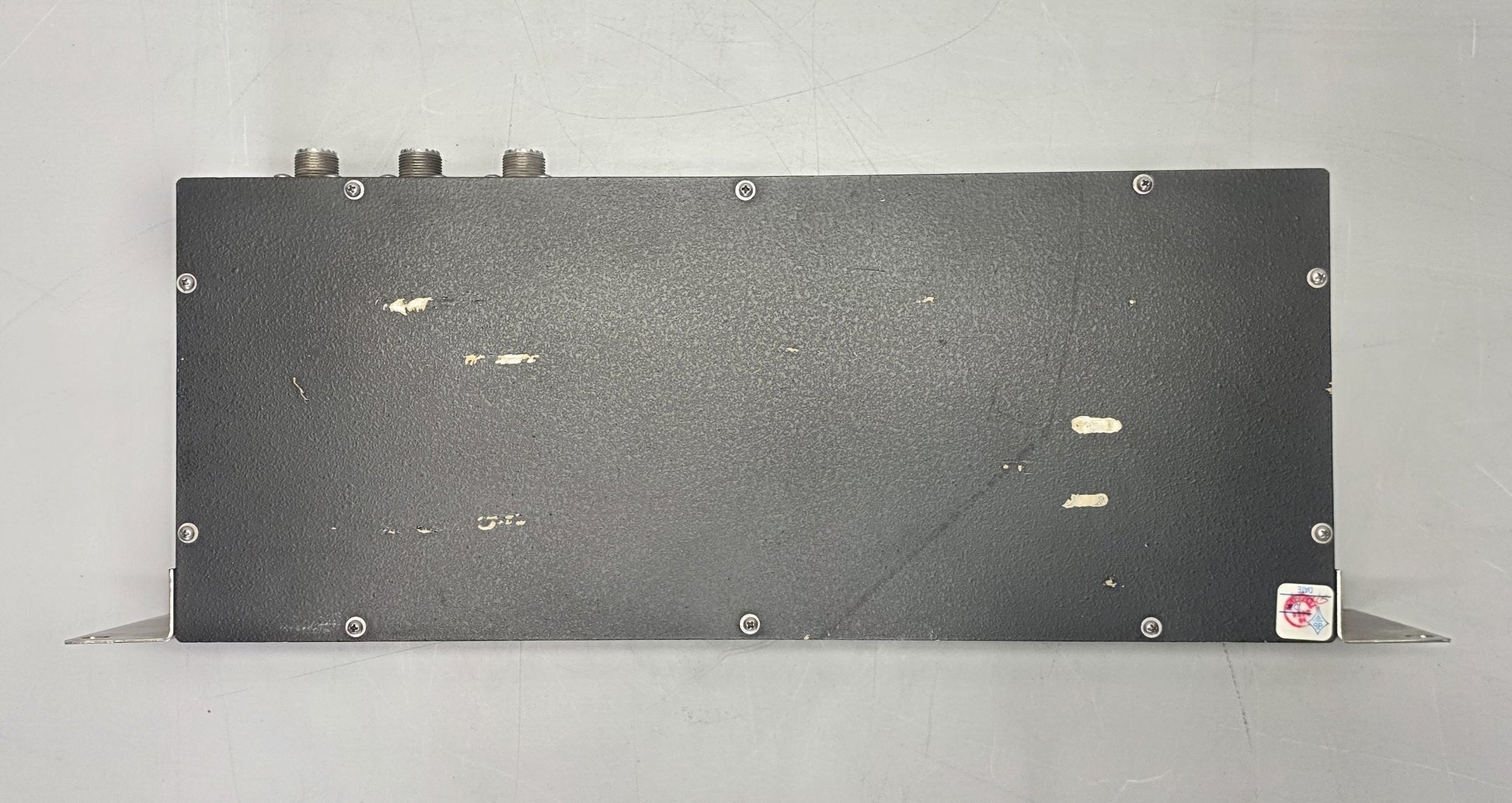

  • Dimensions: 6.25” x 3” x 19”

*Image shown is a representation only. Actual product may vary.
