DBSPECTRA DSWF-1004 VHF Window Filter

DBSPECTRA DSWF-1004 VHF Window Filter

DSWF-1004

$895.00 USD
$895.00 USD
Sale Sold out
Shipping calculated at checkout.

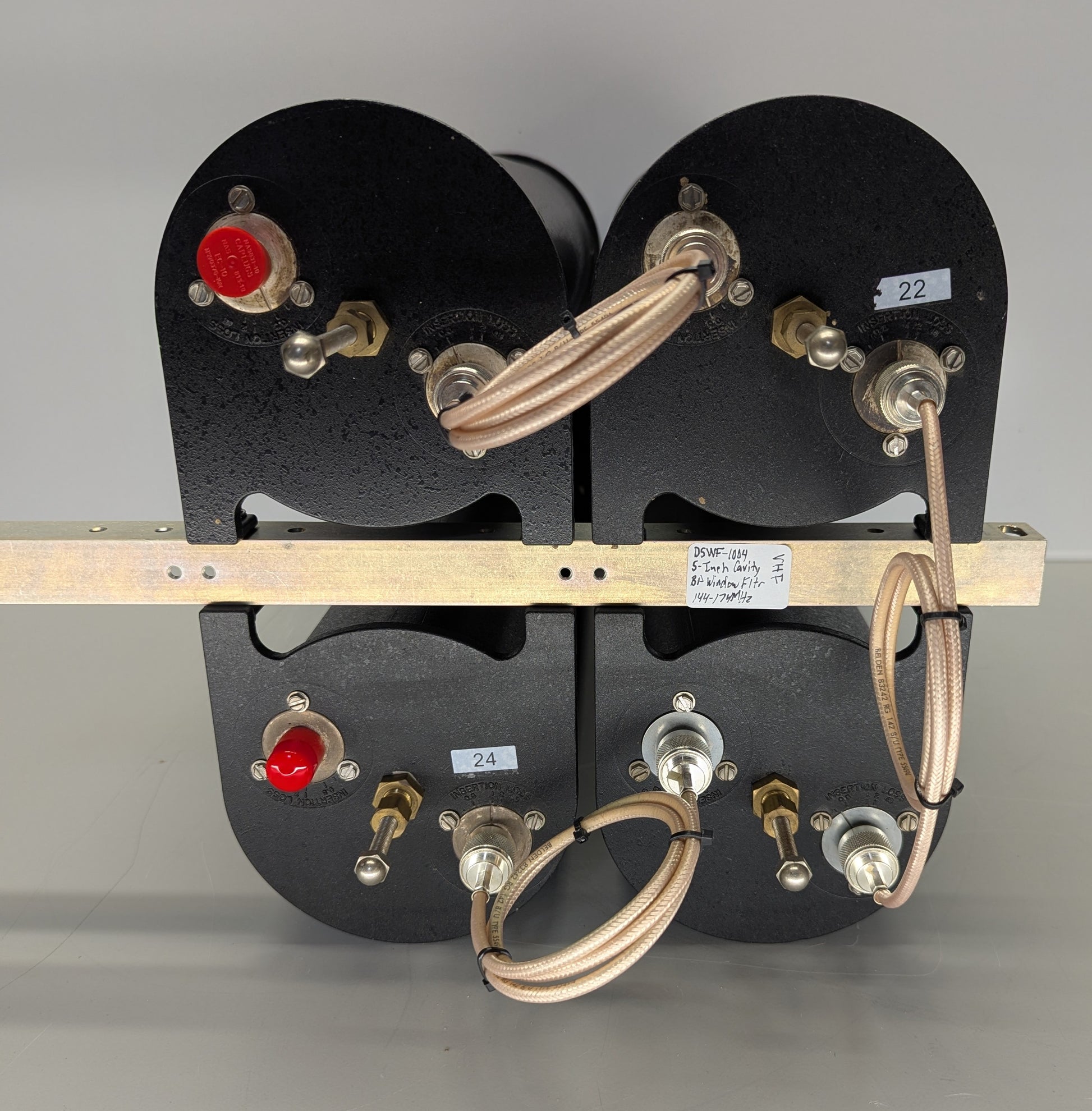

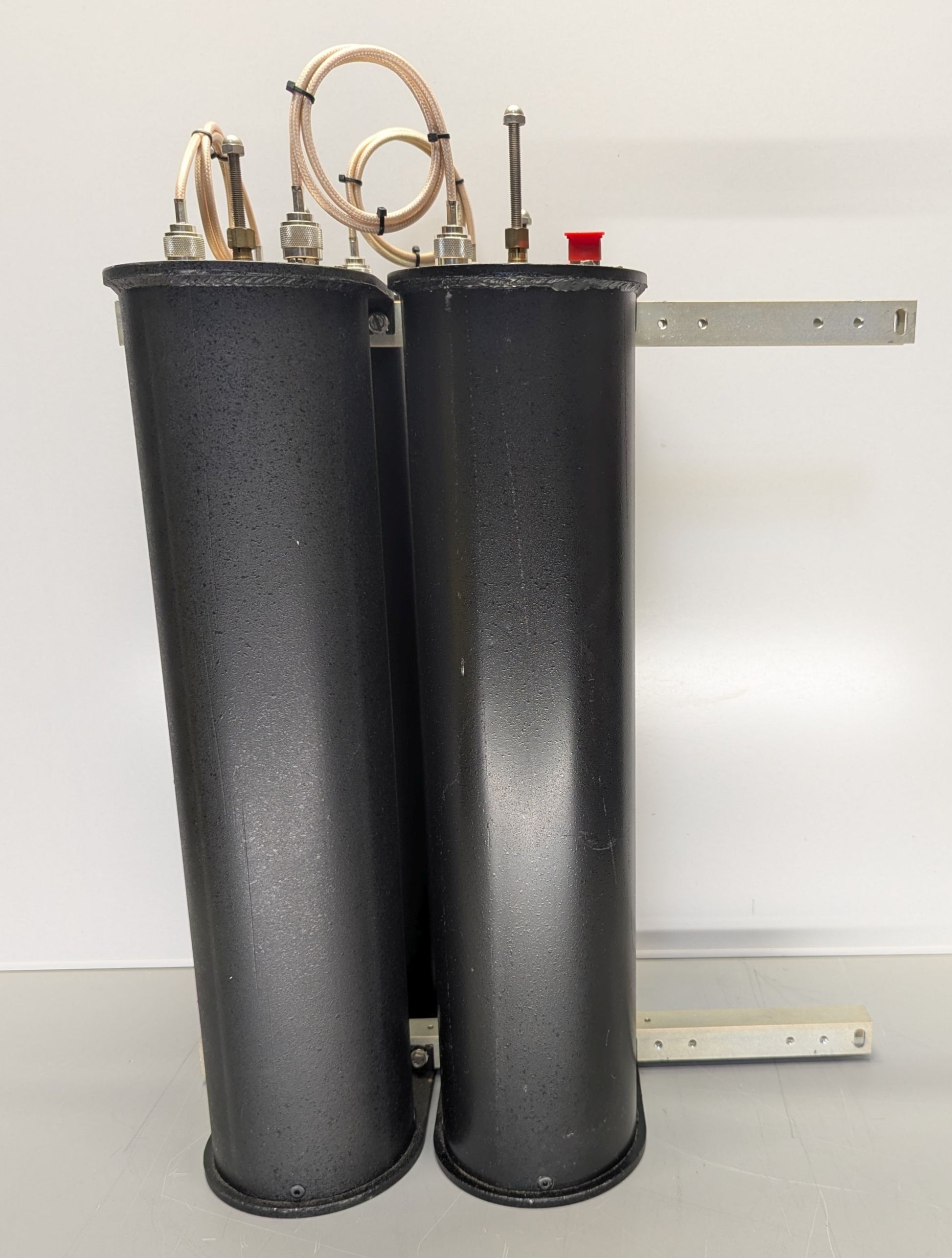

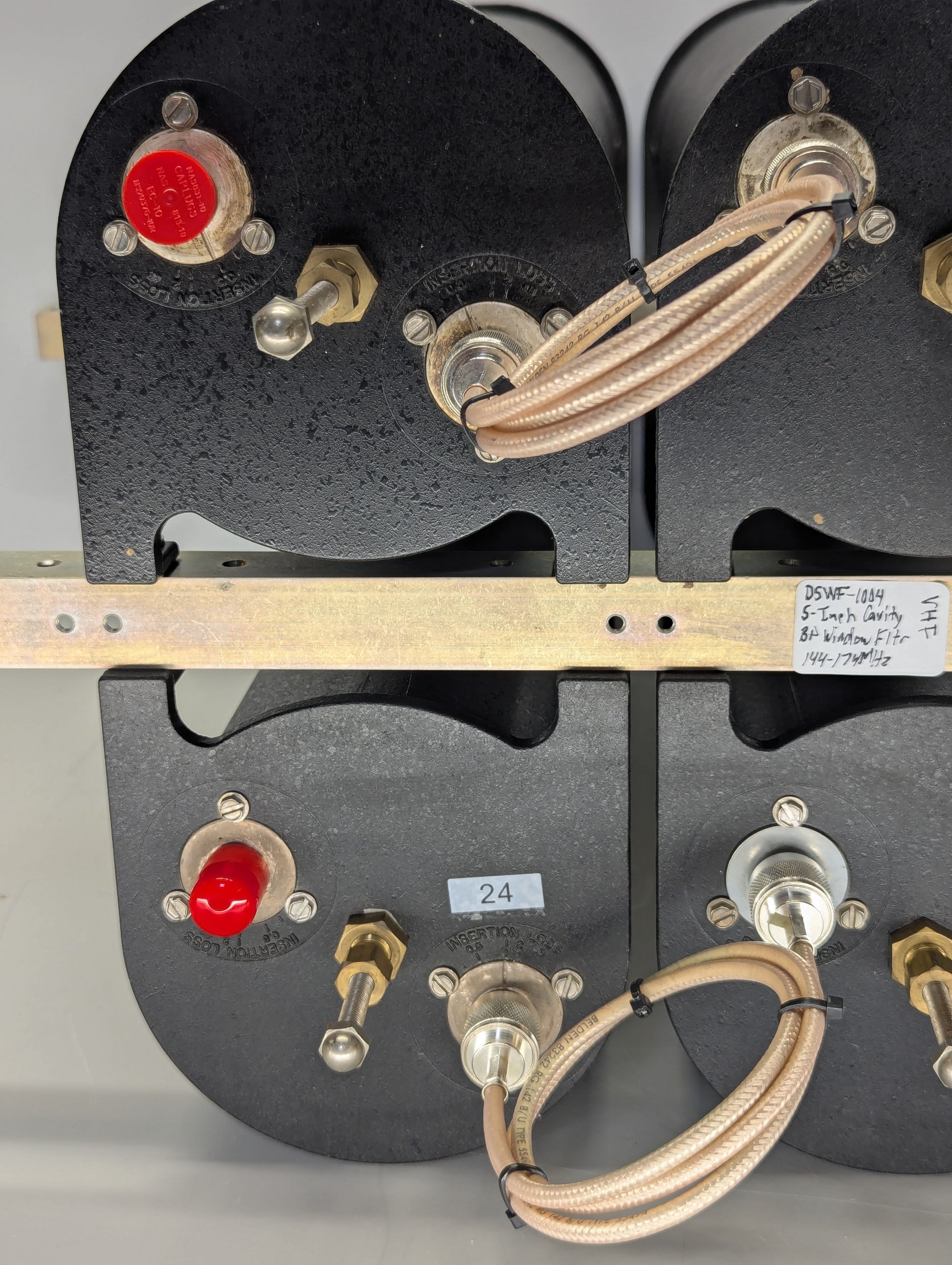

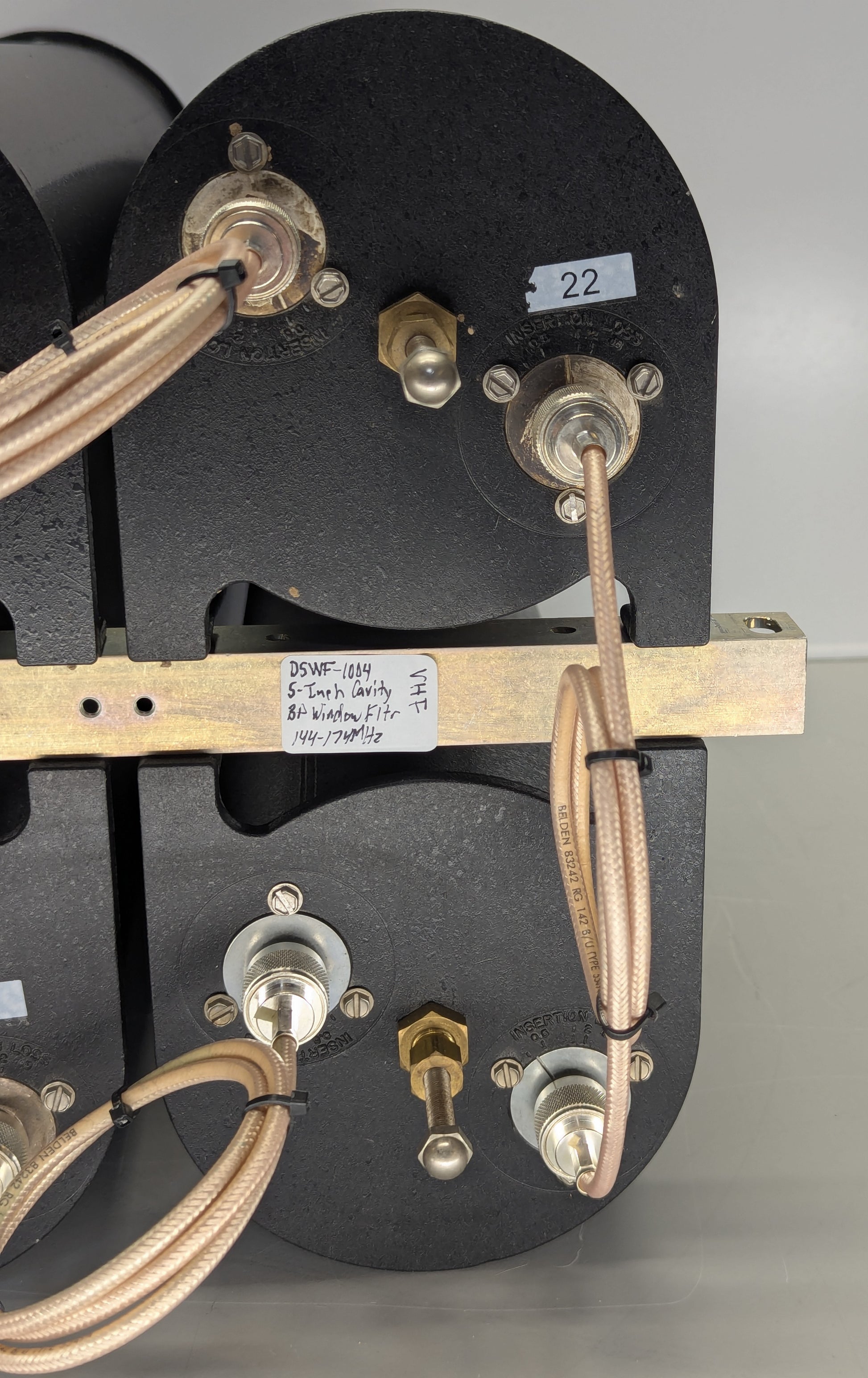

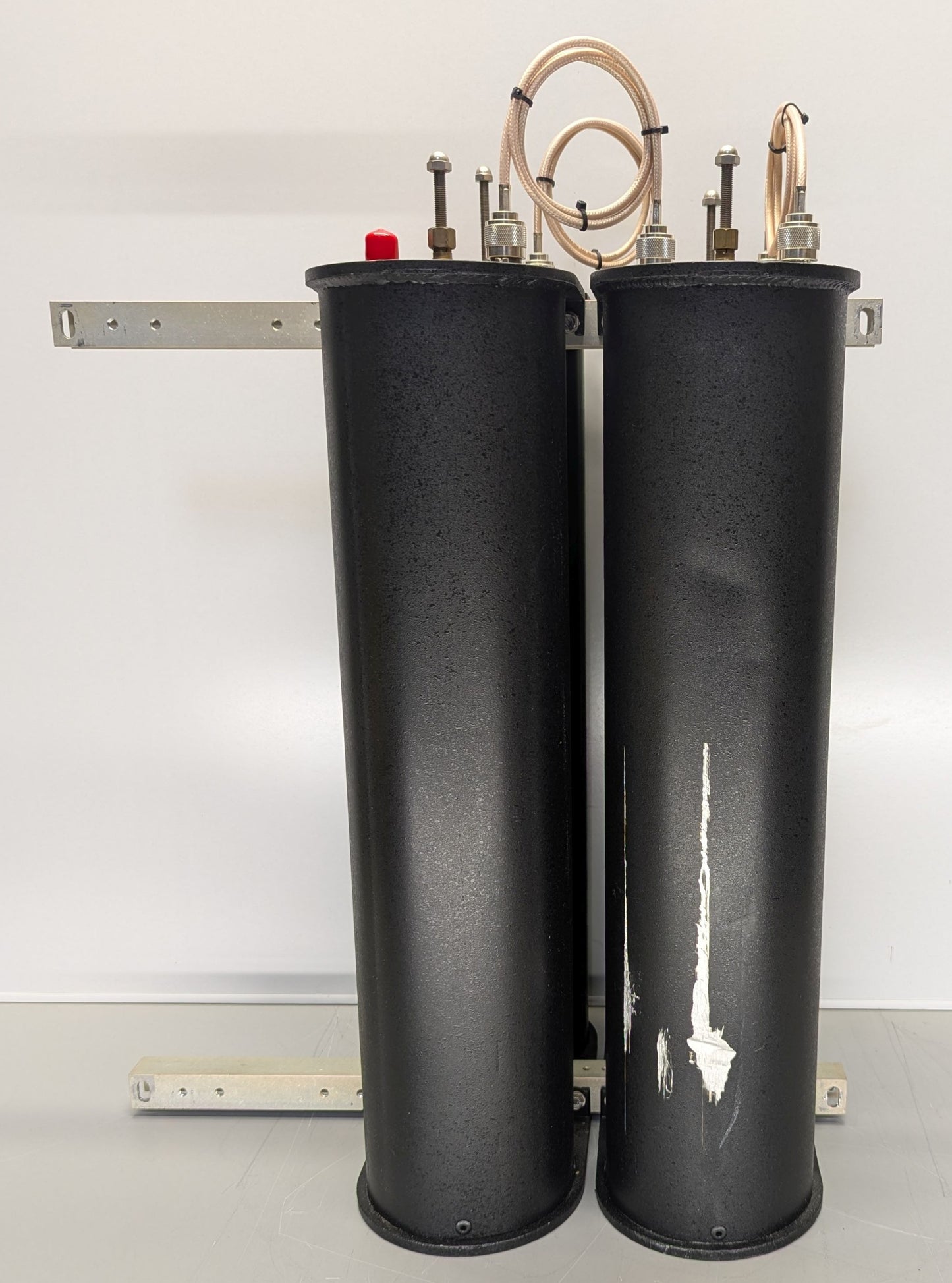

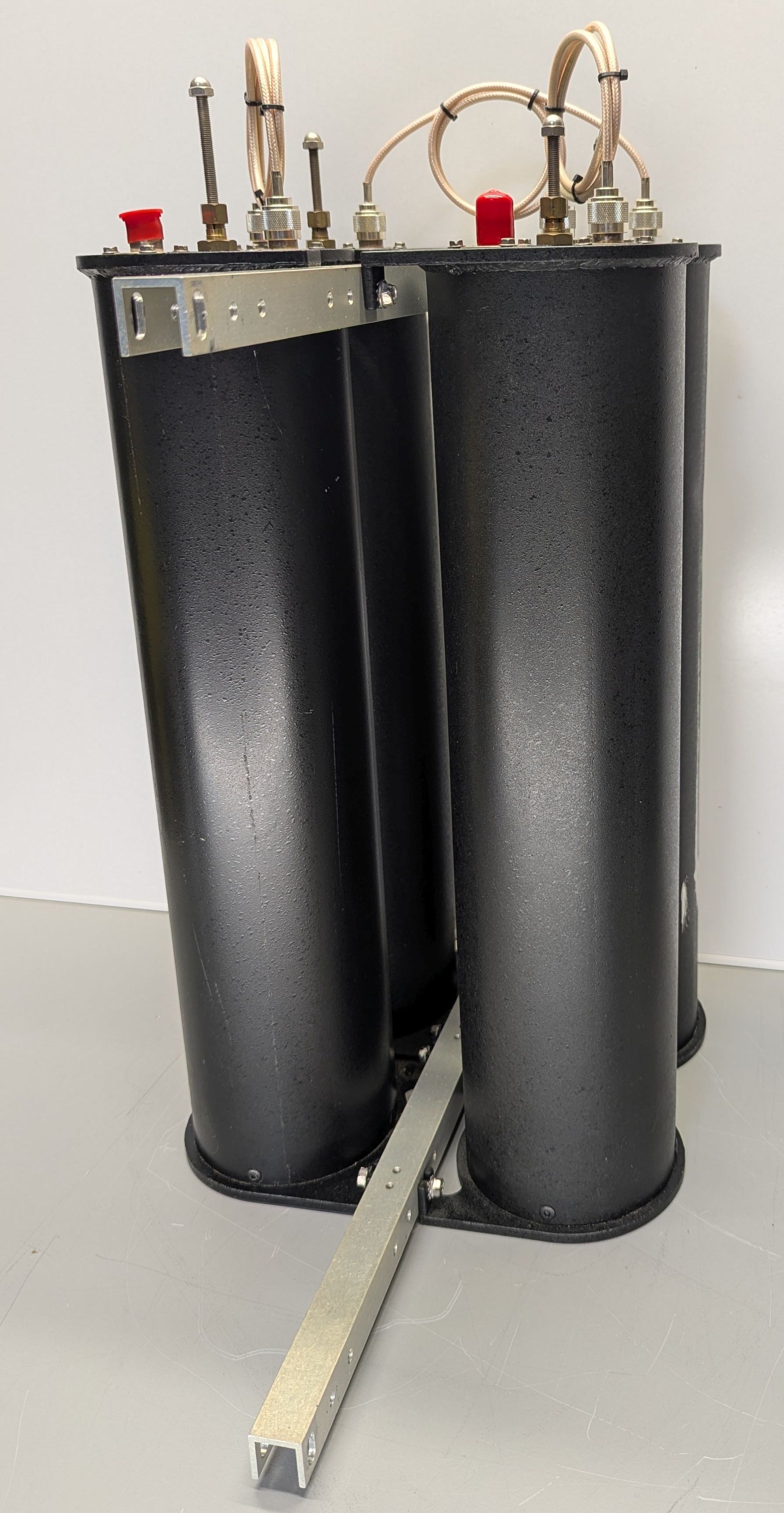

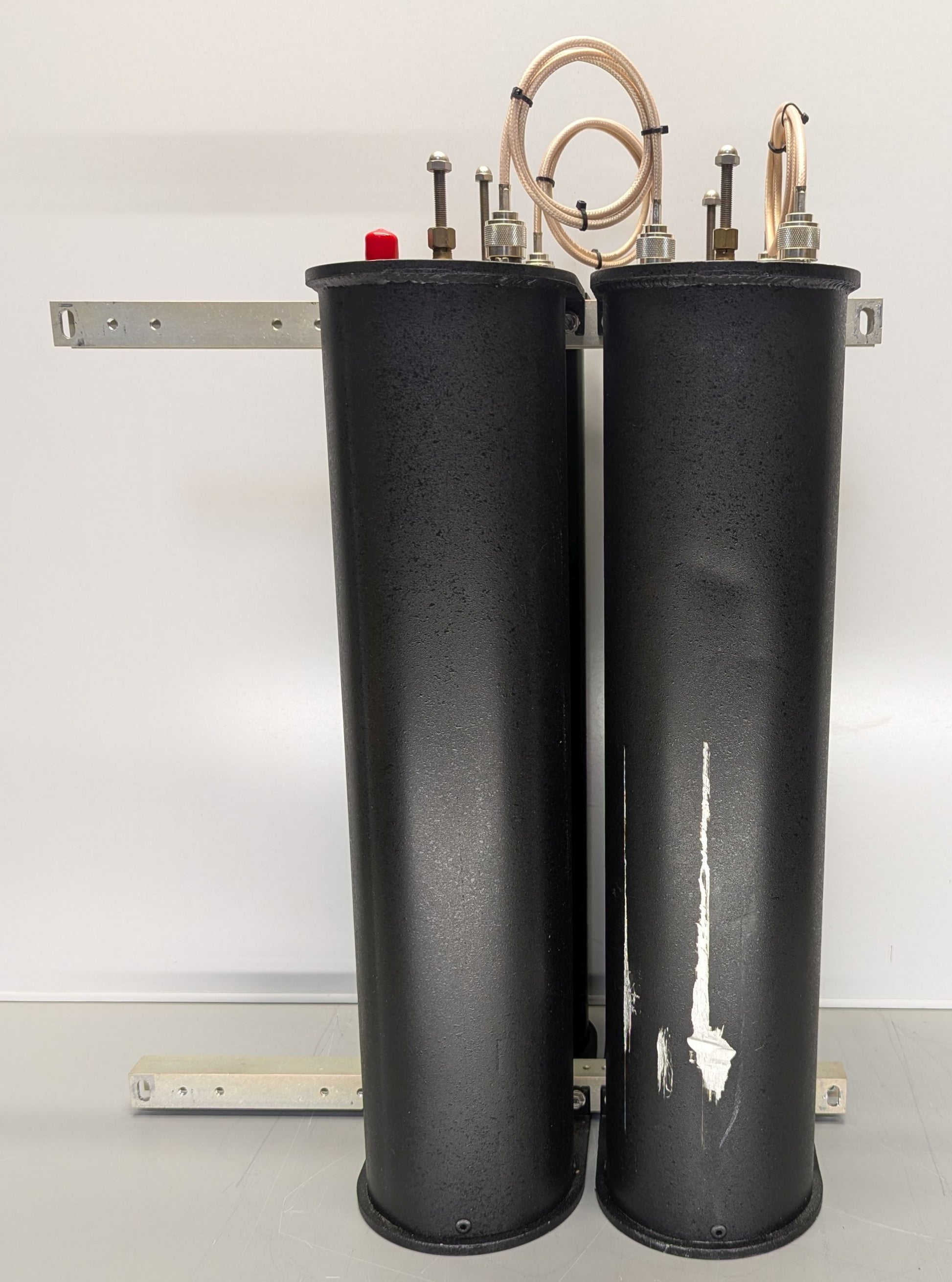

 DSWF1004 (148-174 MHz) 5-inch Cavity Bandpass Window Filter

This filter was pulled from a working system and is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • DBSPECTRA DSWF-1004 VHF

  • 30-day warranty

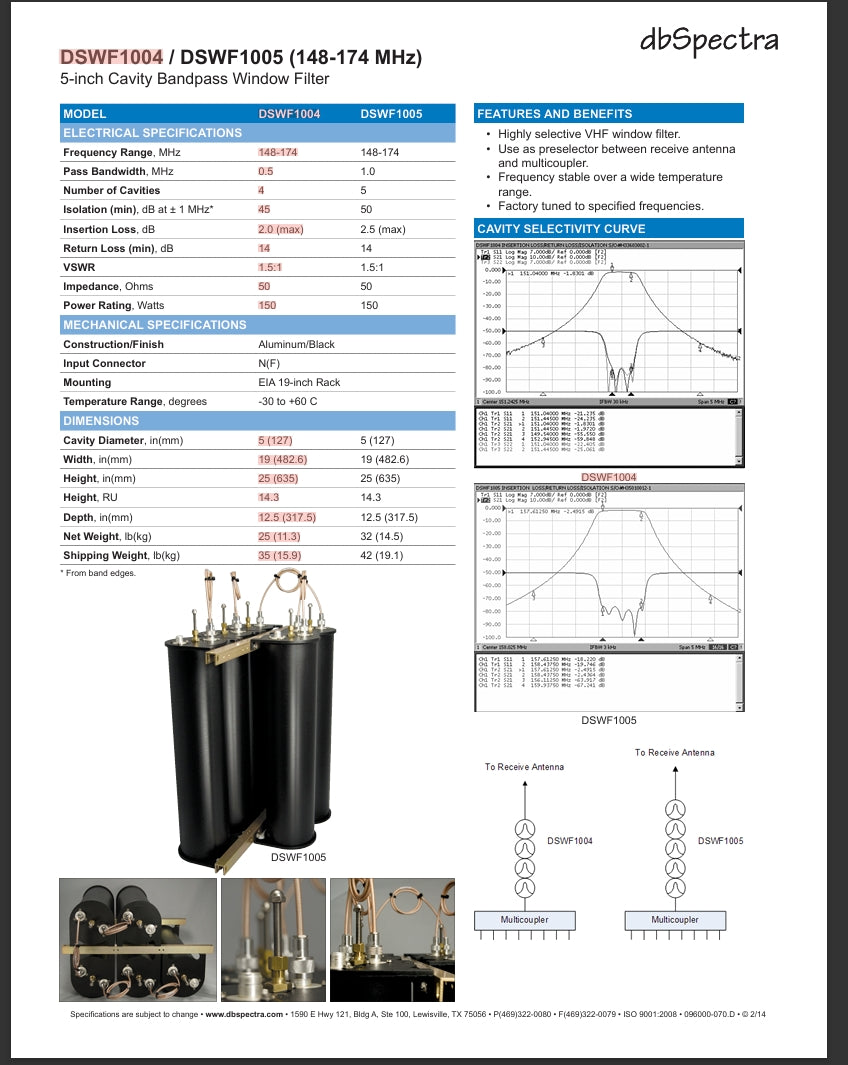

Product Details:

  • Model Number: DSWF-1004

  • Pass Bandwidth, MHz: 0.5

  • Number of Cavities: 4

  • Insertion Loss, dB: 2.0 (max)

  • Return Loss (min), dB: 14

  • VSWR: 1.5:1

  • Frequency Range: 148-174 MHz

  • Power Rating, Watts: 150 W

  • In/Output Connectors: N-female

  • Dimensions: 19"w x 25"h x 12.5"d

  • Weight: 25 lbs

*Image shown is a representation only. Actual product may vary.
