DBSPECTRA DB3626DX 6-CAVITY WINDOW DUPLEXER

DBSPECTRA DB3626DX 6-CAVITY WINDOW DUPLEXER

DB3626DX

$1,295.00 USD
$1,295.00 USD
Sale Sold out
Shipping calculated at checkout.

For multichannel applications, 450 MHz or 460 MHz bands (not both bands in the same unit).

If you have any questions, contact us Monday - Friday 8am-4pm MT.



Product Details:

  • Model Number: DB3626DX

  • Pass Bandwidth (MHz): 2-4

  • Frequency Separation (MHz): 1.5

  • VSWR: 1.5:1

  • Isolation (min.) (dB): Receiver Passband 80, Transmitter Passband 40

  • Frequency Range: 450-470MHz

  • Max Power Out: 125W

  • In/Output Connectors: N-Female

  • Dimensions: 19w x 16h x 12d"

  • Weight:53lbs.

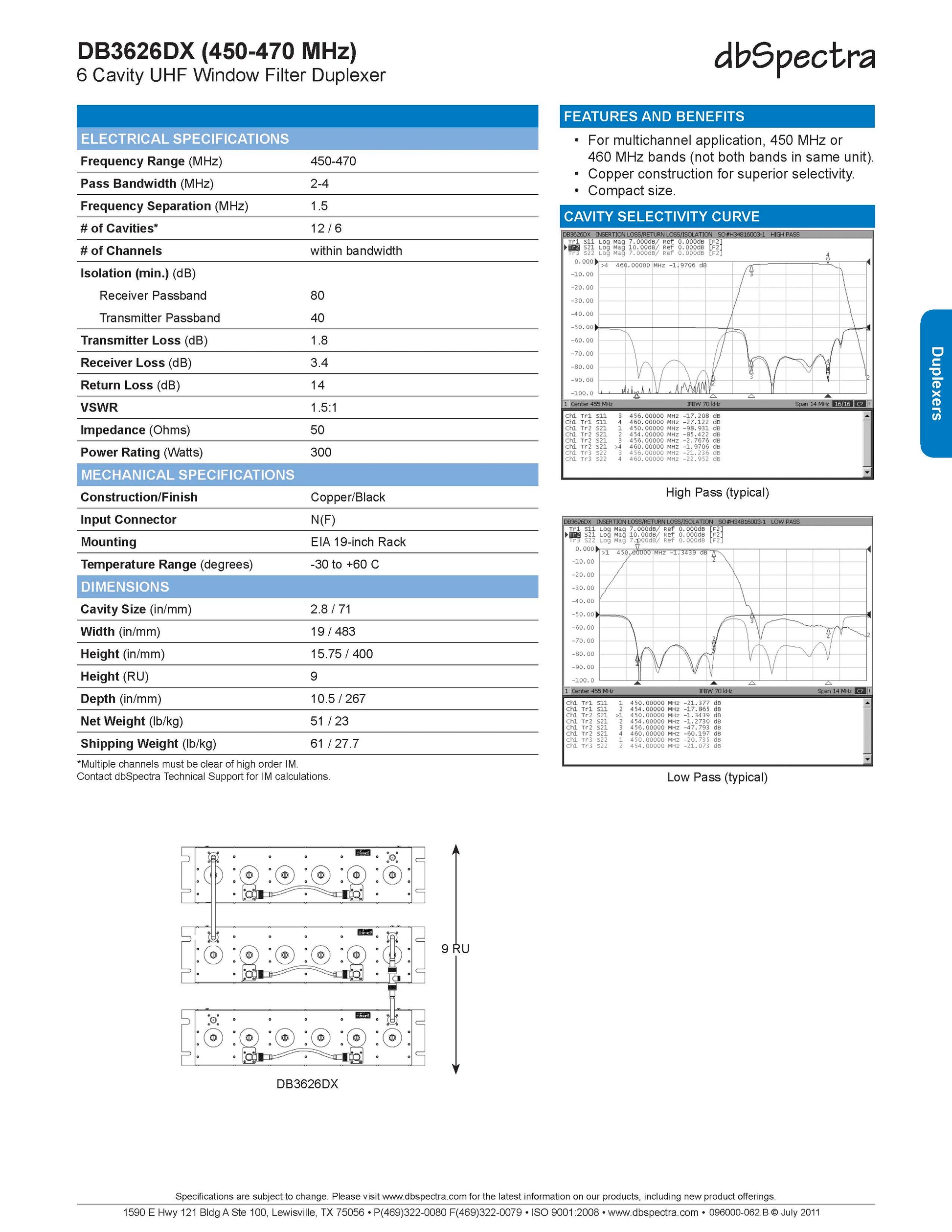

  • *See spec sheet for further details

*Image shown is a representation only. Actual product may vary.
