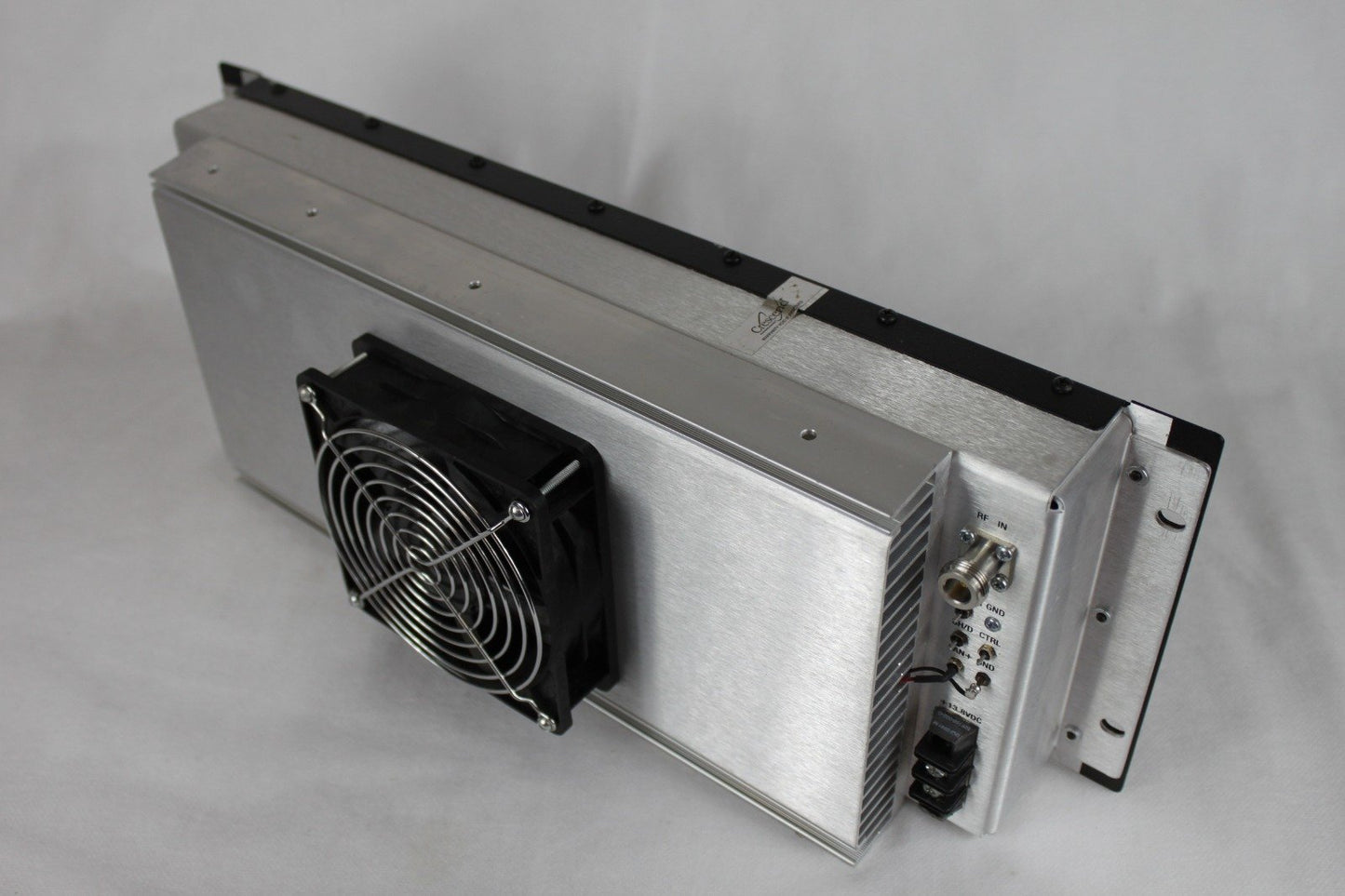

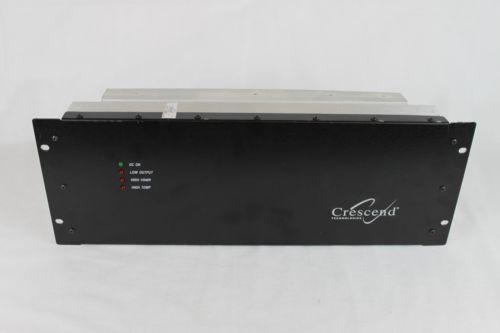

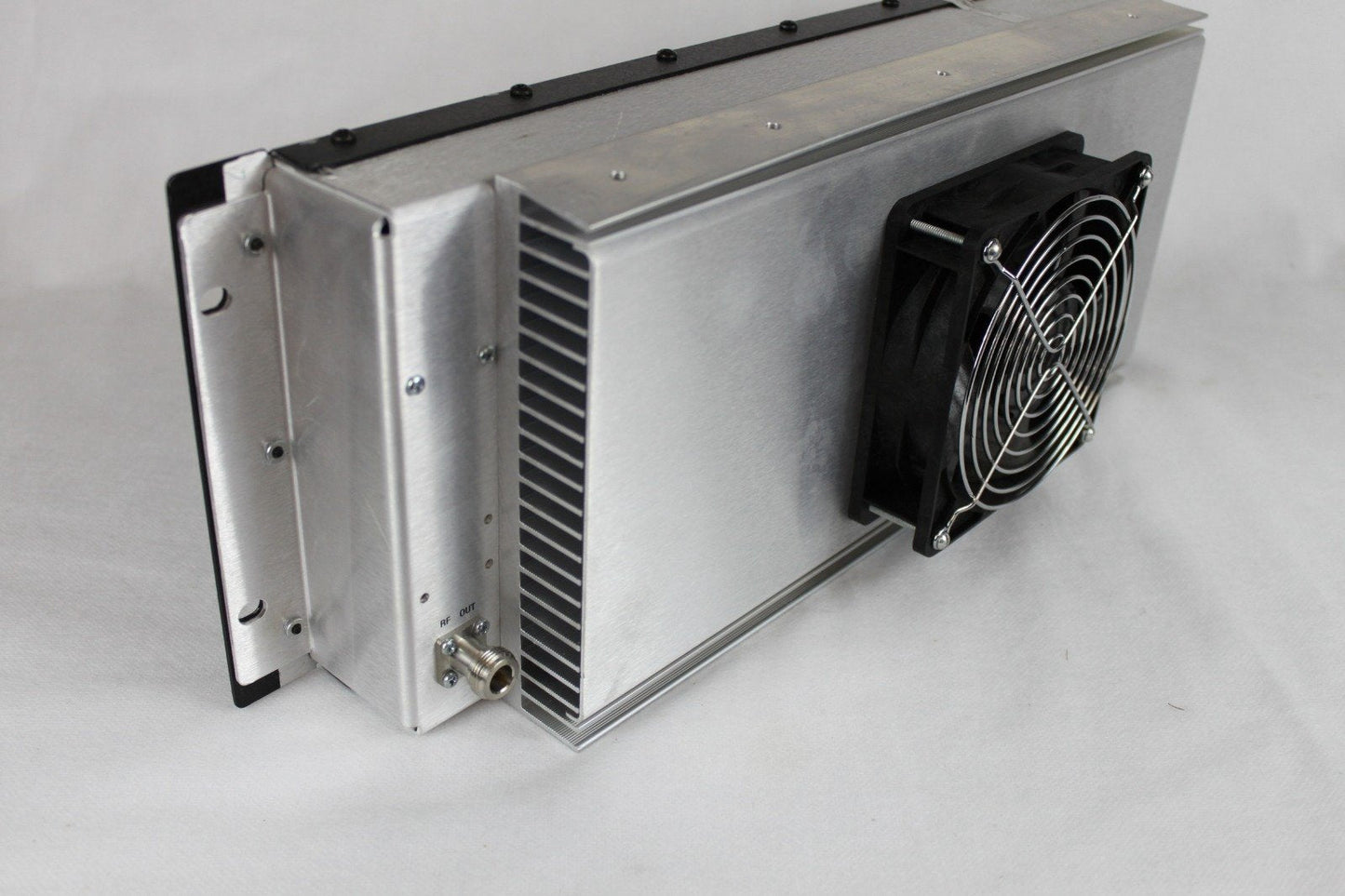

Crescend P8-20EA1-C5-002 VHF (152-162MHz) Power Amplifier (80W)

This is a Crescend, 80W, VHF power amplifier with a band split of 152-162 Mhz, model number P8-20EA1-C5-002. PA's are set up for DC power, 25 watts Input = 80 Watts Output. Each unit is guaranteed fully operational. Amplifiers have been tested at both 152.000 Mhz and 155.000 Mhz, in both cases the unit puts out 80 watts (See Screen Shots) .

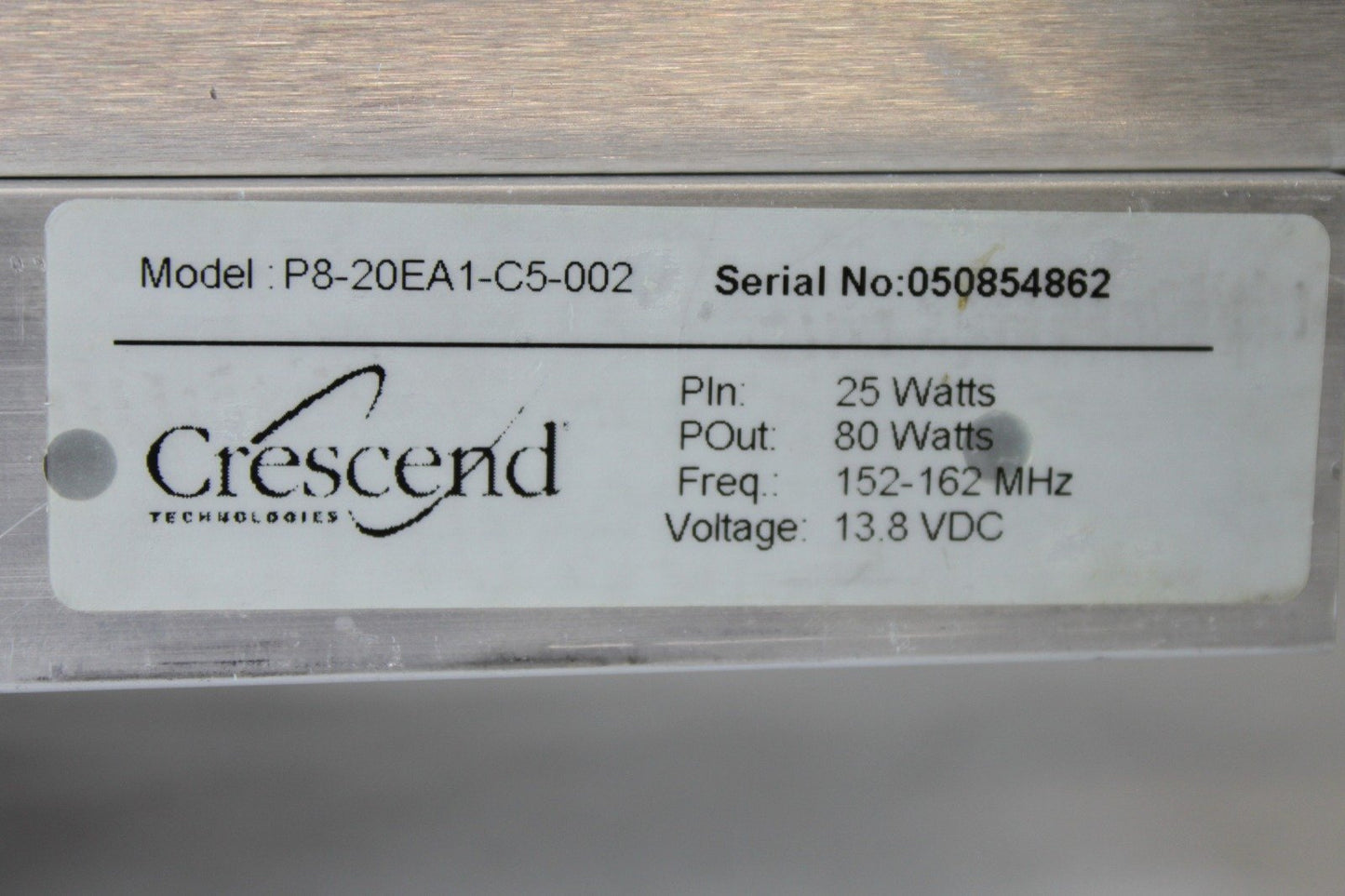

SPECS:

• Power Input: 25W
• Power Output: 80W
• Frequency Range: 152-162
• Operating Voltage: 13.8 VDC
• Current Draw: 23 Amperes

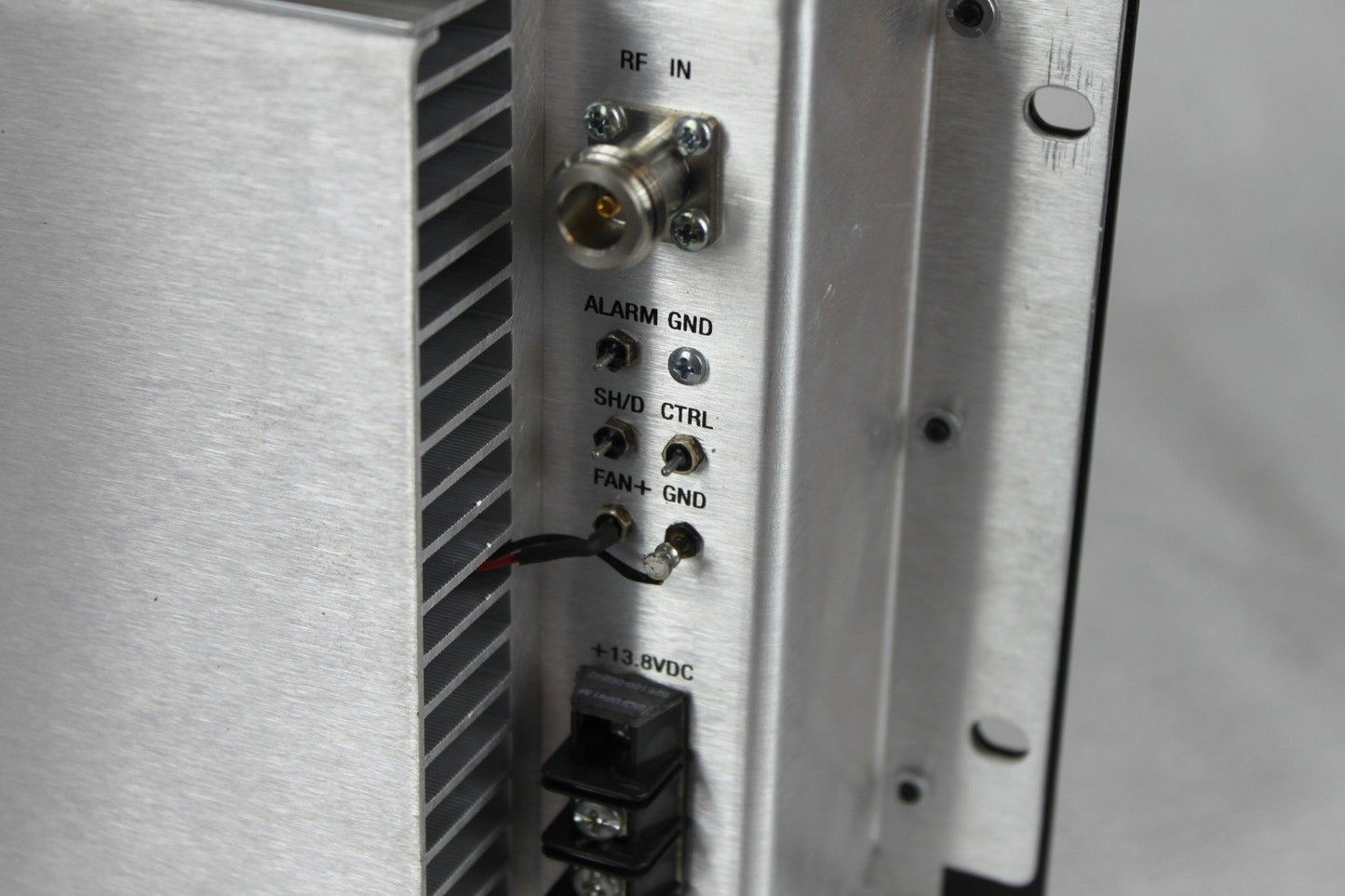

• Input/output: Type ‘N’ Female
• Duty Cycle: 100%
• Dimensions: D 6” x W 19” x H 7”

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
