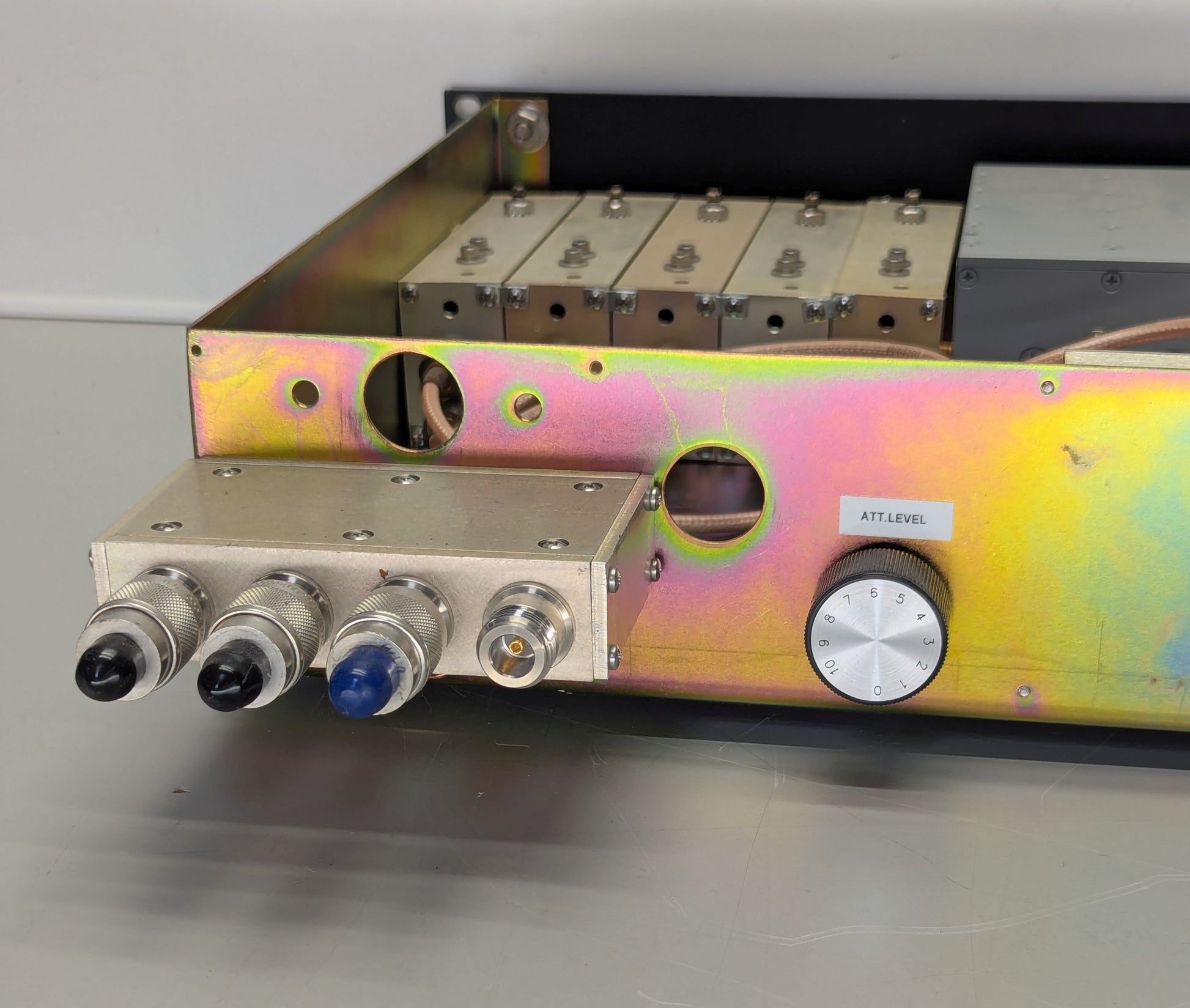

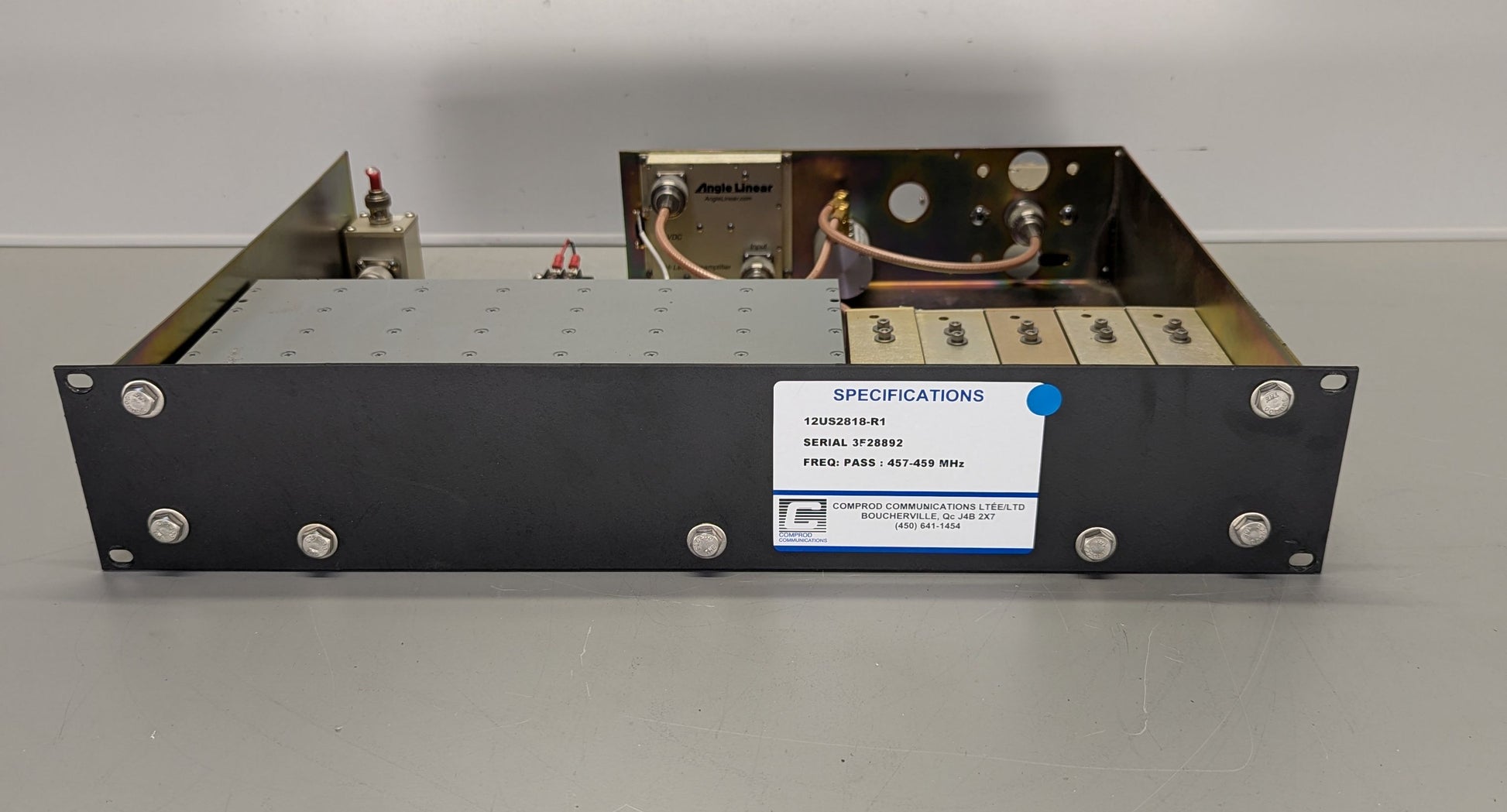

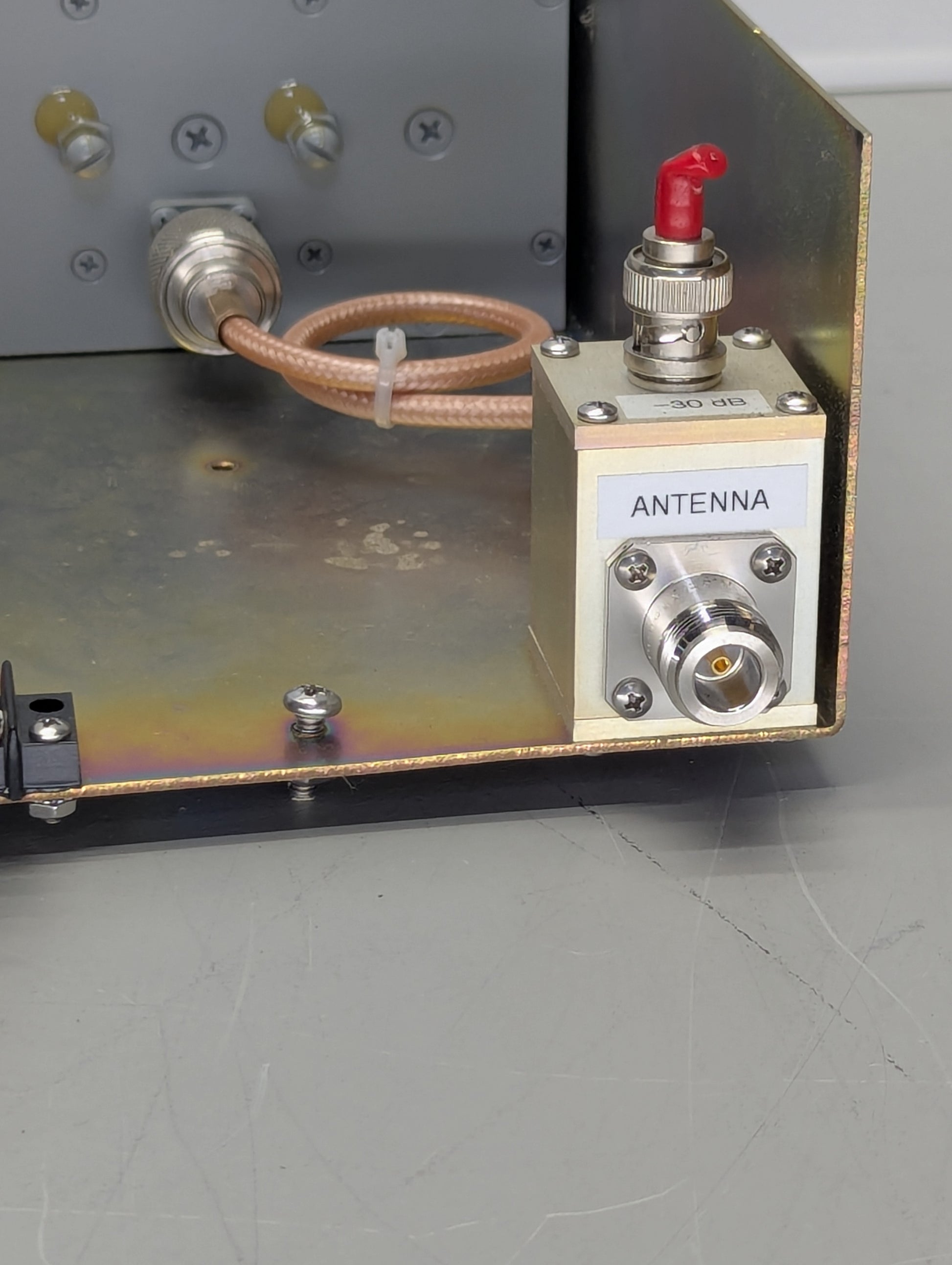

COMPROD 12US2818-R1/XRM 91-45-4N02+ UHF Expandable RX MULTICOUPLER

COMPROD 12US2818-R1/XRM 91-45-4N02+ UHF Expandable RX MULTICOUPLER

12US2818-R1/XRM 91-45-4N02+

$975.00 USD
$975.00 USD
Sale Sold out
Shipping calculated at checkout.

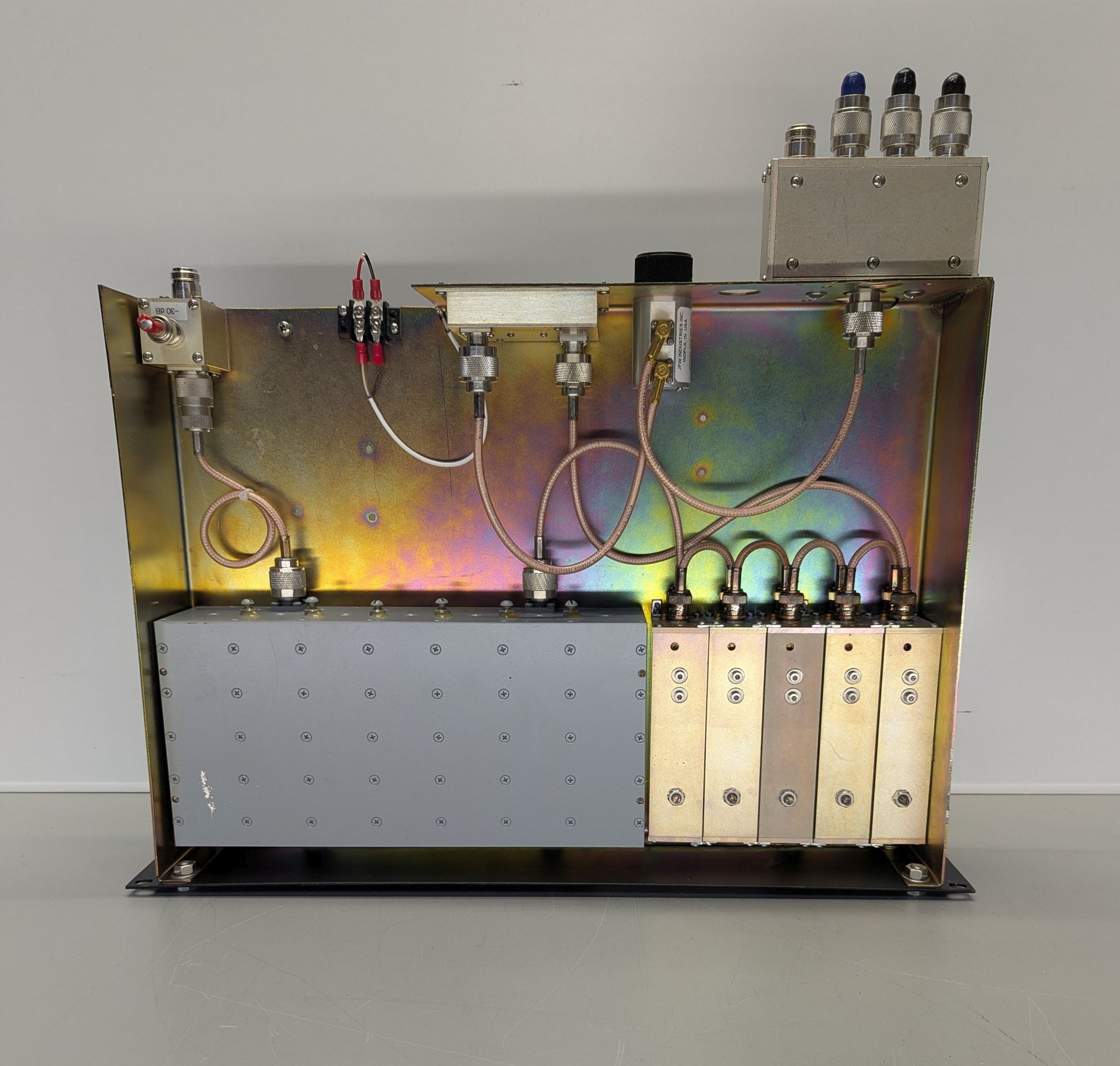

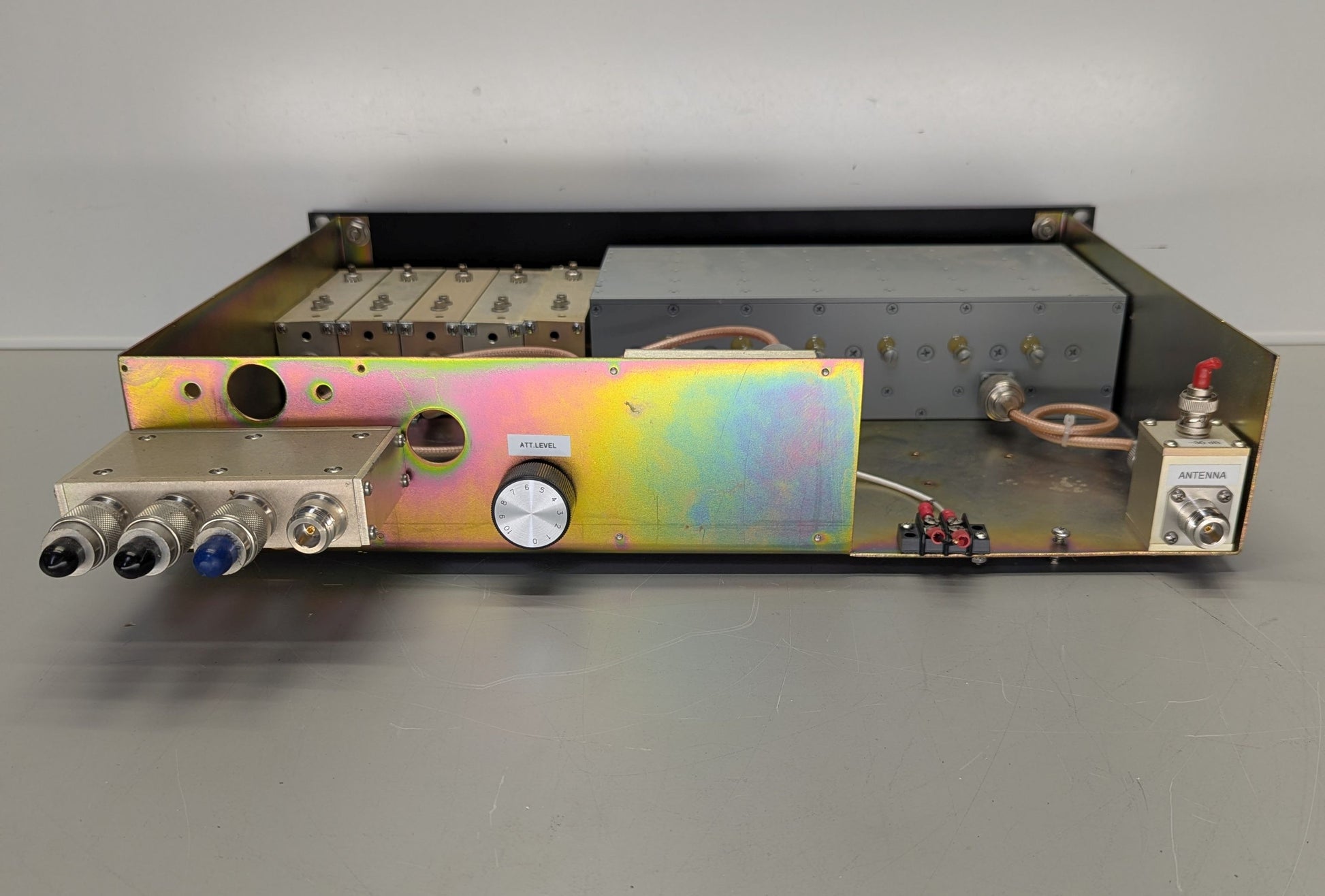

This four port expandable receive multicoupler (XRM 91-45-4N02+) provides an affordable means of combining multiple receiver frequencies onto the same antenna. This unit has a 2 MHz BP filter and 4 notch filters for close channel spacing. It came in with 12-28 VDC.  120 VAC power supply has been added.



It was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • COMPROD 12US2818-R1 UHF RX MULTICOUPLER

  • 30-day warranty

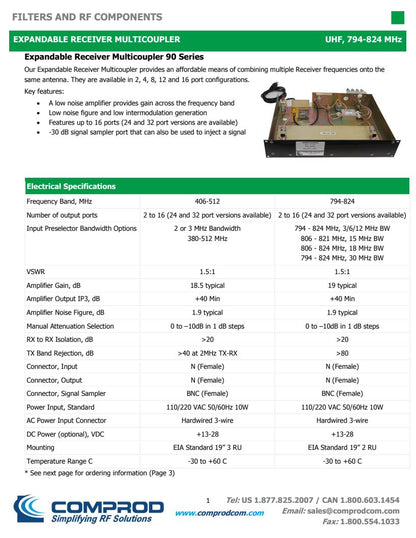

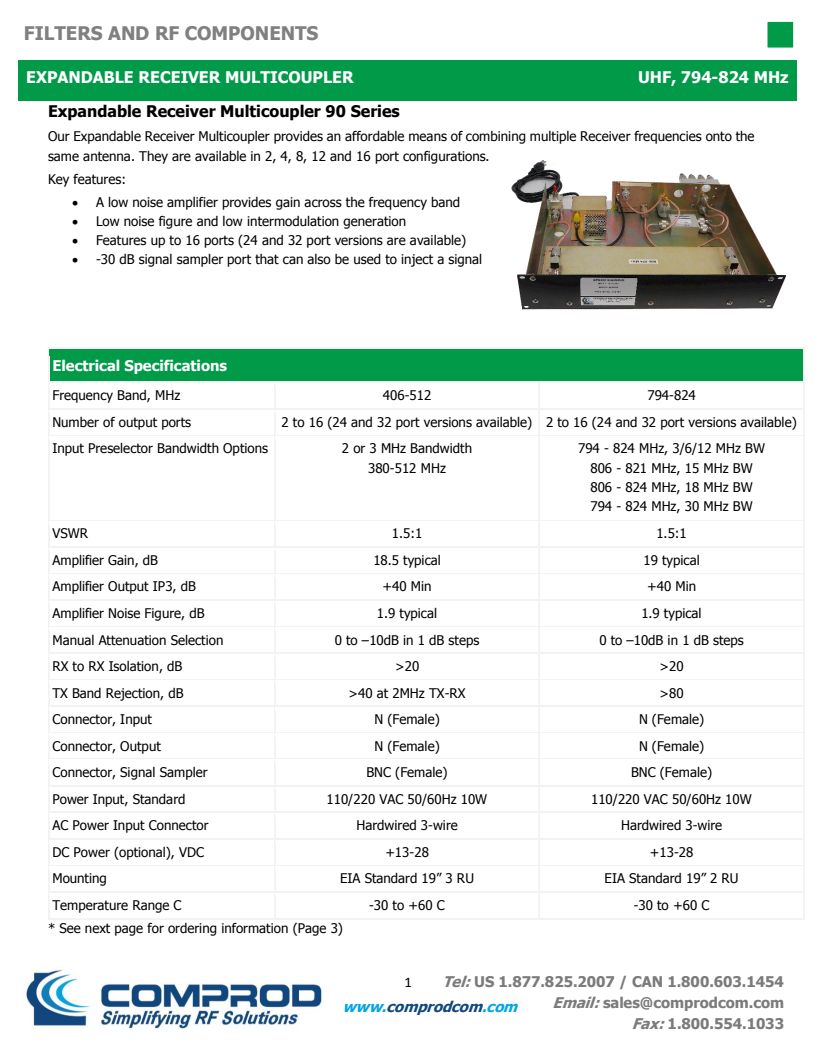

Product Details:

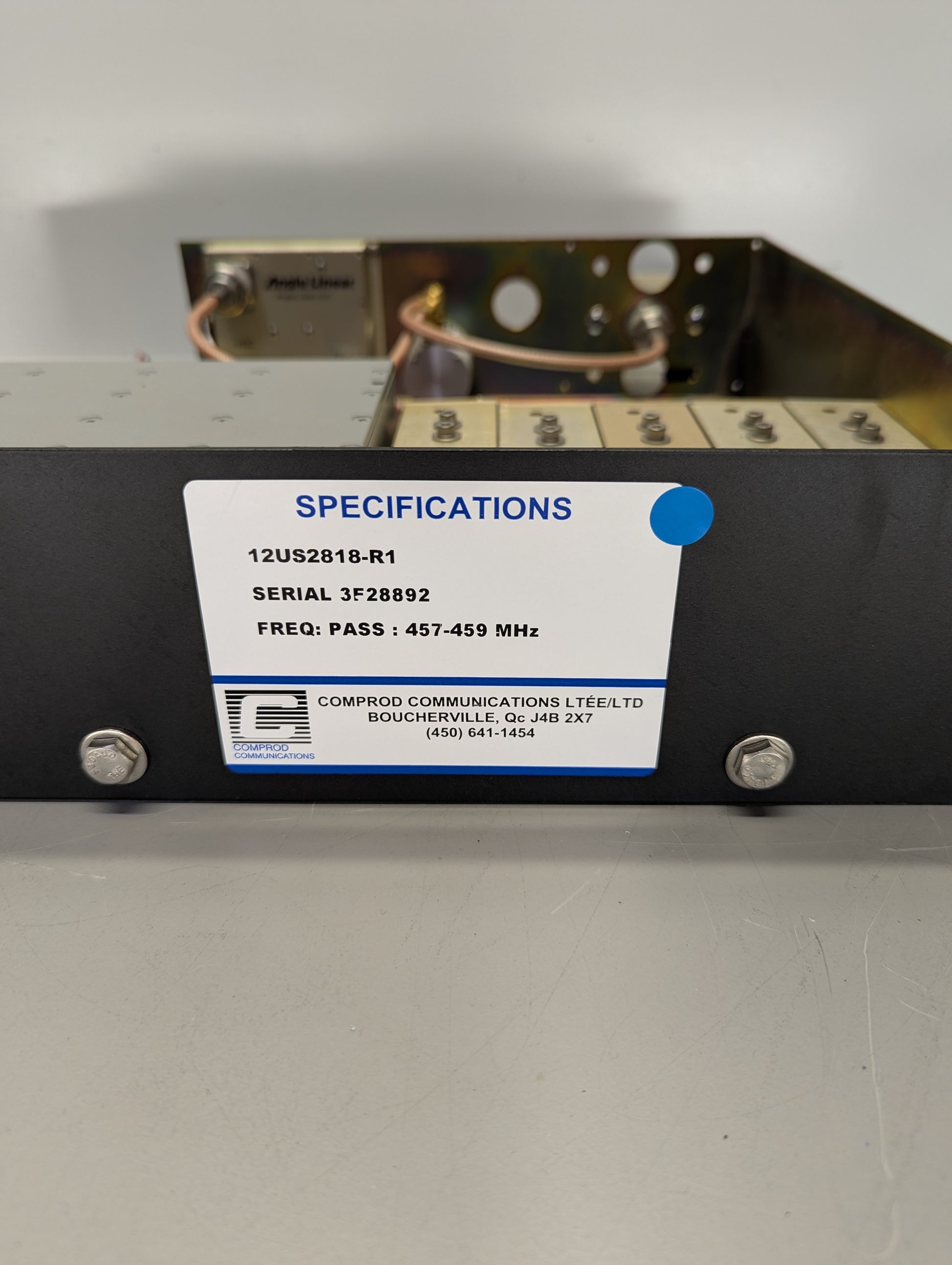

  • Model Number: 12US2818-R1/XRM 91-45-4N02+

  • Frequency Range: 406-512MHz - Ask about tuning

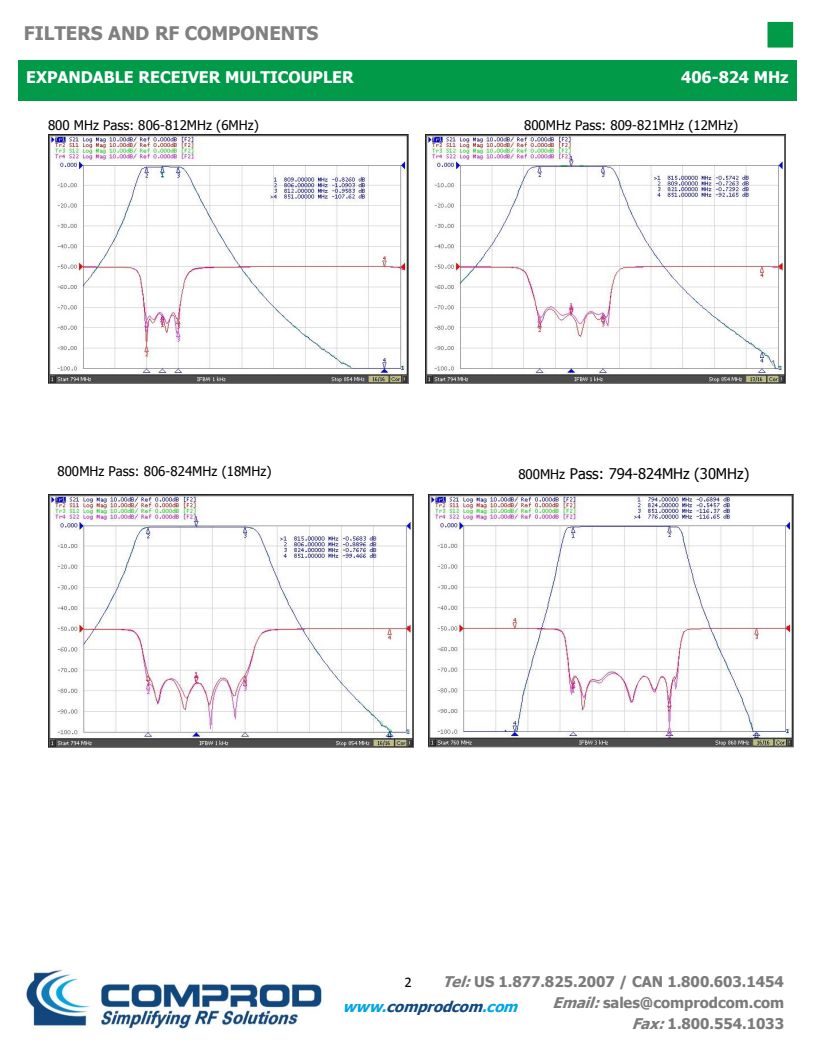

  • Bandpass Filter: 2 MHz wide, currently 457-459 MHz

  • Amplifier Gain: 18.5 dB

  • Amplifier OIP3: +40 dBm

  • In/Output Connectors: N Female/4 N Female

  • Dimensions: 19 in x 5.25 in x 16 in

  • Weight:12 lbs.

*Image shown is a representation only. Actual product may vary.
