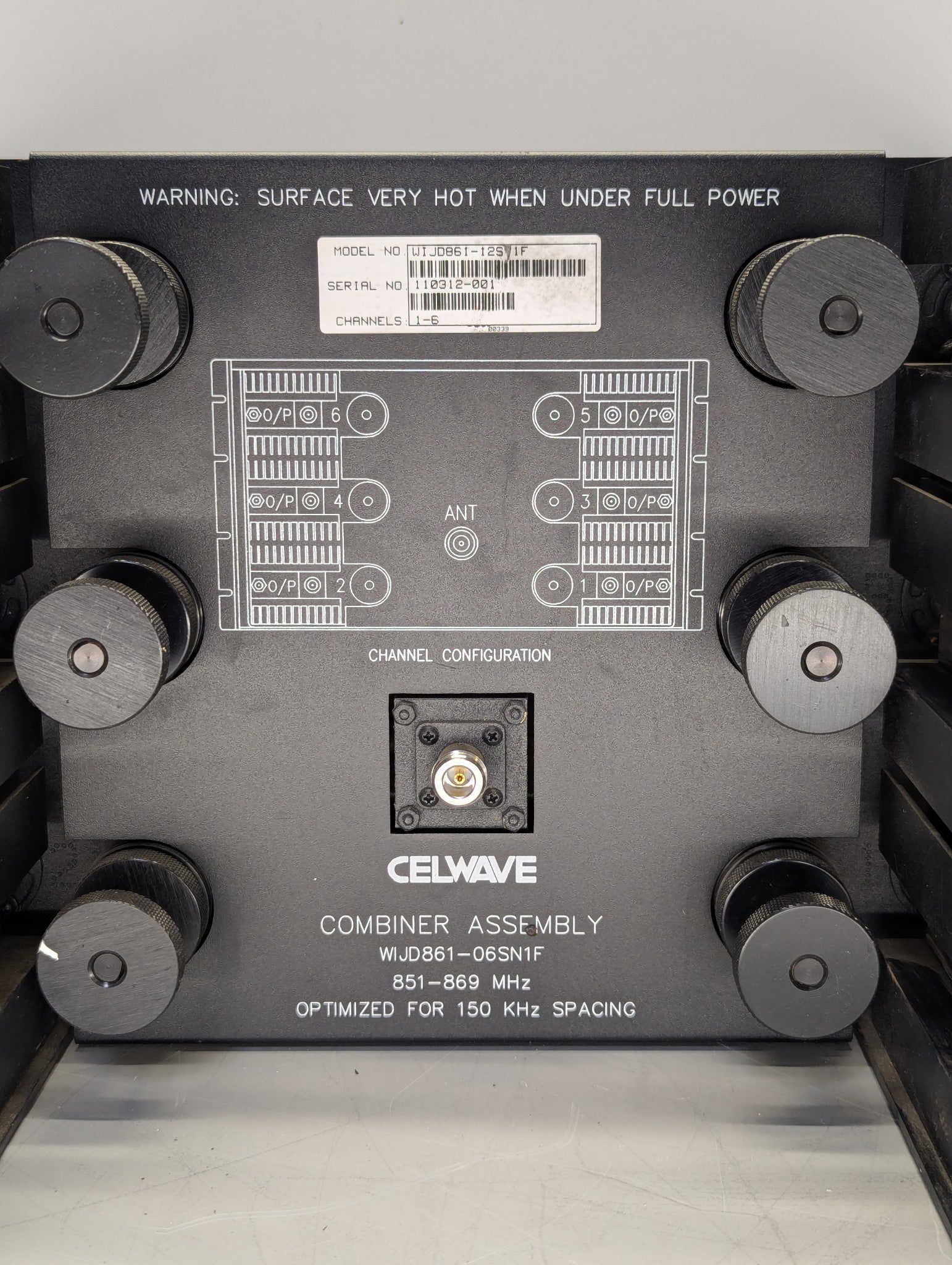

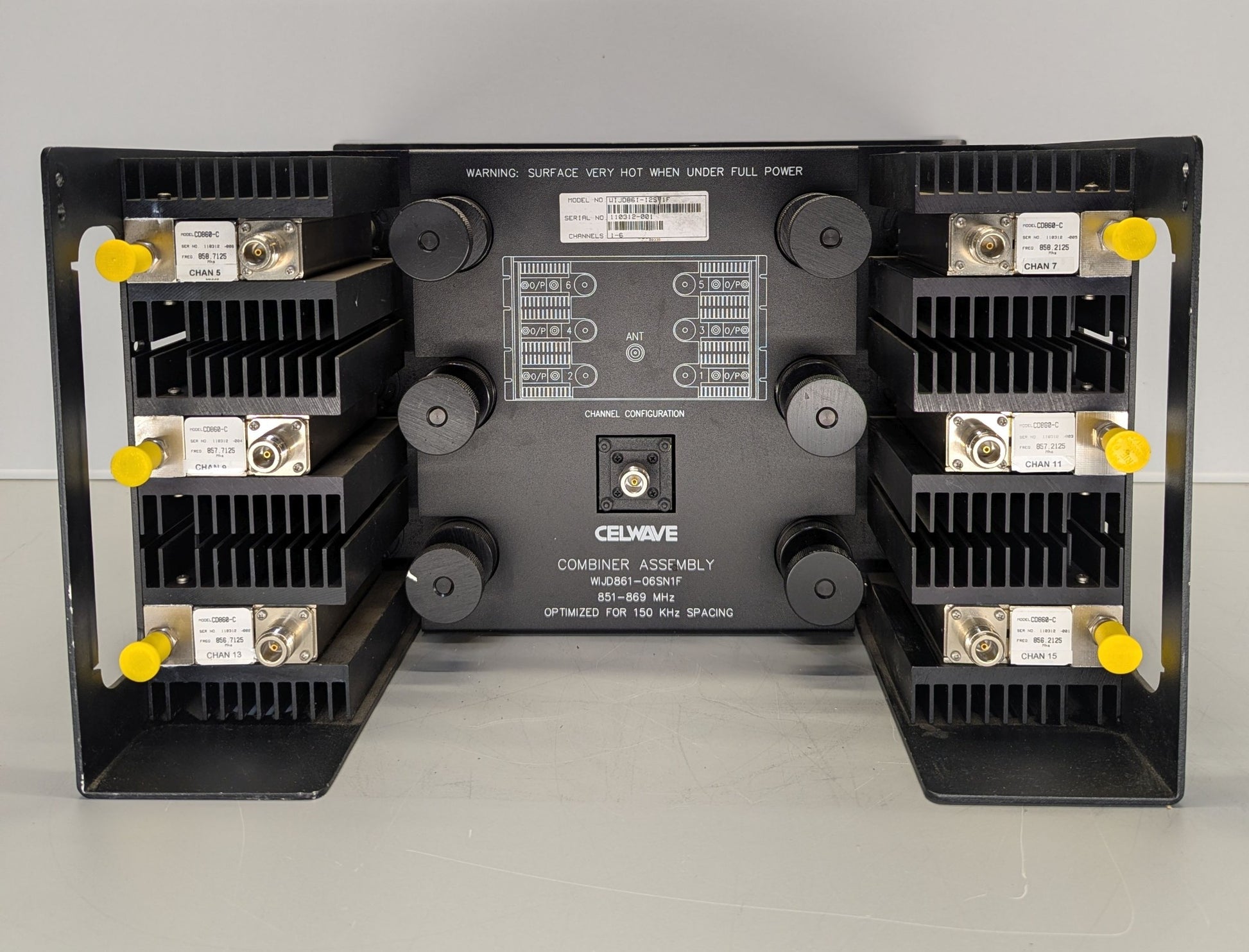

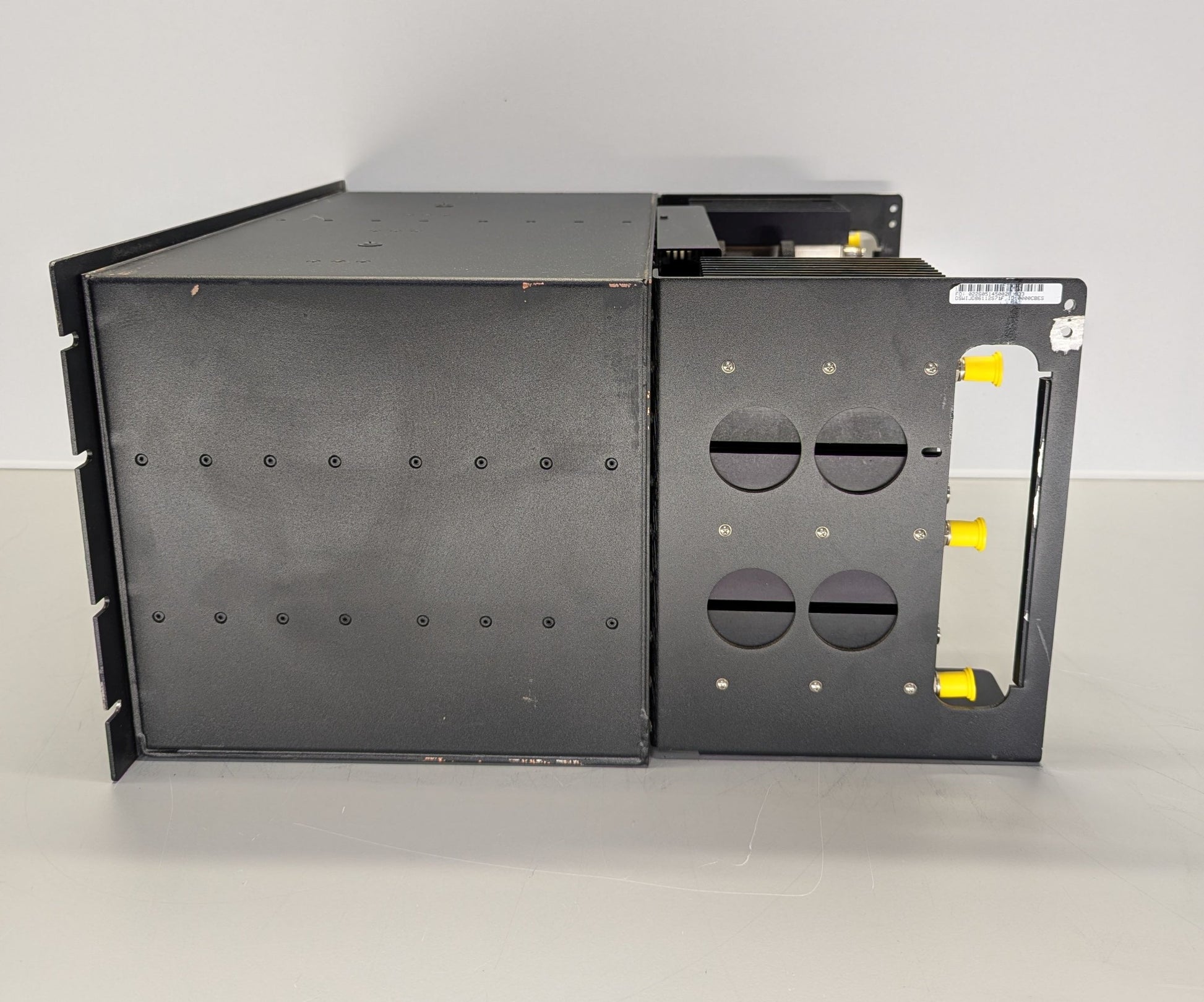

CELWAVE WIJD861-06SN1F 6 CH 800MHz COMBINER

CELWAVE WIJD861-06SN1F 6 CH 800MHz COMBINER

WIJD861-06SN1F

$2,499.00 USD
$2,499.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

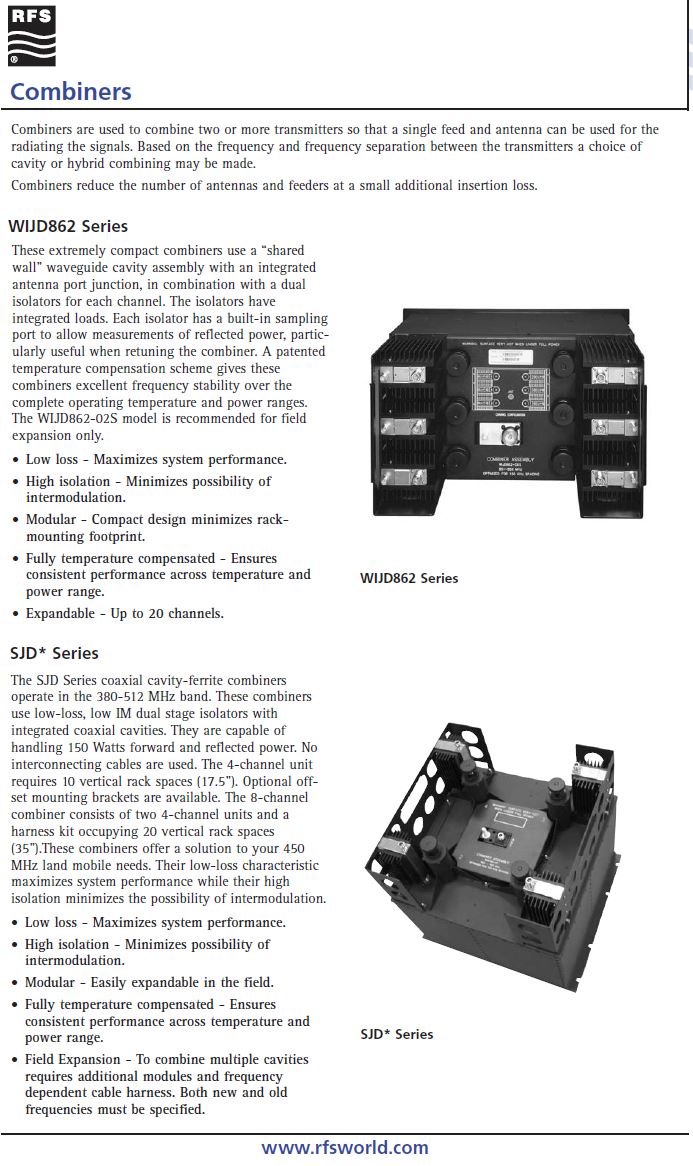

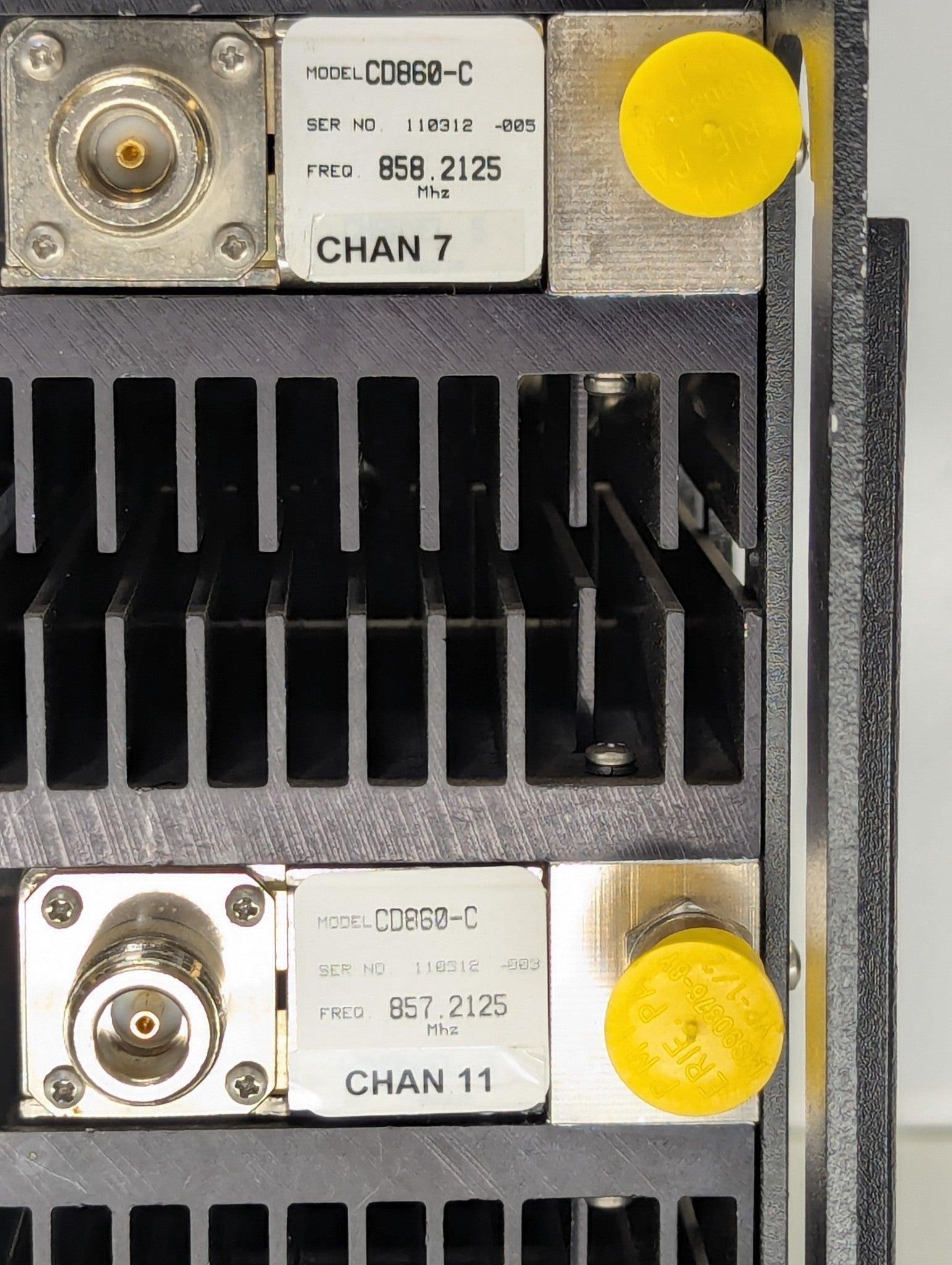

These extremely compact combiners use a "shared wall" waveguide cavity assembly with an integrated antenna port junction, in combination with dual isolators for each channel. This Combiner was pulled from a working unit and is in excellent condition. Tuning is available upon request.  If you have any questions, contact us Monday - Friday 8am-4pm MT.

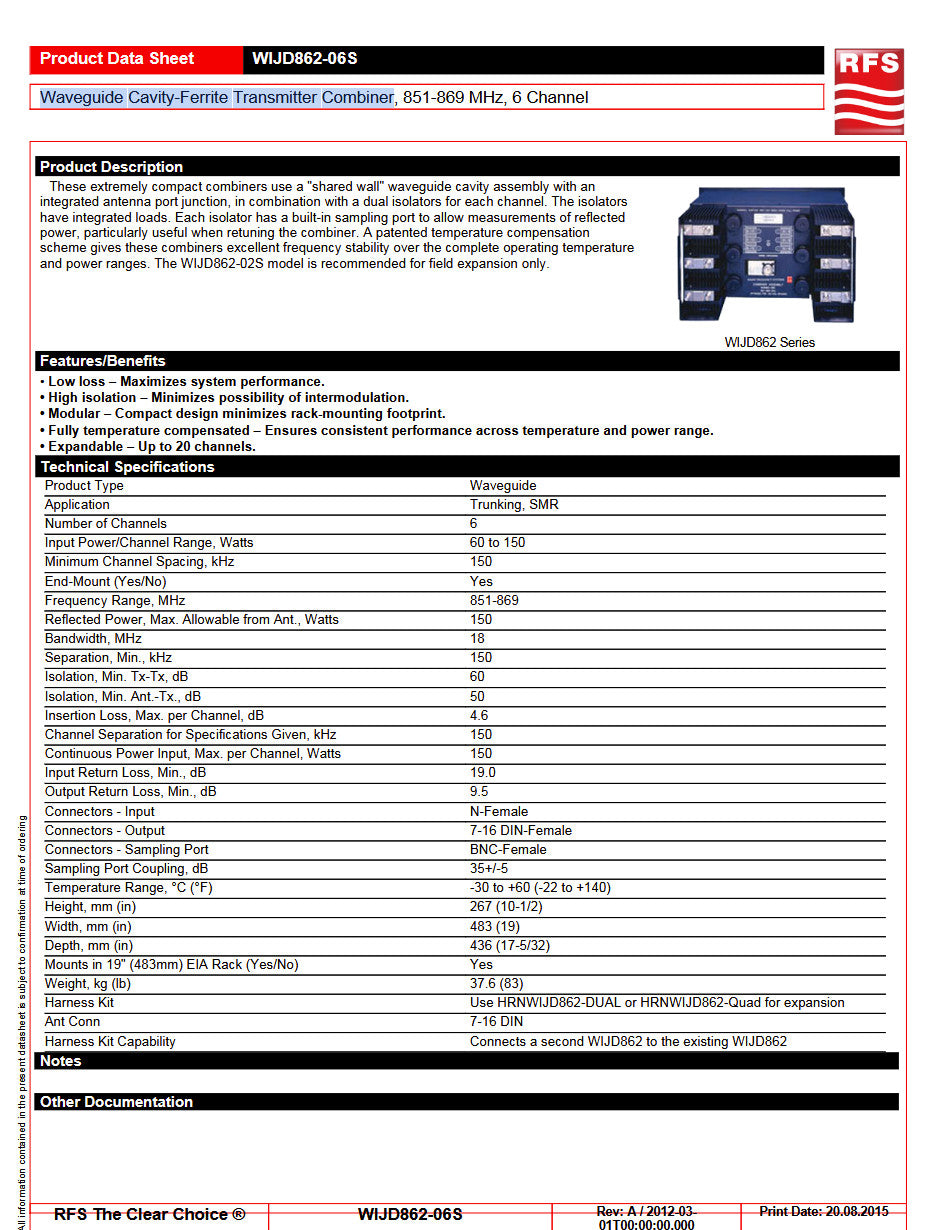

Product Details:

  • Model Number: WIJD861-06SN1F

  • Frequency Range: 851-869MHz

  • Number of Channels: 6 (expandable to 20)

  • Input Power/Channel Range, Watts: 60-150

  • Minimum Channel Spacing, kHz: 150

  • Reflected Power, Max. Allowable from Ant.,Watts: 150

  • Bandwidth, MHz: 18

  • Separation, Min., kHz: 150

  • Insertion Loss, Max. per Channel, dB: 4.6

  • Input Return Loss, Min., dB: 19.0

  • Output Return Loss, Min., dB: 9.5

  • Dimensions: 19w x 10.5h x 18d"

  • Weight:83 lbs.

*Image shown is a representation only. Actual product may vary.
