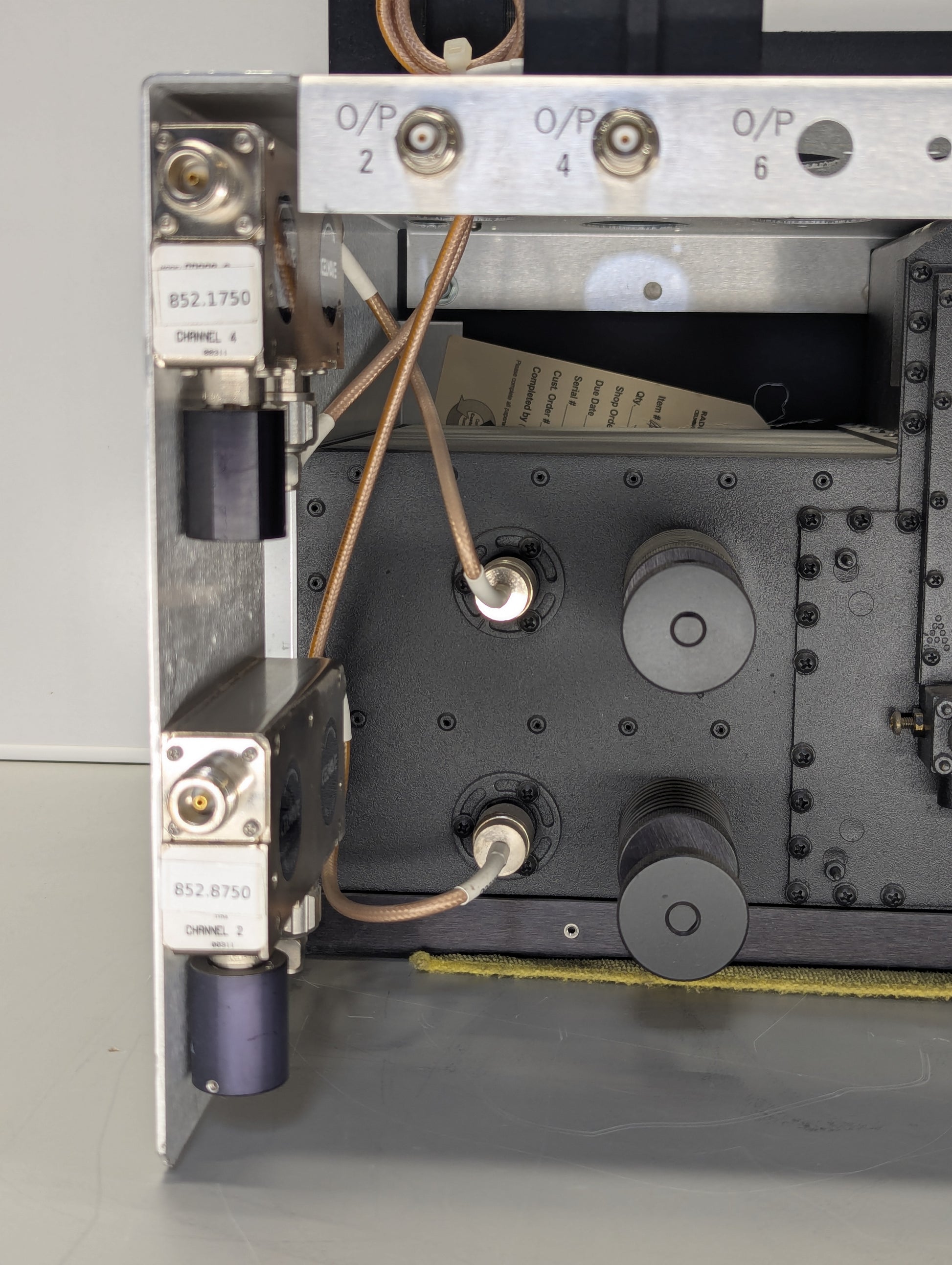

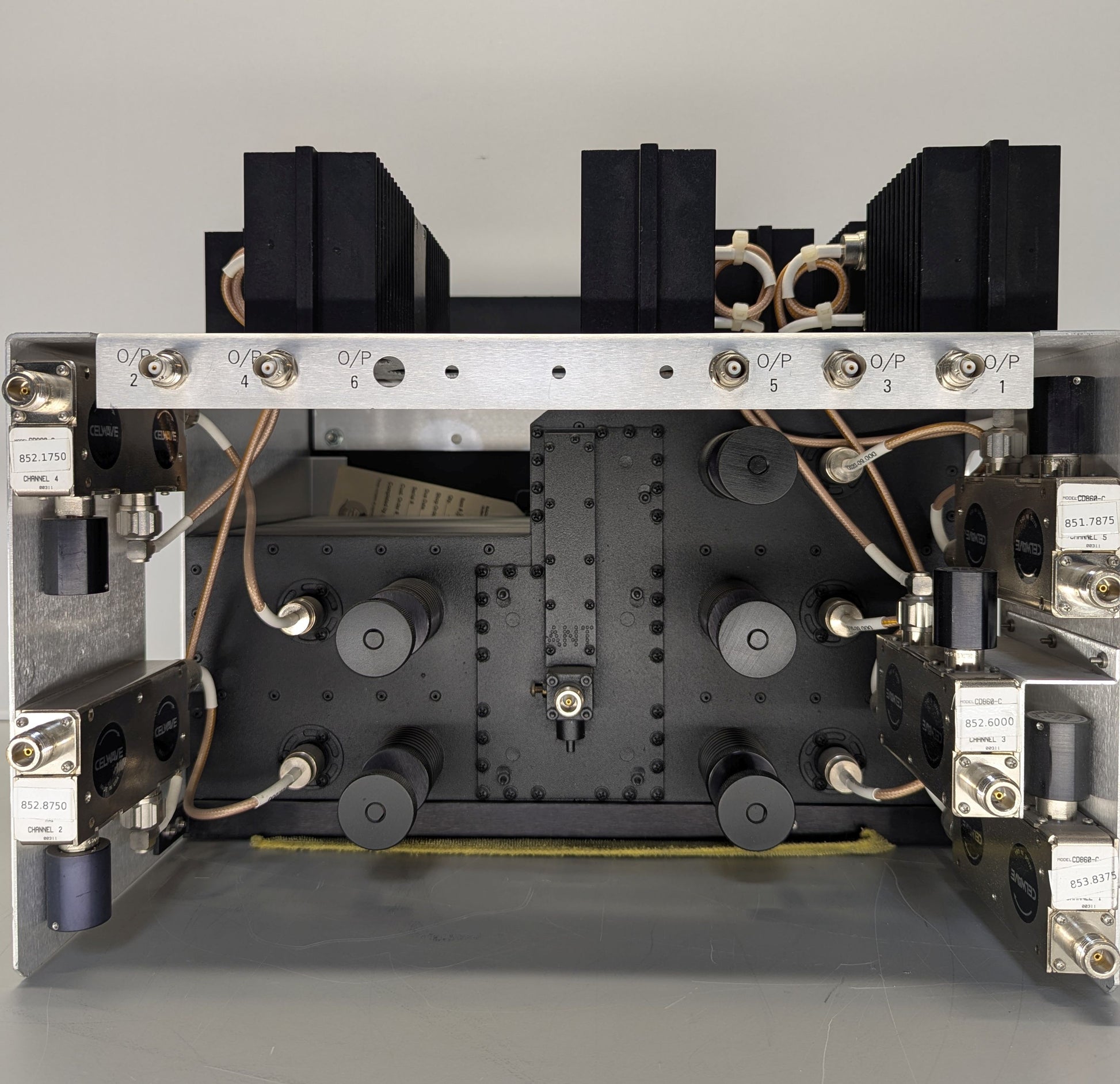

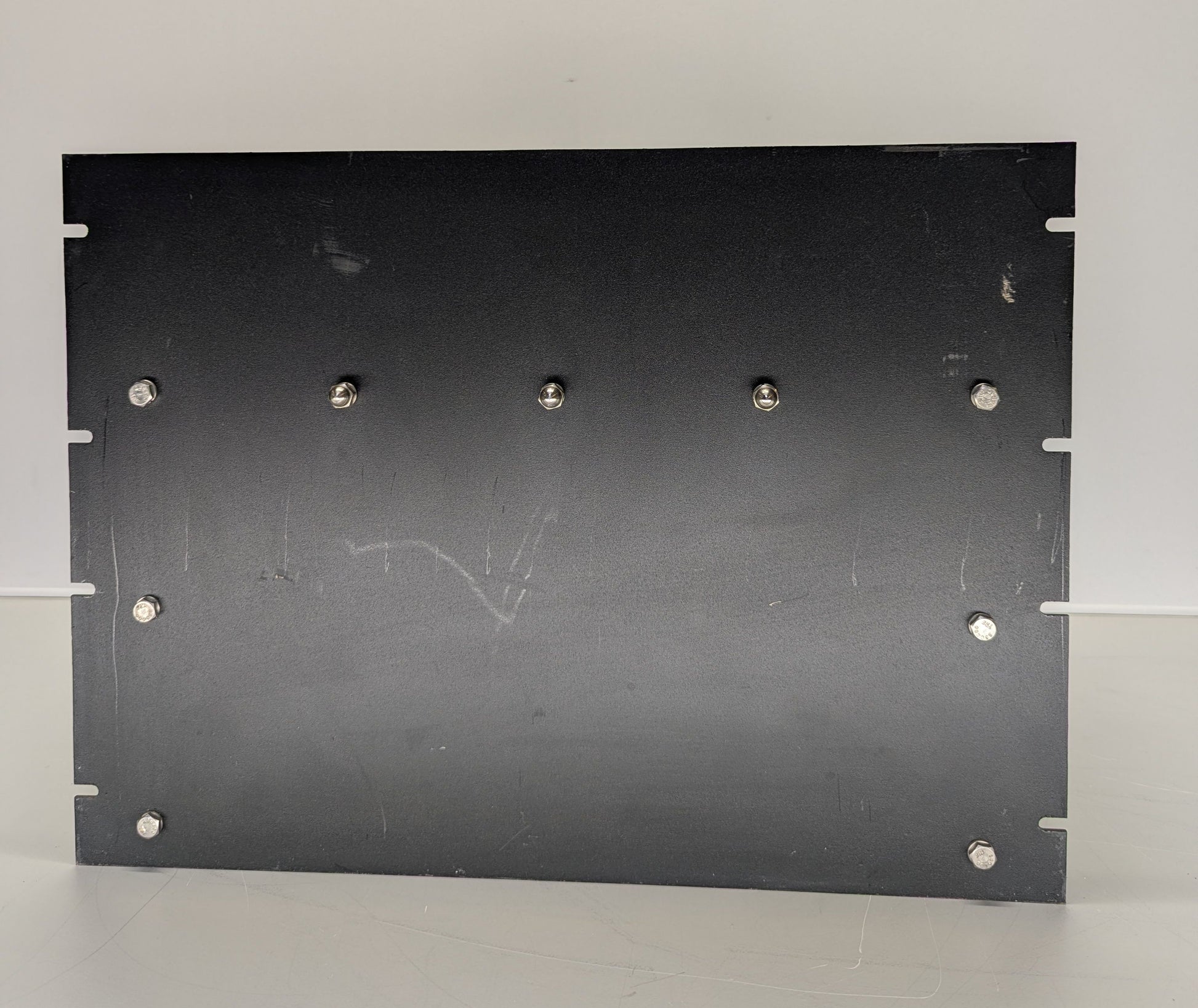

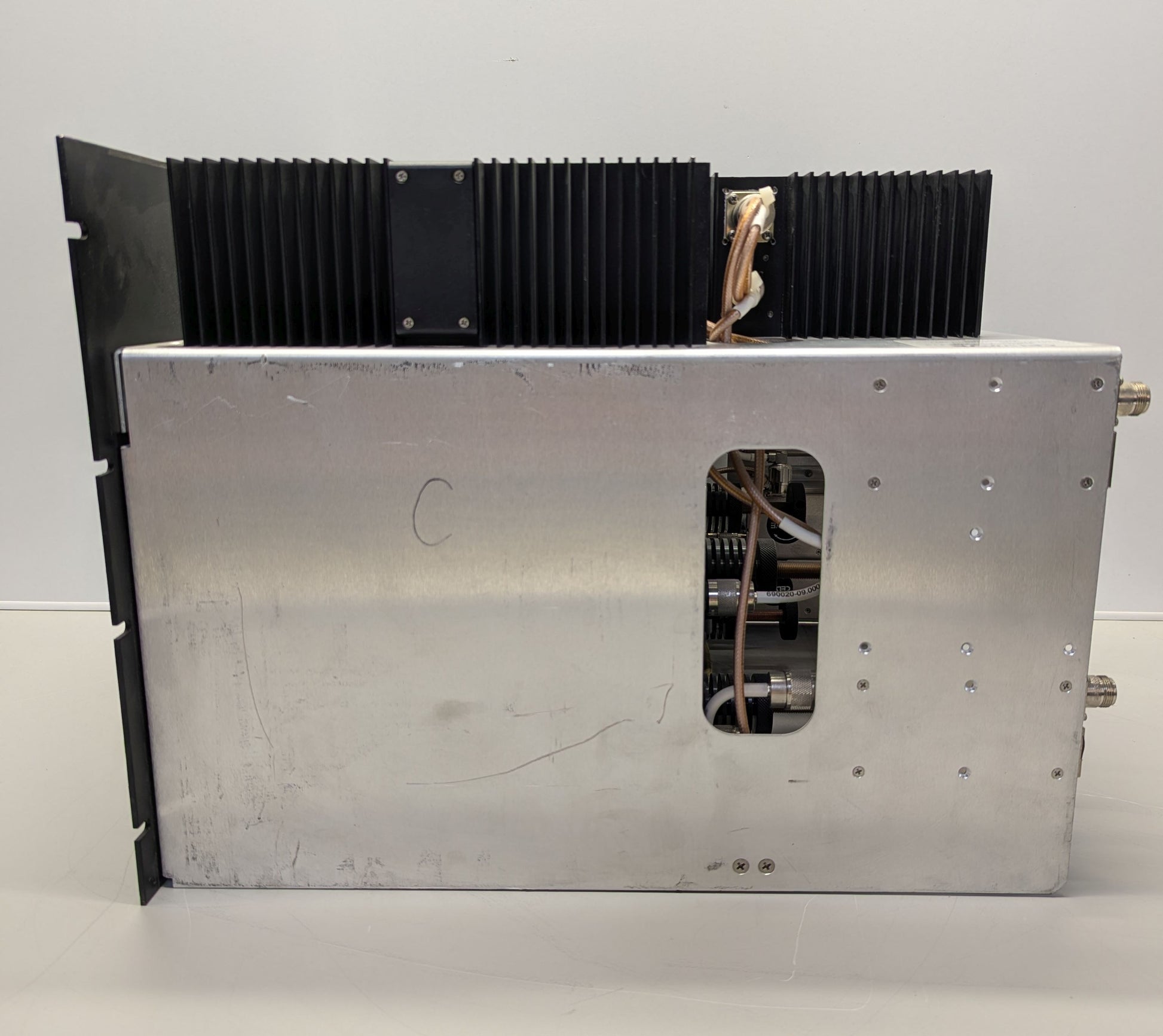

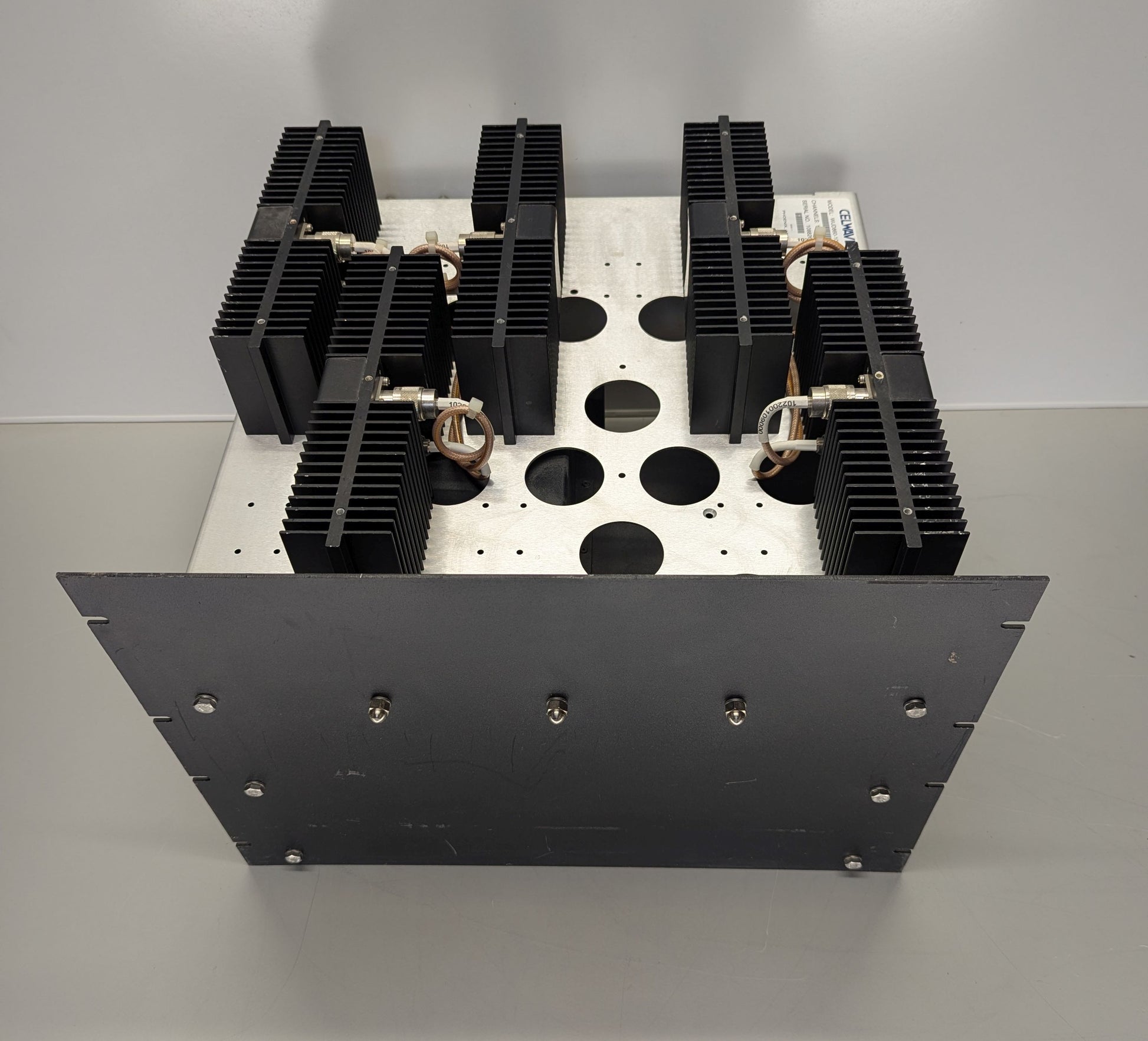

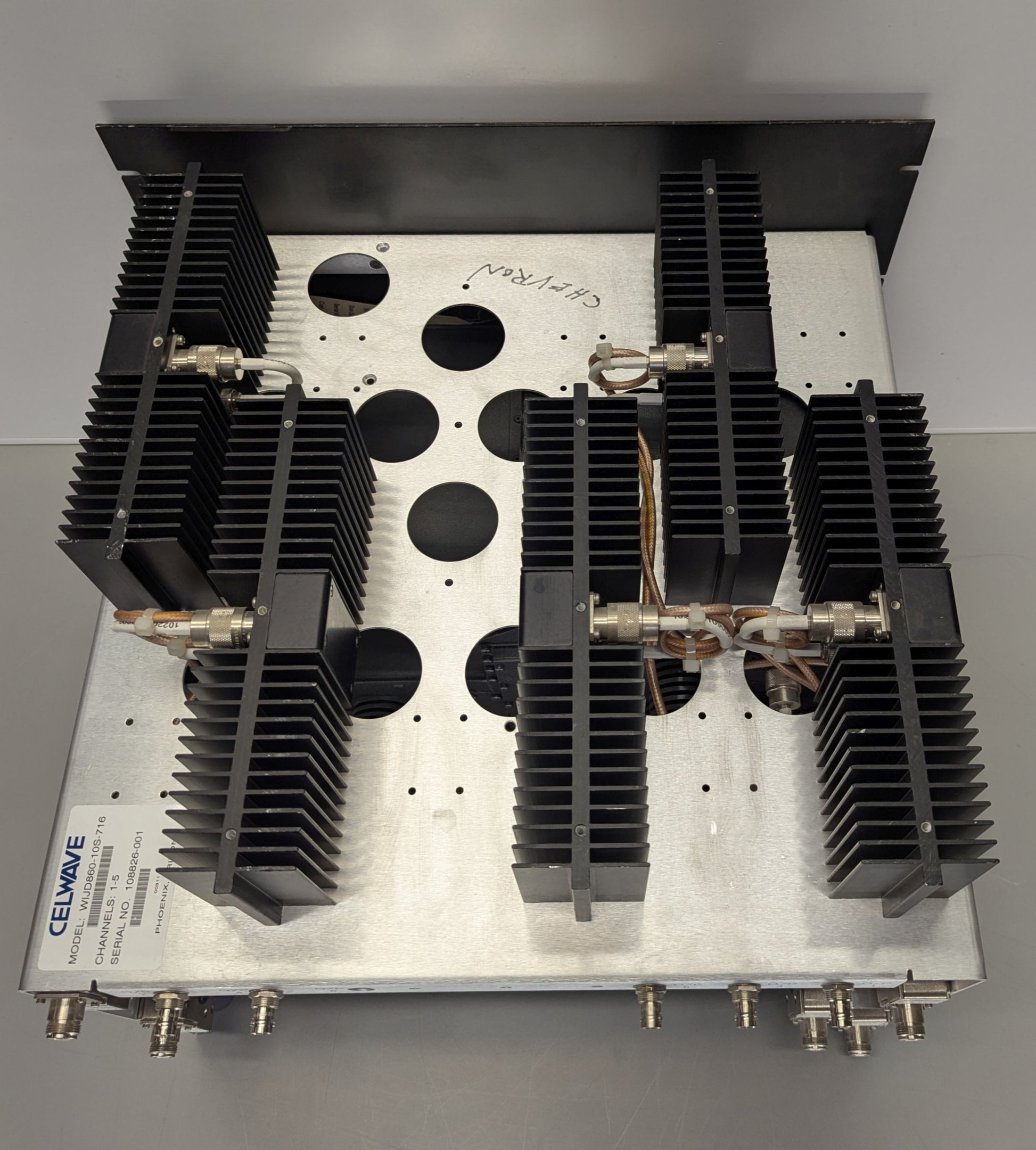

CELWAVE WIJD860-10S-716 5-Ch. 800 MHz COMBINER

CELWAVE WIJD860-10S-716 5-Ch. 800 MHz COMBINER

WIJD860-10S-716

$1,995.00 USD
$1,995.00 USD
Sale Sold out
Shipping calculated at checkout.

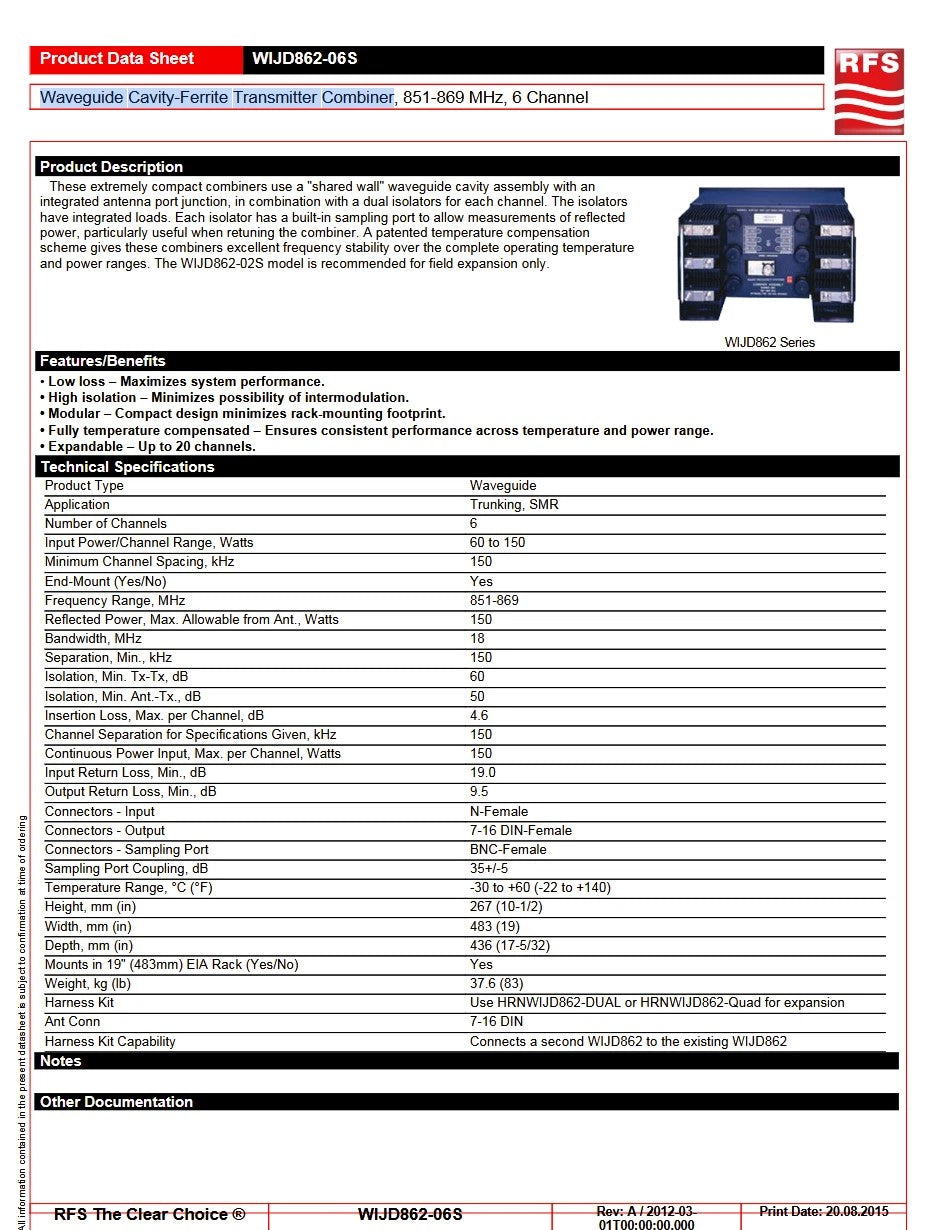

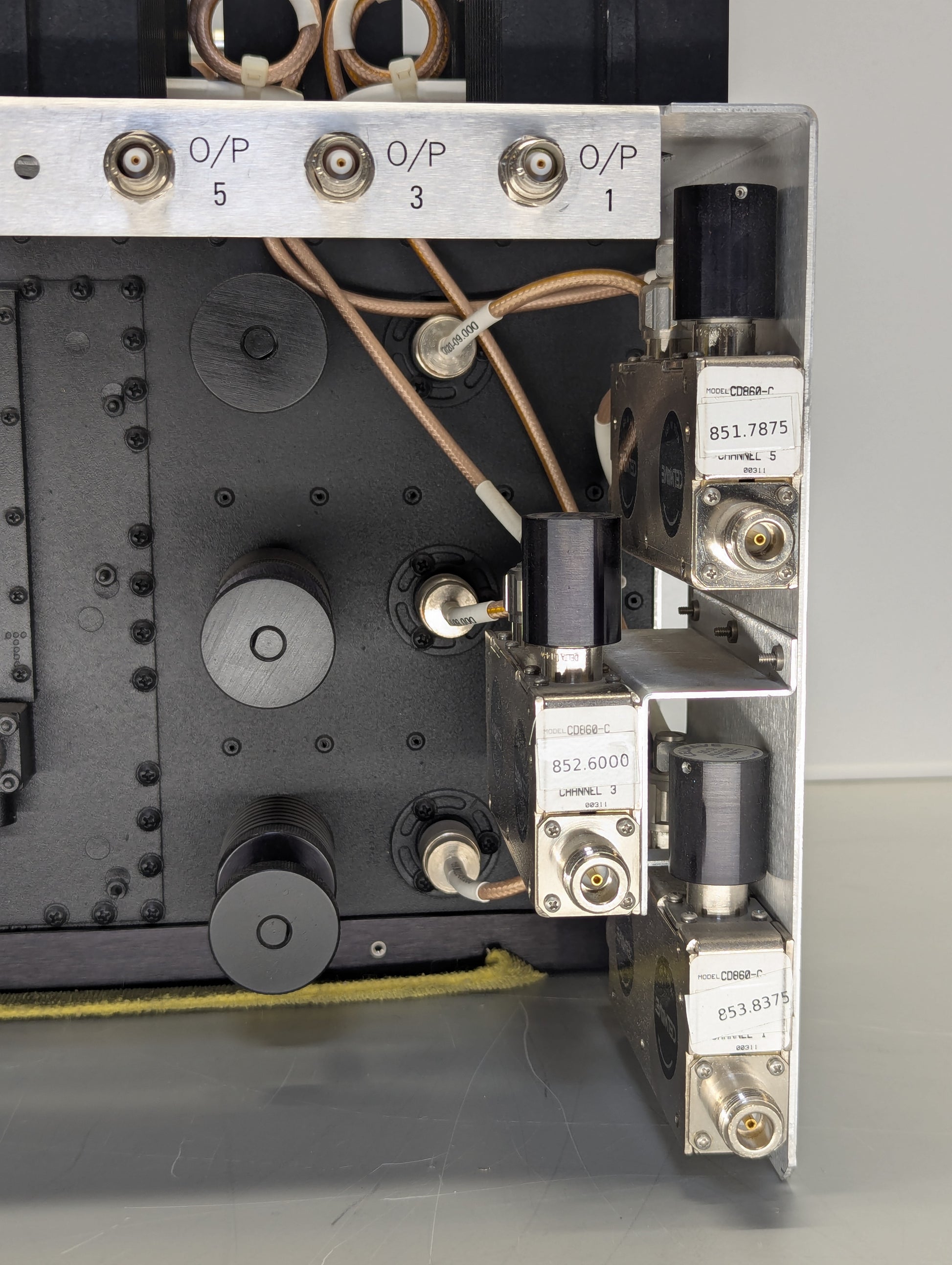

These extremely compact combiners use a "shared wall" waveguide cavity assembly with an integrated antenna port junction, in combination with a dual-isolators for each channel.

It was pulled from a working system and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.

What’s Included:

  • CELWAVE WIJD860-10S-716 5CH. 800 MHz COMBINER

  • 30-day warranty

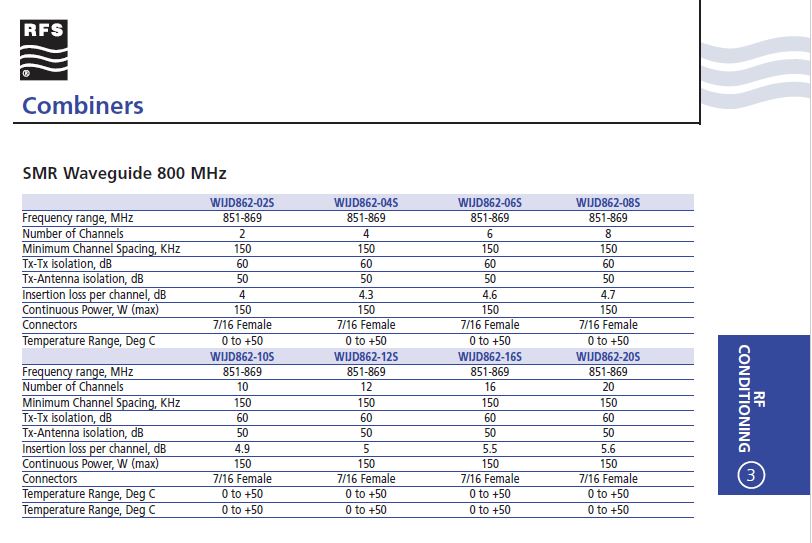

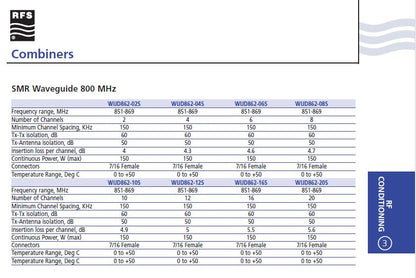

Product Details:

  • Model Number: WIJD860-5

  • Frequency Range: 851-869 MHz

  • Number of channels: 5

  • Bandwidth: 18MHz

  • Isolation, Min. Tx-Tx: 60dB

  • Isolation, Min. Ant.-Tx: 50dB

  • Insertion Loss, Max. per Channel: 4.6dB

  • Input Return Loss, Min: 19dB

  • Input Power: 150W

  • In/Output Connectors: N-female

  • Dimensions: 19"w x 19"d x 14"h

  • Weight:84 lbs

*Image shown is a representation only. Actual product may vary.
