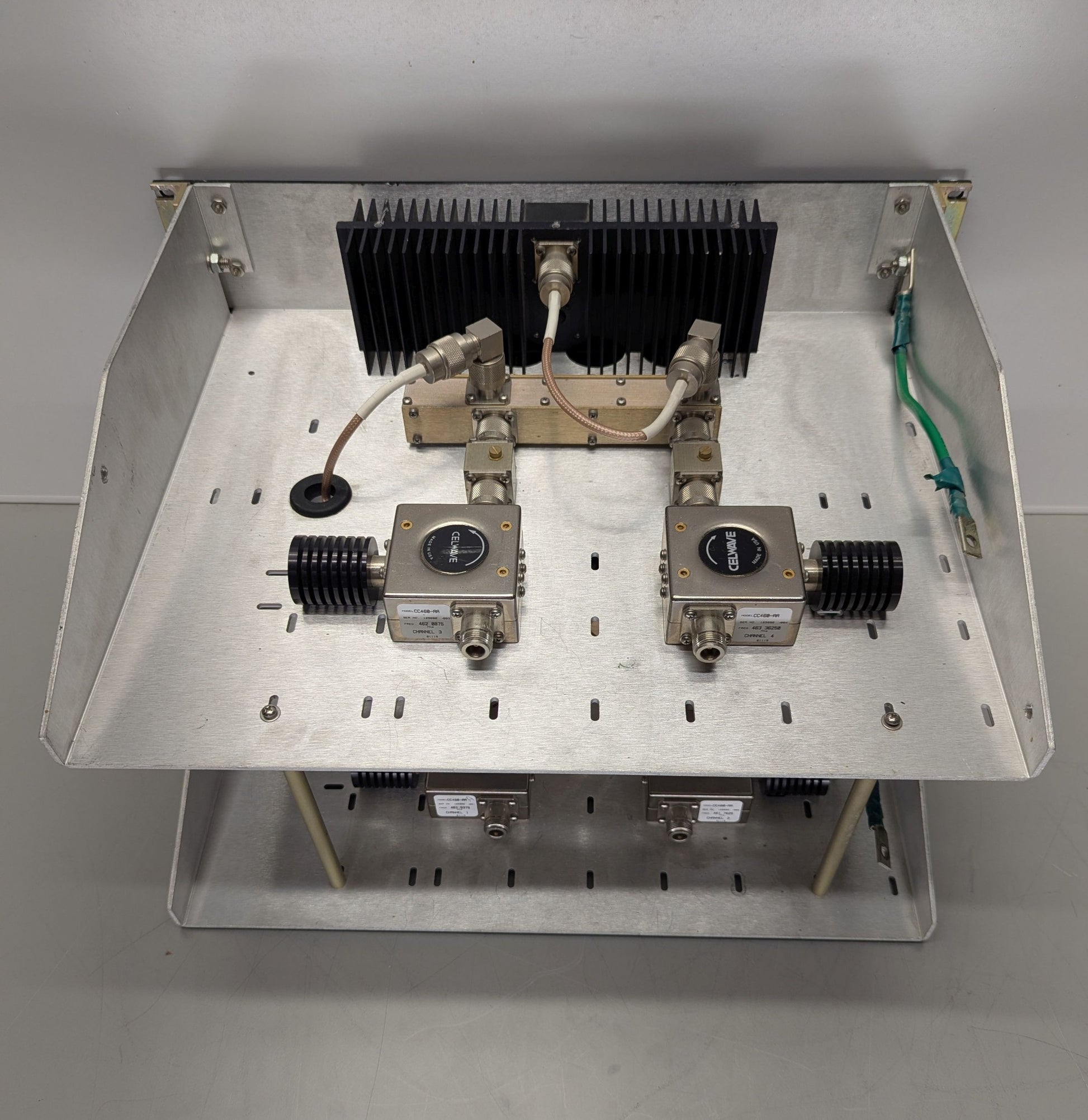

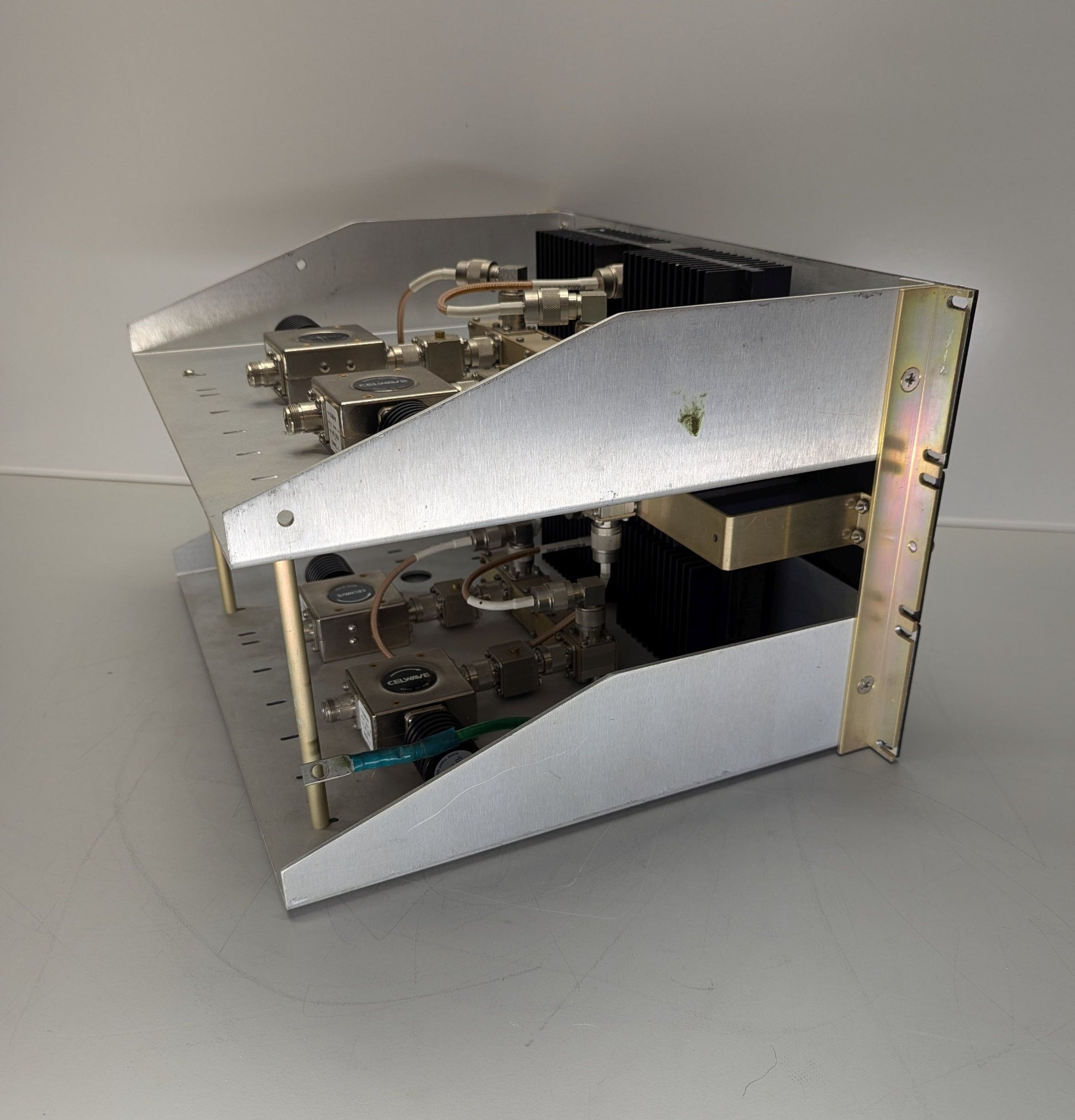

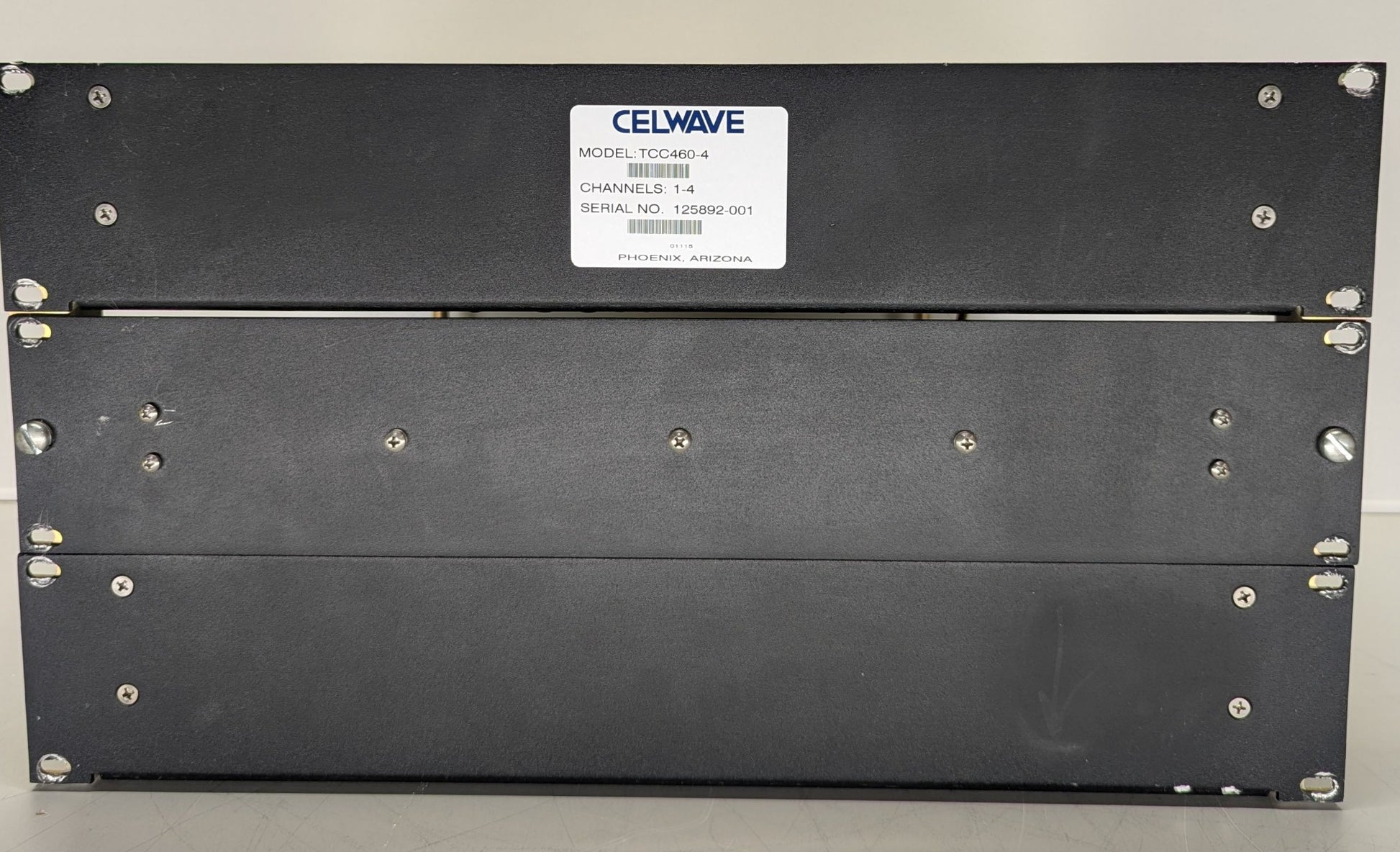

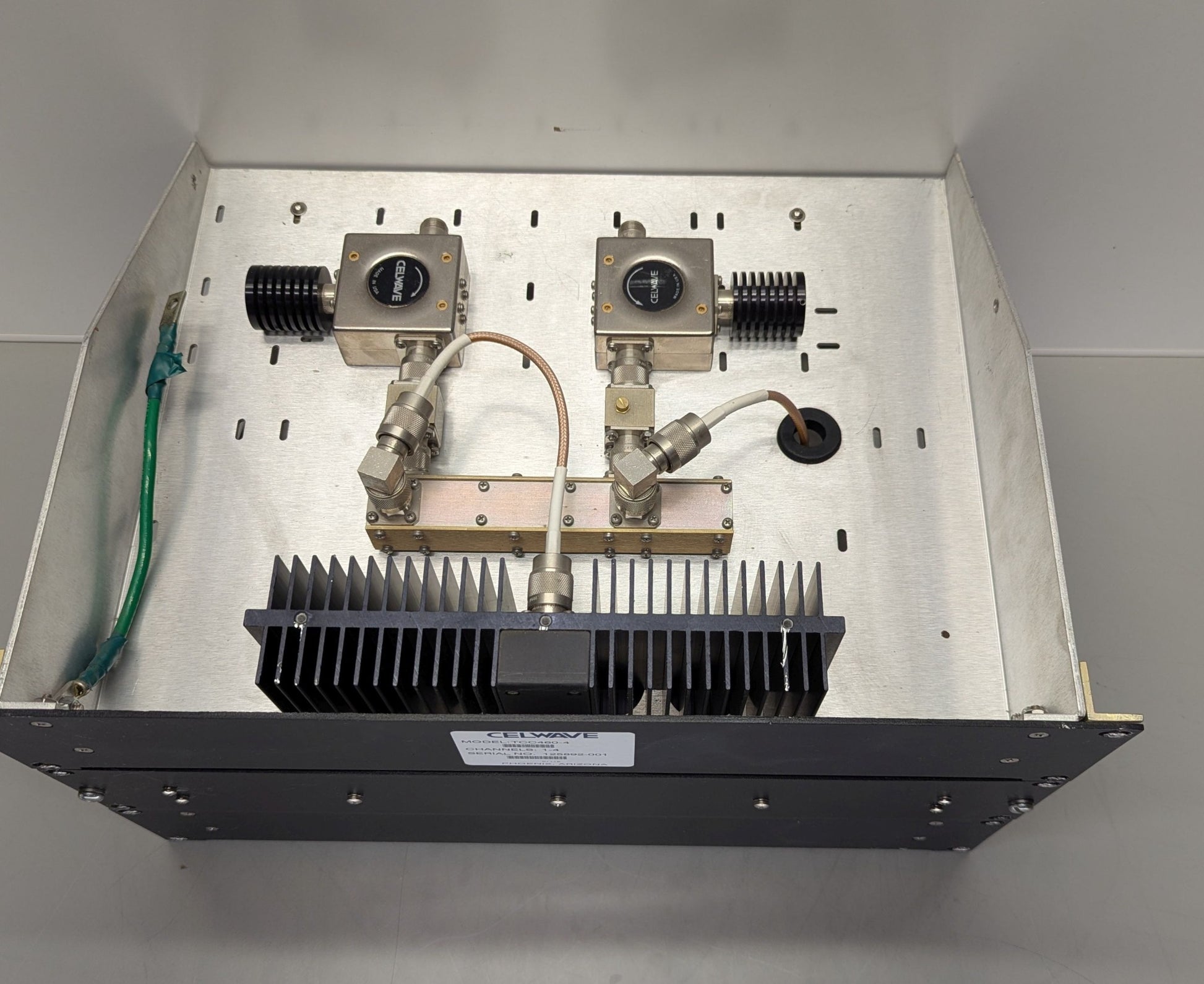

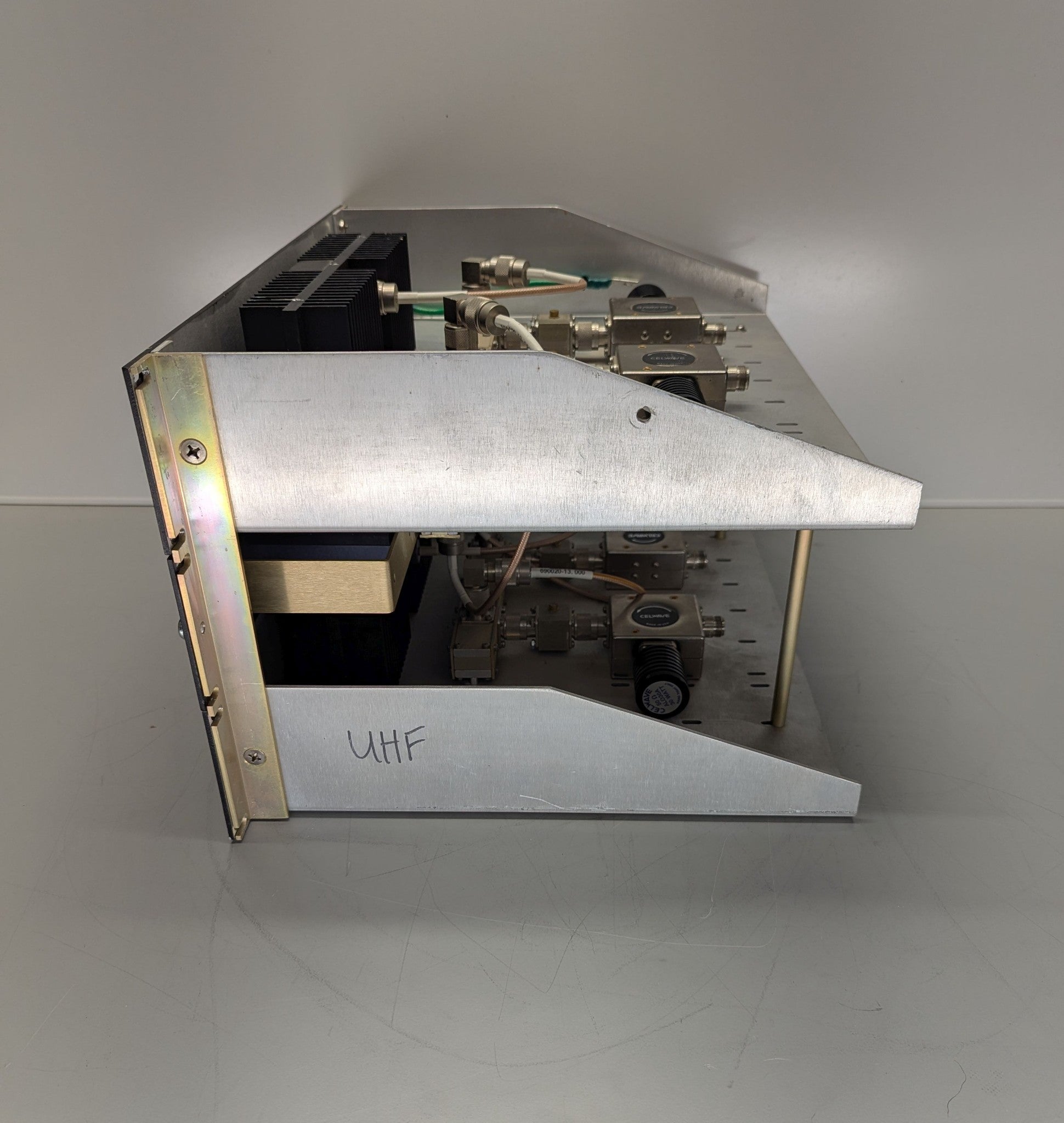

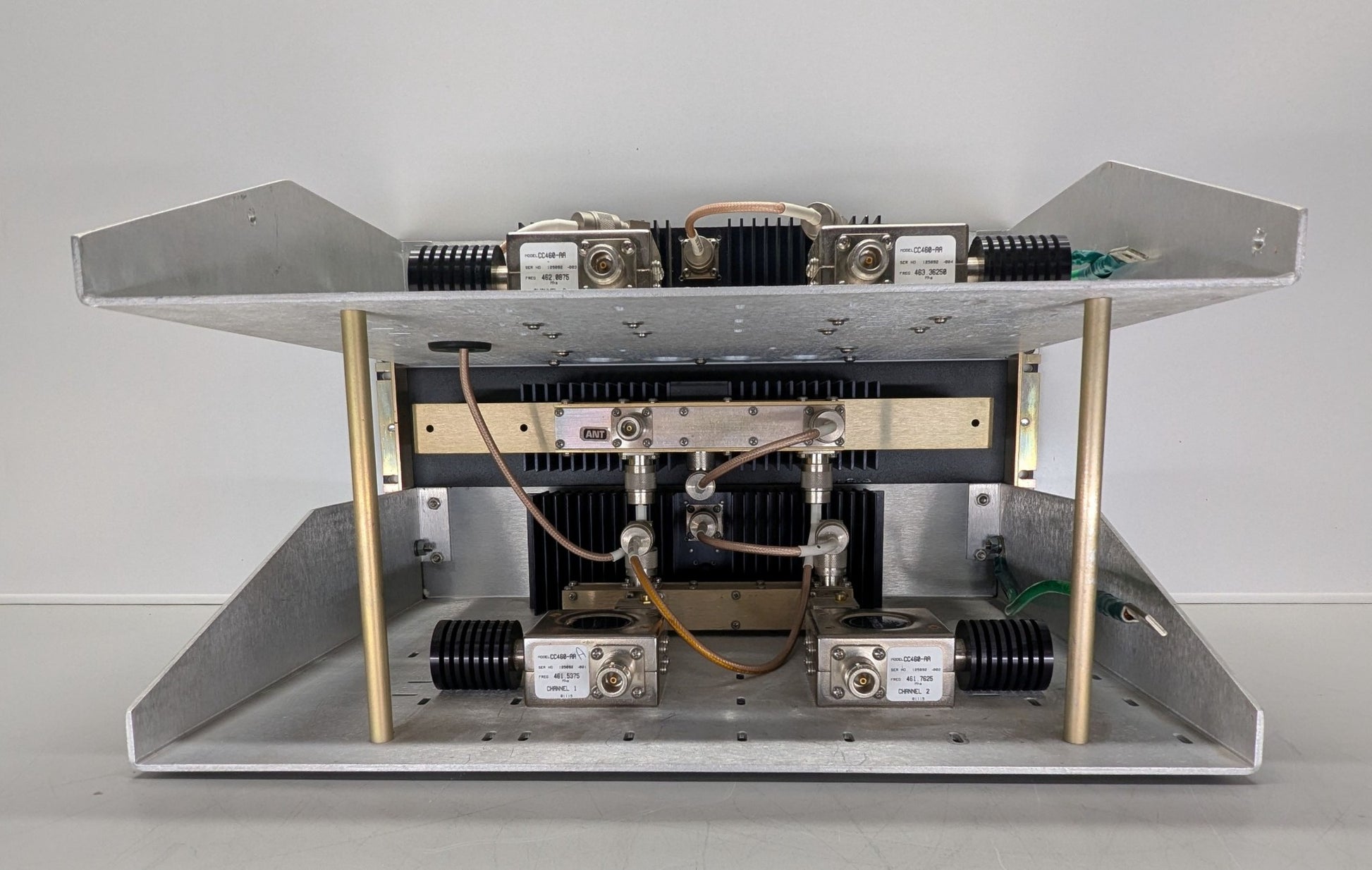

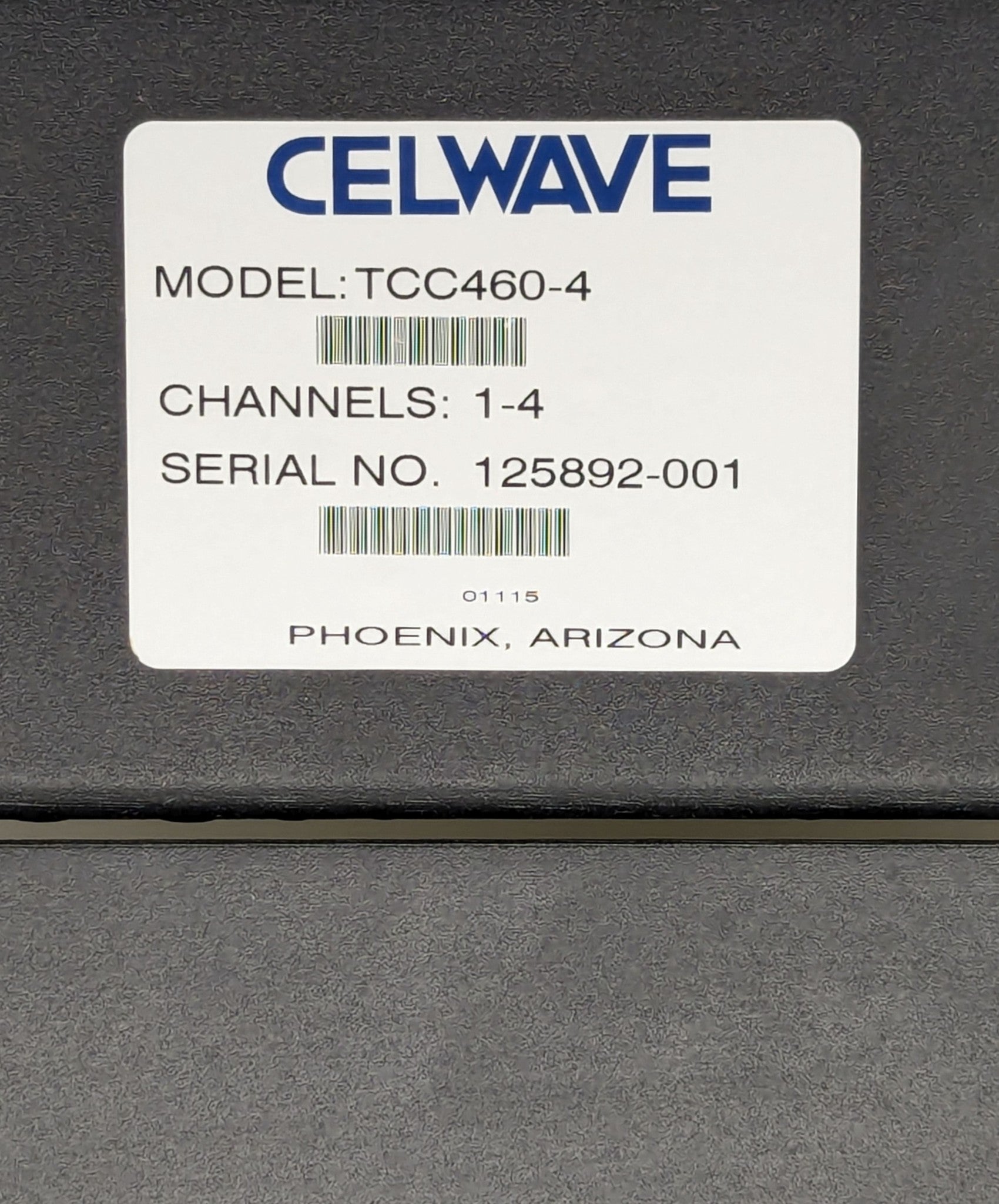

CELWAVE TCC 460-4 Hybrid Combiner

CELWAVE TCC 460-4 Hybrid Combiner

TCC 460-4

$1,995.00 USD
$1,995.00 USD
Sale Sold out
Shipping calculated at checkout.

Description:

This 4-channel combiner is designed to maximize the use of tower space and reduce costs by coupling multiple close spaced transmitters into one antenna.

The Combiner was pulled from a working unit and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • Celwave TCC 460-4 Hybrid Combiner

  • 30-day warranty

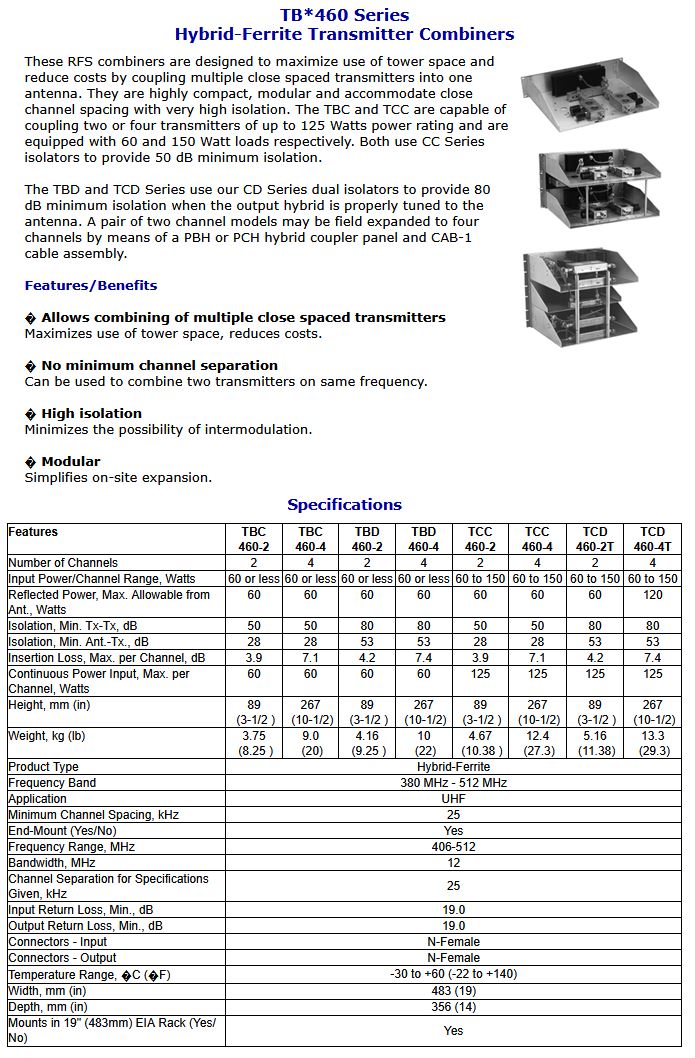

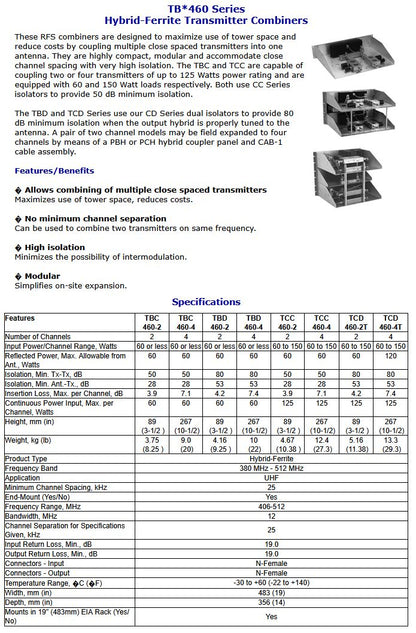

Product Details:

  • Model Number: TCC 460-4

  • Frequency Range: 406-512MHz

  • Input Return Loss, Min., dB: 19

  • Output Return Loss, Min., dB: 19

  • Isolation, Min. Tx-Tx, dB: 50

  • Isolation, Min. Ant.-Tx., dB: 28

  • Insertion Loss, Max. per Channel, dB: 7.1

  • Minimum Channel Spacing, kHz: 25

  • Bandwidth, MHz: 12

  • Channel Separation for Specifications Given, kHz: 12

  • Input Power: 60-150W

  • Continuous Power Input, Max. per Channel, Watts: 125

  • In/Output Connectors: N female

  • Dimensions: 19w x 10.5h x 14d"

  • Weight:26lbs

*Image shown is a representation only. Actual product may vary.
