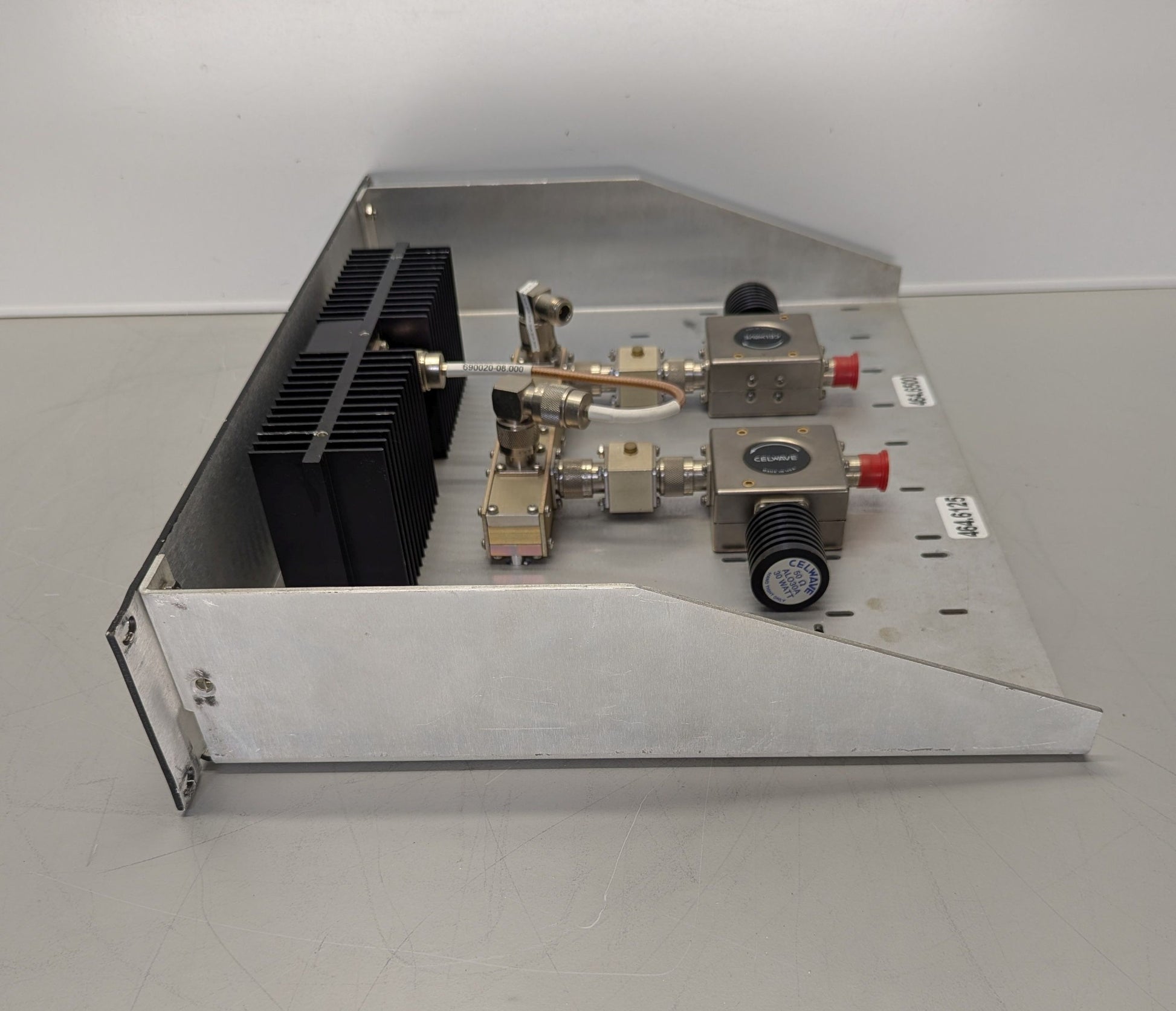

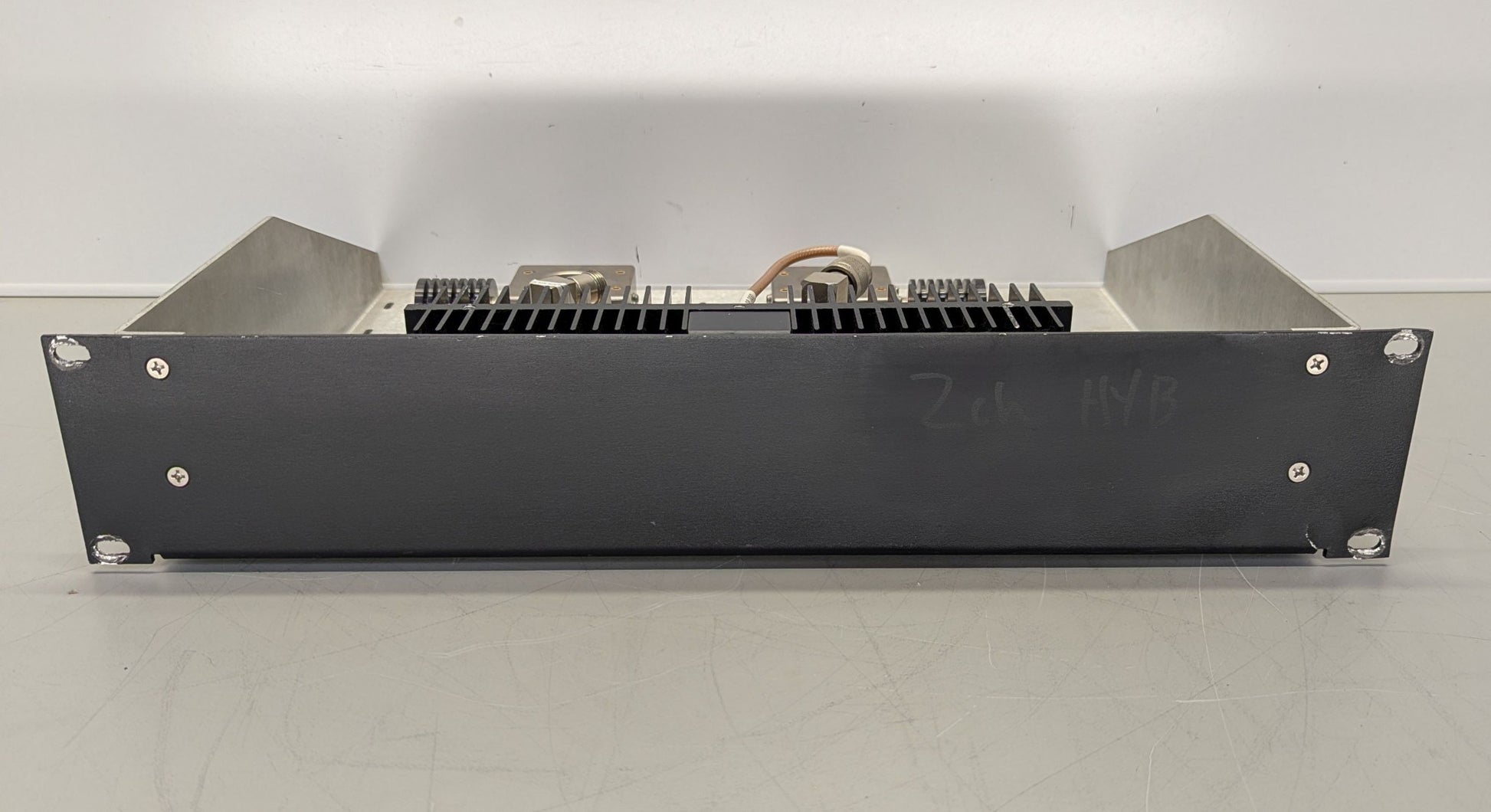

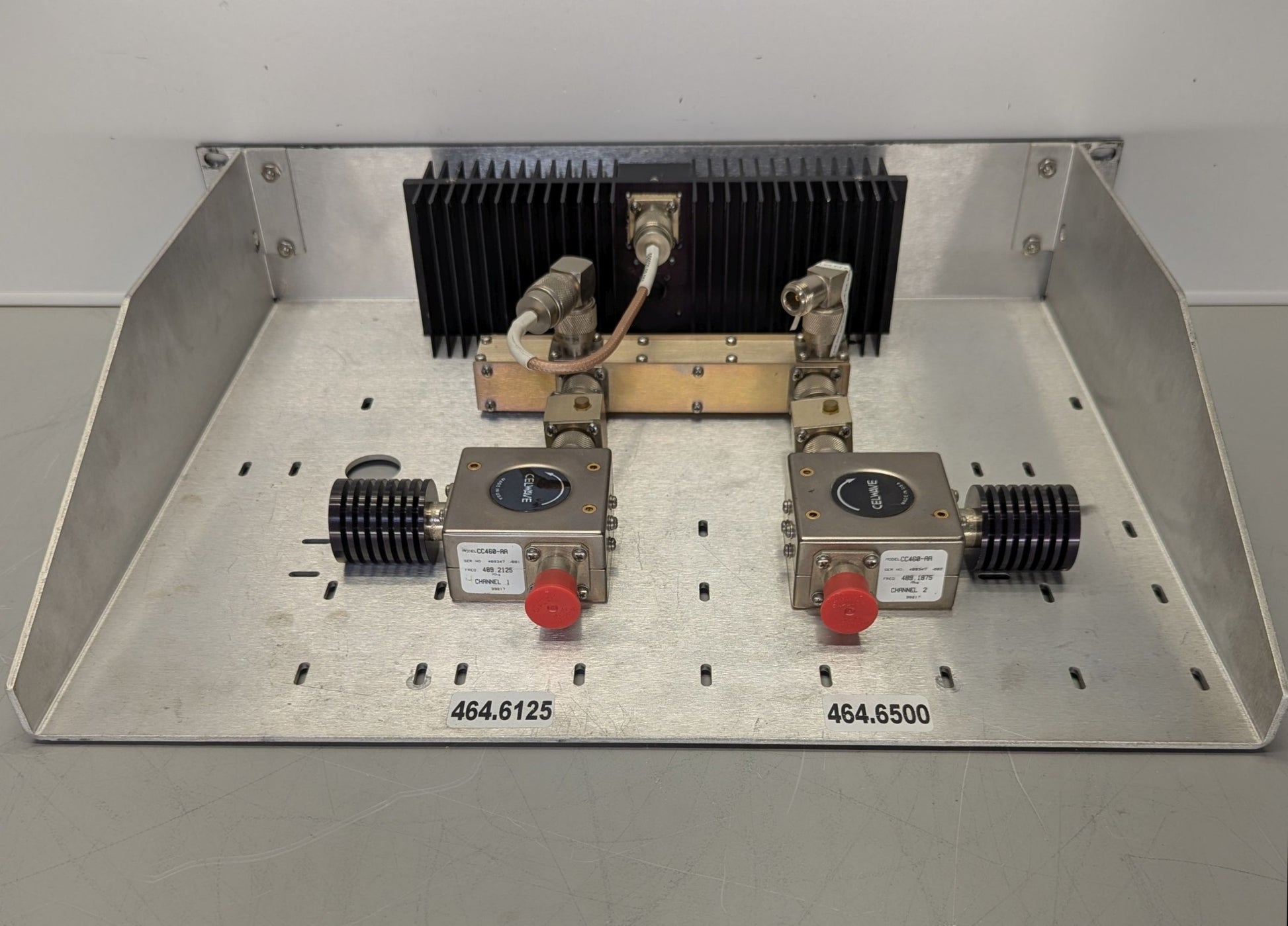

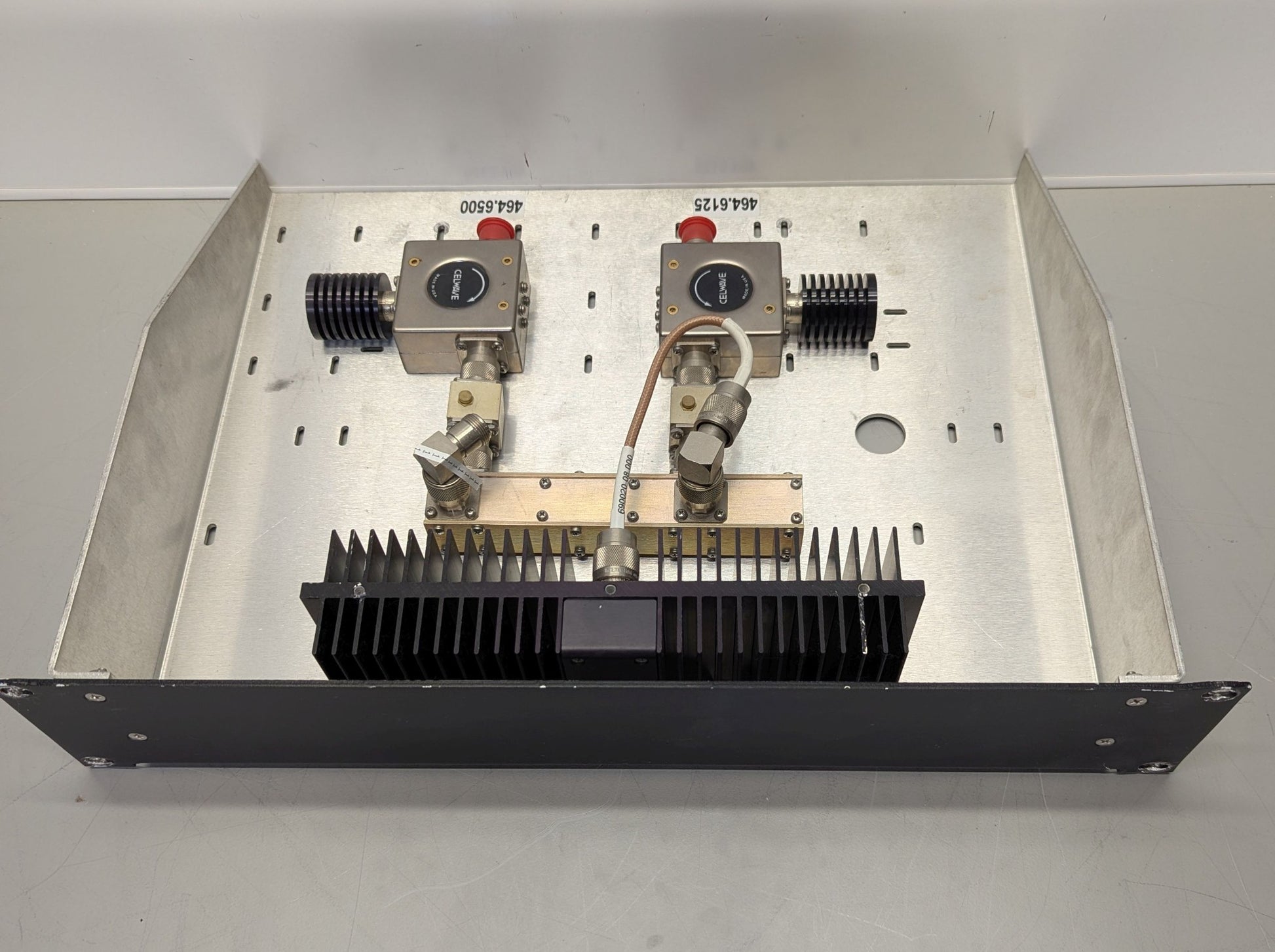

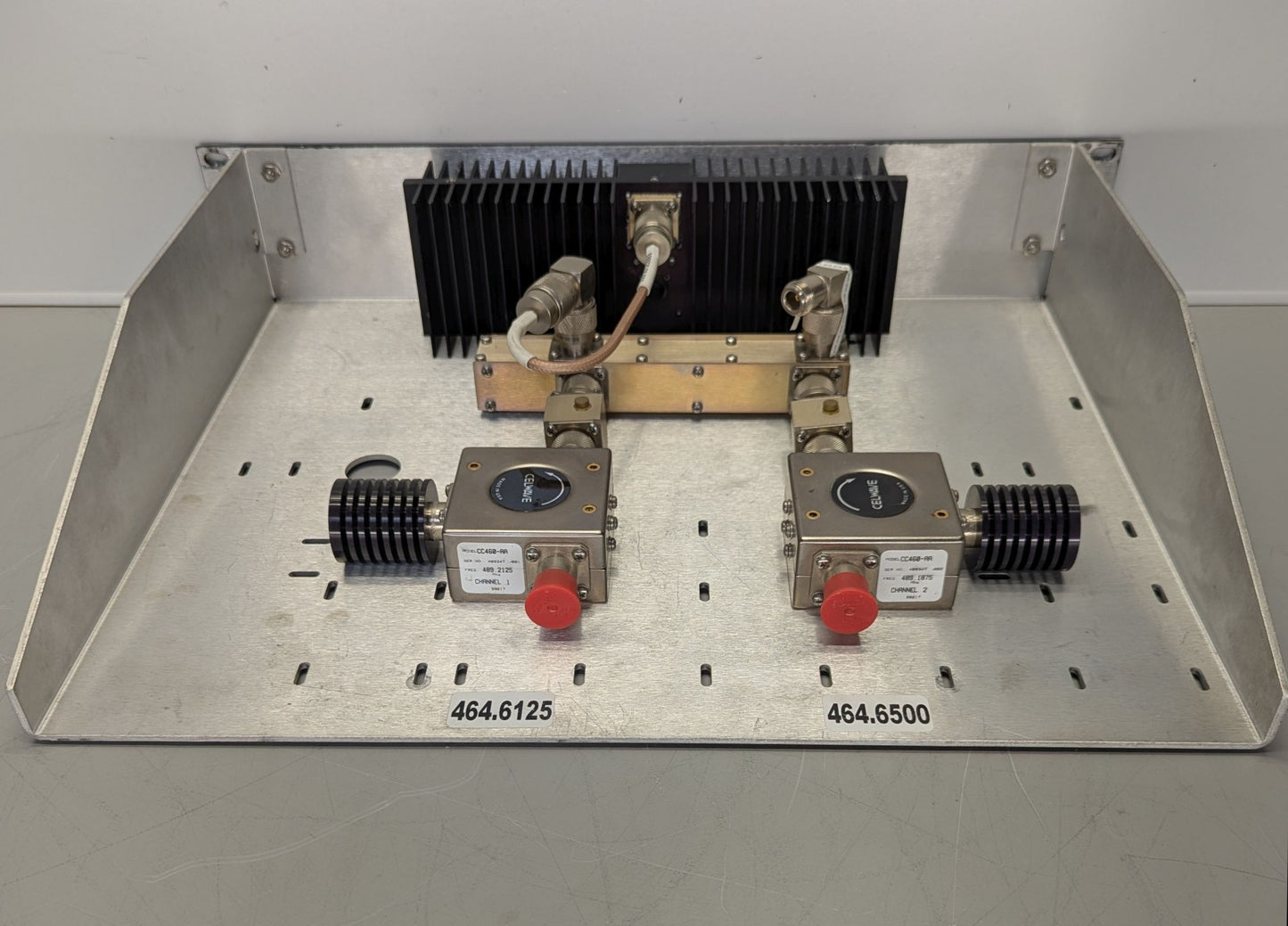

CELWAVE TBC 460-2 2 CH. UHF HYBRID COMBINER

CELWAVE TBC 460-2 2 CH. UHF HYBRID COMBINER

TBC 460-2

$1,095.00 USD
$1,095.00 USD
Sale Sold out
Shipping calculated at checkout.

This 2-channel combiner is designed to maximize use of tower space and reduce costs by coupling multiple close spaced transmitters into one antenna. The Combiner was pulled from a working unit and is in excellent condition.  If you have any questions, contact us Monday - Friday 8am-4pm MT.

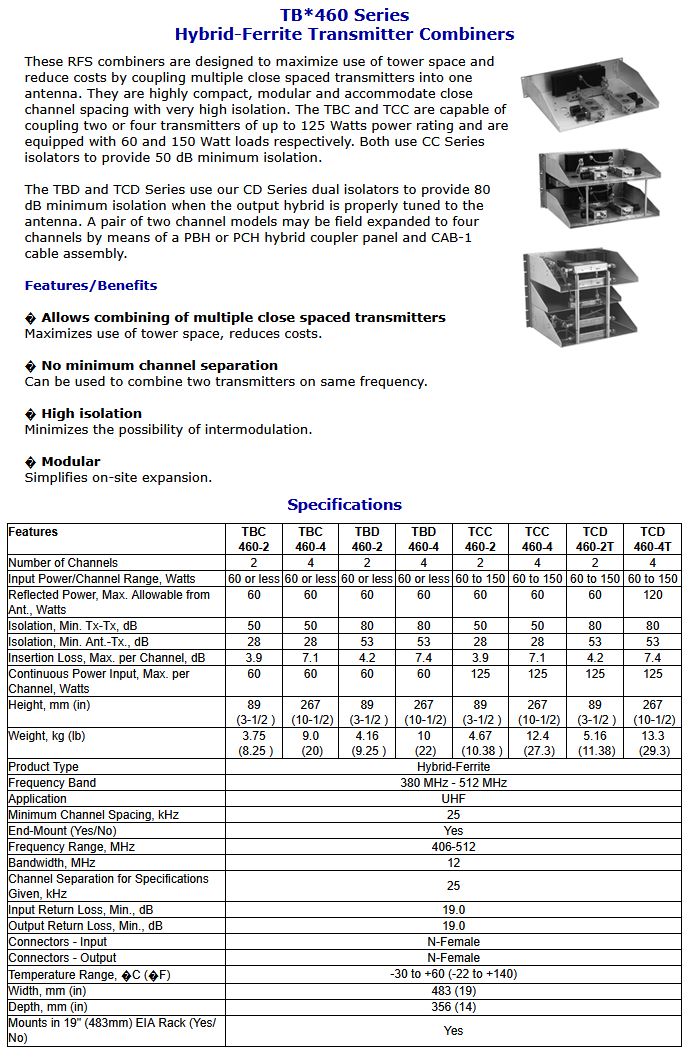

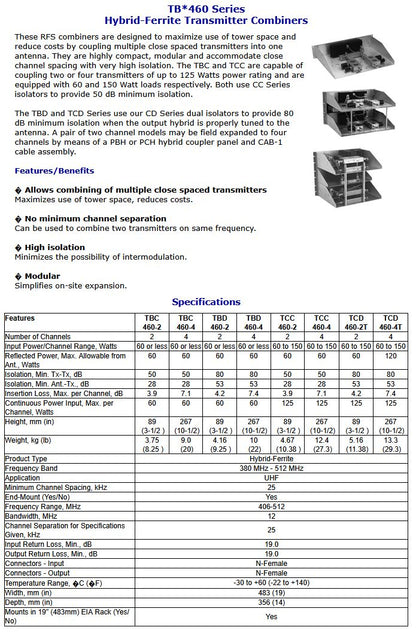

Product Details:

  • Model Number: TBC 460-2
  • Frequency Range: 406-512MHz
  • Input Return Loss, Min., dB: 19
  • Output Return Loss, Min., dB: 19
  • Isolation, Min. Tx-Tx, dB: 50
  • Isolation, Min. Ant.-Tx., dB: 28
  • Insertion Loss, Max. per Channel, dB: 3.9
  • Minimum Channel Spacing, kHz: 25
  • Channel Separation for Specifications Given, kHz: 25
  • Input Power: 60W
  • Continuous Power Input, Max. per Channel, Watts: 60
  • In/Output Connectors: N female
  • Dimensions: 19w x 3.5h x 14d"
  • Weight:10lbs

*Image shown is a representation only. Actual product may vary.
