1 4

Celwave

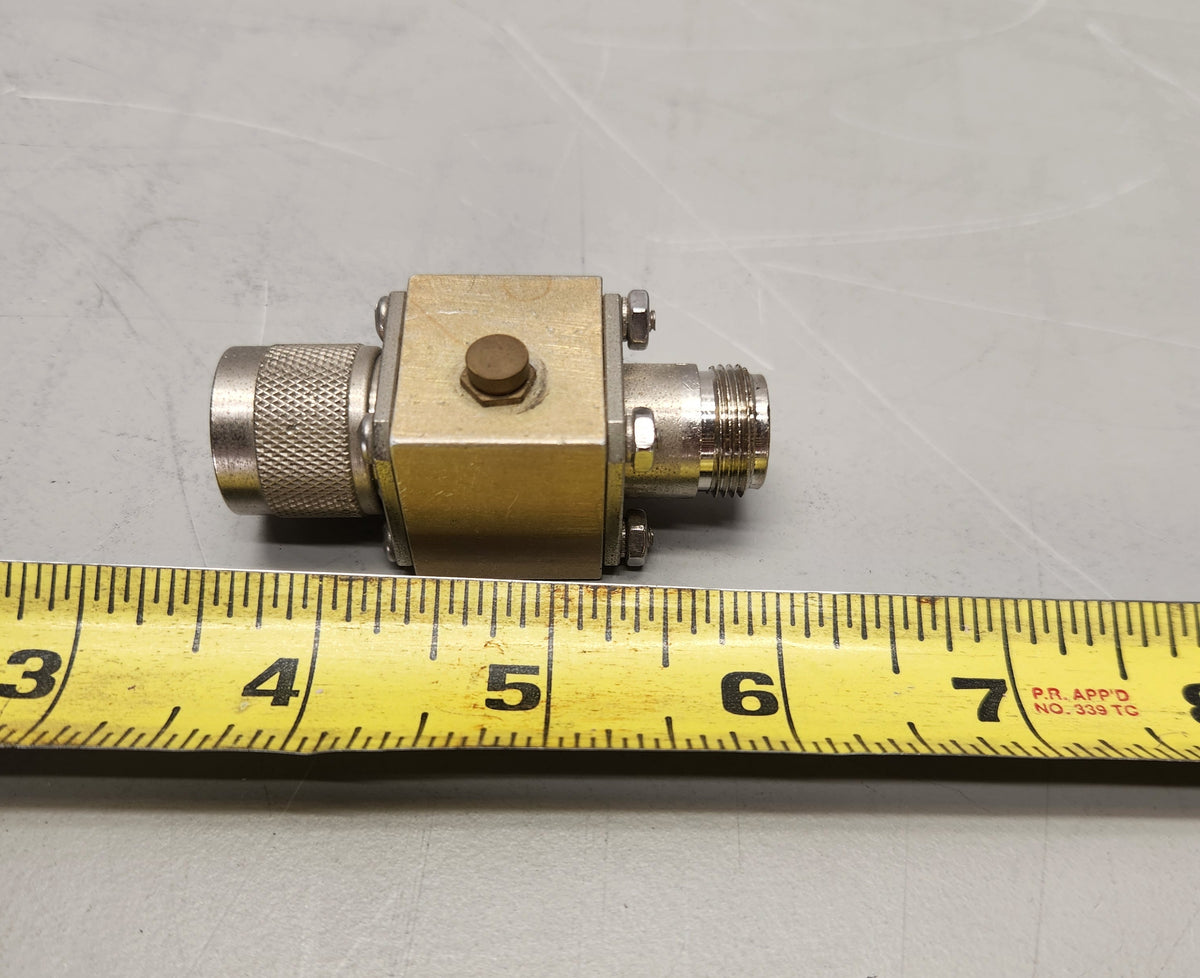

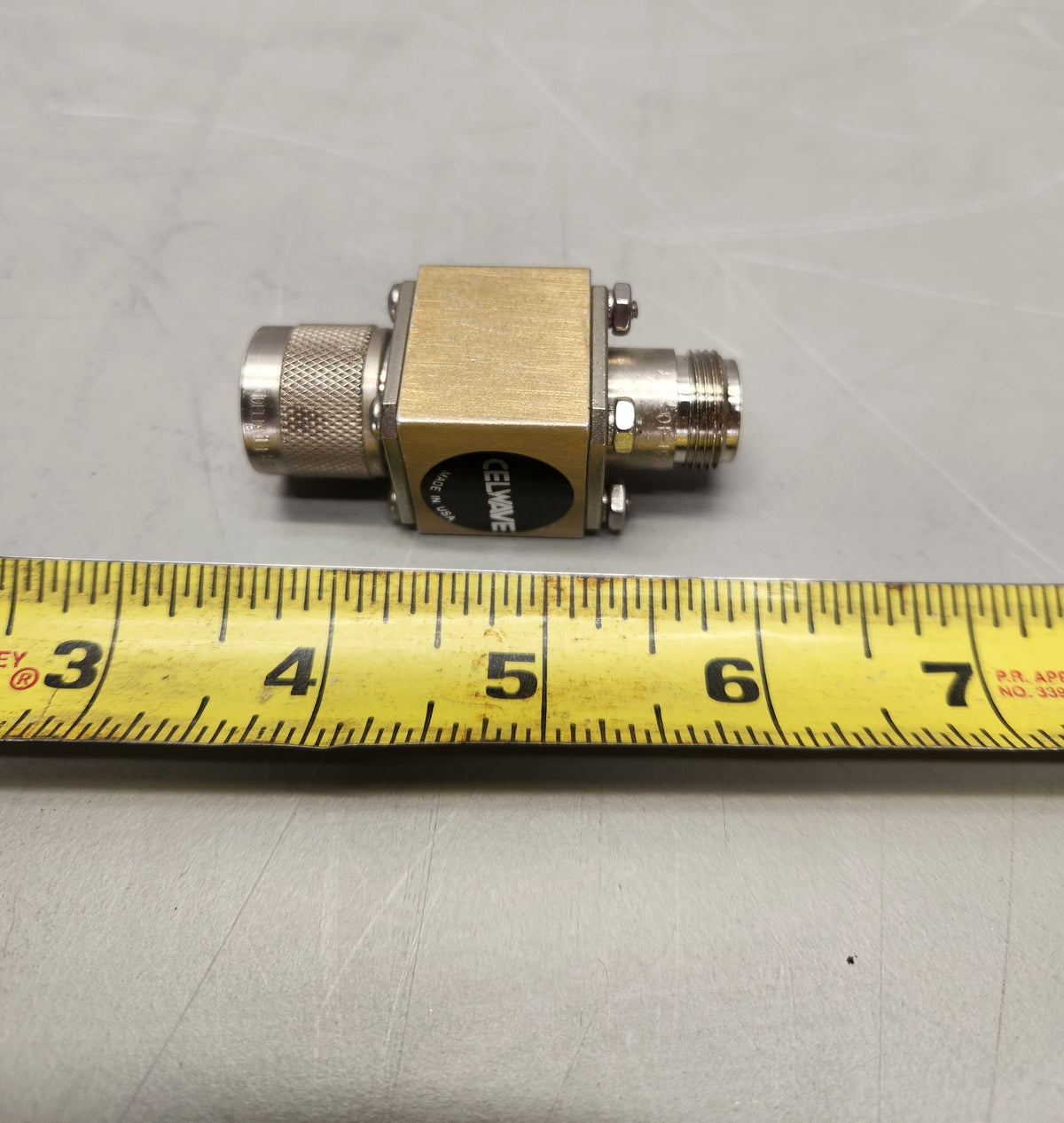

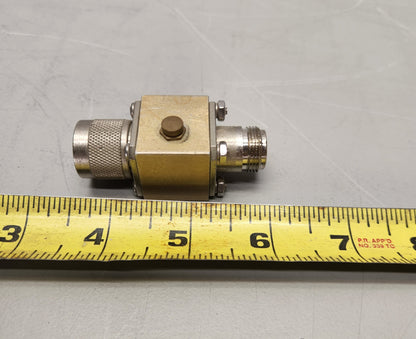

Celwave AF-4140 (806-960 MHz) Harmonic Filter

Celwave AF-4140 (806-960 MHz) Harmonic Filter

AF-4140

$175.00 USD
$175.00 USD
Sale Sold out
Shipping calculated at checkout.

Harmonic Filters are used to attenuate harmonic emissions from linear power amplifiers and ferrite isolators.

*Specify frequency range required

This filter was pulled from a working unit and is in excellent condition. Tuning is available upon request. If you have any questions, contact us Monday - Friday 8am-4pm MT.

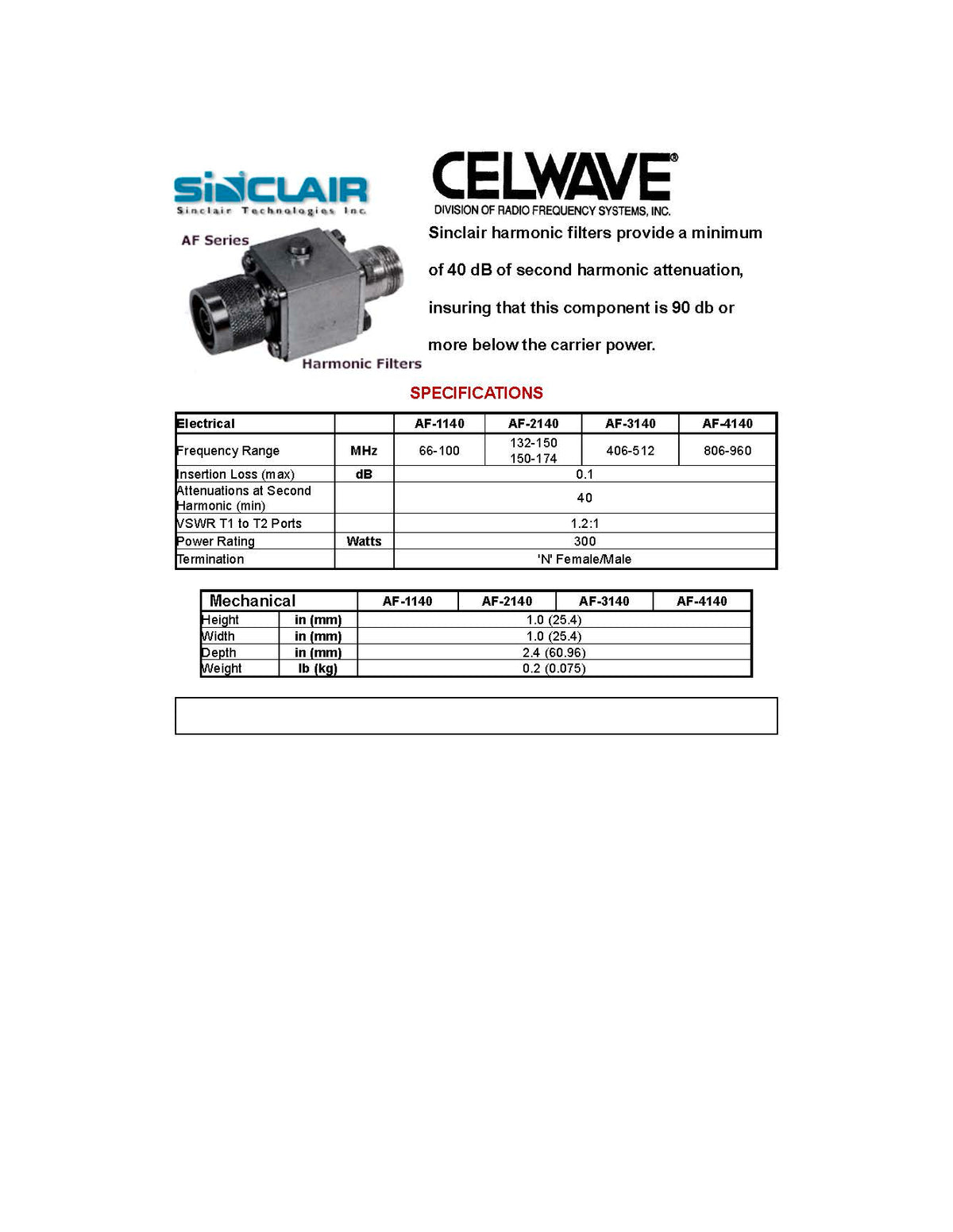

Product Details:

  • Model Number: AF-4140

  • Frequency Range: 806-960 MHz

  • Attenuation @2nd Harmonic: 40 dB

  • Insertion Loss: 0.1 dB

  • Max Power Out: 300 Watts

  • In/Output Connectors: N female

  • Dimensions: 1.0"w x 1.0"h x 2.4"d

  • Weight: 0.2 lbs

*Image shown is a representation only. Actual product may vary.
