Bird Technologies UHF (450-520MHz) Control Station Combiner (8ch)

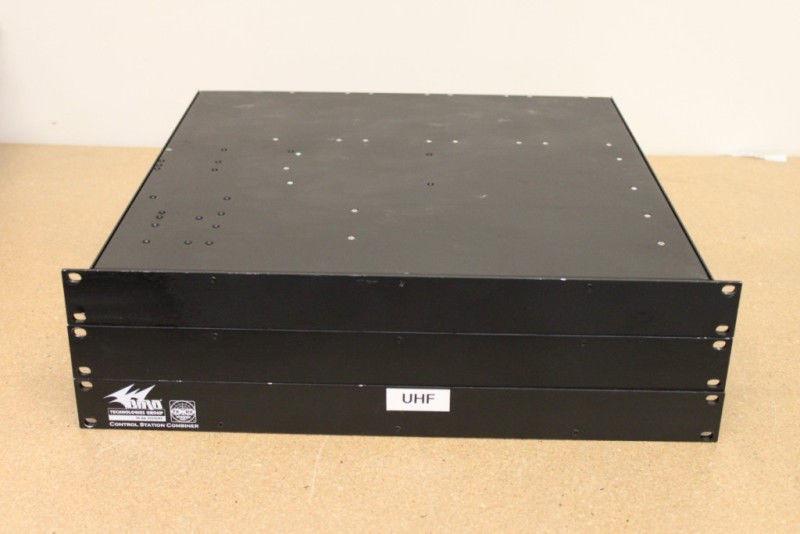

This is a BIRD TX RX Systems 8 Channel UHF Control Station Combiner, model number 43-57B-01-08. Combiner is in great shape and guaranteed fully operational. This unit is designed to handle UHF Frequencies in the 450-520 MHz range. This is a complete package that consists of the Upper, Middle and Bottom units. Hutton List price on this combiner is $19,000.00.

Technical Specs

alpha frequency	UHF
input connector	N(F)
output connector	N(F)
frequency range (bandwidth)	450-520 MHz
number of channels	8
minimum frequency separation	no limitations
maximum power input (W)	12 VDC
max. insertion loss per chan.	11 dB
isolation TX	60 dB
isolation RX	45 dB
Depth	17"
Width	19"
Height	5.25"
Weight	57 LB
Warranty	1 year
Shipping *	Parcel Freight

Reduce the number of antennas needed with the
dbSpectra Control Station Combiner, a trunked or
conventional mobile radio combiner/multicoupler.
Connect eight mobile radios with our 8-port model
and reduce antenna requirements from eight to
two. Your overall system port-to-port isolation can
be increased using this combiner for applications
where individual radio antennas do not provide
enough spatial RF isolation, thus removing all
the guesswork

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
