Bird Technologies UHF (400-475MHz) Control Station Combiner (8ch)

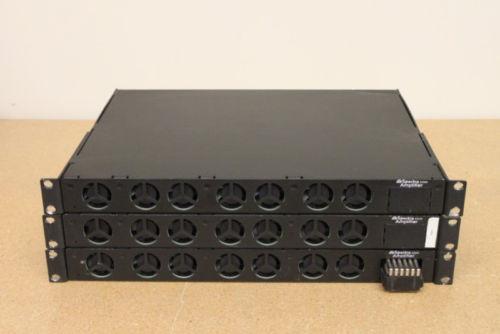

This is a dbSpectra (BIRD) brand 8 Channel UHF Control Station Combiner, model number DBS-HC114S1-08F. Combiner is in great shape and guaranteed fully operational. This unit is designed to handle UHF Frequencies in the 400-475 Mhz range. This is a complete package that consists of the Upper, Middle and Bottom units. Hutton List price on this combiner is $19,000.00.

Technical Specifications

alpha frequency	UHF
input connector	N(F)
output connector	N(F)
frequency range (bandwidth)	406-475 MHz
number of channels	8
minimum frequency separation	no limitations
maximum power input (W)	12 VDC
max. insertion loss per chan.	12 dB
isolation TX	60 dB
isolation RX	45 dB
Depth	17"
Width	19"
Height	5.25"
Weight	50 LB
Warranty	1 year
Shipping *	Parcel Freight

Reduce the number of antennas needed with the dbSpectra Control Station Combiner, a trunked or conventional mobile radio combiner/multicoupler. Connect eight mobile radios with our 8-port model and reduce antenna requirements from eight to two. Your overall system port-to-port isolation can be increased using this combiner for applications where individual radio antennas do not provide enough spatial RF isolation, thus removing all the guesswork.

NOTE: If your order includes programming, please email us a request for our Programming Form after checkout. We will only program up to 16 channels and do not program for trunking systems.
