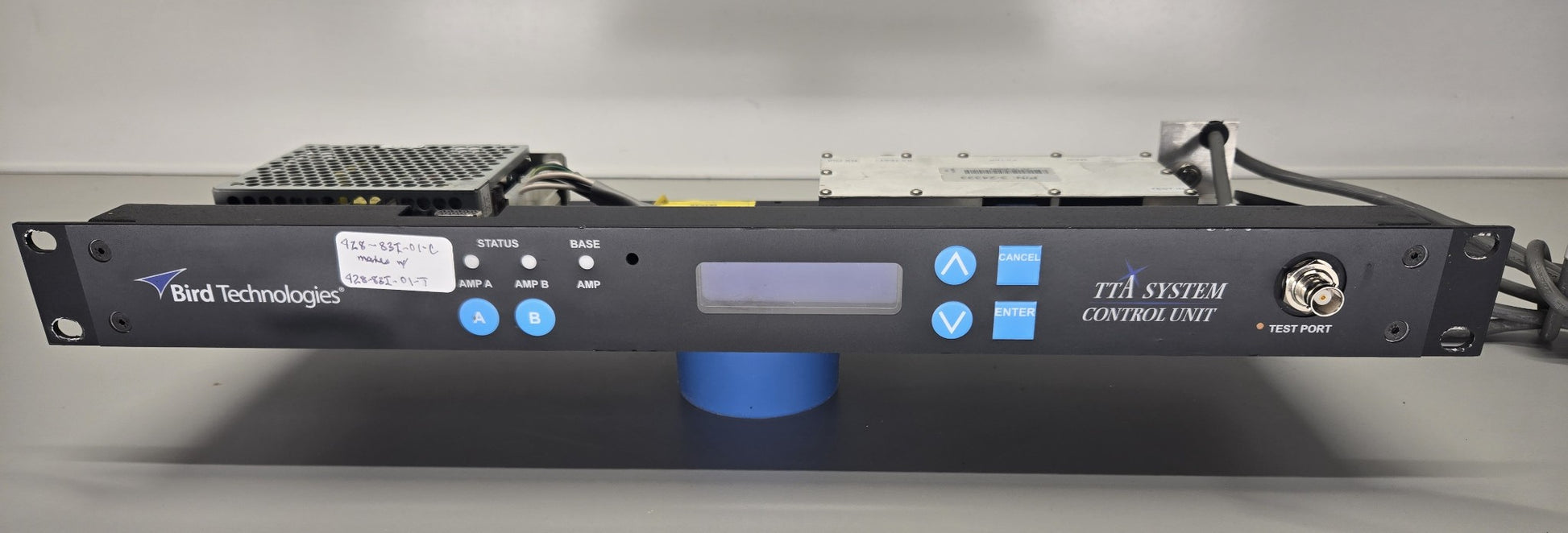

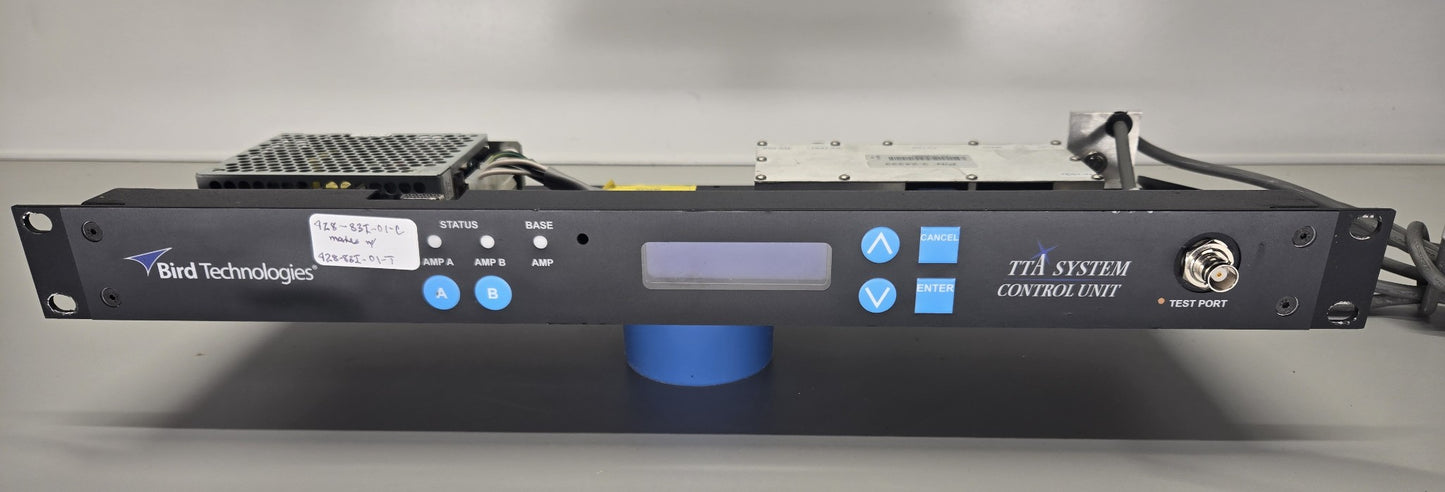

BIRD TECHNOLOGIES TTA SYSTEM CMU CONTROL UNIT 796-824 MHz (428D-83I-01-C-110)

BIRD TECHNOLOGIES TTA SYSTEM CMU CONTROL UNIT 796-824 MHz (428D-83I-01-C-110)

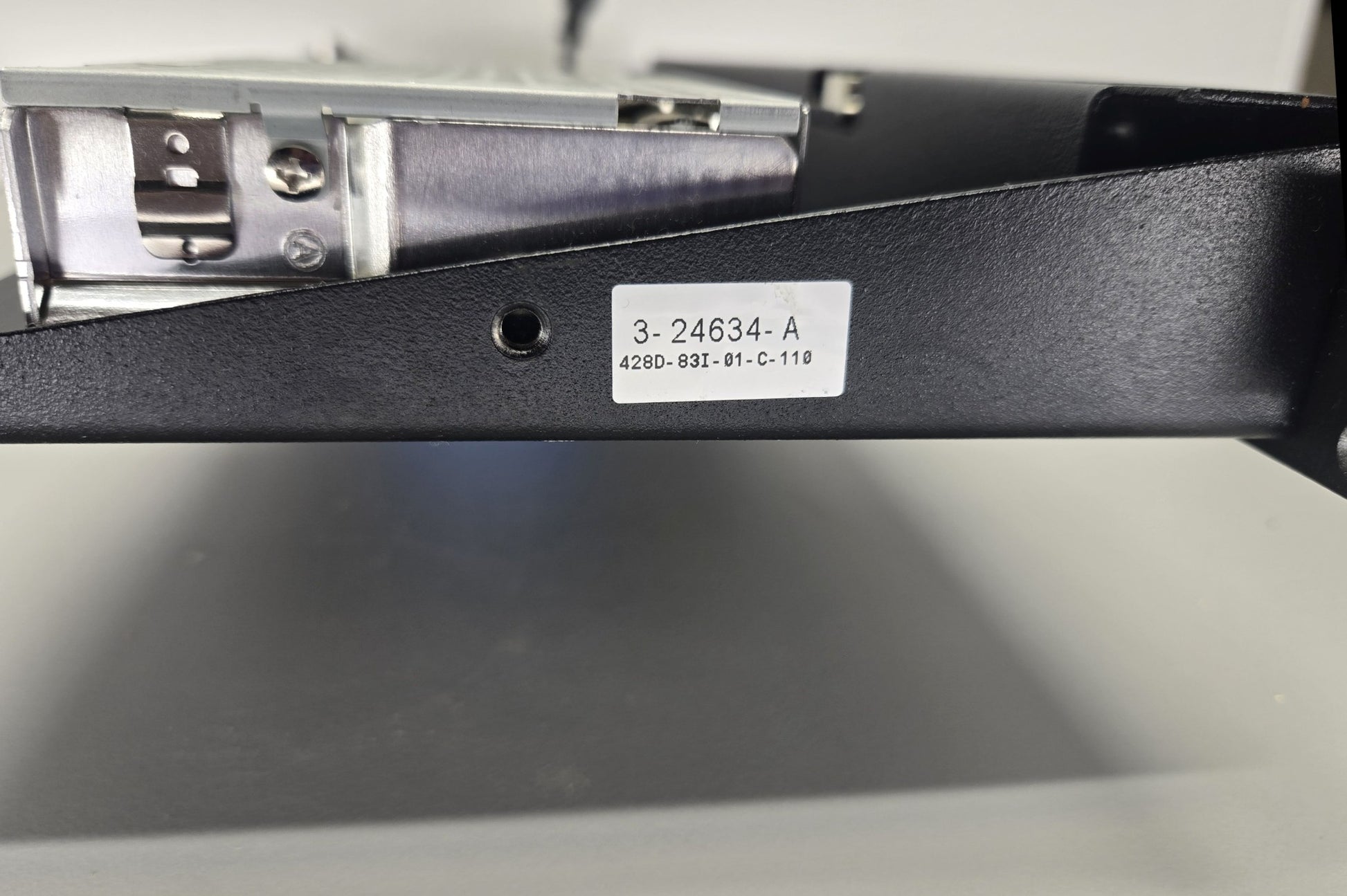

428D-83I-01-C-110

$475.00 USD
$475.00 USD
Sale Sold out
Shipping calculated at checkout.

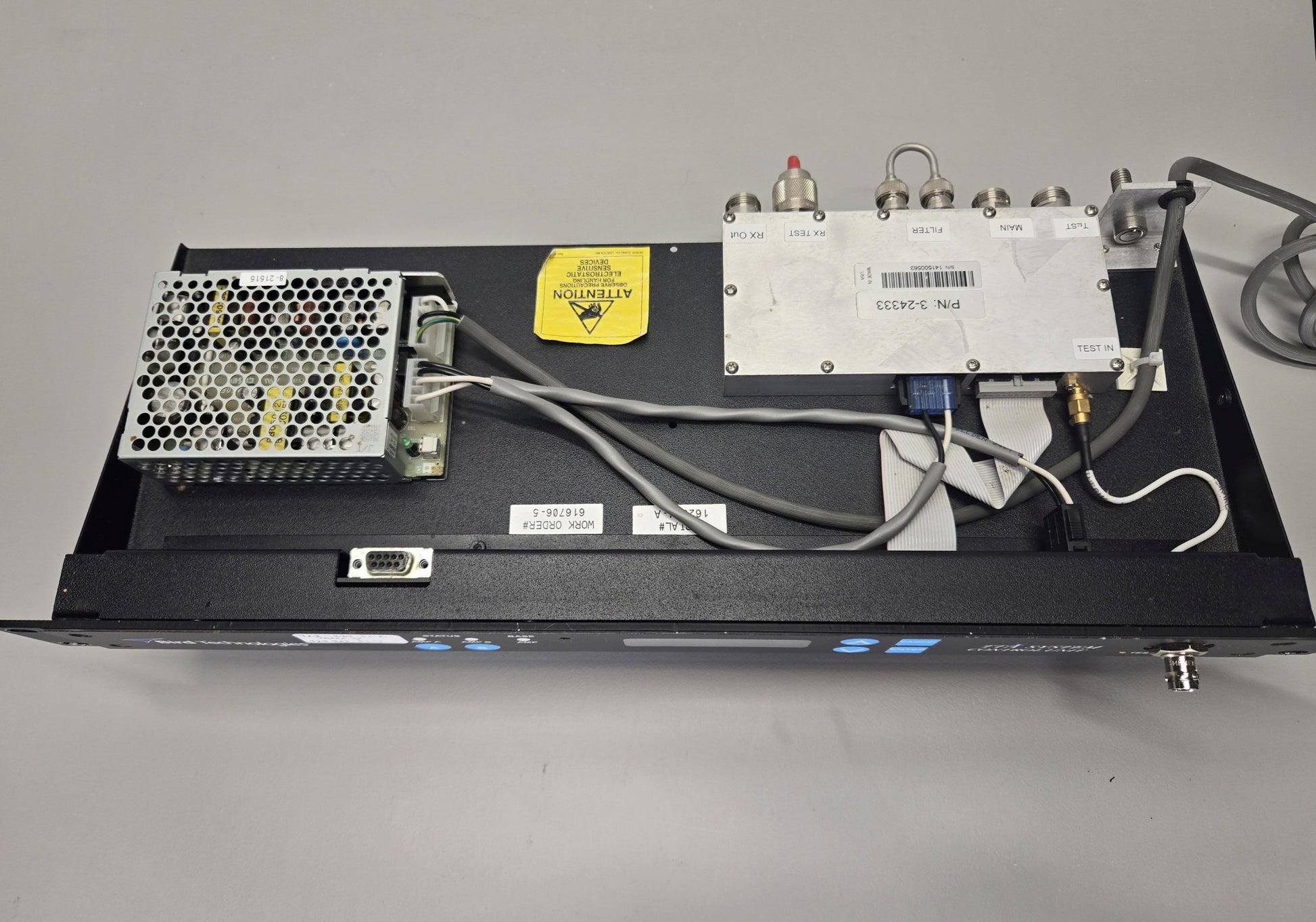

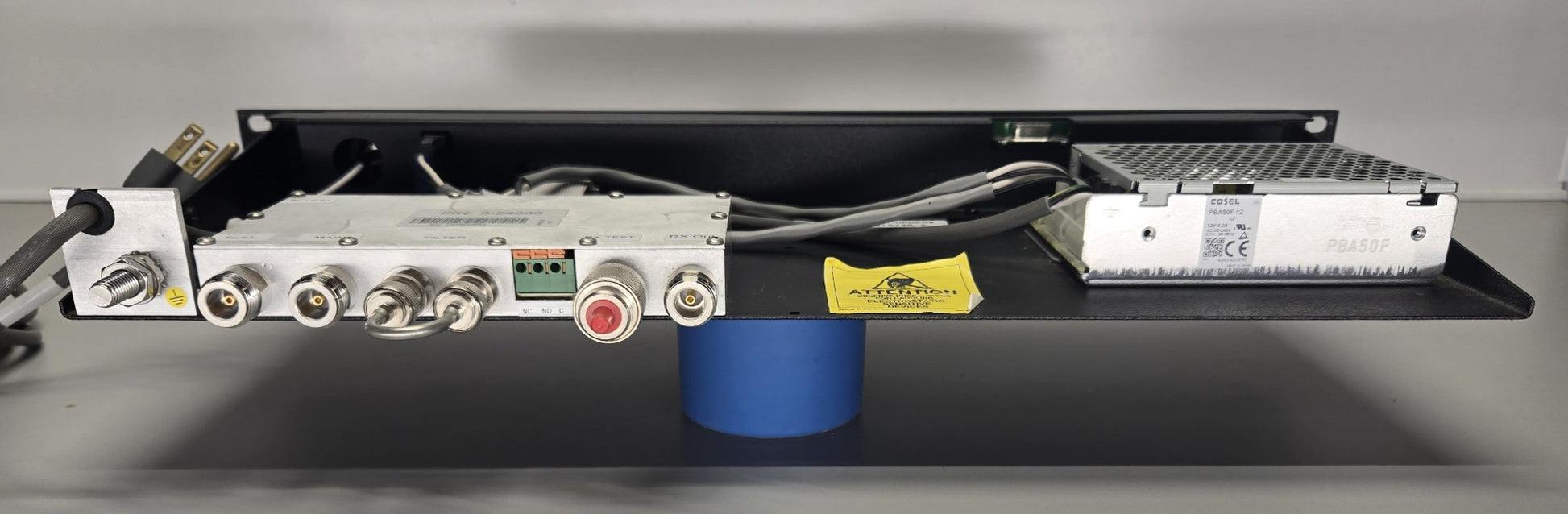

Unit is in good condition. pulled from the working system. If you have any questions, contact us Monday - Friday 8am-4pm MT.



What’s Included:

  • BIRD TECHNOLOGIES TTA SYSTEM CONTROL UNIT (CMU)

  • AC POWER CORD

  • Mates with 428/9D-83I-01-T TTA

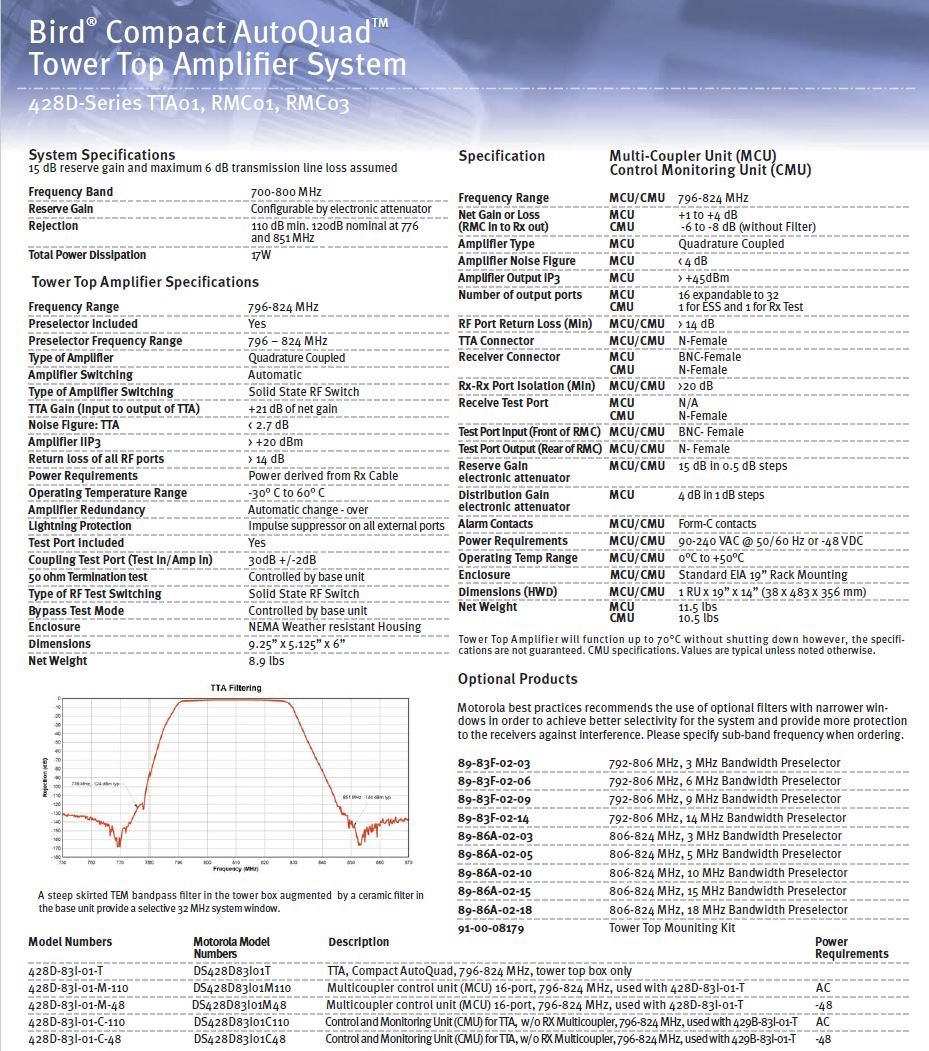

Product Details:

  • Model Number: 428D-83I-01-C-110

  • Frequency Range: 796-824 MHz

  • Control and Monitoring Unit (CMU) for TTA, w/o Rx Multicoupler

  • 110 VAC

  • Optional Preselector

  • Net Gain: -6 to –8 (without Filter)

  • Amplifier Type: Quadrature Coupled

  • Amplifier Noise Figure: <4 dB

  • Amplifier IP3: >45 dB

  • Number of Ports: 1 for ESS and 1 for Rx Test

  • RF Port Return Loss: 14 dB

  • Reserve Gain: 15 dB in 0.5 dB steps

  • Dimensions: 1 RU x 19” x 8”

*Image shown is a representation only. Actual product may vary.
