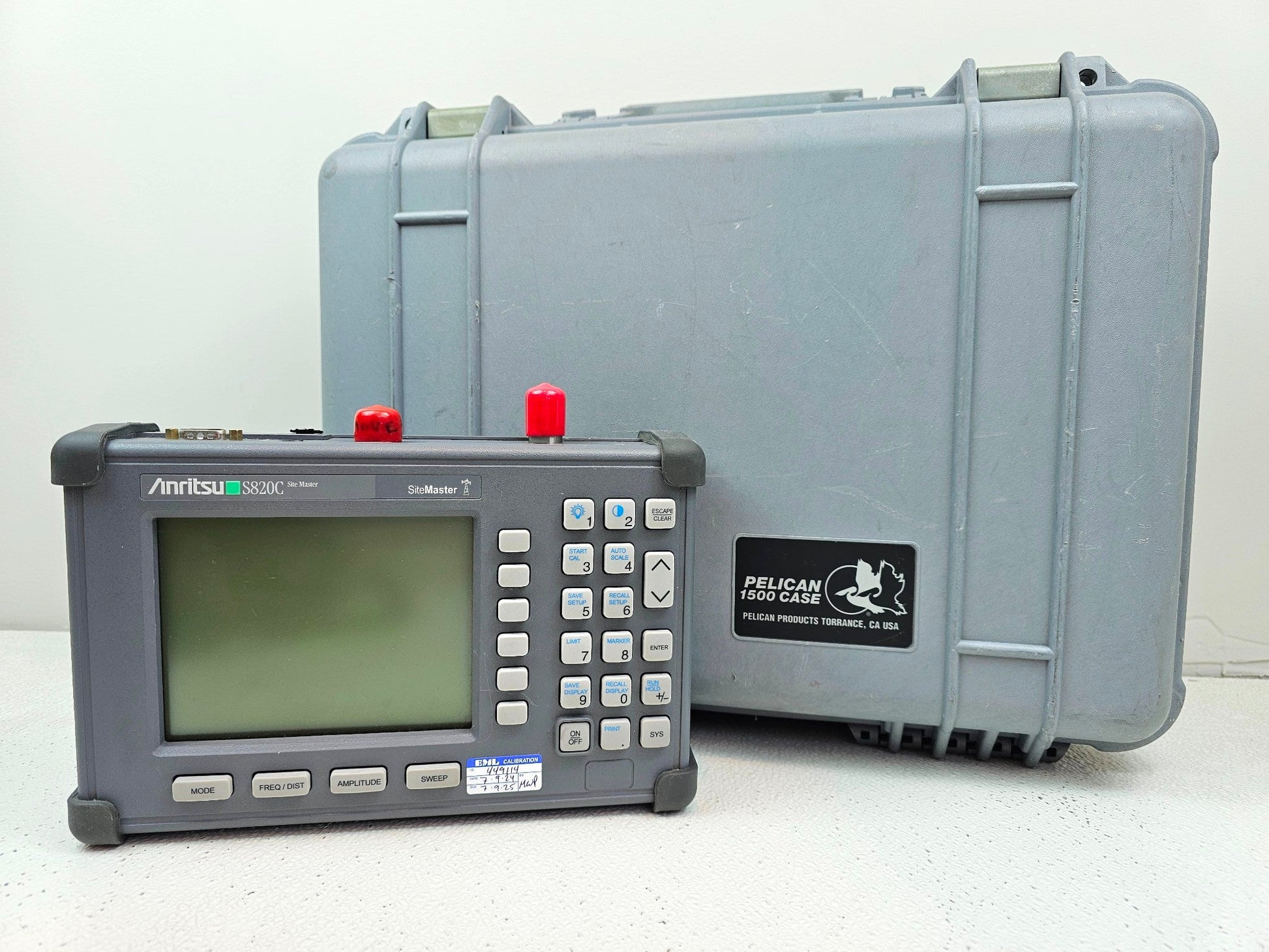

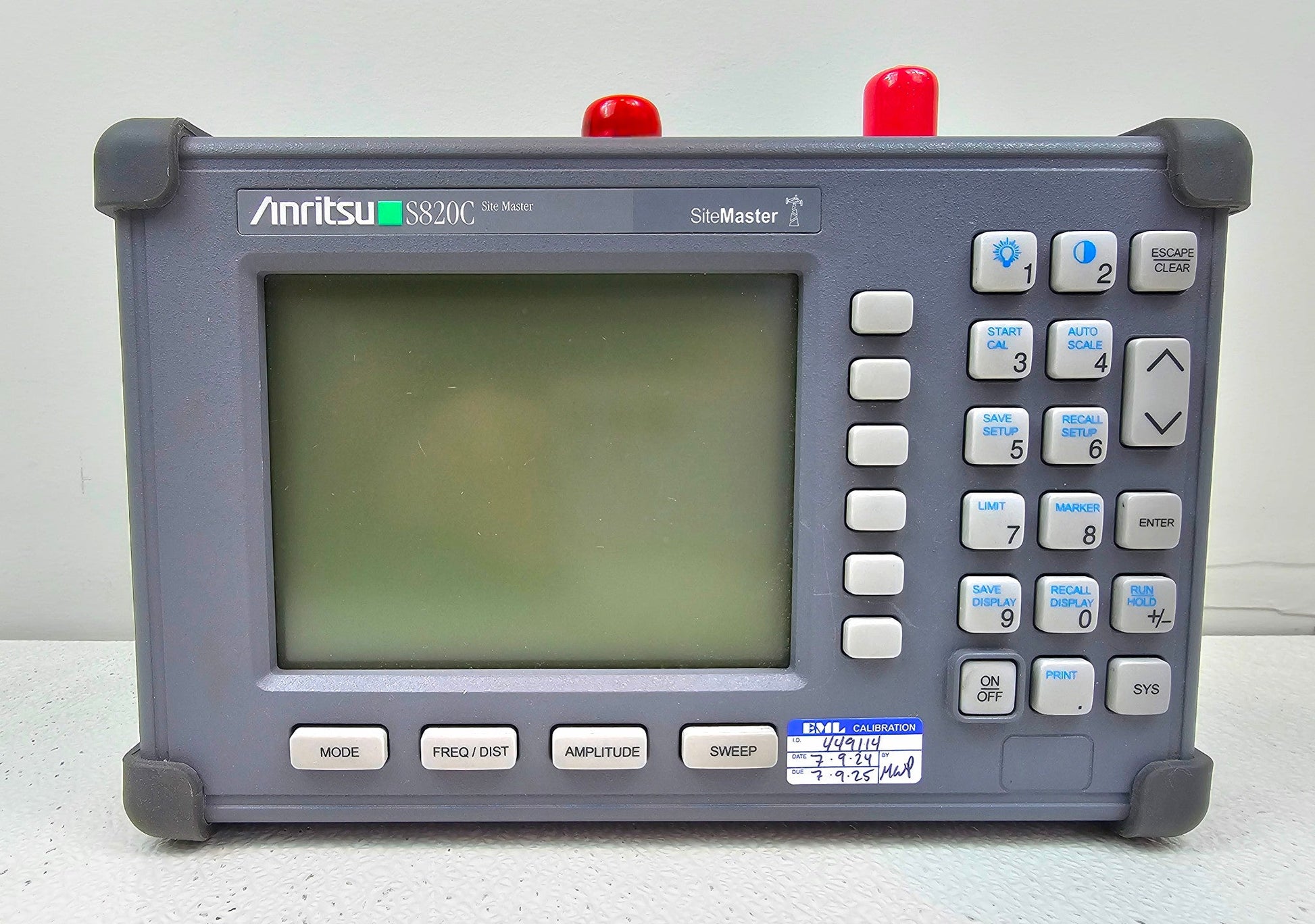

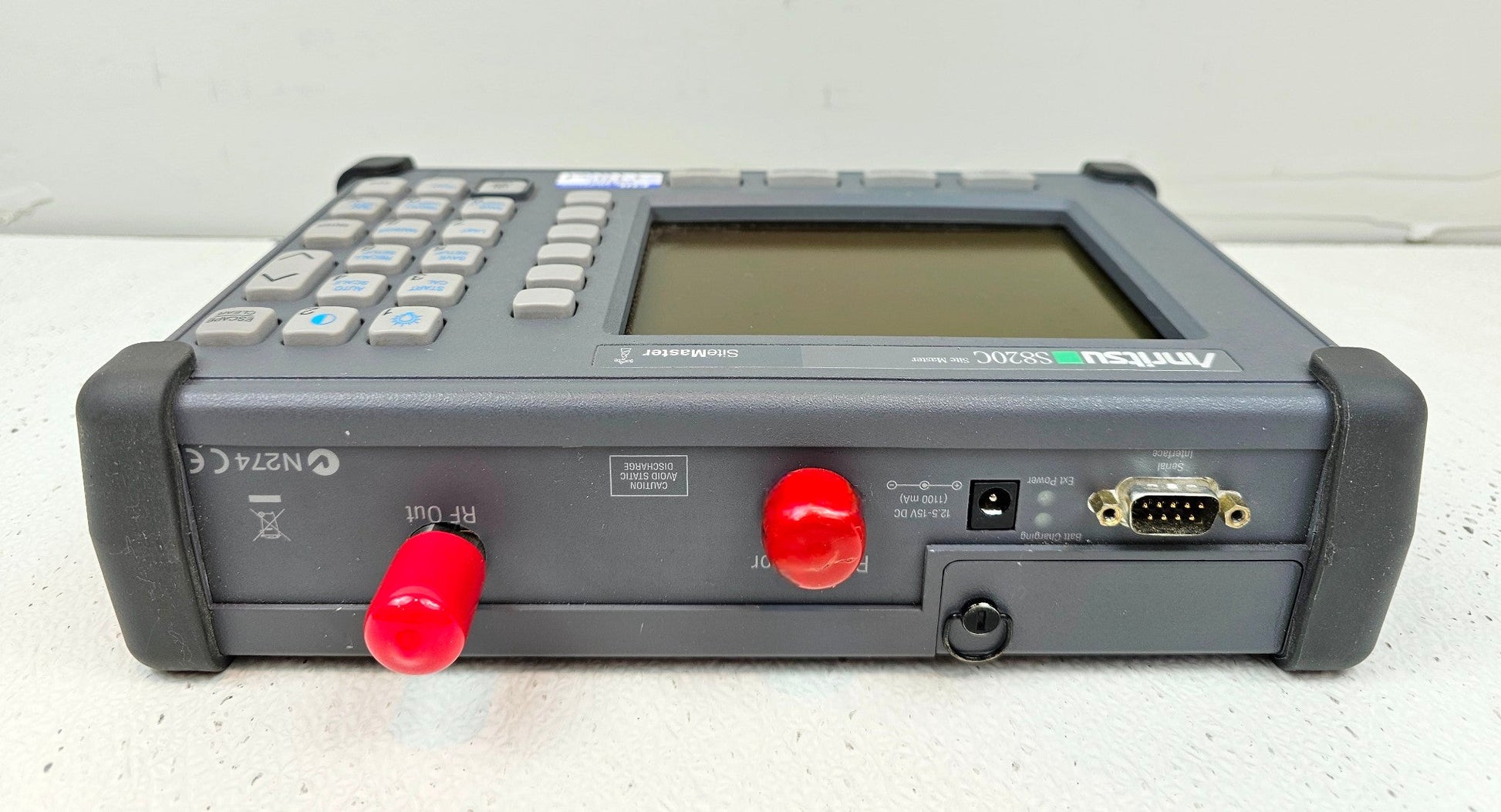

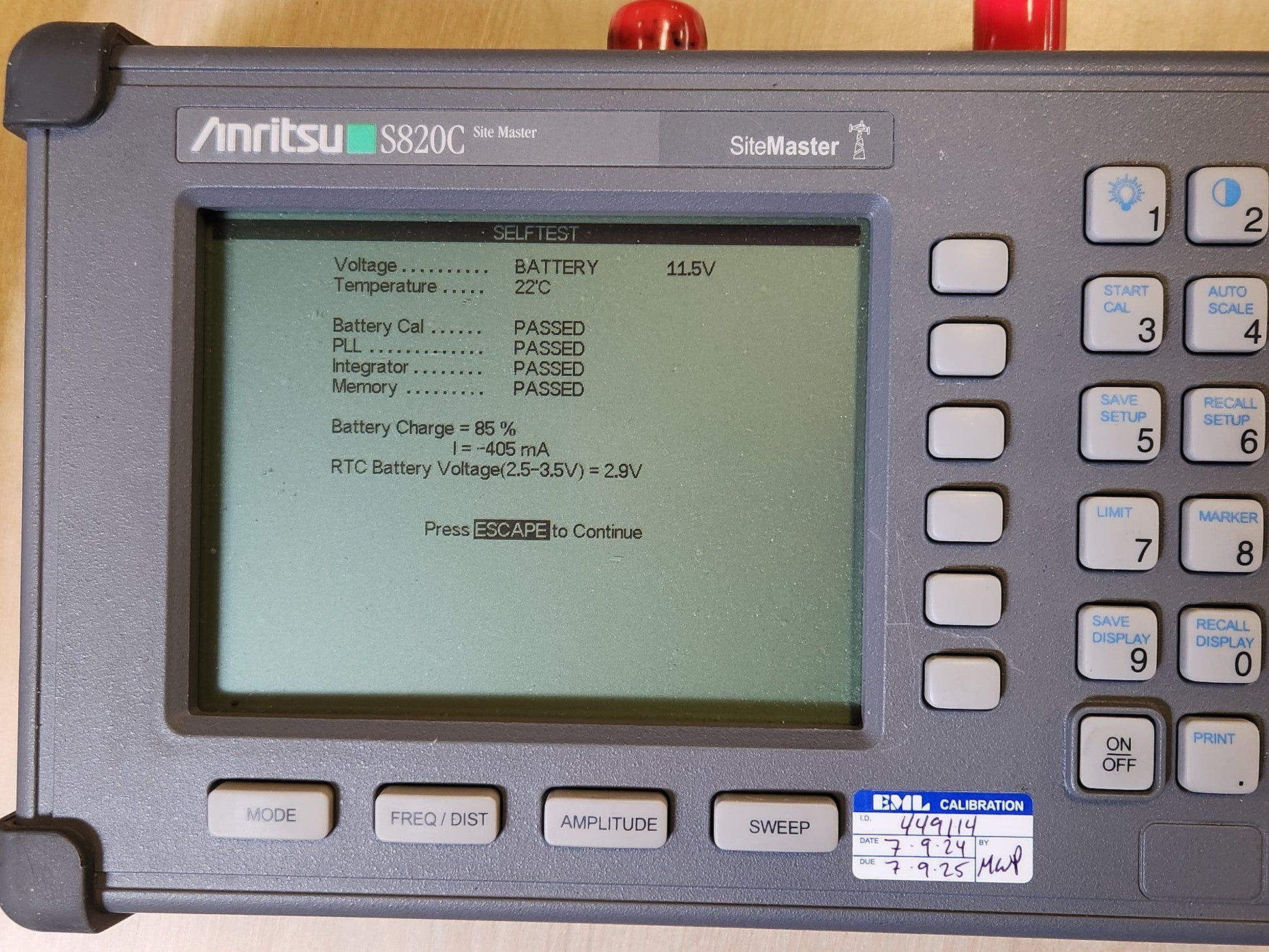

Anritsu SiteMaster S820C Microwave Transmission Line and Antenna Analyzer

The Site Master is a hand held SWR/RL (standing wave ratio/return loss), and Distance-To- Fault (DTF) measurement instrument that includes a built-in synthesized signal source. All models include a keypad to enter data and a liquid crystal display (LCD) to provide graphic indications of SWR or RL over the selected frequency range and selected distance. The Site Master is capable of up to 2.5 hours of continuous operation from a fully charged field-replaceable battery and can be operated from a 12.5 dc source. Built-in energy conservation features can be used to extend battery life over an eight-hour work day.

The Site Master is designed for measuring SWR, return loss, cable or waveguide insertion loss and locating faulty RF components in antenna systems. Power monitoring is available as an option. The displayed trace can be scaled or enhanced with frequency markers or limit lines. A menu option provides for an audible “beep” when the limit value is exceeded. To permit use in low-light environments, the LCD can be back lit using a front panel key.

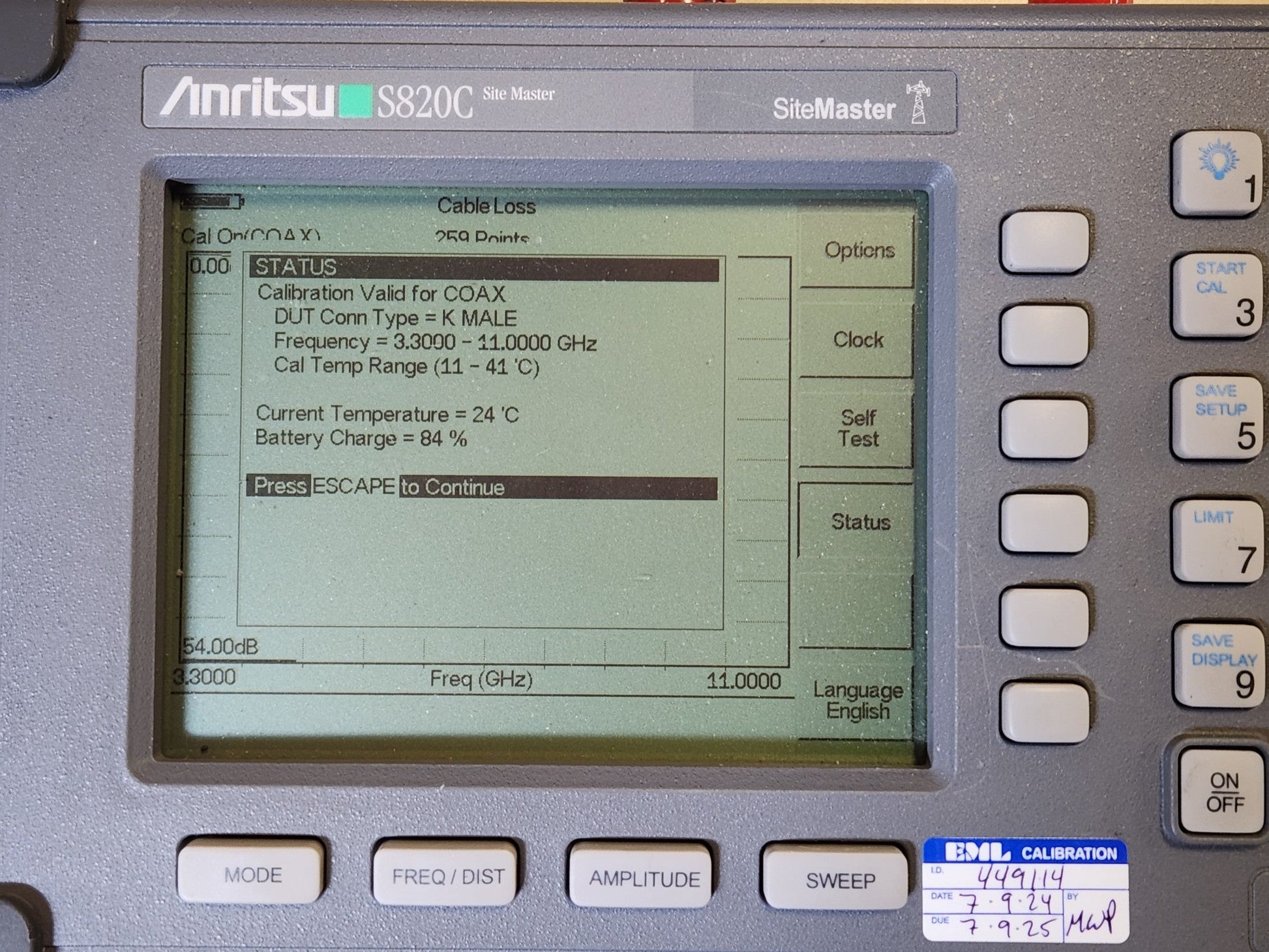

Frequency Range: 3.3 - 20 GHz

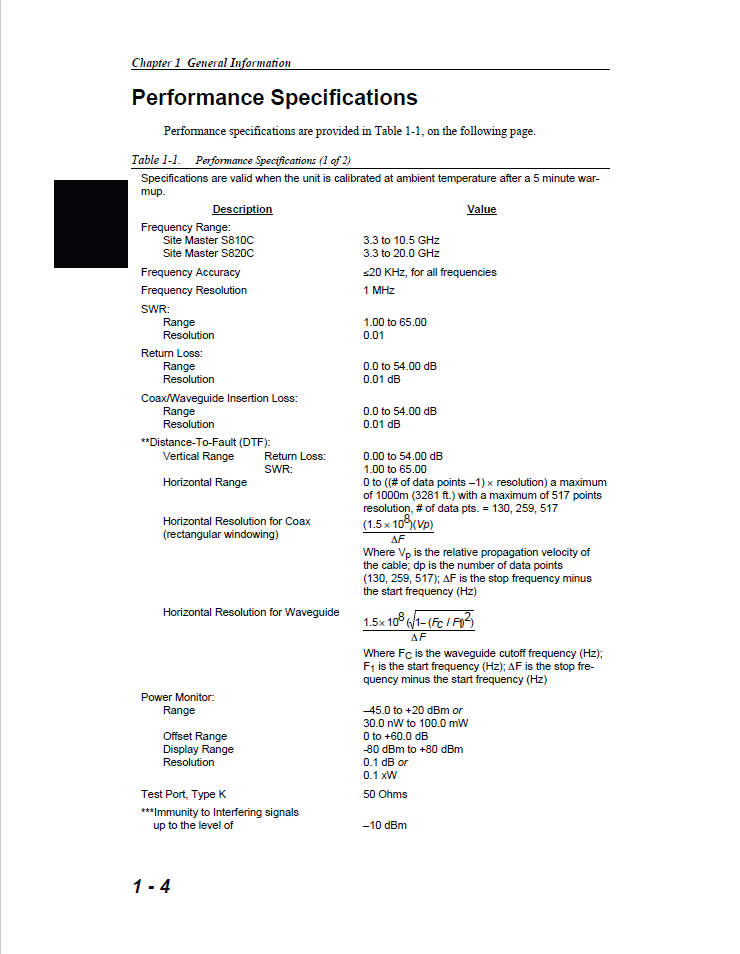

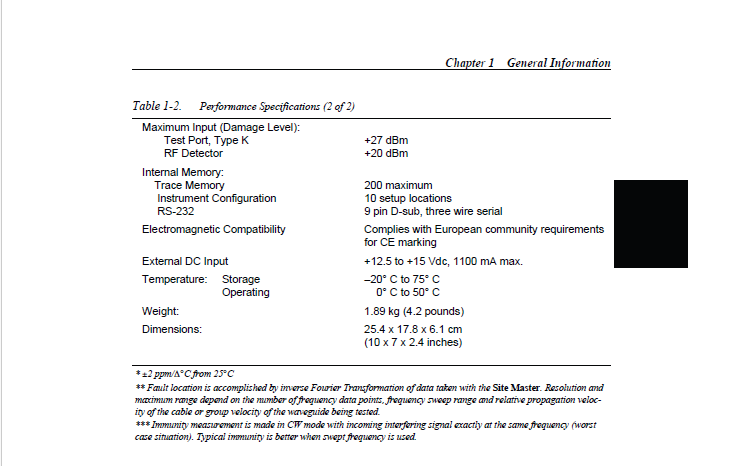

**PLEASE SEE SPEC SHEETS IN PHOTOS**

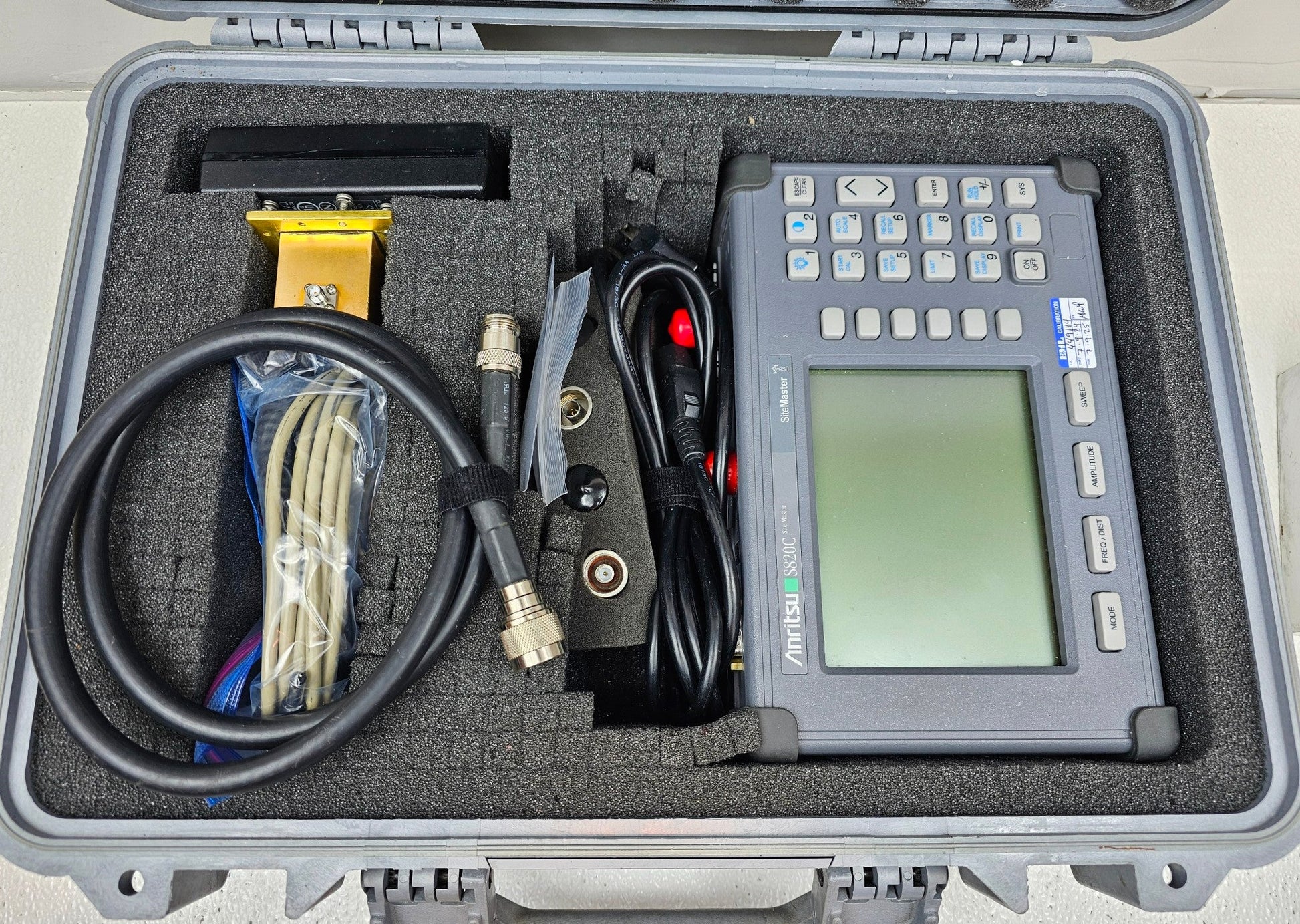

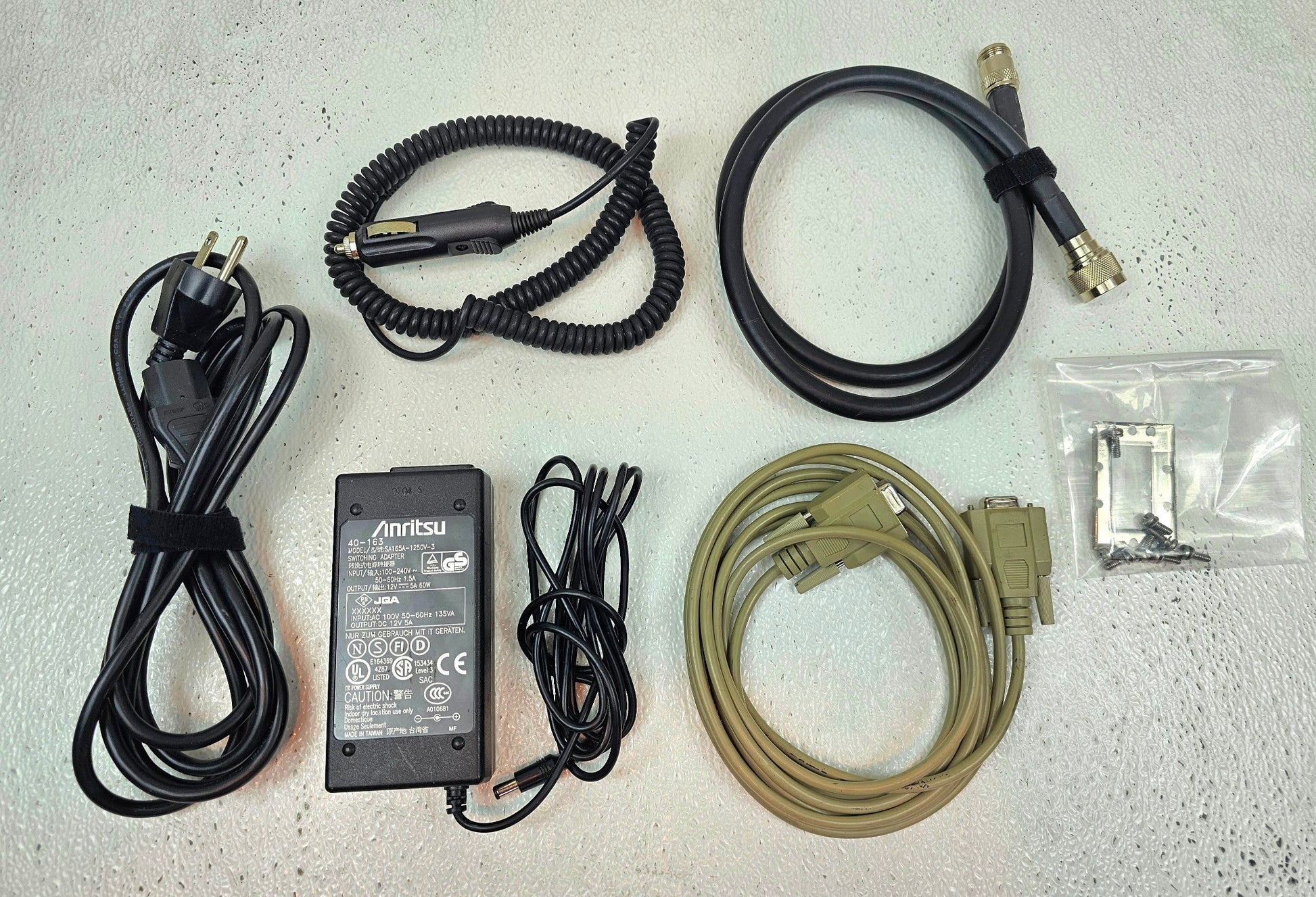

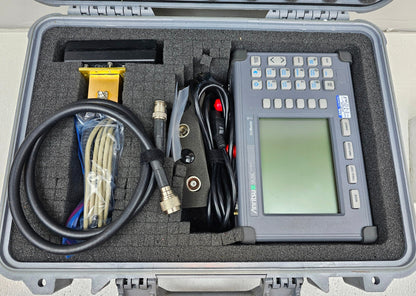

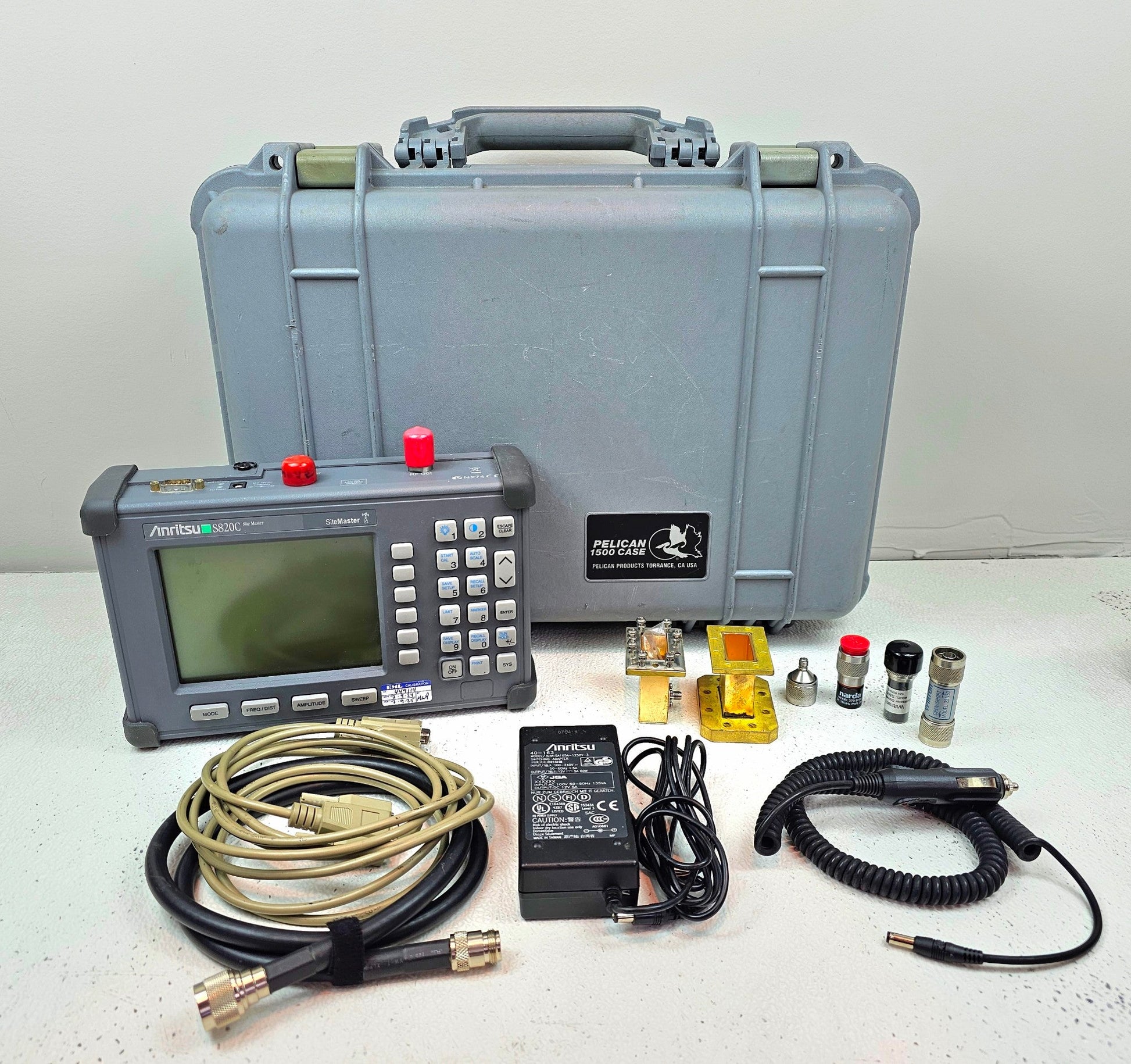

Unit Includes:

· Current Calibration

· New 10.8V 2100mAh NiMH Battery

· AC/DC Power Supply

· DC Power Cable

· NM-NF Phase Stable coaxial test cable

· Operators Guide

· Pelican 1500 Case

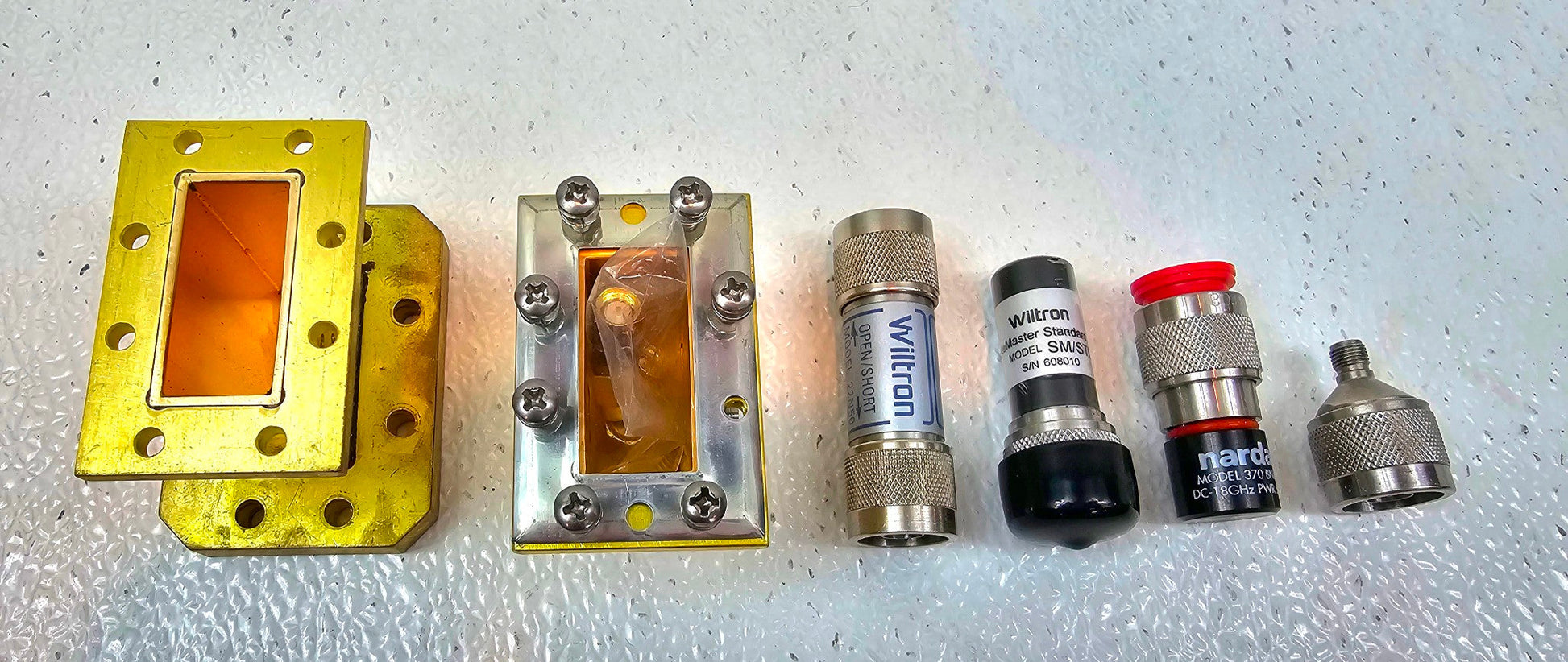

· Wiltron/Anritsu 18 GHz 22N50 Cal Kit with SM/PL Load

· Additional 18 GHz Narda 370BMN Load

· 18 GHz NM-SMAF Adapter

· SMA O/S/L

· Alcatel 695-5960-004 SMA Waveguide Adapter

· WR-137 Waveguide Adapter

· SMA-M_SMA-M TFLEX-402 18GHz coaxial test cable

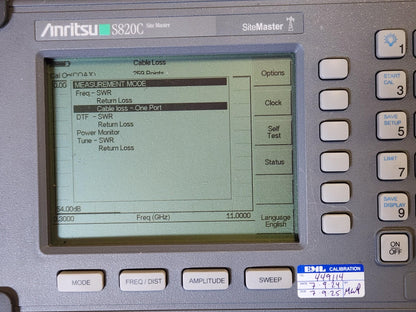

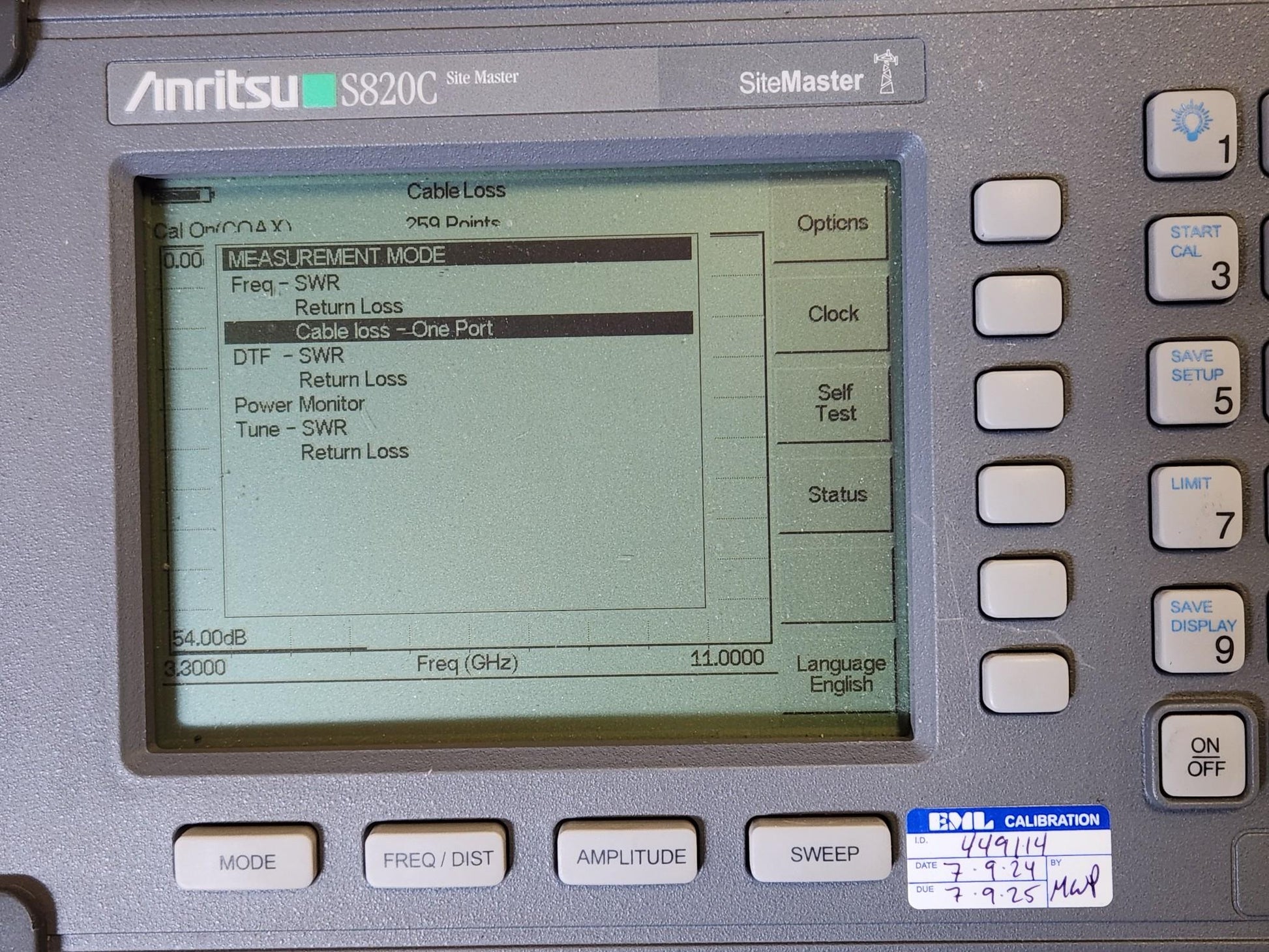

Measurements:

Freq: SWR

Return Loss

Cable Loss – One Port

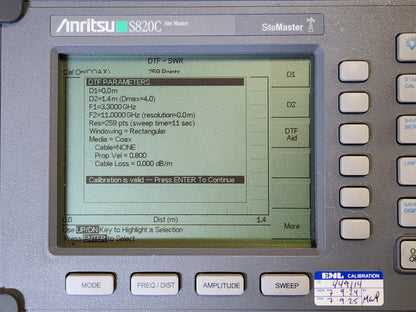

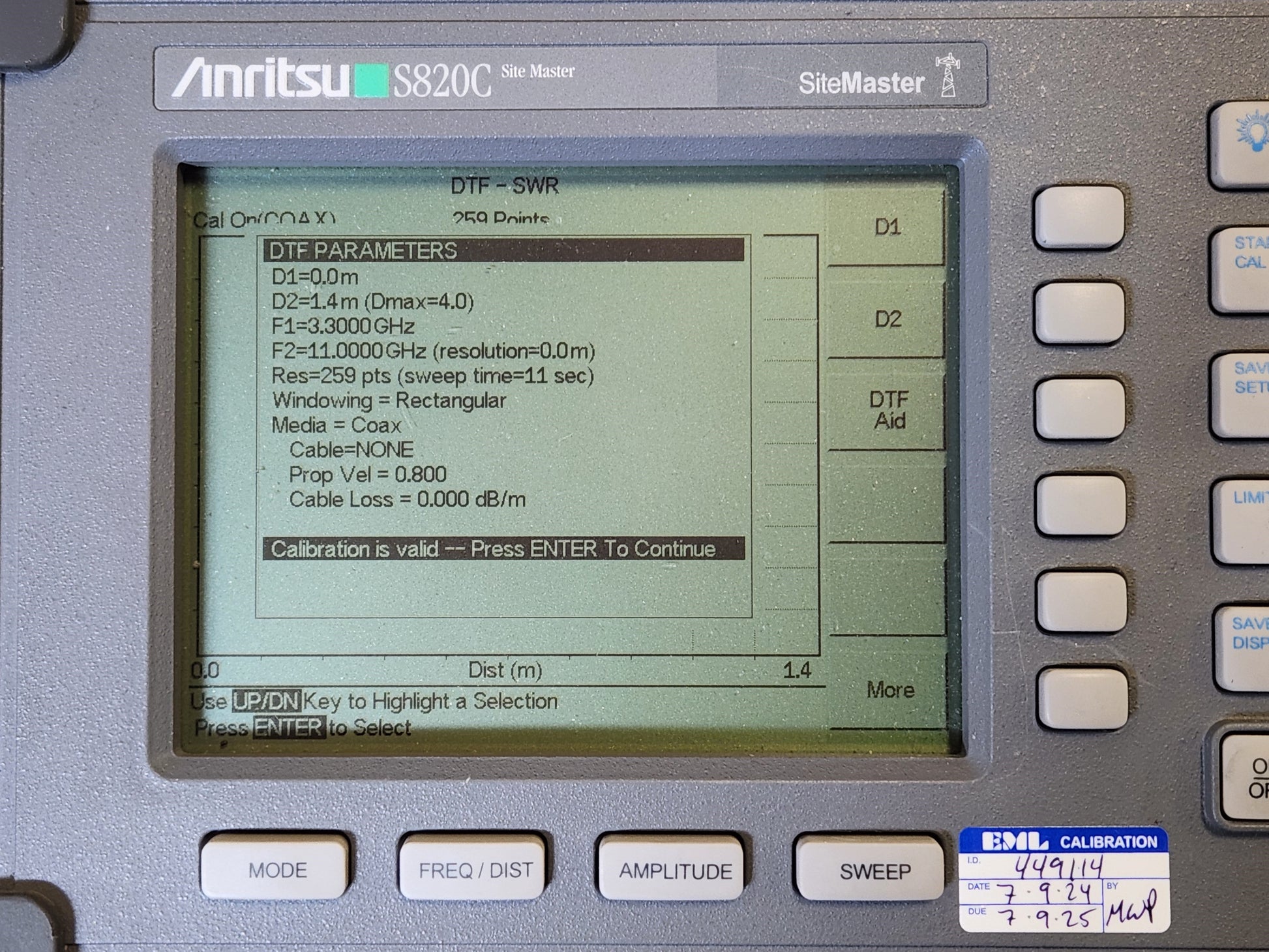

DTF: SWR

Return Loss

Tune: SWR

Return Loss
